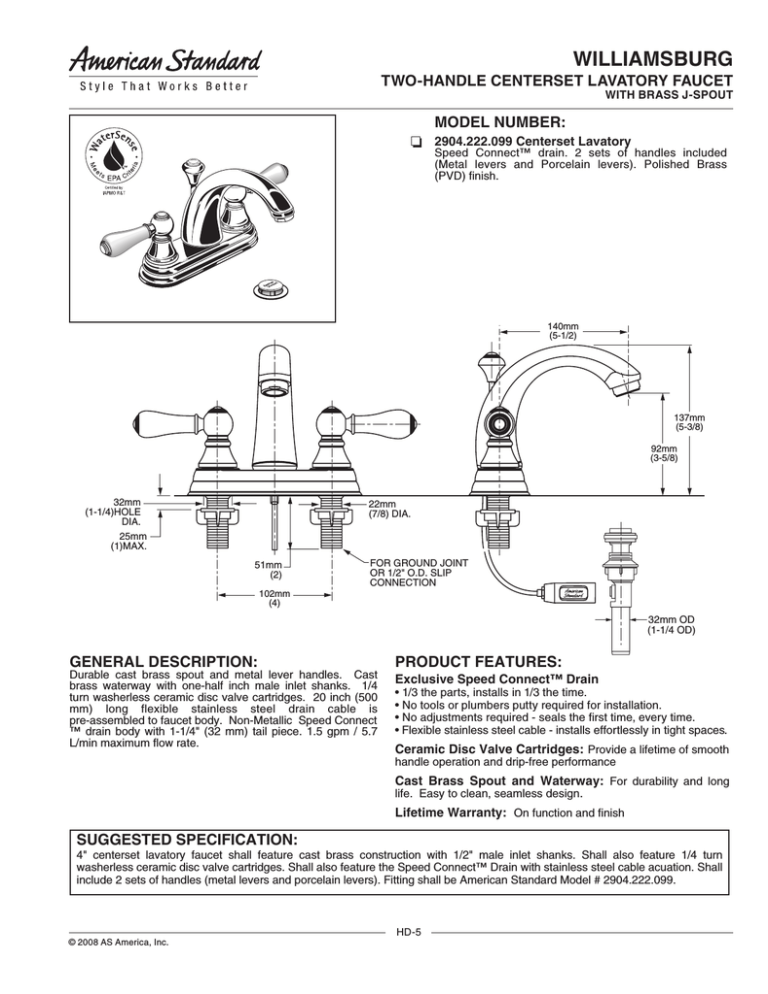

WILLIAMSBURG
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH BRASS J-SPOUT
MODEL NUMBER:
2904.222.099 Centerset Lavatory
Speed Connect™ drain. 2 sets of handles included
(Metal levers and Porcelain levers). Polished Brass
(PVD) finish.
140mm
(5-1/2)
137mm
(5-3/8)
92mm
(3-5/8)
32mm
(1-1/4)HOLE
DIA.
25mm
(1)MAX.
22mm
(7/8) DIA.
51mm
(2)
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
102mm
(4)
32mm OD
(1-1/4 OD)
GENERAL DESCRIPTION:
Durable cast brass spout and metal lever handles. Cast
brass waterway with one-half inch male inlet shanks. 1/4
turn washerless ceramic disc valve cartridges. 20 inch (500
mm) long flexible stainless steel drain cable is
pre-assembled to faucet body. Non-Metallic Speed Connect
™ drain body with 1-1/4" (32 mm) tail piece. 1.5 gpm / 5.7
L/min maximum flow rate.
PRODUCT FEATURES:
Exclusive Speed Connect™ Drain
• 1/3 the parts, installs in 1/3 the time.
• No tools or plumbers putty required for installation.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Ceramic Disc Valve Cartridges: Provide a lifetime of smooth
handle operation and drip-free performance
Cast Brass Spout and Waterway: For durability and long
life. Easy to clean, seamless design.
Lifetime Warranty: On function and finish
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall feature cast brass construction with 1/2" male inlet shanks. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Shall also feature the Speed Connect™ Drain with stainless steel cable acuation. Shall
include 2 sets of handles (metal levers and porcelain levers). Fitting shall be American Standard Model # 2904.222.099.
© 2008 AS America, Inc.
HD-5
WILLIAMSBURG
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH BRASS J-SPOUT
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ASME A112.18.1M
CSA B 125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product Number
Description
2904.222.099
Lavatory faucet with Non-Metallic Speed Connect™ pop-up drain. 2 sets of handles included
(metal levers and porcelain levers). Polished Brass (PVD) finish.
Meets the American Disabilities Act Guidelines and ANSI
A117.1 Requirements for the physically challenged.
© 2008 AS America, Inc.
HD-6
