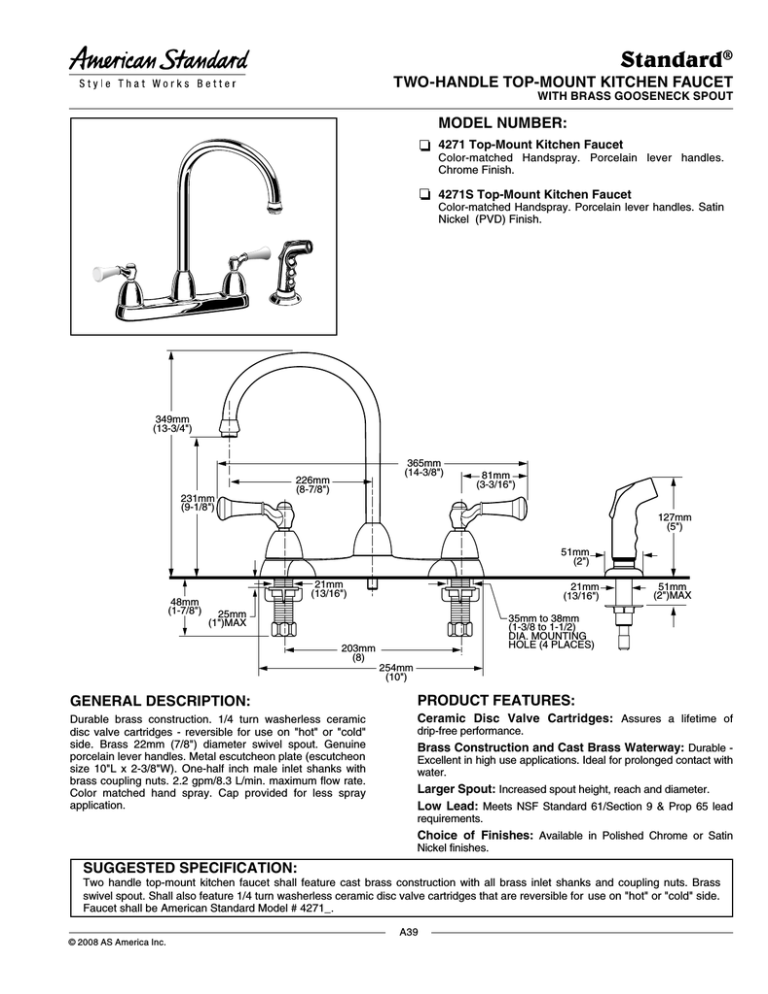

TWO-HANDLE TOP-MOUNT KITCHEN FAUCET
WITH BRASS GOOSENECK SPOUT
MODEL NUMBER:
4271 Top-Mount Kitchen Faucet
Color-matched Handspray. Porcelain lever handles.
Chrome Finish.
4271S Top-Mount Kitchen Faucet
Color-matched Handspray. Porcelain lever handles. Satin
Nickel (PVD) Finish.
349mm
(13-3/4")
231mm
(9-1/8")
365mm
(14-3/8")
226mm
(8-7/8")
81mm
(3-3/16")
127mm
(5")
51mm
(2")
48mm
(1-7/8")
21mm
(13/16")
21mm
(13/16")
25mm
(1")MAX
203mm
(8)
51mm
(2")MAX
35mm to 38mm
(1-3/8 to 1-1/2)
DIA. MOUNTING
HOLE (4 PLACES)
254mm
(10")
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable brass construction. 1/4 turn washerless ceramic
disc valve cartridges - reversible for use on "hot" or "cold"
side. Brass 22mm (7/8") diameter swivel spout. Genuine
porcelain lever handles. Metal escutcheon plate (escutcheon
size 10"L x 2-3/8"W). One-half inch male inlet shanks with
brass coupling nuts. 2.2 gpm/8.3 L/min. maximum flow rate.
Color matched hand spray. Cap provided for less spray
application.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Brass Construction and Cast Brass Waterway: Durable -
Excellent in high use applications. Ideal for prolonged contact with
water.
Larger Spout: Increased spout height, reach and diameter.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Choice of Finishes: Available in Polished Chrome or Satin
Nickel finishes.
SUGGESTED SPECIFICATION:
Two handle top-mount kitchen faucet shall feature cast brass construction with all brass inlet shanks and coupling nuts. Brass
swivel spout. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use on "hot" or "cold" side.
Faucet shall be American Standard Model # 4271_.
© 2008 AS America Inc.
A39
Standard®
TWO-HANDLE TOP-MOUNT KITCHEN FAUCET
WITH BRASS GOOSENECK SPOUT
CODES AND STANDARDS
FLOW RATE*
3.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9
2.5
2.0
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product
Number
Description
4271
Top-Mount Kitchen Faucet. Porcelain lever handles.Chrome finish.
4271S
Top-Mount Kitchen Faucet. Porcelain lever handles. Satin Nickel (PVD) finish.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2008 AS America Inc.
A40
