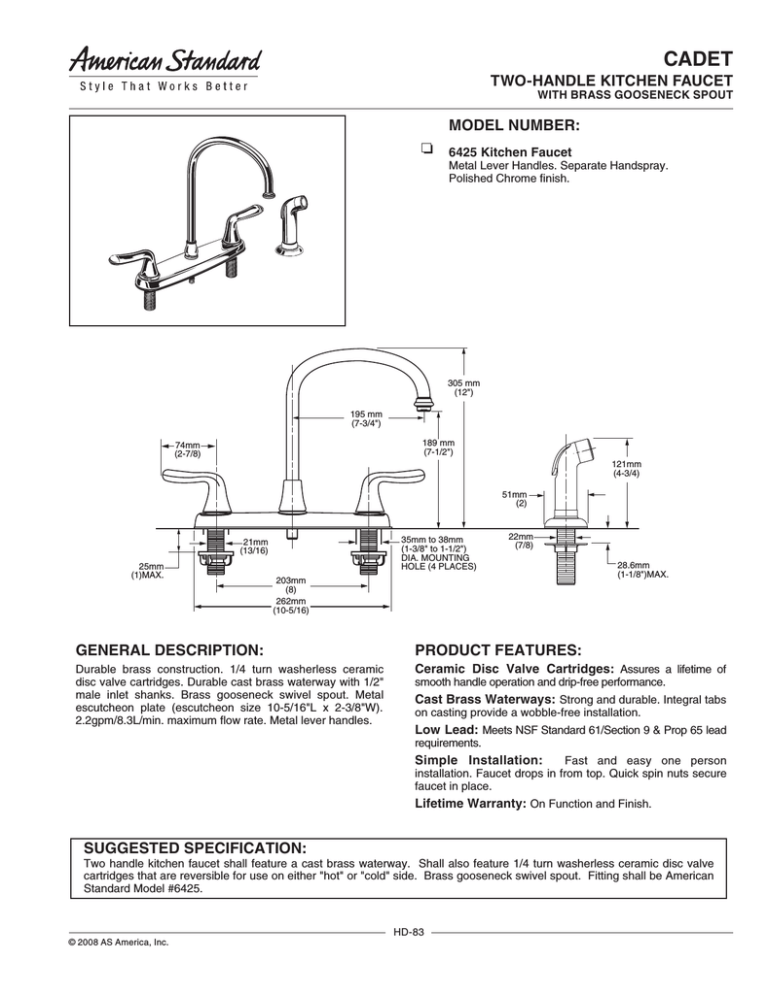

CADET
TWO-HANDLE KITCHEN FAUCET
WITH BRASS GOOSENECK SPOUT
MODEL NUMBER:
6425 Kitchen Faucet
Metal Lever Handles. Separate Handspray.
Polished Chrome finish.
305 mm
(12")
195 mm
(7-3/4")
189 mm
(7-1/2")
74mm
(2-7/8)
121mm
(4-3/4)
51mm
(2)
35mm to 38mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLE (4 PLACES)
21mm
(13/16)
25mm
(1)MAX.
22mm
(7/8)
203mm
(8)
262mm
(10-5/16)
28.6mm
(1-1/8")MAX.
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable brass construction. 1/4 turn washerless ceramic
disc valve cartridges. Durable cast brass waterway with 1/2"
male inlet shanks. Brass gooseneck swivel spout. Metal
escutcheon plate (escutcheon size 10-5/16"L x 2-3/8"W).
2.2gpm/8.3L/min. maximum flow rate. Metal lever handles.
Ceramic Disc Valve Cartridges: Assures a lifetime of
smooth handle operation and drip-free performance.
Cast Brass Waterways: Strong and durable. Integral tabs
on casting provide a wobble-free installation.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Simple Installation:
Fast and easy one person
installation. Faucet drops in from top. Quick spin nuts secure
faucet in place.
Lifetime Warranty: On Function and Finish.
SUGGESTED SPECIFICATION:
Two handle kitchen faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic disc valve
cartridges that are reversible for use on either "hot" or "cold" side. Brass gooseneck swivel spout. Fitting shall be American
Standard Model #6425.
© 2008 AS America, Inc.
HD-83
CADET
TWO-HANDLE KITCHEN FAUCET
WITH BRASS GOOSENECK SPOUT
CODES AND STANDARDS
FLOW RATE*
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9
ANSI A117.1
3.0
2.5
2.0
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product
Number
Description
6425
Kitchen faucet. Metal Lever handles. Separate White Handspray. Polished Chrome Finish.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2008 AS America, Inc.
HD-84
