Certifier Air Velocity Calibrator

Certifier Air Velocity Calibrator

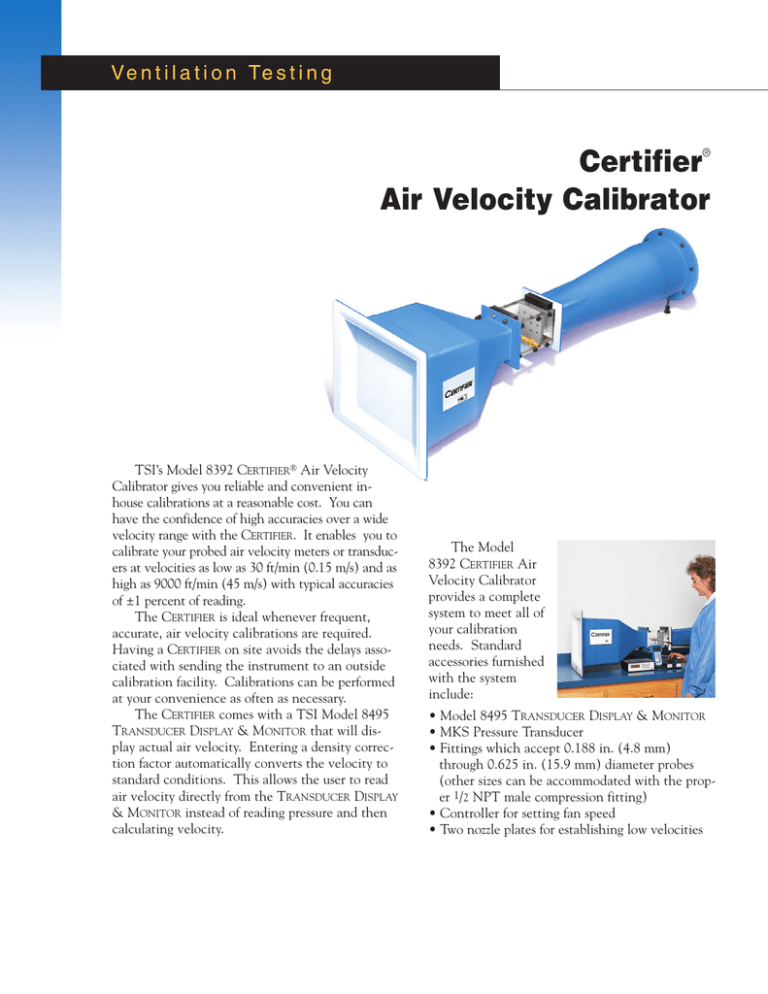

Ve n t i l a t i o n Te s t i n g
®
Certifier
Air Velocity Calibrator
TSI’s Model 8392 CERTIFIER® Air Velocity
Calibrator gives you reliable and convenient inhouse calibrations at a reasonable cost. You can
have the confidence of high accuracies over a wide
velocity range with the CERTIFIER. It enables you to
calibrate your probed air velocity meters or transducers at velocities as low as 30 ft/min (0.15 m/s) and as
high as 9000 ft/min (45 m/s) with typical accuracies
of ±1 percent of reading.
The CERTIFIER is ideal whenever frequent,
accurate, air velocity calibrations are required.
Having a CERTIFIER on site avoids the delays associated with sending the instrument to an outside
calibration facility. Calibrations can be performed
at your convenience as often as necessary.
The CERTIFIER comes with a TSI Model 8495
TRANSDUCER DISPLAY & MONITOR that will display actual air velocity. Entering a density correction factor automatically converts the velocity to
standard conditions. This allows the user to read
air velocity directly from the TRANSDUCER DISPLAY
& MONITOR instead of reading pressure and then
calculating velocity.
The Model
8392 CERTIFIER Air
Velocity Calibrator
provides a complete
system to meet all of
your calibration
needs. Standard
accessories furnished
with the system
include:
• Model 8495 TRANSDUCER DISPLAY & MONITOR
• MKS Pressure Transducer
• Fittings which accept 0.188 in. (4.8 mm)
through 0.625 in. (15.9 mm) diameter probes
(other sizes can be accommodated with the proper 1/2 NPT male compression fitting)
• Controller for setting fan speed
• Two nozzle plates for establishing low velocities
Specifications
Specifications
Model 8392 CERTIFIER Air Velocity Calibrator
Model 8495 Transducer Display & Monitor
Test Section Dimensions:
Feedthrough Hole:
Overall Dimensions:
Weight:
Power:
MKS Pressure Transducer
Range:
Accuracy:
Power:
4 in. × 4 in. (10.2 cm × 10.2 cm)
1/2” NPT
57 in. L × 17 in. W × 17 in. H
(145 cm × 43 cm × 43 cm)
30 lbs (14.6 kg)
115 or 230 VAC
(specify when ordering), 50/60 Hz
Accuracy(1&2)
tion
Time Constant
Display
Input Power
0 to 10 mmHg
0.15% of reading
115/230 VAC, 50/60 Hz switch selectable
Specifications subject to change without notice.
Specifications in parentheses ( ) indicate metric equivalents.
(ft/min)
1 to 20 seconds in 1 second intervals
5 digit LED
11-30 VDC or 18-28 VAC, requires
500mA maximum
1±.02% of reading/°C = .01% of reading /°F away from 25°C.
2±.025% of full scale= effect of EMI per IEC801-3.
(m/s)
Accuracy
(mmHg)
Typical
Turbulence
Intensity*
0.25-10.0
0.25%
Velocity Range
Nozzle Plate
±0.25% of reading, ±1 digit of resolu-
Pressure Drop
None
1500-9000
7.5-45
1.0% of reading ±15 ft/min
(±.075 m/s)
No. 1
250-1500
1.25-7.5
2.0% of reading ±5 ft/min
(±.025 m/s)
0.2-8.5
1.0%
No. 2
30-250
0.15-1.25
2.0% of reading ±2 ft/min
(±.01 m/s)
0.11-8.5
1.0%
Probe
Fitting
Test Section
Diffuser Section
Inlet Section
Orifice (Nozzle)
Test Section
Pressure Tap
Inlet Pressure Tap
TSI Incorporated
United States:
Tel:
Germany:
Tel:
Sweden:
Tel:
United Kingdom: Tel:
651 490 2811 Toll Free: 1 800 874 2811 Fax: 651 490 3824 E-mail: [email protected]
+49-241 523030 Fax: +49-241 523 0349 E-mail: [email protected]
+46-8-595-132 30 Fax: +46-8-595-132 39 E-mail: [email protected]
+44-1275-847837 Fax: +44-1275-842437 E-mail: [email protected]
or visit www.tsi.com to find your closest TSI Representative or distributor.
P/N 2980015 Rev. D . 3/05
Copyright © 2005 by TSI Incorporated
