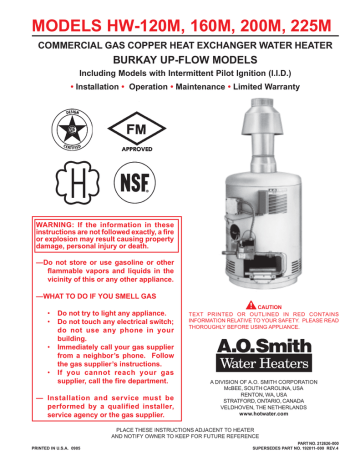

MODELS HW-120M, 160M, 200M, 225M

COMMERCIAL GAS COPPER HEAT EXCHANGER WATER HEATER

BURKAY UP-FLOW MODELS

Including Models with Intermittent Pilot Ignition (I.I.D.)

Installation

Operation

Maintenance

Limited Warranty

WARNING: If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

—WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

CAUTION

TEXT PRINTED OR OUTLINED IN RED CONTAINS

INFORMATION RELATIVE TO YOUR SAFETY. PLEASE READ

THOROUGHLY BEFORE USING APPLIANCE.

— Installation and service must be performed by a qualified installer, service agency or the gas supplier.

PRINTED IN U.S.A. 0905

A DIVISION OF A.O. SMITH CORPORATION

McBEE, SOUTH CAROLINA, USA

RENTON, WA, USA

STRATFORD, ONTARIO, CANADA

VELDHOVEN, THE NETHERLANDS

www.hotwater.com

PLACE THESE INSTRUCTIONS ADJACENT TO HEATER

AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE

PART NO. 212626-000

SUPERSEDES PART NO. 192011- 000 REV. 4

1

ROUGH-IN-DIMENSIONS

TABLE 1 - ROUGH-IN DIMENSIONS

Models HW-120M HW-160M HW-200M HW-200M

Dimensions Inches

A

49 3/8

mm

1254

Inches

50 1/8

mm

1273

Inches

53 1/4

mm

1353

Inches

60

mm

1524

B

C

D

30 3/8

23 5/8

20 3/4

772

600

527

30 3/8

23 5/8

20 3/4

772

600

527

33 1/8

27 1/8

20 3/4

841

689

527

33 1/8

27 1/8

20 3/4

841

689

527

E

F

G

5 1/2

10

11 13/16

140

254

5 1/2

10

140

254

300 11 13/16 300

5 1/2

10

11 13/16

140

254

300

5 1/2

10

11 13/16

140

254

300

H

J

6

26 11/16

152 7 178

678 26 11/16 678

7

26 11/16

178

678

7

26 11/16

K

20 3/4 527 20 3/4 527 20 3/4 527 20 3/4

L

1 1/4 NPT 1 1/4 NPT 1 1/4 NPT 1 1/4 NPT

527

M

1 NPT 1 NPT 1 NPT 1 NPT

178

678

N

1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT

W

1 3/4 44 1 3/4 44 1 3/4 44 1 3/4 44

Approx.

Shipping

Weight

120 lbs.

54 Kg.

155 lbs.

70 Kg.

165 Lbs.

75 Kg.

175 lbs.

79 Kg.

HEATER PERFORMANCE DATA

NOTE: To compensate for the effects of high altitude areas above 2000 feet, input rating, and therefore recovery ratings, should be reduced approximately 4% for each 1000 feet above sea level.

TABLE 2 - RECOVERY CAPACITIES

U.S. Gallons/Hrs. and Litres/Hr. at TEMPERATURE RISE INDICATED

Model

HW-120M

Input

Btuh

F° 20F° 30F° 36F° 40F° 50F° 54F° 60F° 70F° 72F° 80F° 90F° 100F° 108F° 110F° 120F° 126F° 130F° 140F°

KW C° 11.1C° 16.6C° 20C° 22.2C° 27.7C° 30C° 33.3C° 38.8C° 40C° 44.4° 50C° 55.5C° 60C° 61.1C° 66.6C° 70C° 72.2C° 77.7C°

120,000 GPH 605 403 336 303

35 LPH 2290 1527 1272 1145

242

916

224

848

202

763

173

654

168

636

151

573

134

509

121

458

112

242

110

416

101

382

96

364

93

352

86

327

160,000 GPH 777 518 432 388 311 288 259 222 216 194 173 155 144 141 129 123 120 111

HW-160M

HW-200M

HW-2250M

199,000

225,000

47 LPH 2941 1961 1634 1471

GPH 987 658 548 494

1176 1089 980

395 366 329

840

282

817

274

735 654

247 219

58 LPH 3737 2491 2076 1869 1495 1384 1246 1068 1038 934 830

GPH 1096 731 609 548 438 406 365 313 304 274 244

66 LPH 4149 2766 2305 2074 1659 1537 1383 1185 1152 1037 922

588

197

747

219

830

545

183

692

203

768

535

179

679

199

754

490

165

623

183

691

467

157

593

174

659

452

152

575

169

638

420

141

534

157

593

Recovery rating of models shown in chart above are obtained by actual efficiency test data by recognized Certification Agency.

NOTE:

Recovery rate shown on each models rating plate is based on the requirements of ANSI Standard Z21.10.3, which stipulates the data to be based on energy efficiency of 75%.

TABLE 3 - CAPACITY AND GAS AND ELECTRIC CHARACTERISTICS

Manifold Pressure Maximum Supply Pressure Electrical Characteristics

Model

HW-120M thru 225M

HW-120M thru 200M

Type of Gas

NATURAL

PROPANE

Inches W.C.

3.5

10

kPa

0.87

2.49

Inches W.C.

10.5

13.0

kPa

2.61

3.23

Volts/Hz

120/60

120/60

Amperes

<5

<5

Minimum Supply Pressure, Natural Gas: 4.5 inches W.C. (1.12 kPa)

Minimum Supply Pressure, Propane Gas: 11.0 inches W.C. (1.74 kPa)

Minimum Pressure must be maintained under both load and no load (static and dynamic) conditions.

2

FOREWORD

This design complies with the latest edition of the ANSI Standard

Z21.10.3 for gas water heaters Vol. III Storage Water Heaters with input ratings above 75,000 BTU per hour Circulating and

Instantaneous.

Detailed installation diagrams are in this manual. These diagrams will serve to provide the installer with a reference for the materials and method of piping suggested. IT IS ESSENTIAL THAT ALL

WATER AND GAS PIPING AND THE ELECTRICAL WIRING BE

INSTALLED AND CONNECTED AS SHOWN IN THE DIAGRAMS.

You should thoroughly read and understand this manual before installation and operation of this unit.

CHECK THE DIAGRAMS THOROUGHLY BEFORE STARTING

INSTALLATION TO AVOID POSSIBLE ERRORS AND TO

MINIMIZE TIME AND MATERIALS COST.

Particular attention should be given to the installation of thermometers at the locations indicated in the diagrams as these are necessary for checking the operation of the heater.

MAKE SURE THE GAS ON WHICH THE HEATER WILL

OPERATE IS THE SAME AS THAT SPECIFIED ON THE HEATER

MODEL AND RATING PLATE.

The factory warranty will be void if the unit(s) have been improperly installed or operated.

In addition to these instructions, the boiler(s) shall be installed in accordance with those installation regulations in force in the local area where the installation is to be made. These shall be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made.

In absence of local codes, the installation must comply with the latest editions.

In the United States:

The National Fuel Gas Code, ANSI Z223.1 and the National

Electric Code, NFPA 70.

In Canada:

The Installation Code CAN/CGA B149.1 and .2 (latest edition) and the Canadian Electric Code, CSA C22.1.

These are available from the Canadian Standards Association,

8501 East Pleasant Valley Road, Cleveland, OH 44131, USA, or,

Canadian Gas Association Laboratories, 55 Scarsdale Road, Don

Mills, Ontario M3B 2R3, Canada.

TABLE OF CONTENTS

PAGE

ROUGH-IN DIMENSIONS ..................................................................

FOREWORD .......................................................................................

GENERAL SAFETY INFORMATION ..................................................

2

3

3

Precautions ....................................................................................

3-4

Grounding Instructions ...................................................................

Chemical Vapor Corrosion .............................................................

Liquid Petroleum Models ................................................................

High Altitude Installations ...............................................................

FEATURES .........................................................................................

4

4

4

4

5

Automatic Gas Shutoff Control .......................................................

Protector Switch (Coil High Limit) ...................................................

5

5

Thermal Balancer ...........................................................................

5

Intermittent Ignition Control Module ................................................

5-6

Circulating Pump ............................................................................

6

Tank Temperature Control (Not Supplied) ......................................

6

Safety Flow Switch (Not Supplied) .................................................

6-7

Drain Valve (Not Supplied) .............................................................

Thermometers (Not Supplied) ........................................................

INSTALLATION INSTRUCTIONS .......................................................

7

7

8

Important ........................................................................................

Required Ability ..............................................................................

Location .........................................................................................

Installation Clearances ...................................................................

Levelling .........................................................................................

Air Requirements ...........................................................................

8-9

Venting ...........................................................................................

9

Relief Valve ....................................................................................

9-10

Hard Water .....................................................................................

10

Closed Water System ....................................................................

10

8

8

8

8

8

Water Line Connections ................................................................

10

Water (Potable) Heating ................................................................

10

PAGE

PIPING DIAGRAMS ............................................................................

11-13

Gas Connections ........................................................................... 14-15

Electrical Information ..................................................................... 15-16

OPERATION ........................................................................................

17

Important .......................................................................................

General ...........................................................................................

Filling ..............................................................................................

Purging Of Gas Line ......................................................................

Operating Instructions For I.I.D Models. .......................................

17

17

17

17

18

Checking And Adjusting The Input .................................................

SERVICE INFORMATION ..................................................................

19

20

Pilot And Main Burner Maintenance ...............................................

20

I.I.D. Pilot Burner ........................................................................... 20-21

Protector Switch (Coil High Limit-All Heaters) ...............................

21

Tank Temperature Control ..............................................................

Automatic Gas Shutoff Control .....................................................

21

21

Thermal Balancer ...........................................................................

21

Inspecting The Heat Exchanger And Venting System .................. 21-22

Gas Pressure Regulator ................................................................

22

Relief Valve ...................................................................................

Circulating Pump ............................................................................

Electrical Service ...........................................................................

Replacement Parts ........................................................................

PREVENTIVE MAINTENANCE ...........................................................

Recommended Procedure For Periodic Removal Of Lime

Deposits From Coil Type Commercial Water Heaters .................

22-23

Deliming Solvents ..........................................................................

Removing Light Deposits ..............................................................

23

23

Heavy Lime Deposits ................................................................... 23-24

22

22

22

22

22

CHECKOUT ........................................................................................ 24-27

LIMITED WARRANTY ........................................................................

28

GENERAL SAFETY INFORMATION

PRECAUTIONS

If the unit is exposed to the following, do not operate heater until all corrective steps have been made by a qualified serviceman:

1. FLOODING TO LEVEL OF BURNER OR CONTROLS OR

HIGHER.

2. EXPOSURE TO FIRE.

3

3. IF DAMAGED.

4. FIRING WITHOUT WATER.

5. SOOTING.

KEEP THE HEATER AREA CLEAR AND FREE FROM

COMBUSTIBLE MATERIALS, GASOLINE AND OTHER

FLAMMABLE VAPORS AND LIQUIDS. AREA AROUND HEATER

MUST NOT CONTAIN OBSTRUCTING MATERIAL TO THE

FLOW OF COMBUSTION AND VENTILATING AIR.

SHOULD OVERHEATING OCCUR OR THE GAS SUPPLY FAIL

TO SHUT OFF, TURN OFF THE MANUAL GAS CONTROL

VALVE TO THE APPLIANCE.

HIGH ALTITUDE INSTALLATIONS

Heater must be protected from freezing downdrafts during shutdown periods.

GROUNDING INSTRUCTIONS

This water heater must be grounded in accordance with the

National Electric Code and/or local codes. These must be followed in all cases.

WARNING

INSTALLATIONS ABOVE 2000 FEET REQUIRE REPLACEMENT

OF THE BURNER ORIFICE IN ACCORDANCE WITH SECTION

8.1.2 OF THE NATIONAL FUEL GAS CODE (ANSI Z223.1). FOR

CANADIAN INSTALLATIONS CONSULT CANADIAN

INSTALLATION CODES AND CAN/CGA B149. FAILURE TO

REPLACE THE ORIFICES WILL RESULT IN IMPROPER AND

INEFFICIENT OPERATION OF THE APPLIANCE RESULTING

IN THE PRODUCTION OF INCREASED LEVELS OF CARBON

MONOXIDE GAS IN EXCESS OF SAFE LIMITS WHICH COULD

RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This water heater must be connected to a grounded metal, permanent wiring system; or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the water heater.

You should contact your gas supplier for any specific changes which may be required in your area.

CHEMICAL VAPOR CORROSION

WARNING

CORROSION OF THE FLUEWAYS AND VENT SYSTEM MAY

OCCUR IF AIR FOR COMBUSTION CONTAINS CERTAIN

CHEMICAL VAPORS. SUCH CORROSION MAY RESULT IN

FAILURE AND RISK OF ASPHYXIATION.

Spray can propellants, cleaning solvents, refrigerator and air conditioning refrigerants, swimming pool chemicals, calcium and sodium chloride (water softener salt), waxes, and process chemicals are typical compounds which are potentially corrosive.

Do not store products of this sort near the heater. Also, air which is brought in contact with the heater should not contain any of these chemicals. If necessary, uncontaminated air should be obtained from remote or outside sources. The limited warranty is voided when failure of water heater is due to a corrosive atmosphere. (Refer to the limited warranty for complete terms and conditions.)

LIQUID PETROLEUM MODELS

Water heaters for propane or liquefied petroleum gas (LPG) are different from natural gas models. A natural gas heater will not function safely on LP gas and no attempt should be made to convert a heater from natural to LP gas.

LP gas must be used with great caution. It is highly explosive and heavier than air. It collects first in low areas making odor difficult to detect at nose level. If LP gas is present or even suspected, do not attempt to find the cause yourself. Go to a neighbor’s house, leaving your doors open to ventilate the house, then call your gas supplier or service agent. Keep area clear until a service call has been made.

At times you may not be able to smell an LP gas leak. One cause is odor fade, which is a loss of the chemical odorant that gives LP gas its distinctive smell. Another cause can be your physical condition, such as having a cold or diminishing sense of smell with age. For these reasons, the use of a propane gas detector is recommended.

IF YOU EXPERIENCE AN OUT-OF-GAS SITUATION, DO NOT

TRY TO RELIGHT APPLIANCES YOURSELF. Only trained LP professionals should conduct the required safety checks in accordance with industry standards.

As elevation above sea level is increased, there is less oxygen per cubic foot of gas. Therefore, the heater input rate should be reduced at high altitudes for satisfactory operation with the reduced oxygen supply. Failure to make this reduction could result in an overfiring of the heater, causing sooting, poor combustion and/or unsatisfactory heater performance.

U.S. REQUIREMENTS

Ratings specified by manufacturers for most appliances apply for elevations up to 2000 feet (610m). For elevations above 2000 feet (610m), ratings must be reduced at the rate of 4% for each

1000 feet (305m) above sea level. For example, if a heater is rated at 120,000 Btuh (35 Kwh) at sea level, to rate the heater at

4000 feet (1219m), you subtract 4 (once for each thousand feet) x .04 (4% input reduction) x 120,000 (original rating) from the original rating. Therefore, to calculate the input rating at 4,000 feet (121.9m): 4 x .04 x 120,000=19,200 Btuh (5.6 Kwh), 120,000

(35 Kwh) - 19,200 (5.6Kwh)=100,000 Btuh (29.4 Kwh). At 6000 feet (1829m) the correct input rating should be 91,200 Btuh (26.7

Kwh).

CANADIAN REQUIREMENTS

Appliances with inputs up to and including 400,000 BTU (117.2

Kw) must be factory equipped with orifices for operation at specific elevations. Standard (sea level) orifices permit operation up to

2000’ (610m) elevation. For operation between 2000’ (610m) and 4500’ (1370m) specify “HIGH ALTITUDE OPERATION” when ordering the heater(s). For operation above 4500’ (2370m) consult factory before ordering.

Field conversion for operation at altitudes other than that specified on the heater rating plate is not permitted.

The input reduction is primarily achieved by reducing the size of the main burner orifice. To do this, the main burner orifices require replacement with orifices sized for the particular installation elevation. Correct orifice sizing and parts may be obtained from

A.O. Smith Water Products Company. When ordering, be sure to state the model number and the altitude of the location where the water heater is being installed.

Upon completion of derating of the heater, adjustment to the gas pressure regulator may be required. See CHECKING THE INPUT section in this manual for inlet and manifold pressure requirements.

Also due to the input rating reduction required at high altitudes, the output rating of the appliance is reduced and should be compensated for in the sizing of the equipment for the application.

4

FEATURES

TABLE 4.

Control Device

Heater Automatic Gas Shutoff Control

Heater Protector Switch

Tank Temperature Control

Safety Flow Switch

Factory Setting

195

0

F (90.5°C) cut out temp.

Fixed 190

0

F (87.7°C) cut in temp.

250

0

F (121°C) cut out temp.

Fixed 200

0

F (93.3°C) cut in temp.

Field Supplied and Installed

See Table 1

Field Adjustment

Non-adjustable

Non-adjustable

Adjust to Requirements

Field Adjustable

AUTOMATIC GAS SHUTOFF CONTROL

The automatic gas shutoff control, fig. 1, is an automatic safety device which activates at a water temperature of approximately

195

0

F (90.5°C). This limits the water outlet temperature to a maximum of 200

0

F (87.7°C).

The device is wired in series with the gas valve. The control will automatically reset when the water temperature cools to approximately 190 o

F (87.7°C).

Should the automatic gas shutoff control activate during a heating cycle, the heater’s gas valve will close; extinguishing the main burners. The pilot burner will also be extinguished. The circulating pump will continue operating as long as the storage tank thermostat continues to “call for heat”. When the water temperature in the heater drops to 180 0 F (82.2°C) or below the control module will begin an ignition cycle which will relight the pilot burner and main burners. Re-ignition of the main burners will occur if the storage tank thermostat continues to call for heat.

Otherwise, the normal operating cycle will resume on the thermostat’s next call for heat.

FIGURE 2

DO NOT RESET THIS SWITCH WITHOUT PERFORMING THE

SYSTEM CHECKS OUTLINED UNDER PROTECTOR SWITCH

IN THE SERVICE INFORMATION SECTION. ALSO, SEE CHART

ONE UNDER THE CHECKOUT SECTION. IF NECESSARY,

CALL A QUALIFIED SERVICEMAN. Once the cause of the protector switch activation has been determined and corrected, it will be necessary to restart the heater following the LIGHTING

AND OPERATING instructions.

THERMAL BALANCER

The thermal balancer (standard on Models HW-200M and

HW-225M, optional on Models HW-120M and HW-160M) is a snap-acting single-pole thermal relay used only on Cer-Temp 80

Recovery systems. It gives immediate pump start but delay of pump shutoff for approximately 2 minutes. Residual heat in the heat exchanger is then recovered after shutdown. This improves efficiency and balances heater temperature with tank temperature at shutdown.

AUTOMATIC GAS SHUTOFF CONTROL

FIGURE 1

INTERMITTENT IGNITION CONTROL MODULE

PROTECTOR SWITCH

(Coil High Limit)

This heater is equipped with a manually reset protector switch,

Figure 2, located under the small cover on the side of the jacket.

This device provides positive shutdown of the heater in the event of heater or system malfunction. Should the surface temperature of the copper tubing heat exchanger reach 250 0 F (121.1°C), the protector switch will activate. The gas valve will close, and the pilot and main burners will be extinguished. To resume heater operation, the protector switch must be manually reset (remove the protector switch cover and push the reset button) after the coil surface temperature cools to less than 200 0 F(93.3°C).

The Honeywell S-8600 control module contain the electronic components of the system and also serve as a central wiring system for the controls mounted on the heater. The control module performs the following functions:

1. Checks for safe-start by sensing for a flame or false flame condition on start-up.

2. Generates a potential of 15,000 volts for spark ignition of the pilot burner.

5

3. Opens the pilot valve.

4. Discontinues ignition spark when the pilot flame is established.

The S-8600 control used on propane gas models provides safety lockout if the pilot fails to ignite within the pilot flame establishing period. The S-8600 control used on natural gas models continues trial for ignition until pilot flame is established.

5. After proof-of-pilot flame, opens the main valve.

6. On a power loss, shuts the heater down. When power is restored it will begin a new ignition cycle.

7. On a loss of flame, shuts off main gas and starts trial for pilot ignition.

INTERMITTENT IGNITION CONTROL MODULE (I.I.D.)

FIGURE 3

Follow the same oiling procedure if a replacement circulator is installed into the system.

TANK TEMPERATURE CONTROL

(Not Supplied)

DANGER

USE ANTI-SCALD VALVE(S) in the hot water system to reduce the risks of scalds at points of use such as lavatories, sinks and bathing facilities.

The tank temperature control is located in the lower portion of the hot water storage tank, see PIPING DIAGRAMS. It is the primary operating control of the system and regulates the water temperature in the tank.

The storage tank thermostat should have contact ratings that exceed the maximum electrical requirements of the system.

Typically, the thermostat should have motor full load and locked rotor current ratings which exceed the total amount of current required to drive the pump(s) controlled by the thermostat.

The thermostat should have a temperature range of 100

0

F

(37.7°C) to 180 0 F (82.2°C) or more. The preferred initial setting for the storage tank thermostat is 120

0

F (48.8°C). However, for normal use, the thermostat should be adjusted to the lowest setting which produces an acceptable hot water supply temperature. This will always give the most energy efficient operation. Do not adjust the thermostat to achieve a storage temperature of 190 o F (87.7°C) or above. This action may cause the automatic gas shutoff control to activate shutting down the heater.

Intermittent ignition device and circulator start and stop simultaneously as the tank thermostat contacts open and close.

This basic action, water flowing whenever the burner operates, must not be altered.

CIRCULATING PUMP

Constant circulating pump operation of the heater voids the warranty. Constant water flow through the unit will “wash” away the copper’s natural protective coating. This is called velocity erosion. This erosion is not as great a problem when intermittent circulating operation is used per the recommended installation procedure. Constant circulation of water between the storage tank and the building is permissible as long as the water does not constantly flow through the heater.

Only all bronze circulators are used with commercial water heaters.

Although circulators are oiled and operated by the manufacturer,

THEY MUST BE OILED AGAIN BEFORE OPERATED. Oil the three oil cups (2 on the motor, 1 on the pump) as instructed by manufacturer. See fig. 4.

Thereafter, lubricate the three oil cups at least once every 4 months.

TYPICAL CIRCULATING PUMP

FIGURE 4

Use 2 or 3 teaspoonsful in bearing oil cups, and 10 or 12 drops in the motor oil cups. Use no. 20 non-detergent motor oil.

SAFETY FLOW SWITCH

(Not Supplied)

The safety flow switch is a safety device installed at the water outlet of the unit to prevent main burner operation in the event of inadequate water flow through the unit.

An accessory package A.O.S. No. 211480 containing a safety flow switch is available for this application.

This switch may be mounted in a horizontal pipe line or a vertical pipe line with upward water flow. Do not install the switch where the water flow is downward.

For proper performance mount the switch in a section of pipe where there is a straight run of at least 5 pipe diameters on each side of the flow switch (i.e. do not locate adjacent to valves, elbows, orifices, etc.).

The flow switch shall be mounted in a standard 1" x 1" x 1" tee for a 1" pipe application. For larger pipe sizes use a reducing tee in order to keep the switch as close to the pipe as possible. Install the flow switch in the branch (top) opening of the reducing tee and provide adequate paddle length in the flow stream. For example in a 2" pipe installation use a 2" x 2" x 1" reducing tee.

For 1", 2" or 3" pipe use the paddle segments as supplied. For other pipe sizes (i.e. 1 1/4", 1 1/2", and 2 1/2") trim the paddle to the proper pipe size, see fig. 5. If a standard tee is used, install a face or hex bushing in the top opening. The paddle must be adjusted or trimmed to the size of the pipe in which it will be installed.

6

CAUTION: The paddle must be trimmed at the dotted arc. It must not touch the pipe or any restrictions when installed.

FIGURE 5

CAUTION

Any part of the paddle must not touch the pipe or any restrictions in the pipe. Screw the flow switch in position so the flat of the paddle is at right angles to the flow. The arrow on the side case must point in the direction of the flow.

The safety flow switch may be field adjusted to obtain higher minimum flow rates than those shown in Table 5.

To adjust the flow rate setting:

1. Remove the flow switch cover.

2. For higher flow rate—turn the range adjusting screw clockwise.

3. For lower flow rate—turn the range adjusting screw counterclockwise.

The installer is cautioned to follow the manufacturer’s instructions exactly when inserting this switch into a pipe tee. This is necessary in order to assure positive action of the switch with water flow.

Once the minimum flow rate (Table 5) through the heater is reached, the safety flow switch contacts close and consequently, main burner operation is achieved.

manual.

DRAIN VALVE (Not Supplied)

A drain valve must be obtained and installed on each heater and tank for draining purposes, see installation diagrams in this

THERMOMETERS (Not Supplied)

CAUTION

The switch is factory set at approximately the minimum flow rate, see Table 5. It must not be set lower than the factory setting as this may result in the switch failing to return at a

“no flow” condition .

4. Replace the flow switch cover.

TABLE 5 - SAFETY FLOW SWITCH SETTINGS

Minimum Flow Rate (GPM)

Contacts Close Contacts Close Pkg.

Model

HW-120M,160M

GPM LPM

0.6

2.3

GPM

0.3

LPM

1.1

No.

211480

HW-200M 4.2

15.9

2.5

9.5

211480

HW-225M 5.8

22.0

3.7

14.0

211480

Thermometers should be obtained and field installed as shown in the installation diagrams.

Thermometers are installed in the system as a means of detecting a possible liming condition in the heater. An increase of 5 0 F over the normal temperature rise through the heater is an indication that lime is present. The term “temperature rise” designates the difference between the heater inlet and outlet water temperatures.

An increase of 5 0 F (3°C) above the recorded temperature rise may signify a liming condition in the coils or heat exchanger. Refer to PREVENTIVE MAINTENANCE section of this manual for deliming instructions.

7

Record temperature rise at initial start-up for future reference.

INSTALLATION INSTRUCTIONS

IMPORTANT

For appliance installation in locations with elevations above 2,000 feet (600M), refer to HIGH ALTITUDE INSTALLATIONS section of this manual for input reduction procedure.

Strict adherence to installation wiring diagrams shown in this manual is required to prevent constant pump operation when the system temperature control is satisfied, otherwise the warranty is void as stipulated under item 2a (6) of the LIMITED WARRANTY.

INSTALLATION CLEARANCES

REQUIRED ABILITY

These units are approved for installation in an alcove having minimum clearances from combustible construction of 44"

(1,118mm) from top of the jacket, 6" (152.4mm) from sides, and

6" (152.4mm) from rear and vent connections.

INSTALLATION OR SERVICE OF THIS WATER HEATER

REQUIRES ABILITY EQUIVALENT TO THAT OF A LICENSED

TRADESMAN IN THE FIELD INVOLVED. PLUMBING, AIR

SUPPLY, VENTING, GAS SUPPLY AND ELECTRICAL WORK

ARE REQUIRED.

All models may be installed on combustible flooring.

LOCATION

When installing the heater, consideration must be given to proper location. Location selected should be as close to the stack or chimney as practicable with adequate air supply, and as centralized with piping system as possible.

DO NOT INSTALL THIS WATER HEATER DIRECTLY ON A

CARPETED FLOOR. A FIRE HAZARD MAY RESULT. Instead the water heater must be placed on a metal or wood panel extending beyond the full width and depth by at least 3 inches

(76.2mm) in any direction. If the heater is installed in a carpeted alcove, the entire floor shall be covered by the panel. Also, see the DRAIN REQUIREMENTS.

THE HEATER SHOULD NOT BE LOCATED IN AN AREA WHERE

IT WILL BE SUBJECT TO FREEZING.

It is recommended that at least 24" (610mm) be provided on the left side and front of the unit for accessibility and proper servicing.

In a utility room installation, the door shall be wide enough to allow the heater to enter or to permit the replacement of another appliance.

LOCATE IT NEAR A FLOOR DRAIN. THE HEATER SHOULD

BE LOCATED IN AN AREA WHERE LEAKAGE FROM THE

HEATER OR CONNECTIONS WILL NOT RESULT IN DAMAGE

TO THE ADJACENT AREA OR TO LOWER FLOORS OF THE

STRUCTURE.

LEVELLING

WHEN SUCH LOCATIONS CANNOT BE AVOIDED, A SUITABLE

DRAIN PAN SHOULD BE INSTALLED UNDER THE HEATER.

Such pans should be fabricated with sides at least 2" (50.8mm) deep, with length and width at least 2" (50.8mm) greater than the diameter of the heater and must be piped to an adequate drain.

The pan must not restrict combustion air flow.

Should the heater be installed in a garage, the heater must be located, or protected, so it is not subject to physical damage by a moving vehicle.

Each unit should be checked after installation to be certain that it is level.

If the unit is not level, obtain and insert metal shims under the base ring of the unit to correct this condition.

AIR REQUIREMENTS

WARNING

THERE IS A RISK IN USING FUEL BURNING APPLIANCES

SUCH AS HEATERS IN ROOMS OR AREAS WHERE

GASOLINE, OTHER FLAMMABLE LIQUIDS OR ENGINE

DRIVEN EQUIPMENT OR VEHICLES ARE STORED,

OPERATED OR REPAIRED. FLAMMABLE VAPORS ARE

HEAVY AND TRAVEL ALONG THE FLOOR AND MAY BE

IGNITED BY THE IGNITER OR MAIN BURNER FLAMES

CAUSING FIRE OR EXPLOSION. SOME LOCAL CODES

PERMIT OPERATION OF GAS APPLIANCES IN SUCH AREAS

IF THEY ARE INSTALLED 18 INCHES OR MORE ABOVE THE

FLOOR. THIS MAY REDUCE THE RISK IF LOCATION IN SUCH

AN AREA CANNOT BE AVOIDED.

WARNING

FOR SAFE OPERATION AN AMPLE SUPPLY OF AIR MUST BE

PROVIDED FOR PROPER COMBUSTION AND VENTILATION.

AN INSUFFICIENT SUPPLY OF AIR WILL RESULT IN A

YELLOW/LUMINOUS BURNER FLAME, CAUSING CARBONING

OR SOOTING OF THE FINNED HEAT EXCHANGER AND

CREATING A RISK OF ASPHYXIATION. DO NOT OBSTRUCT

THE FLOW OF COMBUSTION AND VENTILATION AIR.

UNCONFINED SPACE

In buildings of conventional frame, brick, or stone construction, unconfined spaces may provide adequate air for combustion, ventilation and draft hood dilution.

WARNING

FLAMMABLE ITEMS, PRESSURIZED CONTAINERS OR ANY

OTHER POTENTIAL FIRE HAZARDOUS ARTICLES MUST

NEVER BE PLACED ON OR ADJACENT TO THE HEATER.

OPEN CONTAINERS OF FLAMMABLE MATERIAL SHOULD

NOT BE STORED OR USED IN THE SAME ROOM WITH THE

HEATER.

8

If the unconfined space is within a building of tight construction

(buildings using the following construction: weather stripping, heavy insulation, caulking, vapor barrier, etc.), air for combustion, ventilation, and draft hood dilution must be obtained from outdoors.

The installation instructions for confined spaces in tightly constructed buildings must be followed to ensure adequate air supply.

CONFINED SPACE

When drawing combustion and dilution air from inside a conventionally constructed building to a confined space, such a space shall be provided with two permanent openings, ONE IN

OR WITHIN 12 INCHES (30.5cm) OF THE ENCLOSURE

BOTTOM. Each opening shall have a free area of at least one square inch per 1000 Btuh (2,225mm 2 /Kw)of the total input of all appliances in the enclosure, but not less than 100 square inches

(645 square cm).

If the confined space is within a building of tight construction, air for combustion, ventilation and draft hood dilution must be obtained from outdoors. When directly communicating with the outdoors or communicating with the outdoors through vertical ducts, two permanent openings, located in the above manner, shall be provided. Each opening shall have a free area of not less than one square inch per 4000 Btuh (8,900mm

2

/Kw) of the total input of all appliances in the enclosure. If horizontal ducts are used, each opening shall have a free area of not less than one square inch per 2000 Btuh (4,450mm

2

/Kw) of the total input of all appliances in the enclosure. For Canadian installations consult CAN/CGA B149.

Where an exhaust fan is installed in the same room with a heater, sufficient openings for air must be provided in the walls.

UNDERSIZED OPENINGS WILL CAUSE AIR TO BE DRAWN

INTO THE ROOM THROUGH THE CHIMNEY, CAUSING POOR

COMBUSTION. SOOTING MAY RESULT AND RISK OF

ASPHYXIATION WILL OCCUR.

Do not install without draft hood and do not install any damper in flueway. Be sure that the vent pipe does not extend beyond the inside wall of the chimney.

2. Where a continuous or intermittent back draft is found to exist, the cause must be determined and corrected. A special vent cap may be required.

FAILURE TO CORRECT BACK DRAFTS MAY CAUSE AIR

CONTAMINATION AND UNSAFE CONDITIONS.

• If the back draft cannot be corrected by the normal methods or if a suitable draft cannot be obtained, a blower type flue gas exhauster must be employed to assure proper venting and correct combustion.

3. Do not connect the heater to a common flue or chimney with solid fuel burning equipment. This practice is prohibited by many local building codes as is the practice of venting gas fired equipment to the duct work of ventilation systems.

• Where a separate vent connection is not available and the vent pipe from the heater must be connected to a common flue with an oil burning furnace, the vent pipe should enter the common flue or chimney at a point above the flue pipe from oil furnace.

4. Where two or more appliances vent into a common vent connector or manifold, the area of the common vent should at least equal the area of the largest flue or vent connector plus

50% of the areas of the additional draft hood outlets.

VENTING

5. Refer to the National Fuel Gas Code for information pertaining to multiple heater venting. The ASHRAE HVAC SYSTEMS &

EQUIPMENT HANDBOOK 2000, as well as many manufacturers’ gas vent and chimney sizing handbooks contain information on multiple heater manifold venting.

WARNING

THE INSTRUCTIONS IN THIS SECTION ON VENTING THE

HEATER MUST BE FOLLOWED TO AVOID CHOKED

COMBUSTION OR RECIRCULATION OF FLUE GASES. SUCH

CONDITIONS CAUSE SOOTING OR RISKS OF FIRE AND

ASPHYXIATION.

In the United States:

Vent sizing, installation and termination shall be in accordance with the NATIONAL FUEL GAS CODE. ANSI Z223.1-1999 or most recent edition.

In Canada:

With Canadian Installation Code CAN/CGA B149 (latest edition)

Type B venting may be used with these heaters. All local and utility regulations on venting should be followed.

Remove all soot or other obstructions from chimney which will retard free draft.

1. Install and size the vent pipe as necessary. The connection from the heater to the chimney should be run full size and should have a minimum pitch upward to the chimney of one quarter inch per foot length.

RELIEF VALVE

An ASME-rated pressure relief valve (Supplied) must be installed in the hot water outlet line as near to the heater as possible. This pressure relief valve is rated in accordance with and comply with the ANSI/ASME Boiler and Pressure Vessel Code, Section IV

(“Heating Boilers”), 1989 edition (or latest edition).

A C.S.A design-certified and ASME-rated temperature and pressure relief valve (Not Supplied) must be installed on each and every water storage tank. This relief valve shall comply with the Standard for Relief Valves and Automatic Gas Shutoff Devices for Hot Water Supply systems, “ANSI Z21.22-1986 or latest edition”. This relief valve should have a temperature rating of

210 0 F (98.8°C), a pressure rating not exceeding the lowest rated working pressure of any system component and a discharge capacity exceeding the total input of the water heaters supplying water to the storage tank.

Select a relief valve with a discharge capacity exceeding the maximum heater input rating and a pressure rating not exceeding the working pressure shown on the rating plate of the heater.

PROPER VENT PIPE INSTALLATION

FIGURE 6

9

Locate the T & P relief valve in the top of the tank, or in the side of the tank on centerline within the upper 6 inches from the top of the tank. See installation diagrams. Tapping shall be threaded in accordance with the latest version of the Standard for Pipe

Threads, General Purpose (inch), ANSI/ASME B1.20.1. Mark location with a Class III label. See ANSI Z21.10.1, Part 1,

MARKING.

Your local code authority may have other specific relief valve requirements not covered in this section.

WATER LINE CONNECTIONS

THE PURPOSE OF A RELIEF VALVE IS TO AVOID EXCESSIVE

PRESSURE OR TEMPERATURE INTO THE STEAM RANGE,

WHICH MAY CAUSE SCALDING AT FIXTURES, TANK

EXPLOSION, SYSTEM OR HEATER DAMAGE.

TO AVOID SCALDING OR WATER DAMAGE, A DRAIN LINE

MUST BE CONNECTED TO A RELIEF VALVE TO DIRECT

DISCHARGE TO A SAFE LOCATION. A DRAIN LINE MUST

NOT BE REDUCED FROM THE SIZE OF THE VALVE OUTLET

AND IT MUST NOT CONTAIN ANY VALVES BETWEEN THE

HEATER AND THE RELIEF VALVE OR THE RELIEF VALVE AND

THE DRAIN LINE EXIT. IN ADDITION, THERE SHOULD NOT

BE ANY RESTRICTIONS IN A DRAIN LINE NOR SHOULD IT

BE ROUTED THROUGH AREAS WHERE FREEZING

CONDITIONS MIGHT OCCUR. DO NOT THREAD OR CAP THE

DRAIN LINE EXIT. RESTRICTING OR BLOCKING A DRAIN

LINE WILL DEFEAT THE PURPOSE OF THE RELIEF VALVE

AND MAY CREATE AN UNSAFE CONDITION. INSTALL A

DRAIN LINE WITH A DOWNWARD SLOPE SUCH THAT IT

NATURALLY DRAINS ITSELF.

Recommended locations of relief valves are shown in the installation diagrams.

HARD WATER

This manual provides detailed installation diagrams for typical methods of application. See piping diagrams.

• Cer-Temp 80 Recovery System (for one temperature water).

These diagrams will serve to provide the installer with a reference for the materials and method of piping necessary for installation.

It is essential that all water and gas piping, vent connections, electrical wiring and check and flow regulating valves be installed as shown on the diagrams.

Consult the installation diagrams for appropriate locations to install the safety flow switch(es), drain valves, thermometers, relief valves and the circulating pump(s). Apply suitable pipe thread sealing compounds to only the male threads of parts to be connected. If any of these parts are being replaced in a functioning system, remember to shut off the manual gas and control valve(s) and close off the water inlet(s). Open a nearby faucet to relieve pressure and drain the heater and/or system before attempting to install the new parts.

Check the diagrams thoroughly before starting installation to avoid errors and minimize time and material costs.

Where hard water conditions exist, water softening or the threshold type of water treatment is recommended. This will protect the dishwashers, coffee urns, water heaters, water piping and other equipment. When water softening or water treatment is not practical, a comparatively easy method of periodic lime removal from the heater may be employed by installing gate valves, drain valve and acid fill opening as shown in PREVENTIVE

MAINTENANCE section of this manual.

CLOSED WATER SYSTEM

If the system is to be filled with water for testing or other purposes during cold weather and before actual operation, care must be taken to prevent a downdraft entering the heater or freezing air from contacting the system. Failure to do so may cause the water in the system to freeze with resulting damage to the system. Damage due to freezing is not covered by the

warranty.

WATER (POTABLE) HEATING

A closed system will exist if a back-flow prevention device (check valve), pressure reducing valve, or other similar device is installed in the cold water line between the water heater and the street main (or well). Excessive pressure may develop due to the thermal expansion of heated water causing premature tank failure or intermittent relief valve operation. This is not a warranty failure. An expansion tank may be necessary in the cold water supply to alleviate this situation. Contact the local plumbing authority.

1. All piping components connected to this unit for space heating applications shall be suitable for use with potable water.

2. Toxic chemicals, such as those used for boiler treatment, shall NEVER be introduced into this system.

3. This unit may NEVER be connected to any existing heating system or component(s) previously used with a non-potable water heating appliance.

10

PIPING DIAGRAMS

DANGER

TEMPERATURE SETTING SHOULD NOT EXCEED SAFE USE TEMPERATURE AT

FIXTURES. SEE WATER TEMPERATURE CONTROL WARNING ON PAGE 19. IF HIGHER

PREHEAT TEMPERATURES ARE NECESSARY TO OBTAIN ADEQUATE BOOSTER

OUTPUT, ADD AN ANTI-SCALD VALVE FOR HOT WATER SUPPLIED TO FIXTURES.

(USE THIS DIAGRAM FOR STRAIGHT RECOVERY

SYSTEMS SUPPLYING HOT WATER AT ONE

TEMPERATURE ONLY)

FIGURE 7

11

FIGURE 8

12

DANGER

TEMPERATURE SETTING SHOULD NOT EXCEED SAFE USE

TEMPERATURE AT FIXTURES. SEE WATER TEMPERATURE CONTROL

WARNING ON PAGE 19. IF HIGHER PREHEAT TEMPERATURES ARE

NECESSARY TO OBTAIN ADEQUATE BOOSTER OUTPUT, ADD AN

ANTI-SCALD VALVE FOR HOT WATER SUPPLIED TO FIXTURES.

DANGER

TEMPERATURE SETTING SHOULD NOT EXCEED SAFE USE TEMPERATURE

AT FIXTURES. SEE WATER TEMPERATURE CONTROL WARNING ON

PAGE 19. IF HIGHER PREHEAT TEMPERATURES ARE NECESSARY TO

OBTAIN ADEQUATE BOOSTER OUTPUT, ADD AN ANTI-SCALD VALVE FOR

HOT WATER SUPPLIED TO FIXTURES.

FIGURE 9

FIGURE 10

13

GAS CONNECTIONS

WARNING

THE INLET GAS PRESSURE MUST NOT EXCEED THE VALUE

SPECIFIED BY THE MANUFACTURER ON THE RATING PLATE

(10.5" W.C. - NATURAL GAS, 13.0" W.C. - PROPANE GAS).

EXPOSURE TO HIGHER GAS SUPPLY PRESSURE MAY CAUSE

DAMAGE TO THE GAS VALVE WHICH COULD RESULT IN FIRE

OR EXPLOSION. IF OVERPRESSURE HAS OCCURRED SUCH

AS THROUGH IMPROPER TESTING OF GAS LINES OR

EMERGENCY MALFUNCTION OF THE SUPPLY SYSTEM, THE

GAS VALVE MUST BE CHECKED FOR SAFE OPERATION. MAKE

SURE THAT THE OUTSIDE VENTS ON THE SUPPLY

REGULATORS AND THE SAFETY VENT VALVES ARE

PROTECTED AGAINST BLOCKAGE. THESE ARE PARTS OF

THE GAS SUPPLY SYSTEM, NOT THE HEATER. VENT

BLOCKAGE MAY OCCUR DURING ICE STORMS.

IT IS IMPORTANT TO GUARD AGAINST GAS VALVE FOULING

FROM CONTAMINANTS IN THE GAS WAYS. SUCH FOULING

MAY CAUSE IMPROPER OPERATION, FIRE OR EXPLOSION.

IF COPPER SUPPLY LINES ARE USED THEY MUST BE

INTERNALLY TINNED AND CERTIFIED FOR GAS SERVICE.

BEFORE ATTACHING THE GAS LINE BE SURE THAT ALL GAS

PIPE IS CLEAN ON THE INSIDE.

TO TRAP ANY DIRT OR FOREIGN MATERIAL IN THE GAS

SUPPLY LINE, A DIRT LEG (SOMETIMES CALLED SEDIMENT

TRAP OR DRIP LEG), MUST BE INCORPORATED IN THE

PIPING. SEE PIPING DIAGRAMS. THE DIRT LEG MUST BE

READILY ACCESSIBLE AND NOT SUBJECT TO FREEZING

CONDITIONS. INSTALL IN ACCORDANCE WITH

RECOMMENDATIONS OF SERVING GAS SUPPLIERS. IN THE

UNITED STATES REFER TO ANSI Z223.1-1999 OR MOST

RECENT EDITION OF THE NATIONAL FUEL GAS CODE. IN

CANADA, THE CANADIAN INSTALLATION CODE CAN/CGA

B 149 (LATEST EDITION).

To prevent damage, care must be taken not to apply too much torque when attaching gas supply pipe to gas valve gas inlet.

Fittings and unions in the gas line must be metal to metal type.

Apply joint compounds (pipe dope) sparingly and only to the male threads of pipe joints. Do not apply compound to the first two threads. Use compounds resistant to the action of liquefied petroleum gases.

BEFORE PLACING THE HEATER IN OPERATION, CHECK FOR

GAS LEAKAGE. Use soap and water solution or other material acceptable for the purpose in locating gas leaks. DO NOT USE

MATCHES, CANDLES, FLAME OR OTHER SOURCES OF

IGNITION FOR THIS PURPOSE.

DISCONNECT THE HEATER AND ITS MANUAL GAS SHUTOFF

VALVE FROM THE GAS SUPPLY PIPING SYSTEM DURING

ANY PRESSURE TESTING OF THAT SYSTEM AT TEST

PRESSURES IN EXCESS OF 1/2 PSIG. THE GAS SUPPLY

LINE MUST BE CAPPED WHEN NOT CONNECTED TO

HEATER.

THE HEATER MUST BE ISOLATED FROM THE GAS SUPPLY

PIPING SYSTEM BY CLOSING ITS MANUAL GAS SHUTOFF

VALVE DURING ANY PRESSURE TESTING OF THE GAS

SUPPLY PIPING SYSTEM AT TEST PRESSURES EQUAL TO

OR LESS THAN 1/2 PSIG (3.44kPa).

CORRECT GAS

MAKE SURE the gas on which the heater will operate is the same as that specified on the heater model and rating plate. Do not install the heater if equipped for a different type gas - contact the heater supplier.

SIZING GAS SUPPLY LINE

The iron pipe or equivalent pipe sizes in Table 6 are derived from

Table C-3 in the NATIONAL FUEL GAS CODE. The pipe sizes are based on a supply line gas pressure drop of 0.3 inches of water column from the gas meter to the point of installation of the heater(s). For natural gas, a heating value of 1050 Btu/ft

3

and a specific gravity of 0.60 has been assumed. A heating value of

2500 Btu/ft 3 and a specific gravity of 1.53 has been assumed for

L.P. (propane) gas.

Where it is necessary to use an excess number of pipe fittings, i.e., elbows, tees and valves, in the gas supply line, use pipe at least one size larger than that recommended in Table 2 to compensate for the increased pressure drop.

If the service pressure is 4.5 inches W.C. (1.12kPa) (11 inches

(1.74kPa) for L.P. gas) of water column or less, use pipe size larger than specified in Table 6 to minimize pressure drop in the line.

GAS METER SIZE - City Gases Only

Be sure that the gas meter has sufficient capacity to supply the full rated gas input of the heater as well as the requirements of all other gas fired equipment supplied by the meter. If gas meter is too small, ask the gas company to install a larger meter having adequate capacity.

TABLE 6

GAS SUPPLY PIPE SIZES (IN INCHES)

10 (3M)

30 (9.1M)

200 (61M)

NATURAL GAS (1050 Btu/ft

3

)

Distance To Heater

From Meter (FT./M) HW-120M

50 (15.2M)

80 (24.4M)

100 (30.5M)

150 (45.7M)

1/2

3/4

3/4

1

1

1

1 1/4

HW-160M

3/4

3/4

1

1

1 1/4

1 1/4

1 1/4

HW-200M

3/4

1

1

1 1/4

1 1/4

1 1/4

1 1/4

HW-225M

3/4

1

1

1 1/4

1 1/4

1 1/4

1 1/2

1/2

1/2

3/4

3/4

3/4

1

1

PROPANE GAS (2500 Btu/ft

HW-120M HW-160M

1/2

3/4

3/4

1

1

1

1 1/4

3

)

HW-200M

1/2

3/4

1

1

1

1 1/4

1 1/4

14

A minimum gas supply pressure of 4.5" W.C. (1.12kPa) for natural gas and 11" W.C. (1.74kPa) for propane gas is required for purposes of input adjustment.

ELECTRICAL INFORMATION

ALL ELECTRICAL WORK MUST BE INSTALLED IN

ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE IN

THE UNITED STATES AND IN CANADA MUST CONFORM TO

LOCAL REGULATIONS OR THE CANADIAN ELECTRICAL

CODE CSA C22.

The electrical connections must be made so that both the circulator and intermittent ignition device operate simultaneously when the storage tank temperature control calls for heat.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, in the United States with the NATIONAL ELECTRICAL CODE, ANSI/

NFPA 70. In Canada with the CANADIAN ELECTRIC CODE,

CSA C22.

A screw is provided in the heater junction box for a ground connection.

Figures 11 and 12 show the heater mounted controls as they are wired when the heater leaves the factory. Using the individual wiring diagrams on the installation diagrams, the installer connects his wiring to terminals in the heater(s) mounted junction box as shown.

All wiring should be done such that the heater(s) will operate in the following manner:

1. When the tank temperature control calls for heat:

• The circulating pump starts to operate. Once the safety flow switch contacts close, intermittent ignition device is powered and sequence through steps as described for I.I.D. Control

Module on Page 5.

2. When the tank temperature control is satisfied:

• The main burners should stop firing, but the circulating pump should continue to operate for about 2 minutes when equipped with a thermal balancer.

3. When the automatic gas shutoff control or coil protector switch operate (break electric circuit):

All piping diagrams include an electrical wiring diagram to assist the installer in properly wiring of the additional components required to assure correct system operation.

• The main burners should stop firing. Circulating pump should continue to operate.

ELECTRICAL WIRING DIAGRAMS FOR THE HW-120M, 160M, 200M AND 225M WATER HEATERS

I.I.D. SYSTEM (NATURAL)

FIGURE 11

15

ELECTRICAL WIRING DIAGRAMS FOR THE HW-120M, 160M, AND 200M WATER HEATERS

I.I.D. SYSTEM (PROPANE)

FIGURE 12

NOTES:

16

OPERATION

IMPORTANT

Only qualified personnel shall perform the initial firing of the heater.

At this time the user should not hesitate to ask the start-up technician any questions regarding the operation and maintenance of the unit.

CAUTION

PURGING SHOULD BE PERFORMED BY PERSONS

EXPERIENCED IN THIS TYPE GAS SERVICE. TO AVOID RISK

OF FIRE OR EXPLOSION, PURGE DISCHARGE MUST NOT

ENTER CONFINED AREAS OR SPACES WHERE IGNITION

CAN OCCUR. THE AREA MUST BE WELL VENTILATED AND

ALL SOURCES OF IGNITION MUST BE INACTIVATED OR

REMOVED.

Lighting and Operating instructions are included with this manual.

By using these instructions, the user may be able to make minor operational adjustments and save unnecessary service calls.

However the user should not attempt repairs, but should contact a service technician or gas supplier.

GENERAL

BEFORE PLACING THE WATER HEATER IN OPERATION,

CHECK FOR GAS LEAKAGE. USE A SOAP AND WATER

SOLUTION OR OTHER MATERIAL ACCEPTABLE FOR THE

PURPOSE OF LOCATING GAS LEAKS. DO NOT USE

MATCHES, CANDLES, FLAME OR OTHER SOURCES OF

IGNITION FOR THIS PURPOSE.

Never operate the water heater without first making sure the water heater and system are filled with water, in addition:

CAUTION

BEFORE PROCEEDING WITH THE OPERATION OF THE UNIT,

MAKE SURE HEATER AND SYSTEM ARE FILLED WITH WATER

AND ALL AIR IS EXPELLED FROM HEATER AND PIPING.

• Make sure a temperature and pressure relief valve is installed at the water heater and if used, the storage tank. Also check for leaks.

• Also be sure to check the gas piping for leaks before beginning the initial firing of the boiler.

FILLING

1. Close the systems drain valve by turning handle clockwise.

2. Open a nearby hot water faucet to permit the air in the system to escape.

THE MAIN MANUAL GAS SHUTOFF VALVE AND THE PILOT

ADJUSTING VALVE (WHEN APPLICABLE) MUST HAVE BEEN

CLOSED FOR AT LEAST FIVE (5) MINUTES. THIS WAITING

PERIOD IS AN IMPORTANT SAFETY STEP. ITS PURPOSE IS

TO PERMIT GAS THAT MIGHT HAVE ACCUMULATED IN THE

COMBUSTION CHAMBER TO CLEAR. IF YOU DETECT GAS

AT THE END OF THIS PERIOD, DO NOT PROCEED WITH

LIGHTING. RECOGNIZE THAT GAS ODOR, EVEN IF IT SEEMS

WEAK MAY INDICATE PRESENCE OF ACCUMULATED GAS

SOMEPLACE IN THE AREA WITH A RISK OF FIRE OR

EXPLOSION. SEE THE FRONT PAGE FOR STEPS TO BE

TAKEN.

3. Fully open the cold water inlet pipe valve allowing the heater and piping to be filled.

4. Close the hot water faucet as water starts to flow.

5. The heater is ready to be operated.

DO NOT USE THIS HEATER IF ANY PART HAS BEEN UNDER

WATER. IMMEDIATELY CALL A QUALIFIED SERVICE

TECHNICIAN TO INSPECT THE HEATER AND TO REPLACE

ANY PART OF THE CONTROL SYSTEM AND ANY GAS

CONTROL WHICH HAS BEEN UNDER WATER.

PURGING OF GAS LINE

Gas line purging is required with new piping or systems in which air has entered.

Light the unit in accordance with the instructions on the lighting label attached to the boiler. These instructions are repeated in the following.

17

OPERATING INSTRUCTIONS FOR I.I.D. MODELS

The I.I.D. models have an automatic intermittent spark ignition system, figure 3, mounted on the jacket at the front of the heater which ignites the pilot gas whenever system controls call for heat.

Start the unit in accordance with the instructions on the operating label attached to the heater. These instructions are repeated in the following.

FOR YOUR SAFETY READ BEFORE OPERATING

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS

EXACTLY A FIRE OR EXPLOSION MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

A.

THIS APPLIANCE IS EQUIPPED WITH AN IGNITION

DEVICE WHICH AUTOMATICALLY LIGHTS THE

PILOT. DO NOT TRY TO LIGHT THE PILOT BY HAND.

B.

BEFORE OPERATING SMELL ALL AROUND THE

APPLIANCE AREA FOR GAS . BE SURE TO SMELL

NEXT TO THE FLOOR BECAUSE SOME GAS IS

HEAVIER THAN AIR AND WILL SETTLE ON THE

FLOOR.

WHAT TO DO IF YOU SMELL GAS

• DO NOT TRY TO LIGHT ANY APPLIANCE.

• DO NOT TOUCH ANY ELECTRIC SWITCH

DO NOT USE ANY PHONE IN YOUR BUILDING.

• IMMEDIATELY CALL YOUR GAS SUPPLIER FROM

A NEIGHBOR’S PHONE. FOLLOW THE GAS

SUPPLIER’S INSTRUCTIONS.

• IF YOU CANNOT REACH YOUR GAS SUPPLIER,

CALL THE FIRE DEPARTMENT.

C.

USE ONLY YOUR HAND TO TURN THE GAS

CONTROL KNOB . NEVER USE TOOLS. IF THE KNOB

WILL NOT TURN BY HAND, DON’T TRY TO REPAIR

IT. CALL A QUALIFIED SERVICE TECHNICIAN.

FORCE OR ATTEMPTED REPAIR MAY RESULT IN A

FIRE OR EXPLOSION.

D.

DO NOT USE THIS APPLIANCE IF ANY PART HAS

BEEN UNDER WATER. IMMEDIATELY CALL A

QUALIFIED SERVICE TECHNICIAN TO INSPECT THE

APPLIANCE AND TO REPLACE ANY PART OF THE

CONTROL SYSTEM AND ANY GAS CONTROL

WHICH HAS BEEN UNDER WATER.

E.

DO NOT OPERATE APPLIANCE UNLESS UNIT IS

FILLED WITH WATER AND INLET LINES AFTER

FULLY OPEN.

HONEYWELL VR8304P GAS CONTROL

OPERATING INSTRUCTIONS

2.

3.

1.

4.

5.

6.

STOP! READ THE SAFETY INFORMATION

ABOVE ON THIS LABEL.

8.

TURN ON ALL ELECTRICAL POWER TO THE

APPLIANCE.

SET THERMOSTAT TO LOWEST SETTING.

TURN OFF ALL ELECTRIC POWER TO THE

APPLIANCE.

9.

SET THERMOSTAT TO DESIRED SETTING. PILOT

WILL BE IGNITED BY ELECTRONIC SPARK. WHEN

PILOT IGNITION IS SENSED, THE MAIN BURNERS

WILL IGNITE.

THIS APPLIANCE IS EQUIPPED WITH AN IGNITION

DEVICE WHICH AUTOMATICALLY LIGHTS THE

PILOT. DO NOT TRY TO LIGHT THE PILOT BY HAND.

TURN GAS VALVE CONTROL KNOB CLOCKWISE

TO “OFF” (FIG. A) A SLIGHT INDENT CAN BE FELT

IN THE “OFF” POSITION.

10.

IF MAIN BURNER FAILS TO IGNITE, REMOVE

BURNER ACCESS DOOR AND FOLLOW SMALL

METAL TUBE FROM GAS VALVE TO PILOT. REPEAT

STEPS 2 THRU 9. MAKE SURE PILOT IS BURNING.

IF PILOT FAILS TO IGNITE, CHECK FOR PILOT

IGNITION SPARK.

WAIT FIVE (5) MINUTES TO CLEAR OUT ANY GAS.

THEN SMELL FOR GAS, INCLUDING NEAR THE

FLOOR. IF YOU THEN SMELL GAS.

STOP! FOLLOW “B” IN THE SAFETY

INFORMATION ABOVE IN THIS LABEL.

IF YOU DON’T SMELL GAS. GO TO NEXT

STEP.

IF APPLIANCE WILL NOT OPERATE, FOLLOW THE

INSTRUCTIONS “TO TURN OFF GAS TO

APPLIANCE” AND CALL YOUR SERVICE

TECHNICIAN OR GAS SUPPLIER.

7.

TURN GAS CONTROL KNOB COUNTERCLOCKWISE

TO “ON” (FIG. B) UNTIL KNOB SNAPS INTO “ON”

POSITION.

TO TURN OFF GAS TO APPLIANCE

1. SET THE THERMOSTAT TO LOWEST SETTING.

2. TURN OFF ALL ELECTRIC POWER TO THE APPLIANCE IF SERVICE IS TO BE PERFORMED.

3. TURN GAS VALVE CONTROL KNOB CLOCKWISE TO “OFF”. REFER TO STEP 5 OF “OPERATING INSTRUCTIONS”

ABOVE.

18

DANGER

HOT WATER TEMPERATURES REQUIRED FOR AUTOMATIC

DISHWASHER AND LAUNDRY USE CAN CAUSE SCALD

BURNS RESULTING IN SERIOUS PERSONAL INJURY AND/

OR DEATH. THE TEMPERATURE AT WHICH INJURY OCCURS

VARIES WITH THE PERSON’S AGE AND TIME OF EXPOSURE.

THE SLOWER RESPONSE TIME OF CHILDREN, AGED OR

DISABLED PERSONS INCREASES THE HAZARDS TO THEM.

NEVER ALLOW SMALL CHILDREN TO USE A HOT WATER

TAP, OR TO DRAW THEIR OWN BATH WATER. NEVER LEAVE

A CHILD OR DISABLED PERSON UNATTENDED IN A BATHTUB

OR SHOWER.

THE WATER HEATER SHOULD BE LOCATED IN AN AREA

WHERE THE GENERAL PUBLIC DOES NOT HAVE ACCESS

TO SET TEMPERATURES.

2. Attach a pressure gauge or a manometer to the outlet pressure tap, figure 14 and refer to table 3 for correct manifold pressure.

3. Fire the heater by turning the gas valve control knob to “ON”.

4. Use this formula to “clock” the meter. Be sure that other gas consuming appliances are not operating during this interval.

3600

T x H = Btuh

T = Time (in seconds) to burn one cubic foot of gas.

H = Heating value of gas (in Btu’s per cubic foot of gas).

Btuh = Actual heater input (in Btuh).

EXAMPLE: (Using HW-120M heater)

T = 31.5 seconds/ft 3

H = 1050 Btu/ft 3

Btuh = ?

3600 x 1050 = 120,000 (compare with the ratings in

31.5 Table 5).

It is recommended in domestic hot water applications that lower water temperature be used to avoid the risk of scalding. It is further recommended, in all cases, that the water temperature be set for the lowest temperature which satisfies the user’s hot water needs. This will also provide the most energy efficient operation of the boiler and minimize scale formation in the heat exchanger, thus prolonging the life of the boiler.

SETTING THE WATER HEATER TEMPERATURE AT 120°F

(49°C) WILL REDUCE THE RISK OF SCALDS. Some states require settings at specific lower temperatures. The table below shows the approximate time-to-burn relationship for normal adult skin.

Temperature

Setting

Over 170°F (77°C)

160°F (71°C)

150°F (66°C)

140°F (60°)

130°F (54°)

120°F (49°C) or less

Time to Produce 2nd & 3rd

Degree Burns on Adult Skin

Nearly instantaneous

About 1/2 seconds

About 1-1/2 seconds

Less than 5 seconds

About 30 seconds

More than 5 minutes

Table 7

USE ANTI-SCALD VALVE(S) in the hot water system to reduce the risks of scalding at points of use such as lavatories, sinks and bathing facilities.

CAUTION

IN THE EVENT OF ELECTRIC POWER FAILURE, DO NOT

ATTEMPT TO OPERATE THE HEATER.

Should it be necessary to adjust the gas pressure to the burners to obtain the full input rate, the steps below should be followed.

5. Remove the regulator adjustment sealing cap, fig. 14, and adjust the pressure by turning the adjusting screw with a screwdriver.

• Clockwise to increase gas pressure and input rate.

• Counterclockwise to decrease gas pressure and input

rate.

DO NOT turn the adjusting screw in past the point of little or no manifold pressure change or fully bottom the adjusting screw.

6. “Clock” the meter as in step 4 above.

7. Repeat steps 5 and 6 until the specified input rate is achieved.

8. Turn the gas valve control knob to “OFF”. Replace the regulator adjustment sealing cap and remove the pressure gauge or manometer from the outlet pressure tap. Using an allen wrench, replace the set screw in the outlet pressure tap.

9. Turn the gas valve control knob to “ON”.

If gas pressure regulator cannot be equipped to give the full input rating with sufficient gas pressure at the valve, re-orifice the main burners.

IMPORTANT

UNDER NO CIRCUMSTANCES SHOULD THE GAS INPUT

EXCEED THE INPUT SHOWN IN TABLE 2. OVERFIRING

COULD RESULT IN DAMAGE OR SOOTING OF THE HEATER.

When the heater is operating at full capacity, or full gas input, it should consume 1 cu. ft. of gas in approximately the amount of time indicated in table 8.

CHECKING AND ADJUSTING THE INPUT

The maximum inlet gas pressure must not exceed the value specified by the manufacturer (10.5" W.C. - natural gas,

13.0" W.C. - propane gas). The minimum value listed on the

Rating Plate is for the purposes of input adjustment.

1. Turn the gas valve control knob to “OFF”, (See page 18).

TABLE 8 — TIME REQUIRED TO CONSUME 1 CUBIC FT. OF GAS

(Heater operating at full input or full capacity.

Does not apply to high altitude installations.)

Total Time Required (Seconds)

MODEL

Type of

Gas

Natural

Propane

Heating

Value

(Btu/

Cu. Ft.)

1050

2500

HW-120M HW-160M HW-200M HW-225M

31.5

78.3

23.6

56.3

19.0

45.2

16.8

- - -

19

SERVICE INFORMATION

The installer may be able to observe and correct certain problems which may arise when the unit is put into operation. HOWEVER, it is recommended that only qualified service personnel, using appropriate test equipment, be allowed to service the heater.

Any safety devices used in conjunction with this appliance should receive periodic (at least twice a year) inspection to assure proper operation. All relief valves should be inspected and manually operated every six months.

PILOT AND MAIN BURNER MAINTENANCE

At least twice a year, check the pilot burner, fig. 15 and the main burners, fig 13, for proper operation.

The burners should display the following characteristics:

• Provide complete combustion of gas.

• Cause rapid ignition and carryover of flame across entire burner.

• Give reasonably quiet operation during ignition, burning and extinction.

• Cause no excessive lifting of flame from burner ports.

If the preceding burner characteristics are not evident, check for accumulation of lint or other foreign material that restricts or blocks the air openings to the burners or heater.

Also check for good flow of combustion and ventilating air to the unit. Maintain a clear area around the heater at all times.

Qualified servicers should follow this procedure when the heater’s burners need cleaning.

1. Turn off the electrical power and close the main manual gas shutoff valve.

• Allow heater parts to cool before disassembly.

2. Remove main burner manifold assembly from heater.

• Refer to parts list supplied with this manual for disassembly aid.

3. Remove any loose foreign material such as dust or lint with a vacuum. Check all ports, orifices and air openings for blockage.

Dislodge any foreign material causing blockage. Do not use sharp metal objects to clean blocked orifices as they will damage the soft brass orifice. Remove any soot or carbon deposits with a rag making sure to remove any lint left on burner by vacuuming again.

5. Restore electrical power and gas supply to heater.

• Check for gas leaks and proper heater and vent operation.

I.I.D. PILOT BURNER

Servicing of the pilot burner includes cleaning the burner head and the orifice of the pilot burner, fig. 15.

The pilot flame should envelop 3/8 to 1/2 in. of the tip of the insulated rod on the igniter-sensor. If adjustment is required, it is necessary to establish pilot flame without main burner operation.

For this to happen, perform the following steps.

1. Follow “TO TURN OFF GAS TO APPLIANCE” steps in the

“OPERATING INSTRUCTIONS FOR I.I.D. MODELS”.

2. Carefully disconnect the wire terminal connected to the

MV terminal of the S8600 module, fig. 3.

3. Turn gas valve control knob counterclockwise to “ON”.

4. Turn on all electric power to the heater.

5. Set tank temperature control to call for heat. Pilot will operate without the main burners igniting.

6. Remove the pilot adjustment cover screw, fig. 14, and turn the inner adjustment screw clockwise to decrease or counterclockwise to increase the pilot flame. Be sure to replace cover screw after adjustment to prevent possible gas leakage.

7. Repeat step 1.

8. Carefully reconnect the MV wire terminal to the S8600 module.

Be sure the terminal is securely connected.

9. Follow “OPERATING INSTRUCTIONS FOR I.I.D. MODELS” to put heater back into operation.

If the pilot burner ignites but the main burner fails to light, check for gas flow to the main burner.

Check for good terminal connections at the igniter-sensor connector (fig. 15) and at the S8600 module.

For further assistance see Chart 2, “S8600 INTERMITTENT PILOT

SYSTEM TROUBLESHOOTING”.

MAIN BURNER FOR HW HEATERS

FIGURE 13

4. Reinstall the burner manifold assembly on heater.

20

HONEYWELL GAS VALVE FOR I.I.D. SYSTEM (TOP VIEW)

FIGURE 14

If control is out of calibration, replace control.

AUTOMATIC GAS SHUTOFF CONTROL

PILOT BURNER USED ON I.I.D. SYSTEMS

FIGURE 15

The automatic gas shutoff control, fig. 1, is an automatic device which is wired in series with the gas valve and intermittent ignition control module.

The control settings are fixed at 195

0

F (90.5°C) cut-out and 190

0

F

(87.7°C) cut-in. Reduced water flow due to lime scale accumulation is one cause of frequent automatic gas shutoff control operations. Refer to “PREVENTIVE MAINTENANCE” section for deliming instructions. If this non-adjustable control is out of calibration, replace control.

THERMAL BALANCER

PROTECTOR SWITCH

(Coil High Limit - All Heaters)

Figure 16 shows the internal wiring of the thermal balancer. The device may be tested after disconnecting the four leads from their respective terminals on the unit.

If the protector switch, fig 2, should shut off unit, check for the following conditions:

1. No water in heater.

2. Restricted water flow through the heater.

3. Excessive liming.

4. Improper wiring (automatic gas shutoff control acting as primary control).

5. Pump failure.

After correcting failure condition, remove the protector switch cover and depress reset button. Button will not reset until water temperature in heater coil is down to 200

0

F. Restart heater, following the “OPERATING INSTRUCTIONS FOR I.I.D.

MODELS” , PAGE 18.

1. Apply a test light to the yellow and red leads:

• The lamp should light as the contact in this circuit is normally closed when the resistor is cool.

2. Apply the light to the black and yellow leads.

• The lamp should not light as the contact in this circuit is normally open when the resistor is cool.

3. Remove the test light.

4. Apply 120 volts to the white and red leads which power the

1900 ohm resistor.

• After warming period, the contacts of the thermal balancer should change position.

5. Remove the 120 volt power source.

6. Apply the test light as described in steps 1 and 2.

• While the resistor is still warm, the lamp indications should be the opposite as described above. If this is not the case, replace the thermal balancer.

PROTECTOR SWITCH CONTINUITY TEST

Do not depress the protector switch reset button prior to testing.

The leads from the switch are removed at the point farthest from the switch.

Attach the leads from a test flashlight to the switch leads.

The Model N22T test kit (combination flashlight and continuity tester) is manufactured by the Ray-O-Vac Company, Madison,

WI and available through your local suppliers.

With the flashlight turned on, the lamp should light. If the lamp lights, the protector switch circuit is closed and in proper working order. If the lamp does not light, the reasons could be:

1. Protector switch contacts open.

• Depress reset button on switch (switch cannot be reset until water temperature in the heater coil drops below 200 0 F).

Lamp should light.

THERMAL BALANCER SCHEMATIC DIAGRAM

FIGURE 16

2. Defective protector switch or bad leads.

• If lamp does not light when reset button is depressed, attach the test flashlight leads to the protector switch terminals. If lamp does not light, switch is defective and must be replaced.

• If lamp does not light, the leads are bad and must be repaired or replaced.

INSPECTING THE HEAT EXCHANGER

AND VENTING SYSTEM

Every 6 months, inspect the venting system (including the chimney) for blockages which will retard free draft and points of flue gas leakage. Remove any obstructions and replace any damaged or deteriorated vent pipe.

TANK TEMPERATURE CONTROL

The tank temperature control is the primary operating control of the system. The sensing element is mounted on the hot water storage tank. A change of temperature lower than the control setting will cause the element to activate the electrical switch and start the heater.

Check the heat exchanger to be sure it is not blocked by dirt or soot. It is not sufficient to only look through the flue outlet with the draft hood removed. Examination should also be made using a mirror and light through the burner opening, viewing the entire bottom area of the exchanger.

21

Qualified servicers should follow this procedure when the heater’s external heating surfaces need cleaning.

CAUTION

DO NOT USE A NYLON BRUSH OR OTHER STATIC CREATING

MATERIAL TO CLEAN DUST AND CARBON DEPOSITS FROM

HEATING SURFACES AND VENT.

SUCH DEPOSITS ARE FLAMMABLE AND MAY BE IGNITED

BY STATIC ELECTRICITY. USE A METAL BRUSH TO MINIMIZE

THE DANGER OF EXPLOSION.

1. Turn off the electrical power and main manual gas shutoff valve.

• Allow heater parts and vent to cool before disassembly.

2. Remove the heater draft diverter and vent pipe running to the chimney.

• Check parts and chimney for obstructions and clean as necessary.

• Replace any damaged or deteriorated parts of the venting system.

3. Remove burners from heater and other metal parts as required to clean and vacuum the heat exchangers and combustion coils.

• Refer to parts list supplied with this manual for disassembly aid.

4. Reinstall the parts removed in steps 2 and 3.

• Be sure the vent pipe has a minimum upward pitch of one quarter inch per foot of length and is sealed as necessary.

5. Restore electrical power and gas supply to heater.

• Check for gas leaks and proper heater and vent operation.

Upon reassembly, a negative draft must be produced by the system. Check for proper draft by holding a lit match near the draft hood opening while the heater is operating. The flame should be drawn into the draft hood opening indicating proper draft.

with sufficient gas pressure at the valve, replace with new gas valve.

RELIEF VALVE

At least twice a year the system relief valves should be checked to ensure that they are in operating condition. To check a relief valve, lift the lever at the end of the valve several times. The valve should seat properly and operate freely.

CAUTION

BEFORE MANUALLY OPERATING A RELIEF VALVE, MAKE

SURE THAT A DRAIN LINE HAS BEEN ATTACHED TO THE

VALVE TO DIRECT DISCHARGE TO AN OPEN DRAIN.

FAILURE TO TAKE THIS PRECAUTION COULD MEAN

CONTACT WITH EXTREMELY HOT WATER EXITING THE

VALVE DURING THE CHECK OPERATION.

If a relief valve discharges periodically or continuously, it may be due to thermal expansion of water in a closed water supply system, or, it may be due to a faulty relief valve.

Thermal expansion is the normal response of water when it is heated. In a closed system, thermal expansion will cause the system pressure to build until the relief valve actuation pressure is equaled. Then the relief valve will open allowing some water to escape, slightly lowering the pressure.

Installation of a properly sized thermal expansion tank will usually correct this problem. Contact your water supplier or local plumbing inspector for information on how to best correct this situation.

ABOVE ALL DO NOT PLUG ANY RELIEF VALVE. THIS IS NOT

A SOLUTION AND CAN CREATE A HAZARDOUS SITUATION.

CIRCULATING PUMP

The circulating pump may require occasional lubrication. Refer to circulator manufacturer’s instructions for lubrication procedures, and lubrication frequency.

GAS PRESSURE REGULATOR

The gas pressure regulator is included in the combination gas valve, fig.14, and is set to operate on the gas specified on the heater model and rating plate.

Periodically check main burner, fig. 13, and pilot flame, fig. 15, for proper operation. This should be checked every six months.

Do not subject the gas valve to inlet gas pressure of more than

10.5" W.C. - natural gas, 13.0" W.C. - propane gas. If higher gas pressures are encountered, a service regulator is necessary.

Check for a minimum inlet gas pressure value shown on the Rating

Plate before making any adjustment of the regulator.

Attempts to adjust the regulator during periods of low gas supply pressure could result in overfiring of the heater when the gas supply pressure returns to normal.

DO NOT INCREASE PRESSURE ABOVE THAT SPECIFIED AS

.

OVERFIRING WILL RESULT IN DAMAGE TO THE HEATER

If gas pressure regulator cannot be adjusted to correct pressure

ELECTRICAL SERVICE

CAUTION

LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN

SERVICING CONTROLS. WIRING ERRORS CAN CAUSE

IMPROPER AND DANGEROUS OPERATION.

VERIFY PROPER OPERATION AFTER SERVICING.

REPLACEMENT PARTS

Replacement parts may be ordered through A. O. Smith dealers, authorized servicers or distributors. Refer to the Yellow Pages for where to call or contact the A. O. Smith Water Products

Company, 5621 West 115th Street, Alsip, IL 60803,

1-800-433-2545, or on the web at www.hotwater.com/parts. When ordering parts be sure to state the quantity, part number and description of the item including the complete model and serial number as it appears on the product. Refer to the parts list for more information.

PREVENTIVE MAINTENANCE

RECOMMENDED PROCEDURE FOR PERIODIC

REMOVAL OF LIME DEPOSITS FROM COIL

TYPE COMMERCIAL WATER HEATERS

The higher the water temperature or water usage, the more lime deposits are dropped out of the water. This is the lime scale which forms in pipes, heaters and on cooking utensils.

The amount of calcium carbonate (lime) released from water is in direct proportion to water temperature and usage, see fig. 17.

22

Lime accumulation not only reduces the life of the equipment, but also reduces efficiency of the heater and increases fuel consumption.

The usage of water softening equipment greatly reduces the hardness of the water. However, this equipment does not always remove all of the hardness (lime). For this reason it is recommended that a regular schedule for deliming be maintained.

The time between cleaning will vary from weeks to months depending upon water conditions and usage. A change of approximately 5 0 F in the normal temperature rise through the heater is usually an indication that scale should be removed. For long life, copper or brass is recommended for all valves, pipe and fittings used between gate valves “A” and “B” and the heater, see fig. 18.

Heater failure due to excessive lime build-up voids the warranty

DELIMING THE HW WATER HEATER

FIGURE 18

6. Continue to fill until foaming action stops.

7. When foaming action has stopped completely, allow 10 to 15 minutes for UN•LIME to dissolve any remaining scale in the heater.

8. Open the drain valve and drain all UN•LIME from the heater.

9. Remove standpipe and drain hose assembly from tees. Install fittings originally removed into openings. Open valve “A”, allowing fresh water to flow through heater and out drain valve for 3 to 5 minutes.

10.Close drain valve and open valve “B”. Heater is now ready for operation.

.

FIGURE 17

DELIMING SOLVENTS

A. O. Smith recommends the use of UN•LIME ® for deliming.

UN•LIME is a patented food grade acid which is safe to handle and does not create the harmful fumes which are associated with other products.

UN•LIME may be obtained from your dealer, distributor or the

A. O. Smith Water Products Company. Order part no. 4763

(1 gal.), packed 4 gallons per case, or part no. 4813 (5 gal.

container).

HEAVY LIME DEPOSITS

If the solvent does not readily pass through the clogged coils or heat exchanger, it will be necessary to use a deliming pump or contact a service agency for proper cleaning.

A. O. Smith part no. 4930 motorized deliming pump kit, complete with pump, hoses, fittings, container and instructions, is available from your dealer, distributor or A. O. Smith Water Products

Company.

A. O. Smith Form No. 4778, entitled “All About Deliming Coil Type

Water Heaters”, describes heater cleaning methods and equipment required. UN•LIME and the booklet may be obtained through your dealer, distributor or A. O. Smith Water Products

Company.

CAUTION

Observe handling instructions on label of product being used.

REMOVING LIGHT DEPOSITS

1. Shut off electric and gas supply to the burner.

2. Close gate valves “A” and “B”.

3. Install drain hose assembly in upper deliming tee. Open drain cock and drain heater. Install standpipe in lower deliming tee or in tee from which pressure relief valve has been removed.

4. Close drain valve.

5. Slowly pour 3 gallons of UN•LIME into heater through standpipe. Direct solution into suitable container with a hose, see fig. 18.

23

FIGURE 19

REMOVING SILICATE

Ammonium bifluoride flakes (NH

4

FlHF) are used in conjunction with A. O. Smith UN•LIME delimer and pump type deliming kit, part no. 4930, to delime and remove siliceous materials from copper coil water heaters.

• The part no. 4920 pump contained in the deliming kit is equipped with a titanium shaft. This shaft will not withstand ammonium bifluoride solutions and must be replaced with a stainless steel shaft, part no. 4926.

Ammonium bifluoride flakes should be purchased locally from chemical suppliers. Contact your dealer, distributor or

A. O. Smith Water Products Company for additional information.

CHECKOUT

The checkout sequence should be used as an on-the-job troubleshooting guide to identify the cause of incorrect system operation and suggest a remedy for its correction.

Because improper piping and wiring can result in unsatisfactory system performance, it is suggested that the installation be examined before using the checkout procedure. Be sure to refer to the correct piping - wiring diagram and checkout for the type of system that is installed.

The system should be filled with water, purged of air, valves properly set and utilities connected and ready to operate.

CHART 1 - CER-TEMP 80 RECOVERY SYSTEM CHECKOUT PROCEDURE

(Use this checkout for Cer-Temp 80 Recovery Systems)

Checkout Sequence

Set tank temperature control 20° (11°C) below tank water temperature

Set tank temperature control 20° (11°C) above tank water temperature.

Heater outlet water temperature exceeds

210°F.

Set tank temperature control for desired water temperature.

SYSTEM OPERATION

Contact Incorrect

Circulating pump and burner shut off.

With thermal balancer, pump off delay of approximately 2 minutes.

Pump and burner remain on.

Circulating pump on.

Burner on.

Circulating pump and burner on.

Circulating pump on.

System maintains.

desired water temperature.

Circulating pump on.

Circulating pump and burner off.

Burner on.

Circulating pump and burner on.

Cause

Tank temperature control differential wide.

Remedy

Reduce differential.

Tank temperature control defective.

System wiring is incorrect.

Replace.

Pump wired for continuous operation.

Correct wiring.

Correct wiring.

See intermittent pilot system troubleshooting chart 2.

Gas valve stuck or defective.

Correct or replace valve.

System wiring in incorrect.

Automatic gas shutoff control calibrated too low or differential too wide.

Correct wiring.

Replace. (If problem proven to be at this control by applying jumper to terminals.)

See preventive maintenance.

If system has been in extended use it may have lime build-up.

System wiring is incorrect.

Correct wiring.

Gas valve or wiring defective.

Check wiring repair or replace valve.

See intermittent pilot system trouble-shooting chart 2.

Tank temperature control differential too great.

Reduce differential. A 5° differential is generally used.

Power off or system wiring is incorrect.

Tank temperature control defective.

Check power supply and wiring.

Replace.

See intermittent pilot system trouble-shooting chart 2.

System wiring is incorrect.

Replace.

See intermittent pilot system trouble-shooting chart 2.

Automatic gas shutoff control defective.

Replace.

See intermittent pilot system trouble-shooting chart 2.

24

CHART 2

S8600 (NATURAL GAS AND LP GAS)

INTERMITTENT PILOT SYSTEM TROUBLESHOOTING

NO SPARK AT PILOT BURNER

Replace ignition module.

Turn on gas supply.

turn on power supply.

NO

Turn gas supply off.

Is voltage (24 Vac) across the 24 V terminals on “Call for heat”?

YES

NO

Is voltage (24 Vac) across the PV & MV/PV terminals on

“call for heat”?

NOTE: (FOR LP MODELS ONLY) Pilot valve will be de-energized if module goes into lockout condition. Reset system by turning electrical power off or by turning system controller to “OFF” or down below “Call for heat”. Wait one minute then turn system on.

YES

Turn off power supply.

NO

Securely connect cable and/or ground wire.

Is ignition cable firmly plugged into module?

Is green ground wire firmly attached to mounting screw and GND terminal on module?

YES

Carefully bend downward top of ground strap to achieve 1/8” spark gap.

Replace ignition module.

NO

NO

Ensure ground strap is the closest metal to the igniter/sensor rod (electrode) to prevent the spark from shorting out to other metal parts (pilot screen, pilot shield, etc.).

Ignition cable must not touch metal surfaces or current carrying wires.

Is there a 1/8” gap between ground strap and electrode?

YES

Are the ceramic insulators surrounding the electrode cracked or broken?

YES

Replace pilot burner assembly or bus bar.

25

CHART 2

S8600 (NATURAL GAS AND LP GAS)

INTERMITTENT PILOT SYSTEM TROUBLESHOOTING

SPARK AT PILOT BURNER BUT PILOT WILL NOT LIGHT

Ensure all manual shutoff valves are fully open; All filters are clean; All gas connections are gas tight; Pilot tubing is not damaged, obstructed or kinked; and pilot orifice is unclogged.

Check for air in gas line, purge (bleed) line if necessary.

Attach wires firmly.

Replace gas valve.

Turn on power supply

NO

NO

Are the wires securely attached to the pilot operator on the gas control and to the PV & MV/PV terminals on the ignition module?

YES

Install a pressure gauge in the pilot tubing line between the gas control and the pilot burner assembly. Ensure that the pilot adjustment screw (under cap) is adjusted to a position that will permit gas to flow.

Is pilot gas flowing during ignition attempt?

YES

Turn off power supply.

Securely connect cable and/or ground wire.

Replace pilot burner

and/or ground wire.

Carefully bend downwards top of ground strap to achieve

1/8” spark gap.

Replace pilot burner.

Replace ignition module.

NO

Is ignition cable firmly plugged into module?

Is green ground wire firmly attached to mounting screw and GND terminal on module?

YES

NO

Is pilot burner ignition cable in good condition (not brittle, burnt, or cracked)?

YES

NO

Ensure ground strap is the closest metal to the igniter/sensor rod (electrode) to prevent the spark from shorting out to other metal parts (pilot screen, pilot shield, etc.).

Ignition cable must not touch metal surfaces or current carrying wires.

Is there a 1/8” gap between ground strap and electrode?

YES

NO

NO

Are the ceramic insulators surrounding the electrode in good condition (not cracked or broken)?

YES

Is there excessive draft conditions that may cause pilot burner ignition problems?

YES

26

Correct draft problems in a manner that would ensure adequate combustion and ventilation air and proper pilot burner performance.

CHART 2

S8600 (NATURAL GAS AND LP GAS)

INTERMITTENT PILOT SYSTEM TROUBLESHOOTING

PILOT BURNER LIGHTS BUT MAIN BURNER DOES NOT LIGHT

Correct the situation by consulting the installation or user’s manual on how to adjust pilot flame.

Replace ignition module.

NO

Is voltage (24 Vac) across terminals

MV & MV/PV?

NO

NO

Does the pilot flame cover 3/8” to 1/2” of igniter/sensor rod?

YES

Does spark stay on for more than 30 seconds after the pilot is “proven” (lit)?

Attach wires firmly.

NO

Are the wires securely attached to the main valve operator on the gas control and to terminals MV & MV/PV on ignition module?

YES

Replace main gas valve.

Replace pilot burner.

Replace pilot burner.

Clean rod or replace pilot burner if necessary.

NO

NO

NO

Is the pilot burner ignition cable in good condition (not brittle, burnt, or cracked)?

YES

Are the ceramic insulators surrounding the igniter/sensor rod in good condition

(not broken or cracked)?

YES

Are the igniter/sensor rod in good condition (not worn, corroded, sooted or damaged)?

YES

Replace ignition module.

27

MODEL HW LIMITED WARRANTY

A. O. Smith Corporation, the warrantor, extends the following LIMITED WARRANTY to the owner of this water heater.

1. If within FIVE years after initial installation of this water heater, a heat exchanger, coil or gas burner shall prove upon examination by the warrantor to be defective in material or workmanship, the warrantor, at his option will exchange or repair such part or portion.

a.

This warranty is extended to the owner for all other parts or portion during the FIRST year following initial installation of this water heater.

b.

The warranty on the repair or replacement of the part or portion will be limited to the unexpired term of the original warranty.

2. CONDITIONS AND EXCEPTIONS

This warranty shall apply only when the water heater is installed in accordance with local plumbing and building codes, ordinances and regulations, the printed instructions provided with it and good industry practices. In addition, a temperature and pressure relief valve, certified by A.G.A. and approved by the American Society of Mechanical Engineers, must have been installed.

a.

This warranty shall apply only when the heater is:

(1) used at temperatures not exceeding the maximum calibrated setting of its thermostat;

(2) used at water pressure not exceeding the working pressure shown on the heater;

(3) filled with potable water, free to circulate at all times and with the tank free of damaging water sediment or scale deposits;

(4) used in a non-corrosive and non-contaminated atmosphere;

(5) in its original installation location;

(6) in the United States, its territories or possessions, and Canada;

(7) sized in accordance with proper sizing techniques for commercial and/or residential water heaters;

(8) bearing a rating plate which has not been altered, defaced or removed, except as required by the warrantor;

(9) operated with properly installed dirt leg;

(10) fired with the fuel for which it was factory built; b.

c.

(11) fired at the factory rated input;

Any accident to the water heater, any misuse, abuse (including freezing) or alteration of it, any operation of it in a modified form, or any attempt to repair tank leaks will void this warranty.

This warranty is void if a device acting as a backflow prevention device (check valves etc.) is installed in the cold water supply the heater is connected to, unless an effective method of controlling thermal expansion is also installed at the heater(s) and operational at all times.

The relief valve installed on the heater is not an acceptable method.

3. SERVICE AND REPAIR EXPENSES

Under the limited warranty the warrantor will provide only a replacement water heater or part thereof. The owner is responsible for all other costs.

Such costs may include but are not limited to: a.

b.

Labor charges for service removal, repair or reinstallation of the water heater or any component part;

Shipping, delivery, handling, and administrative charges for forwarding the new heater or replacement part from the nearest distributor and c.

returning the claimed defective heater or part to such distributor.

All cost necessary or incidental for any material and/or permits required for installation of the replacement heater or part.

4. LIMITATIONS ON IMPLIED WARRANTIES

Implied warranties, including the warranty of merchantability imposed on the sale of this heater under state law are limited to one (1) year duration for the heater or any of its parts. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

5. CLAIM PROCEDURE

A ny claim under the warranty should be initiated with the dealer who sold the heater, or with any other dealer handling the warrantor’s products. If this is not practicable, the owner should contact:

U.S. Customers

A. O. Smith Corporation

500 Tennessee Waltz Parkway

Ashland City, TN 37015

Canadian Customers

A. O. Smith Enterprises Ltd.

P. O. Box, 310 - 768 Erie Street

Stratford, Ontario N5A 6T3 a.

b.

The warrantor will only honor replacement with identical or similar water heater or parts thereof which are manufactured or distributed by the warrantor.

Dealer replacements are made subject to in-warranty validation by warrantor.

6. DISCLAIMERS

NO OTHER EXPRESS WARRANTY HAS BEEN OR WILL BE MADE ON BEHALF OF THE WARRANTOR WITH RESPECT TO THE

MERCHANTABILITY OF THE HEATER OR THE INSTALLATION, OPERATION, REPAIR OR REPLACEMENT OF THE HEATER. THE

WARRANTOR SHALL NOT BE RESPONSIBLE FOR WATER DAMAGE, LOSS OF USE OF THE UNIT, INCONVENIENCE, LOSS OR DAMAGE

TO PERSONAL PROPERTY OR OTHER CONSEQUENTIAL DAMAGE. THE WARRANTOR SHALL NOT BE LIABLE BY VIRTUE OF THIS

WARRANTY OR OTHERWISE FOR DAMAGE TO ANY PERSONS OR PROPERTY, WHETHER DIRECT OR INDIRECT, AND WHETHER

ARISING IN CONTRACT OR IN TORT.

a.

Some states do not allow the exclusion or limitation of the incidental or consequential damage, so the above limitations or exclusions may not apply to you.

b.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Fill in the following for your own reference. Keep it. Registration is not a condition of warranty. The model and serial number are found on the heater’s rating plate.

Model No. ______ Serial No. ________________________________ Date Installed ________________

Dealer’s Name__________________________________________________________________________________________________________

Dealer’s Address ________________________________________________________________ _ Phone No.____________________

City and State_____________________________________________________________________________ Zip _________________________

KEEP THIS WARRANTY POSTED ADJACENT TO THE HEATER FOR FUTURE REFERENCE.

28

Was this manual useful for you? yes no
