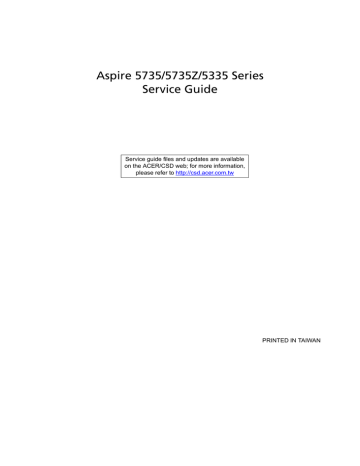

Aspire 5735/5735Z/5335 Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

II

Revision History

Please refer to the table below for the updates made on Aspire 5735/5735Z/5335 Series service guide.

Date Chapter Updates

Copyright

Copyright © 2008 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

IV

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

V

VI

Table of Contents

System Specifications 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Your Acer Notebook tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Easy-Launch Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Touchpad basics (with two-click buttons) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Lock Keys and embedded numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Special Key (only for certain models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Acer Empowering Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Launching Acer Empowering Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Empowering Technology password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Acer eAudio Management (only for certain models). . . . . . . . . . . . . . . . . . . . . 17

Acer ePower Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Acer eDataSecurity Management (only for certain models) . . . . . . . . . . . . . . . .19

Acer eRecovery Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Acer eSettings Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Windows Mobility Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Acer GridVista (dual-display compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

System Utilities 33

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

BIOS Flash Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Remove HDD/BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Machine Disassembly and Replacement 47

Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Disassembly Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing the SD dummy card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the ExpressCard dummy card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the Lower Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Removing the DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Removing the WLAN Board Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Removing the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

VII

Table of Contents

Removing the Middle Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Removing the Heatsink Fan Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Removing the CPU Heatsink Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Separating the Upper Case from the Lower Case . . . . . . . . . . . . . . . . . . . . . . .70

Removing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Removing the Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Removing the Touchpad Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Removing the Modem Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Removing the Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Removing the USB Board Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Removing the Bluetooth Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Removing the LCD panel with the Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Removing the Inverter Board and FPC Cable . . . . . . . . . . . . . . . . . . . . . . . . . .90

Removing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Removing the Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Removing the Web Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Troubleshooting 97

System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Keyboard or Auxiliary Input Device Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Memory Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Touchpad Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Phoenix BIOS Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Intermittent Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Jumper and Connector Locations 117

Top and Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Clearing Password Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

FRU (Field Replaceable Unit) List 121

Aspire 5735/5735Z/5335 Series Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . .122

Model Definition and Configuration 130

Aspire 5735/5735Z/5335 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Test Compatible Components 155

Microsoft® Windows® Vista Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .156

VIII

Table of Contents

Online Support Information 159

Index 161

IX

X

Table of Contents

Chapter 1

System Specifications

Features

Below is a brief summary of the computer’s many feature:

Platform

Intel® Centrino® 2 processor technology, featuring:

Intel

®

Core

2 Duo processor*

Intel

®

Pentium

®

dual-core processor*

Intel

®

Celeron

®

processor*

Mobile Intel

®

GL40/GM45 Express Chipset (GL40 for Aspire 5730/5730Z/5330; GL45 for Aspire 5735/

5735Z/5335)

Intel

®

Wireless WiFi Link 5100/5300*

Acer InviLink

Nplify

802.11b/g/Draft-N*

Acer InviLink

802.11b/g*

NOTE: Intel

®

Core

2 Duo T5800/T5900/T9400/P7350/P8400 for Aspire 5735; Intel

®

Pentium

®

dual-core

T3200/T3400 for Aspire 5735Z; Intel

®

Celeron

®

M 575/585/T1600 for Aspire 5335

System Memory

Dual-channel SDRAM support

Up to 1 GB of DDR2 667 MHz memory, upgradeable to 2 GB using two soDIMM modules*

Up to 2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules*

Display and graphics

15.6" HD 1366 x 768

Mobile Intel

®

GL40/GM45 Express Chipset (GM45 for Aspire 5735/5735Z/5335)*

Storage subsystem

2.5" hard disk drives

Optical drive options:

DVD-Super Multi double-layer drive

5-in-1 card reader

Special keys and controls

105-/106-key keyboard

Touchpad pointing device

Empowering Key

Easy-launch buttons: WLAN, Volume Up, Volume Down and Bluetooth

Audio

Two built-in stereo speakers

Chapter 1 1

High-definition audio support

MS-Sound compatible

Built-in microphone

Communication

Integrated Acer Crystal Eye webcam*

WLAN:

Acer InviLink

Nplify

802.11b/g/Draft-N*

Acer InviLink

802.11b/g*

WPAN: Bluetooth

®

2.0+Enhanced Data Rate (EDR)*

LAN: Gigabit Ethernet; Wake-on-LAN ready

Modem: 56K ITU V.92; Wake-on-Ring ready

I/O Ports

ExpressCard

/54 slot

5-in-1 card reader (SD/MMC/MS/MS PRO/xD)

Three USB 2.0 ports

External display (VGA) port

Headphones/speaker/line-out jack*

Microphone-in jack

Line-in jack

Ethernet (RJ-45) port

Modem (RJ-11) port

DC-in jack for AC adapter

Environment

Temperature:

Operating: 5 °C to 35 °C

Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

Operating: 20% to 80%

Non-operating: 20% to 80%

NOTE: "*" "Only for certain models"

NOTE: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.

2 Chapter 1

System Block Diagram

Cathedral Peak II Block Diagram

CLK GEN.

ICS 9LPRS365BKLFT (71.09365.A03)

RTM 875N-606-LFT (71.00875.C03)

3

DDR2 DIMM1

667/800 MHz

DDR2 DIMM2

667/800 MHz

13

INT.MIC

16

12

667/800MHz

667/800MHz

Mobile CPU

Penryn 479

THERMAL EMC2102

21

4, 5

HOST BUS 667/800/[email protected]

CRT

15

LCD

14

Cantiga

AGTL+ CPU I/F

DDR Memory I/F

INTEGRATED GRAHPICS

LVDS, CRT I/F

6,7,8,9,10,11

X4 DMI

400MHz

C-Link0

MIC In

29

29

INT.SPKR

Codec

ALC268

28

OP AMP

APA2057

29

AZALIA

ICH9M

6 PCIe ports

PCI/PCI BRIDGE

ACPI 2.0

4 SATA

12 USB 2.0/1.1 ports

ETHERNET (10/100/1000MbE)

High Definition Audio

LPC I/F

Serial Peripheral I/F

Matrix Storage Technology(DO)

Active Managemnet Technology(DO)

PCIex1

PCIex1

PCIex1

LPC BUS

LAN

Giga LAN

88E8071

25

New card

27

TXFM

26

RJ45

26

PWR SW

TPS2231

27

Mini Card

Kedron a/b/g/n

27

29

Line Out

(NO SPDIF)

RJ11

MODEM

MDC Card

23

Blue Tooth

(USB)

23

SATA

HDD SATA

22

ODD SATA

22

SATA

USB

3 Port

23

17,18,19,20

USB

Camera

(USB)

14

USB

KBC

ENE3310

30

Touch

Pad

30

INT.

KB

30

CardReader

Realtek

RTS5158E

24

BIOS

Winbond

W25X16

16M Bits

31

LPC

DEBUG

CONN.

31

Launch

Buttom

16

MS/MS Pro/xD

/MMC/SD

5 in 1

24

Launch Board

LED Board

16

Chapter 1 3

Your Acer Notebook tour

After knowing your computer features, let us show you around your new computer.

Front View

4

4

5

6

7/14

1

2

3

Icon Item

Acer Crystal Eye webcam

Display screen

Description

Web camera for video communication (only for certain models).

Power button

Also called Liquid-Crystal Display (LCD), displays computer output.

Turns the computer on and off.

Empowering key Launch Acer Empowering Technology

Keyboard

Touchpad

Status indicators

For entering data into your computer.

Touch-sensitive pointing device which functions like a computer mouse.

Light-Emitting Diodes (LEDs) that light up to show the status of the computer's functions and components.

Chapter 1

8

9

10

11

Icon Item

Click buttons

(left and right)

Palmrest

Speakers

Microphone

Description

The left and right buttons function like the left and right mouse buttons.

Comfortable support area for your hands when you use the computer.

Left and right speakers deliver stereo audio output.

Internal microphone for sound recording.

12

13 VOL+/

VOL-

Easy-launch buttons

Volume up/Volume down

Buttons for launching frequently used programs.

Increases the sound volume/Decreases the sound volume.

Closed Front View

1

Icon

Latch

Item Description

Locks and releases the lid.

Chapter 1 5

Left View

3

4

5

1

#

2

6

7

Right View

Icon Item

External display

(VGA) port

Ethernet (RJ-45) port

Description

Connects to a display device

(e.g., external monitor, LCD projector).

Connects to an Ethernet 10/100/1000-based network.

USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse, USB camera) (only for certain models).

Microphone-in jack Accepts input from external microphones.

Headphones/ speaker/line-out jack with

S/PDIF support

5-in-1 card reader

Connects to audio line-out devices (e.g., speakers, headphones).

Accepts Secure Digital (SD), MultiMediaCard (MMC),

Memory Stick (MS), Memory Stick PRO (MS PRO), xD-

Picture Card (xD).

ExpressCard/54 slot

Accepts one ExpressCard/54 module.

6

1

2

3

Icon Item

Optical drive

Optical disk access indicator

Optical drive eject button

Description

Internal optical drive; accepts CDs or DVDs.

Lights up when the optical drive is active.

Ejects the optical disk from the drive.

Chapter 1

4

5

6

7

Rear View

Icon Item Description

Emergency eject hole Ejects the optical drive tray when the computer is turned off.

Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.

Modem (RJ-11) port Connects to a phone line.

DC-in jack

Kensington lock slot

Connects to an AC adapter.

Connects to a Kensington-compatible computer security lock.

1

# Icon Item

Ventilation slots

Description

Enable the computer to stay cool, even after prolonged use.

Chapter 1 7

Bottom View

8

1

2

3

4

5

6

Icon Item

Battery bay

Description

Houses the computer's battery pack.

Battery release latch

Battery lock

Releases the battery for removal.

Locks the battery in position.

Memory compartment

Hard disk bay

Ventilation slots and cooling fan

Houses the computer's main memory.

Houses the computer's hard disk (secured with screws).

Enable the computer to stay cool, even after prolonged use.

Note: Do not cover or obstruct the opening of the fan.

Chapter 1

Indicators

The computer has several easy-to-read status indicators. The front panel indicators are visible even when the computer cover is closed.

Icon

HDD

Function Description

Indicates when the hard disk drive is active.

Num Lock

Caps Lock

Power

Battery

Lights up when Num Lock is activated.

Lights up when Caps Lock is activated.

Indicates the computer's power status.

Indicates the computer's battery status.

NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

Easy-Launch Buttons

Located beside the keyboard are application buttons. These buttons are called easy-launch buttons. They are:

WLAN, Internet, email, Bluetooth, Arcade and Acer Empowering Technology.

The mail and Web browser buttons are pre-set to email and Internet programs, but can be reset by users. To set the Web browser, mail and programmable buttons, run the Acer Launch Manager.You can access the

Launch Manager by clicking on Start, All Programs, and then Launch Manager to start the application.

Icon

VOL+

VOL-

Function

Wireless communication button/indicator

(manufacturing option)

Volume up

Volume down

Bluetooth communication button/indicator

(manufacturing option)

Acer Empowering

Technology

Description

Enables/disables the wireless function. Indicates the status of wireless LAN communication.

Increases the sound volume.

Decreases the sound volume.

Enables/disables the Bluetooth function. Indicates the status of Bluetooth communication.

Launch Acer Empowering Technology (userprogrammable)

Chapter 1 9

Touchpad basics (with two-click buttons)

The following items show you how to use the touchpad with two-click buttons.

1 2 3

Move your finger across the touchpad (1) to move the cursor.

Press the left (2) and right (3) buttons located beneath the touchpad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad is the same as clicking the left button.

Function

Execute

Select

Drag

Access context menu

Left button (2)

Quickly click twice.

Click once.

Click and hold, then use finger on the touchpad to drag the cursor.

Right button (3) Main touchpad (1)

Tap twice (at the same speed as double-clicking a mouse button).

Tap once.

Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the touchpad on the second tap and drag the cursor.

Click once.

NOTE: Illustrations for reference only. The exact configuration of your PC depends on the model purchased.

NOTE: When using the touchpad, keep it — and your fingers — dry and clean. The touchpad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad's responsiveness.

NOTE: By default, vertical and horizontal scrolling is enabled on your touchpad. It can be disabled under

Mouse settings in Windows Control Panel.

10 Chapter 1

Using the Keyboard

The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function and special keys.

Lock Keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock key

Caps Lock

Num Lock

<Fn> + <F11>

Scroll Lock <Fn> +

<F12>

Description

When Caps Lock is on, all alphabetic characters typed are in uppercase.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /).

Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

NOTE: <Fn> + <F11> works only for certain models.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the key caps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num Lock on

Type numbers in a normal manner.

Hold <Shift> while using cursorcontrol keys.

Hold <Fn> while typing letters on embedded keypad.

Num Lock off

Hold <Fn> while using cursorcontrol keys.

Type the letters in a normal manner.

Chapter 1 11

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key

Windows key

Application key

Description

Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the

Start menu.

It can also be used with other keys to provide a variety of functions:

< >: Open or close the Start menu

<

> + <D>: Display the desktop

<

> + <E>: Open Windows Explore

< > + <F>: Search for a file or folder

< > + <G>: Cycle through Sidebar gadgets

< > + <L>: Lock your computer (if you are connected to a network domain), or switch users (if you're not connected to a network domain)

< > + <M>: Minimizes all windows

<

> + <R>: Open the Run dialog box

< > + <T>: Cycle through programs on the taskbar

<

> + <U>: Open Ease of Access Center

< > + <X>: Open Windows Mobility Center

< > + <BREAK>: Display the System Properties dialog box

<

> + <SHIFT+M>: Restore minimized windows to the desktop

<

> + <TAB>: Cycle through programs on the taskbar by using Windows Flip 3-D

<

> + <SPACEBAR>: Bring all gadgets to the front and select Windows Sidebar

<CTRL> + <

> + <F>: Search for computers (if you are on a network)

<CTRL> + <

> + <TAB>: Use the arrow keys to cycle through programs on the taskbar by using

Windows Flip 3-D

Note: Depending on your edition of Windows Vista, some shortcuts may not function as described.

This key has the same effect as clicking the right mouse button; it opens the application's context menu.

12 Chapter 1

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer’s controls like screen brightness, volume output and the BIOS utility.

To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Hotkey

<Fn> + <F1>

<Fn> + <F2>

<Fn> + <F3>

<Fn> + <F4>

<Fn> + <F5>

<Fn> + <F6>

<Fn> + <F7>

<Fn> + <F8>

<Fn> + < >

<Fn> + < >

<Fn> + < >

<Fn> + < >

Icon Function

Hotkey help

Acer eSettings

Acer ePower

Management

Sleep

Display toggle

Screen blank

Touchpad toggle

Speaker toggle

Brightness up

Brightness down

Volume up

Volume down

Description

Displays help on hotkeys.

Launches Acer eSettings in Acer Empowering

Technology.

Launches Acer ePower Management in Acer

Empowering Technology.

Puts the computer in Sleep mode.

Switches display output between the display screen, external monitor (if connected) and both.

Turns the display screen backlight off to save power. Press any key to return.

Turns the internal touchpad on and off.

Turns the speakers on and off.

Increases the screen brightness.

Decreases the screen brightness.

Increases the sound volume

(only for certain models).

Decreases the sound volume

(only for certain models).

Chapter 1 13

Special Key (only for certain models)

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard.

The Euro symbol

1.

Open a text editor or word processor.

2.

Either press < > at the bottom-right of the keyboard, or hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/

typography/faq/faq12.htm for more information.

The US dollar sign

1.

Open a text editor or word processor.

2.

Either press < > at the bottom-right of the keyboard, or hold <Shift> and then press the <4> key at the upper-center of the keyboard.

NOTE: This function varies according to the language settings.

14 Chapter 1

Acer Empowering Technology

The Empowering Technology toolbar makes it easy for you to access frequently used functions and manage your new Acer system. Activated by pressing the Empowering Key, it provides access to the following utilities:

NOTE: The following content is for general reference only. Actual product specifications may vary.

Acer eAudio Management allows you to easily control the enhanced sound effects of Dolby Home

Theater on your system (only for certain models).

Acer ePower Management optimizes battery usage via customizable power plans.

Acer eDataSecurity Management protects data with passwords and encryption (only for certain models).

Acer eRecovery Management backs up and recovers data flexibly, reliably and completely.

Acer eSettings Management accesses system information and adjusts settings easily.

For more information, right-click on the Empowering Technology toolbar, then select Help. For help with a particular utility, launch the utility and click the icon at the bottom of the active window.

Launching Acer Empowering Technology

To launch Acer Empowering Technology:

1.

Press the Empowering Key to display the Acer Empowering Technology toolbar on the desktop.

2.

To hide the toolbar, press the Empowering Key again or click the hide button on the toolbar.

You may also launch Acer Empowering Technology by running the program from the Acer Empowering

Technology program group in the Start menu, or by double-clicking the icon if you have created a desktop shortcut.

To launch Acer Empowering Technology applications:

1.

On the Acer Empowering Technology toolbar, click the icon that corresponds to the application you want to launch.

2.

When you mouse over an application icon, a quick menu appears below the toolbar. The quick menu allows you to perform certain tasks simply and quickly.

3.

You may also run the application by selecting it from the Acer Empowering Technology program group in the Start menu.

NOTE: You may also double-click or right-click to run Acer eAudio Management, and right-click run Acer ePower Management from the system tray.

to

Chapter 1 15

Empowering Technology password

You must set the Empowering Technology password to use the password protection feature of Acer eRecovery Management to protect your data.

To set the Empowering Technology password:

1.

Launch Acer eRecovery Management.

2.

Click the Restore tab.

3.

Click Password settings. The Empowering Technology Password Center dialogue box pops up.

4.

Click Create a new password.

5.

In the Create a New Password dialogue box, key in and confirm your password in the appropriate boxes.

Your password should have a minimum of 4 and a maximum of 12 characters.

6.

Enter a password hint that will help you remember your password.

7.

Make sure the box Use for Acer eRecovery Management is checked.

8.

Click OK to set the password.

16 Chapter 1

Acer eAudio Management (only for certain models)

Acer eAudio Management allows you to easily control the enhanced sound effects of Dolby Home Theater on your system. Select Movie or Game mode to experience the awesome realism of 5.1-channel audio output from the speakers fitted to your system via Dolby Surround sound technology. Music mode lets you enjoy your favorite tunes, in vivid detail.

To choose your playback device, click the icon on the upper right side of the Acer eAudio Management window.

Chapter 1 17

Acer ePower Management

Acer ePower Management features a straightforward user interface for configuring your power management options. To access this utility, select Acer ePower Management from the Empowering Technology toolbar, run the program from the Acer Empowering Technology program group in Start menu, or right-click the Windows power icon in the system tray and select Acer ePower Management.

Using power plans

Acer ePower Management comes with three predefined power plans: Balanced, High performance and

Power saver.

View and adjust settings for On Battery and Plugged In modes by clicking the appropriate tabs. For more power options, click in the Acer ePower Management utility, or right-click the Windows power icon in the system tray and select Power Options.

You can also create customized power plans. You can create, switch between, edit, delete and restore power plans, as described below.

To create a new power plan:

Creating customized power plans allows you to save and quickly switch to a personalized set of power options.

1.

Click the New power plan option or icon .

2.

Enter a name for your new power plan.

3.

Choose a predefined power plan to base your customized plan on.

4.

If necessary, change the display, sleep and hibernation settings you want your computer to use.

5.

Click OK to save your new power plan.

To switch between power plans:

1.

Move your mouse over the Acer ePower Management

Technology toolbar. The quick menu appears.

Select the power plan you want to switch to.

application on the Acer Empowering

2.

You may also switch between power plans by launching the Acer ePower Management application.

Select the power plan you wish to switch to, then click Apply.

To edit a power plan:

Editing a power plan allows you to adjust system settings like LCD brightness, CPU speed and Graphics power mode (only for certain models).

1.

Switch to the power plan you wish to edit.

2.

Adjust settings as required.

3.

Click Apply or Save to save your new settings.

NOTE: You can revert to the default settings of the predefined power plans by clicking the Restore button.

To delete a power plan:

You cannot delete the power plan you are currently using. The active power plan will mark with in upper left corner of power plan icon. If you want to delete the active power plan, switch to another one first.

1.

Select the power plan you wish to delete.

2.

Click the Delete this plan icon.

NOTE: You cannot delete the predefined power plans, but you can modify the settings of the predefined power plans.

18 Chapter 1

Battery status

1.

The quick menu shows the remaining battery life based on current usage.

2.

You can also launch the Acer ePower Management application and refer to the Battery status panel located just below the power plans.

3.

Click the Battery tab to view remaining battery life, battery status, and remaining battery life in standby and hibernate modes.

Acer eDataSecurity Management (only for certain models)

Acer eDataSecurity Management is an encryption utility that protects your files from being accessed by unauthorized persons. It is conveniently integrated with Windows Explorer as a shell extension for quick data encryption/decryption and also supports on-the-fly file encryption for Lotus Notes and Microsoft Outlook.

On first use, the Acer eDataSecurity Management setup wizard will prompt you to create the Master

Password. You will use this password to access the Personal Secure Disk (PSD). The Master Password may also be used to encrypt/decrypt files by default.

Chapter 1 19

If you set a different password to encrypt a file, but you forgot the encryption password, you can use the

Master Password to decrypt the file.

NOTE: The password used to encrypt a file is the unique key that the system needs to decrypt it. If you lose the password, the Master Password is the only other key capable of decrypting the file. If you lose both passwords, there will be no way to decrypt your encrypted file! Be sure to safeguard all related

passwords!

Acer eRecovery Management

Acer eRecovery Management is a versatile backup utility. It allows you to create full or incremental backups, burn the factory default image to optical disc, and restore from previously created backups or reinstall applications and drivers. By default, user-created backups are stored to the D:\ drive.

Acer eRecovery Management provides you with:

Backup:

20 Chapter 1

Back up factory default to CD/DVD

Back up drivers and applications to CD/DVD

Create user backup

Manage user backups

Restore:

Restore system to factory default

Reinstall applications/drivers

Restore system from user backup

Password settings

To use the password protection feature of Acer eRecovery Management to protect your data, you must first set the Empowering Technology password. To set the password, refer to the section "Empowering Technology

password".

For more information, please refer to"Acer eRecovery Management" on page 62 in the Acer System

User's Guide.

NOTE: If your computer did not come with a Recovery CD or System CD, please use Acer eRecovery

Management's Backup factory default to CD/DVD feature to burn a backup image to CD or DVD. To ensure the best results when recovering your system using a CD or Acer eRecovery Management, detach all peripherals (except the external Acer ODD, if your computer has one), including your Acer ezDock.

Chapter 1 21

Acer eSettings Management

Acer eSettings Management allows you to inspect hardware specifications, set BIOS passwords and modify boot options.

Acer eSettings Management also:

Provides a simple graphical user interface for navigation.

Prints and saves hardware specifications.

Lets you set an asset tag for your system.

22 Chapter 1

Windows Mobility Center

q q q q

The Windows Mobility Center collects key mobile-related system settings in one easy-to-find place, so you can quickly configure your Acer system to fit the situation as you change locations, networks or activities. Settings include display brightness, volume, power plan, wireless networking on/off, external display settings, synchronization status and presentation settings.

Windows Mobility Center also includes Acer-specific settings like sharing folders overview/sharing service on or off, Bluetooth Add Device (if applicable), and a shortcut to the Acer user guide, drivers and utilities.

To launch Windows Mobility Center:

Use the shortcut key <

> + <X>.

Start Windows Mobility Center from the Control panel.

Start Windows Mobility Center from the Accessories program group in the Start menu.

Launch Windows Mobility Center by right-clicking

Center.

in the system tray and select Windows Mobility

Chapter 1 23

Using the System Utilities

Acer GridVista (dual-display compatible)

NOTE: This feature is only available on certain models.

To enable the dual monitor feature of the notebook, first ensure that the second monitor is connected, then select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the display box and then click the check box Extend my windows desktop onto this monitor. Finally, click

Apply to confirm the new settings and click OK to complete the process.

24

Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows on the same screen. To access this function, please go to Start>All Programs and click on Acer GridVista.

You may choose any one of the four display settings indicated below:

Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.

Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.

AcerGridVista is simple to set up:

1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.

2.

Drag and drop each window into the appropriate grid.

3.

Enjoy the convenience of a well-organized desktop.

Chapter 1

NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's recommended value.

Chapter 1 25

Hardware Specifications and Configurations

Processor

CPU type

Item

Core logic

CPU package

CPU core voltage

CPU Fan True Value Table

DTS(degree C)

45-50

55-66

68-74

78-83

86-91

Fan Speed (rpm)

0-3000

0-3300

3300-3800

3800-4100

4100-4800

Specification

Intel

®

Core

2 Duo T5800 (2.0G)/T5900/T9400 (2.53G)/P7350

(2.0G)/P8400 (2.26G) for Aspire 5735

Intel

®

Pentium

®

dual-core T3200 (2.0G)/T3400 for Aspire 5735Z

Intel

®

Celeron

Aspire 5335

®

M 575 (2.0G)/585 (2.16G)/T1600 (1.66G) for

Intel® Core™2 Duo Mobile Processor P8400 (2.26G), P8600 (2.4

G), P9500 (2.53G), T9400 (2.53G), T9600 (2.8G)

Mobile Intel® 945 Express Chipset

Socket P

1.0375V to 1.3V

Acoustic Level (dBA)

29

33

38

40

40

BIOS

BIOS vendor

BIOS Version

Item

Phoenix

1.04c

Specification

System Memory

Item

Memory controller

Memory size

DIMM socket number

Built-in

0MB (no on-board memory)

2 sockets

Specification

Supports memory size per socket 2048MB

Supports maximum memory size 4G for 64bit OS (with two 2GB SODIMM)

Supports DIMM type

Supports DIMM Speed

DDR 2 Synchronous DRAM

667 MHz

Supports DIMM voltage

Supports DIMM package

Memory module combinations

1.8V and 0.9V

200-pin soDIMM

You can install memory modules in any combinations as long as they match the above specifications.

26 Chapter 1

Memory Combinations

Slot 1

0MB

0MB

0MB

512MB

512MB

512MB

1024MB

1024MB

1024MB

1024MB

2048MB

2048MB

2048MB

2048MB

Slot 2

512MB

1024MB

2048MB

1024MB

1536MB

2560MB

1024MB

1536MB

2048MB

3072MB

2048MB

2560MB

3072MB

4096MB

Total Memory

512MB

1024MB

2048MB

512MB

1024MB

2048MB

0MB

512MB

1024MB

2048MB

0MB

512MB

1024MB

2048MB

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

Item

LAN Chipset

Supports LAN protocol

LAN connector type

LAN connector location

Features

Specification

Marvell 88E8071

10/100/1000 Mbps

RJ45

Left side

Integrated 10/100 BASE-T transceiver

Wake on LAN support compliant with ACPI 2.0

PCI v2.2

Bluetooth Interface

Item

Chipset

Data throughput

Protocol

Interface

Connector type

Specification

Foxconn Bluetooth FOX_BRM_2.0 F/W 300 (built-in

ICH9M on the main board)

723 bps (full speed data rate)

Bluetooth 1.1 (Upgradeable to Bluetooth 1.2 when SIG specification is ratified).

USB 1.1

USB

Wireless Module 802.11b/g

Item

Chipset

Data throughput

Specification

WLAN 802.11ABGN SHIRLEYPEAK1*2 (built-in ICH9M on the main board)

11~54 Mbps, up to 270 Mbps for Draft-N

Chapter 1 27

28

Wireless Module 802.11b/g

Item

Protocol

Interface

Specification

802.11b+g, Draft-N

PCI bus (mini PCI socket for wireless module)

Hard Disk Drive Interface

Item

Vendor &

Model Name

HGST

HTS542512K9SA00

BRONCO-B LF

SEAGATE

ST9120817AS LF

TOSHIBA

MK1246GSX LF

WD1200BEVS-

22UST0 ML125 LF

120000 Capacity

(MB)

Bytes per sector

512

Data heads 3

Drive Format

Disks

Spindle speed

(RPM)

2

5400 RPM

Performance Specifications

Buffer size 8MB

Interface

Max. media transfer rate

(disk-buffer,

Mbytes/s)

SATA

540

DC Power Requirements

Voltage tolerance

5V(DC) +/- 5%

WD1600BEVT-

22ZCT0

HITACHI

HTS541616J9SA00

LF

SEAGATE SATA

ST9160827AS

TOSHIBA

MK1646GSX LF

160000

512

3/4

2

5400 RPM

8MB

SATA

540

5V(DC) +/- 5%

SEAGATE SATA

ST9250827AS

TOSHIBA

MK2546GSX LF

HGST

HTS542525K9SA00

LF

WD WD2500BEVS-

22UST0 ML125

250000

WD WD3200BEVT-

22ZCT0 ML125

320000

512

4

2

5400 RPM

8MB

SATA

540

5V(DC) +/- 5%

N/A

N/A

N/A

5400 RPM

8MB

SATA

850

5V(DC) +/- 5%

Optical Disc Drive

Item

Vendor & model name

Performance Specification

Specification

TOSHIBA SUPER-MULTI DRIVE DL 8X TS-L633A LF

PIONEER SUPER-MULTI DRIVE 8X DVR-TD08RS LF

PANASONIC SUPER-MULTI DRIVE DL 8X UJ-870A LF

HLDS SUPER-MULTI DRIVE TRAY DL 8X GSA-T50N LF

HLDS SUPER-MULTI DRIVE DL 8X GSA-T50N LF

SONY SUPER-MULTI DRIVE DL 8X AD-7560S LF

PLDS SUPER-MULTI DRIVE DL 8X DS-8A2S LF

With CD Diskette With DVD Diskette

Chapter 1

Optical Disc Drive

Item

Transfer rate (KB/sec)

Buffer Memory

Interface

Applicable disc format

Loading mechanism

Power Requirement

Input Voltage

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Sampling rate

Internal microphone

Chapter 1

Sustained:

Max 3.6Mbytes/sec

2MB

SATA

Specification

Sustained:

Max 10.08Mbytes/sec

Applicable disc format

CD: CD-DA, CD-ROM, CD-ROM XA, Photo CD (multi-session), Video

CD, Cd-Extra (CD+), CD-text

DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R DL,

DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW

CD:

CD-DA (Red Book) - Standard Audio CD & CD-TEXT

CD-ROM (Yellow Book Mode1 & 2) - Standard Data

CD-ROM XA (Mode2 Form1 & 2) - Photo CD, Multi-Session

CD-I (Green Book, Mode2 Form1 & 2, Ready, Bridge)

CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video

Video-CD (White Book) - MPEG1 Video

CD-R (Orange Book Part)

CD-RW & HSRW (Orange Book Part Volume1 & Volume 2

Super Audio CD (SACD) Hybrid type

US & US+ RW

DVD:

DVD-ROM (Book 1.02), DVD-Dual

DVD-Video (Book 1.1)

DVD-R (Book 1.0, 3.9G)

DVD-R (Book 2.0, 4.7G) - General & Authoring

DVD+R (Version 1.0)

DVD+RW

DVD-RW (Non CPRM & CPRM)

DVD°”R Dual

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5% (Operating)

Realtek ALC268 Azalia and Amplifier APA2057

Built-in

Stereo

18 bit stereo full duplex

HD audio Interface; S/PDIF output for PCM or AC-3 content

1Hz resolution VSR (Variable Sampling Rate)

Yes

Specification

29

Audio Interface

Item

Internal speaker / Quantity

Video Memory

Chipset

Memory size

Item

Item

Chipset

USB Compliancy Level

OHCI

Number of USB port

Location

Serial port function control

30

System Board Major Chips

Item

Core logic

VGA

USB 2.0

Super I/O controller

MODEM

Bluetooth

Wireless 802.11 b+g

PCMCIA/ 5 in 1 Card Reader

Audio Codec

Keyboard

Item

Keyboard controller

Total number of keypads

Windows logo key

Internal & external keyboard work simultaneously

Battery

Item

Vendor

Yes/2 (1.5W speakers)

Specification

Specification

GL45 (built-in Cantiga) depends on setup setting

Specification

ICH9M

2.0

USB 1.1 and USB 2.0 Host controller

3

Two on the right side/one on the front

Enable/Disable by BIOS Setup

Specification

Controller

Mobile Intel® GL45 + ICH9M Express Chipset

GL45

Intel ICH9M

N/A

ALC 268

FOXCONN BCM2045 V2 (built-in ICH9M on the main board)

WLAN 802.11ABGN SHIRLEYPEAK1*2 (built-in ICH9M on the main board)

Realtec RTS5158E

Audio Azalia(ALC268)

Specification

ENE 3310

84-/85-key

Yes

Plug USB keyboard to the USB port directly: Yes

Panasonic/Sanyo/Sony/Simplo

Chapter 1

Battery

Item

Battery Type

Pack capacity

Number of battery cell

Package configuration

Specification

Li-ion

6Cell 4400 MAH/8Cell 4800 MAH

6/8

3 cells in series, 2 series in parallel

4 cells in series, 2 series in parallel

LCD 15.4” inch

Item

Vendor & model name

Screen Diagonal (mm)

Display resolution (pixels)

Pixel Pitch

Pixel Arrangement

Display Mode

Typical White Luminance (NIT) also called Brightness

Luminance Uniformity

Contrast Ratio

Response Time msec

Nominal Input Voltage VDD

Viewing Angle (degree)

Horizontal: Right/Left

Vertical: Upper/Lower

Operating

Storage (shipping)

AC Adaptor

Item

Input

Output

System Power Management

Mech. Off (G3)

Soft Off (G2/S5)

ACPI mode

Working (G0/S0)

CMO/AUO/LG

15.4 inches

1280 x 800 WXGA

0.204 x 0.204

R.G.B. Vertical Stripe

Normally White

220

1.25 max.

400 typical

8

+3.3V

45/45

15/35

0 to +50

-40 to +60

Specification

Specification

100-240V~ 1.5A, 50-60Hz/

19V 4.74A 90W/19V 3.42A 65W

Power Management

All devices in the system are turned off completely.

OS initiated shutdown. All devices in the system are turned off completely.

Individual devices such as the CPU and hard disc may be power managed in this state.

Chapter 1 31

System Power Management

ACPI mode

Suspend to RAM (S3)

Save to Disk (S4)

Power Management

CPU set power down

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

Also called Hibernation Mode. System saves all system states and data onto the disc prior to power off the whole system.

32 Chapter 1

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press F2 during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

I n f o r m a t i o n M a i n

C P U Ty p e :

C P U S p e e d :

I D E 0 M o d e l N a m e :

I D E 0 S e r i a l N u m b e r :

ATA P I M o d e l N a m e :

S y s t e m B I O S Ve r s i o n :

V G A B I O S Ve r s i o n :

K B C Ve r s i o n :

S e r i a l N u m b e r :

A s s e t Ta g N u m b e r :

P r o d u c t N a m e :

M a n u f a c t u r e r N a m e :

U U I D :

P h o e n i x S e c u r e C o r e ( t m ) S e t u p U t i l i t y

S e c u r i t y B o o t E x i t

I n t e l ( R ) C o r e ( T M ) 2 D u o C P U T 9 4 0 0 @ 2 . 5 3 G H z

2 . 5 3 G H z

X X X X X X X X X X X - ( X X )

X X X X X X X X

X X X X X X X X X X X - X X X X X - X X X X - ( X X )

V X . X X

X X - X X X X X X X X X . X X X . X X X . X X X . X X X X X X

X X . X X

X X X X X X X X X X X X X X X X X X X X X X X

N o n e

A s p i r e 5 7 3 0

A c e r

X X X x X x X X - x X x X - X X x x - x X X x - x X X x X X x X x x X X

F1

Esc

H e l p

E x i t

S e l e c t I t e m

S e l e c t M e n u

-/+

Enter

C h a n g e Va l u e s

S e l e c t S u b - M e n u

F9

F10

S e t u p D e f a u l t s

S a v e a n d E x i t

Chapter 2 33

Navigating the BIOS Utility

There are five menu options: Information, Main, Security, Boot, and Exit.

Follow these instructions: q q

To choose a menu, use the left and right arrow keys.

To choose an item, use the up and down arrow keys.

q q q q

To change the value of a parameter, press F5 or F6.

A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.

Press Esc while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing F9. You can also press F10 to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values. Please

note that system information is subject to different models.

34 Chapter 2

Information

The Information screen displays a summary of your computer hardware information.

I n f o r m a t i o n M a i n

P h o e n i x S e c u r e C o r e ( t m ) S e t u p U t i l i t y

S e c u r i t y B o o t E x i t

C P U Ty p e :

C P U S p e e d :

I D E 0 M o d e l N a m e :

I D E 0 S e r i a l N u m b e r :

ATA P I M o d e l N a m e :

S y s t e m B I O S Ve r s i o n :

V G A B I O S Ve r s i o n :

K B C Ve r s i o n :

S e r i a l N u m b e r :

A s s e t Ta g N u m b e r :

P r o d u c t N a m e :

M a n u f a c t u r e r N a m e :

U U I D :

I n t e l ( R ) C o r e ( T M ) 2 D u o C P U

2 . 5 3 G H z

X X X X X X X X X X X - ( X X )

X X X X X X X X

X X X X X X X X X X X - X X X X X - X X X X - ( X X )

V X . X X

X X - X X X X X X X X X . X X X . X X X . X X X . X X X X X X

X X . X X

X X X X X X X X X X X X X X X X X X X X X X X

N o n e

A s p i r e 5 7 3 0

A c e r

T 9 4 0 0 @ 2 . 5 3 G H z

X X X x X x X X - x X x X - X X x x - x X X x - x X X x X X x X x x X X

F1

Esc

H e l p

E x i t

S e l e c t I t e m

S e l e c t M e n u

-/+

Enter

C h a n g e Va l u e s

S e l e c t S u b - M e n u

NOTE: The system information is subject to different models.

F9

F10

S e t u p D e f a u l t s

S a v e a n d E x i t

Parameter

CPU Type

CPU Speed

IDE0 Model Name

IDE0 Serial Number

ATAPI Model Name

System BIOS Version

VGA BIOS Version

KBC Ver

Serial Number

Asset Tag Number

Product Name

Manufacturer Name

UUID Number

Description

This field shows the CPU type and speed of the system.

This field shows the speed of the CPU.

This field shows the model name of HDD installed on primary IDE master.

This field displays the serial number of HDD installed on primary IDE master.

This field shows the model name of the Optical device installed in the system.

Displays system BIOS version.

This field displays the VGA firmware version of the system.

This field shows the keyboard

This field displays the serial number of this unit.

This field displays the asset tag number of the system.

This field shows product name of the system.

This field displays the manufacturer of this system.

Universally Unique Identifier (UUID) is an identifier standard used in software construction, standardized by the Open Software Foundation (OSF) as part of the Distributed

Computing Environment (DCE).

Chapter 2 35

Main

The Main screen allows the user to set the system time and date as well as enable and disable boot option and recovery.

I n f o r m a t i o n

S y s t e m Ti m e :

S y s t e m D a t e :

S y s t e m M e m o r y :

E x t e n d e d M e m o r y :

Vi d e o M e m o r y :

Q u i e t B o o t :

N e t w o r k B o o t :

F 1 2 B o o t M e n u :

D 2 D R e c o v e r y :

S ATA M o d e

M a i n

P h o e n i x S e c u r e C o r e ( t m ) S e t u p U t i l i t y

S e c u r i t y B o o t E x i t

I t e m S p e c i f i c H e l p

[ 1 0 : 1 0 : 1 0 ]

[ 0 7 / 2 6 / 2 0 0 8 ]

6 4 0 K B

4 0 6 1 M B

3 2 M B

[ E n a b l e d ]

[ E n a b l e d ]

[ D i s a b l e d ]

[ E n a b l e d ]

[ A H C I ]

< Ta b > , < S h i f t - Ta b > , o r

< E n t e r > s e l e c t s f i e l d .

F1

Esc

H e l p

E x i t

S e l e c t I t e m

S e l e c t M e n u

-/+

Enter

C h a n g e Va l u e s

S e l e c t S u b - M e n u

F9

F10

NOTE: The screen above is for your reference only. Actual values may differ.

S e t u p D e f a u l t s

S a v e a n d E x i t

36 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

System Time

System Date

System Memory

Extended Memory

VGA Memory

Quiet Boot

Network Boot

F12 Boot Menu

D2D Recovery

SATA Mode

Description

Sets the system time. The hours are displayed with 24-hour format.

Sets the system date.

Format/Option

Format: HH:MM:SS

(hour:minute:second) System Time

Format MM/DD/YYYY (month/day/ year)

System Date

This field reports the memory size of the system.

Memory size is fixed to 640MB

This field reports the memory size of the extended memory in the system.

Extended Memory size=Total memory size-1MB

Shows the VGA memory size.

Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Enables, disables the system boot from LAN

(remote server).

Enables, disables Boot Menu during POST.

Enables, disables D2D Recovery function. The function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults.

Control the mode in which the SATA controller should operate.

Option:

Option:

Option:

Option:

Enabled

or Disabled

Enabled

or Disabled

Disabled

or Enabled

Enabled

or Disabled

Option: AHCI or IDE

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.

Chapter 2 37

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

I n f o r m a t i o n

H D D P a s s w o r d i s :

M a i n

P h o e n i x S e c u r e C o r e ( t m ) S e t u p U t i l i t y

S e c u r i t y B o o t E x i t

I t e m S p e c i f i c H e l p

S e t S u p e r v i s o r P a s s w o r d

S e t U s e r P a s s w o r d

S e t H D D P a s s w o r d

P a s s w o r d o n B o o t :

C l e a r

C l e a r

C l e a r

[ E n t e r ]

[ E n t e r ]

[ E n t e r ]

[ D i s a b l e d ]

S u p e r v i s o r P a s s w o r d c o n t r o l s a c c e s s o f t h e w h o l e s e t u p u t i l i t y.

I t c a n b e u s e d t o b o o t u p w h e n P a s s w o r d o n b o o t i s e n a b l e d .

F1

Esc

H e l p

E x i t

S e l e c t I t e m

S e l e c t M e n u

-/+

Enter

C h a n g e Va l u e s

S e l e c t S u b - M e n u

F9

F10

S e t u p D e f a u l t s

S a v e a n d E x i t

NOTE: Please refer to “Remove HDD/BIOS Password” section if you need to know how to remove HDD/BIOS

Password.

38 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Supervisor Password Is

User Password Is

HDD Password Is

Set Supervisor Password

Set User Password

Set HDD Password

Password on Boot

Description

Shows the setting of the Supervisor password

Shows the setting of the user password.

Shows the setting of the hard disk password.

Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.

Press Enter to set the user password. When user password is set, this password protects the BIOS Setup Utility from unauthorized access. The user can enter Setup menu only and does not have right to change the value of parameters.

Enter HDD Password.

Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Option

Clear

or Set

Clear

or Set

Clear

or Set

Disabled

or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.

Use the “w” and “y” keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Supervisor Password box appears:

2.

Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3.

Press e.

After setting the password, the computer sets the User Password parameter to “Set”.

4.

If desired, you can opt to enable the Password on boot parameter.

5.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

Chapter 2 39

Removing a Password

Follow these steps:

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set

Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Press e twice without typing anything in the Enter New Password and Confirm New Password fields. The computer then sets the Supervisor Password parameter to “Clear”.

4.

When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1.

Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set

Password box appears:

2.

Type the current password in the Enter Current Password field and press e.

3.

Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.

Press e. After setting the password, the computer sets the User Password parameter to “Set”.

5.

If desired, you can enable the Password on boot parameter.

6.

When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

40

The password setting is complete after the user presses u.

Chapter 2

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.

Chapter 2 41

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the diskette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.

I n f o r m a t i o n M a i n

P h o e n i x S e c u r e C o r e ( t m ) S e t u p U t i l i t y

S e c u r i t y B o o t E x i t

I t e m S p e c i f i c H e l p

B o o t p r i o r i t y o r d e r :

1 : I D E H D D : X X X X X X X X X X X - ( X X )

2 : I D E C D : X X X X X X X X X X X - X X X X X - X X X X - X X

3 :

4 :

5 :

6 :

7 :

P C I L A N : N e t w o r k B o o t

U S B H D D :

U S B F D D :

U S B K e y :

U S B C D R O M :

U s e < > o r < > t o s e l e c t a d e v i c e , t h e n p r e s s < F 6 > t o m o v e i t u p t h e l i s t , o r < F 5 > t o m o v e i t d o w n t h e l i s t . P r e s s < E s c > t o e s c a p e t h e m e n u .

F1

Esc

H e l p

E x i t

S e l e c t I t e m

S e l e c t M e n u

-/+

Enter

C h a n g e Va l u e s

S e l e c t S u b - M e n u

F9

F10

S e t u p D e f a u l t s

S a v e a n d E x i t

42 Chapter 2

Exit

The Exit screen contains parameters that confirmed or discard the changes made to the parameters in the

BIOS Setup Utility.

I n f o r m a t i o n M a i n

P h o e n i x S e c u r e C o r e ( t m ) S e t u p U t i l i t y

S e c u r i t y B o o t E x i t

I t e m S p e c i f i c H e l p

E x i t S a v i n g C h a n g e s

E x i t D i s c a r d i n g C h a n g e s

L o a d S e t u p D e f a u l t s

D i s c a r d C h a n g e s

S a v e C h a n g e s

E x i t S y s t e m S e t u p a n d s a v e y o u r c h a n g e s t o

C M O S .

F1

Esc

H e l p

E x i t

S e l e c t I t e m

S e l e c t M e n u

-/+

Enter

C h a n g e Va l u e s

S e l e c t S u b - M e n u

F9

F10

S e t u p D e f a u l t s

S a v e a n d E x i t

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Save Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

Save Setup Data to CMOS.

Chapter 2 43

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions: q

New versions of system programs q q

New features or options

Restore a BIOS when it becomes corrupted.

Use the Flash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Flash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Flash.

NOTE: Please use the AC adaptor power supply when you run the Flash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Fellow the steps below to run the Flash.

1.

Prepare a bootable diskette.

2.

Copy the flash utilities to the bootable diskette.

3.

Then boot the system from the bootable diskette. The flash utility has auto-execution function.

44 Chapter 2

Remove HDD/BIOS Utility

This section provide you with removing HDD/BIOS method:

Remove HDD Password:

q

If you key in wrong HDD password for three time, “HDD password error code” would display on the screen. See the image below.

q

If you need to solve HDD password locked problem, you can run HDD_PW.EXE

1.

Key in “hdd_pw 15494 0”

2.

Select “2”

3.

Choose one upper-case string

Chapter 2 q

Reboot system and key in “0KJFN42” or “UVEIQ96” to HDD user password.

45

46 Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

Disassembly Requirements

To disassemble the computer, you need the following tools:

Wrist grounding strap and conductive mat for preventing electrostatic discharge

Flat screwdriver

Philips screwdriver

Hex screwdriver

Plastic flat screwdriver

Plastic tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

Chapter 3 47

General Information

Pre-disassembly Instructions

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system.

3.

Place the system on a flat, stable surface.

4.

Remove the battery pack.

Disassembly Process

The disassembly process is divided into the following stages:

External module disassembly

Main unit disassembly

LCD module disassembly

The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.

Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Main Screw List

E

F

G

H

Item

A

B

C

D

Screw

M2 x L8

M2.5 x L6

M2 x L3

M3 x L4

M2.5 x L10

M2 x L4

M2 x L4

M2 x L3

Color

Black

Black

Silver

Silver

Silver

Silver

Black

Black

Part No.

86.00E34.738

86.00E12.536

86.9A522.3R0

86.9A524.4R0

86.00F84.73A

86.00C07.220

86.00A02.140

86.9A552.3R0

48 Chapter 3

External Module Disassembly Process

External Modules Disassembly Flowchart

The flowchart below gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

EXTERNAL MODULE DISASSEMBLY

TURN OFF POWER

AND PERIPHERALS

UNPLUG POWER

CABLES

REMOVE BATTERY

PACK

Hx1

WLAN

BOARD

SD DUMMY CARD

Captive Screwx4

LOWER

COVER

Ax6

ExpressCard

DUMMY CARD

DIMM

MODULES

ODD

MODULE

OPTICAL DISK

DRIVE

Cx2

OPTICAL

LOCKER

BRACKET

Cx1

HDD

MODULE

Dx2

HARD DISK

BRACKET

HARD DISK

DRIVE

Screw List

Item

A

C

D

H

Screw

M2 x L8

M2 x L3

M3 x L4

M2 x L3

Color

Black

Silver

Silver

Black

Part No.

86.00E34.738

86.9A522.3R0

86.9A524.4R0

86.9A552.3R0

Chapter 3 49

Removing the Battery Pack

1.

Turn base unit over.

2.

Slide the battery lock/unlock latch to the unlock position.

3.

Slide the battery release latch to the release position to pop out the battery pack, then remove the battery pack from the main unit.

50 Chapter 3

Removing the SD dummy card

1.

Push the SD dummy card all the way in to eject it.

2.

Pull it out from the slot.

Removing the ExpressCard dummy card

1.

Push the ExpressCard dummy card all the way in to eject it.

Chapter 3 51

2.

Pull it out from the slot.

Removing the Lower Cover

1.

See “Removing the Battery Pack” on page 50.

2.

Remove the four captive screws and the six screws (A) on the lower cover.

52

1~6

Step Size (Quantity)

M2.5 x L8 (6) Black

Color Torque

3.0 kgf-cm

Chapter 3

3.

Use a plastic screw driver to carefully pry open the lower cover.

4.

Remove the lower cover from the lower case.

Removing the DIMM

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52..

3.

Push out the latches on both sides of the DIMM socket to release the DIMM.

Chapter 3 53

4.

Remove the DIMM module.

Removing the WLAN Board Modules

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52.

3.

Remove the white antenna cable that is taped to the WLAN board module.

54 Chapter 3

4.

Disconnect the antenna cables from the WLAN board.

NOTE: There are 2 antenna cables connected to the WLAN board module. The Black antenna cable is connected to the MAIN connector and the Gray antenna cable is connected to the AUX connector.

5.

Move the antenna away from the WLAN board and remove the one screw (H) on the WLAN board to release the WLAN board.

1

Step Size (Quantity)

M2 x L3 (1) Black

Color Torque

1.6 kgf-cm

Chapter 3 55

6.

Detach the WLAN board from the WLAN socket.

NOTE: When attaching the antenna back to the WLAN board, make sure the cable are arranged properly.

Removing the Hard Disk Drive Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52.

3.

Remove the one screw (C) securing the hard disk drive module.

56

1

Step Size (Quantity)

M2 x L3 (1) Silver

Color Torque

1.6 kgf-cm

Chapter 3

4.

Slide the hard disk drive module away from the connector.

5.

Lift the hard disk drive module and remove it from the hard disk drive bay.

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.

6.

Remove the two adhesive tape covering the two screws.

Chapter 3 57

7.

Remove the two screws (D) securing the hard disk to the bracket and remove the hard disk from the bracket.

1~2

Step Size (Quantity)

M3 x L4 (2) Silver

Color

Removing the Optical Drive Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52.

Torque

3.0 kgf-cm

58 Chapter 3

3.

Use a pin and push it inside the emergency eject hole to eject the odd drive tray.

4.

Carefully pull out the odd drive tray until the part of the module is visible and then slowly push back to close the tray into the module with the module still partially exposed.

5.

Slowly pull out the odd module from the odd drive bay.

Chapter 3 59

6.

Remove the two screws (C) securing the locker bracket and remove the locker bracket from the optical disk drive module.

60

1~2

Step Size (Quantity)

M2 x L3 (2) Silver

Color Torque

1.6 kgf-cm

Chapter 3

Main Unit Disassembly Process

Main Unit Disassembly Flowchart

MAIN UNIT DISASSEMBLY

MAIN UNIT

MIDDLE COVER

KEYBOARD

Ax2, Ex2

LCD MODULE

A x 11, G x 4

UPPER CASE

C x 1

MODEM

CARD

C x 1

HEAT SINK FAN

SCREW X 4

CPU

THERMAL MODULE

CPU

C x 1

LED

BOARD

C x 4

SPEAKER

MODULE

C x 2

TOUCHPAD

BRACKET

Cx1

MAIN

BOARD

BLUETOOTH

MODULE

Cx1

USB

MODULE

TOUCHPAD

MODULE

Screw List

Item

A

C

E

G

H

Screw

M2 x L8

M2 x L3

M2.5 x L10

M2 x L4

M2 x L3

Color

Black

Silver

Silver

Black

Black

Part No.

86.00E34.738

86.9A522.3R0

86.00F84.73A

86.00A02.140

86.9A552.3R0

Chapter 3 61

Removing the Middle Cover

1.

See “Removing the Battery Pack” on page 50.

2.

Use a plastic screw driver to pry loose the side of the middle cover.

3.

Carefully pry loose the middle cover from the latches securing it and remove the middle cover.

62 Chapter 3

Removing the Keyboard

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Middle Cover” on page 62.

3.

Push down on the lock and release the latches securing the keyboard to the upper case.

4.

Carefully pry loose the keyboard and turn it over on the touchpad area.

Chapter 3 63

5.

Disconnect the keyboard cable from the main board to remove the keyboard.

Removing the Heatsink Fan Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52.

3.

Disconnect the heatsink fan connector from the main board.

64 Chapter 3

4.

Remove the one screw (C) securing the heatsink fan module in place.

1

Step Size (Quantity)

M2 x L3 (1)

5.

Carefully lift up the heatsink fan module.

Silver

Color Torque

1.6 kgf-cm

Removing the CPU Heatsink Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52.

3.

See “Removing the Heatsink Fan Module” on page 64.

Chapter 3 65

4.

Remove the four screws securing the CPU heatsink module.

5.

Carefully remove the heatsink module from the system.

Removing the CPU

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the Lower Cover” on page 52.

3.

See “Removing the Heatsink Fan Module” on page 64.

4.

See “Removing the CPU Heatsink Module” on page 65.

5.

Using a flat screwdriver, turn the CPU socket latch counter-clockwise to release the CPU.

66 Chapter 3

6.

Lift up carefully to remove the CPU.

NOTE: When installing the CPU, make sure to install the CPU with PIN 1 at the corner as shown.

Removing the LCD Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

Chapter 3 67

9.

Turn over the system and remove the two screws (A) from the bottom of the left and right hinges.

1~2

Step Size (Quantity)

M2.5 x L8 (2) Black

Color

10. Disconnect the LCD cable connector from the main board.

Torque

3.0 kgf-cm

68 Chapter 3

11. Carefully pull out the wireless antenna cables from the hole and release the cables from the latches.

12. Remove the two screws (E) from the left and right hinge of the LCD module.

1~2

Chapter 3

Step Size (Quantity)

M2.5 x L10 (2) Silver

Color Torque

3.0 kgf-cm

69

13. Carefully remove the LCD module from the base unit.

NOTE: When connecting the cable back to the unit, please note that the cable should be routed well.

Separating the Upper Case from the Lower Case

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

70 Chapter 3

15. Disconnect the touchpad cable from the TPAD1 connector on the main board.

16. Disconnect the LED cable from LEDCN1 on the main board.

Chapter 3 71

17. Disconnect the speaker cable from the INTSPK1 connector on the main board.

18. Remove the eleven screws (11 x A, 1 x G) from the bottom panel.

72

1~11

12

Step Size (Quantity)

M2.5 x L8 (11)

M2 x L4 (1)

Black

Black

Color Torque

3.0 kgf-cm

3.0 kgf-cm

Chapter 3

19. Turn the unit over and remove the three screws (G) from the top panel.

1~3

Step Size (Quantity)

M2 x L4 (3) Black

20. Gently remove the upper case from the lower case.

Color Torque

3.0 kgf-cm

Removing the LED Board

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

Chapter 3 73

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. Disconnect the LED cable from the LED board.

74

17. Disconnect the internal microphone cable from the INTMIC1 connector on the LED board.

Chapter 3

18. Remove the one screw (C) securing the LED board.

1

Step Size (Quantity)

M2 x L3 (1) Silver

19. Remove the LED board from the upper cover.

Color Torque

1.6 kgf-cm

Removing the Speaker Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

Chapter 3 75

76

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. Remove the four screws (C) securing the speaker module.

1~4

Step Size (Quantity)

M2 x L3 (4) Silver

17. Remove the tape covering the speaker cable.

Color Torque

1.6 kgf-cm

Chapter 3

18. Release the speaker cable from the latches.

19. Remove the speaker module from the upper case.

Removing the Touchpad Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

Chapter 3 77

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. Remove the touchpad cable that is glued to the bracket.

17. Disconnect the touchpad cable from the touchpad board.

78 Chapter 3

18. Remove the two screws (C) securing the bracket to the upper case.

1~2

Step Size (Quantity)

M2 x L2 (2)

19. Remove the touchpad bracket.

Silver

Color Torque

1.6 kgf-cm

Chapter 3 79

20. Carefully pry loose and remove the touch pad board.

WARNING:The touchpad board is glued to the upper case, only remove the touchpad board if it is defective.

Removing the Modem Board

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

80 Chapter 3

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. Remove the one screw (C) securing the modem card.

1

Step Size (Quantity)

M2 x L3 (1)

17. Lift the modem board from the main board.

Silver

Color Torque

1.6 kgf-cm

Chapter 3 81

18. Disconnect the cable from the modem board.

Removing the Main Board

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. See “Removing the Modem Board” on page 80.

82 Chapter 3

17. Disconnect the USB cable from the USBCN1 connector on the main board.

18. Disconnect the bluetooth cable from the BLUE1 connector on the main board.

19. Remove the one screw (C) securing the main board in place.

1

Step Size (Quantity)

M2 x L3 (1) Silver

Color Torque

1.6 kgf-cm

Chapter 3 83

20. Carefully remove the main board.

Removing the USB Board Module

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. See “Removing the Modem Board” on page 80.

84 Chapter 3

17. Remove the one screw (C) securing the USB board module to the lower case.

1

Step Size (Quantity)

M2 x L3 (1)

18. Release the USB cable from the latch.

Silver

Color Torque

1.6 kgf-cm

19. Remove the USB board module from the lower case.

Chapter 3 85

Removing the Bluetooth Modules

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the DIMM” on page 53.

6.

See “Removing the WLAN Board Modules” on page 54.

7.

See “Removing the Hard Disk Drive Module” on page 56.

8.

See “Removing the Optical Drive Module” on page 58.

9.

See “Removing the Middle Cover” on page 62.

10. See “Removing the Keyboard” on page 63.

11. See “Removing the Heatsink Fan Module” on page 64.

12. See “Removing the CPU Heatsink Module” on page 65.

13. See “Removing the CPU” on page 66.

14. See “Removing the LCD Module” on page 67.

15. See “Separating the Upper Case from the Lower Case” on page 70.

16. Remove the bluetooth module from the lower case.

86

NOTE: Be careful when removing the bluetooth module, because it is glued to the lower case.

Chapter 3

LCD Module Disassembly Process

LCD Module Disassembly Flowchart

LCD MODULE DISASSEMBLY

LCD MODULE

Bx4

LCD BEZEL

Bx5

LCD ASSEMBLY

LCD FPC

CABLE

Fx2

LEFT LCD

BRACKET

Fx2

RIGHT LCD

BRACKET

LCD BACK PANEL

ANTENNAS VGA

CAMERA

Screw List

Item

B

F

Screw

M2.5 x L6

M2 x L4

Color

Black

Silver

Part No.

86.00E12.536

86.00C07.220

Chapter 3 87

Removing the LCD Bezel

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

9.

See “Removing the LCD Module” on page 67.

10. Remove the four screw covers from the LCD bezel.

11. Remove the four screws (B) on the LCD module as shown.

88

1~4

Step Size (Quantity)

M2.5 x L6 (4) Black

Color Torque

3.0 kgf-cm

Chapter 3

12. Carefully pry open the LCD bezel and place the bezel on top of the LCD panel.

Removing the LCD panel with the Brackets

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

9.

See “Removing the LCD Module” on page 67.

10. See “Removing the LCD Bezel” on page 88.

Chapter 3 89

11. Disconnect the cable from the web camera.

12. Remove the five screws (5 x B) securing the LCD module.

1~5

Step Size (Quantity)

M2.5 x L6 (5) Black

Color

13. Remove the LCD with the brackets from the back cover.

Torque

3.0 kgf-cm

Removing the Inverter Board and FPC Cable

1.

See “Removing the Battery Pack” on page 50.

90 Chapter 3

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

9.

See “Removing the LCD Module” on page 67.

10. See “Removing the LCD Bezel” on page 88.

11. See “Removing the LCD panel with the Brackets” on page 89.

12. Disconnect the cables from the inverter board.

Chapter 3 91

13. Detach any adhesive tapes and any cable that is glued to the LCD panel.

92 Chapter 3

14. Disconnect the FPC cable from the LCD panel.

Removing the LCD Brackets

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

9.

See “Removing the LCD Module” on page 67.

10. See “Removing the LCD Bezel” on page 88.

11. See “Removing the LCD panel with the Brackets” on page 89.

12. See “Removing the Inverter Board and FPC Cable” on page 90.

13. Remove the four screws (4 x F) securing the left and right LCD brackets to remove the brackets.

Chapter 3 93

1~4

Step Size (Quantity)

M2 x L4 (4) Silver

Color

Removing the Antennas

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

9.

See “Removing the LCD Module” on page 67.

10. See “Removing the LCD Bezel” on page 88.

11. See “Removing the LCD panel with the Brackets” on page 89.

12. Release the antenna cables from the aluminium tapes.

Torque

1.0 kgf-cm

94 Chapter 3

13. Remove the left and right antenna cables together with the tapes holding them in place.

NOTE: There is no need to remove the antenna unless you really need to replace it.

Removing the Web Camera

1.

See “Removing the Battery Pack” on page 50.

2.

See “Removing the SD dummy card” on page 51.

3.

See “Removing the ExpressCard dummy card” on page 51.

4.

See “Removing the Lower Cover” on page 52.

5.

See “Removing the WLAN Board Modules” on page 54.

6.

See “Removing the Middle Cover” on page 62.

7.

See “Removing the Heatsink Fan Module” on page 64.

8.

See “Removing the CPU Heatsink Module” on page 65.

9.

See “Removing the LCD Module” on page 67.

10. See “Removing the LCD Bezel” on page 88.

11. See “Removing the LCD panel with the Brackets” on page 89.

Chapter 3 95

12. Remove the Web camera from the back cover.

96 Chapter 3

Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1.

Obtain the failing symptoms in as much detail as possible.

2.

Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

3.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

Go To

“Power System Check” on page 99.

“Power-On Self-Test (POST) Error

Message” on page 102

“Undetermined Problems” on page 116

“Error Message List” on page 103

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created

(intermittent problems).

“Power-On Self-Test (POST) Error

Message” on page 102

Use the customer-reported symptoms and

go to “Power-On Self-Test (POST) Error

Message” on page 102

“Intermittent Problems” on page 115

“Undetermined Problems” on page 116

Chapter 4 97

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

Do the following to select the test device.

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if FDD Test is passed as the program runs to FDD Test.

3.

Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1.

Reconnect the external diskette drive/DVD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3.

Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the keyboard cables.

2.

Replace the keyboard.

3.

Replace the main board.

The following auxiliary input devices are supported by this computer: q

Numeric keypad

98 Chapter 4

q

External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory Check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the diagnostic program (please refer to main board.

2.

Go to the diagnostic memory in the test items.

3.

Press F2 in the test items.

4.

Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

2.

Connect the power adapter and check that power is supplied.

3.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list: q

“Check the Power Adapter” on page 100

q

“Check the Battery Pack” on page 101

Chapter 4 99

Check the Power Adapter

Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure

Pin 1: +19 to +20.5V

Pin 2: 0V, Ground

1.

If the voltage is not correct, replace the power adapter.

2.

If the voltage is within the range, do the following: q q

Replace the System board.

If the problem is not corrected, see “Undetermined Problems” on page 116.

q

If the voltage is not correct, go to the next step.

NOTE: An audible noise from the power adapter does not always indicate a defect.

3.

If the power-on indicator does not light up, check the power cord of the power adapter for correct continuity and installation.

4.

If the operational charge does not work, see “Check the Battery Pack” on page 101.

100 Chapter 4

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1.

Check out the Power Management in control Panel

2.

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

Repeat the steps 1 and 2, for both battery and adapter.

4.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground).

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad Check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the touchpad cables.

2.

Replace the touchpad.

3.

Replace the system board.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

Chapter 4 101

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 116.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

102 Chapter 4

Index of Error Messages

Error Code List

006

010

070

071

072

110

Error Codes

<No error code>

<No error code>

Error Messages

Equipment Configuration Error

Causes:

1. CPU BIOS Update Code Mismatch

2. IDE Primary Channel Master Drive Error

(THe causes will be shown before “Equipment

Configuration Error”)

Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)

Real Time Clock Error

CMOS Battery Bad

CMOS Checksum Error

System disabled.

Incorrect password is specified.

Battery critical LOW

In this situation BIOS will issue 4 short beeps then shut down system, no message will show.

Thermal critical High

In this situation BIOS will shut down system, not show message.

Error Message List

Error Messages

Failure Fixed Disk

Stuck Key

Keyboard error

Keyboard Controller Failed

Keyboard locked - Unlock key switch

Monitor type does not match CMOS - Run

Setup

Shadow RAM Failed at offset: nnnn

System RAM Failed at offset: nnnn

Extended RAM Failed at offset: nnnn

System battery is dead - Replace and run

Setup

System CMOS checksum bad - Default configuration used

FRU/Action in Sequence

Reconnect hard disk drive connector.

“Load Default Settings” in BIOS Setup Utility.

Hard disk drive

System board

see “Keyboard or Auxiliary Input Device Check” on page 98. see “Keyboard or Auxiliary Input Device Check” on page 98. see “Keyboard or Auxiliary Input Device Check” on page 98.

Unlock external keyboard

Run “Load Default Settings” in BIOS Setup Utility.

BIOS ROM

System board

DIMM

System board

DIMM

System board

Replace RTC battery and Run BIOS Setup Utility to reconfigure system time, then reboot system.

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

Chapter 4 103

104

Error Message List

Error Messages

System timer error

Real time clock error

Previous boot incomplete - Default configuration used

Memory size found by POST differed from

CMOS

Diskette drive A error

Incorrect Drive A type - run SETUP

System cache error - Cache disabled

CPU ID:

DMA Test Failed

Software NMI Failed

Fail-Safe Timer NMI Failed

Device Address Conflict

Allocation Error for device

Failing Bits: nnnn

Fixed Disk n

Invalid System Configuration Data

I/O device IRQ conflict

Operating system not found

FRU/Action in Sequence

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System board

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

DIMM

System board

Check the drive is defined with the proper diskette type in

BIOS Setup Utility

See “External Diskette Drive Check” on page 98.

Check the drive is defined with the proper diskette type in

BIOS Setup Utility

System board

System board

DIMM

System board

DIMM

System board

DIMM

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

DIMM

BIOS ROM

System board

None

BIOS ROM

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Enter Setup and see if fixed disk and drive A: are properly identified.

Diskette drive

Hard disk drive

System board

Chapter 4

Error Message List

No beep Error Messages

No beep, power-on indicator turns off and

LCD is blank.

No beep, power-on indicator turns on and

LCD is blank.

No beep, power-on indicator turns on and

LCD is blank. But you can see POST on an external CRT.

No beep, power-on indicator turns on and a blinking cursor shown on LCD during

POST.

No beep during POST but system runs correctly.

FRU/Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 99..

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

LED board.

System board.

Power source (battery pack and power adapter). See “Power

System Check” on page 99..

Reconnect the LCD connector

Hard disk drive

LCD inverter ID

LCD cable

LCD Inverter

LCD

System board

Reconnect the LCD connectors.

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Ensure every connector is connected tightly and correctly.

System board

Speaker

System board

Chapter 4 105

Phoenix BIOS Beep Codes

Code Beeps

2Fh

30h

32h

33h

36h

38h

3Ah

22h

24h

26h

28h

29h

2Ah

2Ch

2Eh

13h

14h

16h

17h

18h

1Ah

1Ch

20h

08h

09h

0Ah

0Bh

02h

03h

04h

06h

0Ch

0Eh

0Fh

10h

11h

12h

1-2-2-3

1-3-1-1

1-3-1-3

1-3-4-1

1-3-4-3

1-4-1-1

106

POST Routine Description

Verify Real Mode

Disable Non-Maskable Interrupt (NMI)

Get CPU type

Initialize system hardware

Initialize chipset with initial POST values

Set IN POST flag

Initialize CPU registers

Enable CPU cache

Initialize caches to initial POST values

Initialize I/O component

Initialize the local bus IDE

Initialize Power Management

Load alternate registers with initial POST values

Restore CPU control word during warm boot

Initialize PCI Bus Mastering devices

Initialize keyboard controller

BIOS ROM checksum

Initialize cache before memory autosize

8254 timer initialization

8237 DMA controller initialization

Reset Programmable Interrupt Controller

Test DRAM refresh

Test 8742 Keyboard Controller

Set ES segment register to 4 GB

Enable A20 line

Autosize DRAM

Initialize POST Memory Manager

Clear 215 KB base RAM

RAM failure on address line xxxx

RAM failure on data bits xxxx of low byte of memory bus

Enable cache before system BIOS shadow

RAM failure on data bits xxxx of high byte of memory bus

Test CPU bus-clock frequency

Initialize Phoenix Dispatch Manager

Warm start shut down

Shadow system BIOS ROM

Autosize cache

Chapter 4

70h

72h

76h

7Ch

7Eh

80h

81h

5Bh

5Ch

60h

62h

64h

66h

67h

68h

69h

6Ah

6Bh

6Ch

6Eh

3Ch

3Dh

54h

58h

59h

5Ah

4Eh

50h

51h

52h

42h

45h

46h

48h

49h

4Ah

4Bh

4Ch

Chapter 4

Code

2-1-2-3

2-2-3-1

Beeps POST Routine Description

Advanced configuration of chipset registers

Load alternate registers with CMOS values

Initialize interrupt vectors

POST device initialization

Check ROM copyright notice

Check video configuration against CMOS

Initialize PCI bus and devices

Initialize all video adapters in system

QuietBoot start (optional)

Shadow video BIOS ROM

Display BIOS copyright notice

Display CPU type and speed

Initialize EISA board

Test keyboard

Set key click if enabled

Test for unexpected interrupts

Initialize POST display service

Display prompt “Press F2 to enter

SETUP”

Disable CPU cache

Test RAM between 512 and 640 KB

Test extended memory

Test extended memory address lines

Jump to User Patch1

Configure advanced cache registers

Initialize Multi Processor APIC

Enable external and CPU caches

Setup System Management Mode (SMM) area

Display external L2 cache size

Load custom defaults (optional)

Display shadow-area message

Display possible high address for UMB recovery

Display error messages

Check for configuration errors

Check for keyboard errors

Set up hardware interrupt vectors

Initialize coprocessor if present

Disable onboard Super I/O ports and

IRQs

Late POST device initialization

107

108

88h

89h

8Ah

8Bh

8Ch

8Fh

82h

83h

84h

85h

86h

87h

95h

96h

97h

98h

90h

91h

92h

93h

A0h

A2h

A4h

A8h

AAh

ACh

AEh

B0h

B2h

99h

9Ah

9Ch

9Dh

9Eh

9Fh

B4h

B5h

B6h

Code

1-2

1

Beeps POST Routine Description

Detect and install external RS232 ports

Configure non-MCD IDE controllers

Detect and install external parallel ports

Initialize PC-compatible PnP ISA devices

Re-initialize onboard I/O ports

Configure Motherboard Configurable

Devices (optional)

Initialize BIOS Area

Enable Non-Maskable Interrupts (NMIs)

Initialize Extended BIOS Data Area

Test and initialize PS/2 mouse

Initialize floppy controller

Determine number of ATA drives

(optional)

Initialize hard-disk controllers

Initialize local-bus hard-disk controllers

Jump to UserPatch2

Build MPTABLE for multi-processor boards

Install CD ROM for boot

Clear huge ES segment register

Fixup Multi Processor table

Search for option ROMs. One long, two short beeps on checksum failure.

Check for SMART drive (optional)

Shadow option ROMs

Set up Power Management

Initialize security engine (optional)

Enable hardware interrupts

Determine number of ATA and SCSI drives

Set time of day

Check key lock

Initialize Typematic rate

Erase F2 prompt

Scan for F2 key stroke

Enter SETUP

Clear Boot flag

Check for errors

POST done- prepare to boot operating system

One short beep before boot

Terminate QuietBoot (optional)

Check password (optional)

Chapter 4

C1h

C2h

C3h

C4h

C5h

C6h

C7h

C8h

C9h

D2h

B9h

BAh

BBh

BCh

BDh

BEh

BFh

C0h

Code

E8h

E9h

EAh

EBh

ECh

EDh

EEh

EFh

F0h

F1h

F2h

F3h

F4h

E4h

E5h

E6h

E7h

E0h

E1h

E2h

E3h

Chapter 4

Code

1

Beeps POST Routine Description

Prepare Boot

Initialize DMI parameters

Initialize PnP Option ROMs

Clear parity checkers

Display MultiBoot menu

Clear screen (optional)

Check virus and backup reminders

Try to boot with INT 19

Initialize POST Error Manager (PEM)

Initialize error logging

Initialize error display function

Initialize system error handler

PnPnd dual CMOS (optional)

Initialize notebook docking (optional)

Initialize notebook docking late

Force check (optional)

Extended checksum (optional)

Unknown interrupt

Beeps

Initialize the chipset

Initialize the bridge

Initialize the CPU

Initialize the system timer

Initialize system I/O

Check force recovery boot

Checksum BIOS ROM

Go to BIOS

Set Huge Segment

Initialize Multi Processor

Initialize OEM special code

Initialize PIC and DMA

Initialize Memory type

Initialize Memory size

Shadow Boot Block

System memory test

Initialize interrupt vectors

Initialize Run Time Clock

Initialize video

Initialize System Management Mode

Output one beep before boot

109

F5h

F6h

F7h

Code Beeps

Boot to Mini DOS

Clear Huge Segment

Boot to Full DOS

110 Chapter 4

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

LCD contrast cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.

Reconnect the LCD connectors.

Keyboard (if contrast and brightness function key doesn't work).

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Reconnect the LCD connector

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

LCD inverter ID

LCD inverter

LCD cable

LCD

System board

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly

Action in Sequence

Reconnect the inverter board

Inverter board

System board

Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system doesn’t power-on.

Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 99.

Battery pack

Power adapter

Hard drive & battery connection board

System board

Power source (battery pack and power adapter). See “Power

System Check” on page 99.

Battery pack

Power adapter

Hard drive & battery connection board

System board

Chapter 4 111

112

Power-Related Symptoms

Symptom / Error

The system doesn’t power-off.

Battery can’t be charged

Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 99.

Hold and press the power switch for more than 4 seconds.

System board

See “Check the Battery Pack” on page 101.

Battery pack

System board

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card

(PCMCIA)

PCMCIA slot pin is damaged.

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings, then reboot system.

DIMM

System board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

Internal speakers make noise or emit no sound.

Action in Sequence

PCMCIA slot assembly

System board

PCMCIA slot assembly

Audio driver

Speaker

System board

Speaker

System board

Action in Sequence

Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation

The system doesn't enter hibernation mode and four short beeps every minute.

The system doesn’t enter standby mode after closing the LCD

Action in Sequence

See “Save to Disk (S4)” on page 32.

Keyboard (if control is from the keyboard)

Hard disk drive

System board

Press Fn+

o

and see if the computer enters hibernation mode.

Touchpad

Keyboard

Hard disk connection board

Hard disk drive

System board

See “Save to Disk (S4)” on page 32.

LCD cover switch

System board

Chapter 4

Power Management-Related Symptoms

Symptom / Error

The system doesn't resume from hibernation mode.

The system doesn't resume from standby mode after opening the LCD.

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently.

Action in Sequence

See “Save to Disk (S4)” on page 32.

Hard disk connection board

Hard disk drive

System board

See “Save to Disk (S4)” on page 32.

LCD cover switch

System board

Remove battery pack and let it cool for 2 hours.

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

System board

Reconnect hard disk/CD-ROM drives.

Hard disk connection board

System board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Serial or parallel port device problems.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings”, then reboot system.

Reconnect hard disk/CD-ROM/diskette drives.

Press Fn+F5, LCD/CRT/Both display switching

System board

System board

Ensure the “Parallel Port” in the “Onboard Devices

Configuration” of BIOS Setup Utility is set to Enabled.

Onboard Devices Configuration

Run printer self-test.

Printer driver

Printer cable

Printer

System Board

Ensure the “Serial Port” in the Devices Configuration” of

BIOS Setup Utility is set to Enabled.

Device driver

Device cable

Device

System board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Action in Sequence

Reconnect the keyboard cable.

Keyboard

System board

Chapter 4 113

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Touchpad does not work.

Action in Sequence

Reconnect touchpad cable.

Touchpad board

System board

Modem-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Action in Sequence

Modem phone port modem combo board

System board

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 116.

114 Chapter 4

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the advanced diagnostic test for the system board in loop mode at least 10 times.

2.

If no error is detected, do not replace any FRU.

3.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Chapter 4 115

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 99.):

1.

Power-off the computer.

2.

Visually check them for damage. If any problems are found, replace the FRU.

3.

Remove or disconnect all of the following devices: q

Non-Acer devices q q q q

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM q q

CD-ROM/Diskette drive Module

PC Cards

4.

Power-on the computer.

5.

Determine if the problem has changed.

6.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU: q q

System board

LCD assembly

116 Chapter 4

Jumper and Connector Locations

Top and Bottom View

Chapter 5

Chapter 5 117

118 Chapter 5

Clearing Password Check and BIOS Recovery

This section provide you the standard operating procedures of clearing password and BIOS recovery for

Aspire 5730Z/5330 Series. Aspire 5730Z/5330 Series provide one Hardware Open Gap on main board for clearing password check, and one Hotkey for enabling BIOS Recovery.

Clearing Password Check

Hardware Open Gap Description

Hardware

Gap

Default Setting

Open (Normal)

Operation Description

Short (Clearing Password Check)

HW Gap position on M/B space:

Gap name in Aspire 5730Z/5330 Series is G10

Steps for Clearing BIOS Password Check

If users set BIOS Password (Supervisor Password and/or User Password) for a security reason, BIOS will ask the password during systems POST or when systems enter to BIOS Setup menu. However, once it is necessary to bypass the password check, users need to short the HW Gap to clear the password by the following steps:

Power Off a system, and remove HDD, AC and Battery from the machine.

Open the back cover of the machine, and find out the HW Gap on M/B as picture.

Use an electric conductivity tool to short the two points of the HW Gap.

Plug in AC, keep the short condition on the HW Gap, and press Power Button to power on the system till BIOS POST finish. Then remove the tool from the HW Gap.

Restart system. Press F2 key to enter BIOS Setup menu.

• If there is no Password request, BIOS Password is cleared. Otherwise, please follow the steps and try again.

NOTE: The steps are only for clearing BIOS Password (Supervisor Password and User Password).

Chapter 5 119

BIOS Recovery by Crisis Disk

BIOS Recovery Boot Block:

BIOS Recovery Boot Block is a special block of BIOS. It is used to boot up the system with minimum BIOS initialization. Users can enable this feature to restore the BIOS firmware to a successful one once the previous

BIOS flashing process failed.

BIOS Recovery Hotkey:

The system provides a function hotkey: Fn+Esc, for enable BIOS Recovery process when system is powered on during BIOS POST. To use this function, it is strongly recommended to have the AC adapter and Battery present. If this function is enabled, the system will force the BIOS to enter a special BIOS block, called Boot

Block.

Steps for BIOS Recovery by Crisis Disk:

Before doing this, one Crisis Disk should be prepared ready in hand. The Crisis Disk could be made by executing the Crisis Disk program in another system with Windows XP OS.

Follow the steps below:

1.

Power Off system.

2.

Insert the Crisis Disk to a USB floppy drive which is attached to the BIOS flash failed machine.

3.

In the power-off state, press Fn+Esc and hold them and then press Power Button. The system should be powered on with Crisis BIOS Recovery process.

4.

BIOS Boot Block starts to restore the BIOS code from the Crisis floppy disk to BIOS ROM on the failed machine.

5.

If the Crisis flashing process is finished, the system will restart.

If the Crisis Recovery process is finished, the system should be powered on with successful and workable

BIOS. Then a person can update the latest version BIOS for this machine by regular BIOS flashing process.

120 Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of 5730Z/5330 Series. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service

Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6 121

Aspire 5735/5735Z/5335 Series Exploded Diagram

122 Chapter 6

Aspire 5735/5735Z/5335 Series FRU List

Aspire 5735 Series FRU List

CATEGORY

ADAPTER

No.

PART NAME DESCRIPTION

ACER OEM PURCHASE

NO

ADAPTER 65W

DELTA SADP-65KB

DFA LF LEVEL-4

ADAPTER 65W

3PIN DELTA SADP-

65KB BFJA LF

LEVEL-4 FOR OBL

ONLY

ADAPTER 65W

LITEON PA-1650-

02AC LF LEVEL-4

ADAPTER 65W

HIPRO HP-

OK065B13 LF

LEVEL-4

ADT 65W SADP-65KB

DFA LF DELTA

ADP 65W 3P SADP-65KB

BFJA DELT

ADT 65W PA-1650-02AC

LF

ADP 65W 3P HP-

OK065B13LF

AP.06501.013

AP.06501.014

AP.06503.016

AP.0650A.010

BATTERY

BATTERY SIMPLO

AS-2007A LI-ION

3S2P LGC 6 CELL

2150MAH 2ND

COMMON

BATTERY SANYO

AS-2007A LI-ION

3S2P SANYO 6

CELL 4400MAH

MAIN COMMON

NORMAL TYPE

BATTERY SONY

AS-2007A LI-ION

3S2P SONY 6 CELL

4400MAH MAIN

COMMON NORMAL

TYPE

BATTERY

PANASONIC AS-

2007A LI-ION 3S2P

PANASONIC 6

CELL 4400MAH

MAIN COMMON

PSS

BATTERY SIMPLO

AS-2007A LI-ION

3S2P SAMSUNG 6

CELL 4400MAH

MAIN COMMON

SDI 2.2MAH F TYPE

BTY PACK LG LI+ 6C

2.2AH SMP

BTY PACK LI+ 6C 2.2AH

SANYO

BTY PACK LI+ 6C 2.2AH

SONY

BTY PACK LI+ 6C 2.2AH

PANA

BTY PACK SDI LI+ 6C

2.2AH SMP

BT.00607.019

BT.00603.041

BT.00604.024

BT.00605.020

BT.00607.034

BOARDS

LAUNCH & LED

BOARD

BLUETOOTH

BOARD FOXCONN

BCM2045 V2

T60H928.11

CP2 PD 08575-1 LUNCH

& LED DIP

BT MOD FOXCONN

BCM2045 V2

55.ATR01.001

BT.21100.005

Chapter 6 123

124

CATEGORY

CABLES

No.

PART NAME

TOUCHPAD

BOARD

SYNAPTICS

TM00540-005

WIRELESS LAN

BOARD

512AN_MMWG

SHIRLEY PEAK

5100 MM#895361

WIRELESS LAN

BOARD

512AG_MMWG

SHIRLEY PEAK

5100 MM#897004

WIRELESS LAN

BOARD

533AN_MMWG

SHIRLEY PEAK

MM#895362

DESCRIPTION

TOUCHPAD SYNAPTICS

TM00540-005

ACER OEM PURCHASE

NO

56.ATR01.001

WLAN 802.11ABGN

SHIRLEYPEAK1*2

WLAN 802.11ABG

SHIRLEYPEAK1*2

WLAN 802.11ABGN

SHIRLEYPEAK3*3

KI.SPM01.003

KI.SPM01.005

KI.SPM01.001

POWER CORD 3A

250V 3PIN UK

POWER CORD 5A

250V 3PIN UK BK

POWER CORD

250V 3PIN EUR BK

POWER CABLE

16A 250V 3PIN EUR

BK

POWER CORD 10A

125V US

POWER CORD 10A

125V 3PIN US BK

POWER CORD 10A

250V ARGENTINE

POWER CORD 7A

250V 2PIN KOREAN

POWER CORD 7A

125V 2PIN JAPEN

POWER CORD 10A

3PIN BK DENMARK

POWER CORD 10A

250V 3PIN

DENMARK BK

POWER CORD 10A

250V 3PIN BK

SOUTH AFRICA

POWER CORD 16A

250V SOUTH

AFRICA BK

POWER CORD 10A

250V SWISS

POWER CORD 10A

250V 3PIN SWISS

BK

CODE UK 2.5A 250V 3P

BK

27.01518.541

CODE 5A 250V 3P UK BK 27.03118.001

CORD EUR 250V 3P BK 27.T30V1.004

CORD 16A 250V 3P EUR

BK

CODE US 7A 125V BK

CODE 10A 125V 3P US

BK

CORD ARGENTINE,10A

250V3G,1.8M

CORD 7A250V 2P 1830

KOREAN

CODE JAPAN 7A 125V 2P

BK

CODE DENMARK 2.5A

250V 3P BK

CODE 10A 250V 3P

DENMARK BK

CODE SOUTH AFRICA

16A 250V BK

CODE 16A 250V SOUTH

AFRICA BK

CODE SWISS 2.5A 250V

3P BK

CODE 10A 250V 3P

SWISS BK

27.01518.731

27.T30V1.001

27.01518.641

27.01518.0U1

27.01518.531

27.01518.551

27.01518.561

27.01518.671

27.01518.571

27.01518.681

27.01518.581

27.01518.691

Chapter 6

CATEGORY No.

PART NAME

POWER CORD 10A

250V 3PIN CHINA

POWER CORD 10A

250V 3PIN CHINA

BK

POWER CORD 10A

250V 3PIN ITALY

POWER CORD 10A

250V 3PIN ITALY BK

POWER CORD 2.5A

250V AUSTRALIA

POWER CORD 7A

125V 2PIN JAPAN

BK

POWER CORD 2.5A

250V SOUTH

AFRICA BK (INDIA)

POWER CORD 10A

250V SOUTH

AFRICA BK (INDIA)

POWER CORD

250V 10A 3PIN

ISRAEL

POWER CORD 2.5A

125V USA

POWER CORD ACA

/ ACNZ

POWER CODE 7A

125V 2PIN JAPAN

BLUETOOTH

BOARD CALBE

BLUETOOTH

BOARD CALBE

BLUETOOTH

BOARD CALBE

BLUETOOTH

BOARD CALBE

TOUCHPAD

BOARD CABLE

TOUCHPAD

BOARD CABLE

DESCRIPTION

CORD CHINA 10A 250V

3P

CORD 10A 250V 3P

CHINA BK

CORD ITALY 10A 250V

3P BK

CORD 10A 250V 3P

ITALY BK

CORD 2.5A 250V

AUSTRALIA BK

CODE 7A 125V 2P JAPAN

BK

CORD 2.5A 250V SOUTH

AFRICA BK

CORD 6A 250V SOUTH

AFRICA BK

CORD 250V 10~16A 3P

ISRAEL

ACER OEM PURCHASE

NO

27.01518.591

27.01518.701

27.01518.611

27.01518.711

27.01518.621

27.01518.661

27.01518.631

27.01518.721

27.01518.761

CORD USA/W CNS 2.5A

125V 8121-

POWER CODE ACA /

ACNZ ANNIE

27.01518.781

27.03218.021

CODE 7A 125V JAPAN

2PIN BK

27.03518.161

C.A. BT CABLE CP2 MEC 50.ATR01.002

C.A.BLUETOOTH CABLE

CP2 WS

C.A. BT CABLE CP2 HL

C.A. BLUETOOTH CABLE

CP2 HT

C.A. T/P FFC CP2 JH

C.A. T/P FFC CP2 TR

50.ATR01.002

50.ATR01.002

50.ATR01.002

50.ATR01.001

50.ATR01.001

CASE/COVER/BRACKET ASSEMBLY

EXPRESS DUMMY

CARD

CARD READER

DUMMY CARD

EXPRESS DUMMY CARD

CP2

CARD READER DUMMY

CARD HOMA

42.ATR01.003

42.TQ901.003

UNITLOAD COVER 60 BIGDOOR ASSY CP2 42.ATR01.002

MIDDLE COVER 60 ASSY MIDDLE

COVER CP2

42.ATR01.001

TOUCHPAD

BRACKET

60 ASSY TP BKT CP2 33.ATR01.001

Chapter 6 125

126

CATEGORY No.

PART NAME DESCRIPTION

ACER OEM PURCHASE

NO

60.ATR01.001

LOWER CASE W/

DC-IN

CABLE&MODEM

CABLE&SPEAKER

RIGHT

60 LCASE ASSY CP2

CABLES

DC-IN CABLE

DC-IN CABLE

DC-IN CABLE

MODEM CABLE

MODEM CABLE

MODEM CABLE

C.A. DC IN CABLE CP2

MEC

C.A.DC IN CABLE CP2

HL

C.A.DC IN CABLE CP2

HT

C.A. RJ11 CABLE CP2

MEC

RESERVE

RESERVE

RESERVE

RESERVE

RJ11 CABLE CP2 HL RESERVE

C.A. RJ11 CABLE CP2 HT RESERVE

SPEAKER

SPEAKER RIGHT

SPEAKER RIGHT

SPEAKER RIGHT

SPEAKER R CP2

SPEAKER RIGHT CP2

YG

SPEAKER RIGHT CP2

ZYLUX

23.ATR01.001

23.ATR01.001

23.ATR01.001

CASE/COVER/BRACKET ASSEMBLY

UPPER CASE W/

LAUNCH BOARD

CABLE&MICROPH

ONE&SPEAKER

LEFT

CABLES

MICROPHONE

MICROPHONE

MICROPHONE

MICROPHONE

SPEAKER

SPEAKER

SPEAKER

CPU/PROCESSOR

CPU/PROCESSOR

ASSY CAS U CP2 60.ATR01.002

LAUNCH BOARD

CALBE

LAUNCH BOARD

CALBE

MICROPHONE

MICROPHONE

MICROPHONE

MICROPHONE

SPEAKER LEFT

SPEAKER LEFT

SPEAKER LEFT

C.A. LAUNCH BD FFC

CP2 JH

RESERVE

C.A. LAUNCH BD FFC TR RESERVE

MICROPHONE CP2 SM

MICROPHONE CP2 FG

MICROPHONE CP2

GOERTEK

RESERVE

RESERVE

RESERVE

MICROPHONE CP2 HIT RESERVE

SPEAKER L CP2 23.ATR01.002

SPEAKER LEFT CP2 YG 23.ATR01.002

SPEAKER LEFT CP2

ZYLUX

23.ATR01.002

IC CPU MEROM T5800

2.0G PGA

KC.58001.DTP

CPU INTEL

CORE2DUAL T5800

PGA 2.0G 2M 800

MV

CPU INTEL

CORE2DUAL T5900

PGA 2.2G 2M 800

MV

IC CPU MEROM T5900

2.2G PGA

KC.59001.DTP

Chapter 6

CATEGORY

CPU/PROCESSOR

CPU/PROCESSOR

CPU/PROCESSOR

CPU/PROCESSOR

CPU/PROCESSOR

DVD-RW DRIVE

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

DVD-RW DRIVE

DVD-RW DRIVE

DVD-RW DRIVE

DVD-RW DRIVE

DVD-RW DRIVE

HDD/HARD DISK DRIVE

No.

PART NAME DESCRIPTION

CPU INTEL

CORE2DUAL P7350

PGA 2.0G 3M 1066

25W

CPU INTEL

CORE2DUAL P8400

PGA 2.26G 3M 1066

25W

CPU INTEL

CORE2DUAL P8600

PGA 2.4G 1066

25W 3M

CPU INTEL

CORE2DUAL P9500

PGA 2.53G 6M 1066

25W

IC CPU PENRYN P7350

2.0G PGA

IC CPU PENRYN P8400

2.26G PGA

IC CPU PENRYN P8600

2.4G PGA

IC CPU PENRYN P9500

2.53G PGA

CPU INTEL

CORE2DUAL T9400

PGA 2.53G 6M 1066

35W

DVD-RW SUPER-

MULTI MODULE 8X

SATA

IC CPU PENRYN T9400

2.53G PGA

ODD NSM8XS SUPER-

MULTI DRIVE

OPTICAL BRACKET ODD BRK CP2

ACER OEM PURCHASE

NO

KC.73501.DPP

KC.84001.DPP

KC.86001.DPP

KC.95001.DPP

KC.94001.DTP

6M.ATR01.001

33.ATR01.002

SUPER MULIT

BEZEL

ODD SONY

SUPER-MULTI

DRIVE 12.7MM

TRAY DL 8X AD-

7580S LF W/O

BEZEL SATA

ODD PIONEER

SUPER-MULTI

DRIVE 12.7MM

TRAY DL 8X DVR-

TD08RS LF W/O

BEZEL SATA

ODD TOSHIBA

SUPER-MULTI

DRIVE 12.7MM

TRAY DL 8X TS-

L633A LF W/O

BEZEL SATA

ODD HLDS SUPER-

MULTI DRIVE

12.7MM TRAY DL

8X GT10N LF W/O

BEZEL SATA

ODD PLDS SUPER-

MULTI DRIVE

12.7MM TRAY DL

8X DS-8A2S LF W/

O BEZEL SATA

HDD MODULE

120G 5400RPM

SATA

60 ODD BEZEL CP2

S-MULTI SATA SONY AD-

7580S

S-MUL SATA PIONEER

DVR-TD08RS

S-MUL SATA TSST/TS-

L633A OLAN

ODD S-MUL SATA HLDS

GT10N

S-MULTI SATA PLDS/DS-

8A2S OLAN

HDD 120GB5.4KS FOR

CP2

42.ATR01.004

KU.0080E.017

KU.00805.046

KU.00801.021

KU.0080D.039

KU.0080F.001

TBD

Chapter 6 127

128

CATEGORY

CASE/COVER/BRACKET

ASSEMBLY

HDD/HARD DISK DRIVE

No.

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

CASE/COVER/BRACKET

ASSEMBLY

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

CASE/COVER/BRACKET

ASSEMBLY

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

PART NAME

HDD BRACKET

DESCRIPTION

ACER OEM PURCHASE

NO

60 HDD BRK ASSY CP2 33.ATR01.003

HDD 120GB

5400RPM SATA

SEAGATE

ST9120817AS LF F/

W:3.AAA

HDD 120GB

5400RPM SATA

HGST

HT543212L9A300

FW:C40C

HDD 120GB

5400RPM SATA WD

WD1200BEVS-

22UST0 ML125 LF

F/W:01.01A01

HDD MODULE

160G 5400RPM

SATA

HDD BRACKET

HDD 120GB SGT SATA

ST9120817AS

HDD 120GB

HT543212L9A300 C40C

HDD 120GB WD

WD1200BEVS-22UST0

HDD 160GB5.4KS FOR

CP2

KH.12001.032

KH.12007.016

KH.12008.019

TBD

60 HDD BRK ASSY CP2 33.ATR01.003

HDD 160GB

5400RPM SATA

HGST

HTS543216L9A300

F/W:C30C

HDD 160GB

5400RPM SATA WD

WD1600BEVT-

22ZCT0

FW:11.01A11

HDD 160GB

5400RPM SATA

SEAGATE

ST9160310AS F/

W:2010

HDD 160GB

5400RPM SATA

TOSHIBA

MK1652GSX

FW:LV010J

HDD MODULE

250G 5400RPM

SATA

HDD BRACKET

HDD 160GB HGST

HTS543216L9A300

HDD 160GB WD

WD1600BEVT-22ZCT0

HDD 160GB SEAGATE

ST9160310AS

HDD 160G TOSHIBA

MK1652GSX

HDD 250GB5.4KS FOR

CP2

KH.16007.019

KH.16008.022

KH.16001.034

KH.16004.003

TBD

60 HDD BRK ASSY CP2 33.ATR01.003

HDD 250GB

5400RPM SATA

HGST

HTS543225L9A300

LF F/W:C40C

HDD 250GB

5400RPM SATA WD

WD2500BEVS-

22UST0 ML125 F/

W:01.01A01

HDD 250GB HGST

HTS543225L9A300

HDD 250GB WD

WD2500BEVS-22UST0

KH.25007.013

KH.25008.018

Chapter 6

HEATSINK

HEATSINK

HEATSINK

HEATSINK

HEATSINK

HEATSINK

KEYBOARD

CATEGORY

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

CASE/COVER/BRACKET

ASSEMBLY

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

HDD/HARD DISK DRIVE

KEYBOARD

KEYBOARD

No.

PART NAME

HDD 250GB

5400RPM SATA

SEAGATE

ST9250827AS F/

W:2.ALA

HDD 250GB

5400RPM SATA

TOSHIBA

MK2552GSX F/

W:LV010J

HDD MODULE

320G 5400RPM

SATA

HDD BRACKET

CP2

DESCRIPTION

HDD 250GB SGT SATA

ST9250827AS

HDD 250GB TOSHIBA

MK2552GSX

HDD 320GB5.4KS FOR

ACER OEM PURCHASE

NO

KH.25001.011

KH.25004.002

TBD

60 HDD BRK ASSY CP2 33.ATR01.003

HDD 320GB

5400RPM SATA

HGST

HTS543232L9A300

F/W:C30C

HDD 320GB

5400RPM SATA

SEAGATE

ST9320320AS F/

W:2010

HDD 320GB

5400RPM SATA

TOSHIBA

MK3252GSX F/

W:LV010J

HDD 320GB

5400RPM SATA WD

WD3200BEVT-

22ZCT0 ML125 F/

W:01.01A01

CPU HEATSINK W/

FAN

CPU HEATSINK W/

FAN

CPU HEATSINK W/

FAN

CPU HEATSINK W/

FAN

CPU HEATSINK W/

FAN

CPU HEATSINK W/

FAN

KEYBOARD 17KB-

FV5 BLACK 106KS

UK

KEYBOARD 17KB-

FV5 BLACK 106KS

SLO/CRO

KEYBOARD 17KB-

FV5 BLACK 105KS

US

INTERNATIONAL

HDD 320GB HGST

HTS543232L9A300

HDD 320GB SEAGATE

ST9320320AS

HDD 320GB TOSHIBA

MK3252GSX

HDD 320GB WD

WD3200BEVT-22ZCT0

ASSY THERMAL UMA

CP2 ROBIN

ASSY THERMAL UMA

CP2 FOXCONN

ASSY THERMAL UMA

CP2 CCI

THERMAL CP2

FOXCONN FORCECON

ASSY THERMAL UMA

CP2 ROBIN S

ASSY THERMAL UMA

CP2 CCI S

KB DARFON NSK-AFF0U

UK UK

KB DARFON NSK-AFF1F

SL SLOVENI

KB DARFON NSK-AFF1D

UI US-INTL

KH.32007.004

KH.32001.008

KH.32004.001

KH.32008.013

60.ATR01.003

60.ATR01.003

60.ATR01.003

60.ATR01.003

60.ATR01.003

60.ATR01.003

KB.I1700.006

KB.I1700.013

KB.I1700.004

Chapter 6 129

130

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

CATEGORY

KEYBOARD

No.

PART NAME

KEYBOARD 17KB-

FV5 BLACK 106KS

PORTUGUESE

KEYBOARD 17KB-

FV5 BLACK 106KS

NORWEGIAN

KEYBOARD 17KB-

FV5 BLACK 106KS

ITALIAN

KEYBOARD 17KB-

FV5 BLACK 106KS

HUNGARIAN

KEYBOARD 17KB-

FV5 BLACK 105KS

GREEK

KEYBOARD 17KB-

FV5 BLACK 106KS

GERMAN

KEYBOARD 17KB-

FV5 BLACK 106KS

FRENCH

KEYBOARD 17KB-

FV5 BLACK 106KS

DANISH

KEYBOARD 17KB-

FV5 BLACK 106KS

CZECH

KEYBOARD 17KB-

FV5 BLACK 105KS

TRADITIONAL

CHINESE

KEYBOARD 17KB-

FV5 BLACK 105KS

US

INTERNATIONAL

HEBREW

KEYBOARD 17KB-

FV5 BLACK 106KS

TURKISH

KEYBOARD 17KB-

FV5 BLACK 105KS

THAILAND

KEYBOARD 17KB-

FV5 BLACK 106KS

SWISS/G

KEYBOARD 17KB-

FV5 BLACK 106KS

SWEDISH

KEYBOARD 17KB-

FV5 BLACK 106KS

SPANISH

KEYBOARD 17KB-

FV5 BLACK 106KS

SLOVAK

KEYBOARD 17KB-

FV5 BLACK 105KS

RUSSIAN

DESCRIPTION

KB DARFON NSK-AFF0H

HE HEBREW

ACER OEM PURCHASE

NO

KB.I1700.005

KB DARFON NSK-AFF0T

TR TURKISH

KB.I1700.007

KB DARFON NSK-AFF03

TH THAI

KB DARFON NSK-AFF00

SW SWISS

KB DARFON NSK-AFF0W

SE SWEDISH

KB DARFON NSK-AFF0S

SP SPANISH

KB DARFON NSK-AFF09

SK SLOVAK

KB DARFON NSK-AFF0R

RU RUSSIAN

KB DARFON NSK-AFF06

PT PORTUGA

KB DARFON NSK-AFF0N

NO NORWEGI

KB DARFON NSK-AFF0E

IT ITALIAN

KB DARFON NSK-AFF0Q

HU HUNGARI

KB DARFON NSK-AFF0L

GK GREEK

KB DARFON NSK-AFF0G

GR GERMAN

KB DARFON NSK-AFF0F

FR FRENCH

KB DARFON NSK-AFF0D

DK DANISH

KB DARFON NSK-AFF0C

CS CZECH

KB DARFON NSK-AFF02

TW TAIWAN

KB.I1700.008

KB.I1700.009

KB.I1700.010

KB.I1700.011

KB.I1700.012

KB.I1700.014

KB.I1700.015

KB.I1700.017

KB.I1700.021

KB.I1700.024

KB.I1700.025

KB.I1700.026

KB.I1700.027

KB.I1700.030

KB.I1700.031

KB.I1700.032

Chapter 6

BOARDS

CABLES

CABLES

CABLES

CABLES

CAMERA

CATEGORY

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

KEYBOARD

LCD

BOARDS

BOARDS

BOARDS

CAMERA

CASE/COVER/BRACKET

ASSEMBLY

No.

PART NAME

KEYBOARD 17KB-

FV5 BLACK 106KS

CANADIAN

FRENCH

KEYBOARD 17KB-

FV5 BLACK 106KS

BRAZILIAN

PORTUGUESE

KEYBOARD 17KB-

FV5 BLACK 106KS

BELGIUM

KEYBOARD 17KB-

FV5 BLACK 105KS

ARABIC/ENGLISH

KEYBOARD 17KB-

FV5 BLACK 106KS

ARABIC/FRENCH

KEYBOARD 17KB-

FV5 BLACK 106KS

ENGLISH/

CANADIAN

FRENCH

KEYBOARD 17KB-

FV5 BLACK 106KS

CZECH/SLOVAK

LCD MODULE 15.6"

WXGA GLARE W/

ANTENNA*2 & 0.3M

CAMERA

INVERTER BOARD

17" DARFON

VK.21189.408

INVERTER BOARD

FOXCONN

T62I240.03 V.00

INVERTER BOARD

SUMIDA TWS-458-

124 MS

INVERTER BOARD

YEC YNV-W06C

LCD/CAMERA

CABLE

LCD/CAMERA

CABLE

LCD/CAMERA

CABLE

LCD/CAMERA

CABLE

CAMERA 0.3M

SUYIN CN0314-

SN30-OV03-1

CAMERA 0.3M

BISON BN30V4O7-

030 OV772

LCD BRACKET W/

HINGE RIGHT

DESCRIPTION

KB DARFON NSK-AFF0M

FC FR-CANA

KB DARFON NSK-AFF1B

BP BRAZ-PT

KB DARFON NSK-AFF1A

BE BELGIAN

KB DARFON NSK-AFF0A

AR ARABIC

KB DARFON NSK-AFF2A

ARABIC-FR

KB DARFON NSK-AFF2M

FC-ENG

KB DARFON NSK-AFF13

CS CZ/SK

LCD N15.6WXGAG W/

CCD&ANT*2

INVERTER 17" ROHS

VK.21189.407

INVERTER 17"

T62I240.03 06L1

INVERTER 17" TWS-458-

124 MS

INVERTER 17" YNV-

W06C

C.A. LCD CABLE CCD

CP2 MEC

C.A. LCD CABLE CCD

CP2 WS

C.A. LCD CABLE CCD

CP2 HL

C.A. LCD CABLE CCD

CP2 HT

CAMERA 0.3M CN0314-

SN30-OV03-1

CAMERA 0.3M

BN30V4O7-030 OV772

HINGE LCD R CP2 LH

ACER OEM PURCHASE

NO

KB.I1700.033

KB.I1700.034

KB.I1700.035

KB.I1700.036

KB.I1700.037

KB.I1700.039

KB.I1700.041

6M.ATR01.002

19.TQ901.002

19.AR501.002

19.AUA01.002

19.AUA01.001

50.ATR01.003

50.ATR01.003

50.ATR01.003

50.ATR01.003

57.TQ901.001

57.AU401.001

33.ATR01.004

Chapter 6 131

132

BOARDS

CABLES

CABLES

CABLES

CABLES

CAMERA

CATEGORY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

LCD

No.

LCD

LCD

LCD

LCD

BOARDS

BOARDS

BOARDS

CAMERA

PART NAME DESCRIPTION

LCD BRACKET W/

HINGE RIGHT

LCD BRACKET W/

HINGE LEFT

LCD BRACKET W/

HINGE LEFT

LCD COVER 15.6"

W/ANTENNA*2

LCD BEZEL 15.6"

W/CAMERA HOLE

LCD AUO 15.6"

WXGA GLARE AUO

B156XW01 V0 LF

220NIT 8MS

LCD AUO 15.6"

WXGA GLARE AUO

B156XW01 V0 1A

LF 220NIT 8MS

500:1

LCD AUO 15.6"

WXGA GLARE LG

LP156WH1-TLA1 LF

220NIT 8MS 400:1

LCD AUO 15.6"

WXGA GLARE CMO

N156B3-L02 LF

220NIT 8MS

LCD MODULE 15.6"

WXGA GLARE W/

ANTENNA*3 & 0.3M

CAMERA

INVERTER BOARD

17" DARFON

VK.21189.408

INVERTER BOARD

FOXCONN

T62I240.03 V.00

INVERTER BOARD

SUMIDA TWS-458-

124 MS

INVERTER BOARD

YEC YNV-W06C

LCD/CAMERA

CABLE

LCD/CAMERA

CABLE

LCD/CAMERA

CABLE

LCD/CAMERA

CABLE

CAMERA 0.3M

SUYIN CN0314-

SN30-OV03-1

CAMERA 0.3M

BISON BN30V4O7-

030 OV772

HINGE LCD R CP2 SZS

HINGE LCD L CP2 LH

HINGE LCD L CP2 SZS

ASSY LCD PANEL 1X2

CP2

ASSY LCD BEZEL CP2

LCD 15.6"WXGA AU

B156XW01 V0 G

LCD 15.6"WXGA AU

B156XW01 V0 G

LCD 15.6"WXGA LG

LP156WH1-TLA1

LCD 15.6"WXGA CMO

N156B3-L02 G

LCD N15.6WXGAG W/

CCD&ANT*3

INVERTER 17" ROHS

VK.21189.407

INVERTER 17"

T62I240.03 06L1

INVERTER 17" TWS-458-

124 MS

INVERTER 17" YNV-

W06C

C.A. LCD CABLE CCD

CP2 MEC

C.A. LCD CABLE CCD

CP2 WS

C.A. LCD CABLE CCD

CP2 HL

C.A. LCD CABLE CCD

CP2 HT

CAMERA 0.3M CN0314-

SN30-OV03-1

CAMERA 0.3M

BN30V4O7-030 OV772

ACER OEM PURCHASE

NO

33.ATR01.004

33.ATR01.005

33.ATR01.005

60.ATR01.005

60.ATR01.004

LK.15605.001

LK.15605.002

LK.15608.001

LK.1560D.001

6M.ATR01.003

19.TQ901.002

19.AR501.002

19.AUA01.002

19.AUA01.001

50.ATR01.003

50.ATR01.003

50.ATR01.003

50.ATR01.003

57.TQ901.001

57.AU401.001

Chapter 6

CATEGORY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

CASE/COVER/BRACKET

ASSEMBLY

LCD

No.

LCD

LCD

LCD

MAINBOARD

BOARDS

MEMORY

MEMORY

MEMORY

MEMORY

PART NAME DESCRIPTION

LCD BRACKET W/

HINGE RIGHT

LCD BRACKET W/

HINGE RIGHT

LCD BRACKET W/

HINGE LEFT

LCD BRACKET W/

HINGE LEFT

LCD COVER 15.6"

W/ANTENNA*3

LCD BEZEL 15.6"

W/CAMERA HOLE

LCD AUO 15.6"

WXGA GLARE AUO

B156XW01 V0 LF

220NIT 8MS

LCD AUO 15.6"

WXGA GLARE AUO

B156XW01 V0 1A

LF 220NIT 8MS

500:1

LCD AUO 15.6"

WXGA GLARE LG

LP156WH1-TLA1 LF

220NIT 8MS 400:1

LCD AUO 15.6"

WXGA GLARE CMO

N156B3-L02 LF

220NIT 8MS

MAINBOARD

AS5735 INTEL G45

ICH9 UNIZION 3.3V

AU W/O 1394 LF W/

RTC

BATTERY&MODEM

MODEM BOARD

FOXCONN DELPHI-

AM5 V2H 1.5_3.3V

AUS T60M951.36

SODIMM 1GB

DDRII667

SAMSUNG

M470T2864QZ3-

CE6 LF

SODIMM 1GB

DDRII667 NANYA

NT1GT64UH8D0FN-

3C LF (0.07U)

SODIMM 1GB

DDRII667 ELPIDA

EBE11UE6ACUA-

6E-E

SODIMM 1GB

DDRII667 HYNIX

HYMP112S64CP6-

Y5 LF

HINGE LCD R CP2 LH

HINGE LCD R CP2 SZS

HINGE LCD L CP2 LH

HINGE LCD L CP2 SZS

ASSY LCD PANEL CP2

ASSY LCD BEZEL CP2

LCD 15.6"WXGA AU

B156XW01 V0 G

LCD 15.6"WXGA AU

B156XW01 V0 G

LCD 15.6"WXGA LG

LP156WH1-TLA1

LCD 15.6"WXGA CMO

N156B3-L02 G

CP2 GM45 MB 08219-1

W/O C/D D

MODEM MDC 1.5_3.3V

LSI AUS T60

SODIMM 1G

M470T2864QZ3-CE6

SODIMM 1G

NT1GT64UH8D0FN-3C

DIMM 1GB

EBE11UE6ACUA-6E-E

SODIMM 1G

HYMP112S64CP6-Y5

ACER OEM PURCHASE

NO

33.ATR01.004

33.ATR01.004

33.ATR01.005

33.ATR01.005

60.ATR01.006

60.ATR01.004

LK.15605.001

LK.15605.002

LK.15608.001

LK.1560D.001

MB.AU901.001

FX.22500.023

KN.1GB0B.016

KN.1GB03.026

KN.1GB09.008

KN.1GB0G.012

Chapter 6 133

134

MEMORY

MEMORY

MEMORY

MISCELLANEOUS

MISCELLANEOUS

MISCELLANEOUS

SCREWS

SCREWS

SCREWS

SCREWS

SCREWS

SCREWS

SCREWS

CATEGORY

MEMORY

MEMORY

No.

PART NAME DESCRIPTION

ACER OEM PURCHASE

NO

KN.1GB0C.005

SODIMM 1GB

DDRII667 A-DATA

HYOPE1A0834Z LF

SODIMM 2GB

DDRII667

SAMSUNG

M470T5663QZ3-

CE6 LF

SODIMM 2GB

DDRII667 NANYA

NT2GT64U8HD0BN

-3C LF (0.07U)

SODIMM 2GB

DDRII667 HYNIX

HYMP125S64CP8-

Y5 LF

SODIMM 2GB

DDRII667 A-DATA

HYOPE1B163BZ LF

NAME PLATE

AS5735

LOGO PLATE FOR

LCD PANEL

LCD SCREW

RUBBER

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SODIMM 1G

HYOPE1A0834Z

SODIMM 2G

M470T5663QZ3-CE6

SODIMM 2G

NT2GT64U8HD0BN-3C

SODIMM 2G

HYMP125S64CP8-Y5

SODIIMM 2G

HYOPE1B163BZ

NAMEPLATE U-CASE

CP2 AS5735

LBL ACER LOGO CNP

7533ADHESIVE

RUB BEZEL CIRCLE

EIGER

SCRW DIMM COVER

STEEL NAGANO-1

ISO

M2.5X6(H=0.7~0.8MM)

SCREW M2.5*L8 NYLOK

CR3+

SCRW MACH PAN

NYLOK M2.5*10 NI

SCREW M2-3

SCREW

M3X4(86.9A524.4R0)

SCRW M2*4 WAFER NI

KN.2GB0B.003

KN.2GB03.011

KN.2GB0G.004

KN.2GB0C.001

40.AU501.001

47.AUE01.002

47.AU401.001

86.00A02.140

86.00E12.536

86.00E12.536

86.1A553.100

86.9A522.3R0

86.9A524.4R0

86.9A552.4R0

Chapter 6

Chapter 6 135

Model Definition and Configuration

Aspire 5735/5735Z/5335 Series

Please double click the red paper clip below for model definition and configurations details.

Appendix A

Appendix A 136

Appendix B

Test Compatible Components

This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system functions are tested under Windows

®

XP Home, Windows

®

XP Pro environment.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

Regarding configuration, combination and test procedures, please refer to the Aspire 5730Z/5330 series

Compatibility Test Report released by the Acer Mobile System Testing Department.

Appendix B 1 37

Microsoft

®

Windows

®

Vista Environment Test

Item

CRT Port Test

CRT Monitor

LCD Monitor

Projector

USB Port Test

USB Keyboard/Mouse

Specification

Acer 211c 21”, ViewSonic G220F, ViewSonic PF790 19”

Acer FP751 17” TFT LCD, Acer AL1521, Acer AL1721, ViewSonic VD201b,

Westinghouse W37G, HP LP2065, HP S9500

Dell 3300MP

USB Speaker/Joystick

USB Storage Drive

USB Camera

USB HUB and Others

USB Printer/Scanner

USB Flash Drive

USB ODD

1394 Camera

Access Point 802.11a

Access Point 802.11g

Access Point 802.11n

Bluetooth Device

Microsoft Natural Keyboard Pro

Dell USB Keyboard

Logicool USB Mouse (OWCM-USB)

Logitech USB Wheel Mouse

Logitech First Wheel Mouse

Dell by Logitech

Dell Internet Navigator Keyboard

Dell Smart Card Keyboard

HP USB Optical Austin Mouse

Belkin Miniglow Optical USB Mouse

HP USB Optical Mouse (RB129AA)

Aiwa Multimedia Digital Speaker (SC-UC78)

Panasonic USB Speaker EAB-MPC57USB

Iomega USB Zip 250MB

Transcend 80G HDD

Plextor DVD+R/RW

LG DVD+R/RW

Sony DVD+R/RW

Intel Easy PC Camera (A20953-001)

Orange Micro USB 2.0 Web Cam

A TEN UH-204

IOGEAR 4-Port Hub

Corega CG-WLUSBST11

HP 450WBT Deskjet Printer

Sony Memory Key 128MB

Sony Micro Vault Pro USD-5G

IBM 128MB Memory Key

IBM 512MB Memory Key

Apacer Handy Drive

Apacer The USB Flash Drive 256MB

Logitec CDRW+DVDROM combo

LG DVD+R/RW

Sony DVD+R/RW

Sony DV-TRV10

Intel Pro/Wireless 5000

NetGear HE 102

D-Link Building Networks People WiFi Certified a/b/g Wireless 108AG

Belkin N1MIMO Wireless Router High Performance wireless 802.11n

Sony Ericsson Wireless Headset

Sony Ericsson T610

X Bridge Bluetooth Access Point BT300

1 38 Appendix B

PCMCIA Test

LAN/Modem Card

Item Specification

Storage Card

1394 Card

USB2.0 Card

Wireless Lan Card

(Not recommended for wireless ready model)

ISDN Card

GPRS Card

TDK CardBus Ethernet 10/100 32-Bit CBE-10/100BTX

Hitachi Microdrive 4G

Buffalo 1394 Interface Cardbus (IFC-ILCB/DV)

IBM EtherJet CardBus Adapter 10/100

Cisco Wireless LAN Card 802.11a

NETGEAR Wireless LAN card 802.11a

Toshiba Type B for Bluetooth 128K ISDN Card

Vodafone QL1ACC-21581 3G/GPRS card

Sony Ericsson GC83 GPRS card

Sony Ericsson GC89 GPRS card

ExpressCard Test

Express Card Abcom 5-in-1 Adapter ExpressCard Reader

Abcom GigaLan ExpressCard

Sunix ECF2400 2 Ports 1394A ExpressCard

Memory Card Test (SD/MS/MMC/SM/CF/Microdrive/XD)

SD Card Apacer 128/256MB

SanDisk 256MB

Apacer 2GB (150x Hi-Speed)

KINGMAX 1GB (66x Hi-Speed)

SanDisk 1GB

RiDATA 4GB SD PRO Memory Card

MS Card

MMC Card

XD Card

CF Card

Sony 512 MS PRO

Lexar 512MB MS PRO

Lexar 1GB MS PRO

Sony 2GB MS PRO

SanDisk 32MB

Transcend 64/128MB

Transcend 256MB

SanDisk RS-MMC 128MB

PQI RS-MMC 256MB

Transcend 512MB

A-DATA Turbo 200X 2GB MMC Card

Apacer 256/512MB

SanDisk 2GB

Olympus 512MB

Apacer 256/512

SanDisk 2GB

Appendix B 1 39

1 40 Appendix B

Appendix C

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

Service guides for all models

User's manuals

Training materials

Bios updates

Software utilities

Spare parts lists

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

Detailed information on Acer's International Traveller’s Warranty (ITW)

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

Appendix C 1 41

1 42 Appendix C

A

AFLASH Utility

44

Antennas

94

Audio

30

B

C

Battery Pack

50

BIOS

26 vendor

26

Version

26

BIOS Utility

33–44

Navigating

34

Onboard Device Configuration

39

Security

37, 38

System Security

43

Board Layout

Top View

117 brightness hotkeys

13 caps lock on indicator

9 computer on indicator

9

CPU

66

CPU Fan True Value Table

26

D

DIMM Module

53

Display

3 display hotkeys

13

E

Error Symptom-to-Spare Part Index

102

Euro

14

External CD-ROM Drive Check

98

External Module Disassembly

Flowchart

49

F

Index

Features

1

Flash Utility

44 fpc cable

90

FRU (Field Replaceable Unit) List

121

H

Hard disk

28

Hard Disk Drive Module

56

HDD

28

Hibernation mode hotkey

13

Hot Keys

11

I

Indicators

9

Intermittent Problems

115

J

Jumper and Connector Locations

117

Top View

117

K

Keyboard

30, 63

Keyboard or Auxiliary Input Device Check

98

L

M

LCD Bezel

88

LCD Brackets

93

LCD Module Disassembly

Flowchart

87

LCD with the Brackets

89 lower cover

52

Main Unit Disassembly

Flowchart

61

Mainboard

82 media access on indicator

9

Memory Check

99

1 43

Model Definition

130

Modem Board

80

N

O

Notebook Manager hotkey

13 num lock on indicator

9

Online Support Information

159

P

Panel

4

Bottom

8 left

4

PC Card

9

Power System Check

99

Battery Pack

101

Power Adapter

100

Processor

26

S

Screw List

48 speakers hotkey

13

System

Block Diagram

3

System Check Procedures

98

System Memory

26

System Utilities

33

T

Test Compatible Components

155

Top

117 touchpad hotkey

13

Touchpad Check

101

Troubleshooting

97

U

Undetermined Problems

116 utility

BIOS

33–44

1 44

V

W

view left

6 rear

7 right

6

Windows 2000 Environment Test

156

WLAN Board

54

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
