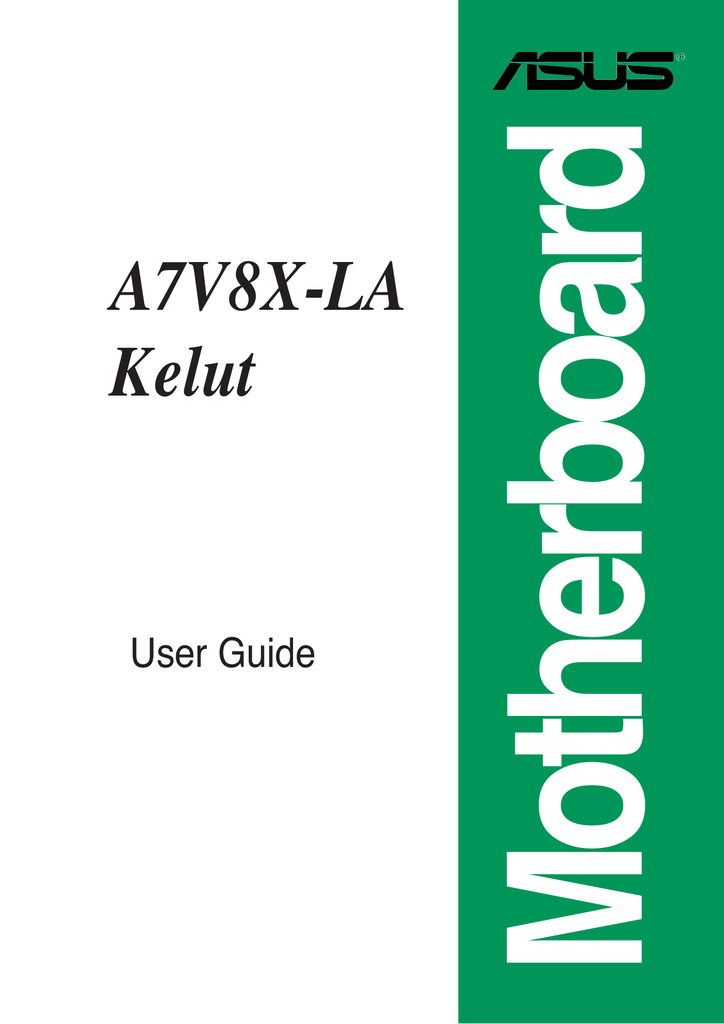

A7V8X-LA

Kelut

User Guide

First Edition V1

January 2004 ii

A7V8X-LA specification summary ............................................. iii

1. Motherboard layout .................................................................. 1

2. Central Processing Unit (CPU) ................................................ 2

Installing the CPU .................................................................. 2

3. System memory ........................................................................ 3

Installing a DIMM ................................................................... 3

4. Expansion slots ........................................................................ 4

Standard interrupt assignments ............................................ 4

IRQ assignments for this motherboard .................................. 4

PCI slots ................................................................................ 5

AGP slot ................................................................................ 5

5. Jumpers .................................................................................... 6

6. Connectors ............................................................................... 8

A7V8X-LA specification summary

CPU

Chipset

Front Side Bus (FSB)

Memory

Expansion slots

Storage

Integrated Graphics

Audio

LAN

IEEE 1394

Hardware Monitoring

Rear Panel I/O Ports

Internal I/O

Connectors

Socket A for AMD Athlon™/Athlon™XP

Core frequency up to Athlon™ XP 3200+

VIA KM400A

VIA VT8237

400/333/266MHz

2 x 184-pin DDR DIMM sockets support up to maximum

2GB unbuffered PC2700/2100 non-ECC DDR

SDRAM memory

3 x PCI

1 x AGP 8X/4X (1.5V)

2 x UltraDMA100 IDE connectors

2 x Serial ATA connectors

Integrated VIA UniChrome™ Graphics

Realtek ALC658 6-channel AUDIO CODEC

Digital audio via an S/PDIF out interface

Southbridge integrated 10/100 Mbps LAN controller and

VT6103 LAN PHY

VIA VT6307 supports two IEEE 1394 ports

Super I/O integrated monitoring of CPU/chassis fan and

MB/CPU temperature

1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45 port

1 x Audio I/O

1 x VGA port

1 x IEEE 1394 port

4 x USB 2.0/1.1

2 x USB connectors support additional 4 USB 2.0 ports

1 x IEEE 1394 connector for an additional IEEE 1394 port

CPU/chassis fan connectors

20-pin ATX power connector

Front panel connector

CD/AUX connectors

Front panel audio connector

S/PDIF out connector

(Continued next page)

iii

A7V8X-LA specification summary

BIOS features

Industry standard

Manageability

Support CD contents

Accessories

4Mb Flash ROM, Award BIOS, Enhanced ACPI, DMI2.0,

Green, PnP features

PCI 2.2, USB 2.0/1.1

WOL, WOR, Wake on KB, Wake on PS/2 mouse

Device drivers

ASUS PC Probe

ASUS Screensaver

Award BIOS Flash Utility

Microsoft ® Direct X

Adobe Acrobat Reader

Trend Micro

™

PC-cillin 2002

User Guide

ASUS A7V8X-LA support CD

UltraDMA cable

FDD cable

I/O shield

Micro-ATX form factor: 9.6 in x 9.6 in

Form Factor

* Specifications are subject to change without notice

1. Motherboard layout

24.5cm (9.6in)

PS/2KBMS

T: Mouse

B: Keyboard

COM1

Socket 462

CPU_FAN

VGA

Bottom:

T:USB1

B:USB2

Top:

1394

USB2.0

T: USB3

B: USB4

Top:

RJ-45

Top:Line In

Center:Line Out

Below:Mic In

CHA_FAN

ATX12V

VIA

KM400A

(VT8378)

FRONT_1394

VIA

VT6307

Accelerated Graphics Port (AGP1)

VIA

VT6103

SPDI/F

AUX-IN

CD-IN

PCI1

A7V8X-LA(KELUT)

PCI2

ALC658

PCI3

PRONT_AUDIO FRONT_USB1

SATA2

SATA1

VIA

VT8237

CLPWD

Super

I/O

CLRTC

BUZZER

FRONT_USB2

BAT1

ASUS A7V8X-LA motherboard 1

2. Central Processing Unit (CPU)

The motherboard comes with a Socket A (462) for the AMD processor. AMD processors offer gigahertz speeds to support all latest computing platforms and applications. The A7V8X-LA supports AMD Athlon™/Athlon XP™ 3200+ processors. This motherboard also supports 400/333/266MHz front side bus

(FSB), and allows data transfers of up to 2.7 GB/s with PC2700 DDR.

Each AMD CPU has a “marked” corner. This corner is usually indicated with a notch and/or a golden square or triangle. Refer to this indicator while orienting the

CPU. A fan and a heatsink should be attached to the CPU to prevent overheating.

CPU NOTCH

TO INNER

CORNER

LOCK

LEVER

CPU NOTCH

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) Socket 462

AMD™ CPU

Installing the CPU

Follow these steps to install a CPU.

1. Locate the Socket 462 and open it by pulling the lever gently sideways away from the socket. Then lift the lever upwards. The socket lever must be fully opened (90 to 100 degrees).

2. Insert the CPU with the correct orientation. The notched or golden corner of the CPU must be oriented toward the inner corner of the socket base nearest to the lever hinge.

The CPU fits only in one correct orientation. DO NOT force the CPU into the socket to prevent bending the pins and damaging the CPU!

ASUS A7V8X-LA motherboard

3. System memory

The motherboard comes with two Double Data Rate (DDR) Dual Inline Memory

Module (DIMM) sockets. These sockets support up to 2 GB system memory using

184-pin unbuffered non-ECC PC/2700/PC2100/PC1600 double-sided DDR

DIMMs.

The following figure illustrates the location of the DDR DIMM sockets.

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) 184-Pin DDR DIMM Sockets

CAUTION: DIMMs are keyed to fit with only one direction. DO NOT force a

DIMM into a socket to avoid damaging the DIMM.

Installing a DIMM

You may install 64MB, 128MB, 256MB, 512MB, 1GB DDR DIMMs into the DIMM sockets using the memory configurations in this section.

Make sure to unplug the power supply before adding or removing DIMMs or other system components. Failure to do so may cause severe damage to both the motherboard and the components.

Follow these steps to install a DIMM.

1. Unlock a DIMM socket by pressing the retaining clips outward.

2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.

Unlocked Retaining Clip

DDR DIMM notch

ASUS A7V8X-LA motherboard 3

4. Expansion slots

The motherboard has three PCI slots and one Accelerated Graphics Port (AGP) slot.

To install and configure an expansion card:

1. Install an expansion card following the instructions that came with the chassis.

2. Turn on the system and change the necessary BIOS settings, if any.

3. Assign an IRQ to the card. Refer to the tables below.

4. Install the drivers and/or software applications for the expansion card according to the card documentation.

Standard interrupt assignments

10*

11*

IRQ

12*

14*

Priority

N/A

Standard Function

System Timer

Keyboard Controller

Programmable Interrupt

Communications Port (COM2)

Communications Port (COM1)

Sound Card (sometimes LPT2)

Floppy Disk Controller

Printer Port (LPT1)

System CMOS/Real Time Clock

ACPI Mode when used

IRQ holder for PCI steering

PS/2 Compatible Mouse Port

Numeric Data Processor

Primary IDE Channel

15* 10 Secondary IDE Channel

These IRQs are usually available for ISA or PCI devices.

IRQ assignments for this motherboard

PCI slot 1

PCI slot 2

PCI slot 3

AGP slot

Onboard 1394 controller

shared

––

–– shared

––

–– shared

––

–– shared

––

–– shared

ASUS A7V8X-LA motherboard

PCI slots

There are three (3) 32-bit PCI slots on this motherboard. The slots support PCI cards such as a LAN card, SCSI card, USB card, and other cards that comply with

PCI specifications. The figure below shows a typical PCI card installed into a slot.

AGP slot

This motherboard has an Accelerated Graphics Port (AGP) slot that supports

AGP 8X/4X cards. When you buy an AGP card, make sure that you ask for one with +1.5V specification.

Note the notches on the card golden fingers to ensure that they fit the AGP slot on your motherboard.

Install only +1.5V AGP cards on this motherboard!

A7V8X-LA(KELUT)

Accelerated Graphics Port (AGP)

Keyed for 1.5v

ASUS A7V8X-LA motherboard 5

5. Jumpers

1. Clear CMOS (3-pin CLRTC)

This jumper allows you to clear the RAM data in CMOS, except the system date and time. The RAM data in CMOS, is powered by the onboard button cell battery.

To erase the CMOS RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 2-3 (Default) to pins 1-2 (Clear CMOS).

Keep the cap on pins 1-2 for about 5~10 seconds, then move the cap back to pins 2-3.

3. Plug the power cord and turn ON the computer.

4. Hold down the <F1> key during the boot process and enter the BIOS setup to re-enter data.

Except when clearing the CMOS RAM, never remove the jumper cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) Clear RTC RAM

CLRTC

1 2

Clear CMOS

2 3

Normal

(Default)

6 ASUS A7V8X-LA motherboard

2. Clear Password (3-pin CLPWD)

This jumper allows you to clear the BIOS setup password.

To erase the BIOS setup password:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 2-3 (Default) to pins 1-2 (Clear Password).

Keep the cap on pins 1-2 for about 5~10 seconds, then move the cap back to pins 2-3.

3. Plug the power cord and turn ON the computer.

4. Hold down the <F1> key during the boot process and enter the BIOS setup to set a new password.

CLPWD

A7V8X-LA(KELUT)

1 2 2 3

Clear Password Normal

(Default)

A7V8X-LA(KELUT) Clear Password Setting

ASUS A7V8X-LA motherboard 7

6. Connectors

This section describes and illustrates the internal connectors on the motherboard.

1. Floppy disk drive connector (34-1 pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After connecting one end to the motherboard, connect the other end to the floppy drive. (Pin 5 is removed to prevent incorrect insertion when using ribbon cables with pin 5 plug.)

FLOPPY

NOTE: Orient the red markings on the floppy ribbon cable to PIN 1.

A7V8X-LA(KELUT)

PIN 1

A7V8X-LA(KELUT) Floppy Disk Drive Connector

2. ATX power connectors (20-pin ATXPWR; 4-pin ATX12V)

These connectors connect to an ATX 12V power supply. The plugs from the power supply are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

Make sure that your ATX 12V power supply can provide 8A on the +12V lead and at least 1A on the +5-volt standby lead (+5VSB). The minimum recommended wattage is 230W, or 300W for a fully configured system. The system may become unstable and may experience difficulty powering up if the power supply is inadequate.

A7V8X-LA(KELUT)

+12.0VDC

+5VSB

PWR_OK

COM

+5.0VDC

COM

+5.0VDC

COM

+3.3VDC

ATXPWR

+5.0VDC

+12V DC

+5.0VDC

GND

-5.0VDC

COM

PS_ON#

COM

-12.0VDC

+3.3VDC

ATX12V

+12V DC

GND

A7V8X-LA(KELUT) ATX Power Connectors

ASUS A7V8X-LA motherboard

3. IDE connectors (40-1 pin PRIMARY_IDE, SECONDARY_IDE)

This connector supports the provided UltraDMA IDE hard disk ribbon cable.

Connect the cable’s blue connector to the primary (recommended) or secondary

IDE connector, then connect the gray connector to the UltraDMA100 device

(hard disk drive) and the black connector to the UltraDMA100 master device. It is recommended that you connect non-UltraDMA100 devices to the secondary IDE connector. If you install two hard disks, you must configure the second drive as a slave device by setting its jumper accordingly. Refer to the hard disk documentation for the jumper settings. BIOS supports specific device bootup. If you have more than two UltraDMA100 devices, purchase another UltraDMA cable. You may configure two hard disks to be both master devices with two ribbon cables – one for the primary IDE connector and another for the secondary

IDE connector.

Pin 20 on each IDE connector is removed to match the covered hole on the

UltraDMA cable connector. This prevents incorrect orientation when you connect the cables.

The hole near the blue connector on the UltraDMA cable is intentional.

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) IDE Connectors

PIN 1

NOTE: Orient the red markings

(usually zigzag) on the IDE ribbon cable to PIN 1.

ASUS A7V8X-LA motherboard 9

4. CPU and Chassis Fan Connectors (3-pin CPU_FAN, CHA_FAN)

The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Lack of sufficient air flow within the system may damage the motherboard components. These are not jumpers! DO NOT place jumper caps on the fan connectors!

CPU_FAN

A7V8X-LA(KELUT)

CHA_FAN

GND

+12V

Rotation

A7V8X-LA(KELUT) 12-Volt Fan Connectors

5. Internal audio connectors (4-pin AUX-IN, CD-IN)

These connectors allow you to receive stereo audio input from sound sources such as a CD-ROM, TV tuner, or MPEG card.

A7V8X-LA (KELUT)

AUX-IN (White)

CD-IN (Black)

A7V8X-LA (KELUT) Internal Audio Connectors

ASUS A7V8X-LA motherboard

6. USB headers (10-1 pin FRONT_USB1)

If the USB ports on the rear panel are inadequate, a USB header is available for additional USB ports. The USB header complies with USB 2.0 specification that supports up to 480 Mbps connection speed. This speed advantage over the conventional 12 Mbps on USB 1.1 allows faster Internet connection, interactive gaming, and simultaneous running of high-speed peripherals. You may connect a USB module to the USB header.

FRONT_USB1 FRONT_USB2

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) USB 2.0 Header

1 1

7. S/PDIF out connector (3-pin SPDI/F)

This connector is for an S/PDIF audio module that allows digital instead of analog sound output. Connect one end of the audio cable to this connector and the other end to the S/PDIF module.

SPDI/F

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) Header SPDI/F Connector

ASUS A7V8X-LA motherboard 11

8. IEEE 1394 connector (10-1 pin FRONT_1394)

This connector is for a 10-to-6-pin 1394 serial connector cable that connects to a 1394 module. Attach the 10-1 pin cable plug to this connector, and the 6-pin cable plug to the 1394 module. You may also connect a 1394-compliant internal hard disk to this connector.

NEVER connect a USB cable to any of the IEEE 1394 connectors. Doing so will damage the motherboard!

A7V8X-LA(KELUT)

FRONT_1394

TPA+

GND

TPB+

+12V

A7V8X-LA(KELUT) FRONT_1394 Connector

TPA-

GND

TPB-

+12V

GND

The IEEE 1394 module is purchased separately.

9. Front audio connector (10-1 pin FRONT_AUDIO)

This connector is for a chassis-mounted front panel headphone and MIC-IN jack.

PHONE_AUDIO

A7V8X-LA(KELUT)

Front HeadPhone & MIC-IN Header Connector

ASUS A7V8X-LA motherboard

10. Serial ATA connectors (7-pin SATA2, SATA1)

These next generation connectors support the thin Serial ATA cables for Serial ATA hard disks. The current Serial ATA interface allows up to 150 MB/s data transfer rate, faster than the standard parallel ATA with 133MB/s (Ultra ATA133).

SATA2

A7V8X-LA(KELUT)

A7V8X-LA(KELUT) SATA Connectors

SATA1

Important notes on Serial ATA

• The Serial ATA cable is smaller and more flexible allowing easier routing inside the chassis. The lower pin count of the Serial ATA cable eliminates the problem caused by the wide, flat ribbon cables of the Parallel ATA interface.

• Hot plug support for Serial ATA drive and connections are not available in this motherboard.

• Adjust the necessary BIOS settings when using the Serial ATA interface.

• Install Windows

XP™ Service Pack 1 when using Serial ATA.

ASUS A7V8X-LA motherboard 13

11. System panel connector (10-1 pin FRONT_PANEL)

This connector accommodates several system front panel functions.

Power LED Power Button

FRONT_PANEL

A7V8X-LA(KELUT)

HDD LED Reset

A7V8X-LA(KELUT)

Front Panel Audio Connector

• System Power LED Lead (2-pin PLED)

This 3-1 pin connector connects to the system power LED. The LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

• Hard Disk Activity LED Lead (2-pin HDLED)

This 2-pin connector is for the HDD LED cable. The read or write activities of the device connected to the any of IDE connectors cause the IDE LED to light up.

• ATX Power Switch / Soft-Off Switch Lead (2-pin PWRBTN)

This connector connects a switch that controls the system power. Pressing the power switch turns the system between ON and SLEEP, or ON and SOFT

OFF, depending on the BIOS or OS settings. Pressing the power switch while in the ON mode for more than 4 seconds turns the system OFF.

• Reset Switch Lead (2-pin RESET)

This 2-pin connector connects to the case-mounted reset switch for rebooting the system without turning off the system power.

ASUS A7V8X-LA motherboard

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
