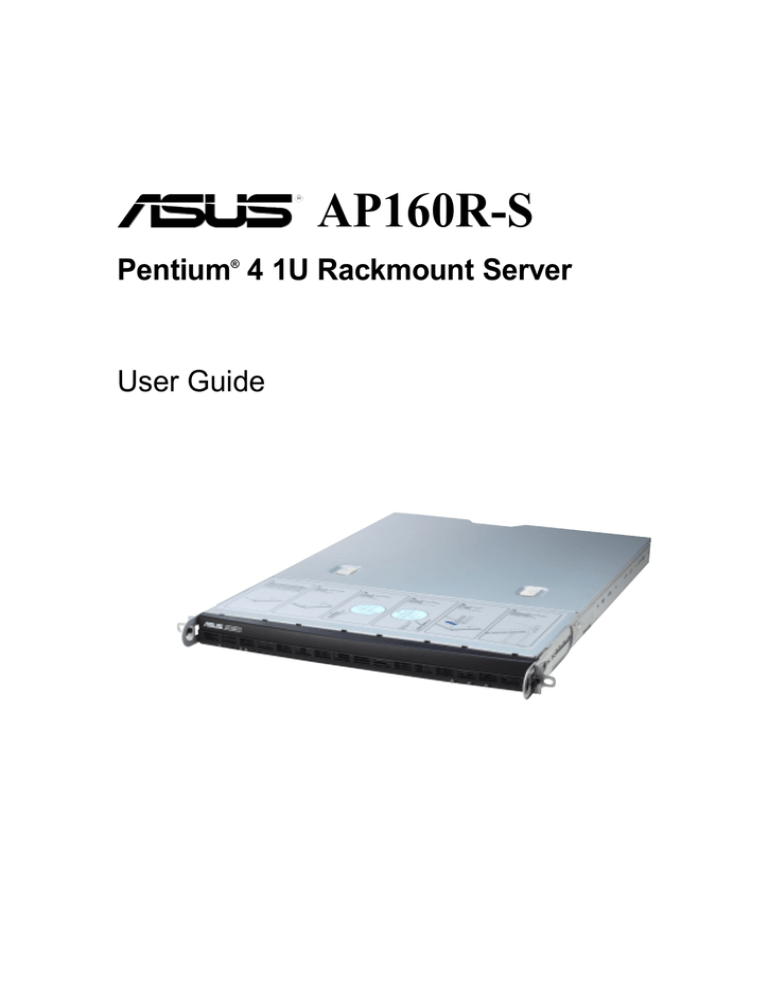

AP160R-S
Pentium 4 1U Rackmount Server
®
User Guide
Disclaimer/Copyrights
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any
form or by any means, except documentation kept by the purchaser for backup purposes, without
the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR
DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN
THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the
serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies, and are used only for identification or explanation
and to the owners’ benefit, without intent to infringe.
The product name and revision number are both printed on the product itself. Manual revisions
are released for each product design represented by the digit before and after the period of the
manual revision number. Manual updates are represented by the third digit in the manual revision
number.
For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT
NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE
DESCRIBED IN IT.
Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved.
Product Name:
Manual Revision:
Release Date:
2
ASUS AP160R-S
1.01 E1068
July 2002
Contents
Disclaimer/Copyrights .................................................................
ASUS Contact Information ..........................................................
FCC/CDC Statements ...................................................................
Safety Precautions .......................................................................
2
5
6
7
Introduction: About This Manual ......................... 9
Audience ..................................................................................... 10
Contents ...................................................................................... 10
Conventions ................................................................................. 11
References ................................................................................... 11
System Package Contents ........................................................ 12
Chapter 1: System Overview ............................. 13
1.1
1.2
1.3
1.4
System Features ................................................................
Front Panel Features .........................................................
Rear Panel Features ..........................................................
Internal Features ...............................................................
14
15
15
16
Chapter 2: Hardware Setup ............................... 17
2.1
2.2
2.3
2.4
Removing and installing the chassis cover ....................
Removing the cover ............................................................
Installing the cover ..............................................................
Motherboard Placement ...................................................
Placement Direction ............................................................
Motherboard Screws ...........................................................
Installing a CPU .................................................................
CPU Orientation ..................................................................
CPU Socket Location ..........................................................
Unlock the CPU Socket .......................................................
Insert the CPU .....................................................................
Secure the CPU ..................................................................
Install the Heatsink ..............................................................
Installing system memory ................................................
DIMM sockets location ........................................................
Install a DIMM .....................................................................
18
18
18
19
19
19
20
20
20
21
21
21
22
23
23
23
3
Contents
2.5
2.6
2.7
2.8
2.9
Installing the backplane and bridge boards ...................
Bridge board ........................................................................
Backplane board .................................................................
Installing a hard disk drive ...............................................
Installing a PCI card ..........................................................
Installing the front bezel and rack ears ...........................
Installing CD-ROM and floppy drives ..............................
24
24
25
26
28
30
31
Chapter 3: Hardware Options ........................... 33
3.1
3.2
3.3
Cooling System .................................................................
Fan locations .......................................................................
Fan connectors ....................................................................
Fan cable connections ........................................................
Removing the fans ..............................................................
Power connections ...........................................................
Removing the power supply ............................................
34
34
34
35
36
37
38
Appendix A: Power Supply ................................ 39
A.1 General Description ..........................................................
A.2 Specifications ....................................................................
Input Characteristics ............................................................
Output Characteristics .........................................................
Over-Voltage Protection (OVP) ...........................................
40
41
41
41
41
Appendix B: Troubleshooting ............................ 43
B.1 Simple Fixes ...................................................................... 44
4
ASUS Contact Information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address:
General Tel:
General Fax:
General Email:
150 Li-Te Road, Peitou, Taipei, Taiwan 112
+886-2-2894-3447
+886-2-2894-3449
info@asus.com.tw
Technical Support
MB/Others (Tel):
Notebook (Tel):
Desktop/Server (Tel):
Support Fax:
Support Email:
Web Site:
Newsgroup:
+886-2-2890-7121 (English)
+886-2-2890-7122 (English)
+886-2-2890-7123 (English)
+886-2-2890-7698
tsd@asus.com.tw
www.asus.com.tw
cscnews.asus.com.tw
ASUS COMPUTER INTERNATIONAL (America)
Address:
General Fax:
General Email:
6737 Mowry Avenue, Mowry Business Center,
Building 2, Newark, CA 94560, USA
+1-510-608-4555
tmd1@asus.com
Technical Support
Support Fax:
General Support:
Web Site:
Support Email:
+1-510-608-4555
+1-502-995-0883
www.asus.com
tsd@asus.com
ASUS COMPUTER GmbH (Europe)
Address:
General Fax:
General Email:
Harkortstr. 25, 40880 Ratingen, BRD, Germany
+49-2102-442066
sales@asuscom.de (for marketing requests only)
Technical Support
Support Hotline:
Notebook (Tel):
Support Fax:
Support (Email):
Web Site:
MB/Others: +49-2102-9599-0
+49-2102-9599-10
+49-2102-9599-11
www.asuscom.de/de/support (for online support)
www.asuscom.de
5
FCC/CDC Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
•
•
This device may not cause harmful interference, and
This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of shielded cables for connection of the monitor to the
graphics card is required to assure compliance with FCC regulations. Changes
or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
6
Safety Precautions
Electrical Safety
IMPORTANT
• Before installing or removing signal cables, ensure that the power
cables for the system unit and all attached devices are unplugged.
•
To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
•
When adding or removing any additional devices to or from the
system, ensure that the power cables for the devices are unplugged
before the signal cables are connected. If possible, disconnect all
power cables from the existing system before you add a device.
•
If the power supply is broken, do not try to fix it by yourself. Contact
a qualified service technician or your dealer.
CAUTION
This product is equipped with a three-wire power cable and
plug for the user’s safety. Use the power cable with a properly
grounded electrical outlet to avoid electrical shock.
Operation Safety
IMPORTANT
•
Any mechanical operation on this server must be conducted by
certified or experienced engineers.
•
Before operating the server, carefully read all the manuals
included with the server package.
•
Before using the server, make sure all cables are correctly
connected and the power cables are not damaged. If any
damage is detected, contact your dealer as soon as possible.
•
To avoid short circuits, keep paper clips, screws, and staples
away from connectors, slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Place the
server on a stable surface.
7
8
“About This Guide” introduces the contents
of this document. This part includes the target
audience, chapter description, and
conventions used. It also lists other sources
of information that are not contained in this
manual.
ASUS AP160R-S 1U Rackmount Server
About this guide
Introduction
9
Audience
This user guide is intended for system integrators, and experienced users
with at least basic knowledge of configuring an entry-level server.
Contents
This guide contains the following parts:
1. Introduction: About this guide
This part introduces the contents of this document. It includes the target
audience, chapter description, and conventions used. It also lists other
sources of information that are not contained in this manual.
2. Chapter 1: System overview
This chapter describes the general features of the AP160R-S server. It
includes sections on front panel and rear panel specifications.
3. Chapter 2: Hardware setup
This chapter lists the hardware setup procedures that you have to perform
when installing system components.
4. Chapter 3: Hardware options
This chapter describes the optional hardware procedures that you may
have to do when configuring the system.
5. Appendix A: Power supply information
This appendix gives information on the 200-watt switching power supply
that came with the AP160R-S server.
6. Appendix B: Troubleshooting
This appendix lists the common problems that you may encounter while
using the AP160R-S server. It lists the possible causes of the problems
and offers solutions. You may refer to this part and try to solve simple
problems before calling customer support.
10
Introduction: About this guide
Conventions
Symbols
To make sure that you perform certain tasks properly, take note of the following
symbols used throughout this manual.
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and information to aid in completing a task.
References
Refer to the following sources for additional information and for product and
software updates.
1. ASUS NR-LSR Motherboard User’s Manual
This manual contains detailed information about the NR-LSR
motherboard.
2. ASUS Websites
The ASUS websites worldwide provide updated information on ASUS
hardware and softare products. The ASUS websites are listed in the ASUS
Contact Information on page 5.
3. Optional Documentation
Your product package may include optional documentation such as a
CD-ROM manual, warranty flyers, and others that may have been added
by your dealer. NOTE: These documents are not part of the standard
server package.
ASUS AP160R-S 1U Rackmount Server
11
System Package Contents
The following checklist enumerates the components included in the standard
system package.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
ASUS 1U chassis (AR-12)
ASUS NR-LSR motherboard
284W power supply
Backplane board (BP4LS-AR12)
PCI riser card (PCI64-3V-AR12)
Bridge board (BRIDGE-AR12)
Bridge board for SCSI RAID (BRIDGE/S-AR12)
40x40x28 mm system fans (3 units)
Two fan modules each composed of 4 units of 40x40x28 mm fans
Front bezel and mounting ears
ASUS 1U rail kit
CPU heatsink
SCSI HDD trays (4 units)
Support CD that includes drivers, utilities, and ASUS Server
Web-based Management (ASWM)
15) User guides (for system and motherboard)
NOTE
If any of the above items is missing, contact your dealer.
12
Introduction: About this guide
This chapter describes the general features
of the AP160R-S server. It includes sections
on front panel, rear panel, and internal
features of the server.
ASUS AP160R-S 1U Rackmount Server
System Overview
Chapter 1
13
1.1
System Features
The ASUS AP160R-S is a stylish barebone server featuring the ASUS
NR-LSR motherboard. The server supports the Intel® Pentium® 4 processor
in a 478-pin socket, and includes the latest I/O, and video technologies through
the chipsets embedded on the motherboard.
Following are highlights of the server’s many features.
14
•
Processor: Support for Intel® Pentium 4 processor with 400MHz FSB
and 512KB L2 cache
•
Memory: Four DIMM sockets support up to 8GB of system memory
using registered ECC PC2100/PC1600 DDR DIMMs
•
System Chipset: The Serverworks® Grand Champion Low End (GCLE)
SystemSet includes the Champion Memory and I/O Controller LE
(CMIC-LE) as the host bridge, the Champion South Bridge (CSB5) as a
PCI to Low Pin Count (LPC) bridge, and the Champion I/O Bridge
(CIOB-X2) that provides a high performance data flow path between
the IMB and the I/O subsystem.
•
LAN Chipsets: The Intel® 82544GC Gigabit Ethernet controller is an
integrated Ethernet LAN component that supports 1000Mbps, 100Mbps,
and 10Mbps data rates. The Intel 82550 Fast Ethernet controller fully
supports 10BASE-T/100BASE-TX networking protocols.
•
SCSI Chipset: The LSI® 53C1010R SCSI controller supports up to 30
Ultra-160 SCSI devices through the onboard dual-channel SCSI
connectors.
•
VGA Chipset: The ATI® Rage-XL PCI-based VGA controller supports
up to 8MB PC-100 display SDRAM for 1280x1024 and true color
resolutions.
•
Storage: Four 1” height, 3.5-inch width HDD drive bays
•
Expansion: Two full-length 64-bit 133/100MHz PCI-X slots on a
proprietary riser card.
•
Power Supply: 115Vac/230Vac 284-watt auto-switching power supply
Chapter 1: System Overview
1.2 Front Panel Features
The front panel of the server allows easy access to the hard disk drives. The
power and reset buttons, LED indicators, and the 68-pin connector for the
Combo module are also located on the front panel.
Power button
Power LED
Location Switch
Location LED
Reset button
Message LED
Location LED
Location switch
USB ports
Very High-density SCSI
connector (VHDCI)
VGA port
LAN port ( for Server
Management)
Serial port (COM1)
Gigabit LAN port
100/10Mbps LAN port
PS/2 keyboard port
PS/2 mouse port
Rear fan
Power supply fan
AC Power socket
Power supply fan
15
ASUS AP160R-S 1U Rackmount Server
Combo module
rail hole
68-pin combo drive
cage connector
Front USB
connector
Combo module
rail hole
LAN LEDs
HDD access LED
HDD power LEDs
1.3 Rear Panel Features
The server rear panel includes the connectors, the system devices, and two
slots for expansion cards.
1.4 Internal Features
The standard components inside the AP160R-S server include the
motherboard, backplane, bridge board, fans and fan modules, PCI riser card
assembly, and power supply. The pictures below show the standard
components of the server.
1
11
6
12
11
10
9
1
5
7
2
8
3
4
1.
2.
3.
4.
5.
6.
HDD bays
Backplane (underneath)
Bridge board
1 x 40mm PCI fan
8 x 40mm System fan
1 x 40mm PSU fan
7. Copper CPU heatsink
8. NR-LSR motherboard
9. 4 x DIMM sockets
10. 1 x 40mm rear fan
11. 2 x PSU fan
12. 284W PSU
NOTE
The PCI riser card and card bracket assembly is not shown installed
in the above picture. Refer to section “2.7 Installing a PCI card”
for more details on the riser card.
16
Chapter 1: System Overview
Chapter 2
Hardware Setup
This chapter describes the hardware setup
procedures that you have to perform when
installing system components.
ASUS AP160R-S 1U Rackmount Server
17
2.1 Removing and installing the chassis cover
Removing the cover
1. To release the cover, push the
two latches outward, then
slide the cover towards the
rear for about half an inch.
2. Lift the cover from the chassis.
Installing the cover
1. Place the cover on top of the
chassis leaving about half an
inch gap from the front edge.
Half-inch gap
2. Firmly hold down the cover and
you slide it towards the front
until it fits in place.
18
Chapter 2: Hardware Setup
2.2 Motherboard Placement
NOTE
The motherboard and other internal components of the AP160RS server are already installed as indicated in section “1.4 Internal
Features”. Refer to the motherboard user’s manual for detailed
technical information about the motherboard.
Placement Direction
When installing the motherboard,
make sure that you place it into the
chassis correctly. The edge with the
external ports goes to the rear part
of the chassis.
Place this side
towards the rear
of the chassis
NOTE
You must remove the protruding screws (indicated by black circles
above) on the serial port, VGA port, and high-density SCSI
connector before installing or removing the motherboard.
Otherwise, you cannot properly install or remove the motherboard.
Motherboard Screws
Place seven (7) screws in the holes
indicated by circles to secure the
motherboard to the chassis. Do not
overtighten the screws. Doing so
may damage the motherboard.
ASUS AP160R-S 1U Rackmount Server
19
2.3 Installing a CPU
The 478-pin Zero Insertion Force (ZIF) socket on the NR-LSR motherboard
supports an Intel Pentium 4 processor. This section tells you how to install a
CPU. Refer to the motherboard user guide for more information.
CPU Socket Location
Locate the 478-pin CPU socket and
note the Pin 1 location.
Pin 1
CPU Orientation
Gold Mark
A CPU has a mark (usually a notch
or a gold mark) on one corner to help
you identify the correct orientation
when inserting it to the socket.
Match the marked corner of the CPU
to Pin 1 on the socket.
CAUTION
Incorrect installation of the CPU into the socket may bend the pins
and severely damage the CPU!
20
Chapter 2: Hardware Setup
Unlock the CPU Socket
Unlock the socket by pressing the
lever sideways then lifting it up to a
90°-100° angle.
Socket Lever
90 - 100
Insert the CPU
1. Position the CPU above the
socket such that its marked
corner matches the base of the
socket lever.
Gold Mark
2. Carefully insert the CPU into
the socket until it fits in place.
Secure the CPU
When the CPU is in place, press it
firmly on the socket while you push
down the socket lever to secure the
CPU. The lever clicks on the side
tab to indicate that it is locked.
ASUS AP160R-S 1U Rackmount Server
21
NOTE
You must remove the riser card module and card bracket assembly
before installing or removing the heatsink.
Install the Heatsink
1. Carefully place the heatsink on
top of the installed CPU. The
heatsink fits in only one
orientation. Take note of the
heatsink placement as shown
(ASUS logo facing the rear
panel).
ASUS logo
2. Hold down the heatsink lightly
and twist each of the four
screws with a Philips (cross)
screwdriver just enough to
attach the heatsink to the
motherboard.
3. When the four screws are
attached, tighten them one by
one to completely secure the
heatsink.
22
Chapter 2: Hardware Setup
2.4 Installing system memory
DIMM sockets location
DDR DIMM sockets
The motherboard has four Dual
Inline Memory Module (DIMM)
sockets that support up to 8GB
system memory using registered
ECC PC2100/PC1600 DDR DIMMs.
Install a DIMM
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on
the socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the
DIMM is properly seated.
Unlocked Retaining Clip
CAUTION
A DDR DIMM is keyed with a notch so it fits in only one direction.
DO NOT force a DIMM into a socket to avoid damaging the DIMM.
Remove a DIMM
1. Simultaneously press the
retaining clips outward to
unlock the DIMM.
2. Remove the DIMM from the
socket.
ASUS AP160R-S 1U Rackmount Server
23
2.5 Installing the backplane and bridge boards
2.5.1 Bridge board (BRIDGE-AR12)
The bridge board links several functions and signals from the motherboard
to the backplane board. The board connects to the pair of connectors labeled
BPCON on the motherboard and to another pair on the backplane. Four
screws secure the bridge board to the motherboard and backplane (indicated
by circles in the figure below).
BPCON connectors
on the motherboard
Bridge Board
(BRIDGE-AR12)
BPCON connectors
on the backplane
2.5.2 Bridge board (BRIDGE/S-AR12)
If you installed a RAID card, you may create a RAID configuration using the
bundled bridge board for SCSI RAID (BRIDGE/S-AR12).
1. Remove the standard bridge board (BRIDGE-AR12) and replace it with
the SCSI RAID bridge board (BRIDGE/S-AR12).
2. Install the bridge board with the 68-pin SCSI connector facing the rear
panel (see picture on the next page). Take note of the BPCON
connectors for the motherboard (MB) and the backplane (BP).
3. Secure the bridge board with four screws.
4. Connect a 68-pin SCSI cable from the RAID card to the SCSI
connector on the bridge board.
24
Chapter 2: Hardware Setup
When installed, the SCSI RAID bridge board appears as shown below.
Bridge Board
(BRIDGE/S-AR12)
2.5.3 Backplane board
The backplane board includes the four hot-swappable connectors for the
SCSI drives accessible from the front panel, and several other connectors
that link to the motherboard and main power supply unit.
The backplane board comes pre-installed in the chassis. Normally, you do
not need to remove the backplane from the chassis unless it is damaged
and needs repair. In case you will have to remove and re-install the backplane,
take note of the location of the screws (indicated by circles in the figure
below) that secure it to the chassis.
140-Pin Connectors
(BPCON) for the
Bridge Board
80-Pin SCA Connectors
6-Pin PSU SMBus Connector
for the Hot-swappable
8-Pin PSU Connector
SCSI Drives
USB Connector
68-Pin Connector for the
External Combo Drive Cage
ASUS AP160R-S 1U Rackmount Server
25
2.6 Installing a hard disk drive
1. Push the thumb pad all the
way to the right to release the
HDD tray.
2. Pull out the tray handle then
pull the tray out of the chassis.
3. Secure a hard disk drive to the
tray using four screws.
4. After securing the drive to the
tray, carefully insert the tray
into the drive bay.
26
Chapter 2: Hardware Setup
5. Push the tray all the way to the
depth of the bay until it fits.
6. Push the tray handle back in
place.
CAUTION
Make sure that the HDD tray is completely in place before you
push the handle back to avoid damaging the drive and the tray.
ASUS AP160R-S 1U Rackmount Server
27
2.7 Installing a PCI card
1. The PCI riser card and card
bracket assembly comes
pre-installed in the chassis.
Pull up the metal lever to
release and detach the
assembly from the chassis.
PCI Riser Card and
Card Bracket Assembly
Metal Lever
2. Install a PCI or PCI-X card into
a riser card slot, and secure
the card with a screw. Do the
same procedure if you are
installing another card into the
second slot on the opposite
side of the riser card.
NOTE: If you are installing an
extended PCI card, pull up the
plastic card holder before
installing the assembly back
into the chassis.
Extended Card Holder
3. When the cards are installed,
replace the riser card assembly
into the chassis. Pull up the
metal lever and align the riser
card golden fingers with the
PCI slot. Firmly insert the riser
card into the slot.
28
Chapter 2: Hardware Setup
4. When the riser card assembly
is in place, push down the card
holder to secure the end of the
extended PCI card.
The picture on the the right shows
the installed riser card assembly and
PCI cards.
ASUS AP160R-S 1U Rackmount Server
29
2.8 Installing the front bezel and rack ears
1. Secure a metal handle to one
end of the front bezel using two
small screws that came with
the accessory box. Do the
same to secure a metal handle
to the other end of the bezel.
2. Fit the front bezel to the
chassis together with the
mounting ear by matching the
screw holes. Secure the
mounting ear using two
screws. Do the same to secure
the other mounting ear.
Mounting ear
3. Press the black peg to fasten
the front bezel to the mounting
ear. Do the same to the other
peg.
To remove the front bezel, pull the
black pegs on each end to release,
then use your two hands to pull out
the front bezel as shown.
30
Chapter 2: Hardware Setup
2.9 Installing CD-ROM and floppy drives
The slim-type CD-ROM drive and slim-type floppy drive are contained in an
external combo drive cage. You will need these drives when installing the
drivers, utilities, and software applications. The drives are not hot-swappable
so you should install them before powering up the system. However, you
can detach the cage from the chassis when you do not need it anymore. No
need to shut down the system.
NOTE
The combo drive cage and drives are NOT standard shipping items
in the AP160R-S system package. These items are sold separately.
1. When shipped, the rails of the
combo drive cage are attached
to the sides as shown. Remove
the screw closer to the front
and set it aside.
Remove this screw
2. Loosen the other screw closer
to the rear side. Do not remove
the screw completely.
Loosen this screw
3. Turn the rail 180 degrees. The
screw hole on the rail should
align to the hole on the side of
the cage.
4. Secure the rail with the screw
that you removed earlier.
Tighten the other screw.
ASUS AP160R-S 1U Rackmount Server
31
5. Follow steps 1 to 4 to install the
other rail.
6. Insert the rails to the holes on
the front panel and match the
68-pin connector at the rear of
the drive cage with the
connector on the front panel.
7. Firmly push the combo drive
cage into the chassis until it fits
in place.
In case you need to replace either the CD-ROM or the floppy drive
inside the combo drive cage, follow these steps.
1. Use a Philips (cross)
screwdriver to remove the
screws the secure the drives to
the cage.
2. To remove the CD-ROM drive,
insert the end of the
screwdriver into the upper hole
on the side of the cage and
lightly push the drive toward
the front. The drive slips out for
about an inch. Pull the drive
out of the cage.
3. To remove the floppy drive, insert the end of the screwdriver into
the lower hole on the side of the cage and lightly push the drive
toward the front. When the drive slips out, pull it out of the cage.
32
Chapter 2: Hardware Setup
This chapter describes the optional hardware
procedures that you may have to do when
configuring the system.
ASUS AP160R-S 1U Rackmount Server
Hardware Options
Chapter 3
33
3.1 Cooling System
There are eleven (11) 40 x 40 x 28mm fans in the chassis to maintain the
optimal temperatures of the CPU, PCI cards, and power supply unit.
3.1.1 Fan locations
One 40x40x28mm
rear panel fan
One 40x40x28mm
PCI fan (underneath)
Two fan modules
(each module has four
40x40x28mm fans)
Two internal power
supply fans
One 40x40x28mm
system fan for
power supply
3.1.2 Fan connectors
The following figure shows the fan connector locations on the motherboard.
Some of the fan connectors are not accessible unless you remove some
system components. Refer to the previous sections for instructions on
removing system components.
FAN4
FAN2
SYSFAN1
SYSFAN2
FAN3
34
Chapter 3: Powering Up
3.1.3 Fan cable connections
FAN4 (for Rear Panel Fan)
FAN2 (for Power Supply)
8
12
7
11
6
10
5
9
FAN3 (for PCI cards)
SYSFAN1, SYSFAN2
(for the two 4-fan modules)
NOTES
The fan module numbered 5-6-7-8 (see location in the above
picture) connects to SYSFAN1 connector.
The fan module numbered 9-10-11-12 connects to SYSFAN2
connector.
ASUS AP160R-S 1U Rackmount Server
35
3.1.4 Removing the fans
Remove the fans only when they get damaged and need to be replaced.
PCI fan
The PCI fan is covered by a metal
cage. To remove the fan, remove the
two screws that secure the cage on
both sides. Lift the metal cage and
fan out of the chassis. The PCI fan
cable connects to the connector
FAN3 on the motherboard.
Power fan
The power supply fan is attached to
a metal cage. To remove the fan,
remove the two screws that secure
the cage as shown. Lift the metal
cage and fan out of the chassis. The
fan for the power supply is attached
to the connector marked FAN2.
System fan modules
To remove a system fan module,
remove the screw that secures the
module. Hold the green strap on
each end of the module and carefully
lift up the module.
Screws
36
Chapter 3: Powering Up
3.2 Power connections
The server provides a “cable-less” solution for easy assembly and
maintenance. Most of the cables in the server are already connected to their
respective connectors. The picture below shows the cables that you need to
detach when installing or removing components.
24-pin Power Connector
6-pin PSU SMBus Connector
(connected to the backplane)
8-pin Power Connector
(connected to the backplane)
ASUS AP160R-S 1U Rackmount Server
37
3.3 Removing the power supply
Follow these steps in case you need to remove the power supply in the
future.
NOTES
Remove all system components that overlap with the power supply.
Remove all power cable connections.
Refer to the previous sections for instructions on removing system
components.
1. Remove the screw that
secures the power supply to
the chassis base.
2. Remove the screw that
secures the power supply to
the rear panel.
3. Carefully lift the power supply
from the chassis.
38
Chapter 3: Powering Up
Appendix A
Power Supply
This appendix gives information on the 284W
switching power supply that comes with the
AP160R-S server.
ASUS AP160R-S 1U Rackmount Server
39
A.1
General Description
The server comes with an SSI-type 284W ATX power supply with universal
AC input that includes PFC and ATX-compliant output cables and connectors.
The power supply has two internal cooling fans.
The power supply has three plugs labeled P1, P2, and P3. The picture below
shows the specific device assignments for the plugs.
24-pin SSI-type
ATX power (P1)
6-pin PSU SMBus power (P2)
8-pin plug for backplane power (P3)
40
Appendix A: Power Supply
A.2 Specifications
Input Characteristics
Input Voltage Range
Min
Nom
Max
Range 1
90V
115V
140V
Range 2
180V
230V
264V
Input Frequency Range
47 Hz to 63 Hz
Maximum Input ac Current
5.5A max at 115Vac
2.75A max. at 230Vac, maximum load
Inrush Current
18A cold start
18A warm start
Efficiency
65% min. at nominal input,
maximum load
Output Characteristics
Output
Load Range
Voltage
Regulation
Ripple
Min
Max
Min
Max
Max
+5V
0.5A
9.5A
-5%
+5%
50mVp-p
+12V
2.0A
15.0A
-5%
+5%
120mVp-p
-12V
0A
0.2A
-10%
+10%
200mVp-p
+5VSB
0A
1.5A
-5%
+5%
100mVp-p
+3V3
1.0A
14.0A
-5%
+5%
50mVp-p
Over-Voltage Protection (OVP)
Output Voltage
Maximum Voltage
+5V
7V
+12V
15.6V
+3.3V
5V
+5VSB
7V
-12V
-15.6V
NOTE
The power supply will shut down and latch off for shorting +5V,
+12V, -12V, or +3.3V. By shorting +5VSB, the power supply can
latch down or automatically recover when the fault condition is
removed.
ASUS AP160R-S 1U Rackmount Server
41
42
Appendix A: Power Supply
This appendix lists the common problems that
you may encounter while using the AP160R-S
server. It lists the possible causes of the
problems and offers solutions. You may refer
to this part and try to solve simple problems
before calling customer support.
ASUS AP160R-S 1U Rackmount Server
Troubleshooting
Appendix B
43
B.1 Simple Fixes
NOTE
Some problems that you may encounter are not due to defects on
the system or the components. These problems only requires
simple troubleshooting actions that you can perform by yourself.
Problem
The power LED on the server
and/or the monitor do not light
up
Action
1. Check the power cable
connection on the system rear
panel if properly connected.
2. Make sure that the power
cables are connected to a
grounded power outlet.
3. Press the power button to
make sure that the system is
turned on.
4. Remove the system top cover
and check if the bridge board is
properly connected to the
motherboard and backplane
board through the BPCON
connectors. Make sure that the
bridge board is secured with
four screws.
44
The keyboard does not work
Check the keyboard cable if properly
connected to the keyboard port.
The mouse does not work
Check the mouse cable if properly
connected to the mouse port.
Appendix B: Troubleshooting
Problem
Action
The system does not perform
power-on self tests (POST) after
it was turned on
1. Check the memory modules
and make sure you installed
the DIMMs the system
supports.
2. Make sure that the DIMMs are
properly installed on the
sockets.
The system continuously beeps
after it was turned on
1. Check the memory modules
and make sure you installed
the DIMMs the system
supports.
2. Make sure that the DIMMs are
properly installed on the
sockets.
The message “Non-system disk
or disk error” appears
1. Check if a bootable HDD is
active.
2. Check if the HDDs are properly
installed and connected to the
SCSI connectors on the
backplane.
Network connection not
available
Make sure the network cable is
connected to the RJ-45 port on the
rear panel.
ASUS AP160R-S 1U Rackmount Server
45
46
Appendix B: Troubleshooting
