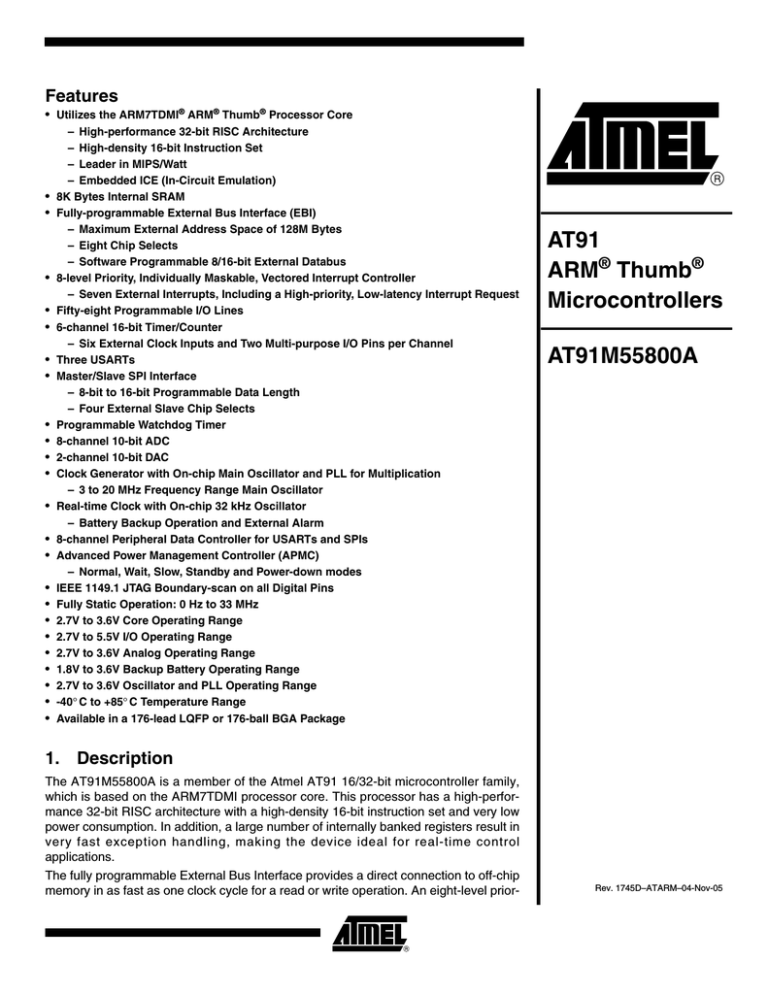

Features

Utilizes the ARM7TDMI

®

ARM

®

Thumb

®

Processor Core

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

– Embedded ICE (In-Circuit Emulation)

8K Bytes Internal SRAM

Fully-programmable External Bus Interface (EBI)

– Maximum External Address Space of 128M Bytes

– Eight Chip Selects

– Software Programmable 8/16-bit External Databus

8-level Priority, Individually Maskable, Vectored Interrupt Controller

– Seven External Interrupts, Including a High-priority, Low-latency Interrupt Request

Fifty-eight Programmable I/O Lines

6-channel 16-bit Timer/Counter

– Six External Clock Inputs and Two Multi-purpose I/O Pins per Channel

Three USARTs

Master/Slave SPI Interface

– 8-bit to 16-bit Programmable Data Length

– Four External Slave Chip Selects

Programmable Watchdog Timer

8-channel 10-bit ADC

2-channel 10-bit DAC

Clock Generator with On-chip Main Oscillator and PLL for Multiplication

– 3 to 20 MHz Frequency Range Main Oscillator

Real-time Clock with On-chip 32 kHz Oscillator

– Battery Backup Operation and External Alarm

8-channel Peripheral Data Controller for USARTs and SPIs

Advanced Power Management Controller (APMC)

– Normal, Wait, Slow, Standby and Power-down modes

IEEE 1149.1 JTAG Boundary-scan on all Digital Pins

Fully Static Operation: 0 Hz to 33 MHz

2.7V to 3.6V Core Operating Range

2.7V to 5.5V I/O Operating Range

2.7V to 3.6V Analog Operating Range

1.8V to 3.6V Backup Battery Operating Range

2.7V to 3.6V Oscillator and PLL Operating Range

-40

°

C to +85

°

C Temperature Range

Available in a 176-lead LQFP or 176-ball BGA Package

1.

Description

The AT91M55800A is a member of the Atmel AT91 16/32-bit microcontroller family, which is based on the ARM7TDMI processor core. This processor has a high-performance 32-bit RISC architecture with a high-density 16-bit instruction set and very low power consumption. In addition, a large number of internally banked registers result in very fast exception handling, making the device ideal for real-time control applications.

The fully programmable External Bus Interface provides a direct connection to off-chip memory in as fast as one clock cycle for a read or write operation. An eight-level prior-

AT91

ARM

®

Thumb

®

Microcontrollers

AT91M55800A

Rev. 1745D–ATARM–04-Nov-05

ity vectored interrupt controller in conjunction with the peripheral data controller significantly improve the real-time performance of the device.

The device is manufactured using Atmel’s high-density CMOS technology. By combining the ARM7TDMI processor core with an on-chip SRAM, a wide range of peripheral functions, analog interfaces and low-power oscillators on a monolithic chip, the Atmel AT91M55800A is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many ultra low-power applications.

2

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

2.

Pin Configurations

Table 2-1.

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

8

9

10

11

4

5

6

7

Pin

1

2

3

36

37

38

39

32

33

34

35

40

41

42

43

44

Pin Configuration for 176-lead LQFP Package

A15

A16

A17

A18

A19

VDDIO

GND

A20

GND

A8

A9

A10

A11

A12

A13

A14

AT91M55800A

GND

GND

NCS0

NCS1

NCS2

NCS3

NLB/A0

A1

A2

A3

A4

A5

A6

A7

VDDIO

D1

D2

D3

D4

A21

A22

A23

D0

D5

D6

D7

VDDCORE

VDDIO

72

73

74

75

68

69

70

71

64

65

66

67

60

61

62

63

56

57

58

59

52

53

54

55

48

49

50

51

Pin

45

46

47

80

81

82

83

76

77

78

79

84

85

86

87

88

GND

PB23/TIOA1

PB24/TIOB1

PB25/TCLK2

PB26/TIOA2

PB27/TIOB2

PA0/TCLK3

PA1/TIOA3

PA2/TIOB3

PA3/TCLK4

PA4/TIOA4

PA5/TIOB4

PA6/TCLK5

VDDIO

GND

PA7/TIOA5

AT91M55800A

GND

GND

D8

D9

D10

D11

D12

D13

D14

D15

PB19/TCLK0

PB20/TIOA0

PB21/TIOB0

PB22/TCLK1

VDDIO

PA8/TIOB5

PA9/IRQ0

PA10/IRQ1

PA11/IRQ2

PA12/IRQ3

PA13/FIQ

PA14/SCK0

PA15/TXD0

PA16/RXD0

PA17/SCK1

PA18/TXD1/NTRI

VDDCORE

VDDIO

Notes: 1. Analog pins

2. Battery backup pins

116

117

118

119

112

113

114

115

108

109

110

111

104

105

106

107

100

101

102

103

96

97

98

99

92

93

94

95

Pin

89

90

91

124

125

126

127

120

121

122

123

128

129

130

131

132

AT91M55800A

GND

GND

PA19/RXD1

PA20/SCK2

PA21/TXD2

PA22/RXD2

PA23/SPCK

PA24/MISO

PA25/MOSI

PA26/NPCS0/NSS

PA27/NPCS1

PA28/NPCS2

PA29/NPCS3

VDDIO

GND

VDDPLL

XIN

148

149

XOUT

GNDPLL

150

151

PLLRC

VDDBU

(2)

XIN32

(2)

XOUT32

(2)

NRSTBU

(2)

GNDBU

(2)

WAKEUP

(2)

SHDN

(2)

GNDBU

(2)

VDDA

(1)

AD0

(1)

AD1

(1)

AD2

(1)

AD3

(1)

AD4

(1)

AD5

(1)

AD6

(1)

AD7

(1)

ADVREF

(1)

DAVREF

(1)

DA0

(1)

DA1

(1)

GNDA

(1)

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

VDDCORE 175

VDDIO 176

Pin

133

134

135

136

137

138

139

144

145

146

147

140

141

142

143

GND

PB8

PB9

PB10

PB11

PB12

PB13

PB14

PB15

PB16

PB17

NWDOVF

MCKO

VDDIO

GND

PB18/BMS

AT91M55800A

GND

GND

NCS4

NCS5

NCS6

NCS7

PB0

PB1

PB2

PB3/IRQ4

PB4/IRQ5

PB5

PB6/AD0TRIG

PB7/AD1TRIG

VDDIO

JTAGSEL

TMS

TDI

TDO

TCK

NTRST

NRST

NWAIT

NOE/NRD

NWE/NWR0

NUB/NWR1

VDDCORE

VDDIO

3

1745D–ATARM–04-Nov-05

Table 2-2.

B9

B10

B11

B12

B13

B14

B15

B5

B6

B7

B8

B1

B2

B3

B4

A12

A13

A14

A15

A8

A9

A10

A11

A4

A5

A6

A7

Pin

A1

A2

A3

Pin Configuration for 176-ball BGA Package

NCS2

NUB/NWR1

NWE/NWR0

NOE/NRD

TD0

TDI

PB17

PB11

PB7/AD1TRIG

PB3/IRQ4

PB2

NCS5

NCS4

DA1

GNDA

AT91M55800A

NCS1

NWAIT

NRST

NTRST

PB18/BMS

NWDOVF

PB16

PB12

PB10

PB9

PB8

NCS7

NCS6

GND

DAVREF

D9

D10

D11

D12

D13

D14

D15

D5

D6

D7

D8

D1

D2

D3

D4

C12

C13

C14

C15

C8

C9

C10

C11

C4

C5

C6

C7

Pin

C1

C2

C3

A2

A1

NCS3

GND

TCK

JTAGSEL

GND

PB15

PB14

PB5

PB1

GND

VDDCORE

AD7

VDDA

AT91M55800A

A0/NLB

NCS0

VDDIO

VDDCORE

TMS

VDDIO

MCK0

PB13

PB6/AD0TRIG

VDDIO

PB4/IRQ5

PB0

VDDIO

DA0

ADVREF

GND

AD4

VDDBU

XOUT32

A10

A7

VDDIO

A6

AT91M55800A

A4

A3

A5

GND

AD6

AD5

NRSTBU

GNDBU

F9

F10

F11

F12

F13

F14

F15

F5

F6

F7

F8

F1

F2

F3

F4

E12

E13

E14

E15

E8

E9

E10

E11

E4

E5

E6

E7

Pin

E1

E2

E3

AD1

AD0

WAKEUP

GND

A15

A14

A13

A11

AT91M55800A

A12

A9

A8

GND

AD3

AD2

GND

XIN32

H9

H10

H11

H12

H13

H14

H15

H5

H6

H7

H8

H1

H2

H3

H4

G12

G13

G14

G15

G8

G9

G10

G11

G4

G5

G6

G7

Pin

G1

G2

G3

4

AT91M55800A

1745D–ATARM–04-Nov-05

Table 2-2.

K12

K13

K14

K15

K8

K9

K10

K11

K4

K5

K6

K7

J15

K1

K2

K3

J11

J12

J13

J14

J7

J8

J9

J10

Pin

J1

J2

J3

J4

J5

J6

Pin Configuration for 176-ball BGA Package (Continued)

M12

M13

M14

M15

M8

M9

M10

M11

M4

M5

M6

M7

L15

M1

M2

M3

L11

L12

L13

L14

L7

L8

L9

L10

Pin

L1

L2

L3

L4

L5

L6

PLLRC

A19

A22

A21

GND

PA28/NPCS2

VDDIO

PA27/NPCS1

GNDPLL

AT91M55800A

A17

A18

VDDIO

A16

PA29/NPCS3

SHDN

VDDPLL

XOUT

D2

D3

VDDCORE

GND

GND

PB21/TIOB0

GND

PB27/TIOB2

PA0/TCLK3

GND

PA23/SPCK

GND

PA21/TXD2

PA24/MISO

XIN

AT91M55800A

A20

A23

D0

D1

PA25/MOSI

PA22RXD2

PA26/NPCS0/NSS

P12

P13

P14

P15

P8

P9

P10

P11

P4

P5

P6

P7

N15

P1

P2

P3

N11

N12

N13

N14

N7

N8

N9

N10

Pin

N1

N2

N3

N4

N5

N6

GND

D5

D7

D8

D9

D15

PB22/TCLK1

PB26/TIOA2

PA2/TIOB3

PA7/TIOA5

PA10/IRQ1

PA11/IRQ2

PA13/FIQ

PA17SCK1

PA18/TXD1/NTRI

PA20/SCK2

AT91M55800A

D4

D6

VDDIO

D14

PB19/TCLK0

VDDIO

PB25/TCLK2

PA1/TIOA3

VDDIO

PA8/TIOB5

PA9/IRQ0

VDDCORE

VDDIO

PA19/RXD1

AT91M55800A

R11

R12

R13

R14

R15

R7

R8

R9

R10

Pin

R1

R2

R3

R4

R5

R6

AT91M55800A

D10

D11

D12

D13

PB20/TIOA0

PB23/TIOA1

PB24/TIOB1

PA3/TCLK4

PA4/TIOA4

PA5/TIOB4

PA6/TCLK5

PA12/IRQ3

PA14/SCK0

PA15/TXD0

PA16/RXD0

5

1745D–ATARM–04-Nov-05

Figure 2-1.

176-lead LQFP Pinout

132

133

89

88

176

45

1 44

Figure 2-2.

176-ball BGA Pinout

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

G

H

E

F

A

B

C

D

M

N

P

R

J

K

L

6

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

3.

Pin Description

Table 3-1.

Pin Description

Module

EBI

AIC

Timer

USART

SPI

PIO

WD

ADC

TCLK0 - TCLK5

TIOA0 - TIOA5

TIOB0 - TIOB5

SCK0 - SCK2

TXD0 - TXD2

RXD0 - RXD2

SPCK

MISO

MOSI

NSS

NPCS0 - NPCS3

PA0 - PA29

PB0 - PB27

NWDOVF

AD0-AD7

AD0TRIG

AD1TRIG

ADVREF

Name

A0 - A23

D0 - D15

NCS0 - NCS7

NWR0

NWR1

NRD

NWE

NOE

NUB

NLB

NWAIT

BMS

IRQ0 - IRQ5

FIQ

Function

Address bus

Data bus

Chip select

Lower byte 0 write signal

Lower byte 1 write signal

Read signal

Write enable

Output enable

Upper byte-select

Lower byte-select

Wait input

Boot mode select

External interrupt request

Fast external interrupt request

Timer external clock

Multipurpose timer I/O pin A

Input

I/O

Multipurpose timer I/O pin B I/O

External serial clock I/O

Transmit data output

Receive data input

SPI clock

Master in slave out

Output

Input

I/O

I/O

Master out slave in

Slave select

Peripheral chip select

Parallel I/O port A

Parallel I/O port B

Watchdog timer overflow

Analog input channels 0 - 7

ADC0 external trigger

ADC1 external trigger

Analog reference

I/O

Input

Output

I/O

I/O

Output

Analog in

Input

Input

Analog ref

Output

Output

Output

Output

Input

Input

Input

Input

Type

Output

I/O

Output

Output

Output

Output

Low

Low

Low

Low

Low

Low

Low

Low

Active

Level

Low

Low

Low

Low

Comments

Used in Byte-write option

Used in Byte-write option

Used in Byte-write option

Used in Byte-select option

Used in Byte-select option

Used in Byte-select option

Used in Byte-select option

Sampled during reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

PIO-controlled after reset

Input after reset

Input after reset

Open drain

PIO-controlled after reset

PIO-controlled after reset

7

1745D–ATARM–04-Nov-05

Table 3-1.

Pin Description (Continued)

Module

DAC

Clock

APMC

Reset

JTAG/ICE

Power

JTAGSEL

TMS

TDI

TDO

TCK

NTRST

VDDA

GNDA

VDDBU

GNDBU

VDDCORE

VDDIO

VDDPLL

GND

GNDPLL

Name

DA0 - DA1

DAVREF

XIN

XOUT

PLLRC

XIN32

XOUT32

MCKO

WAKEUP

SHDN

NRST

NRSTBU

NTRI

Function

Analog output channels 0 - 1

Analog reference

Main oscillator input

Main oscillator output

RC filter for PLL

32 kHz oscillator input

32 kHz oscillator output

System clock

Wakeup request

Shutdown request

Hardware reset input

Hardware reset input for battery part

Tri-state mode select

Selects between ICE and JTAG mode

Test mode select

Test data input

Test data output

Test clock

Test reset input

Analog power

Analog ground

Power backup

Ground backup

Digital core power

Digital I/O power

Main oscillator and PLL power

Digital ground

PLL ground

Type

Analog out

Analog ref

Input

Output

Input

Input

Output

Output

Input

Output

Input

Input

Input

Input

Input

Input

Output

Input

Input

Analog pwr

Analog gnd

Power

Ground

Power

Power

Power

Ground

Ground

Low

Active

Level

Comments

Tri-state after backup reset

Schmidt trigger

Low

Low

Low

Schmidt trigger

Sampled during reset

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

Schmidt trigger, internal pull-up

8

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

4.

Block Diagram

JTAGSEL

NTRST

TMS

TDO

TDI

TCK

PB0

PB1

PB2

PB5

PB8

PB9

PB10

PB11

PB12

PB13

PB14

PB15

PB16

PB17

PB3/IRQ4

PB4/IRQ5

PA9/IRQ0

PA10/IRQ1

PA11/IRQ2

PA12/IRQ3

PA13/FIQ

PA14/SCK0

PA15/TXD0

PA16/RXD0

PA17/SCK1

PA18/TXD1/NTRI

PA19/RXD1

PA20/SCK2

PA21/TXD2

PA22/RXD2

PA23/SPCK

PA24/MISO

PA25/MOSI

PA26/NPCS0/NSS

PA27/NPCS1

PA28/NPCS2

PA29/NPCS3

P

I

O

B

P

I

O

A

NWDOVF

VDDA

DA0

DAVREF

DA1

PB6/AD0TRIG

AD0

AD1

AD2

AD3

ADVREF

AD4

AD5

AD6

AD7

PB7/AD1TRIG

GNDA

Embedded

ICE

ARM7TDMI Core

AIC:

Advanced

Interrupt

Controller

USART0

2 PDC

Channels

USART1

USART2

2 PDC

Channels

2 PDC

Channels

Internal RAM

8K Bytes

ASB

Controller

SPI: Serial

Peripheral

Interface

2 PDC

Channels

PIOA Controller

WD: Watchdog Timer

Chip ID

DAC0

DAC1

4-Channel

ADC0

ASB

AMBA Bridge

APB

Reset

EBI User

Interface

PIOB

Controller

TC: Timer

Counter

Block 0

TC0

TC1

TC2

TC: Timer

Counter

Block 1

TC3

TC4

TC5

Clock

Generator

PLL

PB18/BMS

APMC:

Advanced

Power

Management

Controller

P

I

O

B

PB19/TCLK0

PB22/TCLK1

PB25/TCLK2

PB20/TIOA0

PB21/TIOB0

PB23/TIOA1

PB24/TIOB1

PB26/TIOA2

PB27/TIOB2

P

I

O

A

PA0/TCLK3

PA3/TCLK4

PA6/TCLK5

PA1/TIOA3

PA2/TIOB3

PA4/TIOA4

PA5/TIOB4

PA7/TIOA5

PA8/TIOB5

VDDPLL

MCKO

XIN

16 MHz

XOUT

PLLRC

GNDPLL

VDDBU

SHDN

WAKEUP

NRST

VDDIO, VDDCORE

GND

D0 - D15

A1 - A23

A0/NLB

NRD/NOE

NWR0/NWE

NWR1/NUB

NWAIT

NCS0 - NCS7

4-Channel

ADC1

Analog

RTC:

Real Time

Clock

Battery Backup

NRSTBU

XIN32

32.768 kHz

XOUT32

GNDBU

9

1745D–ATARM–04-Nov-05

5.

Architectural Overview

The AT91M55800A microcontroller integrates an ARM7TDMI with its embedded ICE interface, memories and peripherals. Its architecture consists of two main buses, the Advanced

System Bus (ASB) and the Advanced Peripheral Bus (APB). Designed for maximum performance and controlled by the memory controller, the ASB interfaces the ARM7TDMI processor with the on-chip 32-bit memories, the External Bus Interface (EBI) and the AMBA

Bridge.

The AMBA Bridge drives the APB, which is designed for accesses to on-chip peripherals and optimized for low power consumption.

The AT91M55800A microcontroller implements the ICE port of the ARM7TDMI processor on dedicated pins, offering a complete, low cost and easy-to-use debug solution for target debugging.

5.1

Memory

The AT91M55800A microcontroller embeds 8K bytes of internal SRAM. The internal memory is directly connected to the 32-bit data bus and is single-cycle accessible.

The AT91M55800A microcontroller features an External Bus Interface (EBI), which enables connection of external memories and application-specific peripherals. The EBI supports 8- or

16-bit devices and can use two 8-bit devices to emulate a single 16-bit device. The EBI implements the early read protocol, enabling faster memory accesses than standard memory interfaces.

5.2

Peripherals

5.2.1

The AT91M55800A microcontroller integrates several peripherals, which are classified as system or user peripherals. All on-chip peripherals are 32-bit accessible by the AMBA Bridge, and can be programmed with a minimum number of instructions. The peripheral register set is composed of control, mode, data, status and enable/disable/status registers.

An on-chip, 8-channel Peripheral Data Controller (PDC) transfers data between the on-chip

USARTs/SPI and the on and off-chip memories without processor intervention. One PDC channel is connected to the receiving channel and one to the transmitting channel of each

USART and of the SPI.

Most importantly, the PDC removes the processor interrupt handling overhead and significantly reduces the number of clock cycles required for a data transfer. It can transfer up to 64K contiguous bytes. As a result, the performance of the microcontroller is increased and the power consumption reduced.

System Peripherals

The External Bus Interface (EBI) controls the external memory and peripheral devices via an

8- or 16-bit data bus and is programmed through the APB. Each chip select line has its own programming register.

The Advanced Power Management Controller (APMC) optimizes power consumption of the product by controlling the clocking elements such as the oscillators and the PLL, system and user peripheral clocks, and the power supplies.

The Advanced Interrupt Controller (AIC) controls the internal interrupt sources from the internal peripherals and the eight external interrupt lines (including the FIQ), to provide an interrupt and/or fast interrupt request to the ARM7TDMI. It integrates an 8-level priority controller and, using the Auto-vectoring feature, reduces the interrupt latency time.

10

AT91M55800A

1745D–ATARM–04-Nov-05

5.2.2

AT91M55800A

The Real-time Clock (RTC) peripheral is designed for very low power consumption, and combines a complete time-of-day clock with alarm and a two-hundred year Gregorian calendar, complemented by a programmable periodic interrupt.

The Parallel Input/Output Controllers (PIOA and PIOB) control the 58 I/O lines. They enable the user to select specific pins for on-chip peripheral input/output functions, and general-purpose input/output signal pins. The PIO controllers can be programmed to detect an interrupt on a signal change from each line.

The Watchdog (WD) can be used to prevent system lock-up if the software becomes trapped in a deadlock.

The Special Function (SF) module integrates the Chip ID and Reset Status registers.

User Peripherals

Three USARTs, independently configurable, enable communication at a high baud rate in synchronous or asynchronous mode. The format includes start, stop and parity bits and up to 8 data bits. Each USART also features a Timeout and a Time Guard Register, facilitating the use of the two dedicated Peripheral Data Controller (PDC) channels.

The six 16-bit Timer/Counters (TC) are highly programmable and support capture or waveform modes. Each TC channel can be programmed to measure or generate different kinds of waves, and can detect and control two input/output signals. Each TC also has three external clock signals.

The SPI provides communication with external devices in master or slave mode. It has four external chip selects which can be connected to up to 15 devices. The data length is programmable, from 8- to 16-bits.

The two identical 4-channel 10-bit analog-to-digital converters (ADC) are based on a Successive Approximation Register (SAR) approach.

11

1745D–ATARM–04-Nov-05

6.

Associated Documentation

Table 6-1.

Associated Documentation

Product

AT91M55800A

Information

Internal architecture of processor

ARM/Thumb instruction sets

Embedded in-circuit-emulator

External memory interface mapping

Peripheral operations

Peripheral user interfaces

Ordering information

Packaging information

Soldering profile

Errata

DC Characteristics

Power consumption

Thermal and reliability coniderations

AC characteristics

Product overview

Ordering information

Packaging information

Soldering profile

Document Title

ARM7TDMI (Thumb) Datasheet

AT91M55800A Datasheet (This document)

AT91M55800A Electrical Characteristics

AT91M55800A Summary Datasheet

Literature

Number

0673

1745

1727

1745S

12

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

7.

Product Overview

7.1

Power Supplies

The AT91M55800A has 5 kinds of power supply pins:

• VDDCORE pins, which power the chip core

• VDDIO pins, which power the I/O Lines

• VDDPLL pins, which power the oscillator and PLL cells

• VDDA pins, which power the analog peripherals ADC and DAC

• VDDBU pins, which power the RTC, the 32768 Hz oscillator and the Shut-down Logic of the APMC

VDDIO and VDDCORE are separated to permit the I/O lines to be powered with 5V, thus resulting in full TTL compliance.

The following ground pins are provided:

• GND for both VDDCORE and VDDIO

• GNDPLL for VDDPLL

• GNDA for VDDA

• GNDBU for VDDBU

All of these ground pins must be connected to the same voltage (generally the board electric ground) with wires as short as possible. GNDPLL, GNDA and GNDBU are provided separately in order to allow the user to add a decoupling capacitor directly between the power and ground pads. In the same way, the PLL filter resistor and capacitors must be connected to the device and to GNDBU with wires as short as possible. Also, the main oscillator crystal and the

32768 Hz crystal external load capacitances must be connected respectively to GNDPLL and to GNDBU with wires as short as possible.

The main constraints applying to the different voltages of the device are:

• VDDBU must be lower than or equal to VDDCORE

• VDDA must be higher than or equal to VDDCORE

• VDDCORE must be lower than or equal to VDDIO

The nominal power combinations supported by the AT91M55800A are described in the following table:

Table 7-1.

Nominal Power Combinations

VDDIO

3V

3.3V

5V

VDDCORE

3V

3.3V

3.3V

VDDA

3V

3.3V

3.3V

VDDPLL

3V

3.3V

3.3V

VDDBU

3V

3.3V

Maximum Operating

Frequency

33 MHz

33 MHz

7.2

Input/Output Considerations

After the reset, the peripheral I/Os are initialized as inputs to provide the user with maximum flexibility. It is recommended that in any application phase, the inputs to the AT91M55800A microcontroller be held at valid logic levels to minimize the power consumption.

13

1745D–ATARM–04-Nov-05

7.3

Master Clock

Master Clock is generated in one of the following ways, depending on programming in the

APMC registers:

• From the 32768 Hz low-power oscillator that clocks the RTC

• The on-chip main oscillator together with a PLL generate a software-programmable main clock in the 500 Hz to 33 MHz range. The main oscillator can be bypassed to allow the user to enter an external clock signal.

The Master Clock (MCK) is also provided as an output of the device on the pin MCKO, whose state is controlled by the APMC module.

7.4

Reset

Reset restores the default states of the user interface registers (defined in the user interface of each peripheral), and forces the ARM7TDMI to perform the next instruction fetch from address zero. Aside from the program counter, the ARM7TDMI registers do not have defined reset states.

7.4.1

NRST Pin

NRST is active low-level input. It is asserted asynchronously, but exit from reset is synchronized internally to the MCK. At reset, the source of MCK is the Slow Clock (32768 Hz crystal), and the signal presented on MCK must be active within the specification for a minimum of 10 clock cycles up to the rising edge of NRST, to ensure correct operation.

7.4.2

NTRST Pin

Test Access Port (TAP) reset functionality is provided through the NTRST signal.

The NTRST control pin initializes the selected TAP controller. The TAP controller involved in this reset is determined according to the initial logical state applied on the JTAGSEL pin after the last valid NRST.

In either Boundary Scan or ICE Mode a reset can be performed from the same or different circuitry, as shown in

Figure 7-1

below. But in all cases, the NTRST like the NRST signal, must be asserted after each power-up. (See the AT91M55800A electrical datasheet, Atmel lit°

1727, for the necessary minimum pulse assertion time.)

Figure 7-1.

Separate or Common Reset Management

Reset

Controller

NTRST

Reset

Controller

NTRST

NRST

Reset

Controller

NRST

AT91M55800A

(1)

AT91M55800A

(2)

14

Notes: 1. NRST and NTRST handling in Debug Mode during development.

2. NRST and NTRST handling during production.

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

7.4.3

In order to benefit the most regarding the separation of NRST and NTRST during the Debug phase of development, the user must independently manage both signals as shown in example (1) of

Figure 7-1

above. However, once Debug is completed, both signals are easily

managed together during production as shown in example (2) of Figure 7-1 above.

Watchdog Reset

The watchdog can be programmed to generate an internal reset. In this case, the reset has the same effect as the NRST pin assertion, but the pins BMS and NTRI are not sampled. Boot

Mode and Tri-state Mode are not updated. If the NRST pin is asserted and the watchdog triggers the internal reset, the NRST pin has priority.

7.5

Emulation Functions

7.5.1

Tri-state Mode

The AT91M55800A provides a Tri-state Mode, which is used for debug purposes. This enables the connection of an emulator probe to an application board without having to desolder the device from the target board. In Tri-state Mode, all the output pin drivers of the

AT91M55800A microcontroller are disabled.

To enter Tri-state Mode, the pin NTRI must be held low during the last 10 clock cycles before the rising edge of NRST. For normal operation the pin NTRI must be held high during reset, by a resistor of up to 400K Ohm.

NTRI is multiplexed with I/O line PA18 and USART 1 serial data transmit line TXD1.

Standard RS232 drivers generally contain internal 400K Ohm pull-up resistors. If TXD1 is connected to a device not including this pull-up, the user must make sure that a high level is tied on NTRI while NRST is asserted.

7.5.2

7.5.3

JTAG/ICE Debug Mode

ARM Standard Embedded In-Circuit Emulation is supported via the JTAG/ICE port. It is connected to a host computer via an external ICE Interface. The JTAG/ICE debug mode is enabled when JTAGSEL is low.

In ICE Debug Mode the ARM Core responds with a non-JTAG chip ID which identifies the core to the ICE system. This is not JTAG compliant.

IEEE 1149.1 JTAG Boundary-scan

JTAG Boundary-scan is enabled when JTAGSEL is high. The functions SAMPLE, EXTEST and BYPASS are implemented. There is no JTAG chip ID. The Special Function module provides a chip ID which is independent of JTAG.

It is not possible to switch directly between JTAG and ICE operations. A chip reset must be performed (NRST and NTRST) after JTAGSEL is changed.

7.6

Memory Controller

The ARM7TDMI processor address space is 4G bytes. The memory controller decodes the internal 32-bit address bus and defines three address spaces:

• Internal memories in the four lowest megabytes

• Middle space reserved for the external devices (memory or peripherals) controlled by the

EBI

15

1745D–ATARM–04-Nov-05

7.6.1

7.6.2

• Internal peripherals in the four highest megabytes

In any of these address spaces, the ARM7TDMI operates in Little-Endian mode only.

Internal Memories

The AT91M55800A microcontroller integrates an 8-Kbyte SRAM bank. This memory bank is mapped at address 0x0 (after the remap command), allowing ARM7TDMI exception vectors between 0x0 and 0x20 to be modified by the software. The rest of the bank can be used for stack allocation (to speed up context saving and restoring), or as data and program storage for critical algorithms. All internal memory is 32 bits wide and single-clock cycle accessible. Byte

(8-bit), half-word (16-bit) or word (32-bit) accesses are supported and are executed within one cycle. Fetching Thumb or ARM instructions is supported and internal memory can store twice as many Thumb instructions as ARM ones.

Boot Mode Select

The ARM reset vector is at address 0x0. After the NRST line is released, the ARM7TDMI executes the instruction stored at this address. This means that this address must be mapped in nonvolatile memory after the reset.

The input level on the BMS pin during the last 10 clock cycles before the rising edge of the

NRST selects the type of boot memory (see

Table 7-2

).

The pin BMS is multiplexed with the I/O line PB18 that can be programmed after reset like any standard PIO line.

7.6.3

7.6.4

Table 7-2.

BMS

1

0

Boot Mode Select

Boot Mode

External 8-bit memory on NCS0

External 16-bit memory on NCS0

Remap Command

The ARM vectors (Reset, Abort, Data Abort, Prefetch Abort, Undefined Instruction, Interrupt,

Fast Interrupt) are mapped from address 0x0 to address 0x20. In order to allow these vectors to be redefined dynamically by the software, the AT91M55800A microcontroller uses a remap command that enables switching between the boot memory and the internal RAM bank addresses. The remap command is accessible through the EBI User Interface, by writing one in RCB of EBI_RCR (Remap Control Register). Performing a remap command is mandatory if access to the other external devices (connected to chip selects 1 to 7) is required. The remap operation can only be changed back by an internal reset or an NRST assertion.

Abort Control

The abort signal providing a Data Abort or a Prefetch Abort exception to the ARM7TDMI is asserted when accessing an undefined address in the EBI address space.

No abort is generated when reading the internal memory or by accessing the internal peripherals, whether the address is defined or not.

16

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

7.7

External Bus Interface

The External Bus Interface handles the accesses between addresses 0x0040 0000 and

0xFFC0 0000. It generates the signals that control access to the external devices, and can configure up to eight 16-Mbyte banks. In all cases it supports byte, half-word and word aligned accesses.

For each of these banks, the user can program:

• Number of wait states

• Number of data float times (wait time after the access is finished to prevent any bus contention in case the device is too long in releasing the bus)

• Data bus width (8-bit or 16-bit)

• With a 16-bit wide data bus, the user can program the EBI to control one 16-bit device

(Byte Access Select Mode) or two 8-bit devices in parallel that emulate a 16-bit memory

(Byte-write Access mode).

The External Bus Interface features also the Early Read Protocol, configurable for all the devices, that significantly reduces access time requirements on an external device.

1745D–ATARM–04-Nov-05

17

8.

Peripherals

The AT91M55800A peripherals are connected to the 32-bit wide Advanced Peripheral Bus.

Peripheral registers are only word accessible – byte and half-word accesses are not supported. If a byte or a half-word access is attempted, the memory controller automatically masks the lowest address bits and generates a word access.

Each peripheral has a 16-Kbyte address space allocated (the AIC only has a 4-Kbyte address space).

8.1

Peripheral Registers

The following registers are common to all peripherals:

• Control Register – Write-only register that triggers a command when a one is written to the corresponding position at the appropriate address. Writing a zero has no effect.

• Mode Register – read/write register that defines the configuration of the peripheral. Usually has a value of 0x0 after a reset.

• Data Register – read and/or write register that enables the exchange of data between the processor and the peripheral.

• Status Register – Read-only register that returns the status of the peripheral.

• Enable/Disable/Status Registers – shadow command registers. Writing a one in the Enable

Register sets the corresponding bit in the Status Register. Writing a one in the Disable

Register resets the corresponding bit and the result can be read in the Status Register.

Writing a bit to zero has no effect. This register access method maximizes the efficiency of bit manipulation, and enables modification of a register with a single non-interruptible instruction, replacing the costly read-modify-write operation.

Unused bits in the peripheral registers are shown as “–” and must be written at 0 for upward compatibility. These bits read 0.

8.2

Peripheral Interrupt Control

The Interrupt Control of each peripheral is controlled from the status register using the interrupt mask. The status register bits are ANDed to their corresponding interrupt mask bits and the result is then ORed to generate the Interrupt Source signal to the Advanced Interrupt

Controller.

The interrupt mask is read in the Interrupt Mask Register and is modified with the Interrupt

Enable Register and the Interrupt Disable Register. The enable/disable/status (or mask) makes it possible to enable or disable peripheral interrupt sources with a non-interruptible single instruction. This eliminates the need for interrupt masking at the AIC or Core level in realtime and multi-tasking systems.

8.3

Peripheral Data Controller

An on-chip, 8-channel Peripheral Data Controller (PDC) transfers data between the on-chip

USARTs/SPI and the on and off-chip memories without processor intervention. One PDC channel is connected to the receiving channel and one to the transmitting channel of each

USART and SPI.

The user interface of a PDC channel is integrated in the memory space of each peripheral. It contains a 32-bit address pointer register and a 16-bit count register. When the programmed data is transferred, an end of transfer interrupt is generated by the corresponding peripheral.

18

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Most importantly, the PDC removes the processor interrupt handling overhead and significantly reduces the number of clock cycles required for a data transfer. It can transfer up to 64K contiguous bytes. As a result, the performance of the microcontroller is increased and the power consumption reduced.

8.4

System Peripherals

8.4.1

APMC: Advanced Power Management Controller

The AT91M55800A Advanced Power Management Controller allows optimization of power consumption. The APMC enables/disables the clock inputs of most of the peripherals and the

ARM Core. Moreover, the main oscillator, the PLL and the analog peripherals can be put in standby mode allowing minimum power consumption to be obtained. The APMC provides the following operating modes:

• Normal: clock generator provides clock to the entire chip except the RTC.

• Wait mode: ARM Core clock deactivated

• Slow Clock mode: clock generator deactivated, master clock 32 kHz

• Standby mode: RTC active, all other clocks disabled

• Power down: RTC active, supply on the rest of the circuit deactivated

8.4.2

RTC: Real-time Clock

The AT91M55800A features a Real-time Clock (RTC) peripheral that is designed for very low power consumption. It combines a complete time-of-day clock with alarm and a two-hundred year Gregorian calendar, complemented by a programmable periodic interrupt.

The time and calendar values are coded in Binary-Coded Decimal (BCD) format. The time format can be 24-hour mode or 12-hour mode with an AM/PM indicator.

Updating time and calendar fields and configuring the alarm fields is performed by a parallel capture on the 32-bit data bus. An entry control is performed to avoid loading registers with incompatible BCD format data or with an incompatible date according to the current month/ year/century.

8.4.3

8.4.4

AIC: Advanced Interrupt Controller

The AIC has an 8-level priority, individually maskable, vectored interrupt controller, and drives the NIRQ and NFIQ pins of the ARM7TDMI from:

• The external fast interrupt line (FIQ)

• The six external interrupt request lines (IRQ0 - IRQ5)

• The interrupt signals from the on-chip peripherals.

The AIC is largely programmable offering maximum flexibility, and its vectoring features reduce the real-time overhead in handling interrupts.

The AIC also features a spurious vector, which reduces Spurious Interrupt handling to a minimum, and a protect mode that facilitates the debug capabilities.

PIO: Parallel I/O Controller

The AT91M55800A has 58 programmable I/O lines. 13 pins are dedicated as general-purpose

I/O pins. The other I/O lines are multiplexed with an external signal of a peripheral to optimize the use of available package pins. The PIO lines are controlled by two separate and identical

19

1745D–ATARM–04-Nov-05

8.4.5

8.4.6

PIO Controllers called PIOA and PIOB. The PIO controller enables the generation of an interrupt on input change and insertion of a simple input glitch filter on any of the PIO pins.

WD: Watchdog

The Watchdog is built around a 16-bit counter, and is used to prevent system lock-up if the software becomes trapped in a deadlock. It can generate an internal reset or interrupt, or assert an active level on the dedicated pin NWDOVF. All programming registers are password-protected to prevent unintentional programming.

SF: Special Function

The AT91M55800A provides registers which implement the following special functions.

• Chip identification

• RESET status

8.5

User Peripherals

8.5.1

USART: Universal Synchronous/

Asynchronous Receiver Transmitter

The AT91M55800A provides three identical, full-duplex, universal synchronous/asynchronous receiver/transmitters.

Each USART has its own baud rate generator, and two dedicated Peripheral Data Controller channels. The data format includes a start bit, up to 8 data bits, an optional programmable parity bit and up to 2 stop bits.

The USART also features a Receiver Timeout register, facilitating variable-length frame support when it is working with the PDC, and a Time-guard register, used when interfacing with slow remote equipment.

8.5.2

8.5.3

TC: Timer Counter

The AT91M55800A features two Timer Counter blocks that include three identical 16-bit timer counter channels. Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse-width modulation.

The Timer Counters can be used in Capture or Waveform mode, and all three counter channels can be started simultaneously and chained together.

SPI: Serial Peripheral Interface

The SPI provides communication with external devices in master or slave mode. It has four external chip selects that can be connected to up to 15 devices. The data length is programmable, from 8- to 16-bit.

8.5.4

ADC: Analog-to-digital Converter

The two identical 4-channel 10-bit analog-to-digital converters (ADC) are based on a Successive Approximation Register (SAR) approach.

Each ADC has 4 analog input pins, AD0 to AD3 and AD4 to AD7, digital trigger input pins

AD0TRIG and AD1TRIG, and provides an interrupt signal to the AIC. Both ADCs share the analog power supply pins VDDA and GNDA, and the input reference voltage pin ADVREF.

20

AT91M55800A

1745D–ATARM–04-Nov-05

8.5.5

AT91M55800A

Each channel can be enabled or disabled independently, and has its own data register. The

ADC can be configured to automatically enter Sleep mode after a conversion sequence, and can be triggered by the software, the Timer Counter, or an external signal.

DAC: Digital-to-analog Converter

Each DAC has an analog output pin, DA0 and DA1, and provides an interrupt signal to the AIC

DA0IRQ and DA1IRQ. Both DACs share the analog power supply pins VDDA and GNDA, and the input reference DAVREF.

1745D–ATARM–04-Nov-05

21

9.

Memory Map

Figure 9-1.

AT91M55800A Memory Map Before and after Remap Command

Before Remap

Function Size Abort Control Address

0xFFFFFFFF

Address

0xFFFFFFFF

After Remap

Function Size Abort Control

On-chip

Peripherals

4M Bytes No

On-chip

Peripherals

4M Bytes No

0xFFC00000

0xFFBFFFFF

0xFFC00000

0xFFBFFFFF

Reserved

External

Devices

(up to 8)

Up to 8 Devices

Programmable Page Size

1, 4, 16, 64M Bytes

Yes

0x00400000

0x003FFFFF

On-chip RAM 1M Byte

0x00300000

0x002FFFFF

Reserved

On-chip

Device

1M Byte

0x00200000

0x001FFFFF

Reserved

On-chip

Device

1M Byte

0x00100000

0x000FFFFF

0x00000000

External

Devices Selected by NCS0

1M Byte

No

No

No

No

0x00400000

0x003FFFFF

0x00300000

0x002FFFFF

Reserved

On-chip

Device

0x00200000

0x001FFFFF

0x00100000

0x000FFFFF

Reserved

On-chip

Device

On-chip RAM

0x00000000

Reserved

1M Byte No

1M Byte No

1M Byte No

1M Byte No

22

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

10. Peripheral Memory Map

Figure 1. AT91M55800A Peripheral Memory Map

Address Peripheral Peripheral Name

0xFFFFFFFF

AIC Advanced Interrupt Controller

0xFFFFF000

Reserved

0xFFFFBFFF

WD WatchdogTimer

0xFFFF8000

0xFFFF7FFF

APMC

Advanced Power

Management Controller

0xFFFF4000

0xFFFF3FFF

PIO B Parallel I/O Controller B

0xFFFF0000

0xFFFEFFFF

Parallel I/O Controller A

PIO A

0xFFFEC000

Reserved

0xFFFD7FFF

TC 3,4,5 Timer Counter Channels 3,4,5

0xFFFD4000

0xFFFD3FFF

TC 0,1,2 Timer Counter Channels 0,1,2

0xFFFD0000

0xFFFCBFFF

0xFFFC8000

0xFFFC7FFF

0xFFFC4000

0xFFFC3FFF

0xFFFC0000

0xFFFBFFFF

USART2

USART1

USART0

Reserved

Universal Synchronous/

Asynchronous

Receiver/Transmitter 2

Universal Synchronous/

Asynchronous

Receiver/Transmitter 1

Universal Synchronous/

Asynchronous

Receiver/Transmitter 0

SPI

Serial Peripheral Interface

0xFFFBC000

0xFFFBBFFF

RTC

Real-time Clock

0xFFFB8000

0xFFFB7FFF

ADC1

Analog-to-digital Converter 1

0xFFFB4000

0xFFFB3FFF

ADC0

Analog-to-digital Converter 0

0xFFFB0000

0xFFFAFFFF

DAC1

Digital-to-analog Converter 1

0xFFFAC000

0xFFFABFFF

DAC0

Digital-to-analog Converter 0

0xFFFA8000

Reserved

0xFFF03FFF

SF Special Function

0xFFF00000

Reserved

0xFFE03FFF

EBI

External Bus Interface

0xFFE00000

Reserved

0xFFC00000

Size

4K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

16K Bytes

23

1745D–ATARM–04-Nov-05

11. EBI: External Bus Interface

The EBI generates the signals that control the access to the external memory or peripheral devices. The EBI is fully-programmable and can address up to 128M bytes. It has eight chip selects and a 24-bit address bus.

The 16-bit data bus can be configured to interface with 8- or 16-bit external devices. Separate read and write control signals allow for direct memory and peripheral interfacing.

The EBI supports different access protocols allowing single-clock cycle memory accesses.

The main features are:

• External memory mapping

• 8 active-low chip select lines

• 8- or 16-bit data bus

• Byte-write or byte-select lines

• Remap of boot memory

• Two different read protocols

• Programmable wait state generation

• External wait request

• Programmable data float time

The EBI User Interface is described on page 48 .

24

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

11.1

External Memory Mapping

The memory map associates the internal 32-bit address space with the external 24-bit address bus.

The memory map is defined by programming the base address and page size of the external

memories (see EBI User Interface registers EBI_CSR0 to EBI_CSR7). Note that A0 - A23 is

only significant for 8-bit memory; A1 - A23 is used for 16-bit memory.

If the physical memory device is smaller than the programmed page size, it wraps around and appears to be repeated within the page. The EBI correctly handles any valid access to the memory device within the page. (See

Figure 11-1 .)

In the event of an access request to an address outside any programmed page, an Abort signal is generated. Two types of Abort are possible: instruction prefetch abort and data abort.

The corresponding exception vector addresses are respectively 0x0000 000C and 0x0000

0010. It is up to the system programmer to program the error handling routine to use in case of an Abort (see the ARM7TDMI datasheet for further information).

Figure 11-1. External Memory Smaller than Page Size

Base + 4M Byte

Memory

Map

1-Mbyte Device

1-Mbyte Device

1-Mbyte Device

1-Mbyte Device

Hi

Low

Hi

Low

Hi

Low

Hi

Low

Base + 3M Byte

Base + 2M Byte

Base + 1M Byte

Repeat 3

Repeat 2

Repeat 1

Base

25

1745D–ATARM–04-Nov-05

11.2

EBI Pin Description

Name

A0 - A23

D0 - D15

NCS0 - NCS7

NRD

NWR0 - NWR1

NOE

NWE

NUB, NLB

NWAIT

Description

Address bus (output)

Data bus (input/output)

Active low chip selects (output)

Read Enable (output)

Lower and upper write enable (output)

Output enable (output)

Write enable (output)

Upper and lower byte-select (output)

Wait request (input)

The following table shows how certain EBI signals are multiplexed:

Multiplexed Signals

A0 NLB

NRD

NWR0

NWR1

NOE

NWE

NUB

Functions

8- or 16-bit data bus

Byte-write or byte-select access

Byte-write or byte-select access

Byte-write or byte-select access

Type

Output

I/O

Output

Output

Output

Output

Output

Output

Input

26

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

11.3

Data Bus Width

A data bus width of 8 or 16 bits can be selected for each chip select. This option is controlled by the DBW field in the EBI_CSR (Chip-select Register) for the corresponding chip select.

Figure 11-2 shows how to connect a 512K x 8-bit memory on NCS2.

Figure 11-2. Memory Connection for an 8-bit Data Bus

EBI

D0 - D7

D8 - D15

A1 - A18

A0

NWR1

NWR0

NRD

NCS2

D0 - D7

A1 - A18

A0

Write Enable

Output Enable

Memory Enable

Figure 11-3 shows how to connect a 512K x 16-bit memory on NCS2.

Figure 11-3. Memory Connection for a 16-bit Data Bus

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Low Byte Enable

High Byte Enable

Write Enable

Output Enable

Memory Enable

11.4

Byte-write or Byte-select Access

Each chip select with a 16-bit data bus can operate with one of two different types of write access:

• Byte-write Access supports two Byte-write and a single read signal.

• Byte-select Access selects upper and/or lower byte with two byte-select lines, and separate read and write signals.

This option is controlled by the BAT field in the EBI_CSR (Chip-select Register) for the corresponding chip select.

Byte-write Access is used to connect 2 x 8-bit devices as a 16-bit memory page.

• The signal A0/NLB is not used.

• The signal NWR1/NUB is used as NWR1 and enables upper byte writes.

• The signal NWR0/NWE is used as NWR0 and enables lower byte writes.

• The signal NRD/NOE is used as NRD and enables half-word and byte reads.

Figure 11-4 shows how to connect two 512K x 8-bit devices in parallel on NCS2.

27

1745D–ATARM–04-Nov-05

Figure 11-4. Memory Connection for 2 x 8-bit Data Busses

EBI

D0 - D7

D8 - D15

A1 - A19

A0

NWR1

NWR0

NRD

NCS2

D0 - D7

A0 - A18

Write Enable

Read Enable

Memory Enable

D8 - D15

A0 - A18

Write Enable

Read Enable

Memory Enable

Byte-select Access is used to connect 16-bit devices in a memory page.

• The signal A0/NLB is used as NLB and enables the lower byte for both read and write operations.

• The signal NWR1/NUB is used as NUB and enables the upper byte for both read and write operations.

• The signal NWR0/NWE is used as NWE and enables writing for byte or half word.

• The signal NRD/NOE is used as NOE and enables reading for byte or half word.

Figure 11-5

shows how to connect a 16-bit device with byte and half-word access (e.g. 16-bit

SRAM) on NCS2.

Figure 11-5. Connection for a 16-bit Data Bus with Byte and Half-word Access

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Low Byte Enable

High Byte Enable

Write Enable

Output Enable

Memory Enable

28

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 11-6 shows how to connect a 16-bit device without byte access (e.g. Flash) on NCS2.

Figure 11-6. Connection for a 16-bit Data Bus Without Byte-write Capability.

EBI

D0 - D7

D8 - D15

A1 - A19

NLB

NUB

NWE

NOE

NCS2

D0 - D7

D8 - D15

A0 - A18

Write Enable

Output Enable

Memory Enable

11.5

Boot on NCS0

Depending on the device and the BMS pin level during the reset, the user can select either an

8-bit or 16-bit external memory device connected on NCS0 as the Boot Memory. In this case,

EBI_CSR0 (Chip-select Register 0) is reset at the following configuration for chip select 0:

• 8 wait states (WSE = 1, NWS = 7)

• 8-bit or 16-bit data bus width, depending on BMS

Byte access type and number of data float time are respectively set to Byte-write Access and

0. With a nonvolatile memory interface, any value can be programmed for these parameters.

Before the remap command, the user can modify the chip select 0 configuration, programming the EBI_CSR0 with exact boot memory characteristics. The base address becomes effective after the remap command, but the new number of wait states can be changed immediately.

This is useful if a boot sequence needs to be faster.

29

1745D–ATARM–04-Nov-05

11.6

Read Protocols

The EBI provides two alternative protocols for external memory read access: standard and early read. The difference between the two protocols lies in the timing of the NRD (read cycle) waveform.

The protocol is selected by the DRP field in EBI_MCR (Memory Control Register) and is valid for all memory devices. Standard read protocol is the default protocol after reset.

Note: In the following waveforms and descriptions, NRD represents NRD and NOE since the two signals have the same waveform. Likewise, NWE represents NWE, NWR0 and NWR1 unless

NWR0 and NWR1 are otherwise represented. ADDR represents A0 - A23 and/or A1 - A23.

11.6.1

Standard Read Protocol

Standard read protocol implements a read cycle in which NRD and NWE are similar. Both are active during the second half of the clock cycle. The first half of the clock cycle allows time to ensure completion of the previous access as well as the output of address and NCS before the read cycle begins.

During a standard read protocol, external memory access, NCS is set low and ADDR is valid at the beginning of the access while NRD goes low only in the second half of the master clock cycle to avoid bus conflict (see

Figure 11-7

). NWE is the same in both protocols. NWE always goes low in the second half of the master clock cycle (see

Figure 11-8

).

Figure 11-7. Standard Read Protocol

MCK

ADDR or

NCS

NRD

NWE

11.6.2

Early Read Protocol

Early read protocol provides more time for a read access from the memory by asserting NRD at the beginning of the clock cycle. In the case of successive read cycles in the same memory,

NRD remains active continuously. Since a read cycle normally limits the speed of operation of the external memory system, early read protocol can allow a faster clock frequency to be used. However, an extra wait state is required in some cases to avoid contentions on the external bus.

30

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 11-8. Early Read Protocol

MCK

ADDR or

NCS

NRD

NWE

11.6.3

Early Read Wait State

In early read protocol, an early read wait state is automatically inserted when an external write cycle is followed by a read cycle to allow time for the write cycle to end before the subsequent

read cycle begins (see Figure 11-9

). This wait state is generated in addition to any other programmed wait states (i.e. data float wait).

No wait state is added when a read cycle is followed by a write cycle, between consecutive accesses of the same type or between external and internal memory accesses.

Early read wait states affect the external bus only. They do not affect internal bus timing.

Figure 11-9. Early Read Wait State

Write Cycle

MCK

Early Read Wait Read Cycle

ADDR

NCS

NRD

NWE

31

1745D–ATARM–04-Nov-05

11.7

Write Data Hold Time

During write cycles in both protocols, output data becomes valid after the falling edge of the

NWE signal and remains valid after the rising edge of NWE, as illustrated in the figure below.

The external NWE waveform (on the NWE pin) is used to control the output data timing to guarantee this operation.

It is therefore necessary to avoid excessive loading of the NWE pins, which could delay the write signal too long and cause a contention with a subsequent read cycle in standard protocol.

Figure 11-10. Data Hold Time

MCK

ADDR

NWE

Data output

In early read protocol the data can remain valid longer than in standard read protocol due to the additional wait cycle which follows a write access.

32

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

11.8

Wait States

11.8.1

The EBI can automatically insert wait states. The different types of wait states are listed below:

• Standard wait states

• Data float wait states

• External wait states

• Chip select change wait states

• Early read wait states (as described in Read Protocols)

Standard Wait States

Each chip select can be programmed to insert one or more wait states during an access on the corresponding device. This is done by setting the WSE field in the corresponding

EBI_CSR. The number of cycles to insert is programmed in the NWS field in the same register.

Below is the correspondence between the number of standard wait states programmed and the number of cycles during which the NWE pulse is held low:

0 wait states 1/2 cycle

1 wait state 1 cycle

For each additional wait state programmed, an additional cycle is added.

Figure 11-11. One Wait State Access

1 Wait State Access

MCK

ADDR

NCS

NWE

NRD

(1)

(2)

Notes: 1. Early Read Protocol

2. Standard Read Protocol

11.8.2

Data Float Wait State

Some memory devices are slow to release the external bus. For such devices it is necessary to add wait states (data float waits) after a read access before starting a write access or a read access to a different external memory.

The Data Float Output Time (t

DF

) for each external memory device is programmed in the TDF field of the EBI_CSR register for the corresponding chip select. The value (0 - 7 clock cycles)

33

1745D–ATARM–04-Nov-05

indicates the number of data float waits to be inserted and represents the time allowed for the data output to go high impedance after the memory is disabled.

Data float wait states do not delay internal memory accesses. Hence, a single access to an external memory with long t

DF will not slow down the execution of a program from internal memory.

The EBI keeps track of the programmed external data float time during internal accesses, to ensure that the external memory system is not accessed while it is still busy.

Internal memory accesses and consecutive accesses to the same external memory do not have added Data Float wait states.

Figure 11-12. Data Float Output Time

MCK

ADDR

NCS

NRD

D0-D15

(1) (2) t

DF

Notes: 1. Early Read Protocol

2. Standard Read Protocol

11.8.3

External Wait

The NWAIT input can be used to add wait states at any time. NWAIT is active low and is detected on the rising edge of the clock.

If NWAIT is low at the rising edge of the clock, the EBI adds a wait state and changes neither the output signals nor its internal counters and state. When NWAIT is de-asserted, the EBI finishes the access sequence.

The NWAIT signal must meet setup and hold requirements on the rising edge of the clock.

34

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 11-13. External Wait

MCK

ADDR

NWAIT

NCS

NWE

NRD

(1)

(2)

11.8.4

Notes: 1. Early Read Protocol

2. Standard Read Protocol

Chip Select Change Wait States

A chip select wait state is automatically inserted when consecutive accesses are made to two different external memories (if no wait states have already been inserted). If any wait states have already been inserted, (e.g., data float wait) then none are added.

Figure 11-14. Chip Select Wait

Mem 1

MCK

Chip Select Wait Mem 2

NCS1

NCS2

NRD

(1)

NWE

(2)

Notes: 1. Early Read Protocol

2. Standard Read Protocol

35

1745D–ATARM–04-Nov-05

11.9

Memory Access Waveforms

Figure 11-15 through

Figure 11-18

show examples of the two alternative protocols for external memory read access.

Figure 11-15. Standard Read Protocol with no t

DF

36

AT91M55800A

1745D–ATARM–04-Nov-05

Figure 11-16. Early Read Protocol with no t

DF

AT91M55800A

1745D–ATARM–04-Nov-05

37

Figure 11-17. Standard Read Protocol with t

DF

38

AT91M55800A

1745D–ATARM–04-Nov-05

Figure 11-18. Early Read Protocol with t

DF

AT91M55800A

1745D–ATARM–04-Nov-05

39

Figure 11-19

through

Figure 11-25

show the timing cycles and wait states for read and write access to the various AT91M55800A external memory devices. The configurations described are as follows:

Table 11-1.

Memory Access Waveforms

Figure Number Number of Wait States

11-19

11-20

11-21

11-22

11-23

11-24

11-25

1

1

0

1

0

0

1

Bus Width

16

16

16

8

8

8

16

Size of Data Transfer

Word

Word

Half-word

Word

Half-word

Byte

Byte

40

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 11-19. 0 Wait States, 16-bit Bus Width, Word Transfer

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

MCK

A1 - A23

NCS

NLB

NUB

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

ADDR

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

ADDR+1

B

4

B

3

B

4

B

3

B

4

B

3

B

4

B

3

B

2

B

1

41

1745D–ATARM–04-Nov-05

Figure 11-20. 1 Wait State, 16-bit Bus Width, Word Transfer

1 Wait State

MCK

A1 - A23

ADDR

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

B

2

B

1

1 Wait State

ADDR+1

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

2

B

1

X X B

2

B

1

B

4

B

3

B

4

B

3

B

4

B

3

B

4

B

3

B

2

B

1

42

AT91M55800A

1745D–ATARM–04-Nov-05

Figure 11-21. 1 Wait State, 16-bit Bus Width, Half-word Transfer

1 Wait State

MCK

A1 - A23

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

·

Byte Write/

Byte Select Option

NWE

D0 - D15

B

2

B

1

B

2

B

1

B

2

B

1

X X B

2

B

1

AT91M55800A

43

1745D–ATARM–04-Nov-05

Figure 11-22. 0 Wait States, 8-bit Bus Width, Word Transfer

MCK

A0 - A23

ADDR ADDR+1

NCS

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

X B

1

X X X B

1

X B

2

X X B

2

B

1

ADDR+2

X B

3

X B

3

B

2

B

1

ADDR+3

X B

4

B

4

B

3

B

2

B

1

D0 - D15

WRITE ACCESS

X B

1

X B

2

X B

3

X B

4

NWR0

NWR1

D0 - D15 X B

1

X B

2

X B

3

X B

4

44

AT91M55800A

1745D–ATARM–04-Nov-05

Figure 11-23. 1 Wait State, 8-bit Bus Width, Half-word Transfer

1 Wait State

MCK

A0 - A23

ADDR

NCS

READ ACCESS

·

Standard Protocol

NRD

D0 - D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

X B

1

X B

1

X X X B

1

1 Wait State

ADDR+1

X B

2

AT91M55800A

X B

2

X X B

2

B

1

NWR0

NWR1

D0 - D15

X B

1

X B

2

45

1745D–ATARM–04-Nov-05

Figure 11-24. 1 Wait State, 8-bit Bus Width, Byte Transfer

1 Wait State

MCK

A0 - A23

NCS

READ ACCESS

·

Standard Protocol

NRD

D0-D15

Internal Bus

·

Early Protocol

NRD

D0 - D15

WRITE ACCESS

NWR0

NWR1

D0-D15

X B

1

X B

1

XB

1

X X X B

1

46

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 11-25. 0 Wait States, 16-bit Bus Width, Byte Transfer

MCK

A1-A23

Internal Address

ADDR X X X 0

ADDR X X X 0

NCS

NLB

NUB

READ ACCESS

·

Standard Protocol

NRD

D0-D15

Internal Bus

·

Early Protocol

NRD

D0-D15

WRITE ACCESS

·

Byte Write Option

NWR0

NWR1

D0-D15

·

Byte Select Option

NWE

X B

1

X X X B

1

XB

1

B

1

B

1

1745D–ATARM–04-Nov-05

ADDR X X X 0

ADDR X X X 1

B

2

X

B

2

B

2

B

2

X

X X B

2

X

47

11.10 EBI User Interface

The EBI is programmed using the registers listed in the table below. The Remap Control Register (EBI_RCR) controls exit from Boot Mode (see

Section 11.5 ”Boot on NCS0” on page 29

)

The Memory Control Register (EBI_MCR) is used to program the number of active chip selects and data read protocol. Eight Chip-select Registers (EBI_CSR0 to EBI_CSR7) are used to program the parameters for the individual external memories. Each EBI_CSR must be programmed with a different base address, even for unused chip selects.

Base Address: 0xFFE00000 (Code Label

EBI_BASE

)

Table 11-2.

EBI Memory Map

Offset Register Name

0x00 Chip-select Register 0

0x04

0x08

0x0C

0x10

Chip-select Register 1

Chip-select Register 2

Chip-select Register 3

Chip-select Register 4

0x14

0x18

0x1C

0x20

Chip-select Register 5

Chip-select Register 6

Chip-select Register 7

Remap Control Register

0x24 Memory Control Register

Notes: 1. 8-bit boot (if BMS is detected high)

2. 16-bit boot (if BMS is detected low)

EBI_CSR0

EBI_CSR1

EBI_CSR2

EBI_CSR3

EBI_CSR4

EBI_CSR5

EBI_CSR6

EBI_CSR7

EBI_RCR

EBI_MCR

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Write-only

Read/Write

0x0000203E

(1)

0x0000203D

(2)

0x10000000

0x20000000

0x30000000

0x40000000

0x50000000

0x60000000

0x70000000

0

48

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

11.10.1

EBI Chip Select Register

Register Name:

Access Type:

EBI_CSR0 - EBI_CSR7

Read/Write

Reset Value:

See Table 11-2

Absolute Address:

0xFFE00000 - 0xFFE0001C

31 30 29 28 27 26 25 24

BA

23 22

BA

21

13

CSEN

5

WSE

20

12

BAT

4

19

11

1

1

0

1

1

0

0

0

0

1

1

0

1

NWS

0

0

1

1

0

1

0

1

0

1

0

Number of Standard Wait States

1

2

3

6

7

4

5

8

• WSE: Wait State Enable (Code Label

EBI_WSE

)

0 = Wait state generation is disabled. No wait states are inserted.

1 = Wait state generation is enabled.

18

10

TDF

2

17

9 15

7

PAGES

14

6

• DBW: Data Bus Width

3

NWS

1

DBW

1

1

0

0

0

1

0

1

• NWS: Number of Wait States

This field is valid only if WSE is set.

Data Bus Width

Code Label

EBI_DBW

Reserved –

16-bit data bus width EBI_DBW_16

8-bit data bus width

Reserved

EBI_DBW_8

Code Label

EBI_NWS

EBI_NWS_1

EBI_NWS_2

EBI_NWS_3

EBI_NWS_4

EBI_NWS_5

EBI_NWS_6

EBI_NWS_7

EBI_NWS_8

DBW

16

8

PAGES

0

49

1745D–ATARM–04-Nov-05

• PAGES: Page Size

PAGES

0

0

1

1

0

1

0

1

• TDF: Data Float Output Time

Page Size

1M Byte

4M Bytes

16M Bytes

64M Bytes

Active Bits in Base Address

12 Bits (31-20)

10 Bits (31-22)

8 Bits (31-24)

6 Bits (31-26)

Code Label

EBI_PAGES

EBI_PAGES_1M

EBI_PAGES_4M

EBI_PAGES_16M

EBI_PAGES_64M

1

1

0

1

1

0

0

0

0

1

1

0

1

TDF

0

0

1

• BAT: Byte Access Type

1

0

1

0

1

0

1

0

Number of Cycles Added after the Transfer

0

1

2

5

6

3

4

7

Code Label

EBI_TDF

EBI_TDF_0

EBI_TDF_1

EBI_TDF_2

EBI_TDF_3

EBI_TDF_4

EBI_TDF_5

EBI_TDF_6

EBI_TDF_7

BAT

0

1

Selected BAT

Byte-write access type

Byte-select access type

Code Label

EBI_BAT

EBI_BAT_BYTE_WRITE

EBI_BAT_BYTE_SELECT

• CSEN: Chip Select Enable (Code Label

EBI_CSEN

)

0 = Chip select is disabled.

1 = Chip select is enabled.

• BA: Base Address (Code Label

EBI_BA

)

These bits contain the highest bits of the base address. If the page size is larger than 1M byte, the unused bits of the base address are ignored by the EBI decoder.

50

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

11.10.2

EBI Remap Control Register

Register Name:

Access Type:

EBI_RCR

Write-only

Absolute Address:

0xFFE00020

Offset:

0x20

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

• RCB: Remap Command Bit (Code Label

EBI_RCB

)

0 = No effect.

1 = Cancels the remapping (performed at reset) of the page zero memory devices.

10

2

26

18

11.10.3

EBI Memory Control Register

Register Name:

EBI_MCR

Access Type:

Reset Value:

Read/Write

0

Absolute Address:

0xFFE00024

Offset:

0x24

15

7

31

23

14

6

30

22

13

5

29

21

• DRP: Data Read Protocol

12

4

DRP

28

20

11

3

27

19

10

2

26

18

DRP

0

1

Selected DRP

Standard read protocol for all external memory devices enabled

Early read protocol for all external memory devices enabled

1

9

25

17

1

9

25

17

Code Label

EBI_DRP

EBI_DRP_STANDARD

EBI_DRP_EARLY

0

8

24

16

8

0

RCB

24

16

51

1745D–ATARM–04-Nov-05

12. APMC: Advanced Power Management Controller

The AT91M55800A features an Advanced Power Management Controller, which optimizes both the power consumption of the device and the complete system. The APMC controls the clocking elements such as the oscillators and the PLL, the core and the peripheral clocks, and has the capability to control the system power supply.

Main Power is used throughout this document to identify the voltages powering the

AT91M55800A and other components of the system, with the exception of the Battery Backup voltage, which is applied to the VDDBU. Main Power supplies VDDIO, VDDCORE and, if required, the analog voltage VDDA. A battery or battery capacitor generally supplies the Battery Backup Power.

The APMC consists of the following elements:

• The RTC Oscillator, which provides the Slow Clock at 32768 Hz.

• The Main Oscillator, which provides a clock that depends on the frequency of the crystal connected to the XIN and XOUT pins.

• The Phase Lock Loop.

• The ARM Core Clock Controller, which allows entry to the Idle Mode.

• The Peripheral Clock Controller, which conserves the power consumption of unused peripherals.

• The Master Clock Output Controller.

• The Shut-down Logic, which controls the Main Power.

Figure 12-1. APMC Module

WAKEUP

NRSTBU

Reset Control

Shut-down

Logic

Alarm

APMC

SHDN

XIN32

XOUT32

RTC

OSC

VDDBU

VDDIO/VDDCORE

RTC

(1)

XIN

XOUT

Main OSC

OSC Timer

PLL

PLL Timer

Device

Clock

Control

IRQ

Control

Slow Clock_SLCK

0

Arm Clock

Peripheral Clocks n

ARM Interrupt (IRQ and FIQ)

SLCKIRQ

APMCIRQ

Advanced Peripheral Bus

52

Note: The RTC peripheral is described in a separate section.

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.1

Operating Modes

Five operating modes are supported by the APMC and offer different power consumption levels and event response latency times.

• Normal Mode:

The Main Power supply is switched on; the ARM Core Clock is enabled and the peripheral clocks are enabled according to the application requirements.

• Idle Mode:

The Main Power is switched on; the ARM Core Clock is disabled and waiting for the next interrupt (or a main reset); the peripheral clocks are enabled according to the application requirements and the PDC transfers are still possible.

• Slow Clock Mode:

Similar to Normal Mode, but the Main Oscillator and the PLL are switched off to save power; the device core and peripheral run in Slow Clock Mode; Note that Slow Clock

Mode is the mode selected after the reset.

• Standby Mode:

A combination of the Slow Clock Mode and the Idle Mode, which enables the processor to respond quickly to a wake-up event by keeping very low power consumption.

• Power-down Mode:

The Main Power supply is turned off at the external power source until a programmable edge on the wake-up signal or a programmable RTC Alarm occurs.

53

1745D–ATARM–04-Nov-05

Figure 12-2. APMC Block Diagram

WKEDG

WAKEUP

Edge Detector

Backup

Reset

WKACKC

ALWKEN

ALSHEN

SHDALC

WKACKS

Wake-up

Acknowledge

Alarm

Shut-down

Alarm

Output

Controller

SHDALS

SHDN

Shut-down

Alarm

RTC Alarm

NRSTBU

Backup Reset Reset

Control

RTC (1)

Slow Clock

XIN32

XOUT32

RTC

Oscillator

Battery Power

VDDBU

NIRQ

NFIQ

XIN

XOUT

APMC_SCDR

Set

IDLE MODE

FF

MOSCEN

Main

Oscillator

MOSCBYP

APMC_SCSR

MUL

PLL

Clear

MCK (Master Clock)

APMC_PCER

APMC_PCDR

APMC_PCSR

CSS

Prescaler

ARM7TDMI

Clock

Peripheral Clocks

Main Power

VDDIO

VDDCORE

PRES

MCKODS

MCKO

54

Note: 1. The RTC is described in another chapter

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.2

Slow Clock Generator

The AT91M55800A has a very low power 32 kHz oscillator powered by the backup battery voltage supplied on the VDDBU pins. The XIN32 and XOUT32 pins must be connected to a

32768 Hz crystal. The oscillator has been especially designed to connect to a 6 pF typical load capacitance crystal and does not require any external capacitor, as it integrates the XIN32 and

XOUT32 capacitors to ground. For a higher typical load capacitance, two external capaci-

tances must be wired as shown in Figure 12-3 :

Figure 12-3. Higher Typical Load Capacitance

XIN32 XOUT32 GNDPLL

C

L1

C

L2

12.2.1

12.2.2

Backup Reset Controller

The backup reset controller initializes the logic supplied by the backup battery power. A simple

RC circuit connected to the NRSTBU pin provides a power-on reset signal to the RTC and the shutdown logic. When the reset signal increases and as the startup time of the 32 kHz oscillator is around 300 ms, the AT91M55800A maintains the internal backup reset signal for 32768 oscillator clock cycles in order to guarantee the backup power supplied logic does not operate before the oscillator output is stabilized.

Alternatively, a reset supervisor can be connected to the NRSTBU pin in place of the RC.

Slow Clock

The Slow Clock is the only clock considered permanent in an AT91M55800A-based system and is essential in the operations of the APMC (Advanced Power Management Controller). In any use-case, a 32768 Hz crystal must be connected to the XIN32 and XOUT32 pins in order to ensure that the Slow Clock is present.

55

1745D–ATARM–04-Nov-05

12.3

Clock Generator

The clock generator consists of the main oscillator, the PLL and the clock selection logic with its prescaler. It aims at selecting the Master Clock, called MCK throughout this datasheet. The clock generator also contains the circuitry needed to drive the MCKO pin with the master clock signal.

12.3.1

Main Oscillator

The Main Oscillator is designed for a 3 to 20 MHz fundamental crystal. The typical crystal connection is illustrated in

Figure 12-4 . The 1 k

resistor is only required for crystals with frequencies lower than 8 MHz. The oscillator contains 25 pF capacitances on each XIN and

XOUT pin. Consequently, CL1 and CL2 can be removed when a crystal with a load capacitance of 12.5 pF is used.

Figure 12-4. Typical Crystal Connection of Main Oscillator

XIN XOUT GNDPLL

1K

C

L1

C

L2

12.3.2

The Main Oscillator can be bypassed if the MOSCBYP bit in the Clock Generator Mode Register (APMC_CGMR) is set to 1. In this case, any frequency (up to the maximum specified in the electrical characteristics datasheet) can be input on the XIN pin. If the PLL is used, a minimum input frequency is required.

To minimize the power required to start up the system, the Main Oscillator is disabled after the reset. The software can deactivate the Main Oscillator to reduce the power consumption by clearing the MOSCEN bit in APMC_CGMR. The MOSCS (Main Oscillator Status) bit in

APMC_SR is automatically cleared, indicating that the Main Oscillator is off.

Writing the MOSCEN bit in APMC_CGMR reactivates the Main Oscillator and loads the value written in the OSCOUNT field in APMC_CGMR in the oscillator counter. Then, the oscillator counter decrements every 8 clock cycles and when it reaches 0, the MOSCS bit is set and can provide an interrupt.

Phase Lock Loop

The Main Oscillator output signal feeds the phase lock loop, which aims at multiplying the frequency of its input signal by a number up to 64. This number is programmed in the MUL field of APMC_CGMR and the multiplication ratio is the programmed value plus one (MUL+1). If a null value is programmed into MUL, the PLL is automatically disabled to save power.

The PLL is disabled at reset to minimize the power consumption.

A start-up sequence must be executed to enable the PLL if it is disabled. This sequence is started by writing a new MUL value in APMC_CGMR. This automatically clears the LOCK bit

56

AT91M55800A

1745D–ATARM–04-Nov-05

12.3.3

PLL Filter

AT91M55800A

in APMC_SR and loads the PLL counter with the value programmed in the PLLCOUNT field.

Then, the PLL counter decrements at each Slow Clock cycle.

Note: Programming one in PLLCOUNT is the minimum allowed and guarantees at least 2 Slow Clock cycles before the lock bit is set. Programming n in PLLCOUNT guarantees (n+1) the delay of

Slow Clock cycles. When the PLL Counter reaches 0, the LOCK bit in APMC_SR is set and can cause an interrupt. Programming MUL or PLLCOUNT before the LOCK bit is set may lead to unpredictable behavior.

If the PLL multiplication is changed while the PLL is already active, the LOCK bit in APMC_SR is automatically cleared and the same sequence is restarted. The PLL is automatically bypassed while the frequency is changing (while LOCK is 0). If the Main Oscillator is reactivated at the same time the PLL is enabled, the LOCK bit is set only when both the Main

Oscillator and the PLL are stabilized.

The Phase Lock Loop has a dedicated PLLRC pin which must connect with an appropriate second order filter made up of one resistor and two capacitors. If the integrated PLL is not used, it can remain disabled. The PLLRC pin must be grounded if the resistor and the capacitors need to be saved. The following figure shows a typical filter connection.

Figure 12-5. Typical Filter Connection

PLLRC

C

2 R

C

1

GNDPLL

12.3.4

In order to obtain optimal results with a 16 MHz input frequency and a 32 MHz output frequency, the typical component values for the PLL filter are:

R = 287

- C1 = 680 nF - C2 = 68 nF

The lock time with these values is about 3.5 µs in this example.

Master Clock Selection

The MCK (Master Clock) can be selected through the CSS field in APMC_CGMR between the

Slow Clock, the output of the Main Oscillator or the output of the PLL.

The following CSS field definitions are forbidden and the write operations are not taken into account by the APMC:

• deselect the Slow Clock if the Main Oscillator is disabled or its output is not stabilized

• disable the PLL without having first selected the Slow Clock or the Main Oscillator clock

• select the PLL clock and, in the same register, write disable the PLL

• select either the Main Oscillator or the PLL clocks and, in the same register, write disable the Main Oscillator

• disable the Main Oscillator without having first selected the Slow Clock

This clock switch is performed in some Slow Clocks and PLLs or Main Oscillator clock cycles as described in the state machine diagram below:

57

1745D–ATARM–04-Nov-05

Figure 12-6. Clock Switch

5 SLCK Cycles

Slow Clock Mode

4 SLCK Cycles

+

3 PLL Clock Cycles

3 SLCK Cycles

+

3 Oscillator Clock Cycles

5 SLCK Cycles

PLL Clock Mode

7 SLCK Cycles

+

3 PLL Clock Cycles

5 SLCK Cycles

+

3 PLL Clock Cycles

4 SLCK Cycles

+

3 Oscillator Clock Cycles

Oscillator Clock Mode

12.3.5

12.3.6

12.3.7

Slow Clock Interrupt

The APMC also features the Slow Clock interrupt, allowing the user to detect when the Master

Clock is actually switched to the Slow Clock. Switching from the Slow Clock to a higher frequency is generally performed safely, as the processor is running slower than the target frequency. However, switching from a high frequency to the Slow Clock requires the high frequency to be valid during the switch time. The Slow Clock interrupt permits the user to know exactly when the switch has been achieved, thus, when the Main Oscillator or the PLL can be disabled.

Prescaler

The prescaler is the last stage to provide the master clock. It permits the selected clock to be divided by a power of 2 between 1 and 64. The default value is 1 after the reset. The prescaler allows the microcontroller operating frequency to reach down to 512 Hz.

Precautions must be taken when defining a master clock lower than the Slow Clock, as some peripherals (RTC and APMC) can still operate at Slow Clock frequency. In this case, access to the peripheral registers that are updated at 32 kHz cannot be ensured.

Master Clock Output

The Master Clock can be output to the MCKO pad. The MCKO pad can be tri-stated to minimize power consumption by setting the bit MCKODS (Master Clock Output Disable) in

APMC_CGMR (default is MCKO enabled).

58

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.4

System Clock

The AT91M55800A has only one system clock: the ARM Core clock. It can be enabled and disabled by writing to the System Clock Enable (APMC_SCER) and System Clock Disable

Registers (APMC_SCDR). The status of the ARM Core clock (at least for debug purposes) can be read in the System Clock Status Register (APMC_SCSR).

The ARM Core clock is enabled after a reset and is automatically re-enabled by any enabled interrupt.

When the ARM Core clock is disabled, the current instruction is finished before the clock is stopped.

Note: Stopping the ARM Core does not prevent PDC transfers.

12.5

Peripheral Clocks

Each peripheral clock integrated in the AT91M55800A can be individually enabled and disabled by writing to the Peripheral Clock Enable (APMC_PCER) and Peripheral Clock Disable

(APMC_PCDR) Registers. The status of the peripheral clocks can be read in the Peripheral

Clock Status Register (APMC_PCSR).

When a peripheral clock is disabled, the clock is immediately stopped. When the clock is reenabled, the peripheral resumes action where it left off.

In order to stop a peripheral, it is recommended that the system software waits until the peripheral has executed its last programmed operation before disabling the clock. This is to avoid data corruption or erroneous behavior of the system.

The peripheral clocks are automatically disabled after a reset.

The bits that control the peripheral clocks are the same as those that control the Interrupt

Sources in the AIC.

12.6

Shut-down and Wake-up

The APMC (Advanced Power Management Controller) integrates shut-down and wake-up logic to control an external main power supply. This logic is supplied by the Battery Backup

Power. This feature makes the Power-down mode possible.

If the SHDN pin is connected to the shut-down pin of the main power supply, the Shut-down command (SHDALC) in APMC_PCR disables the main power. The shut-down input of the converter is generally pulled up or down by a resistor, depending on its active level.

There are 3 ways to exit Power-down mode and restart the main power:

• An alarm programmed in the RTC occurs and the bit ALWKEN in APMC_PMR is set.

• An edge defined by the field WKEDG in APMC_PMR occurs on the pin WAKEUP.

• The user opens the Shut-down line with an external jumper or push-button.

Figure 12-7 shows a typical application using the Shut-down and Wake-up features.

59

1745D–ATARM–04-Nov-05

Figure 12-7. Shut-down and Wake-up Features

Power

Supply

DC/DC Converter

SHD

VDDIO

VDDCORE

AT91M55800

GND

VDDBU

12.7

Resistor required by some DC/DC

Converters

Alarm

Battery

Backup

-

+

Shut-down

Jumper

Disable

NRSTBU

GNDBU

SHDN

WAKE-UP

Main Start Up

To accommodate the different types of main power supply available, and different signals that can command the shut-down of this device, tri-state, level 0 and level 1 are user-definable for the Shut-down pin. The Wake-up pin can be configured as detected on the positive or negative edge, and at high or low level. They are selected by the SHDALS and WKACKS fields in

APMC_PMR.

If the Shut-down feature is not used, the pin SHDN can be used as an Alarm Output Signal from the RTC Alarm. The Alarm State corresponds to Shut-down, and the Acknowledge or

Non-Alarm State corresponds to Wake-up.

The alarm control logic is the same as that for Shut-down. The SHDALC command in

APMC_PCR (defined by the field SHDALS in APMC_PMR) and the WKACKS command in

APMC_PCR (defined by the field WKACKS field in APMC_PMR) control the SHDN pin.

The alarm can be positioned by an RTC Alarm and be acknowledged by a programmable edge on the WAKEUP pin. The Backup Reset initializes the logic in Non-Alarm State.

60

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.8

First Start-up Sequence

At initial startup, or after VDDBU has been disconnected, the battery-supplied logic must be initialized.

The Battery Backup Reset sets the following default state:

• Shut-down Logic

Initialized in the Wake-up state (or Non Alarm)

• The Power Mode Register

Shut-down defines SHDN as level 0 (SHDALS = 1)

Wake-up defines SHDN as tri-state (WKACKS = 0)

• The Real-time Clock Configuration and Data Registers

A simple RC network can be used as a power-on reset for the battery supply.

The pin SHDN is tri-stated by default. An external resistor must hold the main power supply shut-down pin in the inactive state. The shut-down logic can be programmed with the correct active level of the power supply shut-down input during the first start-up sequence.

The first time the system is powered up, the SHDN pin is tri-stated because different power supplies use different logic levels for their shut-down input signals. To minimize backup battery power consumption, there is no internal pull-up or pull-down on this signal.

If the power supply needs a logic level on its shut-down input in order to start the main power supply then an external “Force Start Up” jumper is required to provide this level.

The jumper provides the necessary level on the SHDN to maintain the power supply when the

AT91 boots, and it can be removed until the next loss of battery power.

61

1745D–ATARM–04-Nov-05

12.9

APMC User Interface

Base Address:0xFFFF4000 (Code Label

APMC_BASE

)

Table 12-1.

APMC Memory Map

Offset

0x00

Register

System Clock Enable Register

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

System Clock Disable Register

System Clock Status Register

Reserved

Peripheral Clock Enable Register

Peripheral Clock Disable Register

Peripheral Clock Status Register

Reserved

Clock Generator Mode Register

Reserved

Power Control Register

Power Mode Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Name

APMC_SCER

APMC_SCDR

APMC_SCSR

APMC_PCER

APMC_PCDR

APMC_PCSR

APMC_CGMR

APMC_PCR

APMC_PMR

APMC_SR

APMC_IER

APMC_IDR

APMC_IMR

R/W

R

W

W

R

W

R/W

W

Access

W

W

R

W

W

R

Main Reset

0x1

0

0

0

0x1

Backup Reset

62

AT91M55800A

1745D–ATARM–04-Nov-05

12.9.1

Register Name:

Access Type:

Offset:

APMC System Clock Enable Register

APMC_SCER

Write-only

0x00

31

23

30

22

29

21

28

20

15

7

14

6

13

5

12

4

• CPU: System Clock Enable Bit

0 = No effect.

1 = Enables the System Clock.

12.9.2

Register Name:

Access Type:

Offset:

APMC System Clock Disable Register

APMC_SCDR

Write-only

0x04

31

23

30

22

29

21

28

20

15

7

14

6

13

5

12

4

• CPU: System Clock Disable Bit

0 = No effect.

1 = Disables the System Clock.

11

3

27

19

10

2

26

18

11

3

27

19

10

2

26

18

AT91M55800A

1

9

25

17

8

0

CPU

24

16

1

9

25

17

8

0

CPU

24

16

63

1745D–ATARM–04-Nov-05

12.9.3

APMC System Clock Status Register

Register Name:

Access Type:

APMC_SCSR

Read-only

Reset Value:

Offset:

0x1

0x08

31

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

• CPU: System Clock Status Bit

0 = System Clock is disabled.

1 = System Clock is enabled.

12.9.4

APMC Peripheral Clock Enable Register

Register Name:

APMC_PCER

Access Type:

Offset:

Write-only

0x10

31

30

29

28

23

15

ADC0

7

TC1

22

14

PIOB

6

TC0

21

13

PIOA

5

SPI

20

12

4

US2

• Peripheral Clock Enable (per peripheral)

0 = No effect.

1 = Enables the peripheral clock.

27

19

11

3

26

18

10

2

25

17

9

1

27

19

11

TC5

3

US1

26

18

DAC1

10

TC4

2

US0

25

17

DAC0

9

TC3

1

24

16

ADC1

8

TC2

0

24

16

8

0

CPU

64

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.9.5

Register Name:

Access Type:

Offset:

APMC Peripheral Clock Disable Register

APMC_PCDR

Write-only

0x14

31

23

30

22

29

21

28

20

15

ADC0

7

TC1

14

PIOB

6

TC0

13

PIOA

5

SPI

12

4

US2

• Peripheral Clock Disable (per peripheral)

0 = No effect.

1 = Disables the peripheral clock.

12.9.6

APMC Peripheral Clock Status Register

Register Name:

Access Type:

APMC_PCSR

Read-only

Reset Value:

Offset:

0x0

0x18

31

30

29

28

23

15

ADC0

7

TC1

22

14

PIOB

6

TC0

21

13

PIOA

5

SPI

20

12

4

US2

• Peripheral Clock Status (per peripheral)

0 = The peripheral clock is disabled.

1 = The peripheral clock is enabled.

27

19

11

TC5

3

US1

26

18

DAC1

10

TC4

2

US0

25

17

DAC0

9

TC3

1

24

16

ADC1

8

TC2

0

27

19

11

TC5

3

US1

26

18

DAC1

10

TC4

2

US0

25

17

DAC0

9

TC3

1

24

16

ADC1

8

TC2

0

65

1745D–ATARM–04-Nov-05

12.9.7

APMC Clock Generator Mode Register

Register Name:

Access Type:

APMC_CGMR

Read/Write

Reset Value:

Offset:

0x0

0x20

31

30

29 28

23 22 21 20

OSCOUNT

27

PLLCOUNT

26

19 18

15 14 13 12 11 10

CSS MUL

7

6 5

PRES

4 3

2

MCKODS

25

17

9

24

16

8

1

MOSCEN

0

MOSCBYP

• MOSCBYP: Main Oscillator Bypass (Code Label

APMC_MOSC_BYP

)

0 = Crystal must be connected between XIN and XOUT.

1 = External clock must be provided on XIN.

• MOSCEN: Main Oscillator Enable (Code Label

APMC_MOSC_EN

)

0 = Main Oscillator is disabled.

1 = Main Oscillator is enabled.

Note: When operating in Bypass Mode, the Main Oscillator must be disabled. MOSCEN and MOSCBYP bits must never be set together.

• MCKODS: Master Clock Output Disable (Code Label

APMC_MCKO_DIS

)

0 = The MCKO pin is driven with the Master Clock (MCK).

1 = The MCKO pin is tri-stated.

• PRES: Prescaler Selection

1

1

1

1

0

0

0

0

PRES

0

0

0

0

1

1

1

1

0

1

0

1

0

1

0

1

Prescaler Selected

None. Prescaler Output is the selected clock.

Selected clock is divided by 2

Selected clock is divided by 4

Selected clock is divided by 8

Selected clock is divided by 16

Selected clock is divided by 32

Selected clock is divided by 64

Reserved

Code Label

APMC_PRES_NONE

APMC_PRES_DIV2

APMC_PRES_DIV4

APMC_PRES_DIV8

APMC_PRES_DIV16

APMC_PRES_DIV32

APMC_PRES_DIV64

• MUL: Phase Lock Loop Factor

0 = The PLL is deactivated, reducing power consumption to a minimum.

1 - 63 = The PLL output is at a higher frequency (MUL+1) than the input if the bit lock is set in APMC_SR.

66

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

• CSS: Clock Source Selection

1

1

0

0

CSS

0

1

0

1

Clock Source Selection

Low-frequency clock provided by the RTC

Main oscillator Output or external clock

Phase Lock Loop Output

Reserved

Code Label

APMC_CSS_LF

APMC_CSS_MOSC

APMC_CSS_PLL

• OSCOUNT: Main Oscillator Counter

Specifies the number of 32,768 Hz divided by 8 clock cycles for the main oscillator start-up timer to count before the main oscillator is stabilized, after the oscillator is enabled. The main oscillator counter is a down-counter which is preloaded with the OSCOUNT value when the MOSCEN bit in the Clock Generator Mode register (CGMR) is set, but only if the

OSCOUNT value is different from 0x0.

• PLLCOUNT: PLL Lock Counter

Specifies the number of 32,768 Hz clock cycles for the PLL lock timer to count before the PLL is locked, after the PLL is started. The PLL counter is a down-counter which is preloaded with the PLLCOUNT value when the MUL field in the Clock

Generator Mode register (CGMR) is modified, but only if the MUL value is different from 0 (PLL disabled) and also the

PLLCOUNT value itself different from 0x0. PLLCOUNT must be loaded with a minimum value of 2 in order to guarantee a time of at least one slow clock period.

67

1745D–ATARM–04-Nov-05

12.9.8

Register Name:

Access Type:

Offset:

APMC Power Control Register

APMC_PCR

Write-only

0x28

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

• SHDALC: Shut-down or Alarm Command (Code Label

APMC_SHDALC

)

0 = No effect.

1 = Configures the SHDN pin as defined by the field SHDALS in APMC_PMR.

• WKACKC: Wake-up or Alarm Acknowledge Command (Code Label

APMC_WKACKC

)

0 = No effect.

1 = Configures the SHDN pin as defined by the field WKACKS in APMC_PMR.

Note: If both the SHDALC and WKACKS bits are set, the WKACKS command has priority.

25

17

9

1

WKACKC

24

16

8

0

SHDALC

68

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.9.9

APMC Power Mode Register

Register Name:

Access Type:

APMC_PMR

Read/Write

Backup Reset Value:0x1

Offset:

0x2C

31

30

29

23

15

7

WKEDG

22

14

6

21

13

5

ALSHEN

28

20

12

4

ALWKEN

27

19

11

3

WKACKS

• SHDALS: Shut-down or Alarm Output Selection

This field defines the state of the SHDAL pin when shut-down or alarm is requested.

26

18

10

2

1

1

0

0

SHDALS

0

1

0

1

Shut-down or Alarm Output Selected

Tri-stated

Level 0

Level 1

Reserved

Code Label

APMC_SHDALS_OUT_TRIS

APMC_SHDALS_OUT_LEVEL0

APMC_SHDALS_OUT_LEVEL1

• WKACKS: Wake-up or Alarm Acknowledge Output Selection

This field defines the state of the WKACKS pin when wake-up or alarm acknowledge is requested.

0

0

1

1

WKACKS

0

1

0

1

Wake-up or Alarm Acknowledge Output

Selected

Tri-stated

Level 0

Level 1

Reserved

• ALWKEN: Alarm Wake-up Enable (Code Label

APMC_WKEN

)

0 = The alarm from the RTC has no wake-up effect.

1 = The alarm from the RTC commands a wake-up.

• ALSHEN: Alarm Shut-down Enable (Code Label

APMC_ALSHEN

)

0 = The alarm from the RTC has no shut-down effect.

1 = If ALWKEN is 0, the alarm from the RTC commands a shut-down.

25

17

9

1

SHDALS

24

16

8

0

Code Label

APMC_WKACKS_OUT_TRIS

APMC_WKACKS_OUT_LEVEL_0

APMC_WKACKS_OUT_LEVEL_1

69

1745D–ATARM–04-Nov-05

• WKEDG: Wake-up Input Edge Selection

This field defines the edge to detect on the Wake-up pin (WAKEUP) to provoke a wake-up.

0

0

1

1

WKEDG

0

1

0

1

Wake-up Input Edge Selection

None. No edge is detected on wake-up.

Positive edge

Negative edge

Both edges

Code Label

APMC_WKEDG_NONE

APMC_WKEDG_POS_EDG

APMC_WKEDG_NEG_EDG

APMC_WKEDG_BOTH_EDG

70

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

12.9.10

APMC Status Register

Register Name:

Access Type:

Offset:

APMC_SR

Read-only

0x30

31

23

30

22

15

7

14

6

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

25

17

9

1

LOCK

24

16

8

0

MOSCS

• MOSCS: Main Oscillator Status (Code Label

APMC_MOSCS

)

0 = Main Oscillator output signal is not stabilized or the Main Oscillator is disabled.

1 = The Main Oscillator is enabled and its output is stabilized. Actually, this bit indicates that the Main Oscillator counter reached 0.

• LOCK: PLL Lock Status (Code Label

APMC_PLL_LOCK

)

0 = PLL output signal or main oscillator output signal is not stabilized, or the main oscillator is disabled.

1 = Main Oscillator is enabled and its output is stabilized and the PLL output signal is stabilized. Actually, this bit is set when the PLL Lock Counter reaches 0.

12.9.11

APMC Interrupt Enable Register

Register Name:

APMC_IER

Access Type:

Offset:

Write-only

0x34

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

• MOSCS: Main Oscillator Interrupt Enable (Code Label

APMC_MOSCS

)

0 = No effect.

1 = Enables the Main Oscillator Stabilized Interrupt.

• LOCK: PLL Lock Interrupt Enable (Code Label

APMC_PLL_LOCK

)

0 = No effect.

1 = Enables the PLL Lock Interrupt.

26

18

10

2

25

17

9

1

LOCK

24

16

8

0

MOSCS

71

1745D–ATARM–04-Nov-05

12.9.12

APMC Interrupt Disable Register

Register Name:

Access Type:

Offset:

APMC_IDR

Write-only

0x38

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

• MOSCS: Main Oscillator Interrupt Disable (Code Label

APMC_MOSCS

)

0 = No effect.

1 = Disables the Main Oscillator Stabilized Interrupt.

• LOCK: PLL Lock Interrupt Disable (Code Label

APMC_PLL_LOCK

)

0 = No effect.

1 = Disables the PLL Lock Interrupt.

12.9.13

APMC Interrupt Mask Register

Register Name:

APMC_IMR

Access Type:

Reset Value:

Offset:

Read-only

0x0

0x3C

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

• MOSCS: Main Oscillator Interrupt Mask (Code Label

APMC_MOSCS

)

0 = The Main Oscillator Interrupt is disabled.

1 = The Main Oscillator Interrupt is enabled.

• LOCK: PLL Lock Interrupt Mask (Code Label

APMC_PLL_LOCK

)

0 = The PLL Lock Interrupt is disabled.

1 = The PLL Lock Interrupt is enabled.

11

3

27

19

10

2

26

18

10

2

26

18

25

17

9

1

LOCK

24

16

8

0

MOSCS

25

17

9

1

LOCK

24

16

8

0

MOSCS

72

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13. RTC: Real-time Clock

The AT91M55800A features a Real-time Clock (RTC) peripheral that is designed for very low power consumption. It combines a complete time-of-day clock with alarm and a two-hundred year Gregorian calendar, complemented by a programmable periodic interrupt.

The time and calendar values are coded in Binary-Coded Decimal (BCD) format. The time format can be 24-hour mode or 12-hour mode with an AM/PM indicator.

Updating time and calendar fields and configuring the alarm fields is performed by a parallel capture on the 32-bit data bus. An entry control is performed to avoid loading registers with incompatible BCD format data or with an incompatible date according to the current month/ year/century.

13.1

Year 2000 Conformity

The Real-time Clock complies fully with the Year 2000 Conformity Requirements as stated in the British Standards Institution Document Ref BSI-DISC PD2000-1: “Year 2000 conformity shall mean that neither performance nor functionality is affected by dates prior to, during and after the year 2000”.

It has been tested to be compliant with the four associated rules:

1.

No value for current date will cause any interruption in operation.

2.

Date-based functionality must behave consistently for dates prior to, during and after year 2000.

3.

In all interfaces and data storage, the century in any date must be specified either explicitly or by unambiguous algorithms or inferencing rules.

4.

Year 2000 must be recognized as a leap year.

The RTC represents the year as a four-digit number (1998, 1999, 2000, 2001, etc.) so that the century is unambiguously identified, in accordance with Rule 3.

Figure 13-1. RTC Block Diagram

RTCIRQ

SLCK:

Slow Clock

32768 Divider

Time

Date

AIC

Advanced

Peripheral

Bus

Bus Interface

Entry

Control

Interrupt

Control

73

1745D–ATARM–04-Nov-05

13.2

Functional Description

The RTC provides a full Binary-Coded Decimal (BCD) clock which includes century (19/20), year (with leap years), month, date, day, hours, minutes and seconds.

The valid year range is 1900 to 2099, a two-hundred year Gregorian calendar achieving full

Y2K compliance.

The RTC can operate in 24-hour mode or in 12-hour mode with an AM/PM indicator.

Corrections for leap years are included (all years divisible by 4 being leap years, including year 2000). This is correct up to the year 2099.

13.2.1

13.2.2

13.2.3

Timing

The RTC is updated in real-time at one second intervals in normal mode for the counters of seconds, at 1 minute intervals for the counter of minutes and so on.

Due to the asynchronous operation of the RTC with respect to the rest of the chip, to be certain that the value read in the RTC registers (century, year, month, date, day, hours, minutes, seconds) are valid and stable, it is necessary to read these registers twice. If the data is the same both times, then it is valid. Therefore, a minimum of two and a maximum of three accesses is required.

Alarm

The RTC has five programmable fields with which to program an alarm: MONTH and DATE in the Calendar Alarm Register (RTC_CAR), and SEC, MIN and HOUR in the Time Alarm Register (RTC_TAR). Each of these fields can be enabled or disabled using the bits MTHEN,

DATEN, SECEN, MINEN, HOUREN to match the alarm condition.

• If all the fields are enabled, an alarm flag is generated (the corresponding flag is asserted and an interrupt generated if enabled) at a given month, date, hour, minute and second.

• If only the “seconds” field is enabled, then an alarm is generated every minute.

• Depending on the combination of fields enabled, a large number of possibilities are available to the user ranging from minutes to 365/366 days.

Error Checking

A verification on user interface data is performed when accessing the century, year, month, date, day, hours, minutes, seconds and alarms. A check is performed on illegal BCD entries such as illegal date of the month with regards to the year and century configured.

If one of the time fields is not correct, the data is not loaded into the register/counter and a flag is set in the Valid Entry Register (RTC_VER). This flag cannot be reset by the user. It is reset as soon as an acceptable value is programmed. This avoids any further side effects in the hardware. The same processing is done for the alarm.

The following checks are processed:

1.

Century (check if it is in range 19 - 20)

2.

Year (BCD entry check)

3.

Date (check range 01 - 31)

4.

Month (check if it is in BCD range 01 - 12, check validity regarding “date”)

5.

Day (check range 1 - 7)

74

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13.2.4

6.

Hour (BCD check, in 24-hour mode check range 00 - 23 and check that AM/PM flag is not set if RTC is set in 24-Hour mode, in 12-Hour mode check range 01 - 12)

7.

Minute (check BCD and range 00 - 59)

8.

Second (check BCD and range 00 - 59)

Note: If the 12-hour mode is selected by means of the RTC_MODE register, a 12-hour value can be programmed and the returned value on RTC_TIME will be the corresponding 24-hour value.

The entry control checks the value of the AM/PM indicator (bit 22 of RTC_TIME register) to determine the range to be checked.

Updating Time/Calendar

To update any of the time/calendar fields, the user must first stop the RTC by setting the corresponding field in the Mode Register (RTC_MR). Bit UPDTIM must be set to update time fields

(hour, minute, second) and bit UPDCAL must be set to update calendar fields (century, year, month, date, day).

Then the user must poll or wait for the interrupt (if enabled) of bit ACKUPD in the Status Register (RTC_SR). Once the bit reads 1 (the user must clear this status bit by writing ACKUPD to

1 in RTC_SCR), the user can write to the appropriate register.

Once the update is finished, the user must reset (0) UPDTIM and/or UPDCAL in the Mode

Register (RTC_MR).

When programming the calendar fields, the time fields remain enabled. This avoids a time slip in case the user stays in the calendar update phase for several tens of seconds or more.

75

1745D–ATARM–04-Nov-05

13.3

RTC User Interface

Base Address:0xFFFB8000 (Code Label

RTC_BASE

)

Table 13-1.

RTC Memory Map

Offset

0x0000

Register

Mode Register

0x0004

0x0008

0x000C

0x0010

0x0014

0x0018

0x001C

0x0020

0x0024

0x0028

0x002C

Hour Mode Register

Time Register

Calendar Register

Time Alarm Register

Calendar Alarm Register

Status Register

Status Clear Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Valid Entry Register

Name

RTC_MR

RTC_HMR

RTC_TIMR

RTC_CALR

RTC_TAR

RTC_CAR

RTC_SR

RTC_SCR

RTC_IER

RTC_IDR

RTC_IMR

RTC_VER

Access

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read-only

Write-only

Write-only

Write-only

Read-only

Read-only

Reset State

0x00000000

0x00000000

0x00000000

0x01819819

0x00000000

0x00000000

0x00000000

0x00000000

0x00000000

76

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

1

1

0

0

13.3.1

Register Name:

Access:

Offset:

RTC Mode Register

RTC_MR

Read/Write

0x00

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

25

17

24

16

CEVSEL

9 8

1

UPDCAL

TEVSEL

0

UPDTIM

• UPDTIM: Update Request Time Register (Code Label

RTC_UPDTIM

)

0 = Enables the RTC time counting.

1 = Stops the RTC time counting.

Time counting consists of second, minute and hour counters. Time counters can be programmed once this bit is set.

• UPDCAL: Update Request Calendar Register (Code Label

RTC_UPDCAL

)

0 = Disables the RTC calendar counting.

1 = Stops the RTC calendar counting.

Calendar counting consists of day, date, month, year and century counters. Calendar counters can be programmed once this bit is set.

• TEVSEL: Time Event Selection

The event which generates the flag TIMEV in RTC_SR (Status Register) depends on the value of TEVSEL.

1

1

0

0

TEVSEL

0

1

0

1

Event

Minute change

Hour change

Every day at midnight

Every day at noon

• CEVSEL: Calendar Event Selection

The event which generates the flag CALEV in RTC_SR depends on the value of CEVSEL.

Code Label

RTC_TEVSEL_MN_CHG

RTC_TEVSEL_HR_CHG

RTC_TEVSEL_EVDAY_MD

RTC_TEVSEL_EVDAY_NOON

CEVSEL

0

1

0

1

Event

Week change

(every Monday at time 00:00:00)

Month change

(every 01 of each month at time 00:00:00)

Year change

(every January 1st at time 00:00:00)

Reserved

Code Label

RTC_CEVSEL_WEEK_CHG

RTC_CEVSEL_MONTH_CHG

RTC_CEVSEL_YEAR_CHG

77

1745D–ATARM–04-Nov-05

13.3.2

RTC Hour Mode Register

Register Name:

Access Type:

RTC_HMR

Read/Write

Reset State:

Offset:

0x0

0x04

31

30

29

23

15

7

22

14

6

21

13

5

• HRMOD: 12/24 Hour Mode

HRMOD

0

1

Selected HRMOD

24-Hour mode is selected

12-Hour mode is selected

28

20

12

4

27

19

11

3

26

18

10

2

Code Label

RTC_24_HRMOD

RTC_12_HRMOD

25

17

9

1

24

16

8

0

HRMOD

78

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13.3.3

RTC Time Register

Register Name:

Access Type:

RTC_TIMR

Read/Write

Reset State:

Offset:

0x0

0x08

31

30

23

15

7

22

AMPM

14

6

29

21

13

5

28

20

27

19

HOUR

26

18

25

17

24

16

12

4

11

MIN

3

SEC

10

2

9

1

8

0

• SEC: Current Second (Code Label

RTC_SEC

)

The range that can be set is 0 - 59 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• MIN: Current Minute (Code Label

RTC_MIN

)

The range that can be set is 0-59 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• HOUR: Current Hour (Code Label

RTC_HOUR

)

The range that can be set is 1 - 12 (BCD) in 12-hour mode or 0 - 23 (BCD) in 24-hour mode.

• AMPM: Ante Meridiem Post Meridiem Indicator (Code Label

RTC_AMPM

)

This bit is the AM/PM indicator in 12-hour mode. It must be written at 0 if HRMOD in RTC_HMR defines 24-Hour mode.

0 = AM.

1 = PM.

79

1745D–ATARM–04-Nov-05

13.3.4

RTC Calendar Register

Register Name:

Access Type:

RTC_CALR

Read/Write

Reset State:

Offset:

0x01819819

0x0C

31

30

29

23

15

22

DAY

14

21

13

28

20

12

27

19

11

DATE

26

18

MONTH

10

25

17

9

24

16

8

YEAR

7

6

5 4 3

CENT

2 1 0

• CENT: Current Century (Code Label

RTC_CENT

)

The range that can be set is 19 - 20 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• YEAR: Current Year (Code Label

RTC_YEAR

)

The range that can be set is 00 - 99 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• MONTH: Current Month (Code Label

RTC_MONTH

)

The range that can be set is 01 - 12 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

• DAY: Current Day (Code Label

RTC_DAY

)

The range that can be set is 1 - 7 (BCD).

The significance of the number (which number represents which day) is user defined as it has no effect on the date counter.

• DATE: Current Date (Code Label

RTC_DATE

)

The range that can be set is 01 - 31 (BCD).

The lowest four bits encode the units. The higher bits encode the tens.

80

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13.3.5

RTC Time Alarm Register

Register Name:

Access Type:

RTC_TAR

Read/Write

Reset State:

Offset:

0x0

0x10

31

30

29

23

HOUREN

15

MINEN

7

SECEN

22

AMPM

14

6

21

13

5

28

20

12

4

27

19

11

MIN

3

SEC

HOUR

• SEC: Second Alarm

This field is the alarm field corresponding to the BCD-coded second counter.

• SECEN: Second Alarm Enable

26

18

10

2

9

1

SECEN

0

1

Selected SECEN

The second matching alarm is disabled.

The second matching alarm is enabled.

• MIN: Minute Alarm

This field is the alarm field corresponding to the BCD-coded minute counter.

• MINEN: Minute Alarm Enable

Code Label

RTC_SEC_ALARM_DIS

RTC_SEC_ALARM_EN

25

17

24

16

8

0

MINEN

0

1

Selected MINEN

The minute matching alarm is disabled.

The minute matching alarm is enabled.

Code Label

RTC_MIN_ALARM_DIS

RTC_MIN_ALARM_EN

• HOUR: Hour Alarm

This field is the alarm field corresponding to the BCD-coded hour counter.

• AMPM: AM/PM Indicator

This bit is the AM/PM indicator in 12-Hour mode. It must be written at 0 if HRMOD in RTC_HMR defines 24-Hour mode.

• HOUREN: Hour Alarm Enable

HOUREN

0

1

Selected HOUREN

The hour matching alarm is disabled.

The hour matching alarm is enabled.

Code Label

RTC_HOUR_ALARM_DIS

RTC_HOUR_ALARM_EN

81

1745D–ATARM–04-Nov-05

13.3.6

RTC Calendar Alarm Register

Register Name:

Access Type:

RTC_CAR

Read/Write

Reset State:

Offset:

0x0

0x14

31

DATEN

30

29

23

MTHEN

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

DATE

• MONTH: Month Alarm

This field is the alarm field corresponding to the BCD-coded month counter.

• MTHEN: Month Alarm Enable

26

18

MONTH

10

2

MTHEN

0

1

Selected MTHEN

The month matching alarm is disabled.

The month matching alarm is enabled.

• DATE: Date Alarm

This field is the alarm field corresponding to the BCD-coded date counter.

• DATEN: Date Alarm Enable

25

17

1

9

Code Label

RTC_MONTH_ALARM_DIS

RTC_MONTH_ALARM_EN

DATEN

0

1

Selected DATEN

The date matching alarm is disabled.

The date matching alarm is enabled.

Code Label

RTC_DATE_ALARM_DIS

RTC_DATE_ALARM_EN

24

16

0

8

82

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13.3.7

RTC Status Register

Register Name:

Access Type:

RTC_SR

Read-only

Reset State:

Offset:

0x0

0x18

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

CALEV

27

19

11

3

TIMEV

26

18

10

2

SEC

25

17

9

1

ALARM

24

16

8

0

ACKUPD

• ACKUPD: Acknowledge for Update (Code Label

RTC_ACKUPD

)

0 = Time and Calendar registers cannot be updated.

1 = Time and Calendar registers can be updated.

• ALARM: Alarm Flag (Code Label

RTC_ALARM

)

0 = No alarm matching condition occurred.

1 = An alarm matching condition has occurred.

• SEC: Second Event (Code Label

RTC_SEC

)

0 = No second event has occurred since the last clear.

1 = At least one second event has occurred since the last clear.

• TIMEV: Time Event (Code Label

RTC_TIMEV

)

0 = No time event has occurred since the last clear.

1 = At least one time event has occurred since the last clear.

The time event is selected in the TEVSEV field in RTC_CR and can be any one of the following events: minute change, hour change, noon, midnight (day change).

• CALEV: Calendar Event (Code Label

RTC_CALEV

)

0 = No calendar event has occurred since the last clear.

1 = At least one calendar event has occurred since the last clear.

The calendar event is selected in the CEVSEL field in RTC_CR and can be any one of the following events: week change, month change, year change.

83

1745D–ATARM–04-Nov-05

13.3.8

Register Name:

Access Type:

Offset:

RTC Status Clear Register

RTC_SCR

Write-only

0x1C

31

23

30

22

15

7

14

6

13

5

29

21

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge for Update Interrupt Clear (Code Label

RTC_ACKUPD

)

0 = No effect.

1 = Clears Acknowledge for Update status bit.

• ALARM: Alarm Flag Interrupt Clear (Code Label

RTC_ALARM

)

0 = No effect.

1 = Clears Alarm Flag bit.

• SEC: Second Event Interrupt Clear (Code Label

RTC_SEC

)

0 = No effect.

1 = Clears Second Event bit.

• TIMEV: Time Event Interrupt Clear (Code Label

RTC_TIMEV

)

0 = No effect.

1 = Clears Time Event bit.

• CALEV: Calendar Event Interrupt Clear (Code Label

RTC_CALEV

)

0 = No effect.

1 = Clears Calendar Event bit.

10

2

SEC

26

18

25

17

9

1

ALARM

24

16

8

0

ACKUPD

84

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13.3.9

Register Name:

Access Type:

Offset:

RTC Interrupt Enable Register

RTC_IER

Write-only

0x20

31

23

15

7

14

6

30

22

13

5

29

21

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge Update Interrupt Enable (Code Label

RTC_ACKUPD

)

0 = No effect.

1 = The acknowledge for update interrupt is enabled.

• ALARM: Alarm Interrupt Enable (Code Label

RTC_ALARM

)

0 = No effect.

1 = The alarm interrupt is enabled.

• SEC: Second Event Interrupt Enable (Code Label

RTC_SEC

)

0 = No effect.

1 = The second periodic interrupt is enabled.

• TIMEV: Time Event Interrupt Enable (Code Label

RTC_TIMEV

)

0 = No effect.

1 = The selected time event interrupt is enabled.

• CALEV: Calendar Event Interrupt Enable (Code Label

RTC_CALEV

)

0 = No effect.

1 = The selected calendar event interrupt is enabled.

10

2

SEC

26

18

25

17

9

1

ALARM

24

16

8

0

ACKUPD

85

1745D–ATARM–04-Nov-05

13.3.10

RTC Interrupt Disable Register

Register Name:

Access Type:

Offset:

RTC_IDR

Write-only

0x24

31

23

15

7

14

6

30

22

13

5

29

21

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge Update Interrupt Disable (Code Label

RTC_ACKUPD

)

0 = No effect.

1 = The acknowledge for update interrupt is disabled.

• ALARM: Alarm Interrupt Disable (Code Label

RTC_ALARM

)

0 = No effect.

1 = The alarm interrupt is disabled.

• SEC: Second Event Interrupt Disable (Code Label

RTC_SEC

)

0 = No effect.

1 = The second periodic interrupt is disabled.

• TIMEV: Time Event Interrupt Disable (Code Label

RTC_TIMEV

)

0 = No effect.

1 = The selected time event interrupt is disabled.

• CALEV: Calendar Event Interrupt Disable (Code Label

RTC_CALEV

)

0 = No effect.

1 = The selected calendar event interrupt is disabled.

10

2

SEC

26

18

25

17

9

1

ALARM

24

16

8

0

ACKUPD

86

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

13.3.11

RTC Interrupt Mask Register

Register Name:

Access Type:

RTC_IMR

Read-only

Reset State:

Offset:

0x0

0x28

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

CALEV

27

19

11

3

TIMEV

• ACKUPD: Acknowledge Update Interrupt Mask (Code Label

RTC_ACKUPD

)

0 = The acknowledge for update interrupt is disabled.

1 = The acknowledge for update interrupt is enabled.

• ALARM: Alarm Interrupt Mask (Code Label

RTC_ALARM

)

0 = The alarm interrupt is disabled.

1 = The alarm interrupt is enabled.

• SEC: Second Event Interrupt Mask (Code Label

RTC_SEC

)

0 = The second periodic interrupt is disabled.

1 = The second periodic interrupt is enabled.

• TIMEV: Time Event Interrupt Mask (Code Label

RTC_TIMEV

)

0 = The selected time event interrupt is disabled.

1 = The selected time event interrupt is enabled.

• CALEV: Calendar Event Interrupt Mask (Code Label

RTC_CALEV

)

0 = The selected calendar event interrupt is disabled.

1 = The selected calendar event interrupt is enabled.

26

18

10

2

SEC

25

17

9

1

ALARM

24

16

8

0

ACKUPD

87

1745D–ATARM–04-Nov-05

13.3.12

RTC Valid Entry Register

Register Name:

Access Type:

RTC_VER

Read-only

Reset State:

Offset:

0x0

0x2C

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

• NVT: Non-Valid Time (Code Label

RTC_NVT

)

0 = No invalid data has been detected in RTC_TIMR.

1 = RTC_TIMR has contained invalid data since it was last programmed.

• NVC: Non-Valid Calendar (Code Label

RTC_NVC

)

0 = No invalid data has been detected in RTC_CALR.

1 = RTC_CALR has contained invalid data since it was last programmed.

• NVTAL: Non-Valid Time Alarm (Code Label

RTC_NVTAL

)

0 = No invalid data has been detected in RTC_TAR.

1 = RTC_TAR has contained invalid data since it was last programmed.

• NVCAL: Non-Valid Calendar Alarm (Code Label

RTC_NVCAL

)

0 = No invalid data has been detected in RTC_CAR.

1 = RTC_CAR has contained invalid data since it was last programmed.

27

19

11

3

NVCAL

26

18

10

2

NVTAL

25

17

9

1

NVC

24

16

8

0

NVT

88

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

14. WD: Watchdog Timer

The AT91M55800A has an internal Watchdog Timer that can be used to prevent system lockup if the software becomes trapped in a deadlock.

In normal operation the user reloads the watchdog at regular intervals before the timer overflow occurs. If an overflow does occur, the watchdog timer generates one or a combination of the following signals, depending on the parameters in WD_OMR (Overflow Mode Register):

• If RSTEN is set, an internal reset is generated (WD_RESET as shown in Figure 14-1).

• If IRQEN is set, a pulse is generated on the signal WDIRQ which is connected to the

Advanced Interrupt Controller

• If EXTEN is set, a low level is driven on the NWDOVF signal for a duration of 8 MCK cycles.

The watchdog timer has a 16-bit down counter. Bits 12 - 15 of the value loaded when the watchdog is restarted are programmable using the HPVC parameter in WD_CMR (Clock

Mode). Four clock sources are available to the watchdog counter: MCK/32, MCK/128,

MCK/1024 or MCK/4096. The selection is made using the WDCLKS parameter in WD_CMR.

This provides a programmable time-out period of 4 ms to 8 sec. with a 33 MHz system clock.

All write accesses are protected by control access keys to help prevent corruption of the watchdog should an error condition occur. To update the contents of the mode and control registers it is necessary to write the correct bit pattern to the control access key bits at the same time as the control bits are written (the same write access).

Figure 14-1. Watchdog Timer Block Diagram

MCK/32

MCK/128

MCK/1024

MCK/4096

Advanced

Peripheral

Bus (APB)

WD_RESET

WDIRQ

Control Logic

Clock Select

Overflow

Clear

CLK_CNT

16-Bit

Programmable

Down Counter

NWDOVF

89

1745D–ATARM–04-Nov-05

14.0.1

WD User Interface

WD Base Address: 0xFFFF8000 (Code Label

WD_BASE

)

Table 14-1.

WD Memory Map

Offset

0x00

Register

Overflow Mode Register

0x04

0x08

0x0C

Clock Mode Register

Control Register

Status Register

Name

WD_OMR

WD_CMR

WD_CR

WD_SR

Read/Write

Read/Write

Write-only

Read-only

0

0

0

90

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

14.0.2

Name:

Access:

WD Overflow Mode Register

Reset Value:

Offset:

WD_OMR

Read/Write

0

0x00

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

OKEY

7 6

OKEY

5 4 3

EXTEN

• WDEN: Watchdog Enable (Code Label

WD_WDEN

)

0 = Watchdog is disabled and does not generate any signals.

1 = Watchdog is enabled and generates enabled signals.

• RSTEN: Reset Enable (Code Label

WD_RSTEN

)

0 = Generation of an internal reset by the Watchdog is disabled.

1 = When overflow occurs, the Watchdog generates an internal reset.

• IRQEN: Interrupt Enable (Code Label

WD_IRQEN

)

0 = Generation of an interrupt by the Watchdog is disabled.

1 = When overflow occurs, the Watchdog generates an interrupt.

• EXTEN: External Signal Enable (Code Label

WD_EXTEN

)

0 = Generation of a pulse on the pin NWDOVF by the Watchdog is disabled.

1 = When an overflow occurs, a pulse on the pin NWDOVF is generated.

• OKEY: Overflow Access Key (Code Label

WD_OKEY

)

Used only when writing WD_OMR. OKEY is read as 0.

0x234 = Write access in WD_OMR is allowed.

Other value = Write access in WD_OMR is prohibited.

2

IRQEN

26

18

10

25

17

9

1

RSTEN

24

16

8

0

WDEN

91

1745D–ATARM–04-Nov-05

14.0.3

Name:

Access:

WD Clock Mode Register

Reset Value:

Offset:

WD_CMR

Read/Write

0

0x04

31

30

29

23

22

21

15 14 13

28

20

12

27

19

11

26

18

10

25

17

9

CKEY

7

CKEY

6

• WDCLKS: Clock Selection

5 4

HPCV

3 2 1

WDCLKS

0

0

1

0

WDCLKS

0

1 1

1

0

Clock Selected

MCK/32

MCK/128

MCK/1024

MCK/4096

Code Label

WD_WDCLKS

WD_WDCLKS_MCK32

WD_WDCLKS_MCK128

WD_WDCLKS_MCK1024

WD_WDCLKS_MCK4096

• HPCV: High Pre-load Counter Value (Code Label

WD_HPCV

)

Counter is preloaded when watchdog counter is restarted with bits 0 to 11 set (FFF) and bits 12 to 15 equaling HPCV.

• CKEY: Clock Access Key (Code Label

WD_CKEY

)

Used only when writing WD_CMR. CKEY is read as 0.

0x06E: Write access in WD_CMR is allowed.

Other value: Write access in WD_CMR is prohibited.

24

16

8

92

AT91M55800A

1745D–ATARM–04-Nov-05

14.0.4

Name:

Access:

Offset:

WD Control Register

WD_CR

Write-only

0x08

31

23

15

7

30

22

14

6

29

21

13

5

• RSTKEY: Restart Key (Code Label

WD_RSTKEY

)

0xC071 = Watch Dog counter is restarted.

Other value = No effect.

28

20

12

RSTKEY

4

RSTKEY

27

19

11

3

26

18

10

2

AT91M55800A

25

17

9

1

24

16

8

0

93

1745D–ATARM–04-Nov-05

14.0.5

Name:

Access:

WD Status Register

Reset Value:

Offset:

WD_SR

Read-only

0x0

0x0C

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

• WDOVF: Watchdog Overflow (Code Label

WD_WDOVF

)

0 = No watchdog overflow.

1 = A watchdog overflow has occurred since the last restart of the watchdog counter or since internal or external reset.

14.0.6

WD Enabling Sequence

To enable the Watchdog Timer, the sequence is as follows:

1.

Disable the Watchdog by clearing the bit WDEN:

Write 0x2340 to WD_OMR

This step is unnecessary if the WD is already disabled (reset state).

2.

Initialize the WD Clock Mode Register:

3.

Write 0x373C to WD_CMR

(HPCV = 15 and WDCLKS = MCK/8)

4.

Restart the timer: Write 0xC071 to WD_CR

5.

Enable the watchdog:

Write 0x2345 to WD_OMR (interrupt enabled)

24

16

8

0

WDOVF

94

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

15. AIC: Advanced Interrupt Controller

The AT91M55800A has an 8-level priority, individually maskable, vectored interrupt controller.

This feature substantially reduces the software and real-time overhead in handling internal and external interrupts.

The interrupt controller is connected to the NFIQ (fast interrupt request) and the NIRQ (standard interrupt request) inputs of the ARM7TDMI processor. The processor’s NFIQ line can only be asserted by the external fast interrupt request input: FIQ. The NIRQ line can be asserted by the interrupts generated by the on-chip peripherals and the external interrupt request lines: IRQ0 to IRQ5.

An 8-level priority encoder allows the customer to define the priority between the different

NIRQ interrupt sources.

Internal sources are programmed to be level sensitive or edge-triggered. External sources can be programmed to be positive or negative edge-triggered or high- or low-level sensitive.

The interrupt sources are listed in

Table 15-1 on page 96

and the AIC programmable registers in

Table 15-2 on page 101

.

Figure 15-1. Advanced Interrupt Controller Block Diagram

NFIQ

Manager

NFIQ

FIQ Source

Advanced Peripheral

Bus (APB)

Internal Interrupt Sources

External Interrupt Sources

Memorization

Control

Logic

Memorization

Prioritization

Controller

NIRQ

Manager

NIRQ

ARM7TDMI

Core

Note: After a hardware reset, the AIC pins are controlled by the PIO Controller. They must be configured to be controlled by the peripheral before being used.

95

1745D–ATARM–04-Nov-05

Table 15-1.

AIC Interrupt Sources

Interrupt Source Interrupt Name

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

10

11

8

9

6

7

4

5

2

3

0

1

AD1IRQ

DA0IRQ

DA1IRQ

RTCIRQ

APMCIRQ

SLCKIRQ

IRQ5

IRQ4

IRQ3

IRQ2

IRQ1

IRQ0

COMMRX

COMMTX

TC2IRQ

TC3IRQ

TC4IRQ

TC5IRQ

WDIRQ

PIOAIRQ

PIOBIRQ

AD0IRQ

FIQ

SWIRQ

US0IRQ

US1IRQ

US2IRQ

SPIRQ

TC0IRQ

TC1IRQ

Interrupt Description

Fast interrupt

Software interrupt

USART Channel 0 interrupt

USART Channel 1 interrupt

USART Channel 2 interrupt

SPI interrupt

Timer Channel 0 interrupt

Timer Channel 1 interrupt

Timer Channel 2 interrupt

Timer Channel 3 interrupt

Timer Channel 4 interrupt

Timer Channel 5 interrupt

Watchdog interrupt

Parallel I/O Controller A interrupt

Parallel I/O Controller B interrupt

Analog-to-digital Converter Channel 0 interrupt

Analog-to-digital Converter Channel 1 interrupt

Digital-to-analog Converter Channel 0 interrupt

Digital-to-analog Converter Channel 1 interrupt

Real-time Clock interrupt

Advanced Power Management Controller interrupt

Reserved

Reserved

Slow Clock Interrupt

External interrupt 5

External interrupt 4

External interrupt 3

External interrupt 2

External interrupt 1

External interrupt 0

RX Debug Communication Channel interrupt

TX Debug Communication Channel interrupt

96

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

15.1

Hardware Interrupt Vectoring

The hardware interrupt vectoring reduces the number of instructions to reach the interrupt handler to only one. By storing the following instruction at address 0x00000018, the processor loads the program counter with the interrupt handler address stored in the AIC_IVR register.

Execution is then vectored to the interrupt handler corresponding to the current interrupt.

ldr PC,[PC,# -&F20]

The current interrupt is the interrupt with the highest priority when the Interrupt Vector Register

(AIC_IVR) is read. The value read in the AIC_IVR corresponds to the address stored in the

Source Vector Register (AIC_SVR) of the current interrupt. Each interrupt source has its corresponding AIC_SVR. In order to take advantage of the hardware interrupt vectoring it is necessary to store the address of each interrupt handler in the corresponding AIC_SVR, at system initialization.

15.2

Priority Controller

The NIRQ line is controlled by an 8-level priority encoder. Each source has a programmable priority level of 7 to 0. Level 7 is the highest priority and level 0 the lowest.

When the AIC receives more than one unmasked interrupt at a time, the interrupt with the highest priority is serviced first. If both interrupts have equal priority, the interrupt with the low-

est interrupt source number (see Table Table 15-1

) is serviced first.

The current priority level is defined as the priority level of the current interrupt at the time the register AIC_IVR is read (the interrupt which is serviced).

In the case when a higher priority unmasked interrupt occurs while an interrupt already exists, there are two possible outcomes depending on whether the AIC_IVR has been read.

• If the NIRQ line has been asserted but the AIC_IVR has not been read, then the processor reads the new higher priority interrupt handler address in the AIC_IVR register and the current interrupt level is updated.

• If the processor has already read the AIC_IVR then the NIRQ line is reasserted. When the processor has authorized nested interrupts to occur and reads the AIC_IVR again, it reads the new, higher priority interrupt handler address. At the same time the current priority value is pushed onto a first-in last-out stack and the current priority is updated to the higher priority.

When the end of interrupt command register (AIC_EOICR) is written the current interrupt level is updated with the last stored interrupt level from the stack (if any). Hence at the end of a higher priority interrupt, the AIC returns to the previous state corresponding to the preceding lower priority interrupt which had been interrupted.

15.3

Interrupt Handling

The interrupt handler must read the AIC_IVR as soon as possible. This de-asserts the NIRQ request to the processor and clears the interrupt in case it is programmed to be edge-triggered. This permits the AIC to assert the NIRQ line again when a higher priority unmasked interrupt occurs.

At the end of the interrupt service routine, the end of interrupt command register (AIC_EOICR) must be written. This allows pending interrupts to be serviced.

97

1745D–ATARM–04-Nov-05

15.4

Interrupt Masking

Each interrupt source, including FIQ, can be enabled or disabled using the command registers

AIC_IECR and AIC_IDCR. The interrupt mask can be read in the Read-only register AIC_IMR.

A disabled interrupt does not affect the servicing of other interrupts.

15.5

Interrupt Clearing and Setting

All interrupt sources which are programmed to be edge-triggered (including FIQ) can be individually set or cleared by respectively writing to the registers AIC_ISCR and AIC_ICCR. This function of the interrupt controller is available for auto-test or software debug purposes.

15.6

Fast Interrupt Request

The external FIQ line is the only source which can raise a fast interrupt request to the processor. Therefore, it has no priority controller.

The external FIQ line can be programmed to be positive or negative edge-triggered or high- or low-level sensitive in the AIC_SMR0 register.

The fast interrupt handler address can be stored in the AIC_SVR0 register. The value written into this register is available by reading the AIC_FVR register when an FIQ interrupt is raised.

By storing the following instruction at address 0x0000001C, the processor loads the program counter with the interrupt handler address stored in the AIC_FVR register.

ldr PC,[PC,# -&F20]

Alternatively, the interrupt handler can be stored starting from address 0x0000001C as described in the ARM7TDMI datasheet.

15.7

Software Interrupt

Interrupt source 1 of the advanced interrupt controller is a software interrupt. It must be programmed to be edge-triggered in order to set or clear it by writing to the AIC_ISCR and

AIC_ICCR.

This is totally independent of the SWI instruction of the ARM7TDMI processor.

15.8

Spurious Interrupt

When the AIC asserts the NIRQ line, the ARM7TDMI enters IRQ mode and the interrupt handler reads the IVR. It may happen that the AIC de-asserts the NIRQ line after the core has taken into account the NIRQ assertion and before the read of the IVR.

This behavior is called a Spurious Interrupt.

The AIC is able to detect these Spurious Interrupts and returns the Spurious Vector when the

IVR is read. The Spurious Vector can be programmed by the user when the vector table is initialized.

A Spurious Interrupt may occur in the following cases:

• With any sources programmed to be level sensitive, if the interrupt signal of the AIC input is de-asserted at the same time as it is taken into account by the ARM7TDMI.

• If an interrupt is asserted at the same time as the software is disabling the corresponding source through AIC_IDCR (this can happen due to the pipelining of the ARM Core).

98

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

The same mechanism of Spurious Interrupt occurs if the ARM7TDMI reads the IVR (application software or ICE) when there is no interrupt pending. This mechanism is also valid for the

FIQ interrupts.

Once the AIC enters the Spurious Interrupt management, it asserts neither the NIRQ nor the

NFIQ lines to the ARM7TDMI as long as the Spurious Interrupt is not acknowledged. Therefore, it is mandatory for the Spurious Interrupt Service Routine to acknowledge the “Spurious” behavior by writing to the AIC_EOICR (End of Interrupt) before returning to the interrupted software. It also can perform other operation(s), e.g. trace possible undesirable behavior.

15.9

Protect Mode

The Protect Mode permits reading of the Interrupt Vector Register without performing the associated automatic operations. This is necessary when working with a debug system.

When a Debug Monitor or an ICE reads the AIC User Interface, the IVR could be read. This would have the following consequences in normal mode:

• If an enabled interrupt with a higher priority than the current one is pending, it would be stacked.

• If there is no enabled pending interrupt, the spurious vector would be returned.

In either case, an End of Interrupt Command would be necessary to acknowledge and to restore the context of the AIC. This operation is generally not performed by the debug system.

Hence the debug system would become strongly intrusive, and could cause the application to enter an undesired state.

This is avoided by using Protect Mode.

The Protect Mode is enabled by setting the AIC bit in the SF Protect Mode Register.

When Protect Mode is enabled, the AIC performs interrupt stacking only when a write access is performed on the AIC_IVR. Therefore, the Interrupt Service Routines must write (arbitrary data) to the AIC_IVR just after reading it.

The new context of the AIC, including the value of the Interrupt Status Register (AIC_ISR), is updated with the current interrupt only when IVR is written.

An AIC_IVR read on its own (e.g. by a debugger), modifies neither the AIC context nor the

AIC_ISR.

Extra AIC_IVR reads performed in between the read and the write can cause unpredictable results. Therefore, it is strongly recommended not to set a breakpoint between these 2 actions, nor to stop the software.

The debug system must not write to the AIC_IVR as this would cause undesirable effects.

99

1745D–ATARM–04-Nov-05

The following table shows the main steps of an interrupt and the order in which they are performed according to the mode:

Action

Calculate active interrupt

(higher than current or spurious)

Determine and return the vector of the active interrupt

Memorize interrupt

Push on internal stack the current priority level

Acknowledge the interrupt

(1)

No effect

(2)

Normal Mode

Read AIC_IVR

Read AIC_IVR

Read AIC_IVR

Read AIC_IVR

Protect Mode

Read AIC_IVR

Read AIC_IVR

Read AIC_IVR

Write AIC_IVR

Read AIC_IVR

Write AIC_IVR

Write AIC_IVR

Notes: 1. NIRQ de-assertion and automatic interrupt clearing if the source is programmed as level sensitive

2. Note that software which has been written and debugged using Protect Mode will run correctly in Normal Mode without modification. However in Normal Mode the AIC_IVR write has no effect and can be removed to optimize the code.

100

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

15.10 AIC User Interface

Base Address: 0xFFFFF000 (Code Label

AIC_BASE

)

Table 15-2.

AIC Memory Map

Offset

0x000

0x004

0x07C

0x080

0x084

0x0FC

0x100

0x104

0x108

0x10C

0x110

0x114

0x118

0x11C

0x120

0x124

0x128

0x12C

0x130

Register

Source Mode Register 0

Source Mode Register 1

Source Mode Register 31

Source Vector Register 0

Source Vector Register 1

Source Vector Register 31

IRQ Vector Register

FIQ Vector Register

Interrupt Status Register

Interrupt Pending Register

Interrupt Mask Register

Core Interrupt Status Register

Reserved

Reserved

Interrupt Enable Command Register

Interrupt Disable Command Register

Interrupt Clear Command Register

Interrupt Set Command Register

End of Interrupt Command Register

Name

AIC_SMR0

AIC_SMR1

AIC_SMR31

AIC_SVR0

AIC_SVR1

AIC_SVR31

AIC_IVR

AIC_FVR

AIC_ISR

AIC_IPR

AIC_IMR

AIC_CISR

AIC_IECR

AIC_IDCR

AIC_ICCR

AIC_ISCR

AIC_EOICR

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read-only

Read-only

Read-only

Read-only

Read-only

Read-only

Write-only

Write-only

Write-only

Write-only

Write-only

0

0

0

0

0

0

0

0

0

0

0 see Note

0

0

0x134 Spurious Vector Register AIC_SPU Read/Write 0

Note: 1. The reset value of this register depends on the level of the External IRQ lines. All other sources are cleared at reset.

(1)

101

1745D–ATARM–04-Nov-05

15.10.1

AIC Source Mode Register

Register Name: AIC_SMR0...AIC_SMR31

Access Type:

Read/Write

Reset Value: 0

31

23

15

7

14

6

30

22

SRCTYPE

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

• PRIOR: Priority Level (Code Label

AIC_PRIOR

)

Program the priority level for all sources except source 0 (FIQ).

The priority level can be between 0 (lowest) and 7 (highest).

The priority level is not used for the FIQ, in the SMR0.

• SRCTYPE: Interrupt Source Type (Code Label

AIC_SRCTYPE

)

Program the input to be positive or negative edge-triggered or positive or negative level sensitive.

The active level or edge is not programmable for the internal sources.

25

17

9

1

PRIOR

SRCTYPE

0

0

1

1

0

1

0

1

Internal

Sources Code Label Internal

Level

Sensitive

Edgetriggered

Level

Sensitive

Edgetriggered

AIC_SRCTYPE_INT_LEVEL_SENSITIVE

AIC_SRCTYPE_INT_EDGE_TRIGGERED

AIC_SRCTYPE_INT_LEVEL_SENSITIVE

AIC_SRCTYPE_INT_EDGE_TRIGGERED

External

Sources

Low-level

Sensitive

Negative

Edgetriggered

High-level

Sensitive

Positive Edgetriggered

Code Label External

AIC_SRCTYPE_EXT_LOW_LEVEL

AIC_SRCTYPE_EXT_NEGATIVE_EDGE

AIC_SRCTYPE_EXT_HIGH_LEVEL

AIC_SRCTYPE_EXT_POSITIVE_EDGE

8

0

24

16

102

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

15.10.2

AIC Source Vector Register

Register Name:

Access Type:

Reset Value:

AIC_SVR0..AIC_SVR31

Read/Write

0

31 30 29 28 27 26 25

VECTOR

23 22 21 20 19 18 17

VECTOR

15 14 13 12 11 10 9

VECTOR

7 6 5 4 3 2 1

VECTOR

• VECTOR: Interrupt Handler Address

The user may store in these registers the addresses of the corresponding handler for each interrupt source.

24

16

8

0

15.10.3

AIC Interrupt Vector Register

Register Name: AIC_IVR

Access Type:

Reset Value:

Offset:

Read-only

0

0x100

31 30 29 28 27 26 25 24

IRQV

23 22 21 20 19 18 17 16

IRQV

15 14 13 12 11 10 9 8

IRQV

7 6 5 4 3 2 1 0

IRQV

• IRQV: Interrupt Vector Register

The IRQ Vector Register contains the vector programmed by the user in the Source Vector Register corresponding to the current interrupt.

The Source Vector Register (1 to 31) is indexed using the current interrupt number when the Interrupt Vector Register is read.

When there is no current interrupt, the IRQ Vector Register reads 0.

103

1745D–ATARM–04-Nov-05

15.10.4

AIC FIQ Vector Register

Register Name: AIC_FVR

Access Type:

Read-only

Reset Value:

Offset:

0

0x104

31 30 29 28 27 26 25 24

FIQV

23 22 21 20 19 18 17 16

FIQV

15 14 13 12 11 10 9 8

FIQV

7 6 5 4 3 2 1 0

FIQV

• FIQV: FIQ Vector Register

The FIQ Vector Register contains the vector programmed by the user in the Source Vector Register 0 which corresponds to FIQ.

15.10.5

AIC Interrupt Status Register

Register Name: AIC_ISR

Access Type:

Read-only

Reset Value:

Offset:

0

0x108

15

7

31

23

14

6

30

22

13

5

29

21

12

4

28

20

• IRQID: Current IRQ Identifier (Code Label

AIC_IRQID

)

The Interrupt Status Register returns the current interrupt source number.

11

3

27

19

26

18

10

2

IRQID

9

1

25

17

8

0

24

16

104

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

15.10.6

AIC Interrupt Pending Register

Register Name: AIC_IPR

Access Type:

Read-only

Reset Value:

Offset:

Undefined

0x10C

31

COMMRX

23

SLCKIRQ

30

COMMTX

22

29

IRQ0

21

15

ADC0IRQ

7

TC1IRQ

14

PIOBIRQ

6

TC0IRQ

13

PIOAIRQ

5

SPIRQ

• Interrupt Pending

0 = Corresponding interrupt is inactive.

1 = Corresponding interrupt is pending.

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

15.10.7

AIC Interrupt Mask Register

Register Name: AIC_IMR

Access Type:

Read-only

Reset Value:

Offset:

0

0x110

31

COMMRX

23

SLCKIRQ

30

COMMTX

22

29

IRQ0

21

15

ADC0IRQ

7

TC1IRQ

14

PIOBIRQ

6

TC0IRQ

13

PIOAIRQ

5

SPIRQ

• Interrupt Mask

0 = Corresponding interrupt is disabled.

1 = Corresponding interrupt is enabled.

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

105

1745D–ATARM–04-Nov-05

15.10.8

AIC Core Interrupt Status Register

Register Name: AIC_CISR

Access Type:

Read-only

Reset Value:

Offset:

0

0x114

31

30

29

23

15

7

22

14

6

21

13

5

• NFIQ: NFIQ Status (Code Label

AIC_NFIQ

)

0 = NFIQ line inactive.

1 = NFIQ line active.

• NIRQ: NIRQ Status (Code Label

AIC_NIRQ

)

0 = NIRQ line inactive.

1 = NIRQ line active.

28

20

12

4

15.10.9

AIC Interrupt Enable Command Register

Register Name: AIC_IECR

Access Type: Write-only

Offset:

0x120

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Enable

0 = No effect.

1 = Enables corresponding interrupt.

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

27

19

11

3

26

18

10

2

25

17

9

1

NIRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

24

16

8

0

NFIQ

106

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

15.10.10 AIC Interrupt Disable Command Register

Register Name: AIC_IDCR

Access Type: Write-only

Offset:

0x124

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Disable

0 = No effect.

1 = Disables corresponding interrupt.

15.10.11 AIC Interrupt Clear Command Register

Register Name: AIC_ICCR

Access Type:

Offset:

Write-only

0x128

31

COMMRX

23

SLCKIRQ

30

COMMTX

22

29

IRQ0

21

28

IRQ1

20

APMCIRQ

15

ADC0IRQ

7

TC1IRQ

14

PIOBIRQ

6

TC0IRQ

13

PIOAIRQ

5

SPIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Clear

0 = No effect.

1 = Clears corresponding interrupt.

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

107

1745D–ATARM–04-Nov-05

15.10.12 AIC Interrupt Set Command Register

Register Name: AIC_ISCR

Access Type: Write-only

Offset:

0x12C

31

COMMRX

23

SLCKIRQ

15

ADC0IRQ

7

TC1IRQ

30

COMMTX

22

14

PIOBIRQ

6

TC0IRQ

29

IRQ0

21

13

PIOAIRQ

5

SPIRQ

28

IRQ1

20

APMCIRQ

12

WDIRQ

4

US2IRQ

• Interrupt Set

0 = No effect.

1 = Sets corresponding interrupt.

27

IRQ2

19

RTCIRQ

11

TC5IRQ

3

US1IRQ

26

IRQ3

18

DAC1IRQ

10

TC4IRQ

2

US0IRQ

25

IRQ4

17

DAC0IRQ

9

TC3IRQ

1

SWIRQ

24

IRQ5

16

ADC1IRQ

8

TC2IRQ

0

FIQ

15.10.13 AIC End of Interrupt Command Register

Register Name: AIC_EOICR

Access Type:

Offset:

Write-only

0x130

31

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

0

The End of Interrupt Command Register is used by the interrupt routine to indicate that the interrupt treatment is complete.

Any value can be written because it is only necessary to make a write to this register location to signal the end of interrupt treatment.

108

AT91M55800A

1745D–ATARM–04-Nov-05

15.10.14 AIC Spurious Vector Register

Register Name:

Access Type:

AIC_SPU

Read/Write

Reset Value:

Offset:

0

0x134

31 30 29 28 27

SPUVEC

23 22 21 20 19

SPUVEC

15 14 13 12 11

SPUVEC

7 6 5 4 3

SPUVEC

• SPUVEC: Spurious Interrupt Vector Handler Address

The user may store the address of the Spurious Interrupt handler in this register.

26

18

10

2

AT91M55800A

9

1

25

17

8

0

24

16

1745D–ATARM–04-Nov-05

109

15.11 Standard Interrupt Sequence

It is assumed that:

• The Advanced Interrupt Controller has been programmed, AIC_SVR are loaded with corresponding interrupt service routine addresses and interrupts are enabled.

• The Instruction at address 0x18(IRQ exception vector address) is ldr pc, [pc, #-&F20]

When NIRQ is asserted, if the bit I of CPSR is 0, the sequence is:

1.

The CPSR is stored in SPSR_irq, the current value of the Program Counter is loaded in the IRQ link register (r14_irq) and the Program Counter (r15) is loaded with 0x18.

In the following cycle during fetch at address 0x1C, the ARM Core adjusts r14_irq, decrementing it by 4.

2.

The ARM Core enters IRQ mode, if it is not already.

3.

When the instruction loaded at address 0x18 is executed, the Program Counter is loaded with the value read in AIC_IVR. Reading the AIC_IVR has the following effects:

– Set the current interrupt to be the pending one with the highest priority. The current level is the priority level of the current interrupt.

– De-assert the NIRQ line on the processor. (Even if vectoring is not used, AIC_IVR must be read in order to de-assert NIRQ)

– Automatically clear the interrupt, if it has been programmed to be edge-triggered

– Push the current level on to the stack

– Return the value written in the AIC_SVR corresponding to the current interrupt

4.

The previous step has effect to branch to the corresponding interrupt service routine.

This should start by saving the Link Register(r14_irq) and the SPSR(SPSR_irq). Note that the Link Register must be decremented by 4 when it is saved, if it is to be restored directly into the Program Counter at the end of the interrupt.

5.

Further interrupts can then be unmasked by clearing the I bit in the CPSR, allowing re-assertion of the NIRQ to be taken into account by the core. This can occur if an interrupt with a higher priority than the current one occurs.

6.

The Interrupt Handler can then proceed as required, saving the registers which are used and restoring them at the end. During this phase, an interrupt of priority higher than the current level will restart the sequence from step 1. Note that if the interrupt is programmed to be level sensitive, the source of the interrupt must be cleared during this phase.

7.

The I bit in the CPSR must be set in order to mask interrupts before exiting, to ensure that the interrupt is completed in an orderly manner.

8.

The End Of Interrupt Command Register (AIC_EOICR) must be written in order to indicate to the AIC that the current interrupt is finished. This causes the current level to be popped from the stack, restoring the previous current level if one exists on the stack. If another interrupt is pending, with lower or equal priority than old current level but with higher priority than the new current level, the NIRQ line is reasserted, but the interrupt sequence does not immediately start because the I bit is set in the core.

9.

The SPSR (SPSR_irq) is restored. Finally, the saved value of the Link Register is restored directly into the PC. This has effect of returning from the interrupt to whatever was being executed before, and of loading the CPSR with the stored SPSR,

110

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

masking or unmasking the interrupts depending on the state saved in the SPSR (the previous state of the ARM Core).

Note: The I bit in the SPSR is significant. If it is set, it indicates that the ARM Core was just about to mask IRQ interrupts when the mask instruction was interrupted. Hence, when the SPSR is restored, the mask instruction is completed (IRQ is masked).

1745D–ATARM–04-Nov-05

111

16. PIO: Parallel I/O Controller

The AT91M55800A has 58 programmable I/O lines. 13 pins are dedicated as general-purpose

I/O pins. The other I/O lines are multiplexed with an external signal of a peripheral to optimize the use of available package pins. The PIO lines are controlled by two separate and identical

PIO Controllers called PIOA and PIOB. The PIO controller enables the generation of an interrupt on input change and insertion of a simple input glitch filter on any of the PIO pins.

16.1

Multiplexed I/O Lines

Some I/O lines are multiplexed with an I/O signal of a peripheral. After reset, the pin is controlled by the PIO Controller and is in input mode.

When a peripheral signal is not used in an application, the corresponding pin can be used as a parallel I/O. Each parallel I/O line is bi-directional, whether the peripheral defines the signal as

input or output. Figure 16-1 shows the multiplexing of the peripheral signals with Parallel I/O

signals.

If a pin is multiplexed between the PIO Controller and a peripheral, the pin is controlled by the registers PIO_PER (PIO Enable) and PIO_PDR (PIO Disable). The register PIO_PSR (PIO

Status) indicates whether the pin is controlled by the corresponding peripheral or by the PIO

Controller.

If a pin is a general multi-purpose parallel I/O pin (not multiplexed with a peripheral), PIO_PER and PIO_PDR have no effect and PIO_PSR returns 1 for the bits corresponding to these pins.

When the PIO is selected, the peripheral input line is connected to zero.

16.2

Output Selection

The user can enable each individual I/O signal as an output with the registers PIO_OER (Output Enable) and PIO_ODR (Output Disable). The output status of the I/O signals can be read in the register PIO_OSR (Output Status). The direction defined has effect only if the pin is configured to be controlled by the PIO Controller.

16.3

I/O Levels

Each pin can be configured to be driven high or low. The level is defined in four different ways, according to the following conditions.

If a pin is controlled by the PIO Controller and is defined as an output (see Output Selection

above), the level is programmed using the registers PIO_SODR (Set Output Data) and

PIO_CODR (Clear Output Data). In this case, the programmed value can be read in

PIO_ODSR (Output Data Status).

If a pin is controlled by the PIO Controller and is not defined as an output, the level is determined by the external circuit.

If a pin is not controlled by the PIO Controller, the state of the pin is defined by the peripheral

(see peripheral datasheets).

In all cases, the level on the pin can be read in the register PIO_PDSR (Pin Data Status).

16.4

Filters

Optional input glitch filtering is available on each pin and is controlled by the registers

PIO_IFER (Input Filter Enable) and PIO_IFDR (Input Filter Disable). The input glitch filtering

112

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

can be selected whether the pin is used for its peripheral function or as a parallel I/O line. The register PIO_IFSR (Input Filter Status) indicates whether or not the filter is activated for each pin.

16.5

Interrupts

Each parallel I/O can be programmed to generate an interrupt when a level change occurs.

This is controlled by the PIO_IER (Interrupt Enable) and PIO_IDR (Interrupt Disable) registers which enable/disable the I/O interrupt by setting/clearing the corresponding bit in the

PIO_IMR. When a change in level occurs, the corresponding bit in the PIO_ISR (Interrupt Status) is set whether the pin is used as a PIO or a peripheral and whether it is defined as input or output. If the corresponding interrupt in PIO_IMR (Interrupt Mask) is enabled, the PIO interrupt is asserted.

When PIO_ISR is read, the register is automatically cleared.

16.6

User Interface

Each individual I/O is associated with a bit position in the Parallel I/O user interface registers.

Each of these registers are 32 bits wide. If a parallel I/O line is not defined, writing to the corresponding bits has no effect. Undefined bits read zero.

16.7

Multi-driver (Open Drain)

Each I/O can be programmed for multi-driver option. This means that the I/O is configured as open drain (can only drive a low level) in order to support external drivers on the same pin. An external pull-up is necessary to guarantee a logic level of one when the pin is not being driven.

Registers PIO_MDER (Multi-driver Enable) and PIO_MDDR (Multi-driver Disable) control this option. Multi-driver can be selected whether the I/O pin is controlled by the PIO Controller or the peripheral. PIO_MDSR (Multi-driver Status) indicates which pins are configured to support external drivers.

113

1745D–ATARM–04-Nov-05

Figure 16-1. Parallel I/O Multiplexed with a Bi-directional Signal

PIO_OSR

Pad

Pad Output Enable

Pad Output

Pad Input

Filter

0

1

PIO_MDSR

1

0

PIO_IFSR

1

0

PIO_PSR

1

0

OFF

Value

(1)

0

1

PIO_PSR

PIO_ODSR

PIO_PDSR

Event

Detection

PIO_ISR

PIO_IMR

Peripheral

Output

Enable

Peripheral

Output

Peripheral

Input

PIOIRQ

Note: 1. See “

Section 16.8 ”PIO Connection Tables”

.”

114

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.8

PIO Connection Tables

Table 16-1.

PIO Controller A Connection Table

PIO Controller Peripheral

10

11

12

13

8

9

6

7

Bit

Number

0

1

4

5

2

3

PA6

PA7

PA8

PA9

PA10

PA11

PA12

PA13

Port

Name

PA0

PA1

PA2

PA3

PA4

PA5

Port Name

TCLK3

TIOA3

TIOB3

TCLK4

TIOA4

TIOB4

TCLK5

TIOA5

TIOB5

IRQ0

IRQ1

IRQ2

IRQ3

FIQ

Signal Description

Timer 3 Clock signal

Timer 3 Signal A

Timer 3 Signal B

Timer 4 Clock signal

Timer 4 Signal A

Timer 4 Signal B

Timer 5 Clock signal

Timer 5 Signal A

Timer 5 Signal B

External Interrupt 0

External Interrupt 1

External Interrupt 2

External Interrupt 3

Fast Interrupt

Signal

Direction

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

Input

Input

Input

Input

Input

18

19

20

21

14

15

16

17

PA14

PA15

PA16

PA17

PA18

PA19

PA20

PA21

SCK0

TXD0

RXD0

SCK1

TXD1

RXD1

SCK2

TXD2

USART 0 Clock signal

USART 0 transmit data

USART 0 receive data

USART 1 Clock signal

USART 1 transmit data

USART 1 receive data

USART 2 Clock signal

USART 2 transmit data

Bi-directional

Output

Input

Bi-directional

Output

Input

Bi-directional

Output

26

27

28

29

22

23

24

25

PA22

PA23

PA24

PA25

PA26

PA27

PA28

PA29

RXD2

SPCK

MISO

MOSI

NPCS0

NPCS1

NPCS2

NPCS3

USART 2 receive data

SPI Clock signal

SPI Master In Slave Out

SPI Master Out Slave In

SPI Peripheral Chip Select 0

SPI Peripheral Chip Select 1

SPI Peripheral Chip Select 2

SPI Peripheral Chip Select 3

Input

Bi-directional

Bi-directional

Bi-directional

Bi-directional

Output

Output

Output

0

0

0

0

1

30 – – – – –

31 – – – – –

Note: 1. The OFF value is the default level seen on the peripheral input when the PIO line is enabled.

0

0

0

0

0

0

0

0

0

0

0

0

0

OFF

Value

(1)

0

0

0

0

0

0

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

Reset State

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

98

99

100

101

94

95

96

97

86

91

92

93

82

83

84

85

78

79

80

81

72

75

76

77

Pin

Number

66

67

68

69

70

71

115

1745D–ATARM–04-Nov-05

Table 16-2.

PIO Controller B Connection Table

PIO Controller Peripheral

10

11

12

13

8

9

6

7

Bit

Number

0

1

4

5

2

3

PB6

PB7

PB8

PB9

PB10

PB11

PB12

PB13

Port

Name

PB0

PB1

PB2

PB3

PB4

PB5

Port Name

IRQ4

IRQ5

AD0TRIG

AD1TRIG

Signal Description

External Interrupt 4

External Interrupt 5

ADC0 External Trigger

ADC1 External Trigger

Input

Input

Signal

Direction

Input

Input

18

19

20

21

14

15

16

17

PB14

PB15

PB16

PB17

PB18

PB19

PB20

PB21

BMS

TCLK0

TIOA0

TIOB0

Boot Mode Select

Timer 0 Clock signal

Timer 0 Signal A

Timer 0 Signal B

Input

Input

Bi-directional

Bi-directional

26

27

28

29

22

23

24

25

PB22

PB23

PB24

PB25

PB26

PB27

TCLK1

TIOA1

TIOB1

TCLK2

TIOA2

TIOB2

Timer 1 Clock signal

Timer 1 Signal A

Timer 1 Signal B

Timer 2 Clock signal

Timer 2 Signal A

Timer 2 Signal B

Input

Bi-directional

Bi-directional

Input

Bi-directional

Bi-directional

0

0

0

0

0

0

30 – – – – –

31 – – – – –

Note: 1. The OFF value is the default level seen on the peripheral input when the PIO line is enabled.

0

0

0

0

0

0

OFF

Value

(1)

0

0

0

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

Reset State

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

PIO Input

64

65

58

61

62

63

163

55

56

57

155

156

157

158

151

152

153

154

145

146

149

150

Pin

Number

139

140

141

142

143

144

116

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.9

PIO User Interface

PIO Controller A Base Address:0xFFFEC000 (Code Label

PIOA_BASE

)

PIO Controller B Base Address:0xFFFF0000 (Code Label

PIOB_BASE

)

Table 16-3.

PIO Controller Memory Map

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x40

0x44

0x48

0x4C

0x50

0x54

0x58

Register

PIO Enable Register

PIO Disable Register

PIO Status Register

Reserved

Output Enable Register

Output Disable Register

Output Status Register

Reserved

Input Filter Enable Register

Input Filter Disable Register

Input Filter Status Register

Reserved

Set Output Data Register

Clear Output Data Register

Output Data Status Register

Pin Data Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Interrupt Status Register

Multi-driver Enable Register

Multi-driver Disable Register

Multi-driver Status Register

Name

PIO_PER

PIO_PDR

PIO_PSR

PIO_OER

PIO_ODR

PIO_OSR

PIO_IFER

PIO_IFDR

PIO_IFSR

PIO_SODR

PIO_CODR

PIO_ODSR

PIO_PDSR

PIO_IER

PIO_IDR

PIO_IMR

PIO_ISR

PIO_MDER

PIO_MDDR

PIO_MDSR

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

0x3FFF FFFF (A)

0x0FFF FFFF (B)

0

0

0 see Note

(1)

0 see Note

0

(2)

0x5C Reserved – – –

Notes: 1. The reset value of this register depends on the level of the external pins at reset.

2. This register is cleared at reset. However, the first read of the register can give a value not equal to zero if any changes have occurred on any pins between the reset and the read.

117

1745D–ATARM–04-Nov-05

16.9.1

Register Name:

Access Type:

Offset:

PIO Enable Register

PIO_PER

Write-only

0x00

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable individual pins to be controlled by the PIO Controller instead of the associated peripheral.

When the PIO is enabled, the associated peripheral (if any) is held at logic zero.

1 = Enables the PIO to control the corresponding pin (disables peripheral control of the pin).

0 = No effect.

16.9.2

Offset:

PIO Disable Register

Register Name: PIO_PDR

Access Type:

Write-only

0x04

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO control of individual pins. When the PIO control is disabled, the normal peripheral function is enabled on the corresponding pin.

1 = Disables PIO control (enables peripheral control) on the corresponding pin.

0 = No effect.

118

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.9.3

PIO Status Register

Register Name:

Access Type:

PIO_PSR

Read-onlyRead-only

Offset:

Reset Value:

0x08

0x3FFFFFFF (A)

0x0FFFFFFF (B)

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates which pins are enabled for PIO control. This register is updated when PIO lines are enabled or disabled.

1 = PIO is active on the corresponding line (peripheral is inactive).

0 = PIO is inactive on the corresponding line (peripheral is active).

16.9.4

Register Name:

Access Type:

Offset:

PIO Output Enable Register

PIO_OER

Write-only

0x10

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable PIO output drivers. If the pin is driven by a peripheral, this has no effect on the pin, but the information is stored. The register is programmed as follows:

1 = Enables the PIO output on the corresponding pin.

0 = No effect.

119

1745D–ATARM–04-Nov-05

16.9.5

Register Name:

Access Type:

Offset:

PIO Output Disable Register

PIO_ODR

Write-only

0x14

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO output drivers. If the pin is driven by the peripheral, this has no effect on the pin, but the information is stored. The register is programmed as follows:

1 = Disables the PIO output on the corresponding pin.

0 = No effect.

16.9.6

PIO Output Status Register

Register Name:

Access Type:

PIO_OSR

Read-only

Offset:

Reset Value:

0x18

0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the PIO pin control (output enable) status which is programmed in PIO_OER and PIO ODR. The defined value is effective only if the pin is controlled by the PIO. The register reads as follows:

1 = The corresponding PIO is output on this line.

0 = The corresponding PIO is input on this line.

120

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.9.7

Register Name:

Access Type:

Offset:

PIO Input Filter Enable Register

PIO_IFER

Write-only

0x20

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable input glitch filters. It affects the pin whether or not the PIO is enabled. The register is programmed as follows:

1 = Enables the glitch filter on the corresponding pin.

0 = No effect.

16.9.8

Register Name:

Access Type:

Offset:

PIO Input Filter Disable Register

IO_IFDR

Write-only

0x24

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable input glitch filters. It affects the pin whether or not the PIO is enabled. The register is programmed as follows:

1 = Disables the glitch filter on the corresponding pin.

0 = No effect.

121

1745D–ATARM–04-Nov-05

16.9.9

PIO Input Filter Status Register

Register Name:

Access Type:

PIO_IFSR

Read-only

Offset:

Reset Value:

0x28

0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates which pins have glitch filters selected. It is updated when PIO outputs are enabled or disabled by writing to PIO_IFER or PIO_IFDR.

1 = Filter is selected on the corresponding input (peripheral and PIO).

0 = Filter is not selected on the corresponding input.

Note: When the glitch filter is selected, and the PIO Controller clock is disabled, either the signal on the peripheral input or the corresponding bit in PIO_PDSR remains at the current state.

16.9.10

PIO Set Output Data Register

Register Name:

Access Type:

Offset:

PIO_SODR

Write-only

0x30

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to set PIO output data. It affects the pin only if the corresponding PIO output line is enabled and if the pin is controlled by the PIO. Otherwise, the information is stored.

1 = PIO output data on the corresponding pin is set.

0 = No effect.

122

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.9.11

PIO Clear Output Data Register

Register Name:

Access Type:

Offset:

PIO_CODR

Write-only

0x34

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to clear PIO output data. It affects the pin only if the corresponding PIO output line is enabled and if the pin is controlled by the PIO. Otherwise, the information is stored.

1 = PIO output data on the corresponding pin is cleared.

0 = No effect.

16.9.12

PIO Output Data Status Register

Register Name:

Access Type:

PIO_ODSR

Read-only

Offset:

Reset Value:

0x38

0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the output data status which is programmed in PIO_SODR or PIO_CODR. The defined value is effective only if the pin is controlled by the PIO Controller and only if the pin is defined as an output.

1 = The output data for the corresponding line is programmed to 1.

0 = The output data for the corresponding line is programmed to 0.

123

1745D–ATARM–04-Nov-05

16.9.13

PIO Pin Data Status Register

Register Name:

Access Type:

PIO_PDSR

Read-only

Offset:

Reset Value:

0x3C

Undefined

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows the state of the physical pin of the chip. The pin values are always valid, regardless of whether the pins are enabled as PIO, peripheral, input or output. The register reads as follows:

1 = The corresponding pin is at logic 1.

0 = The corresponding pin is at logic 0.

16.9.14

PIO Interrupt Enable Register

Register Name:

PIO_IER

Access Type:

Offset:

Write-only

0x40

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

This register is used to enable PIO interrupts on the corresponding pin. It has effect whether PIO is enabled or not.

1 = Enables an interrupt when a change of logic level is detected on the corresponding pin.

0 = No effect.

8

P8

0

P0

24

P24

16

P16

124

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.9.15

PIO Interrupt Disable Register

Register Name:

Access Type:

Offset:

PIO_IDR

Write-only

0x44

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to disable PIO interrupts on the corresponding pin. It has effect whether the PIO is enabled or not.

1 = Disables the interrupt on the corresponding pin. Logic level changes are still detected.

0 = No effect.

16.9.16

PIO Interrupt Mask Register

Register Name:

Access Type:

PIO_IMR

Read-only

Offset:

Reset Value:

0x48

0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register shows which pins have interrupts enabled. It is updated when interrupts are enabled or disabled by writing to

PIO_IER or PIO_IDR.

1 = Interrupt is enabled on the corresponding input pin.

0 = Interrupt is not enabled on the corresponding input pin.

125

1745D–ATARM–04-Nov-05

16.9.17

PIO Interrupt Status Register

Register Name:

Access Type:

PIO_ISR

Read-only

Offset:

Reset Value:

0x4C

0

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register indicates for each pin when a logic value change has been detected (rising or falling edge). This is valid whether the PIO is selected for the pin or not and whether the pin is an input or an output.

The register is reset to zero following a read, and at reset.

1 = At least one input change has been detected on the corresponding pin since the register was last read.

0 = No input change has been detected on the corresponding pin since the register was last read.

16.9.18

PIO Multi-driver Enable Register

Register Name:

Access Type:

Offset:

PIO_MDER

Write-only

0x50

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

This register is used to enable PIO output drivers to be configured as open drain to support external drivers on the same pin.

1 = Enables multi-drive option on the corresponding pin.

0 = No effect.

126

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

16.9.19

PIO Multi-driver Disable Register

Register Name: PIO_MDDR

Access Type:

Write-only

Offset:

0x54

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

This register is used to disable the open drain configuration of the output buffer.

1 = Disables the multi-driver option on the corresponding pin.

0 = No effect.

10

P10

2

P2

26

P26

18

P18

16.9.20

PIO Multi-driver Status Register

Register Name:

Access Type:

PIO_MDSR

Read-only

Reset Value:

Offset:

0x0

0x58

15

P15

7

P7

31

P31

23

P23

14

P14

6

P6

30

P30

22

P22

13

P13

5

P5

29

P29

21

P21

12

P12

4

P4

28

P28

20

P20

11

P11

3

P3

27

P27

19

P19

This register indicates which pins are configured with open drain drivers.

1 = PIO is configured as an open drain.

0 = PIO is not configured as an open drain.

10

P10

2

P2

26

P26

18

P18

9

P9

1

P1

25

P25

17

P17

9

P9

1

P1

25

P25

17

P17

8

P8

0

P0

24

P24

16

P16

8

P8

0

P0

24

P24

16

P16

127

1745D–ATARM–04-Nov-05

17. SF: Special Function Registers

The AT91M55800A provides registers which implement the following special functions.

• Chip identification

• RESET status

17.1

Chip Identifier

The following chip identifier values are covered in this datasheet:

Product

AT91M55800A

17.2

SF User Interface

Chip ID Base Address = 0xFFF00000 (Code Label

SF_BASE

)

Table 17-1.

SF Memory Map

Offset Register

0x00

0x04

Chip ID Register

Chip ID Extension Register

0x08

0x0C

0x10

0x14

0x18

Reset Status Register

Reserved

Reserved

Reserved

Protect Mode Register

Revision

A

Name

SF_CIDR

SF_EXID

SF_RSR

SF_PMR

Read-only

Read-only

Read-only

Read/Write

Chip ID

0x15580040

Hardwired

Hardwired

See register description

0x0

128

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

17.2.1

Register Name:

Access Type:

Offset:

Chip ID Register

SF_CIDR

Read-only

0x00

30 31

EXT

23 22

ARCH

29

NVPTYP

21

15 14 13

NVDSIZ

7

0

6

1

5

0

28

20

12

4

27

19

11

3

26

ARCH

18

VDSIZ

10

2

VERSION

NVPSIZ

25

17

9

1

• VERSION: Version of the chip (Code Label

SF_VERSION

)

This value is incremented by one with each new version of the chip (from zero to a maximum value of 31).

• NVPSIZ: Nonvolatile Program Memory Size

0

0

0

0

1

0

0

1

1

0

NVPSIZ

0

1

0

1

0

Others

0

1

1

1

1

Size

None

32K Bytes

64K Bytes

128K Bytes

256K Bytes

Reserved

• NVDSIZ: Nonvolatile Data Memory Size

Code Label:

SF_NVPSIZ

SF_NVPSIZ_NONE

SF_NVPSIZ_32K

SF_NVP_SIZ_64K

SF_NVP_SIZ_128K

SF_NVP_SIZ_256K

Code Label:

SF_NVDSIZ

SF_NVDSIZ_NONE

0 0

NVDSIZ

0

Others

0

• VDSIZ: Volatile Data Memory Size

0

0

0

0

1

0

0

0

1

0

VDSIZ

0

0

1

0

0

Others

0

1

0

0

0

Size

None

Reserved

Size

None

1K Bytes

2K Bytes

4K Bytes

8K Bytes

Reserved

Code Label:

SF_VDSIZ

SF_VDSIZ_NONE

SF_VDSIZ_1K

SF_VDSIZ_2K

SF_VDSIZ_4K

SF_VDSIZ_8K

24

16

8

0

129

1745D–ATARM–04-Nov-05

• ARCH: Chip Architecture

Code of Architecture: Two BCD digits

ARCH

0110 0011

0100 0000

0101 0101

Selected ARCH

AT91x63yyy

AT91x40yyy

AT91x55yyy

• NVPTYP: Nonvolatile Program Memory Type

0

1

NVPTYP

0

0

1

0

Type

“M” Series or “F” Series

“R” Series

Note: All other codes are reserved.

• EXT: Extension Flag (Code Label

SF_EXT

)

0 = Chip ID has a single-register definition without extensions

1 = An extended Chip ID exists (to be defined in the future).

17.2.2

Register Name:

Access Type:

Offset:

Chip ID Extension Register

SF_EXID

Read-only

0x04

This register is reserved for future use. It will be defined when needed.

Code Label:

SF_ARCH

SF_ARCH_AT91x63

SF_ARCH_AT91x40

SF_ARCH_AT91x55

Code Label:

SF_NVPTYP

SF_NVPTYP_M

SF_NVPTYP_R

130

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

17.2.3

Register Name:

Access Type:

Offset:

Reset Status Register

SF_RSR

Read-only

0x08

31

23

30

22

15

7

14

6

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

9

1

25

17

8

0

24

16

RESET

• RESET: Reset Status Information

This field indicates whether the reset was demanded by the external system (via NRST) or by the Watchdog internal reset request.

Reset

0x6C

0x53

Cause of Reset

External Pin

Internal Watchdog

Code Label

SF_EXT_RESET

SF_WD_RESET

17.2.4

SF Protect Mode Register

Register Name:

Access Type:

SF_PMR

Read/Write

Reset Value:

Offset:

0x0

0x18

31 30 29 28

PMRKEY

23 22 21 20

PMRKEY

15

7

14

6

13

5

AIC

12

4

• PMRKEY: Protect Mode Register Key

Used only when writing SF_PMR. PMRKEY is reads 0.

0x27A8: Write access in SF_PMR is allowed.

Other value: Write access in SF_PMR is prohibited.

• AIC: AIC Protect Mode Enable (Code Label

SF_AIC

)

0 = The Advanced Interrupt Controller runs in Normal Mode.

1 = The Advanced Interrupt Controller runs in Protect Mode.

27

19

11

3

26

18

10

2

25

17

1

9

24

16

0

8

131

1745D–ATARM–04-Nov-05

18. USART: Universal Synchronous/ Asynchronous Receiver/Transmitter

The AT91M55800AA provides three identical, full-duplex, universal synchronous/asynchronous receiver/transmitters which are connected to the Peripheral Data Controller.

The main features are:

• Programmable Baud Rate Generator

• Parity, Framing and Overrun Error Detection

• Line Break Generation and Detection

• Automatic Echo, Local Loopback and Remote Loopback channel modes

• Multi-drop Mode: Address Detection and Generation

• Interrupt Generation

• Two Dedicated Peripheral Data Controller channels

• 5-, 6-, 7-, 8- and 9-bit character length

Figure 18-1. USART Block Diagram

ASB

AMBA

Peripheral Data Controller

Receiver

Channel

Transmitter

Channel

PIO:

Parallel

I/O

Controller

APB

USART Channel

Control Logic

Receiver RXD

USxIRQ

Interrupt Control

MCK

MCK/8

Baud Rate Generator

Baud Rate Clock

Transmitter TXD

SCK

132

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.1

Pin Description

Table 18-1.

USART Channel External Signals

Name Description

SCK

USART Serial clock can be configured as input or output:

SCK is configured as input if an External clock is selected (USCLKS[1] = 1)

SCK is driven as output if the External Clock is disabled (USCLKS[1] = 0) and Clock output is enabled (CLKO = 1)

Transmit Serial Data is an output TXD

RXD Receive Serial Data is an input

Notes: 1. After a hardware reset, the USART clock is disabled by default. The user must configure the Power Management Controller before any access to the User Interface of the USART.

2. After a hardware reset, the USART pins are deselected by default (see

Section 16. ”PIO: Parallel I/O Controller” on page

112

). The user must configure the PIO Controller before enabling the transmitter or receiver. If the user selects one of the internal clocks, SCK can be configured as a PIO.

1745D–ATARM–04-Nov-05

133

18.2

Baud Rate Generator

The Baud Rate Generator provides the bit period clock (the Baud Rate clock) to both the

Receiver and the Transmitter.

The Baud Rate Generator can select between external and internal clock sources. The external clock source is SCK. The internal clock sources can be either the master clock MCK or the master clock divided by 8 (MCK/8).

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the system clock (MCK) period. The external clock frequency must be at least 2.5 times lower than the system clock.

When the USART is programmed to operate in Asynchronous Mode (SYNC = 0 in the Mode

Register US_MR), the selected clock is divided by 16 times the value (CD) written in

US_BRGR (Baud Rate Generator Register). If US_BRGR is set to 0, the Baud Rate Clock is disabled.

Baud Rate =

Selected Clock

16 x CD

When the USART is programmed to operate in Synchronous Mode (SYNC = 1) and the selected clock is internal (USCLKS[1] = 0 in the Mode Register US_MR), the Baud Rate Clock is the internal selected clock divided by the value written in US_BRGR. If US_BRGR is set to

0, the Baud Rate Clock is disabled.

Baud Rate

=

Selected Clock

CD

In Synchronous Mode with external clock selected (USCLKS[1] = 1), the clock is provided directly by the signal on the SCK pin. No division is active. The value written in US_BRGR has no effect.

Figure 18-2. Baud Rate Generator

USCLKS [0]

USCLKS [1]

MCK

0

0

MCK/8

1

CLK

SCK

1

CD

16-bit Counter

OUT

CD

SYNC

0

>1

1

0

0

Divide by 16

0

1

Baud Rate

Clock

1

SYNC

USCLKS [1]

134

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.3

Receiver

18.3.1

Asynchronous Receiver

The USART is configured for asynchronous operation when SYNC = 0 (bit 7 of US_MR). In asynchronous mode, the USART detects the start of a received character by sampling the

RXD signal until it detects a valid start bit. A low level (space) on RXD is interpreted as a valid start bit if it is detected for more than 7 cycles of the sampling clock, which is 16 times the baud rate. Hence a space which is longer than 7/16 of the bit period is detected as a valid start bit. A space which is 7/16 of a bit period or shorter is ignored and the receiver continues to wait for a valid start bit.

When a valid start bit has been detected, the receiver samples the RXD at the theoretical midpoint of each bit. It is assumed that each bit lasts 16 cycles of the sampling clock (one bit period) so the sampling point is 8 cycles (0.5-bit periods) after the start of the bit. The first sampling point is therefore 24 cycles (1.5-bit periods) after the falling edge of the start bit was detected. Each subsequent bit is sampled 16 cycles (1-bit period) after the previous one.

Figure 18-3. Asynchronous Mode: Start Bit Detection

16 x Baud

Rate Clock

RXD

Sampling

True Start

Detection

D0

Figure 18-4. Asynchronous Mode: Character Reception

Example: 8-bit, parity enabled 1 stop

0.5-bit periods

1-bit period

RXD

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

135

1745D–ATARM–04-Nov-05

18.3.2

Synchronous Receiver

When configured for synchronous operation (SYNC = 1), the receiver samples the RXD signal on each rising edge of the Baud Rate clock. If a low level is detected, it is considered as a start. Data bits, parity bit and stop bit are sampled and the receiver waits for the next start bit.

See example in Figure 18-5.

Figure 18-5. Synchronous Mode: Character Reception

Example: 8-bit, parity enabled 1 stop

SCK

RXD

Sampling D0 D1

True Start Detection

D2 D3 D4 D5 D6 D7

Parity Bit

Stop Bit

18.3.3

18.3.4

18.3.5

18.3.6

Receiver Ready

When a complete character is received, it is transferred to the US_RHR and the RXRDY status bit in US_CSR is set. If US_RHR has not been read since the last transfer, the OVRE status bit in US_CSR is set.

Parity Error

Each time a character is received, the receiver calculates the parity of the received data bits, in accordance with the field PAR in US_MR. It then compares the result with the received parity bit. If different, the parity error bit PARE in US_CSR is set. When the character is completed and as soon as the character is read, the parity status bit is cleared.

Framing Error

If a character is received with a stop bit at low level and with at least one data bit at high level, a framing error is generated. This sets FRAME in US_CSR.

Time-out

This function allows an idle condition on the RXD line to be detected. The maximum delay for which the USART should wait for a new character to arrive while the RXD line is inactive (high level) is programmed in US_RTOR (Receiver Time-out). When this register is set to 0, no time-out is detected. Otherwise, the receiver waits for a first character and then initializes a counter which is decremented at each bit period and reloaded at each byte reception. When the counter reaches 0, the TIMEOUT bit in US_CSR is set. The user can restart the wait for a first character with the STTTO (Start Time-out) bit in US_CR.

Calculation of time-out duration:

Duration

=

Value

4

BitPeriod

136

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.4

Transmitter

The transmitter has the same behavior in both synchronous and asynchronous operating modes. Start bit, data bits, parity bit and stop bits are serially shifted, lowest significant bit first,

on the falling edge of the serial clock. See example in Figure 18-6.

The number of data bits is selected in the CHRL field in US_MR.

The parity bit is set according to the PAR field in US_MR.

The number of stop bits is selected in the NBSTOP field in US_MR.

When a character is written to US_THR (Transmit Holding), it is transferred to the Shift Register as soon as it is empty. When the transfer occurs, the TXRDY bit in US_CSR is set until a new character is written to US_THR. If Transmit Shift Register and US_THR are both empty, the TXEMPTY bit in US_CSR is set.

18.4.1

Time-guard

The Time-guard function allows the transmitter to insert an idle state on the TXD line between two characters. The duration of the idle state is programmed in US_TTGR (Transmitter Timeguard). When this register is set to zero, no time-guard is generated. Otherwise, the transmitter holds a high level on TXD after each transmitted byte during the number of bit periods programmed in US_TTGR.

Idle state duration between two characters

=

Time-guard value

Bit period

18.5

Multi-drop Mode

When the field PAR in US_MR equals 11X (binary value), the USART is configured to run in multi-drop mode. In this case, the parity error bit PARE in US_CSR is set when data is detected with a parity bit set to identify an address byte. PARE is cleared with the Reset Status Bits Command (RSTSTA) in US_CR. If the parity bit is detected low, identifying a data byte, PARE is not set.

The transmitter sends an address byte (parity bit set) when a Send Address Command

(SENDA) is written to US_CR. In this case, the next byte written to US_THR will be transmitted as an address. After this any byte transmitted will have the parity bit cleared.

Figure 18-6. Synchronous and Asynchronous Modes: Character Transmission

Example: 8-bit, parity enabled 1 stop

Baud Rate

Clock

TXD

Start

Bit

D0 D1 D2 D3 D4 D5 D6 D7 Parity

Bit

Stop

Bit

137

1745D–ATARM–04-Nov-05

18.6

Break

18.6.1

A break condition is a low signal level which has a duration of at least one character (including start/stop bits and parity).

Transmit Break

The transmitter generates a break condition on the TXD line when STTBRK is set in US_CR

(Control Register). In this case, the character present in the Transmit Shift Register is completed before the line is held low.

To cancel a break condition on the TXD line, the STPBRK command in US_CR must be set.

The USART completes a minimum break duration of one character length. The TXD line then returns to high level (idle state) for at least 12-bit periods to ensure that the end of break is correctly detected. Then the transmitter resumes normal operation.

The BREAK is managed like a character:

• The STTBRK and the STPBRK commands are performed only if the transmitter is ready

(bit TXRDY = 1 in US_CSR)

• The STTBRK command blocks the transmitter holding register (bit TXRDY is cleared in

US_CSR) until the break has started

• A break is started when the Shift Register is empty (any previous character is fully transmitted). US_CSR.TXEMPTY is cleared. The break blocks the transmitter shift register until it is completed (high level for at least 12-bit periods after the STPBRK command is requested)

In order to avoid unpredictable states:

• STTBRK and STPBRK commands must not be requested at the same time

• Once an STTBRK command is requested, further STTBRK commands are ignored until the BREAK is ended (high level for at least 12-bit periods)

• All STPBRK commands requested without a previous STTBRK command are ignored

• A byte written into the Transmit Holding Register while a break is pending but not started

(bit TXRDY = 0 in US_CSR) is ignored

• It is not permitted to write new data in the Transmit Holding Register while a break is in progress (STPBRK has not been requested), even though TXRDY = 1 in US_CSR.

• A new STTBRK command must not be issued until an existing break has ended

(TXEMPTY=1 in US_CSR).

138

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.6.2

The standard break transmission sequence is:

1.

Wait for the transmitter ready

(US_CSR.TXRDY = 1)

2.

Send the STTBRK command

(write 0x0200 to US_CR)

3.

Wait for the transmitter ready

(bit TXRDY = 1 in US_CSR)

4.

Send the STPBRK command

(write 0x0400 to US_CR)

The next byte can then be sent:

5.

Wait for the transmitter ready

(bit TXRDY = 1 in US_CSR)

6.

Send the next byte

(write byte to US_THR)

Each of these steps can be scheduled by using the interrupt if the bit TXRDY in US_IMR is set.

For character transmission, the USART channel must be enabled before sending a break.

Receive Break

The receiver detects a break condition when all data, parity and stop bits are low. When the low stop bit is detected, the receiver asserts the RXBRK bit in US_CSR. An end of receive break is detected by a high level for at least 1-bit + 1/16 of a bit period in asynchronous operating mode or at least one sample in synchronous operating mode. RXBRK is also asserted when an end of break is detected.

Both the beginning and the end of a break can be detected by interrupt if the bit

US_IMR.RXBRK is set.

139

1745D–ATARM–04-Nov-05

18.7

Peripheral Data Controller

Each USART channel is closely connected to a corresponding Peripheral Data Controller channel. One is dedicated to the receiver. The other is dedicated to the transmitter.

Note: The PDC is disabled if 9-bit character length is selected (MODE9 = 1) in US_MR.

The PDC channel is programmed using US_TPR (Transmit Pointer) and US_TCR (Transmit

Counter) for the transmitter and US_RPR (Receive Pointer) and US_RCR (Receive Counter) for the receiver. The status of the PDC is given in US_CSR by the ENDTX bit for the transmitter and by the ENDRX bit for the receiver.

The pointer registers (US_TPR and US_RPR) are used to store the address of the transmit or receive buffers. The counter registers (US_TCR and US_RCR) are used to store the size of these buffers.

The receiver data transfer is triggered by the RXRDY bit and the transmitter data transfer is triggered by TXRDY. When a transfer is performed, the counter is decremented and the pointer is incremented. When the counter reaches 0, the status bit is set (ENDRX for the receiver, ENDTX for the transmitter in US_CSR) and can be programmed to generate an interrupt. Transfers are then disabled until a new non-zero counter value is programmed.

18.8

Interrupt Generation

Each status bit in US_CSR has a corresponding bit in US_IER (Interrupt Enable) and US_IDR

(Interrupt Disable) which controls the generation of interrupts by asserting the USART interrupt line connected to the Advanced Interrupt Controller. US_IMR (Interrupt Mask Register) indicates the status of the corresponding bits.

When a bit is set in US_CSR and the same bit is set in US_IMR, the interrupt line is asserted.

18.9

Channel Modes

The USART can be programmed to operate in three different test modes, using the field

CHMODE in US_MR.

Automatic echo mode allows bit by bit re-transmission. When a bit is received on the RXD line, it is sent to the TXD line. Programming the transmitter has no effect.

Local loopback mode allows the transmitted characters to be received. TXD and RXD pins are not used and the output of the transmitter is internally connected to the input of the receiver.

The RXD pin level has no effect and the TXD pin is held high, as in idle state.

Remote loopback mode directly connects the RXD pin to the TXD pin. The Transmitter and the Receiver are disabled and have no effect. This mode allows bit by bit re-transmission.

140

AT91M55800A

1745D–ATARM–04-Nov-05

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 18-7. Channel Modes

Automatic Echo

Receiver RXD

Transmitter

Disabled

Local Loopback

Receiver

Transmitter

TXD

Disabled

RXD

Disabled

V

DD

TXD

Remote Loopback

Receiver

V

DD

Disabled

RXD

Transmitter

Disabled

TXD

141

18.10 USART User Interface

Base Address USART0: 0xFFFC0000 (Code Label

USART0_BASE

)

Base Address USART1: 0xFFFC4000 (Code Label

USART1_BASE

)

Base Address USART2: 0xFFFC8000

USART2_BASE

)

Table 18-2.

USART Memory Map

Offset Register

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Control Register

Mode Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Channel Status Register

Receiver Holding Register

Transmitter Holding Register

Baud Rate Generator Register

Receiver Time-out Register

Transmitter Time-guard Register

Reserved

Receive Pointer Register

Receive Counter Register

Transmit Pointer Register

Transmit Counter Register

Name

US_CR

US_MR

US_IER

US_IDR

US_IMR

US_CSR

US_RHR

US_THR

US_BRGR

US_RTOR

US_TTGR

US_RPR

US_RCR

US_TPR

US_TCR

Access

Write-only

Read/write

Write-only

Write-only

Read-only

Read-only

Read-only

Write-only

Read/write

Read/write

Read/write

Read/write

Read/write

Read/write

Read/Write

0

0

0

0

0

0

0

0

Reset State

0

0

0x18

142

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.10.1

USART Control Register

Name:

Access Type:

Offset:

US_CR

Write-only

0x00

31

30

29

23

15

7

TXDIS

22

14

6

TXEN

21

13

5

RXDIS

28

20

12

SENDA

4

RXEN

27

19

11

STTTO

3

RSTTX

26

18

10

STPBRK

2

RSTRX

25

17

9

STTBRK

1

24

16

8

RSTSTA

0

• RSTRX: Reset Receiver (Code Label

US_RSTRX

)

0 = No effect.

1 = The receiver logic is reset.

• RSTTX: Reset Transmitter (Code Label

US_RSTTX

)

0 = No effect.

1 = The transmitter logic is reset.

• RXEN: Receiver Enable (Code Label

US_RXEN

)

0 = No effect.

1 = The receiver is enabled if RXDIS is 0.

• RXDIS: Receiver Disable (Code Label

US_RXDIS

)

0 = No effect.

1 = The receiver is disabled.

• TXEN: Transmitter Enable (Code Label

US_TXEN

)

0 = No effect.

1 = The transmitter is enabled if TXDIS is 0.

• TXDIS: Transmitter Disable (Code Label

US_TXDIS

)

0 = No effect.

1 = The transmitter is disabled.

• RSTSTA: Reset Status Bits (Code Label

US_RSTSTA

)

0 = No effect.

1 = Resets the status bits PARE, FRAME, OVRE and RXBRK in the US_CSR.

• STTBRK: Start Break (Code Label

US_STTBRK

)

0 = No effect.

1 = If break is not being transmitted, start transmission of a break after the characters present in US_THR and the Transmit

Shift Register have been transmitted.

• STPBRK: Stop Break (Code Label

US_STPBRK

)

0 = No effect.

1 = If a break is being transmitted, stop transmission of the break after a minimum of one character length and transmit a high level during 12 bit periods.

143

1745D–ATARM–04-Nov-05

• STTTO: Start Time-out (Code Label

US_STTTO

)

0 = No effect.

1 = Start waiting for a character before clocking the time-out counter.

• SENDA: Send Address (Code Label

US_SENDA

)

0 = No effect.

1 = In Multi-drop Mode only, the next character written to the US_THR is sent with the address bit set.

144

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.10.2

USART Mode Register

Name:

Access Type:

Reset State:

Offset:

US_MR

Read/Write

0

0x04

31

23

30

22

15 14

CHMODE

7 6

CHRL

29

21

13

5

NBSTOP

USCLKS

28

20

12

4

• USCLKS: Clock Selection (Baud Rate Generator Input Clock)

27

19

11

3

USCLKS

0

0

1

0

1

X

• CHRL: Character Length

Selected Clock

MCK

MCK/8

External (SCK)

0

0

1

1

CHRL

0

1

0

1

Character Length

Five bits

Six bits

Seven bits

Eight bits

Start, stop and parity bits are added to the character length.

• SYNC: Synchronous Mode Select (Code Label

US_SYNC

)

0 = USART operates in Asynchronous Mode.

1 = USART operates in Synchronous Mode.

• PAR: Parity Type

0

0

0

0

1

1

0

1

1

1

PAR

0

0

0

1

0

1 x x

Parity Type

Even Parity

Odd Parity

Parity forced to 0 (Space)

Parity forced to 1 (Mark)

No parity

Multi-drop mode

26

18

CLKO

10

PAR

2

25

17

MODE9

9

1

Code Label:

US_CLKS

US_CLKS_MCK

US_CLKS_MCK8

US_CLKS_SCK

24

16

8

SYNC

0

Code Label:

US_CHRL

US_CHRL_5

US_CHRL_6

US_CHRL_7

US_CHRL_8

Code Label:

US_PAR

US_PAR_EVEN

US_PAR_ODD

US_PAR_SPACE

US_PAR_MARK

US_PAR_NO

US_PAR_MULTIDROP

145

1745D–ATARM–04-Nov-05

• NBSTOP: Number of Stop Bits

The interpretation of the number of stop bits depends on SYNC.

0

0

1

1

NBSTOP

0

1

0

1

Asynchronous (SYNC = 0)

1 stop bit

1.5 stop bits

2 stop bits

Reserved

• CHMODE: Channel Mode

Synchronous (SYNC = 1)

1 stop bit

Reserved

2 stop bits

Reserved

0

CHMODE

0

0

1

1

1

0

1

Mode Description

Normal Mode

The USART Channel operates as an Rx/Tx USART.

Automatic Echo

Receiver Data Input is connected to TXD pin.

Local Loopback

Transmitter Output Signal is connected to Receiver Input Signal.

Remote Loopback

RXD pin is internally connected to TXD pin.

• MODE9: 9-Bit Character Length (Code Label

US_MODE9

)

0 = CHRL defines character length.

1 = 9-Bit character length.

• CKLO: Clock Output Select (Code Label

US_CLKO

)

0 = The USART does not drive the SCK pin.

1 = The USART drives the SCK pin if USCLKS[1] is 0.

Code Label:

US_NBSTOP

US_NBSTOP_1

US_NBSTOP_1_5

US_NBSTOP_2

Code Label:

US_CHMODE

US_CHMODE_NORMAL

US_CHMODE_AUTOMATIC_ECHO

US_CHMODE_LOCAL_LOOPBACK

US_CHMODE_REMODE_LOOPBACK

146

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.10.3

USART Interrupt Enable Register

Name:

Access Type:

Offset:

US_IER

Write-only

0x08

31

30

29

23

15

7

PARE

22

14

6

FRAME

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

• RXRDY: Enable RXRDY Interrupt (Code Label

US_RXRDY

)

0 = No effect.

1 = Enables RXRDY Interrupt.

• TXRDY: Enable TXRDY Interrupt (Code Label

US_TXRDY

)

0 = No effect.

1 = Enables TXRDY Interrupt.

• RXBRK: Enable Receiver Break Interrupt (Code Label

US_RXBRK

)

0 = No effect.

1 = Enables Receiver Break Interrupt.

• ENDRX: Enable End of Receive Transfer Interrupt (Code Label

US_ENDRX

)

0 = No effect.

1 = Enables End of Receive Transfer Interrupt.

• ENDTX: Enable End of Transmit Transfer Interrupt (Code Label

US_ENDTX

)

0 = No effect.

1 = Enables End of Transmit Transfer Interrupt.

• OVRE: Enable Overrun Error Interrupt (Code Label

US_OVRE

)

0 = No effect.

1 = Enables Overrun Error Interrupt.

• FRAME: Enable Framing Error Interrupt (Code Label

US_FRAME

)

0 = No effect.

1 = Enables Framing Error Interrupt.

• PARE: Enable Parity Error Interrupt (Code Label

US_PARE

)

0 = No effect.

1 = Enables Parity Error Interrupt.

• TIMEOUT: Enable Time-out Interrupt (Code Label

US_TIMEOUT

)

0 = No effect.

1 = Enables Reception Time-out Interrupt.

• TXEMPTY: Enable TXEMPTY Interrupt (Code Label

US_TXEMPTY

)

0 = No effect.

1 = Enables TXEMPTY Interrupt.

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

147

1745D–ATARM–04-Nov-05

18.10.4

USART Interrupt Disable Register

Name:

Access Type:

Offset:

US_IDR

Write-only

0x0C

31

30

29

23

15

7

PARE

22

14

6

FRAME

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

• RXRDY: Disable RXRDY Interrupt (Code Label

US_RXRDY

)

0 = No effect.

1 = Disables RXRDY Interrupt.

• TXRDY: Disable TXRDY Interrupt (Code Label

US_TXRDY

)

0 = No effect.

1 = Disables TXRDY Interrupt.

• RXBRK: Disable Receiver Break Interrupt (Code Label

US_RXBRK

)

0 = No effect.

1 = Disables Receiver Break Interrupt.

• ENDRX: Disable End of Receive Transfer Interrupt (Code Label

US_ENDRX

)

0 = No effect.

1 = Disables End of Receive Transfer Interrupt.

• ENDTX: Disable End of Transmit Transfer Interrupt (Code Label

US_ENDTX

)

0 = No effect.

1 = Disables End of Transmit Transfer Interrupt.

• OVRE: Disable Overrun Error Interrupt (Code Label

US_OVRE

)

0 = No effect.

1 = Disables Overrun Error Interrupt.

• FRAME: Disable Framing Error Interrupt (Code Label

US_FRAME

)

0 = No effect.

1 = Disables Framing Error Interrupt.

• PARE: Disable Parity Error Interrupt (Code Label

US_PARE

)

0 = No effect.

1 = Disables Parity Error Interrupt.

• TIMEOUT: Disable Time-out Interrupt (Code Label

US_TIMEOUT

)

0 = No effect.

1 = Disables Receiver Time-out Interrupt.

• TXEMPTY: Disable TXEMPTY Interrupt (Code Label

US_TXEMPTY

)

0 = No effect.

1 = Disables TXEMPTY Interrupt.

26

18

10

2

RXBRK

148

AT91M55800A

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

1745D–ATARM–04-Nov-05

AT91M55800A

18.10.5

USART Interrupt Mask Register

Name:

Access Type:

Reset Value:

Offset:

US_IMR

Read-only

0x0

0x10

31

23

15

7

PARE

30

22

14

6

FRAME

29

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

• RXRDY: RXRDY Interrupt Mask (Code Label

US_RXRDY

)

0 = RXRDY Interrupt is Disabled.

1 = RXRDY Interrupt is Enabled.

• TXRDY: TXRDY Interrupt Mask (Code Label

US_TXRDY

)

0 = TXRDY Interrupt is Disabled.

1 = TXRDY Interrupt is Enabled.

• RXBRK: Receiver Break Interrupt Mask (Code Label

US_RXBRK

)

0 = Receiver Break Interrupt is Disabled.

1 = Receiver Break Interrupt is Enabled.

• ENDRX: End of Receive Transfer Interrupt Mask (Code Label

US_ENDRX

)

0 = End of Receive Transfer Interrupt is Disabled.

1 = End of Receive Transfer Interrupt is Enabled.

• ENDTX: End of Transmit Transfer Interrupt Mask (Code Label

US_ENDTX

)

0 = End of Transmit Transfer Interrupt is Disabled.

1 = End of Transmit Transfer Interrupt is Enabled.

• OVRE: Overrun Error Interrupt Mask (Code Label

US_OVRE

)

0 = Overrun Error Interrupt is Disabled.

1 = Overrun Error Interrupt is Enabled.

• FRAME: Framing Error Interrupt Mask (Code Label

US_FRAME

)

0 = Framing Error Interrupt is Disabled.

1 = Framing Error Interrupt is Enabled.

• PARE: Parity Error Interrupt Mask (Code Label

US_PARE

)

0 = Parity Error Interrupt is Disabled.

1 = Parity Error Interrupt is Enabled.

• TIMEOUT: Time-out Interrupt Mask (Code Label

US_TIMEOUT

)

0 = Receive Time-out Interrupt is Disabled.

1 = Receive Time-out Interrupt is Enabled.

• TXEMPTY: TXEMPTY Interrupt Mask (Code Label

US_TXEMPTY

)

0 = TXEMPTY Interrupt is Disabled.

1 = TXEMPTY Interrupt is Enabled.

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

149

1745D–ATARM–04-Nov-05

18.10.6

USART Channel Status Register

Name:

Access Type:

Reset:

Offset:

US_CSR

Read-only

0x18

0x14

31

23

15

7

PARE

30

22

14

6

FRAME

29

21

13

5

OVRE

28

20

12

4

ENDTX

27

19

11

3

ENDRX

26

18

10

2

RXBRK

25

17

9

TXEMPTY

1

TXRDY

24

16

8

TIMEOUT

0

RXRDY

• RXRDY: Receiver Ready (Code Label

US_RXRDY

)

0 = No complete character has been received since the last read of the US_RHR or the receiver is disabled.

1 = At least one complete character has been received and the US_RHR has not yet been read.

• TXRDY: Transmitter Ready (Code Label

US_TXRDY

)

0 = US_THR contains a character waiting to be transferred to the Transmit Shift Register, or an STTBRK command has been requested.

1 = US_THR is empty and there is no Break request pending TSR availability.

Equal to zero when the USART is disabled or at reset. Transmitter Enable command (in US_CR) sets this bit to one.

• RXBRK: Break Received/End of Break (Code Label

US_RXBRK

)

0 = No Break Received nor End of Break detected since the last “Reset Status Bits” command in the Control Register.

1 = Break Received or End of Break detected since the last “Reset Status Bits” command in the Control Register.

• ENDRX: End of Receive Transfer (Code Label

US_ENDRX

)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is active.

• ENDTX: End of Transmit Transfer (Code Label

US_ENDTX

)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is active.

• OVRE: Overrun Error (Code Label

US_OVRE

)

0 = No byte has been transferred from the Receive Shift Register to the US_RHR when RxRDY was asserted since the last

“Reset Status Bits” command.

1 = At least one byte has been transferred from the Receive Shift Register to the US_RHR when RxRDY was asserted since the last “Reset Status Bits” command.

• FRAME: Framing Error (Code Label

US_FRAME

)

0 = No stop bit has been detected low since the last “Reset Status Bits” command.

1 = At least one stop bit has been detected low since the last “Reset Status Bits” command.

• PARE: Parity Error (Code Label

US_PARE

)

1 = At least one parity bit has been detected false (or a parity bit high in multi-drop mode) since the last “Reset Status Bits” command.

0 = No parity bit has been detected false (or a parity bit high in multi-drop mode) since the last “Reset Status Bits” command.

150

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

• TIMEOUT: Receiver Time-out (Code Label

US_TIMEOUT

)

0 = There has not been a time-out since the last “Start Time-out” command or the Time-out Register is 0.

1 = There has been a time-out since the last “Start Time-out” command.

• TXEMPTY: Transmitter Empty (Code Label

US_TXEMPTY

)

0 = There are characters in either US_THR or the Transmit Shift Register or a Break is being transmitted.

1 = There are no characters in US_THR and the Transmit Shift Register and Break is not active.

Equal to zero when the USART is disabled or at reset. Transmitter Enable command (in US_CR) sets this bit to one.

1745D–ATARM–04-Nov-05

151

18.10.7

USART Receiver Holding Register

Name:

Access Type:

Reset State:

Offset:

US_RHR

Read-only

0

0x18

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

11

3

27

19

10

2

26

18

9

1

25

17

RXCHR

• RXCHR: Received Character

Last character received if RXRDY is set. When number of data bits is less than 9 bits, the bits are right-aligned.

All unused bits read zero.

24

16

8

RXCHR

0

18.10.8

USART Transmitter Holding Register

Name:

Access Type:

Offset:

US_THR

Write-only

0x1C

31

23

15

7

30

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

TXCHR

0

TXCHR

• TXCHR: Character to be Transmitted

Next character to be transmitted after the current character if TXRDY is not set. When number of data bits is less than 9 bits, the bits are right-aligned.

152

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

18.10.9

USART Baud Rate Generator Register

Name:

Access Type:

Reset State:

Offset:

US_BRGR

Read/Write

0

0x20

31

23

30

22

29

21

28

20

15 14 13 12

27

19

11

CD

7 6 5 4 3

CD

• CD: Clock Divisor

This register has no effect if Synchronous Mode is selected with an external clock.

2

26

18

10

1

CD

0

1

2 to 65535

Disables Clock

Clock Divisor bypass

Baud Rate (Asynchronous Mode) = Selected clock/(16 x CD)

Baud Rate (Synchronous Mode) = Selected clock/CD

Notes: 1. In Synchronous Mode, the value programmed must be even to ensure a 50:50 mark:space ratio.

2. Clock divisor bypass (CD = 1) must not be used when internal clock MCK is selected (USCLKS = 0).

25

17

9

24

16

8

0

153

1745D–ATARM–04-Nov-05

18.10.10 USART Receiver Time-out Register

Name:

Access Type:

Reset State:

Offset:

US_RTOR

Read/Write

0

0x24

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

11

3

27

19

10

2

26

18

TO

• TO: Time-out Value

When a value is written to this register, a Start Time-out Command is automatically performed.

9

1

25

17

8

0

24

16

TO

0

1 - 255

Disables the RX Time-out function.

The Time-out counter is loaded with TO when the Start Time-out Command is given or when each new data character is received (after reception has started).

Time-out duration = TO x 4 x Bit period

18.10.11 USART Transmitter Time-guard Register

Name:

Access Type:

Reset State:

Offset:

US_TTGR

Read/Write

0

0x28

31

30

29

28

23

15

7

22

14

6

21

13

5

20

12

4

27

19

11

3

26

18

10

2

TG

• TG: Time-guard Value

TG

0

1 - 255

Disables the TX Time-guard function.

TXD is inactive high after the transmission of each character for the time-guard duration.

Time-guard duration = TG x Bit period

25

17

9

1

154

AT91M55800A

24

16

8

0

1745D–ATARM–04-Nov-05

18.10.12 USART Receive Pointer Register

Name:

Access Type:

Reset State:

Offset:

US_RPR

Read/Write

0

0x30

31 30 29 28

RXPTR

23 22 21 20

RXPTR

15 14 13 12

RXPTR

7 6 5 4

RXPTR

• RXPTR: Receive Pointer

RXPTR must be loaded with the address of the receive buffer.

27

19

11

3

18.10.13 USART Receive Counter Register

Name:

Access Type:

Reset State:

Offset:

US_RCR

Read/Write

0

0x34

31

23

30

22

29

21

15 14 13

28

20

12

RXCTR

7 6 5 4

RXCTR

• RXCTR: Receive Counter

RXCTR must be loaded with the size of the receive buffer.

0 = Stop Peripheral Data Transfer dedicated to the receiver.

1 - 65535 = Start Peripheral Data transfer if RXRDY is active.

27

19

11

3

10

2

26

18

26

18

10

2

AT91M55800A

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

155

1745D–ATARM–04-Nov-05

18.10.14 USART Transmit Pointer Register

Name:

Access Type:

Reset State:

Offset:

US_TPR

Read/Write

0

0x38

31 30 29 28

TXPTR

23 22 21 20

TXPTR

15 14 13 12

TXPTR

7 6 5 4

TXPTR

• TXPTR: Transmit Pointer

TXPTR must be loaded with the address of the transmit buffer.

27

19

11

3

18.10.15 USART Transmit Counter Register

Name:

Access Type:

Reset State:

Offset:

US_TCR

Read/Write

0

0x3C

31

23

30

22

29

21

28

20

15 14 13 12

TXCTR

7 6 5 4

TXCTR

• TXCTR: Transmit Counter

TXCTR must be loaded with the size of the transmit buffer.

0: Stop Peripheral Data Transfer dedicated to the transmitter.

1 - 65535: Start Peripheral Data transfer if TXRDY is active.

11

3

27

19

10

2

26

18

26

18

10

2

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

156

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19. TC: Timer Counter

The AT91M55800A features two Timer Counter Blocks, each containing three identical 16-bit timer counter channels. Each channel can be independently programmed to perform a wide range of functions including frequency measurement, event counting, interval measurement, pulse generation, delay timing and pulse-width modulation.

Each Timer Counter channel has three external clock inputs, five internal clock inputs, and two multi-purpose input/output signals which can be configured by the user. Each channel drives an internal interrupt signal which can be programmed to generate processor interrupts via the

AIC (Advanced Interrupt Controller).

Each Timer Counter block has two global registers which act upon all three TC channels. The

Block Control Register allows the three channels to be started simultaneously with the same instruction. The Block Mode Register defines the external clock inputs for each Timer Counter channel, allowing them to be chained.

The internal configuration of a single Timer Counter Block is shown in Figure

Figure 19-1 on page 158 .

1745D–ATARM–04-Nov-05

157

Figure 19-1. TC Block Diagram

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

TCLK0

TCLK1

TCLK2

TIOA1

TIOA2

TCLK0

TCLK1

TCLK2

TIOA0

TIOA2

TCLK0

TCLK1

TCLK2

TIOA0

TIOA1

XC0

XC1

XC2

TC0XC0S

XC0

XC1

XC2

TC1XC1S

XC0

XC1

XC2

TC2XC2S

Timer Counter

Channel 0

TIOA

TIOB

SYNC

INT

TIOA0

TIOB0

Timer Counter

Channel 1

TIOA

TIOB

TIOA1

TIOB1

SYNC

INT

Timer Counter

Channel 2

TIOA

TIOB

TIOA2

TIOB2

SYNC

INT

Timer Counter Block

Advanced

Interrupt

Controller

Parallel IO

Controller

TCLK0

TCLK1

TCLK2

TIOA0

TIOB0

TIOA1

TIOB1

TIOA2

TIOB2

158

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.1

Signal Name Description

Table 19-1.

Signal Name Description

Channel Signals

XC0, XC1, XC2

TIOA

TIOB

INT

SYNC

Block 0 Signals

TCLK0, TCLK1, TCLK2

TIOA0

TIOB0

TIOA1

Description

External Clock Inputs

Capture Mode: General-purpose input

Waveform Mode: General-purpose output

Capture Mode: General-purpose input

Waveform Mode: General-purpose input/output

Interrupt signal output

Synchronization input signal

Description

External Clock Inputs for Channels 0, 1, 2

TIOA signal for Channel 0

TIOB signal for Channel 0

TIOA signal for Channel 1

TIOB signal for Channel 1

TIOA signal for Channel 2

TIOB1

TIOA2

TIOB2

Block 1 Signals

TCLK3, TCLK4, TCLK5

TIOA3

TIOB3

TIOA4

TIOB signal for Channel 2

Description

External Clock Inputs for Channels 3, 4, 5

TIOA signal for Channel 3

TIOB signal for Channel 3

TIOA signal for Channel 4

TIOB4

TIOA5

TIOB signal for Channel 4

TIOA signal for Channel 5

TIOB5 TIOB signal for Channel 5

Notes:

1. After a hardware reset, the TC clock is disabled by default ( See “APMC: Advanced Power Management Controller” on page

52.

). The user must configure the Power Management Controller before any access to the User Interface of the TC.

2. After a hardware reset, the Timer Counter block pins are controlled by the PIO Controller. They must be configured to be controlled by the peripheral before being used.

159

1745D–ATARM–04-Nov-05

19.2

Timer Counter Description

Each Timer Counter channel is identical in operation. The registers for channel programming are listed in

Table 19-1 on page 159

.

19.2.1

Counter

Each Timer Counter channel is organized around a 16-bit counter. The value of the counter is incremented at each positive edge of the input clock. When the counter reaches the value

0xFFFF and passes to 0x0000, an overflow occurs and the bit COVFS in TC_SR (Status Register) is set.

The current value of the counter is accessible in real-time by reading TC_CV. The counter can be reset by a trigger. In this case, the counter value passes to 0x0000 on the next valid edge of the clock.

19.2.2

Clock Selection

At block level, input clock signals of each channel can either be connected to the external inputs TCLK0, TCLK1 or TCLK2, or be connected to the configurable I/O signals TIOA0,

TIOA1 or TIOA2 for chaining by programming the TC_BMR (Block Mode).

Each channel can independently select an internal or external clock source for its counter:

• Internal clock signals: MCK/2, MCK/8, MCK/32, MCK/128, MCK/1024

• External clock signals: XC0, XC1 or XC2

The selected clock can be inverted with the CLKI bit in TC_CMR (Channel Mode). This allows counting on the opposite edges of the clock.

The burst function allows the clock to be validated when an external signal is high. The

BURST parameter in the Mode Register defines this signal (none, XC0, XC1, XC2).

Note: In all cases, if an external clock is used, the duration of each of its levels must be longer than the system clock (MCK) period. The external clock frequency must be at least 2.5 times lower than the system clock.

Figure 19-2. Clock Selection

CLKS

CLKI

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

Selected

Clock

BURST

1

160

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.2.3

Clock Control

The clock of each counter can be controlled in two different ways: it can be enabled/disabled and started/stopped.

• The clock can be enabled or disabled by the user with the CLKEN and the CLKDIS commands in the Control Register. In Capture Mode it can be disabled by an RB load event if LDBDIS is set to 1 in TC_CMR. In Waveform Mode, it can be disabled by an RC Compare event if CPCDIS is set to 1 in TC_CMR. When disabled, the start or the stop actions have no effect: only a CLKEN command in the Control Register can re-enable the clock. When the clock is enabled, the CLKSTA bit is set in the Status Register.

• The clock can also be started or stopped: a trigger (software, synchro, external or compare) always starts the clock. The clock can be stopped by an RB load event in

Capture Mode (LDBSTOP = 1 in TC_CMR) or a RC compare event in Waveform Mode

(CPCSTOP = 1 in TC_CMR). The start and the stop commands have effect only if the clock is enabled.

Figure 19-3. Clock Control

Selected

Clock

Trigger

CLKSTA CLKEN CLKDIS

Q S

R

Q S

R

Stop

Event

Disable

Event

Counter

Clock

19.2.4

19.2.5

Timer Counter Operating Modes

Each Timer Counter channel can independently operate in two different modes:

• Capture Mode allows measurement on signals

• Waveform Mode allows wave generation

The Timer Counter Mode is programmed with the WAVE bit in the TC Mode Register. In Capture Mode, TIOA and TIOB are configured as inputs. In Waveform Mode, TIOA is always configured to be an output and TIOB is an output if it is not selected to be the external trigger.

Trigger

A trigger resets the counter and starts the counter clock. Three types of triggers are common to both modes, and a fourth external trigger is available to each mode.

The following triggers are common to both modes:

161

1745D–ATARM–04-Nov-05

• Software Trigger: Each channel has a software trigger, available by setting SWTRG in

TC_CCR.

• SYNC: Each channel has a synchronization signal SYNC. When asserted, this signal has the same effect as a software trigger. The SYNC signals of all channels are asserted simultaneously by writing TC_BCR (Block Control) with SYNC set.

• Compare RC Trigger: RC is implemented in each channel and can provide a trigger when the counter value matches the RC value if CPCTRG is set in TC_CMR.

The Timer Counter channel can also be configured to have an external trigger. In Capture

Mode, the external trigger signal can be selected between TIOA and TIOB. In Waveform

Mode, an external event can be programmed on one of the following signals: TIOB, XC0, XC1 or XC2. This external event can then be programmed to perform a trigger by setting ENETRG in TC_CMR.

If an external trigger is used, the duration of the pulses must be longer than the system clock

(MCK) period in order to be detected.

162

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.3

Capture Operating Mode

This mode is entered by clearing the WAVE parameter in TC_CMR (Channel Mode Register).

Capture Mode allows the TC Channel to perform measurements such as pulse timing, frequency, period, duty cycle and phase on TIOA and TIOB signals which are considered as input.

Figure 19-4 shows the configuration of the TC Channel when programmed in Capture Mode.

19.3.1

19.3.2

19.3.3

Capture Registers A and B (RA and RB)

Registers A and B are used as capture registers. This means that they can be loaded with the counter value when a programmable event occurs on the signal TIOA.

The parameter LDRA in TC_CMR defines the TIOA edge for the loading of register A, and the parameter LDRB defines the TIOA edge for the loading of Register B.

RA is loaded only if it has not been loaded since the last trigger or if RB has been loaded since the last loading of RA.

RB is loaded only if RA has been loaded since the last trigger or the last loading of RB.

Loading RA or RB before the read of the last value loaded sets the Overrun Error Flag

(LOVRS) in TC_SR (Status Register). In this case, the old value is overwritten.

Trigger Conditions

In addition to the SYNC signal, the software trigger and the RC compare trigger, an external trigger can be defined.

Bit ABETRG in TC_CMR selects input signal TIOA or TIOB as an external trigger. Parameter

ETRGEDG defines the edge (rising, falling or both) detected to generate an external trigger. If

ETRGEDG = 0 (none), the external trigger is disabled.

Status Register

The following bits in the status register are significant in Capture Operating Mode:

• CPCS: RC Compare Status

There has been an RC Compare match at least once since the last read of the status

• COVFS: Counter Overflow Status

The counter has attempted to count past $FFFF since the last read of the status

• LOVRS: Load Overrun Status

RA or RB has been loaded at least twice without any read of the corresponding register, since the last read of the status

• LDRAS: Load RA Status

RA has been loaded at least once without any read, since the last read of the status

• LDRBS: Load RB Status

RB has been loaded at least once without any read, since the last read of the status

• ETRGS: External Trigger Status

An external trigger on TIOA or TIOB has been detected since the last read of the status

163

1745D–ATARM–04-Nov-05

Figure 19-4. Capture Mode

CPCS

LOVRS

COVFS

LDRBS

LDRAS

ETRGS

TC_SR

TC_IMR

164

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.4

Waveform Operating Mode

This mode is entered by setting the WAVE parameter in TC_CMR (Channel Mode Register).

Waveform Operating Mode allows the TC Channel to generate 1 or 2 PWM signals with the same frequency and independently programmable duty cycles, or to generate different types of one-shot or repetitive pulses.

In this mode, TIOA is configured as output and TIOB is defined as output if it is not used as an external event (EEVT parameter in TC_CMR).

Figure 19-5 shows the configuration of the TC Channel when programmed in Waveform Oper-

ating Mode.

19.4.1

Compare Register A, B and C (RA, RB and RC)

In Waveform Operating Mode, RA, RB and RC are all used as compare registers.

RA Compare is used to control the TIOA output. RB Compare is used to control the TIOB (if configured as output). RC Compare can be programmed to control TIOA and/or TIOB outputs.

RC Compare can also stop the counter clock (CPCSTOP = 1 in TC_CMR) and/or disable the counter clock (CPCDIS = 1 in TC_CMR).

As in Capture Mode, RC Compare can also generate a trigger if CPCTRG = 1. Trigger resets the counter so RC can control the period of PWM waveforms.

19.4.2

19.4.3

External Event/Trigger Conditions

An external event can be programmed to be detected on one of the clock sources (XC0, XC1,

XC2) or TIOB. The external event selected can then be used as a trigger.

The parameter EEVT in TC_CMR selects the external trigger. The parameter EEVTEDG defines the trigger edge for each of the possible external triggers (rising, falling or both). If

EEVTEDG is cleared (none), no external event is defined.

If TIOB is defined as an external event signal (EEVT = 0), TIOB is no longer used as output and the TC channel can only generate a waveform on TIOA.

When an external event is defined, it can be used as a trigger by setting bit ENETRG in

TC_CMR.

As in Capture Mode, the SYNC signal, the software trigger and the RC compare trigger are also available as triggers.

Output Controller

The output controller defines the output level changes on TIOA and TIOB following an event.

TIOB control is used only if TIOB is defined as output (not as an external event).

The following events control TIOA and TIOB: software trigger, external event and RC compare. RA compare controls TIOA and RB compare controls TIOB. Each of these events can be programmed to set, clear or toggle the output as defined in the corresponding parameter in

TC_CMR.

165

1745D–ATARM–04-Nov-05

19.4.4

Status

The tables below show which parameter in TC_CMR is used to define the effect of each event.

Parameter

ASWTRG

AEEVT

ACPC

ACPA

TIOA Event

Software trigger

External event

RC compare

RA compare

Parameter

BSWTRG

BEEVT

BCPC

BCPB

TIOB Event

Software trigger

External event

RC compare

RB compare

If two or more events occur at the same time, the priority level is defined as follows:

1.

Software trigger

2.

External event

3.

RC compare

4.

RA or RB compare

The following bits in the status register are significant in Waveform Mode:

• CPAS: RA Compare Status

There has been a RA Compare match at least once since the last read of the status

• CPBS: RB Compare Status

There has been a RB Compare match at least once since the last read of the status

• CPCS: RC Compare Status

There has been a RC Compare match at least once since the last read of the status

• COVFS: Counter Overflow

Counter has attempted to count past $FFFF since the last read of the status

• ETRGS: External Trigger

External trigger has been detected since the last read of the status

166

AT91M55800A

1745D–ATARM–04-Nov-05

Figure 19-5. Waveform Mode

Output Controller Output Controller

AT91M55800A

CPCS

CPBS

CPAS

COVFS

ETRGS

TC_SR

TC_IMR

167

1745D–ATARM–04-Nov-05

19.5

TC User Interface

TC Block 0 Base Address: 0xFFFD0000 (Code Label

TCB0_BASE

)

TC Block 1 Base Address: 0xFFFD4000 (Code Label

TCB1_BASE

)

Table 19-2.

TC Global Memory Map

Offset

0x00

Channel/Register

TC Channel 0

0x40

0x80

0xC0

0xC4

TC Channel 1

TC Channel 2

TC Block Control Register

TC Block Mode Register

Name

TC_BCR

TC_BMR

Access

See Table 19-3

See Table 19-3

See Table 19-3

Write-only

Read/Write

Reset State

0

TC_BCR (Block Control Register) and TC_BMR (Block Mode Register) control the TC block. TC Channels are controlled

by the registers listed in Table 19-3. The offset of each of the Channel registers in Table 19-3 is in relation to the offset of the corresponding channel as mentioned in Table 19-2.

Table 19-3.

TC Channel Memory Map

Offset Register

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Channel Control Register

Channel Mode Register

Reserved

Reserved

Counter Value

Register A

Register B

Register C

0x20

0x24

Status Register

Interrupt Enable Register

0x28 Interrupt Disable Register

0x2C Interrupt Mask Register

Note: 1. Read-only if WAVE = 0

Name

TC_CCR

TC_CMR

TC_CV

TC_RA

TC_RB

TC_RC

TC_SR

TC_IER

TC_IDR

TC_IMR

Write-only

Read/Write

Read/Write

Read/Write

(1)

Read/Write

(1)

Read/Write

Read-only

Write-only

Write-only

Read-only

0

0

0

0

0

0

168

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.5.1

TC Block Control Register

Register Name:

Access Type:

Offset:

TC_BCR

Write-only

0xC0

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

• SYNC: Synchro Command (Code Label

TC_SYNC

)

0 = No effect.

1 = Asserts the SYNC signal which generates a software trigger simultaneously for each of the channels.

24

16

8

0

SYNC

1745D–ATARM–04-Nov-05

169

19.5.2

TC Block Mode Register

Register Name:

Access Type:

Reset State:

Offset:

TC_BMR

Read/Write

0

0xC4

31

23

30

22

29

21

15

7

14

6

13

5

TC2XC2S

12

4

28

20

• TC0XC0S: External Clock Signal 0 Selection

1

1

0

0

TC0XC0S

0

1

0

1

Signal Connected to XC0

TCLK0

None

TIOA1

TIOA2

• TC1XC1S: External Clock Signal 1 Selection

0

0

1

1

TC1XC1S

0

1

0

1

Signal Connected to XC1

TCLK1

None

TIOA0

TIOA2

• TC2XC2S: External Clock Signal 2 Selection

1

1

0

0

TC2XC2S

0

1

0

1

Signal Connected to XC2

TCLK2

None

TIOA0

TIOA1

11

3

27

19

TC1XC1S

10

2

26

18

9

1

25

17

TC0XC0S

8

0

24

16

Code Label:

TC_TC0XC0S

TC_TCLK0XC0

TC_NONEXC0

TC_TIOA1XC0

TC_TIOA2XC0

Code Label:

TC_TC1XC1S

TC_TCLK1XC1

TC_NONEXC1

TC_TIOA0XC1

TC_TIOA2XC1

Code Label:

TC_TC2XC2S

TC_TCLK2XC2

TC_NONEXC2

TC_TIOA0XC2

TC_TIOA1XC2

170

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.5.3

TC Channel Control Register

Register Name:

Access Type:

Offset:

TC_CCR

Write-only

0x00

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

• CLKEN: Counter Clock Enable Command (Code Label

TC_CLKEN

)

0 = No effect.

1 = Enables the clock if CLKDIS is not 1.

• CLKDIS: Counter Clock Disable Command (Code Label

TC_CLKDIS

)

0 = No effect.

1 = Disables the clock.

• SWTRG: Software Trigger Command (Code Label

TC_SWTRG

)

0 = No effect.

1 = A software trigger is performed: the counter is reset and clock is started.

26

18

10

2

SWTRG

25

17

9

1

CLKDIS

24

16

8

0

CLKEN

171

1745D–ATARM–04-Nov-05

19.5.4

TC Channel Mode Register: Capture Mode

Register Name:

Access Type:

Reset State:

Offset:

TC_CMR

Read/Write

0

0x04

31

23

30

22

29

21

28

20

15

WAVE=0

7

LDBDIS

14

CPCTRG

6

LDBSTOP

13

5

BURST

12

4

• TCCLKS: Clock Selection

1

1

0

1

1

0

0

0

TCCLKS

0

0

1

0

1

1

0

1

1

0

1

0

1

0

1

0

Clock Selected

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

• CLKI: Clock Invert (Code Label

TC_CLKI

)

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

27

19

11

3

CLKI

26

18

LDRB

10

ABETRG

2

25

17

LDRA

9

1

TCCLKS

ETRGEDG

24

16

8

0

Code Label:

TC_CLKS

TC_CLKS_MCK2

TC_CLKS_MCK8

TC_CLKS_MCK32

TC_CLKS_MCK128

TC_CLKS_MCK1024

TC_CLKS_XC0

TC_CLKS_XC1

TC_CLKS_XC2

0

0

1

1

BURST

0

1

0

1

Selected BURST

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

• LDBSTOP: Counter Clock Stopped with RB Loading (Code Label

TC_LDBSTOP

)

0 = Counter clock is not stopped when RB loading occurs.

1 = Counter clock is stopped when RB loading occurs.

• LDBDIS: Counter Clock Disable with RB Loading (Code Label

TC_LDBDIS

)

0 = Counter clock is not disabled when RB loading occurs.

1 = Counter clock is disabled when RB loading occurs.

Code Label:

TC_BURST

TC_BURST_NONE

TC_BURST_XC0

TC_BURST_XC1

TC_BURST_XC2

172

AT91M55800A

1745D–ATARM–04-Nov-05

• ETRGEDG: External Trigger Edge Selection

1

1

0

0

ETRGEDG

0

1

0

1

Edge

None

Rising edge

Falling edge

Each edge

• ABETRG: TIOA or TIOB External Trigger Selection

ABETRG

0

1

Selected ABETRG

TIOB is used as an external trigger.

TIOA is used as an external trigger.

• CPCTRG: RC Compare Trigger Enable (Code Label

TC_CPCTRG

)

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE = 0 (Code Label

TC_WAVE

)

0 = Capture Mode is enabled.

1 = Capture Mode is disabled (Waveform Mode is enabled).

• LDRA: RA Loading Selection

LDRA

1

1

0

0

0

1

0

1

• LDRB: RB Loading Selection

Edge

None

Rising edge of TIOA

Falling edge of TIOA

Each edge of TIOA

0

0

1

1

LDRB

0

1

0

1

Edge

None

Rising edge of TIOA

Falling edge of TIOA

Each edge of TIOA

AT91M55800A

Code Label:

TC_ETRGEDG

TC_ETRGEDG_EDGE_NONE

TC_ETRGEDG_RISING_EDGE

TC_ETRGEDG_FALLING_EDGE

TC_ETRGEDG_BOTH_EDGE

Code Label:

TC_ABETRG

TC_ABETRG_TIOB

TC_ABETRG_TIOA

Code Label:

TC_LDRA

TC_LDRA_EDGE_NONE

TC_LDRA_RISING_EDGE

TC_LDRA_FALLING_EDGE

TC_LDRA_BOTH_EDGE

Code Label:

TC_LDRB

TC_LDRB_EDGE_NONE

TC_LDRB_RISING_EDGE

TC_LDRB_FALLING_EDGE

TC_LDRB_BOTH_EDGE

173

1745D–ATARM–04-Nov-05

19.5.5

TC Channel Mode Register: Waveform Mode

Register Name:

Access Type:

Reset State:

Offset:

TC_CMR

Read/Write

0

0x4

29 31 30

BSWTRG

23 22

15

WAVE=1

7

CPCDIS

ASWTRG

14

CPCTRG

6

CPCSTOP

21

13

5

28

BEEVT

20

AEEVT

BURST

12

ENETRG

4

• TCCLKS: Clock Selection

1

1

0

1

1

0

0

0

TCCLKS

0

0

1

0

1

1

0

1

1

0

1

0

1

0

1

0

Clock Selected

MCK/2

MCK/8

MCK/32

MCK/128

MCK/1024

XC0

XC1

XC2

• CLKI: Clock Invert (Code Label

TC_CLKI

)

0 = Counter is incremented on rising edge of the clock.

1 = Counter is incremented on falling edge of the clock.

• BURST: Burst Signal Selection

27

19

11

3

CLKI

BCPC

ACPC

EEVT

26

18

10

2

25 24

BCPB

17

ACPA

9

1

TCCLKS

EEVTEDG

16

8

0

Code Label:

TC_CLKS

TC_CLKS_MCK2

TC_CLKS_MCK8

TC_CLKS_MCK32

TC_CLKS_MCK128

TC_CLKS_MCK1024

TC_CLKS_XC0

TC_CLKS_XC1

TC_CLKS_XC2

0

0

1

1

BURST

0

1

0

1

Selected BURST

The clock is not gated by an external signal.

XC0 is ANDed with the selected clock.

XC1 is ANDed with the selected clock.

XC2 is ANDed with the selected clock.

Code Label:

TC_BURST

TC_BURST_NONE

TC_BURST_XC0

TC_BURST_XC1

TC_BURST_XC2

• CPCSTOP: Counter Clock Stopped with RC Compare (Code Label

TC_CPCSTOP

)

0 = Counter clock is not stopped when counter reaches RC.

1 = Counter clock is stopped when counter reaches RC.

• CPCDIS: Counter Clock Disable with RC Compare (Code Label

TC_CPCDIS

)

0 = Counter clock is not disabled when counter reaches RC.

1 = Counter clock is disabled when counter reaches RC.

174

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

• EEVTEDG: External Event Edge Selection

1

1

0

0

EEVTEDG

0

1

0

1

Edge

None

Rising edge

Falling edge

Each edge

• EEVT: External Event Selection

Code Label:

TC_EEVTEDG

TC_EEVTEDG_EDGE_NONE

TC_EEVTEDG_RISING_EDGE

TC_EEVTEDG_FALLING_EDGE

TC_EEVTEDG_BOTH_EDGE

0

0

EEVT

0

1

Signal Selected as

External Event

TIOB

XC0

TIOB Direction

Input

(1)

Output

Code Label:

TC_EEVT

TC_EEVT_TIOB

TC_EEVT_XC0

1 0 XC1 Output

TC_EEVT_XC1

1 1 XC2 Output

TC_EEVT_XC2

Note: If TIOB is chosen as the external event signal, it is configured as an input and no longer generates waveforms.

• ENETRG: External Event Trigger Enable (Code Label

TC_ENETRG

)

0 = The external event has no effect on the counter and its clock. In this case, the selected external event only controls the

TIOA output.

1 = The external event resets the counter and starts the counter clock.

• CPCTRG: RC Compare Trigger Enable (Code Label

TC_CPCTRG

)

0 = RC Compare has no effect on the counter and its clock.

1 = RC Compare resets the counter and starts the counter clock.

• WAVE = 1 (Code Label

TC_WAVE

)

0 = Waveform Mode is disabled (Capture Mode is enabled).

1 = Waveform Mode is enabled.

• ACPA: RA Compare Effect on TIOA

0

0

1

1

ACPA

0

1

0

1

Effect

None

Set

Clear

Toggle

• ACPC: RC Compare Effect on TIOA

Code Label:

TC_ACPA

TC_ACPA_OUTPUT_NONE

TC_ACPA_SET_OUTPUT

TC_ACPA_CLEAR_OUTPUT

TC_ACPA_TOGGLE_OUTPUT

1

1

0

0

ACPC

0

1

0

1

Effect

None

Set

Clear

Toggle

Code Label:

TC_ACPC

TC_ACPC_OUTPUT_NONE

TC_ACPC_SET_OUTPUT

TC_ACPC_CLEAR_OUTPUT

TC_ACPC_TOGGLE_OUTPUT

175

1745D–ATARM–04-Nov-05

• AEEVT: External Event Effect on TIOA

1

1

0

0

AEEVT

0

1

0

1

Effect

None

Set

Clear

Toggle

• ASWTRG: Software Trigger Effect on TIOA

0

0

1

1

ASWTRG

0

1

0

1

Effect

None

Set

Clear

Toggle

• BCPB: RB Compare Effect on TIOB

1

1

0

0

BCPB

0

1

0

1

Effect

None

Set

Clear

Toggle

• BCPC: RC Compare Effect on TIOB

0

0

1

1

BCPC

0

1

0

1

Effect

None

Set

Clear

Toggle

• BEEVT: External Event Effect on TIOB

1

1

0

0

BEEVT

0

1

0

1

Effect

None

Set

Clear

Toggle

176

AT91M55800A

Code Label:

TC_AEEVT

TC_AEEVT_OUTPUT_NONE

TC_AEEVT_SET_OUTPUT

TC_AEEVT_CLEAR_OUTPUT

TC_AEEVT_TOGGLE_OUTPUT

Code Label:

TC_ASWTRG

TC_ASWTRG_OUTPUT_NONE

TC_ASWTRG_SET_OUTPUT

TC_ASWTRG_CLEAR_OUTPUT

TC_ASWTRG_TOGGLE_OUTPUT

Code Label:

TC_BCPB

TC_BCPB_OUTPUT_NONE

TC_BCPB_SET_OUTPUT

TC_BCPB_CLEAR_OUTPUT

TC_BCPB_TOGGLE_OUTPUT

Code Label:

TC_BCPC

TC_BCPC_OUTPUT_NONE

TC_BCPC_SET_OUTPUT

TC_BCPC_CLEAR_OUTPUT

TC_BCPC_TOGGLE_OUTPUT

Code Label:

TC_BEEVT

TC_BEEVT_OUTPUT_NONE

TC_BEEVT_SET_OUTPUT

TC_BEEVT_CLEAR_OUTPUT

TC_BEEVT_TOGGLE_OUTPUT

1745D–ATARM–04-Nov-05

• BSWTRG: Software Trigger Effect on TIOB

1

1

0

0

BSWTRG

0

1

0

1

Effect

None

Set

Clear

Toggle

AT91M55800A

Code Label:

TC_BSWTRG

TC_BSWTRG_OUTPUT_NONE

TC_BSWTRG_SET_OUTPUT

TC_BSWTRG_CLEAR_OUTPUT

TC_BSWTRG_TOGGLE_OUTPUT

1745D–ATARM–04-Nov-05

177

19.5.6

TC Counter Value Register

Register Name:

Access Type:

Reset State:

Offset:

TC_CVR

Read-only

0

0x10

31

23

30

22

29

21

15 14 13

7 6 5

• CV: Counter Value (Code Label

TC_CV

)

CV contains the counter value in real-time.

28

20

12

4

CV

CV

27

19

11

3

19.5.7

TC Register A

Register Name:

Access Type:

Reset State:

Offset:

TC_RA

Read-only if WAVE = 0, Read/Write if WAVE = 1

0

0x14

31

23

30

22

29

21

28

20

27

19

15 14 13 12 11

RA

7 6 5 4 3

RA

• RA: Register A (Code Label

TC_RA

)

RA contains the Register A value in real-time.

26

18

10

2

26

18

10

2

25

17

9

1

24

16

8

0

25

17

9

1

24

16

8

0

178

AT91M55800A

1745D–ATARM–04-Nov-05

19.5.8

TC Register B

Register Name:

Access Type:

Reset State:

Offset:

TC_RB

Read-only if WAVE = 0, Read/Write if WAVE = 1

0

0x18

31

23

30

22

29

21

28

20

27

19

15 14 13 12 11

RB

7 6 5 4 3

RB

• RB: Register B (Code Label

TC_RB

)

RB contains the Register B value in real-time.

19.5.9

TC Register C

Register Name:

Access Type:

Reset State:

Offset:

TC_RC

Read/Write

0

0x1C

31

23

30

22

15 14

29

21

13

7 6 5

• RC: Register C (Code Label

TC_RC

)

RC contains the Register C value in real-time.

28

20

12

4

RC

RC

27

19

11

3

26

18

10

2

26

18

10

2

AT91M55800A

25

17

9

1

25

17

9

1

24

16

8

0

24

16

8

0

179

1745D–ATARM–04-Nov-05

19.5.10

TC Status Register

Register Name:

Access Type:

Offset:

TC_SR

Read/Write

0x20

31

30

23

15

7

ETRGS

22

14

6

LDRBS

29

21

13

5

LDRAS

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

MTIOB

10

2

CPAS

25

17

MTIOA

9

1

LOVRS

24

16

CLKSTA

8

0

COVFS

• COVFS: Counter Overflow Status (Code Label

TC_COVFS

)

0 = No counter overflow has occurred since the last read of the Status Register.

1 = A counter overflow has occurred since the last read of the Status Register.

• LOVRS: Load Overrun Status (Code Label

TC_LOVRS

)

0 = Load overrun has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA or RB have been loaded at least twice without any read of the corresponding register since the last read of the Status Register, if WAVE = 0.

• CPAS: RA Compare Status (Code Label

TC_CPAS

)

0 = RA Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RA Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPBS: RB Compare Status (Code Label

TC_CPBS

)

0 = RB Compare has not occurred since the last read of the Status Register or WAVE = 0.

1 = RB Compare has occurred since the last read of the Status Register, if WAVE = 1.

• CPCS: RC Compare Status (Code Label

TC_CPCS

)

0 = RC Compare has not occurred since the last read of the Status Register.

1 = RC Compare has occurred since the last read of the Status Register.

• LDRAS: RA Loading Status (Code Label

TC_LDRAS

)

0 = RA Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RA Load has occurred since the last read of the Status Register, if WAVE = 0.

• LDRBS: RB Loading Status (Code Label

TC_LDRBS

)

0 = RB Load has not occurred since the last read of the Status Register or WAVE = 1.

1 = RB Load has occurred since the last read of the Status Register, if WAVE = 0.

• ETRGS: External Trigger Status (Code Label

TC_ETRGS

)

0 = External trigger has not occurred since the last read of the Status Register.

1 = External trigger has occurred since the last read of the Status Register.

• CLKSTA: Clock Enabling Status (Code Label

TC_CLKSTA

)

0 = Clock is disabled.

1 = Clock is enabled.

• MTIOA: TIOA Mirror (Code Label

TC_MTIOA

)

0 = TIOA is low. If WAVE = 0, this means that TIOA pin is low. If WAVE = 1, this means that TIOA is driven low.

1 = TIOA is high. If WAVE = 0, this means that TIOA pin is high. If WAVE = 1, this means that TIOA is driven high.

180

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

• MTIOB: TIOB Mirror (Code Label

TC_MTIOB

)

0 = TIOB is low. If WAVE = 0, this means that TIOB pin is low. If WAVE = 1, this means that TIOB is driven low.

1 = TIOB is high. If WAVE = 0, this means that TIOB pin is high. If WAVE = 1, this means that TIOB is driven high.

1745D–ATARM–04-Nov-05

181

19.5.11

TC Interrupt Enable Register

Register Name:

Access Type:

Offset:

TC_IER

Write-only

0x24

31

30

29

23

15

7

ETRGS

22

14

6

LDRBS

21

13

5

LDRAS

• COVFS: Counter Overflow (Code Label

TC_COVFS

)

0 = No effect.

1 = Enables the Counter Overflow Interrupt.

• LOVRS: Load Overrun (Code Label

TC_LOVRS

)

0 = No effect.

1: Enables the Load Overrun Interrupt.

• CPAS: RA Compare (Code Label

TC_CPAS

)

0 = No effect.

1 = Enables the RA Compare Interrupt.

• CPBS: RB Compare (Code Label

TC_CPBS

)

0 = No effect.

1 = Enables the RB Compare Interrupt.

• CPCS: RC Compare (Code Label

TC_CPCS

)

0 = No effect.

1 = Enables the RC Compare Interrupt.

• LDRAS: RA Loading (Code Label

TC_LDRAS

)

0 = No effect.

1 = Enables the RA Load Interrupt.

• LDRBS: RB Loading (Code Label

TC_LDRBS

)

0 = No effect.

1 = Enables the RB Load Interrupt.

• ETRGS: External Trigger (Code Label

TC_ETRGS

)

0 = No effect.

1 = Enables the External Trigger Interrupt.

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

10

2

CPAS

25

17

9

1

LOVRS

24

16

8

0

COVFS

182

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

19.5.12

TC Interrupt Disable Register

Register Name:

Access Type:

Offset:

TC_IDR

Write-only

0x28

31

30

29

23

15

7

ETRGS

22

14

6

LDRBS

21

13

5

LDRAS

• COVFS: Counter Overflow (Code Label

TC_COVFS

)

0 = No effect.

1 = Disables the Counter Overflow Interrupt.

• LOVRS: Load Overrun (Code Label

TC_LOVRS

)

0 = No effect.

1 = Disables the Load Overrun Interrupt (if WAVE = 0).

• CPAS: RA Compare (Code Label

TC_CPAS

)

0 = No effect.

1 = Disables the RA Compare Interrupt (if WAVE = 1).

• CPBS: RB Compare (Code Label

TC_CPBS

)

0 = No effect.

1 = Disables the RB Compare Interrupt (if WAVE = 1).

• CPCS: RC Compare (Code Label

TC_CPCS

)

0 = No effect.

1 = Disables the RC Compare Interrupt.

• LDRAS: RA Loading (Code Label

TC_LDRAS

)

0 = No effect.

1 = Disables the RA Load Interrupt (if WAVE = 0).

• LDRBS: RB Loading (Code Label

TC_LDRBS

)

0 = No effect.

1 = Disables the RB Load Interrupt (if WAVE = 0).

• ETRGS: External Trigger (Code Label

TC_ETRGS

)

0 = No effect.

1 = Disables the External Trigger Interrupt.

28

20

12

4

CPCS

27

19

11

3

CPBS

26

18

10

2

CPAS

25

17

9

1

LOVRS

24

16

8

0

COVFS

183

1745D–ATARM–04-Nov-05

19.5.13

TC Interrupt Mask Register

Register Name:

Access Type:

Reset State:

Offset:

TC_IMR

Read-only

0

0x2C

31

23

30

22

15

7

ETRGS

14

6

LDRBS

29

21

13

5

LDRAS

• COVFS: Counter Overflow (Code Label

TC_COVFS

)

0 = The Counter Overflow Interrupt is disabled.

1 = The Counter Overflow Interrupt is enabled.

• LOVRS: Load Overrun (Code Label

TC_LOVRS

)

0 = The Load Overrun Interrupt is disabled.

1 = The Load Overrun Interrupt is enabled.

• CPAS: RA Compare (Code Label

TC_CPAS

)

0 = The RA Compare Interrupt is disabled.

1 = The RA Compare Interrupt is enabled.

• CPBS: RB Compare (Code Label

TC_CPBS

)

0 = The RB Compare Interrupt is disabled.

1 = The RB Compare Interrupt is enabled.

• CPCS: RC Compare (Code Label

TC_CPCS

)

0 = The RC Compare Interrupt is disabled.

1 = The RC Compare Interrupt is enabled.

• LDRAS: RA Loading (Code Label

TC_LDRAS

)

0 = The Load RA Interrupt is disabled.

1 = The Load RA Interrupt is enabled.

• LDRBS: RB Loading (Code Label

TC_LDRBS

)

0 = The Load RB Interrupt is disabled.

1 = The Load RB Interrupt is enabled.

• ETRGS: External Trigger (Code Label

TC_ETRGS

)

0 = The External Trigger Interrupt is disabled.

1 = The External Trigger Interrupt is enabled.

28

20

12

4

CPCS

27

19

11

3

CPBS

10

2

CPAS

26

18

25

17

9

1

LOVRS

24

16

8

0

COVFS

184

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20. SPI: Serial Peripheral Interface

The AT91M55800A includes an SPI which provides communication with external devices in master or slave mode.

The SPI has four external chip selects which can be connected to up to 15 devices. The data length is programmable, from 8- to 16-bit.

As for the USART, a 2-channel PDC can be used to move data between memory and the SPI without CPU intervention.

20.1

Pin Description

Seven pins are associated with the SPI Interface. When not needed for the SPI function, each of these pins can be configured as a PIO.

Support for an external master is provided by the PIO Controller Multi-driver option. To configure an SPI pin as open-drain to support external drivers, set the corresponding bits in the

PIO_MDSR register (see ).

An input filter can be enabled on the SPI input pins by setting the corresponding bits in the

PIO_IFSR.

The NPCS0/NSS pin can function as a peripheral chip select output or slave select input.

Refer to Table 1 for a description of the SPI pins.

Figure 2. SPI Block Diagram

MCK

MCK/32

Serial Peripheral Interface

Parallel IO

Controller

APB

INT

MISO

MOSI

SPCK

NPCS0/NSS

NPCS1

NPCS2

NPCS3

MISO

MOSI

SPCK

NPCS0/NSS

NPCS1

NPCS2

NPCS3

Advanced

Interrupt Controller

185

1745D–ATARM–04-Nov-05

Table 1. SPI Pins

Pin Name

Master In Slave Out

Mnemonic

MISO

Mode

Master

Slave

Function

Serial data input to SPI

Serial data output from SPI

Master Out Slave In

Serial Clock

MOSI

SPCK

Master

Slave

Master

Slave

Serial data output from SPI

Serial data input to SPI

Clock output from SPI

Clock input to SPI

Peripheral Chip Selects NPCS[3:1] Master Select peripherals

Peripheral Chip Select/

Slave Select

NPCS0/

NSS

Master

Master

Slave

Output: Selects peripheral

Input: low causes mode fault

Input: chip select for SPI

Notes: 1. After a hardware reset, the SPI clock is disabled by default. The user must configure the Power Management Controller before any access to the User Interface of the SPI.

2. After a hardware reset, the SPI pins are deselected by default (see Section 16. ”PIO: Parallel I/O Controller” on page 112 ).

The user must configure the PIO Controller to enable the corresponding pins for their SPI function. NPCS0/NSS must be configured as open drain in the Parallel I/O Controller for multi-master operation.

20.2

Master Mode

20.2.1

In Master Mode, the SPI controls data transfers to and from the slave(s) connected to the SPI bus. The SPI drives the chip select(s) to the slave(s) and the serial clock (SPCK). After enabling the SPI, a data transfer begins when the ARM core writes to the SP_TDR (Transmit

Data Register).

Transmit and Receive buffers maintain the data flow at a constant rate with a reduced requirement for high priority interrupt servicing. When new data is available in the SP_TDR (Transmit

Data Register) the SPI continues to transfer data. If the SP_RDR (Receive Data Register) has not been read before new data is received, the Overrun Error (OVRES) flag is set.

The delay between the activation of the chip select and the start of the data transfer (DLYBS) as well as the delay between each data transfer (DLYBCT) can be programmed for each of the four external chip selects. All data transfer characteristics including the two timing values

are programmed in registers SP_CSR0 to SP_CSR3 (Chip Select Registers). See Table 20-1.

In master mode the peripheral selection can be defined in two different ways:

• Fixed Peripheral Select: SPI exchanges data with only one peripheral

• Variable Peripheral Select: Data can be exchanged with more than one peripheral

Figures 20-1 and 20-2 show the operation of the SPI in Master Mode. For details concerning

the flag and control bits in these diagrams, see the tables in the Programmer’s Model, starting

on page 193.

Fixed Peripheral Select

This mode is ideal for transferring memory blocks without the extra overhead in the transmit data register to determine the peripheral.

Fixed Peripheral Select is activated by setting bit PS to zero in SP_MR (Mode Register). The peripheral is defined by the PCS field, also in SP_MR.

This option is only available when the SPI is programmed in master mode.

186

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.2.2

20.2.3

20.2.4

Variable Peripheral Select

Variable Peripheral Select is activated by setting bit PS to one. The PCS field in SP_TDR

(Transmit Data Register) is used to select the destination peripheral. The data transfer characteristics are changed when the selected peripheral changes, according to the associated chip select register.

The PCS field in the SP_MR has no effect.

This option is only available when the SPI is programmed in master mode.

Chip Selects

The Chip Select lines are driven by the SPI only if it is programmed in Master Mode. These lines are used to select the destination peripheral. The PCSDEC field in SP_MR (Mode Register) selects 1 to 4 peripherals (PCSDEC = 0) or up to 15 peripherals (PCSDEC = 1).

If Variable Peripheral Select is active, the chip select signals are defined for each transfer in the PCS field in SP_TDR. Chip select signals can thus be defined independently for each transfer.

If Fixed Peripheral Select is active, Chip Select signals are defined for all transfers by the field

PCS in SP_MR. If a transfer with a new peripheral is necessary, the software must wait until the current transfer is completed, then change the value of PCS in SP_MR before writing new data in SP_TDR.

The value on the NPCS pins at the end of each transfer can be read in the SP_RDR (Receive

Data Register).

By default, all NPCS signals are high (equal to one) before and after each transfer.

Mode Fault Detection

A mode fault is detected when the SPI is programmed in Master Mode and a low level is driven by an external master on the NPCS0/NSS signal.

When a mode fault is detected, the MODF bit in the SP_SR is set until the SP_SR is read and the SPI is disabled until re-enabled by bit SPIEN in the SP_CR (Control Register).

187

1745D–ATARM–04-Nov-05

Figure 20-1. Functional Flow Diagram in Master Mode

SPI Enable

1

TDRE

0

0 Fixed Peripheral

PS

1

Variable Peripheral

NPCS = SP_TDR(PCS) NPCS = SP_MR(PCS)

Delay DLYBS

Serializer = SP_TDR(TD)

TDRE = 1

Data Transfer

SP_RDR(RD) = Serializer

RDRF = 1

Delay DLYBCT

TDRE

1

NPCS = 0xF

Delay DLYBCS

0

0 Fixed Peripheral

PS

1

Variable Peripheral

Same Peripheral

SP_TDR(PCS)

New Peripheral

NPCS = 0xF

Delay DLYBCS

NPCS = SP_TDR(PCS)

188

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Figure 20-2. SPI in Master Mode

SP_MR(MCK32)

MCK

MCK/32

0

1

SPI

Master

Clock

SPCK Clock Generator

SP_CSRx[15:0]

SPIDIS SPIEN

S

R

Q

MISO

SP_RDR

PCS

LSB

Serializer

RD

MSB

SP_TDR

PCS TD

SP_MR(PCS)

SP_MR(PS)

1

0

SP_MR(MSTR)

SP_SR

M

O

D

F

T

D

R

E

R

D

R

F

O

V

R

E

S

P

I

E

N

S

SP_IER

SP_IDR

SP_IMR

SPIRQ

SPCK

MOSI

NPCS3

NPCS2

NPCS1

NPCS0

189

1745D–ATARM–04-Nov-05

20.3

Slave Mode

In Slave Mode, the SPI waits for NSS to go active low before receiving the serial clock from an external master.

In slave mode CPOL, NCPHA and BITS fields of SP_CSR0 are used to define the transfer characteristics. The other Chip Select Registers are not used in slave mode.

Figure 3. SPI in Slave Mode

SCK

NSS

SPIDIS SPIEN

S

R

Q

MOSI

SP_RDR

RD

LSB MSB

Serializer

SP_TDR

TD

MISO

SP_SR S

P

I

E

N

S

T

D

R

E

R

D

R

F

O

V

R

E

SP_IER

SP_IDR

SP_IMR

SPIRQ

190

AT91M55800A

1745D–ATARM–04-Nov-05

20.4

Data Transfer

The following waveforms show examples of data transfers.

Figure 20-3. SPI Transfer Format (NCPHA equals One, 8 bits per transfer)

SPCK cycle (for reference) 1

2 3 4 5

SPCK

(CPOL=0)

7

SPCK

(CPOL=1)

MOSI

(from master)

MSB 6 5 4 3 2 1

AT91M55800A

8

LSB

MISO

(from slave)

NSS (to slave)

MSB 6 5 4 3 2 1 LSB X

Figure 20-4. SPI Transfer Format (NCPHA equals Zero, 8 bits per transfer)

SPCK cycle (for reference) 1

2 3 4

5

SPCK

(CPOL=0)

SPCK

(CPOL=1)

MOSI

(from master)

MSB 6 5 4 3 2

7

1

8

LSB

MISO

(from slave) X

MSB 6

NSS (to slave)

5 4 3 2 1 LSB

191

1745D–ATARM–04-Nov-05

Figure 20-5. Programmable Delays (DLYBCS, DLYBS and DLYBCT)

Chip Select 1

Change peripheral

Chip Select 2

No change of peripheral

SPCK Output

DLYBCS DLYBS DLYBCT DLYBCT

20.5

Clock Generation

In master mode the SPI Master Clock is either MCK or MCK/32, as defined by the MCK32 field of SP_MR. The SPI baud rate clock is generated by dividing the SPI Master Clock by a value between 4 and 510. The divisor is defined in the SCBR field in each Chip Select Register. The transfer speed can thus be defined independently for each chip select signal.

CPOL and NCPHA in the Chip Select Registers define the clock/data relationship between master and slave devices. CPOL defines the inactive value of the SPCK. NCPHA defines which edge causes data to change and which edge causes data to be captured.

In Slave Mode, the input clock low and high pulse duration must strictly be longer than two system clock (MCK) periods.

20.6

Peripheral Data Controller

The SPI is closely connected to two Peripheral Data Controller channels. One is dedicated to the receiver. The other is dedicated to the transmitter.

The PDC channel is programmed using SP_TPR (Transmit Pointer) and SP_TCR (Transmit

Counter) for the transmitter and SP_RPR (Receive Pointer) and SP_RCR (Receive Counter) for the receiver. The status of the PDC is given in SP_SR by the SPENDTX bit for the transmitter and by the SPENDRX bit for the receiver.

The pointer registers (SP_TPR and SP_RPR) are used to store the address of the transmit or receive buffers. The counter registers (SP_TCR and SP_RCR) are used to store the size of these buffers.

The receiver data transfer is triggered by the RDRF bit and the transmitter data transfer is triggered by TDRE. When a transfer is performed, the counter is decremented and the pointer is incremented. When the counter reaches 0, the status bit is set (SPENDRX for the receiver,

SPENDTX for the transmitter in SP_SR) and can be programmed to generate an interrupt.

While the counter is at zero, the status bit is asserted and transfers are disabled.

192

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.7

SPI Programmer’s Model

SPI Base Address: 0xFFFBC000 (Code Label

SPI_BASE

)

Table 20-1.

SPI Memory Map

Offset Register

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Control Register

Mode Register

Receive Data Register

Transmit Data Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Receive Pointer Register

Receive Counter Register

Transmit Pointer Register

Transmit Counter Register

Chip Select Register 0

Chip Select Register 1

Chip Select Register 2

Chip Select Register 3

Name

SP_CR

SP_MR

SP_RDR

SP_TDR

SP_SR

SP_IER

SP_IDR

SP_IMR

SP_RPR

SP_RCR

SP_TPR

SP_TCR

SP_CSR0

SP_CSR1

SP_CSR2

SP_CSR3

Access

Write-only

Read/Write

Read-only

Write-only

Read-only

Write-only

Write-only

Read-only

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

Read/Write

0

0

0

0

0

0

0

0

0

Reset State

0

0

0

193

1745D–ATARM–04-Nov-05

20.7.1

SPI Control Register

Register Name:

Access Type:

Offset:

SP_CR

Write-only

0x00

31

30

23

15

7

SWRST

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• SPIEN: SPI Enable (Code Label

SP_SPIEN

)

0 = No effect.

1 = Enables the SPI to transfer and receive data.

• SPIDIS: SPI Disable (Code Label

SP_SPIDIS

)

0 = No effect.

1 = Disables the SPI.

All pins are set in input mode and no data is received or transmitted.

If a transfer is in progress, the transfer is finished before the SPI is disabled.

If both SPIEN and SPIDIS are equal to one when the control register is written, the SPI is disabled.

• SWRST: SPI Software reset (Code Label

SP_SWRST

)

0 = No effect.

1 = Resets the SPI.

A software triggered hardware reset of the SPI interface is performed.

25

17

9

1

SPIDIS

24

16

8

0

SPIEN

194

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.7.2

SPI Mode Register

Register Name:

Access Type:

Reset State:

Offset:

SP_MR

Read/Write

0

0x04

31 30 29 28 27

DLYBCS

23

15

7

LLB

22

14

6

21

13

5

20

12

4

19

11

3

MCK32

• MSTR: Master/Slave Mode (Code Label

SP_MSTR

)

0 = SPI is in Slave mode.

1 = SPI is in Master mode.

MSTR configures the SPI Interface for either master or slave mode operation.

• PS: Peripheral Select

26

18

10

2

PCSDEC

PCS

25

17

9

1

PS

24

16

8

0

MSTR

PS

0

1

Selected PS

Fixed Peripheral Select

Variable Peripheral Select

Code Label:

SP_PS

SP_PS_FIXED

SP_PS_VARIABLE

• PCSDEC: Chip Select Decode (Code Label

SP_PCSDEC

)

0 = The chip selects are directly connected to a peripheral device.

1 = The four chip select lines are connected to a 4- to 16-bit decoder.

When PCSDEC equals one, up to 16 Chip Select signals can be generated with the four lines using an external 4- to 16-bit decoder.

The Chip Select Registers define the characteristics of the 16 chip selects according to the following rules:

SP_CSR0defines peripheral chip select signals 0 to 3.

SP_CSR1defines peripheral chip select signals 4 to 7.

SP_CSR2defines peripheral chip select signals 8 to 11.

SP_CSR3defines peripheral chip select signals 12 to 15

(1)

.

Note: 1. The 16th state corresponds to a state in which all chip selects are inactive. This allows a different clock configuration to be defined by each chip select register.

• MCK32: Clock Selection (Code Label

SP_DIV32

)

0 = SPI Master Clock equals MCK.

1 = SPI Master Clock equals MCK/32.

• LLB: Local Loopback Enable (Code Label

SP_LLB

)

0 = Local loopback path disabled.

1 = Local loopback path enabled.

LLB controls the local loopback on the data serializer for testing in master mode only.

195

1745D–ATARM–04-Nov-05

• PCS: Peripheral Chip Select (Code Label

SP_PCS

)

This field is only used if Fixed Peripheral Select is active (PS=0).

If PCSDEC=0:

PCS = xxx0NPCS[3:0] = 1110 (Code Label

SP_PCS0

)

PCS = xx01NPCS[3:0] = 1101 (Code Label

SP_PCS1

)

PCS = x011NPCS[3:0] = 1011 (Code Label

SP_PCS2

)

PCS = 0111NPCS[3:0] = 0111 (Code Label

SP_PCS3

)

PCS = 1111forbidden (no peripheral is selected)

(x = don’t care)

If PCSDEC=1:

NPCS[3:0] output signals = PCS.

• DLYBCS: Delay Between Chip Selects (Code Label

SP_DLYBCS

)

This field defines the delay from NPCS inactive to the activation of another NPCS. The DLYBCS time guarantees non-overlapping chip selects and solves bus contentions in case of peripherals having long data float times.

If DLYBCS is less than or equal to six, six SPI Master Clock periods will be inserted by default.

Otherwise, the following equation determines the delay:

Delay_ Between_Chip_Selects = DLYBCS * SPI_Master_Clock_period

196

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.7.3

SPI Receive Data Register

Register Name:

Access Type:

Reset State:

Offset:

SP_RDR

Read-only

0

0x08

31

23

30

22

29

21

15 14 13

28

20

12

27

19

11

26

18

10

PCS

25

17

9

24

16

8

RD

7 6 5 4 3 2 1 0

RD

• RD: Receive Data (Code Label

SP_RD

)

Data received by the SPI Interface is stored in this register right-justified. Unused bits read zero.

• PCS: Peripheral Chip Select Status

In Master Mode only, these bits indicate the value on the NPCS pins at the end of a transfer. Otherwise, these bits read zero.

197

1745D–ATARM–04-Nov-05

20.7.4

SPI Transmit Data Register

Register Name:

Access Type:

Offset:

SP_TDR

Write-only

0x0C

31

30

29

23

15

22

14

21

13

28

20

12

27

19

11

26

18

10

PCS

25

17

9

24

16

8

TD

7 6 5 4 3 2 1 0

TD

• TD: Transmit Data (Code Label

SP_TD

)

Data which is to be transmitted by the SPI Interface is stored in this register. Information to be transmitted must be written to the transmit data register in a right-justified format.

• PCS: Peripheral Chip Select

This field is only used if Variable Peripheral Select is active (PS = 1) and if the SPI is in Master Mode.

If PCSDEC = 0:

PCS = xxx0NPCS[3:0] = 1110

PCS = xx01NPCS[3:0] = 1101

PCS = x011NPCS[3:0] = 1011

PCS = 0111NPCS[3:0] = 0111

PCS = 1111forbidden (no peripheral is selected)

(x = don’t care)

If PCSDEC = 1:

NPCS[3:0] output signals = PCS.

198

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.7.5

SPI Status Register

Register Name:

Access Type:

Reset State:

Offset:

SP_SR

Read-only

0

0x10

31

23

30

22

15

7

14

6

29

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

26

18

10

2

MODF

25

17

9

1

TDRE

24

16

SPIENS

8

0

RDRF

• RDRF: Receive Data Register Full (Code Label

SP_RDRF

)

0 = No data has been received since the last read of SP_RDR.

1 = Data has been received and the received data has been transferred from the serializer to SP_RDR since the last read of SP_RDR.

• TDRE: Transmit Data Register Empty (Code Label

SP_TDRE

)

0 = Data has been written to SP_TDR and not yet transferred to the serializer.

1 = The last data written in the Transmit Data Register has been transferred in the serializer.

TDRE equals zero when the SPI is disabled or at reset. The SPI enable command sets this bit to one.

• MODF: Mode Fault Error (Code Label

SP_MODF

)

0 = No Mode Fault has been detected since the last read of SP_SR.

1 = A Mode Fault occurred since the last read of the SP_SR.

• OVRES: Overrun Error Status (Code Label

SP_OVRES

)

0 = No overrun has been detected since the last read of SP_SR.

1 = An overrun has occurred since the last read of SP_SR.

An overrun occurs when SP_RDR is loaded at least twice from the serializer since the last read of the SP_RDR.

• SPENDRX: End of Receiver Transfer (Code Label

SP_ENDRX

)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the receiver is active.

• SPENDTX: End of Transmitter Transfer (Code Label

SP_ENDTX

)

0 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is inactive.

1 = The End of Transfer signal from the Peripheral Data Controller channel dedicated to the transmitter is active.

• SPIENS: SPI Enable Status (Code Label

SP_SPIENS

)

0 = SPI is disabled.

1 = SPI is enabled.

199

1745D–ATARM–04-Nov-05

20.7.6

SPI Interrupt Enable Register

Register Name:

Access Type:

Offset:

SP_IER

Write-only

0x14

31

30

29

23

15

7

22

14

6

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

• RDRF: Receive Data Register Full Interrupt Enable (Code Label

SP_RDRF

)

0 = No effect.

1 = Enables the Receiver Data Register Full Interrupt.

• TDRE: SPI Transmit Data Register Empty Interrupt Enable (Code Label

SP_TDRE

)

0 = No effect.

1 = Enables the Transmit Data Register Empty Interrupt.

• MODF: Mode Fault Error Interrupt Enable (Code Label

SP_MODF

)

0 = No effect.

1 = Enables the Mode Fault Interrupt.

• OVRES: Overrun Error Interrupt Enable (Code Label

SP_OVRES

)

0 = No effect.

1 = Enables the Overrun Error Interrupt.

• SPENDRX: End of Receiver Transfer Interrupt Enable (Code Label

SP_ENDRX

)

0 = No effect.

1 = Enables the End of Receiver Transfer Interrupt.

• SPENDTX: End of Transmitter Transfer Interrupt Enable (Code Label

SP_ENDTX

)

0 = No effect.

1 = Enables the End of Transmitter Transfer Interrupt.

26

18

10

2

MODF

25

17

9

1

TDRE

24

16

8

0

RDRF

200

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.7.7

SPI Interrupt Disable Register

Register Name:

Access Type:

Offset:

SP_IDR

Write-only

0x18

31

30

29

23

15

7

22

14

6

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

• RDRF: Receive Data Register Full Interrupt Disable (Code Label

SP_RDRF

)

0 = No effect.

1 = Disables the Receiver Data Register Full Interrupt.

• TDRE: Transmit Data Register Empty Interrupt Disable (Code Label

SP_TDRE

)

0 = No effect.

1 = Disables the Transmit Data Register Empty Interrupt.

• MODF: Mode Fault Interrupt Disable (Code Label

SP_MODF

)

0 = No effect.

1 = Disables the Mode Fault Interrupt.

• OVRES: Overrun Error Interrupt Disable (Code Label

SP_OVRES

)

0 = No effect.

1 = Disables the Overrun Error Interrupt.

• SPENDRX: End of Receiver Transfer Interrupt Disable (Code Label

SP_ENDRX

)

0 = No effect.

1 = Disables the End of Receiver Transfer Interrupt.

• SPENDTX: End of Transmitter Transfer Interrupt Disable (Code Label

SP_ENDTX

)

0 = No effect.

1 = Disables the End of Transmitter Transfer Interrupt.

26

18

10

2

MODF

25

17

9

1

TDRE

24

16

8

0

RDRF

201

1745D–ATARM–04-Nov-05

20.7.8

SPI Interrupt Mask Register

Register Name:

Access Type:

Reset State:

Offset:

SP_IMR

Read-only

0

0x1C

31

23

15

7

14

6

30

22

29

21

13

5

SPENDTX

28

20

12

4

SPENDRX

27

19

11

3

OVRES

• RDRF: Receive Data Register Full Interrupt Mask (Code Label

SP_RDRF

)

0 = Receive Data Register Full Interrupt is disabled.

1 = Receive Data Register Full Interrupt is enabled.

• TDRE: Transmit Data Register Empty Interrupt Mask (Code Label

SP_TDRE

)

0 = Transmit Data Register Empty Interrupt is disabled.

1 = Transmit Data Register Empty Interrupt is enabled.

• MODF: Mode Fault Interrupt Mask (Code Label

SP_MODF

)

0 = Mode Fault Interrupt is disabled.

1 = Mode Fault Interrupt is enabled.

• OVRES: Overrun Error Interrupt Mask (Code Label

SP_OVRES

)

0 = Overrun Error Interrupt is disabled.

1 = Overrun Error Interrupt is enabled.

• SPENDRX: End of Receiver Transfer Interrupt Mask (Code Label

SP_ENDRX

)

0 = End of Receiver Transfer Interrupt is disabled.

1 = End of Receiver Transfer Interrupt is enabled.

• SPENDTX: End of Transmitter Transfer Interrupt Mask (Code Label

SP_ENDTX

)

0 = End of Transmitter Transfer Interrupt is disabled.

1 = End of Transmitter Transfer Interrupt is enabled.

26

18

10

2

MODF

25

17

9

1

TDRE

24

16

8

0

RDRF

202

AT91M55800A

1745D–ATARM–04-Nov-05

20.7.9

SPI Receive Pointer Register

Name:

Access Type:

Reset State:

Offset:

SP_RPR

Read/Write

0

0x20

31 30 29 28

RXPTR

23 22 21 20

RXPTR

15 14 13 12

RXPTR

7 6 5 4

RXPTR

• RXPTR: Receive Pointer

RXPTR must be loaded with the address of the receive buffer.

27

19

11

3

20.7.10

SPI Receive Counter Register

Name:

Access Type:

Reset State:

Offset:

SP_RCR

Read/Write

0

0x24

31

23

30

22

29

21

15 14 13

28

20

12

RXCTR

7 6 5 4

RXCTR

• RXCTR: Receive Counter

RXCTR must be loaded with the size of the receive buffer.

0: Stop Peripheral Data Transfer dedicated to the receiver.

1 - 65535: Start Peripheral Data transfer if RDRF is active.

27

19

11

3

10

2

26

18

26

18

10

2

AT91M55800A

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

203

1745D–ATARM–04-Nov-05

20.7.11

SPI Transmit Pointer Register

Name:

Access Type:

Reset State:

Offset:

SP_TPR

Read/Write

0

0x28

31 30 29 28

TXPTR

23 22 21 20

TXPTR

15 14 13 12

TXPTR

7 6 5 4

TXPTR

• TXPTR: Transmit Pointer

TXPTR must be loaded with the address of the transmit buffer.

27

19

11

3

20.7.12

SPI Transmit Counter Register

Name:

Access Type:

Reset State:

Offset:

SP_TCR

Read/Write

0

0x2C

31

23

30

22

29

21

15 14 13

28

20

12

TXCTR

7 6 5 4

TXCTR

• TXCTR: Transmit Counter

TXCTR must be loaded with the size of the transmit buffer.

0: Stop Peripheral Data Transfer dedicated to the transmitter.

1 - 65535: Start Peripheral Data transfer if TDRE is active.

27

19

11

3

10

2

26

18

26

18

10

2

9

1

25

17

8

0

24

16

25

17

9

1

24

16

8

0

204

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

20.7.13

SPI Chip Select Register

Register Name:

Access Type:

Reset State:

Offset:

SP_CSR0.. SP_CSR3

Read/Write

0

0x30......0x3C

31 30 29 28 27 26 25 24

DLYBCT

23 22 21 20 19 18 17 16

DLYBS

15 14 13 12 11 10 9 8

SCBR

7 6

BITS

5 4 3

2

1

NCPHA

0

CPOL

• CPOL: Clock Polarity (Code Label

SP_CPOL

)

0 = The inactive state value of SPCK is logic level zero.

1 = The inactive state value of SPCK is logic level one.

CPOL is used to determine the inactive state value of the serial clock (SPCK). It is used with NCPHA to produce a desired clock/data relationship between master and slave devices.

• NCPHA: Clock Phase (Code Label

SP_NCPHA

)

0 = Data is changed on the leading edge of SPCK and captured on the following edge of SPCK.

1 = Data is captured on the leading edge of SPCK and changed on the following edge of SPCK.

NCPHA determines which edge of SPCK causes data to change and which edge causes data to be captured. NCPHA is used with CPOL to produce a desired clock/data relationship between master and slave devices.

• BITS: Bits Per Transfer

The BITS field determines the number of data bits transferred. Reserved values should not be used.

BITS[3:0]

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

Bits Per Transfer

8

9

10

11

12

13

14

15

16

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Code Label:

SP_BITS

SP_BITS_8

SP_BITS_9

SP_BITS_10

SP_BITS_11

SP_BITS_12

SP_BITS_13

SP_BITS_14

SP_BITS_15

SP_BITS_16

205

1745D–ATARM–04-Nov-05

• SCBR: Serial Clock Baud Rate (Code Label

SP_SCBR

)

In Master Mode, the SPI Interface uses a modulus counter to derive the SPCK baud rate from the SPI Master Clock

(selected between MCK and MCK/32). The Baud rate is selected by writing a value from 2 to 255 in the field SCBR. The following equation determines the SPCK baud rate:

SPCK_Baud_Rate =

SPI_Master_Clock_frequency

2 x SCBR

Giving SCBR a value of zero or one disables the baud rate generator. SPCK is disabled and assumes its inactive state value. No serial transfers may occur. At reset, baud rate is disabled.

• DLYBS: Delay Before SPCK (Code Label

SP_DLYBS

)

This field defines the delay from NPCS valid to the first valid SPCK transition.

When DLYBS equals zero, the NPCS valid to SPCK transition is 1/2 the SPCK clock period.

Otherwise, the following equation determines the delay:

NPCS_to_SPCK_Delay = DLYBS * SPI_Master_Clock_period

• DLYBCT: Delay Between Consecutive Transfers (Code Label

SP_DLYBCT

)

This field defines the delay between two consecutive transfers with the same peripheral without removing the chip select.

The delay is always inserted after each transfer and before removing the chip select if needed.

When DLYBCT equals zero, a delay of four SPI Master Clock periods are inserted.

Otherwise, the following equation determines the delay:

Delay_After_Transfer = 32 * DLYBCT * SPI_Master_Clock_period

206

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

21. ADC: Analog-to-digital Converter

The AT91M55800A features two identical 4-channel 10-bit Analog-to-digital converters (ADC) based on a Successive Approximation Register (SAR) approach.

Each ADC has 4 analog input pins (AD0 to AD3 and AD4 to AD7), digital trigger input pins

(AD0TRIG and AD1TRIG), and provides an interrupt signal to the AIC. Both ADCs share the analog power supply pins (VDDA and GNDA) and the input reference voltage pin (ADVREF).

Figure 21-1. Block Diagram

ADIRQ0

AD0TRIG

AD0

AD1

AD2

AD3

ADC 0

Analog-to-digital Converter

VDDA

ADVREF

GNDA

AD4

AD5

AD6

AD7

AD1TRIG

ADC 1

Analog-to-digital Converter

ADIRQ1

APB

Advanced

Peripheral

Bus

Table 21-1.

ADC Pin Description

Pin Name

VDDA

GNDA

ADVREF

AD0 - AD7

AD0TRIG, AD1TRIG

Description

Analog power supply

Analog ground

Reference voltage

Analog input channels

External triggers

207

1745D–ATARM–04-Nov-05

21.0.1

21.0.2

21.0.3

21.0.4

Analog-to-digital Conversion

The ADC has an internal sample-and-hold circuit that holds the sampled analog value during a complete conversion.

The reference voltage pin ADVREF allows the analog input conversion range to be set between 0 and ADVREF. Analog inputs between these voltages convert to values based on a linear conversion.

The ADC uses the ADC Clock to perform the conversion. To convert a single analog value to a 10-bit digital data requires 11 ADC clock cycles. The ADC Clock frequency is selected in the

PRESCAL field of the Mode Register (ADC_MR).

Conversion Results

When a conversion is complete, the resulting 10-bit digital value is stored in the Convert Data

Register (ADC_CDR) of the selected channel, and the corresponding EOC flag in the Status

Register (ADC_SR) is set. This bit can provide an interrupt signal and is automatically cleared when the corresponding Convert Data Register (ADC_CDR) is read.

If the ADC_CDR is not read before further incoming data is converted, the corresponding

Overrun Error (OVRE) flag is set in the Status Register (ADC_SR).

The ADC offers an 8-bit or 10-bit operating mode. By default after a reset, the ADC operates in

10-bit mode. If the bit RES in ADC_MR is set, the 8-bit mode is selected.

When operating in 10-bit mode, the field DATA in ADC_CDR is fully significant.

When operating in 8-bit mode, only the 8 lowest bits of DATA are significant and the 2 highest bits read 0.

Conversion Triggers

Conversions of the active analog channels are started with a software or a hardware trigger.

The software trigger is provided by writing the bit START in the Control Register (ADC_CR).

The hardware trigger can be one of the TIOA outputs of the Timer Counter channels, or the external trigger input of the ADC (AD0TRIG for the ADC0 or AD1TRIG for ADC1). The hardware trigger is selected with the field TRGSEL in the Mode Register (ADC_MR). The selected hardware trigger is enabled with the bit TRGEN in the Mode Register (ADC_MR).

If a hardware trigger is selected, the start of a conversion is detected at each rising edge of the selected signal. If one of the TIOA outputs is selected, the corresponding Timer Counter channel must be programmed in Waveform Mode.

Only one start command is necessary to initiate a conversion sequence on all the channels.

The ADC hardware logic automatically performs the conversions on the active channels, then waits for a new request. The Channel Enable (ADC_CHER) and Channel Disable

(ADC_CHDR) Registers enable the analog channels to be enabled or disabled independently.

Sleep Mode

The AT91 ADC Sleep Mode maximizes power saving by deactivating the ADC when it is not being used for conversions. Sleep Mode is selected by setting the bit SLEEP in the Mode Register ADC_MR.

When a start conversion request occurs, the ADC is automatically activated. As the analog cell requires a start-up time, the logic waits during this time and starts the conversion sequence on

208

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

the enabled channel. When all conversions are complete, the ADC is deactivated until the next trigger.

This permits an automatic conversion sequence with minimum CPU intervention and optimized power consumption.

1745D–ATARM–04-Nov-05

209

21.0.5

ADC User Interface

Base Address ADC 0:0xFFFB0000 (Code Label

ADC0_BASE

)

Base Address ADC 1:0xFFFB4000 (Code Label

ADC1_BASE

)

Table 21-2.

ADC Memory Map

Offset Register

0x20

0x24

0x28

0x2C

0x30

0x34

0x38

0x3C

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Control Register

Mode Register

Reserved

Reserved

Channel Enable Register

Channel Disable Register

Channel Status Register

Reserved

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Convert Data Register 0

Convert Data Register 1

Convert Data Register 2

Convert Data Register 3

Name

ADC_CR

ADC_MR

ADC_CHER

ADC_CHDR

ADC_CHSR

ADC_SR

ADC_IER

ADC_IDR

ADC_IMR

ADC_CDR0

ADC_CDR1

ADC_CDR2

ADC_CDR3

Access

Write-only

Read/Write

Write-only

Write-only

Read-only

Read-only

Write-only

Write-only

Read-only

Read-only

Read-only

Read-only

Read-only

0

0

0

0

0

0

0

Reset State

0

210

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

21.0.6

ADC Control Register

Register Name:

Access Type:

Offset:

ADC_CR

Write-only

0x00

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

• SWRST: Software Reset (Code Label

ADC_SWRST

)

0 = No effect.

1 = Resets the ADC simulating a hardware reset.

• START: Start Conversion (Code Label

ADC_START

)

0 = No effect.

1 = Begins analog-to-digital conversion and clears all EOC bits.

27

19

11

3

26

18

10

2

25

17

9

1

START

24

16

8

0

SWRST

211

1745D–ATARM–04-Nov-05

21.0.7

ADC Mode Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_MR

Read/Write

0

0x04

31

23

30

22

15

7

14

6

5

SLEEP

29

21

13

• TRGEN: Trigger Enable .

28

20

12

4

RES

27

19

26

18

11

3

10

PRESCAL

2

TRGSEL

TRGEN

0

1

Selected TRGEN

Hardware triggers are disabled. Starting a conversion is only possible by software.

Hardware trigger selected by TRGSEL field is enabled.

• TRGSEL: Trigger Selection

This field selects the hardware trigger.

TTRGSEL

0 0 0

0

1

0

0

1

1

1

• RES: Resolution.

1

1

0

0

1

0

1

1

0

1

1

0

1

0

Selected TRGSEL

TIOA0

TIOA1

TIOA2

TIOA3

TIOA4

TIOA5

External trigger

Reserved

RES

0

1

Selected RES

10-bit resolution

8-bit resolution

25

17

9

1

Code Label

ADC_TRGEN_DIS

ADC_TRGEN_EN

Code Label

ADC_10_BIT_RES

ADC_8_BIT_RES

24

16

8

0

TRGEN

Code Label:

ADC_B_TTRGSEL

ADC_TRG_TIOA0

ADC_TRG_TIOA1

ADC_TRG_TIOA2

ADC_TRG_TIOA3

ADC_TRG_TIOA4

ADC_TRG_TIOA5

ADC_TRG_EXT

212

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

• SLEEP: Sleep Mode

SLEEP

0

1

Selected SLEEP

Normal Mode

Sleep Mode

• PRESCAL: Prescaler Rate Selection (

ADC_PRESCAL

)

This field defines the conversion clock in function of the Master Clock (MCK):

ADCClock

=

MCK

((PRESCAL +1)

Code Label

ADC_NORMAL_MODE

ADC_SLEEP_MODE

The ADC clock range is between MCK/2 (PRESCAL = 0) and MCK /128 (PRESCAL = 63). PRESCAL must be programmed in order to provide an ADC clock frequency according to the parameters given in the AT91M55800A Electrical

Datasheet, literature number 1727.

1745D–ATARM–04-Nov-05

213

21.0.8

ADC Channel Enable Register

Register Name:

Access Type:

Offset:

ADC_CHER

Write-only

0x10

31

30

29

23

15

7

22

14

6

21

13

5

• CH: Channel Enable (Code Label

ADC_CHx

)

0 = No effect.

1 = Enables the corresponding channel.

28

20

12

4

21.0.9

ADC Channel Disable Register

Register Name:

Access Type:

Offset:

ADC_CHDR

Write-only

0x14

31

30

29

23

15

7

22

14

6

21

13

5

• CH: Channel Disable (Code Label

ADC_CHx

)

0 = No effect.

1 = Disables the corresponding channel.

28

20

12

4

27

19

11

3

CH3

26

18

10

2

CH2

25

17

9

1

CH1

24

16

8

0

CH0

27

19

11

3

CH3

26

18

10

2

CH2

25

17

9

1

CH1

24

16

8

0

CH0

214

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

21.0.10

ADC Channel Status Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_CHSR

Read-only

0

0x18

31

23

30

22

29

21

15

7

14

6

13

5

• CH: Channel Status (Code Label

ADC_CHx

)

0 = Corresponding channel is disabled.

1 = Corresponding channel is enabled.

12

4

28

20

11

3

CH3

27

19

10

2

CH2

26

18

21.0.11

ADC Status Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_SR

Read-only

0

0x20

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

27

19

11

OVRE3

3

EOC3

26

18

10

OVRE2

2

EOC2

• EOC: End of Conversion (Code Label

ADC_EOCx

)

0 = Corresponding analog channel is disabled, or the conversion is not finished.

1 = Corresponding analog channel is enabled and conversion is complete.

• OVRE: Enable Overrun Error Interrupt (Code Label

ADC_OVREx

)

0 = No overrun on the corresponding channel since the last read of ADC_SR.

1 = There has been an overrun on the corresponding channel since the last read of ADC_SR.

25

17

9

OVRE1

1

EOC1

9

1

CH1

25

17

24

16

8

OVRE0

0

EOC0

8

0

CH0

24

16

215

1745D–ATARM–04-Nov-05

21.0.12

ADC Interrupt Enable Register

Register Name:

Access Type:

Offset:

ADC_IER

Write-only

0x24

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

OVRE3

3

EOC3

• EOC: End of Conversion Interrupt Enable (Code Label

ADC_EOCx

)

0 = No effect.

1 = Enables the End of Conversion Interrupt.

• OVRE: Overrun Error Interrupt Enable (Code Label

ADC_OVREx

)

0 = No effect.

1 = Enables the Overrun Error Interrupt.

26

18

10

OVRE2

2

EOC2

25

17

9

OVRE1

1

EOC1

24

16

8

OVRE0

0

EOC0

21.0.13

ADC Interrupt Disable Register

Register Name:

Access Type:

Offset:

ADC_IDR

Write-only

0x28

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

OVRE3

3

EOC3

• EOC: End of Conversion Interrupt Disable (Code Label

ADC_EOCx

)

0 = No effect.

1 = Disables the End of Conversion Interrupt.

• OVRE: Overrun Error Interrupt Disable (Code Label

ADC_OVREx

)

0 = No effect.

1 = Disables the Overrun Error Interrupt.

26

18

10

OVRE2

2

EOC2

25

17

9

OVRE1

1

EOC1

24

16

8

OVRE0

0

EOC0

216

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

21.0.14

ADC Interrupt Mask Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_IMR

Read-only

0

0x2C

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

• EOC: End of Conversion Interrupt Mask (Code Label

ADC_EOCx

)

0 = End of Conversion Interrupt is disabled.

1 = End of Conversion Interrupt is enabled.

• OVRE: Overrun Error Interrupt Mask (Code Label

ADC_OVREx

)

0 = Overrun Error Interrupt is disabled.

1 = Overrun Error Interrupt is enabled.

27

19

11

OVRE3

3

EOC3

26

18

10

OVRE2

2

EOC2

25

17

9

OVRE1

1

EOC1

24

16

8

OVRE0

0

EOC0

21.0.15

ADC Convert Data Register

Register Name:

Access Type:

Reset State:

Offset:

ADC_CDR0 to ADC_CDR3

Read-only

0

0x30 to 0x3C

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

11

3

27

19

10

2

26

18

25

17

9

1

DATA

24

16

8

0

DATA

• DATA: Converted Data

The analog-to-digital conversion data is placed into this register at the end of a conversion and remains until a new conversion is completed. The Convert Data Register (CDR) is only loaded if the corresponding analog channel is enabled.

DATA

0 or 1

0 or 1

Selected DATA

10-bits Data

8-bits Data

Code Label:

ADC_CDRx

ADC_DATA_10BITS

ADC_DATA_8BITS

217

1745D–ATARM–04-Nov-05

22. DAC: Digital-to-analog Converter

The AT91M55800A features two identical 1-channel 10-bit Digital-to-analog converters (DAC).

Each DAC has an analog output pin (DA0 and DA1) and provides an interrupt signal to the

AIC (DA0IRQ and DA1IRQ). Both DACs share the analog power supply pins VDDA and

GNDA, and the input reference pin DAVREF.

Table 22-1.

Pin Name

VDDA

GNDA

Meaning

Analog power supply

Analog ground

DA0

DA1

Analog output, channel 0

Analog output, channel 1

Figure 22-1. DAC Block Diagram

Advanced

Peripheral

Bus

DAnIRQ

Control Logic

Data Holding

Register

Data Output

Register

TIOA0....TIOA5

Trigger Selection

10-bit DAC

+

-

VDDA

GNDA

DAn

DAVREF

22.1

Conversion Details

Digital-to-analog conversions are possible only if the DAC has been enabled in the APMC and the startup time has elapsed. This startup time is a maximum of 5 µsec, and is indicated more precisely in the Electrical Characteristics datasheet of the device as parameter t

DASU

.

Digital inputs are converted to output voltages on a linear conversion between 0 and DAVREF.

The analog output voltages on DA0 and DA1 pins are determined by the following equation:

218

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

22.1.1

22.1.2

DA = DAVREF x (DAC_DOR / 1024)

When DAC_DOR (Data Output Register) is loaded, the analog output voltage is available after a settling time of approximately 5 µsec. The exact value depends on the power supply voltage and the analog output load, and is indicated in the Electrical Characteristics Sheet of the device as parameter t

DAST

.

The output register cannot be written directly and any data transfer to the DAC must be performed by writing in DAC_DHR (Data Holding Register). The transfer from DAC_DHR to

DAC_DOR is performed automatically or when an hardware trigger occurs, depending on the bit TRGEN in DAC_MR (Mode Register).

The DAC integrates an output buffer enabling the reduction of the output impedance, and the possibility of driving external loads directly, without having to add an external operational amplifier. The maximum load supported by the output buffer is indicated in the Electrical Characteristics of the device.

8- or 10-bit Conversion Mode

Bit RES in the Mode Register (DAC_MR) selects between 8-bit or 10-bit modes of operation.

In 8-bit mode, the data written in DAC_DHR is automatically shifted left two bits and the two lowest bits are written 0. The bit RES also affects the type of transfers performed by the PDC channel:

• in 8-bit mode, only a byte transfer is performed .

• in 10-bit mode, a half-word transfer (16 bits) is performed.

Trigger Selection

A conversion is triggered when data is written in DAC_DHR and TRGEN in DAC_MR is 0.

If TRGEN is 1, a hardware trigger is selected by the field TTRGSEL between the Timer

Counter Channel outputs TIOA. In this case, the corresponding Timer Counter channel must be programmed in Waveform Mode, and each time the DAC detects a rising edge on the TC output, it transfers the last data written in DAC_DHR into DAC_DOR.

The bit DATRDY traces the fact that a valid data has been written in DAC_DHR and not yet been transferred in DAC_DOR. An interrupt can be generated from this status bit to tell the software to load the following value.

219

1745D–ATARM–04-Nov-05

22.2

DAC User Interface

Base Address DAC 0:0xFFFA8000 (Code Label

DAC0_BASE

)

Base Address DAC 1:0xFFFAC000 (Code Label

DAC1_BASE

)

Offset

0x00

0x04

0x08

0x0C

0x10

0x14

0x18

0x1C

Register

Control Register

Mode Register

Data Holding Register

Data Output Register

Status Register

Interrupt Enable Register

Interrupt Disable Register

Interrupt Mask Register

Name

DAC_CR

DAC_MR

DAC_DHR

DAC_DOR

DAC_SR

DAC_IER

DAC_IDR

DAC_IMR

Access

Write-only

Read/Write

Read/Write

Read-only

Read-only

Write-only

Write-only

Read-only

Reset State

0

0

0

0

0

220

AT91M55800A

1745D–ATARM–04-Nov-05

22.2.1

DAC Control Register

Register Name: DAC_CR

Access Type:

Write-only

Offset: 0x00

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

• SWRST: Software Reset (Code Label

DAC_SWRST

)

0 = No effect.

1 = Resets the DAC. A software-triggered reset of the DAC interface is performed.

26

18

10

2

AT91M55800A

25

17

9

1

24

16

8

0

SWRST

1745D–ATARM–04-Nov-05

221

22.2.2

DAC Mode Register

Register Name: DAC_MR

Access Type:

Reset State:

Read/Write

0

Offset: 0x04

31

23

15

7

14

6

30

22

13

5

29

21

12

4

RES

28

20

11

3

27

19

• TTRGEN: Timer Trigger Enable (Code Label

DAC_TTRGEN_EN

)

TTRGEN

0

1

Selected TTRGEN

The data written into the Data Holding Register (DAC_DHR) is transferred one main clock cycle later to the data output register (DAC_DOR).

The data transfer from the DAC_DHR to the DAC_DOR is synchronized by the timer trigger.

• TTRGSEL: Timer Trigger Selection

Only used if TTRGEN = 1

26

18

10

2

TTRGSEL

9

1

25

17

Code Label

DAC_TTRGEN_DIS

DAC_TTRGEN_EN

24

16

8

0

TTRGEN

1

1

1

0

0

0

0

TTRGSEL

0

0

0

0

1

1

1

• RES: Resolution

RES

0

1

0

1

X

0

1

0

1

Selected Timer Trigger

TIOA0

TIOA1

TIOA2

TIOA3

TIOA4

TIOA5

Reserved

Selected RES

10-bit resolution

8-bit resolution

Code Label

DAC_TTRGSEL

DAC_TRG_TIOA0

DAC_TRG_TIOA1

DAC_TRG_TIOA2

DAC_TRG_TIOA3

DAC_TRG_TIOA4

DAC_TRG_TIOA5

Code Label

DAC_10_BIT_RES

DAC_8_BIT_RES

222

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

22.2.3

DAC Data Holding Register

Register Name: DAC_DHR

Access Type:

Reset State:

Read/Write

0

Offset: 0x08

31

23

30

22

29

21

15

7

14

6

13

5

12

4

28

20

11

3

27

19

10

2

26

18

25

17

9

1

DATA

24

16

8

0

DATA

• DATA: Data to be Converted (Code Label

DAC_DATA_10BITS

or

DAC_DATA_8BITS

depending on RES)

Data that is to be converted by the DAC is stored in this register. Data to be converted must be written in a right-aligned format.

In 8-bit resolution mode (RES = 1), data written into the Data Holding Register will be shifted to the left by 2 bits and the two

LSBs will be 0.

In both 8-bit and 10-bit modes, data will be read as written after the adjustments are done. All non-significant bits read 0.

223

1745D–ATARM–04-Nov-05

22.2.4

DAC Output Register

Register Name: DAC_DOR

Access Type:

Reset State:

Read-only

0

Offset: 0x0C

31

23

30

22

15

7

14

6

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

25

17

9

1

DATA

DATA

• DATA: Data being Converted (Code Label

DAC_DATA_10BITS

or

DAC_DATA_8BITS

depending on RES)

Data being converted is stored, in a right-aligned format, in this register.

All non-significant bits read 0.

24

16

8

0

22.2.5

DAC Status Register

Register Name: DAC_SR

Access Type:

Read-only

Reset State: 0

Offset: 0x10

31

30

23

15

7

22

14

6

29

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

25

17

9

1

24

16

8

0

DATRDY

• DATRDY: Data Ready for Conversion (Code Label

DAC_DATRDY

)

0 = Data has been written to the Data Holding Register and not yet transferred to the Data Output Register.

1 = The last data written in the Data Holding Register has been transferred to the Data Output Register. This is equal to 0 when the Timer Trigger is disabled or at reset. Enabling the Timer Trigger sets this bit to 1.

224

AT91M55800A

1745D–ATARM–04-Nov-05

22.2.6

DAC Interrupt Enable Register

Register Name: DAC_IER

Access Type:

Write-only

Offset: 0x14

31

30

29

23

15

7

22

14

6

21

13

5

28

20

12

4

27

19

11

3

26

18

10

2

• DATRDY: Data Ready for Conversion Interrupt Enable (Code Label

DAC_DATRDY

)

0 = No effect.

1 = Enables the Data Ready for Conversion Interrupt.

AT91M55800A

25

17

9

1

24

16

8

0

DATRDY

22.2.7

DAC Interrupt Disable Register

Register Name: DAC_IDR

Access Type:

Write-only

Offset: 0x18

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

• DATRDY: Data Ready for Conversion Interrupt Disable (Code Label

DAC_DATRDY

)

0 = No effect.

1 = Disables the Data Ready for Conversion Interrupt.

1

9

25

17

24

16

8

0

DATRDY

225

1745D–ATARM–04-Nov-05

22.2.8

DAC Interrupt Mask Register

Register Name: DAC_IMR

Access Type:

Reset State:

Read-only

0

Offset: 0x1C

31

23

15

7

14

6

30

22

13

5

29

21

12

4

28

20

11

3

27

19

10

2

26

18

• DATRDY: Data Ready for Conversion Interrupt Mask (Code Label

DAC_DATRDY

)

0 = Data Ready for Conversion Interrupt is disabled.

1 = Data Ready for Conversion Interrupt is enabled.

1

9

25

17

24

16

8

0

DATRDY

226

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

23. JTAG Boundary-scan Register

The Boundary-scan Register (BSR) contains 256 bits which correspond to active pins and associated control signals.

Each AT91M55800A input pin has a corresponding bit in the Boundary-scan Register for observability.

Each AT91M55800A output pin has a corresponding 2-bit register in the BSR. The OUTPUT bit contains data which can be forced on the pad. The CTRL bit can put the pad into high impedance.

Each AT91M55800A in/out pin corresponds to a 3-bit register in the BSR. The OUTPUT bit contains data that can be forced on the pad. The INPUT bit is for the observability of data applied to the pad. The CTRL bit selects the direction of the pad.

Table 23-1.

JTAG Boundary-scan Register

Bit

Number Pin Name

244

243

242

241

248

247

246

245

252

251

250

249

256

255

254

253

236

235

234

233

240

239

238

237

NWAIT

NRST

PB18/BMS

MCKO

NWDOVF

PB17

PB16

PB15

PB14

PB13

PB13

Pin Type

INPUT

INPUT

IN/OUT

OUTPUT

OUTPUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

Associated BSR

Cells

INPUT

INPUT

OUTPUT

INPUT

CTRL

OUTPUT

CTRL

OUTPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

227

1745D–ATARM–04-Nov-05

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

232

Pin Name Pin Type

PB12 IN/OUT

203

202

201

200

207

206

205

204

211

210

209

208

215

214

213

212

219

218

217

216

223

222

221

220

227

226

225

224

231

230

229

228 PB11

PB10

PB9

PB8

PB7/AD1TRIG

PB6/AD0TRIG

PB5

PB4/IRQ5

PB3

PB2

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

CTRL

OUTPUT

INPUT

CTRL

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

228

AT91M55800A

1745D–ATARM–04-Nov-05

1745D–ATARM–04-Nov-05

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

199

Pin Name Pin Type

PB1 IN/OUT

170

169

168

167

174

173

172

171

166

165

178

177

176

175

182

181

180

179

186

185

184

183

190

189

188

187

194

193

192

191

198

197

196

195 PB0

NCS7

NCS6

NCS5

NCS4

PA29NPCS3

PA28NPCS2

PA27NPCS1

PA26NPCS0

PA25MOSI

PA24MISO

PA23SPCK

PA22RXD2

PA21TXD2

IN/OUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

AT91M55800A

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

INPUT

CTRL

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

229

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

164

Pin Name Pin Type

PA21TXD2 IN/OUT

163

162

PA20SCK2 IN/OUT

133

132

131

130

137

136

135

134

141

140

139

138

145

144

143

142

149

148

147

146

153

152

151

150

157

156

155

154

161

160

159

158 PA19RXD1

PA18/TXD1/NTRI

PA17/SCK1

PA16/RXD0

PA15/TXD0

PA14/SCK0

PA13/FIQ

PA12/IRQ3

PA11/IRQ2

PA10/IRQ1

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

230

AT91M55800A

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

Associated BSR

Cells

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

1745D–ATARM–04-Nov-05

1745D–ATARM–04-Nov-05

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

129

Pin Name Pin Type

PA9/IRQ0 IN/OUT

100

99

98

97

96

104

103

102

101

108

107

106

105

112

111

110

109

116

115

114

113

120

119

118

117

124

123

122

121

128

127

126

125 PA8/TIOB5

PA7/TIOA5

PA6/CLK5

PA5/TIOB4

PA4/TIOA4

PA3/TCLK4

PA2/TIOB3

PA1/TIOA3

PA0/TCLK3

PB27/TIOB2

PB26/TIOA2

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

AT91M55800A

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

Associated BSR

Cells

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

231

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

95

Pin Name Pin Type

66

65

64

63

70

69

68

67

62

61

74

73

72

71

78

77

76

75

82

81

80

79

86

85

84

83

90

89

88

87

94

93

92

91

PB25/TCLK2

PB24/TIOB1

PB23/TIOA1

PB22/TCLK1

PB21TIOB0

PB20/TIOA0

PB19/TCLK0

D15

D14

D13

D12

D11

D10

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

232

AT91M55800A

INPUT

CTRL

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

Associated BSR

Cells

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

CTRL

OUTPUT

INPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

1745D–ATARM–04-Nov-05

1745D–ATARM–04-Nov-05

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

60

Pin Name Pin Type

D9 IN/OUT

59

58

D8 IN/OUT

57

56 D[15:8] IN/OUT

31

30

29

28

27

26

35

34

33

32

39

38

37

36

43

42

41

40

47

46

45

44

51

50

49

48

55

54

53

52

D7

D6

D5

D4

D3

D2

D1

D0

D[7:0]

A23

A22

A21

A20

A19

A18

A17

A16

A[23:16]

A15

A14

A13

A12

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

IN/OUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

AT91M55800A

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

Associated BSR

Cells

INPUT

OUTPUT

INPUT

OUTPUT

CTRL

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

OUTPUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

233

12

11

10

9

16

15

14

13

20

19

18

17

24

23

22

21

4

3

2

6

5

8

7

Table 23-1.

JTAG Boundary-scan Register (Continued)

Bit

Number

25

Pin Name

A11

Pin Type

OUTPUT

A3

A2

A1

NLB/A0

A[7:0]

NCS3

NCS2

NCS1

NCS0

A10

A9

A8

A[15:8]

A7

A6

A5

A4

NUB/NWR1

NUB/NWR0

NOE/NRD

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

IN/OUT

IN/OUT

IN/OUT

1

NCS[7:0]

NUB/NWR1

NWE/NWR0

NOE/NRD

IN/OUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

INPUT

OUTPUT

INPUT

OUTPUT

INPUT

Associated BSR

Cells

OUTPUT

OUTPUT

OUTPUT

OUTPUT

CTRL

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

OUTPUT

CTRL

234

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

24. Packaging Information

Figure 24-1. 176-lead Thin Quad Flat Pack Package Drawing aaa

PIN 1

θ2 c

θ3 ddd c

1 ccc bbb

S

R1

θ

1

L1

R2

0.25

θ

235

1745D–ATARM–04-Nov-05

Table 24-1.

Common Dimensions (mm)

Symbol Min

R2

R1

S q

θ

1

θ

2

θ

3

A

A1

A2 c c1

L

L1

0.09

0.09

0.45

aaa bbb

0.08

0.08

0.2

0

°

0

°

11

°

11

°

Nom

0.6

1.00 REF

3.5

°

12

°

12

°

0.05

1.35

1.4

Tolerances of form and position

0.2

0.2

Table 24-2.

Lead Count Dimensions (mm)

Pin

Count

D/E

BSC

D1/E1

BSC Min b

Nom

176 26.0

24.0

0.17

0.20

Max

0.27

Min

0.17

b1

Nom

0.20

Max

0.23

e

BSC

0.50

ccc

0.10

ddd

0.08

7

°

13

°

13

°

1.6

0.15

1.45

Max

0.20

0.16

0.75

0.2

Table 24-3.

Device and 176-lead LQFP Package Maximum Weight

2023 mg

236

AT91M55800A

1745D–ATARM–04-Nov-05

Figure 24-2. 176-ball Ball Grid Array Package Drawing

AT91M55800A

Top View

Bottom View

Symbol

aaa bbb ddd eee fff ggg hhh kkk

Maximum

0.1

0.1

0.1

0.03

0.04

0.03

0.1

0.1

Notes: 1. Package dimensions conform to

JEDEC MO-205

2. Dimensioning and tolerancing per

ASME Y14.5M-1994

3. All dimensions in mm

4. Solder Ball position designation per JESD 95-1, SPP-010

5. Primary datum Z and seating plane are defined by the spherical crowns of the solder balls

Table 24-4.

Device and 176-ball BGA Package Maximum Weight

606 mg

1745D–ATARM–04-Nov-05

237

25. Soldering Profile

25.1

Green Package Soldering Profile

Table 25-1 gives the recommended soldering profile from J-STD-020C.

Table 25-1.

Soldering Profile Green Compliant Package

Profile Feature

Average Ramp-up Rate (217°C to Peak)

Preheat Temperature 175°C ±25°C

Green Package

3

°

C/sec. max.

180 sec. max.

Temperature Maintained Above 217°C

Time within 5

°

C of Actual Peak Temperature

Peak Temperature Range

Ramp-down Rate

Time 25

°

C to Peak Temperature

60 sec. to 150 sec.

20 sec. to 40 sec.

260 +0

°

C

6

°

C/sec. max.

8 min. max.

Note: The package is certified to be backward compatible with Pb/Sn soldering profile.

A maximum of three reflow passes is allowed per component.

25.2

RoHS Package Soldering Profile

Table 25-2 gives the recommended soldering profile from J-STD-20C.

Table 25-2.

Soldering Profile RoHS Compliant Package

Profile Feature Convection or IR/Convection

Average Ramp-up Rate (183

°

C to Peak)

Time within 5

°

C of Actual Peak Temperature

3

°

C/sec. max.

Preheat Temperature 125

°

C ±25

° max

Temperature Maintained Above 183

°

C 60 sec. to 150 sec.

20 sec. to 40 sec.

Peak Temperature Range

Ramp-down Rate

260 + 0

°

C

6

°

C/sec.

Time 25

°

C to Peak Temperature 8 min. max

Note: It is recomended to apply a soldering temperature higher than 250°C.

A maximum of three reflow passes is allowed per component.

238

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

26. Ordering Information

Table 26-1.

Ordering Information

Ordering Code

AT91M55800A-33AI

AT91M55800A-33AU

AT91M55800A-33CI

AT91M55800A-33CJ

Package

LQFP 176

LQFP 176

BGA 176

BGA 176

Package Type

Sn/Pb

Green

Sn/PB

RoHS

Temperature

Operating Range

Industrial

(-40

°

C to 85

°

C)

1745D–ATARM–04-Nov-05

239

27. Errata

The following known errata are applcable to:

• The following datasheets:

AT91M55800A Summary, 1745S

AT91M55800A, (This document)

AT91M55800A, Electrical Characteristics Rev.1727

• 176-lead LQFP and 176-ball BGA devices with the following markings:

Internal Product

Reference 56515B

AT91M55800A-33AI

AT91M55800A-33AU

AT91M55800A-33CI

AT91M55800A-33CJ

27.1

ADC Characteristics and Behavior

The tracking time has a theoretical minimum duration. It equals one ADC Clock period and is normally ensured by the ADC Controller.

It might randomly happen that this minimum duration cannot be guaranteed on the first enabled channel. When this happens, the sampling and hold process is too short and the conversion result is wrong.

Problem Fix/Work Around

To use only one channel, the user has to enable two channels and then must use the second channel only.

In the event that all of the ADC channels need to be used, only three channels will be available.

A software workaround allows all the channels to be used. It consists of performing several conversions and averaging the samples on the first enabled channel. This method does not support fast conversion. However, signals from temperature sensors, which are slow signals, can be handled by averaging a number of samples.

27.2

Warning: Additional NWAIT Constraints

When the NWAIT signal is asserted during an external memory access, the following EBI behavior is correct:

– NWAIT is asserted before the first rising edge of the master clock and respects the

NWAIT to MCKI rising setup timing as defined in the Electrical Characteristics datasheet.

– NWAIT is sampled inactive and at least one standard wait state remains to be executed, even if NWAIT does not meet the NWAIT to first MCKI rising setup timing (i.e., NWAIT is asserted only on the second rising edge of MCKI).

In these cases, the access is delayed as required by NWAIT and the access operations are correctly performed.

240

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

In other cases, the following erroneous behavior occurs:

– 32-bit read accesses are not managed correctly and the first 16-bit data sampling takes into account only the standard wait states. 16- and 8-bit accesses are not affected.

– During write accesses of any type, the NWE rises on the rising edge of the last cycle as defined by the programmed number of wait states. However, NWAIT assertion does affect the length of the total access. Only the NWE pulse length is inaccurate.

At maximum speed, asserting the NWAIT in the first access cycle is not possible, as the sum of the timings “MCKI Falling to Chip Select” and “NWAIT setup to MCKI rising” are generally higher than one half of a clock period. This leads to using at least one standard wait state.

However, this is not sufficient except to perform byte or half-word read accesses. Word and write accesses require at least two standard wait states.

The following waveforms further explain the issue:

If the NWAIT setup time is satisfied on the first rising edge of MCKI, the behavior is accurate.

The EBI operations are not affected when the NWAIT rises.

Figure 27-1. NWAIT Rising

MCKI

NWAIT

NWAIT Setup before MCKI Rising (EBI

5

)

If the NWAIT setup time is satisfied on the following edges of MCKI and if at least one standard wait state remains to be executed, the behavior is accurate. In the following example, the number of standard wait states is two. The NWAIT setup time on the second rising edge of

MCKI must be met.

241

1745D–ATARM–04-Nov-05

Figure 27-2. Number of Standard Wait States is Two

MCKI

NWAIT

NCS

1

(1)

EBI

5

2

(1)

3

(1)

Standard Access Length with Two Wait States

Note: 1. These numbers refer to the standard access cycles.

If the first two conditions are not met during a 32-bit read access, the first 16-bit data is read at the end of the standard 16-bit read access. In the following example, the number of standard waits is one. NWAIT assertions do affect both NRD pulse lengths, but first data sampling is not delayed. The second data sampling is correct.

Figure 27-3. Number of Standard Wait States is One

MCKI

Second Data

Sampling

(Correct)

NWAIT

EBI

5

First Data Sampling

(Erroneous)

NRD

1(1) 2(1) 2(1) 1(1) 2(1)

32-bit Access = Two 16-bit Accesses

Each Access Length = One Wait State + Assertion for One More Cycle

Note: 1. These numbers refer to the standard access cycles.

242

AT91M55800A

2(1)

1745D–ATARM–04-Nov-05

AT91M55800A

If the first two conditions are not met during write accesses, the NWE signal is not affected by the NWAIT assertion. The following example illustrates the number of standard wait states.

NWAIT is not asserted during the first cycle, but is asserted at the second and last cycle of the standard access. The access is correctly delayed as the NCS line rises accordingly to the

NWAIT assertion. However, the NWE signal waveform is unchanged, and rises too early.

Figure 27-4. Description of the Number of Standard Wait States

MCKI

NWAIT

EBI

5

Erroneous NWE Rising

NWE

NCS

Access Length = One Wait State + Assertion of the NWAIT for One More Cycle

27.3

Unpredictable Result in APMC State Machine on Switch from Oscillator to PLL

An automatic switch from the main oscillator output (CSS = 1) may cause an unpredictable result in the APMC state machine. The automatic PLL to PLL transition is also effected by this problem.

Problem Fix/Workaround

The user must either wait for the PLL lock flag to be set in the APMC status register or switch to an intermediate 32 kHz oscillator output (CSS = 0).

27.4

Clock Switching with the Prescaler in the APMC is not Permitted

Switching from the selected clock (PRES = 0) to the selected clock divided by

4 (PRES = 2), 8 (PRES = 3) or 64 (PRES = 6) may lead to unpredictable results.

Problem Fix/Workaround

First, the user should switch to any other value (PRES = 1, 4 or 5) and wait for the actual switch to perform (at least 64 cycles of the selected clock). Then, the user can write the final prescaler value.

27.5

Initializing SPI in Master Mode May Cause a Mode Fault Detection

Problem Fix/Workaround

In order to prevent this error, the user must pull up the PA26/NPCS0/NSS pin to the V

DDIO power supply.

243

1745D–ATARM–04-Nov-05

27.6

SPI in Slave Mode does not Work

In transmission, the data to be transmitted (written in SP_TDR) is transferred in the shift register and, consequently, the TDRE bit in SP_SR is set to 1. Though the transfer has not begun, when the following data are written in SP_TDR, they are also transferred into the shift register, crushing the precedent data and setting the bit TDRE to 1.

Problem Fix/Workaround

No problem fix/workaround to propose.

27.7

V

DDBU

Consumption is not Guaranteed

The battery supply voltage consumption is not guaranteed in the case of internal peripheral accesses.

Problem Fix/Workaround

The user should minimally access the Advanced Peripheral Bus by using an interrupt-driven driver rather than polling methods.

244

AT91M55800A

1745D–ATARM–04-Nov-05

AT91M55800A

Rrevision History

.

Doc. Rev

1745A

1745B

1745C

1745D

Date

July, 2001

18-Jul-2002

16-Dec-2002

03-Oct-05

Comments

First Issue

Page: 9

Page : 9

Page 10

Page: 16

Page: 16

Page: 18

Page: 204

Page: 205

Page: 195

Page: 199

Page: 219 - 220

Global

page 235

page 238

page 239

page 14

page 240

Change Request Ref.

First issue

Change to Block Diagram.

“Peripherals”: Text changed.

“User Peripherals”: Text changed.

“Internal Memories”: Text added to paragraph.

“Peripheral Data Controller”: Text changed.

“Digital-to-analog Converter”: Text changed.

“Digital-to-analog Converter”: Text changed.

“8- to 10-bit Conversion Mode”: Text changed.

“Analog-to-Digitial Conversion”: Text removed.

PRESCAL: Text changed. Equation modified.

Table 25. bit 30 and bit 12 changed

Change in format introduced Chapter numbering with change to table and figure numbering.

Package reference TQFP changed to LQFP

Section 24. ”Packaging Information”

Section 25. ”Soldering Profile”

Section 26. ”Ordering Information”

Section 7.4.2 ”NTRST Pin”

info added

Figure 7-1, “Separate or Common Reset

Management,” added to chapter

Section 27. ”Errata” added to and dedicated

errata document, lit° 1780, suppressed.

Chapters added to correspond with

Summary

CSR 05-451

AT91 documentation format update

245

1745D–ATARM–04-Nov-05

AT91M55800A

Table of Contents

Features ..................................................................................................... 1

1 Description ............................................................................................... 1

2 Pin Configurations ................................................................................... 3

3 Pin Description ......................................................................................... 7

4 Block Diagram .......................................................................................... 9

5 Architectural Overview .......................................................................... 10

5.1 Memory ..............................................................................................................10

5.2 Peripherals .........................................................................................................10

6 Associated Documentation ................................................................... 12

7 Product Overview .................................................................................. 13

7.1 Power Supplies ..................................................................................................13

7.2 Input/Output Considerations ...............................................................................13

7.3 Master Clock ......................................................................................................14

7.4 Reset ..................................................................................................................14

7.5 Emulation Functions ...........................................................................................15

7.6 Memory Controller ..............................................................................................15

7.7 External Bus Interface ........................................................................................17

8 Peripherals ............................................................................................. 18

8.1 Peripheral Registers ...........................................................................................18

8.2 Peripheral Interrupt Control ................................................................................18

8.3 Peripheral Data Controller ..................................................................................18

8.4 System Peripherals ............................................................................................19

8.5 User Peripherals .................................................................................................20

9 Memory Map ........................................................................................... 22

10 Peripheral Memory Map ........................................................................ 23

11 EBI: External Bus Interface ................................................................... 24

11.1 External Memory Mapping ...............................................................................25

11.2 EBI Pin Description ..........................................................................................26

11.3 Data Bus Width ................................................................................................27

11.4 Byte-write or Byte-select Access .....................................................................27

11.5 Boot on NCS0 ..................................................................................................29

i

1745D–ATARM–04-Nov-05

ii

11.6 Read Protocols .................................................................................................30

11.7 Write Data Hold Time .......................................................................................32

11.8 Wait States .......................................................................................................33

11.9 Memory Access Waveforms .............................................................................36

11.10 EBI User Interface ..........................................................................................48

12 APMC: Advanced Power Management Controller .............................. 52

12.1 Operating Modes ..............................................................................................53

12.2 Slow Clock Generator ......................................................................................55

12.3 Clock Generator ...............................................................................................56

12.4 System Clock ...................................................................................................59

12.5 Peripheral Clocks .............................................................................................59

12.6 Shut-down and Wake-up ..................................................................................59

12.7 Alarm ................................................................................................................ 60

12.8 First Start-up Sequence ...................................................................................61

12.9 APMC User Interface .......................................................................................62

13 RTC: Real-time Clock ............................................................................ 73

13.1 Year 2000 Conformity ......................................................................................73

13.2 Functional Description ......................................................................................74

13.3 RTC User Interface ..........................................................................................76

14 WD: Watchdog Timer ............................................................................. 89

15 AIC: Advanced Interrupt Controller ..................................................... 95

15.1 Hardware Interrupt Vectoring ...........................................................................97

15.2 Priority Controller ..............................................................................................97

15.3 Interrupt Handling .............................................................................................97

15.4 Interrupt Masking ..............................................................................................98

15.5 Interrupt Clearing and Setting ..........................................................................98

15.6 Fast Interrupt Request ......................................................................................98

15.7 Software Interrupt .............................................................................................98

15.8 Spurious Interrupt .............................................................................................98

15.9 Protect Mode ....................................................................................................99

15.10 AIC User Interface ........................................................................................101

15.11 Standard Interrupt Sequence .......................................................................110

16 PIO: Parallel I/O Controller .................................................................. 112

16.1 Multiplexed I/O Lines ......................................................................................112

AT91M55800A

1745D–ATARM–04-Nov-05

1745D–ATARM–04-Nov-05

AT91M55800A

16.2 Output Selection .............................................................................................112

16.3 I/O Levels .......................................................................................................112

16.4 Filters ..............................................................................................................112

16.5 Interrupts ........................................................................................................113

16.6 User Interface .................................................................................................113

16.7 Multi-driver (Open Drain) ................................................................................113

16.8 PIO Connection Tables .................................................................................115

16.9 PIO User Interface ..........................................................................................117

17 SF: Special Function Registers .......................................................... 128

17.1 Chip Identifier .................................................................................................128

17.2 SF User Interface ...........................................................................................128

18 USART: Universal Synchronous/ Asynchronous Receiver/Transmitter

132

18.1 Pin Description ...............................................................................................133

18.2 Baud Rate Generator .....................................................................................134

18.3 Receiver .........................................................................................................135

18.4 Transmitter .....................................................................................................137

18.5 Multi-drop Mode .............................................................................................137

18.6 Break ..............................................................................................................138

18.7 Peripheral Data Controller ..............................................................................140

18.8 Interrupt Generation .......................................................................................140

18.9 Channel Modes ..............................................................................................140

18.10 USART User Interface ..................................................................................142

19 TC: Timer Counter ............................................................................... 157

19.1 Signal Name Description ................................................................................159

19.2 Timer Counter Description .............................................................................160

19.3 Capture Operating Mode ................................................................................163

19.4 Waveform Operating Mode ............................................................................165

19.5 TC User Interface ...........................................................................................168

20 SPI: Serial Peripheral Interface ........................................................... 185

20.1 Pin Description ...............................................................................................185

20.2 Master Mode ..................................................................................................186

20.3 Slave Mode ....................................................................................................190

20.4 Data Transfer .................................................................................................191

20.5 Clock Generation ............................................................................................192

iii

20.6 Peripheral Data Controller ..............................................................................192

20.7 SPI Programmer’s Model ...............................................................................193

21 ADC: Analog-to-digital Converter ...................................................... 207

22 DAC: Digital-to-analog Converter ....................................................... 218

22.1 Conversion Details .........................................................................................218

22.2 DAC User Interface ........................................................................................220

23 JTAG Boundary-scan Register ........................................................... 227

24 Packaging Information ........................................................................ 235

25 Soldering Profile .................................................................................. 238

25.1 Green Package Soldering Profile ...................................................................238

25.2 RoHS Package Soldering Profile ...................................................................238

26 Ordering Information .......................................................................... 239

27 Errata ..................................................................................................... 240

Rrevision History .................................................................................. 245

Table of Contents....................................................................................... i

iv

AT91M55800A

1745D–ATARM–04-Nov-05

Atmel Corporation

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 487-2600

Regional Headquarters

Europe

Atmel Sarl

Route des Arsenaux 41

Case Postale 80

CH-1705 Fribourg

Switzerland

Tel: (41) 26-426-5555

Fax: (41) 26-426-5500

Asia

Room 1219

Chinachem Golden Plaza

77 Mody Road Tsimshatsui

East Kowloon

Hong Kong

Tel: (852) 2721-9778

Fax: (852) 2722-1369

Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

Tel: (81) 3-3523-3551

Fax: (81) 3-3523-7581

Atmel Operations

Memory

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 436-4314

Microcontrollers

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 436-4314

La Chantrerie

BP 70602

44306 Nantes Cedex 3, France

Tel: (33) 2-40-18-18-18

Fax: (33) 2-40-18-19-60

ASIC/ASSP/Smart Cards

Zone Industrielle

13106 Rousset Cedex, France

Tel: (33) 4-42-53-60-00

Fax: (33) 4-42-53-60-01

1150 East Cheyenne Mtn. Blvd.

Colorado Springs, CO 80906, USA

Tel: 1(719) 576-3300

Fax: 1(719) 540-1759

Scottish Enterprise Technology Park

Maxwell Building

East Kilbride G75 0QR, Scotland

Tel: (44) 1355-803-000

Fax: (44) 1355-242-743

RF/Automotive

Theresienstrasse 2

Postfach 3535

74025 Heilbronn, Germany

Tel: (49) 71-31-67-0

Fax: (49) 71-31-67-2340

1150 East Cheyenne Mtn. Blvd.

Colorado Springs, CO 80906, USA

Tel: 1(719) 576-3300

Fax: 1(719) 540-1759

Biometrics/Imaging/Hi-Rel MPU/

High Speed Converters/RF Datacom

Avenue de Rochepleine

BP 123

38521 Saint-Egreve Cedex, France

Tel: (33) 4-76-58-30-00

Fax: (33) 4-76-58-34-80

Literature Requests

www.atmel.com/literature
