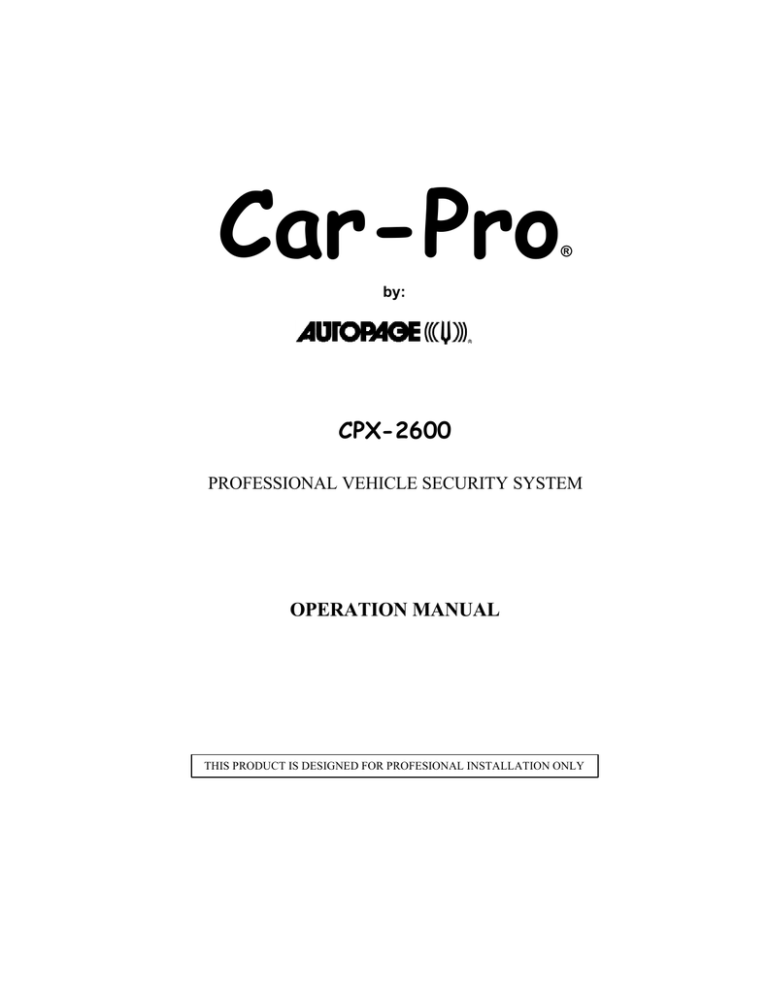

CPX-2600
PROFESSIONAL VEHICLE SECURITY SYSTEM
OPERATION MANUAL
THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY
TRANSMITTER OPERATION
Transmitter Button
Button
–
Button
Button
Button for 3 seconds
Button
–
Button
Button
Button for 2 seconds
Button for 3 seconds
+
+
Button
Button for 1 seconds
System Function
Arm / Lock door
Remark
Arm
and
Delete
Optional Sensor
Car Locator
Press twice.
Panic function
Press 3 seconds
Disarm & Unlock
Door
Two
Steps
Door
Unlock & Disarm
System
Car Locator
Press twice within 3
seconds.
Pop Trunk Release
Press 2 seconds
Panic function
If the H2/6 Gray Wire
is not Trunk release
Output (See Alarm
Feature III-2)
Ignition
in
"off"
position.
Ignition
in
"on"
position.
Silent Arm / Disarm
Activate Car-Jacking
System in Armed.
ACTIVE ARMING – LOCK & ARM:
1. Press button on transmitter.
2. The siren will chirp once and the parking lights will flash once indicating
that the system is now armed. The vehicle doors will lock upon arming
when interfaced with the security system.
Note: Defective sensor reminder: If the siren sounds 3 chirps, then you
have left a door, trunk, or hood lid ajar. (See Feature “I - 3 Programming)
SILENT ARMING / DISARMING: Press the +
button together on the
transmitter to arm or disarm your security system, No chirp sound will be
heard; arm / disarm confirmation will be through the vehicles parking lights
only.
SHOCK SENSOR / OPTIONAL SENSOR BY-PASS: Press the
button
on the transmitter twice within 3 seconds will arm the security system, bypass the shock sensor or the optional sensor connected to 4 pin plug. The
system will chirp one additional time to confirm the sensor bypass mode
was activated. The sensor bypass feature is programmed to activate for
one arming cycle only. The security system will return to normal operation
during the next arming cycle
PASSIVE ARMING: (See Feature “II - 2” Programming)
Active arming / disarming is controlling your security system via the remote
transmitter. This security system is equipped with an optional Passive
Arming feature, which allows the security system to arm 30 seconds after
the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast
for 30 seconds. If you reopen any door / hood / trunk, the security
system LED will stop flashing. It will begin flashing again once all
vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will
automatically “ARM”. The siren will chirp [1] time and the parking lights
will flash [1] time.
PASSIVE DOOR LOCKING: (See Feature “II - 2” Programming)
The vehicle doors will automatically lock after passive arming cycle has been
completed.
ACTIVE DISARMING – UNLOCK & DISARM:
1. Press the
button on the transmitter.
2. The siren will chirp twice and parking lights will flash twice to indicate that
the security system is now disarmed. The vehicle doors will unlock and
disarm when interfaced with the security system.
TAMPER DISARMING: If the alarm is triggered; upon disarming the
system, the siren will chirp 4 times and parking lights will flash 3 times.
TWO STEP DOOR UNLOCK: (See Feature III – 2 Programming.) This
feature will independently unlock the driver’s door only when disarming the
security system. Pushing the
button on the transmitter a second time
within 3 seconds will unlock the entire vehicle.
AUTOMATIC RE-ARM (See Feature “I - 2” Programming): If this feature
is selected, the security system will automatically re-arm itself 60 seconds
after disarming with remote transmitter. Automatic rearm will cancel if any
door is opened before the 60 seconds timer has elapsed.
DISARMING WITHOUT A TRANSMITTER
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm
will sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now
start and operate the vehicle normally.
VALET MODE:
The valet switch allows you to temporarily bypass all alarm function,
eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, all alarm functions
are bypassed, however, the remote panic feature and remote door locks
will remain operational.
Enter Valet Mode:
1. Turn the ignition to “ON” position.
2. Push and hold valet switch for 2 seconds or until the LED turns on.
The LED will remain on as long as the system is in 'valet mode'.
Exit Valet Mode:
1. Return to normal operation, turn ignition 'ON'.
2. Push and hold valet switch for 2 seconds; the LED will turn off
indicating the system is exiting the valet mode.
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger
the alarm in case of emergency.
1. Press and hold the
button on the transmitter for 3 seconds. The
alarm will immediately sound.
2. To stop the alarm, press and hold the or button on the transmitter,
the panic mode will be turned off immediately.
3. If the button is not pressed, the alarm will automatically stop after 30
seconds.
Note: If the H3/6 Gray Wire is not a Trunk release Output, (See Alarm
Feature III-2 Programming), Press and hold the
button on the
transmitter for 3 seconds. The alarm will immediately sound.
TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1. Light impacts will trigger the warn-away signal. A long chirp from
siren/horn.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turning on the
ignition switch- All will trigger the programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from
cranking. The siren and parking lights will turn on to alert of an intrusion for
30 seconds. Then the siren will stop and automatically reset and re-arm. If
any the sensors or detectors are still active, the alarm system will sound a
maximum of six-30 second cycles.
ANTI CAR-JACKING
Warning: If you don't need the car jacking function in this alarm system, be
sure to set car jacking feature “OFF”. This system is default setting Carjacking “OFF”. (See Alarm Feature III - 3 Programming.)
1. TRANSMITTER ACTIVATE THE CAR JACKING:
Press and hold
+
button on the transmitter for 1 second while the
vehicle’s ignition is ON. The parking light wills turns on for 1.5” seconds
to indicate car jacking activated.
2. DOOR SWITCH ACTIVATE CAR JACKING:
1. Turn the ignition switch to “ON” position, the system is armed.
2. Once the system is armed, if you are forced from the vehicle, the system
will active the car jacking trigger when the door is opened and closed
while the ignition is “ON”.
TRIGGER THE CAR JACK MODE:
3-timer circuits will function as follows:
First timer:
a. 50 seconds after the system has been triggered. The siren will start
chirping for 15 seconds.
b. During this 15 seconds period of chirping, you will be alerting to push
the valet switch once to turn off the car-jacking feature.
c. If not, it will enter second timer car jacking.
Second timer:
65 seconds after the system has beer triggered. The siren starts
alarming and the parking light starts flashing.
Third timer:
90 seconds after the system has been triggered
a. The siren still alarming and the parking light flashing, and
b. The starter disable will activate to prevent the vehicle from starting.
c. It will remain active until the vehicle's battery power exhausted.
OVERRIDE THE SYSTEM TO TURN OFF CAR JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push
valet switch, the siren will stop and the system disarmed
IGNITION CONTROL DOOR LOCKS. (See Feature II – 3 Programming.).
If the vehicle’s door locks have been interfaced to the security system, the
system will automatically lock the vehicle's doors when the ignition is turned
“ON” and /or unlock the vehicle’s doors when the ignition is turned “OFF”.
TRUNK RELEASE. (See Feature III – 2 Programming.).
Press and hold
button on transmitter for two seconds to remote control
the trunk release or other electric devices.
CAR LOCATOR
Press the
button on the transmitter to active car locator function. The
siren will chirp 6 times. The parking light will flash 12 times, allowing you to
easily locate your car.
ALARM OPERATING CONDITION:
Function
Siren
Parking
Lights
1. Arm
1 Chirp
1 Flash
2. Disarm
2or4
2 or 3
Chirps
Flashes
3. Trigger Alarming Flashing
4. Panic
Alarming Flashing
LED
Doors
Slow flash Locking
Off
or Unlocking
Fast flash
Slow flash
Slow flash Locking
Starter Pager
Disable Option
On
Off
On
On
On
ALARM INDICATORS
CHIRP INDICATORS:
Chirp
Function
1 chirp
2 chirps
3 chirps
4 chirps
Arm
Disarm
Defective
reminder
Disarm/
Intrusion
PARKING LIGHTS:
Parking Light Function
1 flash
Arm
2 flashes
Disarm
3 flashes
Disarm/
Intrusion
LED INDICATORS:
LED
Off
Function
Disarmed
Slow
flash
Armed
Fast
flash
Passive
arming
On
(solid)
Valet mode
LED
2
flashes...
pause
3
flashes...
pause
4
flashes...
pause
5
flashes...
pause
Function
Trigger on trunk/hood
Trigger on door switch
Trigger on Dual Zone
Shock Sensor
Trigger
switch
on
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions.
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
operation.
Ignition
undesired
LIMITED LIFETIME WARRANTY PROVISIONS
( U.S. and Continental U.S. Only)
1.
AutoPage, Inc. WARRANTS that this new unit has been thoroughly inspected and tested at
the factory prior to delivery. Your AutoPage equipment is guaranteed for “life” to the
original purchaser/user of the equipment under the following conditions: If the product
proves defective (according to AutoPage’s testing) within the first year, the defective unit
may be exchanged or repaired free of charge. “Proof of Purchase” (dated sales receipt)
must accompany all warranty returns; otherwise, your return will be rejected and sent
back. After one (1) year, the purchaser should ship the unit prepaid to AutoPage with a
money order in the amount of $20.00 to cover shipping and handling charges. Note: The
enclosed Warranty Card may be required to receive warranty services.
2.
This WARRANTY will be considered void if the equipment has been misused, neglected,
improperly serviced, altered, dropped or damaged by water, contrary to the AutoPage
OPERATIONS MANUAL. Or, if used with accessories not approved by AutoPage, which
may have contributed to the defect. See note below regarding product installation.
3.
The purchaser’s remedies under this WARRANTY shall be limited to the repair or
replacement of electronic components only. THE FOLLOWING IS NOT COVERED:
Damages or deterioration to cases, batteries, covers and cabinets; the cost of repairs,
replacement and labor of which shall be borne by the purchaser even if occurring during
the WARRANTY period.
4.
Any equipment or parts which are claimed to be defective under this WARRANTY must be
sent to the AutoPage Service center with “proof of purchase” at the purchaser’s expense
prior to such return, a Return Authorization Number should be obtained. AutoPage will
return the equipment, charges prepaid. Warranty Service can be provided through the
dealer where the equipment is originally purchased.
5.
Any unexpired WARRANTY shall be applicable to equipment and parts in the possession
of the original purchaser only.
6.
THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
7.
AutoPage shall not be liable, under the foregoing WARRANTIES or otherwise, for: Any
personal injury of any kind to the purchaser, its employees or agents or anyone else
whomsoever resulting directly or indirectly from the use or presence of the equipment or
parts; Consequential damages of any kind; any inability of the purchaser to use the
equipment.
IMPORTANT NOTE: Any damages to the alarm system resulting from an
installation performed by anyone other than a professional installation
technician authorized by a dealer of Auto Page will void the product’s warranty.
This WARRANTY CARD is for your record. However, AutoPage reserves the right to request
you to submit this WARRANTY CARD which must have complete information to receive
warranty service. Please keep this card in a secured place.
AUTOPAGE WARRANTY SERVICE CARD
Model: _______________
Serial # _______________
CUSTOMER TO COMPLETE
DEALER TO COMPLETE
Mr./Mrs./Ms.
_______________________________
Your Name (Please Print)
________________________________
Company Name
_______________________________
Address
________________________________
Dealer’s Address
_______________________________
City, State, Zip Code
________________________________
City, State, Zip Code
_______________________________
Telephone Number
________________________________
Dealer’s Telephone Number
_______________________________
Year / Make / Model of Vehicle
________________________________
Date of Installation / Purchase
________________________________
Dealer’s Signature
“Proof of Purchase” which includes the store name and date of purchase must
accompany all warranty returns.
It is the purchaser’s responsibility to keep this card for any future warranty service.
AutoPage Inc.
1815 West 205th Street
Torrance, CA 90501
310-618-2002
www.autopageusa.com
Download PDF

advertising
