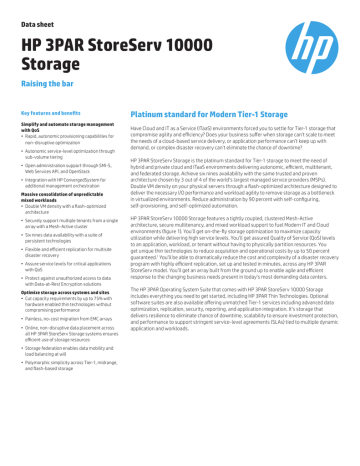

Data sheet
HP 3PAR StoreServ 10000
Storage
Raising the bar
Key features and benefits
Simplify and automate storage management
with QoS
• Rapid, autonomic provisioning capabilities for
non-disruptive optimization
• Autonomic service-level optimization through
sub-volume tiering
• Open administration support through SMI-S,
Web Services API, and OpenStack
• Integration with HP ConvergedSystem for
additional management orchestration
Massive consolidation of unpredictable
mixed workloads
• Double VM density with a flash-optimized
architecture
• Securely support multiple tenants from a single
array with a Mesh-Active cluster
• Six nines data availability with a suite of
persistent technologies
• Flexible and efficient replication for multisite
disaster recovery
• A ssure service levels for critical applications
with QoS
• Protect against unauthorized access to data
with Data-at-Rest Encryption solutions
Optimize storage across systems and sites
• Cut capacity requirements by up to 75% with
hardware enabled thin technologies without
compromising performance
• Painless, no-cost migration from EMC arrays
• Online, non-disruptive data placement across
all HP 3PAR StoreServ Storage systems ensures
efficient use of storage resources
• Storage federation enables data mobility and
load balancing at will
• Polymorphic simplicity across Tier-1, midrange,
and flash-based storage
Platinum standard for Modern Tier-1 Storage
Have Cloud and IT as a Service (ITaaS) environments forced you to settle for Tier-1 storage that
compromise agility and efficiency? Does your business suffer when storage can’t scale to meet
the needs of a cloud-based service delivery, or application performance can’t keep up with
demand, or complex disaster recovery can’t eliminate the chance of downtime?
HP 3PAR StoreServ Storage is the platinum standard for Tier-1 storage to meet the need of
hybrid and private cloud and ITaaS environments delivering autonomic, efficient, multitenant,
and federated storage. Achieve six nines availability with the same trusted and proven
architecture chosen by 3 out of 4 of the world’s largest managed service providers (MSPs).
Double VM density on your physical servers through a flash-optimized architecture designed to
deliver the necessary I/O performance and workload agility to remove storage as a bottleneck
in virtualized environments. Reduce administration by 90 percent with self-configuring,
self-provisioning, and self-optimized automation.
HP 3PAR StoreServ 10000 Storage features a tightly coupled, clustered Mesh-Active
architecture, secure multitenancy, and mixed workload support to fuel Modern IT and Cloud
environments (figure 1). You’ll get on-the-fly storage optimization to maximize capacity
utilization while delivering high service levels. You’ll get assured Quality of Service (QoS) levels
to an application, workload, or tenant without having to physically partition resources. You
get unique thin technologies to reduce acquisition and operational costs by up to 50 percent
guaranteed.1 You’ll be able to dramatically reduce the cost and complexity of a disaster recovery
program with highly efficient replication, set up and tested in minutes, across any HP 3PAR
StoreServ model. You’ll get an array built from the ground up to enable agile and efficient
response to the changing business needs present in today’s most demanding data centers.
The HP 3PAR Operating System Suite that comes with HP 3PAR StoreServ 10000 Storage
includes everything you need to get started, including HP 3PAR Thin Technologies. Optional
software suites are also available offering unmatched Tier-1 services including advanced data
optimization, replication, security, reporting, and application integration. It’s storage that
delivers resilience to eliminate chance of downtime, scalability to ensure investment protection,
and performance to support stringent service-level agreements (SLAs) tied to multiple dynamic
application and workloads.
Data sheet | HP 3PAR StoreServ 10000 Storage
Managing storage shouldn’t require dedicated experts
Figure 1. Traditional storage architecture vs.
HP 3PAR architecture
Traditional storage architecture
vs. HP 3PAR architecture
HP 3PAR architecture
Modular storage
Controller node
Cost-effective,
but scalability and
resiliency limited by
dual-controller design
Gone are the days of employing armies of specialists who did capacity planning and
implementation. Server virtualization, ITaaS, and cloud-based service delivery models have
made for extremely active, unpredictable, and variable demands upon storage. You need a
Modern Tier-1 Storage infrastructure that can scale to petabyte levels with dynamic provisioning
tools and automated QoS software to manage things for you.
The HP 3PAR Operating Systems helps simplify, automate, and expedite storage management
by handling provisioning, tiering, and change management without administrator intervention.
HP 3PAR StoreServ automatically constructs volumes intelligently, based on available resources.
This stands in contrast to manual provisioning approaches that require planning and manual
addition of capacity to intermediary pools. HP 3PAR StoreServ eliminates the learning curve and
slashes storage management overhead.
Monolithic storage
...
Host connectivity
Data cache
...
Distributed
controller
function
...
Disk connectivity
Scalable and resilient,
but costly; legacy
mainframe design center
doesn’t meet multitenant
requirements efficiently
Full-mesh interconnect
Cost-effective,
scalable, and resilient
architecture that meets
today’s requirements for
efficiency, multitenancy,
and autonomic
management
Provisioning is managed intelligently and autonomically. Massively parallel and fine-grained
striping of data across internal resources assures high and predictable service levels for all
workload types. Service conditions remain high and predictable even as use of the system
grows or in the event of a component failure while traditional storage planning, change
management, and array-specific professional services are eliminated.
HP 3PAR Operating System automatically creates a balanced system layout by mapping
virtual volumes to many logical disks, and creating logical disks from chunklets drawn from
many physical disks. As new hardware, drives, cages, and nodes are added to a system the
existing data can be laid out to use the new components and benefits from additional system
wide-striping.
Policy-driven, autonomic storage tiering technologies balance cost and performance to meet
service-level requirements for the lowest cost, while increasing business agility and mitigating
risk. For example, HP 3PAR Adaptive Optimization software leverages a proven, fine-grained
data movement engine and applies it to independent regions within a volume to deliver highly
reliable, non-disruptive, autonomic-tiered storage to provide the right QoS to the right data at
the right time so you can meet service level targets.
Lower costs and meet today’s demanding Tier-1 requirements
Industry-leading thin technologies reduce capacity requirements with HP 3PAR StoreServ
10000 Storage by eliminating over-provisioning and providing fast and simple space reclamation.
HP 3PAR Gen4 ASICs in each controller node not only deliver mixed workload support, but
provide the high-performance engine behind the system’s unique thin technologies, allowing
you to purchase 50 percent less storage to meet your application requirements—without
compromising performance or utilization. With HP 3PAR StoreServ Storage, you can save on
the cost of a storage technology refresh and then maximize storage ROI over time by keeping
incremental purchases, administration, and operating costs to a minimum. In fact, the HP Get
Thin Guarantee promises a minimum 50 percent reduction in capacity requirements when you
replace legacy storage with HP 3PAR StoreServ Storage—guaranteed.1
Accelerate performance with a flash-optimized
architecture
Subject to qualification and compliance with the
HP 3PAR Get Thin Guarantee Program Terms
and Conditions, which will be provided by your
HP Sales or Channel Partner representative.
1
2
Meet even the most stringent SLAs with performance acceleration for your most frequently
accessed data. A flash-optimized architecture enables optimal performance of flash-based
SSDs while block-level storage tiering and mixed workload optimization enable high levels
of performance for both spinning and non-spinning media. As a result, you can put more
applications on the same storage to lower total infrastructure cost. Unlike traditional arrays
that require you to “scale up” to support growth or increase performance, the platform’s
clustered, Mesh-Active design, with fine-grained virtualization and system-wide striping,
delivers capacity and performance that scales up to 3.2 PB even at extremely high capacity
utilization levels.
Data sheet | HP 3PAR StoreServ 10000 Storage
Increased performance and extended media lifespan
Flash-optimized software innovations like the HP 3PAR Adaptive Read and Write features
enable a more granular approach than can be achieved with spinning media by matching the
size of host reads and writes to flash media to avoid unnecessary data reads and writes. This
significantly reduces latency and enhances backend performance to meet the requirements
of response-time sensitive applications like Oracle Database and Microsoft ® Exchange.
Reducing unnecessary writes also helps extend the life of flash-based media for better
cost-efficiency. Not only this, but all HP 3PAR SSDs are now covered by a 5-year warranty. This
warranty includes replacement of the SSDs for any failure including write wear level limit being
reached.2 Additional innovations to the HP 3PAR StoreServ Storage platform deliver media
endurance benefits that enable you to extend the life of your SSDs to get the most out of every
dollar and I/O for increased storage return on investment (ROI).
HP 3PAR Express Writes is a built-in HP 3PAR OS write acceleration feature that optimizes CPU
utilization to increase throughput, deliver up to 30 percent more IOPS, and reduce latency by
up to 20 percent depending on workload.3 These benefits extend to both spinning drives and
flash-based media. Read acceleration, is also built in to the HP 3PAR OS via HP 3PAR Adaptive
Flash Cache, a feature that allows SSDs to act as an extension of system cache. This feature
can as much as double read rates and reduce latency up to 70 percent with HP 3PAR StoreServ
Storage arrays that are configured with SSDs.
A high-performance architecture also allows you to get more out of your VMware vSphere
deployment, where extensive use of virtual memory pages to disk can limit VM consolidation on
your physical servers when paired with legacy storage, but not with HP 3PAR StoreServ Storage.
In fact, HP stands behind your ability to double VM density on your physical servers when
replacing legacy storage with HP 3PAR StoreServ Storage, including the 7000 series models,
with the industry’s only Get Virtual Guarantee.4
Bulletproof storage with “Six-Nines” availability
A unique set of data resilience and security products power HP 3PAR StoreServ 10000 Storage in
delivering high availability and Tier-1 resilience to Cloud and ITaaS in multitenant environments.
HP 3PAR Persistent Cache preserves service levels, so they are not impacted by unplanned
component failures—a key requirement for the virtual data center. HP 3PAR Persistent Ports
allows non-disruptive upgrades to HP 3PAR StoreServ 10000 Storage systems without relying on
multipathing software or failover initiation. This feature also automatically fails over a front-end
controller node port that experiences physical connection loss due to a cable or switch failure in
order to preserve service levels.
Modern Tier-1 resilience is delivered by HP 3PAR Peer Persistence software, with VMware
vSphere Metro Storage Cluster (vMSC) certification and support for Microsoft Windows Servers
and Microsoft Windows Hyper-V environments. With Peer Persistence, you’ll be able to federate
storage across data centers, regardless of physical boundary constraints. Automated failover
and failback between two sites or data centers is transparent to hosts, which keeps your VMware
deployments seamlessly running even in the event of a disaster.
With the Get 6-Nines Guarantee program, you can achieve 99.9999 percent data availability
with any new 4-node or more HP 3PAR StoreServ systems giving you the peace of mind that
your mission-critical applications are backed by storage with Tier-1 resiliency.4
5 years of warranty coverage is offered
on 1.92 TB and 480 GB commercial MLC (cMLC)
and 480 GB and 920 GB MCL SSD drives. Contact
your HP representatives for details.
3
Based on a random, 100 percent write workload
with an 8K block size.
4
Subject to qualification and compliance with the
HP 3PAR Get Virtual Guarantee Program Terms
and Conditions, which will be provided by your
HP Sales or Channel Partner representative
2
3
Data sheet | HP 3PAR StoreServ 10000 Storage
Consolidate with confidence
Achieve higher service levels for more users and applications with less infrastructure. When
combined with Tier-1 resiliency, the multicontroller scalability and extreme flexibility built
into HP 3PAR StoreServ Storage makes deploying and maintaining separate storage silos to
deliver different QoS levels obsolete. High and predictable levels of service for all workload
types are assured through the massively parallel and fine-grained striping of data across
all internal resources (disks, ports, loops, cache, processors, etc.) so that, as the use of the
system grows—or in the event of a component failure—service conditions remain high and
predictable. Unlike application-centric approaches to storage, one-click autonomic rebalancing
on HP 3PAR StoreServ Storage enables you to optimize QoS levels without service disruption,
pre-planning, or the need to purchase separate arrays to support different service levels.
HP 3PAR Virtual Domains software allows you to securely partition resources within a shared
infrastructure to separate users and hosts to allow secure, shared storage. HP 3PAR Priority
Optimization allows you to deliver assured QoS levels without having to physically partition
resources by giving you the flexibility and control to prioritize your most mission-critical
applications and workloads by specifying minimum thresholds for IOPs (i.e., performance),
bandwidth, and latency (i.e., application response time). When these minimum thresholds are
reached, the system automatically adjusts the service levels of lower-priority applications and
workloads in order to assure that necessary QoS levels for your highest priority applications
can be maintained. With the combination of Priority Optimization and Virtual Domains, you
can specify these minimum thresholds to protect individual tenants as well. This feature also
prevents a single tenant from monopolizing resources.
The security features you require
The HP 3PAR StoreServ Data-at-Rest Encryption solution protects data from both internal
and external security breaches. If your application or environment requires protection from
unauthorized access of the data on a drive, then consider the HP 3PAR StoreServ Data-at-Rest
Encryption solution. HP 3PAR StoreServ models are FIPS 140-2 compliant, support intelligent
key management, and available with self-encrypting drives (SEDs), where data is encrypted as
it is written to the drive. You get the peace of mind in knowing that all data contained on these
drives is protected against unauthorized access, regardless of hardware theft, drive failure, or
drive retirement.
Affordable, flexible disaster recovery
In order to meet service level demands for Modern IT and Cloud environments, high availability
and uncompromising data protection are must-haves. With HP 3PAR StoreServ 1000 Storage,
you can decrease downtime while dramatically reducing the cost of remote data replication and
disaster recovery (DR) with highly efficient, multi-mode replication across all HP 3PAR StoreServ
models. HP 3PAR Remote Copy software allows you to achieve low recovery time objectives
(RTOs) and zero-data-loss recovery point objectives (RPOs) with complete distance flexibility.
And since HP 3PAR Remote Copy configuration is autonomic, set-up only requires one step so
you can protect your data from the start. Refer to the HP 3PAR Replication Software Suite data
sheet for additional details on Remote Copy and related functionality.
Table 1. HP 3PAR Remote Copy software benefits
Key attribute
Autonomic configuration: Set up and test DR in minutes without professional services
Ease of operation: Unified management console for “do-it-yourself” DR
Cost efficiency: Multimode, multisite replication supported between high-end and
midrange arrays, keeping costs down
Capacity efficiency: “Thin provisioning-aware” replication cuts capacity purchases in
half or more
Any-to-any native replication: Flexibly mirror data between any HP 3PAR StoreServ
model and varying service level (RAID level, drive type, etc.)
4
HP 3PAR
Other vendors
Data sheet | HP 3PAR StoreServ 10000 Storage
Balancing cost and performance without compromising
Tier-1 requirements
Modern Tier-1 environments with virtualization, flexible business needs, and all sorts of clouds
have made for extremely active, unpredictable, and variable demands upon storage. For your
business to consistently deliver high levels of application performance at an affordable cost,
your storage architecture must allow easy data movement to keep up with the pace of change.
For example, at times of peak demand on certain applications, you want the associated data
placed on your fastest storage technology. You also need the flexibility to meet different service
levels without having to manage multiple storage islands with incompatible management
interfaces and data service technologies.
Meet the needs of today’s dynamic applications with the ability to move data and workloads
not just between tiers but between arrays—without impact to applications, users, or services.
With HP 3PAR StoreServ Storage, you can simply and non-disruptively shift data between the
HP 3PAR StoreServ 10000 array and any other HP 3PAR StoreServ array without additional
management layers or appliances. Map workloads to the right resources and establish tiers of
storage across the data center for different SLAs (figure 2). Lower costs and manage capacity
at a data center level by thinly provisioning volumes with the freedom to move data between
systems. Refresh technology effortlessly by streamlining the movement of volumes from older
systems and non-disruptively update storage without application impact.
Figure 2. Data mobility to manage SLAs at a data center level
Performance
Scale
Cost
Motion
Storage customized for your application
Your critical business infrastructure and applications require a single storage infrastructure
that can deliver the service levels, application availability, and efficiencies that your business
requires. HP 3PAR StoreServ 10000 Storage allows you to consolidate applications onto
a single, high-performance system, giving your business the flexibility to meet changing
business needs on demand.
HP 3PAR StoreServ will be vVols ready with a new
release of HP 3PAR OS available before the end
of the year.
5
Get more out of your virtualization deployment. HP 3PAR StoreServ Storage is built to deliver
performance that exceeds the demands of virtualized environments along with transformative
levels of simplicity, agility, and efficiency. Integration with Microsoft ® System Center and VMware
vCenter, including support for VMware Virtual Volumes (vVols)5, give you enhanced visibility into
storage, and HP 3PAR Recovery Manager for VMware vCenter provides superior granularity and
control of array-based snapshots. Integration with VMware vSphere API for Array Integration
(VAAI), VMware vStorage APIs for Storage Awareness (VASA), Microsoft Offload Data Transfer
(ODX), and thin provisioning enable HP 3PAR StoreServ Storage to improve virtual infrastructure
performance, efficiency, and scalability. Low latency levels allow you to get more out of your
VMware deployment, where extensive use of virtual memory pages to disk can limit virtual
machine consolidation on physical servers when paired with legacy storage.
5
Data sheet | HP 3PAR StoreServ 10000 Storage
Database performance and availability are so critical that many organizations apply
generous capacity and management resources to maintain needed service levels. HP 3PAR
StoreServ 10000 Storage removes these inefficiencies, eliminating tradeoffs between capacity
utilization, efficiency, and performance. For example, with HP 3PAR Thin Persistence software
and the Oracle ASM Storage Reclamation Utility (ASRU), your Oracle databases stay thin
by autonomically reclaiming stranded database capacity. And HP offers the cost-effective
Oracle- and SQL-aware snapshot technologies, HP 3PAR Recovery Manager for Oracle and
HP 3PAR Recovery Manager for SQL Server.
A unique, clustered, Mesh-Active controller interconnection delivers performance that
scales even with extremely high levels of capacity utilization. Low latency levels meet the
requirements of response-time sensitive applications like Oracle Database and Microsoft
Exchange and allow you to get more out of your VMware deployment, where extensive use of
virtual memory pages to disk can limit virtual machine consolidation on your physical servers
when paired with legacy storage. By contrast, deploying HP 3PAR StoreServ Storage enables
you to double virtual machine density on your physical servers—guaranteed.
Given the importance of Microsoft Exchange for mission-critical email communications, many
organizations devote significant amounts of storage capacity and management resources to
this essential application. HP 3PAR StoreServ 10000 Storage enables you to support a large
number of mailboxes with a larger size limit while reducing cost per mailbox from dollars
to cents. In addition, with HP 3PAR Recovery Manager for Exchange, you can recover email
messages quickly, affordably, and from multiple points in time.
Technical specifications
HP 3PAR StoreServ 10400
Drive description
HP 3PAR StoreServ 10800
SFF SAS LFF Fibre Channel/SATA/SAS/Nearline SAS/SSD
Drive type
1.92 TB SFF SAS cMLC SSD
480 GB SFF SAS cMLC SSD
480 GB SSF SAS MLC SSD
920 GB SSF SAS MLC SSD
300 GB 15k LFF FC
600 GB 15k LFF FC
300 GB 15k SFF SAS
450 GB 10k SFF SAS
900 GB 10k SFF SAS
1.2 TB 10k SFF SAS
2 TB 7.2k LFF SAS
4 TB 7.2k LFF SAS
(960) maximum supported
1.92 TB SFF SAS cMLC SSD
480 GB SFF SAS cMLC SSD
480 GB SSF SAS MLC SSD
920 GB SSF SAS MLC SSD
300 GB 15k LFF FC
600 GB 15k LFF FC
300 GB 15k SFF SAS
450 GB 10k SFF SAS
900 GB 10k SFF SAS
1.2 TB 10k SFF SAS
2 TB 7.2k LFF SAS
4 TB 7.2k LFF SAS
(1920) maximum supported
Capacity
1.6 PB
3.2 PB
Host interface
8 Gb/s Fibre Channel (96) ports; or 10 Gb/s iSCSI
(16) ports, and 8 Gb/s Fibre Channel (80) ports
8 Gb/s Fibre Channel (192) ports; or 10 Gb/s iSCSI
(32) ports, and 8 Gb/s Fibre Channel (160) ports
Type and number of disk enclosures
(24) HP 3PAR StoreServ 40-drive chassis
(48) HP 3PAR StoreServ 40-drive chassis
Drives per enclosure
40
40
Cache
32 GB control and 64 GB data included per node
32 GB control and 64 GB data included per node
Storage controllers
Up to four 10400 quad-core 2.8 GHz Controller Nodes
Up to eight 10800 quad-core 2.8 GHz Controller Nodes
Warranty (parts-labor-onsite)
3/3/3
1.92 TB and 480 Gb commercial MLC (cMLC) and 480 GB
and 920 GB MLC SSDs have 5 years, parts only
3/3/3
1.92 TB and 480 Gb commercial MLC (cMLC) and 480 GB
and 920 GB MLC SSDs have 5 years, parts only
6
Data sheet | HP 3PAR StoreServ 10000 Storage
Software suites for HP 3PAR StoreServ Storage
HP 3PAR StoreServ Storage supports the same operating system and software offerings as the other members of the HP 3PAR StoreServ family.
As with all HP 3PAR StoreServ Storage systems, you have the opportunity to purchase software bundled into a series of suites designed to
simplify purchasing and save you money. Selected software titles may also be purchased separately, as indicated below.
HP 3PAR Operating System Software Suite
Required for all new HP 3PAR StoreServ systems, this foundational software suite gives you everything
you need to get up and running quickly and efficiently. This suite includes the HP 3PAR Operating System,
HP 3PAR Management Console, and HP 3PAR Host Explorer—software designed to get you off to a
quick start with your new HP 3PAR StoreServ system. It also includes all of the platform’s thin software
offerings—HP 3PAR Thin Provisioning, Thin Conversion, and Thin Persistence, and Thin Clones. Other
highlights of this suite include HP 3PAR Adaptive Flash Cache, HP 3PAR Express Writes, HP 3PAR Full Copy,
autonomic rebalancing capabilities that help you get optimal use out of future capacity expansions, and
support for standard multipathing software for high availability in clustered environments. A 180-day
license for online import is included to enable migration from EMC CLARiiON CX4 and EMC VNX arrays as
well as HP EVA Storage.
HP 3PAR Replication Software Suite
This optional suite bundles HP 3PAR Virtual Copy with HP 3PAR Remote Copy software, both also sold
separately for all HP 3PAR StoreServ models. Included in this bundle is Peer Persistence, which enables
peer federation for VMware and Windows clusters to improve overall availability. Licensed based on
system capacity.
HP 3PAR Data Optimization Software Suite
This optional software bundle combines HP 3PAR Dynamic Optimization, HP 3PAR Adaptive Optimization,
HP 3PAR Peer Motion, and HP 3PAR Priority Optimization software so you can move data and workloads
between arrays without impacting applications, users, or services. Licensed based on system capacity,
the four software titles bundled in this suite are also sold separately for all HP 3PAR StoreServ models.
Depending on purchase date, titles included in this suite may vary. Check the HP 3PAR Software QuickSpecs
for complete details. For the 10000 models only, the HP 3PAR Optimization Suite is available and includes
Adaptive Optimization and Dynamic Optimization.
HP 3PAR Security Software Suite
This optional suite bundles HP 3PAR Virtual Domains and HP 3PAR Virtual Lock Software, both also
sold separately for all HP 3PAR StoreServ models. With this suite, you can segregate access and deliver
robust storage services for different applications and user groups with additional security attached to the
retention of storage volumes. Licensed based on system capacity.
HP 3PAR Application Software Suite for VMware
Everything you need to make your VMware environment more agile and efficient—including HP 3PAR
Recovery Manager for VMware, Host Explorer for VMware, vSphere APIs for Storage Awareness (VASA)
support, and three essential plug-ins: the VMware Site Replication Manager (SRM) Adapter, the HP 3PAR
VAAI Plug-in, and the HP 3PAR Management Plug-in for VMware View. This suite is optional and licensed on
a per-system basis.
HP 3PAR Application Software Suite for Hyper-V
Protect your Microsoft Hyper-V environment with HP 3PAR Recovery Manager for Microsoft Hyper-V and
the HP 3PAR VSS Provider Software, included in this optional suite and licensed on a per-system basis.
HP 3PAR Application Software Suite for Exchange
This bundle gives you the essentials for use with Microsoft Exchange, including HP 3PAR Recovery Manager
for Exchange and the VSS Provider Software. This suite is optional and licensed on a per-system basis.
HP 3PAR Application Software Suite for Oracle
Everything you need for protecting Oracle databases, including HP 3PAR Recovery Manager for Oracle and
Oracle space reclamation capabilities, sold as an optional suite and licensed on a per-system basis.
HP 3PAR Application Software Suite for SQL
Protect Microsoft SQL databases with HP 3PAR Recovery Manager for Microsoft SQL and the HP 3PAR VSS
Provider software, bundled with this optional suite and licensed on a per-system basis.
HP 3PAR Reporting Software Suite
Enhance system visibility and reporting capabilities with this optional suite, which includes HP 3PAR
System Reporter software and the HP 3PARInfo application, licensed on a per-system basis.
7
Data sheet | HP 3PAR StoreServ 10000 Storage
HP Technology Services for HP 3PAR StoreServ Storage
Customize your IT lifecycle management, from
acquisition of new IT, management of existing
assets, and removal of unneeded equipment.
hp.com/go/hpfinancialservices
HP Factory Express provides customization and
deployment services along with your storage and
server purchases. You can customize hardware
to your exact specifications in the factory—
helping speed deployment. Visit hp.com/go/
factoryexpress.
Gain the skills you need with ExpertOne training
and certification from HP. With HP Converged
Storage training, you will accelerate your
technology transition, improve operational
performance, and get the best return on your
HP investment. Our training is available when
and where you need it, through flexible delivery
options and a global training capability. Visit
hp.com/learn/storage.
Expert HP storage consultants and service professionals sit down with you and your team
to map your storage needs. Not only can we help you accelerate implementation and reduce
deployment risk, but we can also help you realize the full value of your storage purchases as
you transform storage for the New Style of IT.
Advise, transform, and integrate
Navigate through the complexities of storage, backup, archive, disaster recovery, and Big Data
with advisory, transformation, and integration consulting.
Deploy and implement
Access expertise to support deployment, operations, relocation, sanitization, and disposal, plus
improvement-focused education.
Operate and support
Find the level of personalized, proactive, and simplified support right for your business.
Note
Specific service availability varies by product
Foundation Care
System-level IT hardware and software support delivers flexible coverage window and
response time for more choice and simplicity.
Take five minutes to calculate the potential
three-year cost savings and ROI you can expect
by migrating from your current storage to an
HP 3PAR StoreServ solution. Click here to go to the
HP Storage Quick ROI Calculator.
Proactive Care
Combined reactive and proactive services provide easy-to-purchase, cost-efficient system-level
support coupled with personalized expert advice and products connected to HP to help prevent
problems and reduce downtime.
Datacenter Care
Get the support you need to deploy, operate, and evolve your data center environment to be
hybrid-cloud ready with single-point-of-accountability for HP and others’ product.
Get connected and get back to business – HP Storage Technology Services provide the path to
get your HP Storage solutions and your business connected to HP. Once connected, our experts
are able to scan your system and run health checks, then use that data to create personalized
reports and recommendations for actions to take to prevent problems and downtime.
To learn more, visit: hp.com/services/storage
Learn more at
hp.com/go/StoreServ10000
Sign up for updates
hp.com/go/getupdated
Share with colleagues
Rate this document
© Copyright 2011–2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft is a U.S. registered trademark of the Microsoft group of companies. Oracle is a registered trademark of Oracle and/or its affiliates.
4AA3-2351ENW, August 2014, Rev. 8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
