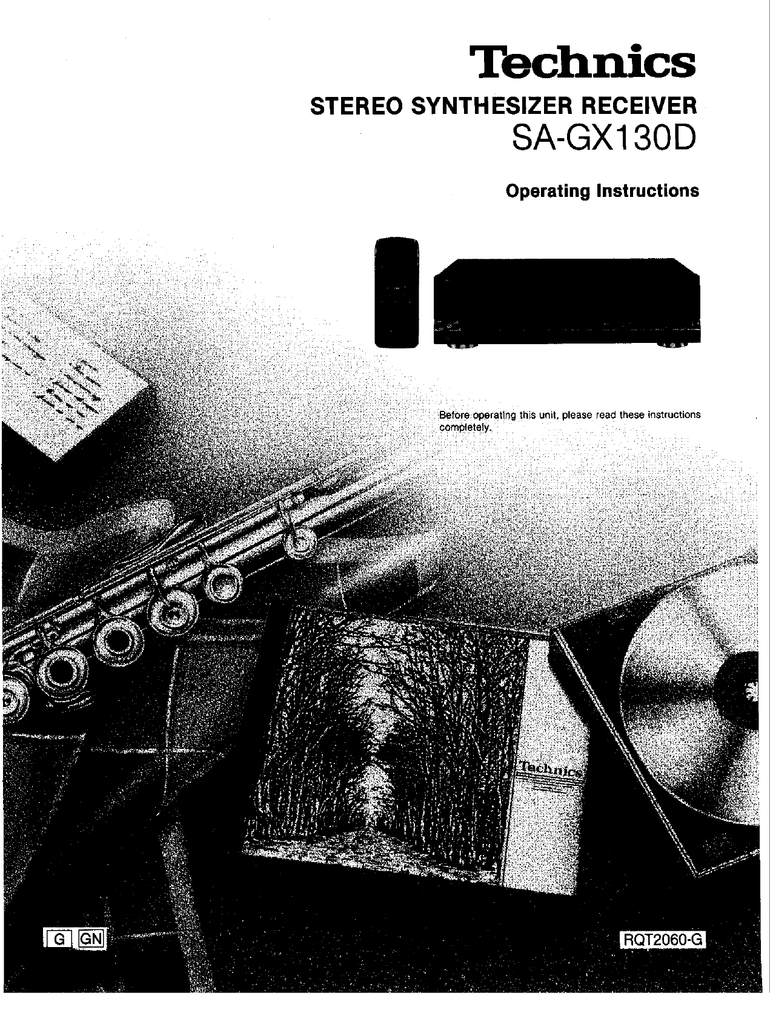

Technics
STEREO SYNTHESIZER RECEIVER
SA-GX130D
Operating Instructions
We want to thank you for selecting this product and from this new addition to your home.
to welcome you to the growing family of satisfied Please read these operating instructions carefully,
Technics product owners around the world. and be sure to keep them handy for convenient
We feel certain you will get maximum enjoyment reference.
Contents
* Accessories ............................. 2 * Listening to Radio Broadcasts ........... -14
* Suggestions for Safety ................... 3 e Recording ........................c...... 18
e Connections ............................. 4 * Remote Control Operation.............. ..20
* Remote Control Transmitter .............. 9 * Troubleshooting Guide ................... 23
* Front Panel Controls and Functions ...... 10 Maintenance............................. 25
Mutual Operations ....................... 12 * Technical Specifications ................. 26
—For areas except Australla and N.Z.
CAUTION:
The AC voltage is different according to the area.
Be sure to set the proper voltage in your area before use.
(For details, please refer to the page 8.)
THIS TUNER/RECEIVER 1$ CAPABLE OF RECEIVING THE NEW AM STEREO BROADCASTS FROM THE AM BAND RADIO STATIONS.
HOWEVER LIKE MANY TUNERS AND RECEIVERS CURRENTLY AVAILABLE ON THE MARKET IT WILL REPRODUCE THIS AM STEREO
SIGNAL ONLY IN AM MONO, WHICH, IN EFFECT, IS OF NO LESSER QUALITY THAN YOUR EXISTING AM MONO TUNER/RECEIVER.
Accessories
s AC power supply cord. ....... 1 * AM ioop antenna ............ 1 * Remote control transmitter
(For Australia and N.Z)) (RAK-SAO11IXH).............. 1
1 eSCrEWS LL... Lana 0e 2 * Power plug adaptor .......... 1
(For areas except Australia and
| Er с” №2.)
Suggestions for Safety
Ш Use a standard AC wall outlet
1. Use from an AC power source of high voltage, such as for
an air conditioner, is very dangerous.
There is the possibility that a fire might be caused by making
such a connection.
2. A DC power source cannot be used.
Be sure to check the power source carefully, especially on a
ship or other place where DC is used.
IM Grasp the plug when disconnecting the power
supply cord
1. Wet hands are dangerous.
A dangerous electric shock may result if the plug is touched
by wet hands.
2. Never place heavy items on top of the power supply cord,
and never force it to bend sharply.
E Place the unit where it will be well ventilated
Place this unit at least 10 cm (4) away from wall surfaces, etc.
Be careful that curtains and similar materials do not obstruct the
ventilation holes.
Hl Avoid places such as the following:
In direct sunlight or in other places where the temperature is
high.
in places where there is excessive vibration or humidity.
Such conditions might damage the cabinet and/or other compo-
nent parts and thereby shorten the unit's service life.
H Be sure to place the unit on a flat, level sur-
face.
If the surface is inclined, a malfunction may result.
IM Never attempt to repair or reconstruct this
unit
A serious electric shock might occur if this unit is repaired,
disassembled or reconstructed by unauthorized persons, or if the
internal parts are accidentally touched.
E Take particular care if children are present
Never permit children to put anything, especially metal, inside
this unit. A serious electric shock or malfunction could occur if
articles such as coins, needles, screwdrivers, etc. are inserted
through the ventilation holes, etc. of this unit,
EN If water is spilled on the unit
Be extremely careful if water is spilled on the unit, because a fire
or serious electric shock might occur. immediately disconnect
the power cord plug, and consult with your dealer.
Hl Avoid spray-type insecticides
Insecticides might cause cracks or “cloudiness” in the cabinet
and plastic parts of this unit. The gas used in such sprays might,
moreover, be ignited suddenly.
IN Never use alcoho! or paint thinner
These and similar chemicals should never be used, because they
might cause flaking or cloudiness of the cabinet finish.
ll Disconnect the power supply cord if the unit
will not be used for a long time
If the unit is left for a long time with the power ON, this will not
only shorten its useful operation life, but may also cause other
troubles.
Bl If trouble occurs
If, during operation, the sound is interrupted or indicators no
longer illuminate, or if abnormal odor or smoke is detected, im-
mediately disconnect the power cord plug, and contact your
dealer or an Authorized Service Center.
Connections Sore conection но
Caution: te 6 >
Do not place books, etc., on top of this unit so that the heat radiation vents remain unblocked.
® ® © | (For areas except
| Austrailia and N.2)
I
AC IN VOLF ADJ This unit
смо 6 cn
750 O
FM O.
ANT PHONO| CD | —VCR 1—~TAPE/VCR 2
| | out in (OUT) (IN
м Ап О РОО О ООО CONTROL
mue — POJOJO OOO О
| | _J
(D) (Location of AC IN socket
differs according to area)
(M) Antenna connection terminals @ “VCR 1” terminals
See pages 6—7 for detailed information. Connect a VCR.
| {See the operating instructions of the VCR.)
@ “PHONO” terminals
Connect a turntable only. Do not connect any other sound This unit VCR J
source to these terminals. our IN
Co ФФ
This unit с
GND G— —
pos UMR (AU
Es + D — Stereo connection
cables
Stereo connection y. Ground wire (not Included)
cable (not included) AL LIM
(not included) no a $
по
included) AUDIO AUDIO уе CUT
(В (L) GND eN OUT — |
Turntable ОТ L | Video connection
(not included) OUTPUT® © © cable
— = {not included)
Tv
| (not included)
® “CD” terminals
VIDEO IN
Connect a compact disc player. |
This unit CD
[€ с DI
Dr ? Emi
RR O
Stereo connection
cable
(not included)
Compact disc
player
(not included)
e—3
o—e
OUT
® “TAPE/VCR 2” terminals @ Cooling fan
Connect a tape deck or second VCR. | The cooling fan operates at high output power levels oniy.
This unit [7 TAPE/VCR 2
REC (QUT) PLAY (IN)
o 9 Speaker connection terminals
(A) (Ma) See page 8 for detailed information.
Stereo connection
cables
(not included) (For areas except Australia and N.Z.)
AL OE @® Voltage selector (VOLT ADJ)
Tape deck | 4 $ | See page 8 for detailed information.
(not included) [©
LINE IN LINE QUT
AC IN socket (AC IN)
See page 8 for detailed information,
Note:
Location of AC IN socket differs according to area.
(6) Remote control OUT terminal
(REMOTE CONTROL OUT)
This terminal can be used only with Technics components
which have the appropriate remote control terminal.
(Consult your dealer for details.)
Proper connection with remote control connection cables
SJP2257T will allow control of some functions from this
unit’s remote control transmitter. (See pages 20-22 for
details.)
Connect to a tape deck and/or compact disc player as shown
below.
If a tape deck is not being used, the compact disc player can
be connected directly (dotted line).
This unit
REMOTE
CONTROL
Pour
Connection cable
for remote control
{Included with tape
(77 deck)
Tape deck !
(not included) i J REMOTE
и for
I
a — Connection cable
for remote control
(included with
Ks compact disc
player)
Compact disc
player $
(not included) REMOTE
Note:
For a compact disc player with a remote control sensor the
ВЕ above connection is not necessary.
Connections comes
| FM antenna connections
Note: An outdoor antenna should be installed by a competent technician only.
FM indoor antenna FM outdoor antenna
(included) (not included)
—
*
! — Tape
`
75 Q coaxial cable
(not included)
This unit
/ -—
GND FT EA
75Q
FM
or [avr © a
=)
О
(_FM indoor antenna (included) ) (_FM outdoor antenna (not included) )
Attach to a wall (using a tape) facing in the direction of best recep-
tion.
For best reception sound quality:
An FM outdoor antenna is recommended.
Note:
Disconnect the antenna if an FM outdoor antenna is installed.
If the FM indoor antenna does not provide satisfactory reception,
an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region,
or if this unit is located inside a reinforced-concrete building, etc.
-How to connect an FM indoor antenna— ——— —How to connect a 75 Q coaxial cable
(1) Pull off the plastic on the tip of — (D Remove a piece of the outer
the antenna wire. J vinyl insulator.
(2 Twist the wire and connect as CO» ==
shown below. Ju ef
20 mm
ornare Shield braid
Twist @ Twist the shield braid to expose
the core wire.
Wire—__| Lo
10 mm
O Connect the shield braid and
the core wire as shown at the
le) right.
a.
Ae
Ur
A
den
| AM (MW/LW) antenna connections
AM loop antenna
(included)
@
)
AM outdoor antenna
{not included)
— 1
Vinyl-covered wire
(not included)
This unit
#3
a
Cd — red
( АМ loop antenna (included) | ) When mounting the antenna to the unit
Connect the AM loop antenna to the AM loop antenna terminals,
and mount it vertically to a column, a wall or rack.
* |f this antenna is not properly installed, MW/LW broadcasts will
not be received.
* Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
Pay attention to the following points when mounting the
antenna.
* Do not mount it horizontally (Doing so will impair reception).
* Do not mount it close to power cords, speaker wires or metal
surfaces (Doing so will result in noise).
e Do not mount it close to a tape deck. When the tape deck is be-
ing used, chirping or beeping sounds may result.
When mounting the antenna to a column, a wall
or rack
Mount it vertically.
Move the antenna toward the right or left to find the point of best
reception.
AM antenna holder
(Included) Screws (included)
This type of installation may cause impaired reception or result in
signal noise. If possible, mount the antenna to a column, a wal! or
rack.
Move the antenna toward the right or left to find the point of best
reception.
AM antenna holder
(included)
Screws (included)
(_AM outdoor antenna (not included) )
An outdoor antenna may be required in a mountainous region, or
if this unit is located inside a reinforced-concrete building, etc.
Use 5—12 m of vinyl-covered wire horizontally at the window, or
convenient location.
Note:
When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning. Never
use an outdoor antenna during an electrical storm.
Connections come
| Connection to speaker systems |
Right speaker Left speaker
system system
(not included) (not included)
| Speaker connection cables
| | (not included)
This unit > @ #6)
| R L R L |
> [E
5191618 ®
O10/Q
== Br
8 [A]
LC L |
Ш “B” terminals
For connection to a second pair of speakers.
IB Speaker impedance
A and/or B: 8-16 Q
To connect speaker connection cables to
terminals
Be sure to only connect positive (+) wires to positive (+) ter-
minals, and negative (—) wires to negative (— ) terminals.
(D Twist the core of the speaker cables.
15 mm Twist
@ Open the lever, and insert the core until it can no longer be
seen,
® Close the lever, and pull the cable to assure a proper connec-
tion.
Note:
To prevent damage to circuitry, never short-circuit positive (+)
and negative (—) speaker wires.
To set the power voltage
(For areas except Australia and N.Z.)
Set the voltage selector to the voltage setting for the area in
which the unit will be used.
[Use a minus (—) screwdriver]
This unit
|
VOLT ADJ
Note that this unit will be seriously damaged if this setting is not
made correctly.
To connect the AC power supply cord
{included}
Connect the AC power supply cord {included) after all other
cables are connected.
Configuration of AC power supply cord and location of AC IN
socket differ according to area.
This unit
AC INN
В
br]
AC power cord Y
(included)
Household @- y
AC outlet —
For areas except Australia and N.Z,
If the power plug will not fit your socket, use the
power plug adaptor (included).
{ee
\ A
For areas except Australia and N.Z.
Insertion of Connector
Even when the connector is perfectly
inserted, depending on the type of in-
let used, the front part of the connec-
tor may jut out as shown In the draw-
ing.
However there is no problem using the
unit. Appliance inlet
Remote Control Transmitter
| Insertion of remote control transmitter batteries
1. Open the cover.
2. Insert the batteries.
Be sure to insert according to the
(+) and (—) indications in the
battery compartment.
e Use two UM-4, “AAA” (RO3; 1,5 V)
size batteries.
3. Close the cover.
E Battery lite
Battery life is about one year. (Battery life
may vary depending upon the frequency of
use and other conditions of use.)
The batteries should be replaced if the unit
cannot be operated even when the remote
control transmitter is brought close to the
unit.
E Battery notes
* Bs sure that batteries are inserted so that
they are placed correctly with respect to
the (+) and (—) indications in the battery
compartment. If the batteries are not in-
serted correctiy, they may
damage the remote control transmitter.
* Do not use rechargeable (nickel-cadmium)
type batteries.
leak and
* Do not mix old and new batteries, or bat-
teries of different types (carbon and
alkaline, etc.)
* |f the remote control transmitter is not to be
used for a long period of time, take out the
batteries and store them in a cool, dark
place.
* Remove and dispose of worn-out batteries.
* Never attempt to recharge or short-circuit
the batteries, and do not disassemble them
or expose them to excessive heat or throw
them into a fire.
* |f a battery leaks, remove both batteries
and dispose of them, and then thoroughly
clean the battery compartment before in-
serting new batteries.
| Remote control transmitter operation notes
Use the remote control
transmitter within 7 meters.
rd
Face it toward the remote control
signal receptor of this unit.
avoided.)
Be sure the transmitter part of the remote control
transmitter and the receptor part of this unit are
free from dust.
Excessive dust might prevent reception.
—Other notes
1. Do not expose the receptor (on this unit)
to direct sunlight or other strong light,
because to do so might result in incorrect
operation.
2. Do not use a remote control transmitter
for a TV set, a VCR or other video compo-
nent at the same time as this remote con-
trol transmitter is being used, because to
do so might result in incorrect operation.
3. If this unit is installed in a rack with
glass doors, the glass door's thickness
or color might make it necessary to use
the remote control transmitter a shorter
distance from the unit.
Front Panel Controls and Functions
| Tuner section
M Power “ d STANDBY/ON” switch
(POWER, () STANDBY/ON)
Press to switch the unit from on to standby mode or vice ver- '
sa. In standby mode, the unit is still consuming a small
amount of power.
@ Remote control signal receptor
(REMOTE SENSOR)
Receives the signals from the remote control.
® “STANDBY” Indicator (STANDBY)
When the unit is connected to the AC mains supply, this in-
dicator lights up in standby mode and goes out when the unit
is turned on.
@ Channel display
This display shows the channel number selected by one of
the preset-tuning buttons.
Also this display shows the channel number for about 3
seconds during memory scan operation.
® Quartz-lock indicator (QUARTZ LOCK)
This indicator illuminates when the unit is tuned precisely to
a broadcast station.
Memory indicator (MEMORY)
This indicator illuminates when the memory button is press-
ed.
@ FM stereo indicator (FM ST)
This indicator automatically illuminates when an FM stereo
broadcast is being received.
Note:
It will not illuminate if the FM mode selector is set to the
monaural mode.
Memory scan Indicator (M. SCAN)
This indicator illuminates when the memory scan button is
pressed.
(9 Band indicators (FM, LW, MW)
Indicates the selected band.
Input selector/frequency display
(INPUT SELECTOR/FREQUENCY)
Displays the selected source or broadcast frequency.
(DD Memory scan button (MEMORY SCAN)
This button is used to locate a desired broadcast station:
each broadcast station is selected for about 3 seconds.
(2 Tuning buttons (TUNING)
These buttons are used for tuning to the desired broadcast
station.
Memory button (MEMORY)
This button is used when presetting broadcast station fre-
quencies into memory. (Refer to pages 15— 16.)
(Y Preset-tuning buttons (1—0)
(30 CHANNEL RANDOM PRESET TUNING)
These buttons are used to preset broadcast frequencies into
the memory of this unit and to recall the desired preset sta-
tions. (Refer to pages 16—17.)
9 Band selectors (FM, LW, MW)
FM: Press this button to listen to an FM broadcast.
LW: Press this button to listen to an LW broadcast.
MW: Press this button to listen to an MW broadcast.
ALLOCATION: When the MW button is pressed for about 3
seconds, the MW frequency step will change to 10 kHz per
step. (This step is set to 9 kHz before shipment.) In order to
return to the original frequency indication, press this button
for about 3 seconds again.
(9 FM mode selector (FM MODE)
This unit automatically switches to the stereo mode when an
FM stereo broadcast is received. This selector is used to
select the mode (sterec or monaural) of FM broadcast
signals.
| Amplifier section
(M) Speaker selectors (SPEAKERS)
These selectors are used to select the speaker system(s) (A
and/or B).
2) Muting indicator (MUTING)
This indicator will illuminate when the muting button (on the
remote control transmitter) is pressed.
® Loudness Indicator (LOUDNESS)
This indicator will illuminate when the loudness button is
pressed. |
O Tape Indicator ( )
This indicator will iluminate when the tape-monitor/vCR 2
button is pressed.
® Volume control (VOLUME)
O Tone controls (BASS, TREBLE)
The bass control is used to adjust the low-frequency sound
range, and the treble control is used to adjust the high-fre-
quency sound range.
@ Headphones jack (PHONES)
Input selector buttons
These buttons are used to select the sound source to be
heard, such as a disc, radio broadcasts, etc. The selected
sound source is shown on the input selector/frequency
display.
The “PHONO” input selector has two functions: when press-
ed momentarily it selects "PHONO". When pressed and held
for about 4 seconds, it de-activates the muting function.
(9 Tape-monitor/VCR 2 button
(TAPE MONITOR/VCR 2)
Press this button to listen to a tape or second VCR con-
nected to the “TAPE/VCR 2" terminals.
To listen to some other source, press this button once again
(so that the indicator is switched OFF).
Loudness button (LOUDNESS)
Set to the “ON” position (the loudness indicator will il-
luminate); when listening to music at low volume. Auditory
perception of sound in the low frequency range falls off at
low volume, but when the switch is in this position, this defi-
ciency is compensated for, so that the full impact of tha
musical performance can be enjoyed.
(D Balance control (BALANCE)
Mutual Operations
2 т 4 6
Technics | STEREO BYNTHESIZER RECEIVER vu
rover — ee | Lee, ras
== = O ©
EEE CET |e e e. IT
O a | O mom
7] 1
: Tape-monitor/VCR 2 button Volume control
Before operation, set the volume control to the “0” position.
th .
1 Set the power switch to ON. 5 Start the sound source
(Refer to the appropriate operating instructions for details).
Select the “A” and/or “B” speaker system
to be used. 5 ГУ © 6 Adjust the volume level.
When only one speaker system is connected, no sound will
be heard if both speaker selectors are pressed.
Check to be sure the tape indicator is not Il-
luminated.
To listen to sources other than a tape (or VCR 2), be sure to
turn off the tape indicator.
| After listening is finished
If the tape indicator is illuminated:
Press the tape-monitor/VCR 2 button. Be sure to reduce the volume level, and switch the power to
T | standby mode from the remote control transmitter or by the
power ‘ d STANDBY/ON” switch of this unit.
Note: The input selection, loudness and the muting settings will
Tape indicator be retained (as they were at the time when the power was switch-
| ed to standby mode) by the memory back-up function.
Select the sound source.
VCR 1: Press to listen to the playback sound from the VCR
connected to the “VCR 1” terminals.
TAPE MONITOR/VCR 2: Press to listen to tape or second
VCR. (The tape indicator will illuminate.)
When listening to tapes is finished, be sure to press the
tape-monitor/VCR 2 button to turn off the tape in-
dicator.
CD: Press to listen to compact discs.
TUNER: Press to listen to radio broadcasts.
PHONO: Press to listen to phono discs.
Le Hell VAE SA |
| indicator BASS [TREBLE]
Technics — STEREO SYNTHESIZER несем} voue
= | =5[A |
=, === == o
e Tz Ise sTeT TeT=Te]| CIC] nm
| ven | TAPE MENTOR
am] | = | cara
e == OT
|]
Headphones (not included) LOUDNESS| BALANCE
Plug type:
6.3 mm phone plug stereo type
To adjust to the desired tone
quality
Adjust the low-frequency sound to the desired
tone quality.
[TREBLE]
Adjust the high-frequency sound to the desired
tone quality.
To emphasize low-frequency
sound
— Set the loudness switch to “ON” position.
The loudness indicator will illuminates.
(Refer to item 40 on page 11.)
| To adjust the left/right sound balance |
Adjust the balance control.
[ When listening through headphones |
* Use the volume control to reduce the volume level, and con-
nect the headphones to the headphones jack.
* If sound from the speakers is not wanted, set the speaker selec-
tors ("SPEAKERS") to the “OFF" position.
* Avoid listening for prolonged periods of time {0 prevent hearing
damage.
Listening to Radio Broadcasts
| Manual tuner operation
To listen to broadcasts by using the tuning buttons,
FM stereo indicator
Have you completed the steps 1—3 (on page 12) ( If noise Is excessive in the FM mode >
of “Mutual Operations” ?
Press the FM mode selector.
1 Press the “TUNER” button. The sound will then be heard in monaural and the FM stereo in-
dicator will not illuminate. If the broadcast signal is weak, or if
there is a large amount of interference, sounds can be heard
more clearly,
Press the “FM”, “LW” or “MW” button.
FM: for FM broadcast
LW: for LW broadcast
MW: for MW broadcast
Before presetting MW broadcast stations, press to select
the appropriate frequency step for your locality. (Refer t
item (3 on page 10.) |
Press the appropriate tuning button to tune
to the desired broadcast.
(Refer to “Frequency tuning” below.)
| Frequency tuning (“TUNING” buttons) |
TUNING E Automatic tuning
(-MANUAL-— AUTO)
Press the button. When the frequency indication begins to
DOWN UP
change, release the button {a broadcasting station wilt be
selected automatically). Repeat this operation until the desired
| | station is found.
E Manual tuning
Press the button momentarily (frequency will change each time
the button is pressed), and tune to the desired frequencies.
Press to change the Press to change the
frequency downward. frequency upward.
| Memory presettings |
You can program 30 FM/MW/LW radio broadcast stations into memory, so that any desired station may be selected by simply touching one or
two buttons. There are two methods for presetting broadcast frequencies in the memory: the automatic method (see below) and the manual
method (refer to page 16); select whichever method you prefer.
(_ Automatic memory presetting
When this method is used, the frequencies of the selected broad-
cast stations are automatically preset (in sequence to higher fre-
quencies) into memory: “channels” 1 to 30 are available for the
presetting of FM stations, “channels” 21 to 30 are available for
MW stations, and “channels” 27 to 30 are available for LW sta-
tions. |
When a presetting is made to a channel that has already been
preset, the prior presetting will be erased, so if, for example, FM
frequencies are preset to channel 1 to 30 and then MW frequen-
cies are preset, the first MW frequency will be preset to channel
21 (thus erasing the FM presetting to channel 21), the second
MW frequency will be preset to 22 (erasing FM 22), and so on.
Have you completed the steps 1— 3 (on page 12)
of “Mutual Operations” ?
1 Press the “TUNER” button.
Press the “FM”, “LW” or “MW” button.
FM: for FM broadcast
LW: for LW broadcast
MW: for MW broadcast |
Betore presetting MW broadcast stations, press to select
the appropriate frequency step for your locality. (Refer 10
item (5 on page 10.)
Set to the frequency from which you want to
start automatic memory presetting.
Press and hold the memory button until the
frequency begins to change.
(Automatic memory presetting will start.)
Notes:
* For automatic pressetting in areas where there are fewer than
30 stations for FM broadcasts, the remaining channels will be
left unused. The unused channels can be filled by following
steps 2 through 5 on page 16.
* For MW/LW broadcasts with extremely strong signal transmis-
sions, the frequency memorized may be slightly different than
the correct frequency. If this occurs, make a manual preset-
ting.
« lf a new broadcast station is preset into a channel, the broad-
cast station which was previously entered in that channe! wil!
be automatically erased.
Listening to Radio Broadcasts mea
| Memory presettings (continued)
Memory indicator
(_ Manual memory presetting
Stations can be freely preset to any desired channel.
A maximum of 30 broadcast stations can be memorized.
Have you completed the steps 1—3 (on page 12)
of “Mutual Operations” ?
1 Press the “TUNER” button.
Press the “FM”, “LW” or “MW” button.
FM: for FM broadcast
LW: for LW broadcast
MW: for MW broadcast
Before presetting MW broadcast stations, press to select
the appropriate frequency step for your locality. (Refer to
item ú on page 10.)
Press the appropriate tuning button to tune
to the desired broadcast.
(Refer to “Frequency tuning", on page 14.)
Press the memory button momentarily.
(The memory indicator will illuminate.)
Note:
If the memory button is pressed and held until the frequen-
Cy begins to change, the automatic memory presetting (See
10 page 15.) is activated. To stop the automatic memory
presetting, press one of the tuning buttons ("TUNING").
Then begin again from step 3.
To cancel the memory function, press the memory button
again. |
Select the desired “CHANNEL”.
(Refer to "How to designate preset channels” below.)
Repeat steps 2 through 5 to make additional
memory presettings; for later reference,
note the presettings in the station memory
file on page 17.
| How to designate preset channels
To designate channels 1-9:
Press the appropriate (1 —9) preset-tuning button.
Note: When selecting channel 1, 2 or 3, enter the selection
“017, 02” or 03”. ITonly 1”, “2” or 3” is pressed, channel ac-
cess will be delayed by two seconds.
To designate channels 10— 30:
(D Press the button for the “tens” digit (1, 2 or 3).
(2) Press the button for the “units” digit (1—0) within 2 seconds
after pressing the first button.
Note:
If the interval between pressing the first button and pressing the
second button is more than about 2 seconds, the setting may not
be made correctly. If this happens, make the setting once again.
When making a memory presetting manually, once again
designate the channel to be selected after pressing the memory
button.
| Using memory preset
To listen to broadcast stations
preset into memory.
Memory scan indicator
Have you completed the “Memory presettings”
on page 15— 16 and steps 1 —3 of “Mutual Opera-
tions” on page 12 ?
1 Press the “TUNER” button.
Select the desired “CHANNEL”.
(Refer to “How to designate preset tuning” on page 16.)
C Channel selection using the memory scan
button
This feature is convenient for use when trying to locate a certain
broadcast, or to listen to each station briefly to hear what is being
broadcast.
[MEMORY SCAN]
Press the memory scan button.
(The memory scan indicator will illuminate.)
Each frequency will then be heard (in sequence) for about 3
seconds.
The preset channel number will be displayed in the channel
display.
Preset channel number
т
When the desired broadcast is found:
MEMORY SCAN
Press the memory scan button
(The memory scan indicator will switch OFF.)
The broadcast will continue, even after 3 seconds have passed.
(_If noise is excessive in the FM mode )
Press the FM mode selector.
The sound will then be heard in monaural and the FM stereo in-
dicator will not illuminate. If the broadcast signal is weak, or if
there is a large amount of interference, sounds can be heard
more clearly.
| Back-up memory |
The back-up function maintains the preset memory and the most-
recent memory (see below) when the power is switched OFF, in
the event of a power failure, or if the power cord is disconnected.
The memory will be maintained for as long as approximately one
month,
Most-recent memory |
The most-recent memory system “remembers” the broadcast
station last tuned to when the unit was switched OFF. That sta-
tion will be automatically tuned to when the power is switched
ON.
It frequency presettings are accidentally erased
from the back-up memory |
Make the frequency presettings (on page 15 or 16) once again.
The power cord should remain connected for one hour or more
for the memory back-up to be effective.
Station Memory File (Use this file to record your memory selections.)
CH. 1 | CH.2 | CH.3 | CH.4 | CH.5 | CH.8 | CH. 7
CH. 8
CH. 9 | CH. 10 | CH. 11 | CH. 12 | CH. 13 | CH. 14 | CH. 15
CH. 16 | CH. 17 | CH. 18 | CH. 19 | CH. 20 | CH. 21 | CH. 22
CH. 23
CH. 24 | CH. 25 | CH. 26 | CH. 27 | CH. 28 | CH. 29 | CH, 30
Recording
[Tape recording
To record on the tape deck connected to the “TAPE/NCR 2" ter-
minals.
Before recording, prepare the tape deck for recording {recording
level adjustment, etc.).
Ses the tape deck’s operating instructions for details.
Have you completed the steps 1 —3 (on page 12)
of “Mutual Operations” ?
1 Select the sound source to be recorded.
Begin recording.
Follow your tape deck's operating instructions.
3 Begin the sound source to be recorded.
To check the sound recorded while
recording is being made
With a tape deck with 3 heads, it is possible to check the sound
recorded on the tape.
[TAPE MONITOR/VCR 2]
Press the tape-monitor/VCR 2 button on this unit
(the tape indicator will illuminate), and set the
monitor button on the tape deck to “TAPE”.
Tape indicator
[VCR (VCR 1) recording (Audio only) |
To record on the VCR connected to the "VCR 1" terminals.
Before recording, prepare the VCR for recording (recording level
adjustment, input selector setting, etc.).
See the VCR's operating instructions for details.
Have you completed the steps 1—3 (on page 12)
of “Mutual Operations” ?
1 Select the sound source to be recorded.
Begin recording.
Follow your VCR's operating instructions.
3 Begin the sound source to be recorded.
|” indicator
И
——- ТОМЕ CONTR,
TING
BT WE DANO + мени, - ито RASS THEME
Down um
Fos
— “oi 1211121) CC O O
we Dam WA He Mb Gel AE OE
ol 1 =] =)
| Tape-to-tape recording (Audio only)
To record from the tape deck connected to the “TAPE/VCR 2” ter-
minals to the VCR connected to the “VCR 1" terminals and
vice versa,
Before recording, prepare the VCR (or tape deck) for recording
(recording level adjustment, input selector setting for VCR, etc.).
See the operating instructions of each unit for details.
Have you completed the steps 1—3 (on page 12)
of “Mutual Operations” ?
VCR playback of the tape deck (or YCR).
Follow the operating instructions of each unit.
Press the tape-monitor/VCR 2 button.
The tape indicator will illuminate.
1 a ( To record from the tape deck to the °) 2 Begin recording on VCR (or tape deck) and
Note: If a second VCR is connected to the “TAPE/NVCR 2” terminals,
You may select any of the input selectors other than tape-to-tape recording {audio only} is possible by following the
VCR 1. above procedures.
1 b To record from the VCR to the tape
deck
Press the “VCR 1” button.
Remote Control Operation
This remote control can be used to operate units manufactured
by this company other than this receiver unit, including CD
players/ichangers, tape decks and also TVs and VCRs.
For detailed information concerning operation steps etc., please
refer to the appropriate page for each unit manufactured by this
company (other than this receiver unit) including CD
players/changers, tape decks and also TVs and VCRs.
Furthermore, the remote control may not operate the unit in
some cases due to differences in the remote control signal. (See
page 22.)
| Before Use |
In order to minimize the number of buttons on the remote control,
buttons [A), [B] and [C] each perform a variety of functions.
In order to ensure correct operation, be sure to carefully read the
explanations provided below.
SÓ
и | ОУ
ООС
VCR TAPE
О) ©) ©) О) ©
СО О
VCR PROGRAM
a Er da HH coro
СО СЭ СО С
pe
VCR PROGRAM J
srry stop В "006 co+1o
OO
DOO JO
CD
С) PLAY = PPLAY MSTOR
ОС
а ii
4 PLAY
СЭС)
be DECK 172
» EBSTOP
JOY
ICI
Mt SKIP ph
> PLAY
me
JC II
[A] Power button
This button is used to switch the power of the receiver, TV,
and VCR on and off.
TV/VCR channel select buttons
These buttons are used to change the channel for both the
TV and the VCR.
[C] Numeric buttons
These buttons are used for the following two functions.
(1) To select à preset channel on the receiver.
(2) To select a disc or track on the CD player/changer.
To operate, first press the [TUNER], [TV], [VCR], or [C0] button on the
remote control to select the appropriate mode for the unit you
wish to operate, and then proceed.
REMOTE CONTROL TROL TRANSMITTER
ul RAK. SADT SAOTIXH y
| To contro! the receiver |
Press this button to switch the input of the receiver and the opera-
tion mode of the remote control to the tuner. |
Press this button to turn the unit ON and OFF. When this button is
used, be sure to first press “TUNER” button.
[1] — [9]
Press these buttons to select the desired preset channel.
When these buttons are used, be sure to first press the “TUNER”
button.
To designate channels 1—9:
Press the appropriate (1 —9) preset-tuning button.
- To designate channels 10-30;
( Press the button for the “tens” digit (1, 2 or 3).
@ Press the button for the “units” digit (1=0) within 2 seconds
after pressing the first button.
If the interval between pressing the first button and pressing the
second button is more than about 2 seconds, the setting may not
be made correctly. If this happens, make the setting once again.
8
Press this button to switch the input of the receiver to compact
disc mode.
8
Press this button to switch the input of the receiver to the tape
deck.
(VCR 1]
Press this button to select the “VCR 1” input selector on the
receiver.
Press this button to temporarily reduce the volume level.
The volume level is attenuated by 20 dB (approx. 1/10).
Press once again to return to the previous volume level.
Press one of these buttons to adjust the volume level.
!
ol Di DECK 1/2
CIJ
DECK
4 PLAY b BSTOR
MUTING — VOLUME +
— REMOTE CONTROL TRANSMITTER
| RAK-SADTIXH
| To control the compact disc player |
Press this button to switch the numeric buttons to control the CD
playerichanger.
In this case, the input of the receiver also switches to compact
disc mode.
a»
If a Technics CD changer is used in combination with this unit,
the disc to be played can be selected by first pressing this button
and then pressing the appropriate numeric button ( [1] — [5]).
1) — [ol |
Press these buttons to select the desired track.
Playback begins from the track selected.
When these buttons are used, be sure to first press the “CD” but-
on.
Tracks 1-9: |
Press the appropriate numeric button [1] — [8] directly.
To select a two-digit track number over 10:
Press the button the necessary number of time to select
the “tens” digit, and then one of the [1] — [0] buttons to select the
“units” digit.
Press this button to select the desired play mode (“program
mode” or “sequential mode”). If you have a Technics changer,
you can select “delete mode”.
=i
Press one of these buttons briefly to move the pick-up to the
beginning of a specific track.
L
ress this button to start play.
STOP
ress this button to stop play.
©
NOTE
When operating a compact disc player with a remote control sen-
sor, face this remote control transmitter toward the remote con-
trol sensor of the compact disc player.
и —
SS dé
LM 4
OOO OH
OOO
ооо
PLAN Pastor MD TEM cos
IO
J
| To control the tape deck |
Press this button to select the deck (“DECK 1” or “DECK 2") to
be controlled.
Press one of these buttons to begin playback or recording, press-
ing the button corresponding to the side of the tape to be played
back {or recorded).
D> : For the “forward (A)” side of the tape
«l : For the “reverse (B)” side of the tape
Depending on which Technics tape deck is used in combination
with this unit, tape deck 1 might be the “A”-side playback-only
type.
[<<]. >>]
Press one of these buttons to advance or rewind the tape while
the unit is in the stop mode.
Press one of these buttons to select the desired tune while the
unit is in the play mode. (Only applicable to a Technics tape deck
with the “music select” functions.)
Mm STOP
Press this button to stop tape movement.
Remote Control Operation cm.
Rega:
als =
OOO
IO
ee & a
СЭС) СОС
со
4 PLAY Ч "msvop PPLAY STOP
JOB
Oo
[To control TV |
To perform the following operations, aim the remote contro! at
the TY.
Press this button to set the power button and TV/VCR channel
select buttons to the TV mode.
Press this button to switch the power ON and OFF.
When this button is used, be sure to first press “TY” button.
Press these buttons to change the channel on the TV.
| To control VCR |
When pressing the [POWER], [W TV/VCR A |, [> PLAY], and [IB STOP] but-
tons, aim the remote control at the VCR.
EE
Press this button to switch the power button and TV/VCR channel
select buttons to the VCR mode.
ê
Press this button to change the input selector on the receiver to
the “VCR 1” position.
i
Press this button to switch the power ON and OFF.
When this button is used, be sure to first press “VCR” button.
Press these buttons to change the channel on the VCR.
3 |v
:
<
ress this button to begin play on the VCR.
STO
Press this button to stop play on the VCR.
в
+
To operate VCR 2, set the input selector on the receiver to the
VCR 2 position.
If you operate a TV, VCR, CD player {or CD changer) or a tape
deck using this remote control, the unit may fail to operate
due to the differing nature of the remote controf signal.
If the remote control fails to operate:
It is necessary to reprogram the signal within the remote con-
trol by following this simple procedure.
ea co
ESO
Jo VCR1 TAPE
OOO
OOOO
PLAY mero MD "ode cn+
CICICI
DECK 1/2 ME SKIP DM
OOO
co
PLAY wr * msror PPLAY MSTOP
ООО
MUTING - VOLUME +
[Bt
For CD player (or CD changer) operation
Press POWER and CD simultaneously, hold
© for ? seconds.
$ стен
For TV operation
power) Press POWER and TV simultaneously, hold
== for 2 seconds.
Jo
For VCR operation
Press POWER and VCR simultaneously,
(1) e hold for 2 seconds.
For Tape deck operation
Press POWER and TAPE simultanecusiy,
[) с hold for 2 seconds.
To restore the previous memory contents, carry out the
same operations one more time.
Depending on the model, there may be cases where opera-
tion is still not possible even if the remote control signal is
switched over due to differences in frequency range
characteristics.
Troubleshooting Guide
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a
minor adjustment on your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of
Authorized Service Centers {enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions.
|
Problem
Probable cause(s)
Suggested remedy
While listening to FM broadcasts
An unusual hissing noise Is
heard when listening to the
broadcast in stereo, but not
heard when listening
monaurally.
A slight noise may be heard because the method
used for modulation of FM stereo broadcasts is
different than that used for monaural broadcasts.
Noise Is excessive in both
stereo and monaural
broadcasts.
Poor location and/or direction of the antenna.
Transmitting station is too far away.
* Try reducing the treble sound by using the treble
control,
» Set the FM mode selector to the monaural position.
(Note that the broadcast will then be heard as
monaural sound.)
+ Try changing the location, height and/or direction of
the antenna.
e |f an indoor antenna is being used, change to an
outdoor antenna.
* Try using an antenna with more elements.
The FM stereo indicator or
the quartz lock indicator
flickers, without completely
illuminating.
Poor location and/or direction of the antenna.
Transmitting station is too far away.
Excessive distortion in the
sound of stereo
broadcasts.
Nearby building or mountain.
[Multipath distortion is being caused by the mutual
interference of broadcast signals received
directly from the transmitting station {direct
waves) and signals being reflected from nearby
buildings or mountains (reflected waves).
* Try changing the location, height and/or direction of
the antenna.
e |f an indoor antenna is being used, change to an
outdoor antenna.
e Try using an antenna with more elements.
Sound Is distorted,
“popping” noise Is heard,
and/or the volume level
becomes low.
Broadcast signals are being disturbed by nearby
automobile traffic or airplanes.
* Relocate the antenna and the connection wires to a
place farther away from where automobiles pass.
While listening to AM broadcasts
An unusual “beat” sound is
heard. |
Unit is being used at the same time as the
television set.
* Turn off the television set, or use this unit farther
away from it.
Interference from adjacent broadcast signal.
* Try reducing the treble sound by using the treble
control.
A low-pitched “hum” sound
is heard when the
broadcast is tuned.
The AM loop antenna connection wires are too
close to the power cord.
* Place the antenna connection wires and the power
cord farther apart.
The power supply frequency from the power cord
is modulated and heard from the speakers.
e install a special outdoor antenna.
A strange hissing nolse is
produced continuously or
intermittently.
Caused by the “discharge phenomenon’ and the
“oscillation phenomenon’ of electric appliances
(such as fluorescent lights, TV, small series-type
motors, rectification equipment, etc.).
* Try placing this unit farther away from such
equipment.
* Install noise-prevention equipment on this unit or on
the electric appliance.
Troubleshooting Guide wu.
Problem
Probable cause(s)
—
Suggested remedy
Problems noted at all times
Power will not switch ON.
The power cord plug is not completely inserted.
* Confirm that the power cord plug is connected
completely,
No sound is heard when the
power is switched ON.
The speaker selectors are incorrectly set to the
“OFF” position.
e Set to the “ON” position.
The incorrect input selector has been pressed.
* Check to be sure that the correct selector is
pressed.
Tape indicator is illuminated.
* Press the tape-monitor/VCR 2 button to turn off the
tape indicator.
Connections are incomplete or incorrect to the
speaker systems, etc.
* Check to be sure that all connection wires are
correctly connected.
Sound stops during a
performance, or no sound
Is hoard when the power is
switched ON.
The protection circuitry has functioned because
the positive and negative speaker connection
wires are “shorted" or speaker systems with an
impedance less than the indicated rated
impedance of this unit are used.
* Switch off the power, and, after determining and
correcting the cause, switch on the power once
again.
* Use a speaker system of the proper impedance
rating.
When listening to stereo
sound, the sound lacks
depth (Le. thin bass, tinny
sound.)
One of the speakers is connected out of phase
(+) >(-) (=) > (+)
* Reconnect the speakers, maintaining proper
polarity [i.e., (+) — (+), (=) — (-)].
When listening to stereo
sound, the left and right
sounds are reversed.
The left and right speaker connections or source
connections are reversed.
e Check all connections and correct them if
necessary.
A low-pltched noise (“hum”
or “buzz”) Is heard.
The power cord or a fluorescent light, etc. is near
the connection wires.
* Try separating this unit as far as possible from the
electric appliance.
Sound is not heard from
one of the speaker
systems.
The speaker wires are disconnected.
* Check and correct the connections of the speaker
wires.
The balance control is set too far to one side.
* Set so that sounds are heard at the center, between
the speaker systems.
While using the remote control transmitter
The remote control
transmitter does not
function.
Batteries are incorrectly placed.
* Insert the batteries so that the positive (+) and
negative (—) polarities are correct.
The remote control transmitter batteries are
consumed.
® Replace them with new batteries.
There is an obstruction between the remote
control transmitter and this unit.
e Remove the obstruction.
The remote control transmitter is not correctly
facing this unit.
® Расе the remote control transmitter correctly
toward this unit.
Maintenance
To clean this unit, use a soft, dry cloth.
For very dirty surfaces, dip a soft cloth in a weak soap-and-water
solution and wring well. After cleaning, wipe with a soft, dry cloth,
Never use alcohol, paint thinner, benzine, or a chemically treated
cloth to clean this unit.
Such chemicals may damage the unit's finish.
‘Technical Specifications om ssw
HB AMPLIFIER SECTION
Power output
DIN 1 kHz (T.H.D. 1%) 2x50 W (8 ©)
Total harmonic distortion
rated power at 40 Hz—20 kHz 0.5% (8 ©)
half power at 1 kHz | 0.03% (8 0)
Intermodulation distortion
rated power at 60 Hz: 7 kHz = 4:1, SMPTE 0.5% (8 Q)
Power bandwidth
both channels driven, —3 dB 10 Hz—40 kHz (8 1)
Damping factor 40 (8 )
Input sensitivity and impedance
PHONO 3 mV/47 kQ
CD, VCR 1, TAPE/VCR 2 200 mv/22 kQ
PHONO maximum input voltage (1 kHz, RMS) 150 mV
SIN at rated power (8 Q)
PHONO 70 dB (IHF, A: 80 dB)
CD, VCR 1, TAPE/VCR 2
Frequency response
PHONO RIAA standard curve
~ +0.8 dB (30 Hz—15 kHz)
10 Hz—40 kHz (+3 dB)
80 dB (IHF, A: 90 dB)
CD, VCR 1, TAPENCR 2
Tone controls
Bass 50 Hz, +10 dB to —10 dB
Treble 20 kHz, +10 dB to —10 dB
Loudness control (volume at — 30 dB) 50 Hz, +9 dB
Output voltage
VCR 1 OUT, TAPE/VCR 2 REC (OUT) 200 mV
Channel balance, 250 Hz—6.3 kHz +1 dB
Channel separation 55 dB
Headphones output level and impedance 430 mY/330 Q
Load impedance |
À and/or B 8 0-16 0
E FM TUNER SECTION
Frequency range 87.50— 108.00 MHz
Sensitivity
SIN 30 dB 1.5 uV (75 0)
S/N 26 dB 1.3 uV (75 Q)
SIN 20 dB 1.2 EV (75 ©)
IHF usable sensitivity 1.5 uV (IHF'58, 75 О)
IHF 46 dB stereo quleting sensitivity 22 WITS Q
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
SIN
MONO 60 dB (75 dB, IHF)
STEREO 58 dB (71 dB, IHF)
Frequency response 20 Hz—15 kHz, +1 dB to —2 dB
Alternate channel selectivity
+400 kHz 65 dB
Capture ratlo 1.0 dB
Image rejection at 98 MHz 40 dB
IF rejection at 98 MHz 70 dB
Spurious response rejection at 98 MHz 70 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
Carrier leak
19 kHz —55 dB (—60 dB, IHF)
38 kHz —50 d8 (—55 dB, IHF)
Channel balance (250 Hz—6.3 kHz) +1.5 dB
Limiting point — 1.2 НУ
Bandwidth
IF amplifier 180 kHz
FM demodulator 1000 kHz
Antenna terminals 75 Q (unbalanced)
Bl AM TUNER SECTION
Frequency range
MW 531 kHz — 1602 kHz (9-kHz steps)
530 kHz— 1600 kHz (10-kHz steps)
LW 153 kHz— 279 kHz
Sensitivity
MW 20 uV, 330 pvim
LW 45 pv
Selectivity
MW (at 999 kHz) 55 dB
LW (at 252 kHz) 55 dB
Image rejection
MW (at 999 kHz) 40 dB
LW (at 252 kHz) 40 dB
IF rejection
MW (at 999 kHz) 55 dB
LW (at 252 kHz) 55 dB
E GENERAL
Power consumption
(For areas except Australia and N.Z.) 170 W
(For Australia and N.Z.) 130 W
Power supply
(For areas except Australla and N.Z.)
AC 50 Hz/60 Hz, 110— 127 V/220—240 V
(For Australla and N.Z.) AC 50 Hz/60 Hz, 230— 240 V
Dimensions (W x H x D} 430 x 125 x 305 mm
Weight 6.5 kg
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer,
Memo
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
rs | RQT2060-G
| N pad in Japan H0593H0

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
