In-Wall Mounting Plate
Model MPW101
SPECIFICATIONS
GENERAL
In-Wall Support Plate constructed of heavy gauge steel supports
up to 300 lbs. Plate can be installed directly to studs or in
conjunction with ML100 mounting legs. All parts painted with
protective coating to last.
Universal design enables you to mount EDFP210, EDFP214,
EDFPB114, and EHW214 models all on one mounting plate.
Adjustable height setting allows for adult or child installation.
3/8" MTG.
HARDWARE
(SUPPLIED
BY OTHERS)

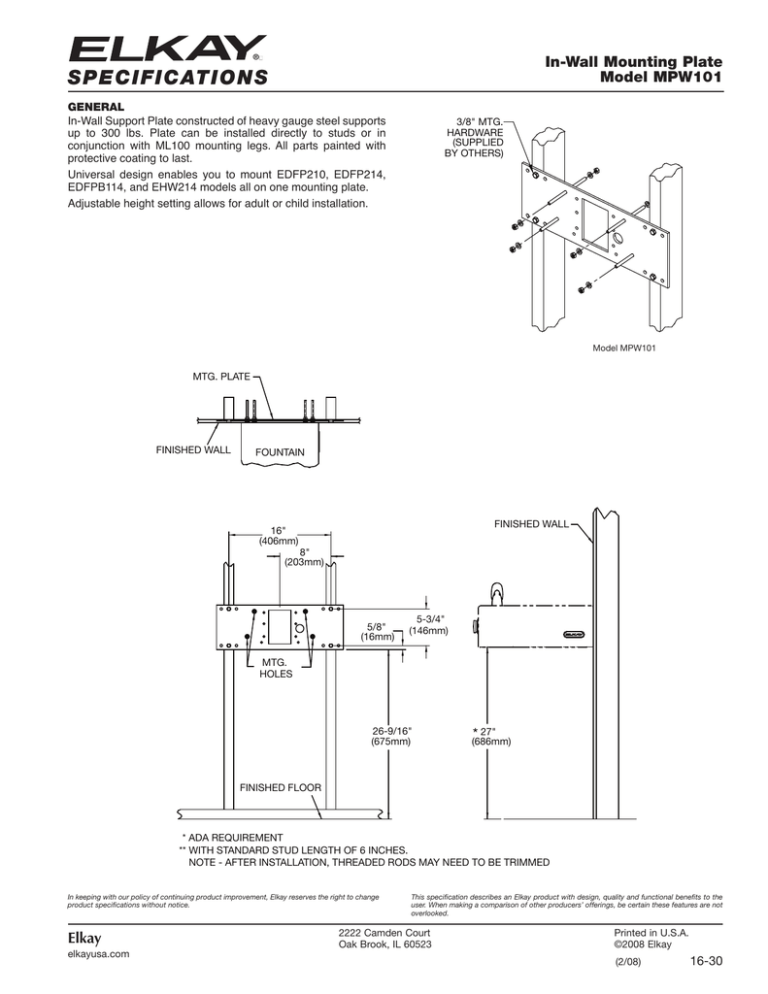

Model MPW101
MTG. PLATE
FINISHED WALL
FOUNTAIN
FINISHED WALL
16"
(406mm)
8"
(203mm)
5/8"
(16mm)
5-3/4"
(146mm)
MTG.
HOLES
26-9/16"
(675mm)
* 27"
(686mm)
FINISHED FLOOR
* ADA REQUIREMENT
** WITH STANDARD STUD LENGTH OF 6 INCHES.
NOTE - AFTER INSTALLATION, THREADED RODS MAY NEED TO BE TRIMMED
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
elkayusa.com
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
