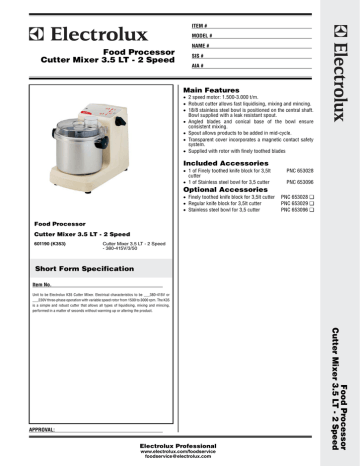

Food Processor Cutter Mixer 3.5 LT - 2 Speed Main Features

Food Processor Cutter Mixer 3.5 LT - 2 Speed Main Features
ITEM #
MODEL #
NAME #
Food Processor
Cutter Mixer 3.5 LT - 2 Speed
SIS #
AIA #
Main Features
• 2 speed motor: 1.500-3.000 t/m.
• Robust cutter allows fast liquidising, mixing and mincing.
• 18/8 stainless steel bowl is positioned on the central shaft.
Bowl supplied with a leak resistant spout.
• Angled blades and conical base of the bowl ensure
consistent mixing.
• Spout allows products to be added in mid-cycle.
• Transparent cover incorporates a magnetic contact safety
system.
• Supplied with rotor with finely toothed blades
Included Accessories
• 1 of Finely toothed knife block for 3,5lt
cutter
• 1 of Stainless steel bowl for 3,5 cutter
PNC 653028
PNC 653096
Optional Accessories
• Finely toothed knife block for 3,5lt cutter
• Regular knife block for 3,5lt cutter
• Stainless steel bowl for 3,5 cutter
PNC 653028 ❑
PNC 653029 ❑
PNC 653096 ❑
Food Processor
Cutter Mixer 3.5 LT - 2 Speed
601190 (K353)
Cutter Mixer 3.5 LT - 2 Speed
- 380-415V/3/50
Short Form Specification
Item No.
Unit to be Electrolux K35 Cutter MIxer. Electrical characteristics to be ___380-415V or
___230V three-phase operation with variable speed rotor from 1500 to 3000 rpm. The K35
is a simple and robust cutter that allows all types of liquidising, mixing and mincing,
performed in a matter of seconds without warming up or altering the product.
Electrolux Professional
www.electrolux.com/foodservice
[email protected]
Food Processor
Cutter Mixer 3.5 LT - 2 Speed
APPROVAL:
Food Processor
Cutter Mixer 3.5 LT - 2 Speed
Front
Electric
Supply voltage:
601190(K35-06)
Connected load:
Total Watts:
380...415 V/3 ph/50 Hz
0.5 kW
0.5 kW
Key Information
Top
External dimensions, Height
303 mm
External dimensions, Width
247 mm
External dimensions, Depth
407 mm
External dimensions, Weight
15.4 kg
Shipping weight:
17 kg
Fine mixtures capacity:
1.5 kg
Meat mincing capacity:
1.5 kg
Condiments chopping capacity:
1 kg
Mayonnaise preparation capacity: 2 kg
Pastry preparation capacity:
1 kg
Prepares:
- Mincing meats (tartare, sausage meat, patés, stuffing,
mousses, etc.)
- Chopping condiments (parsley, garlic. onions, shallots, spices,
etc.)
- Preparation of mayonnaise, mashes, flavoured butters, purées,
compotes, etc.)
- Liquidising frozen foodstuffs, fish soups with shellfish, etc.
- Preparation of all types of pastry.
- Pastrywork (almond paste, sugared almonds, half and half, etc.)
EI = Electrical connection
Side
Food Processor
Cutter Mixer 3.5 LT - 2 Speed
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2010.04.06
