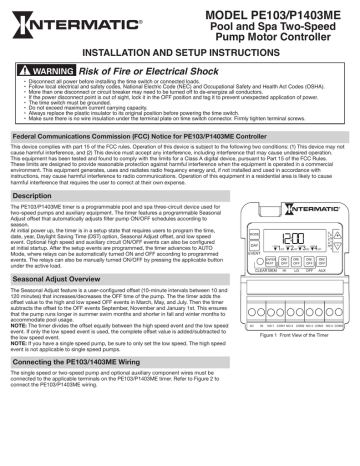

MODEL PE103/P1403ME Pool and Spa Two-Speed Pump Motor Controller

MODEL PE103/P1403ME  Pool and Spa Two-Speed Pump Motor Controller
MODEL PE103/P1403ME
Pool and Spa Two-Speed
Pump Motor Controller
INSTALLATION AND SETUP INSTRUCTIONS
WARNING Risk of Fire or Electrical Shock
• Disconnect all power before installing the time switch or connected loads.
• Follow local electrical and safety codes, National Electric Code (NEC) and Occupational Safety and Health Act Codes (OSHA).
• More than one disconnect or circuit breaker may need to be turned off to de-energize all conductors.
• If the power disconnect point is out of sight, lock it in the OFF position and tag it to prevent unexpected application of power.
• The time switch must be grounded.
• Do not exceed maximum current carrying capacity.
• Always replace the plastic insulator to its original position before powering the time switch.
• Make sure there is no wire insulation under the terminal plate on time switch connector. Firmly tighten terminal screws.
Federal Communications Commission (FCC) Notice for PE103/P1403ME Controller
This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and radiates radio frequency energy and, if not installed and used in accordance with
instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference that requires the user to correct at their own expense.
Description
The PE103/P1403ME timer is a programmable pool and spa three-circuit device used for
two-speed pumps and auxiliary equipment. The timer features a programmable Seasonal
Adjust offset that automatically adjusts filter pump ON/OFF schedules according to
season.
At initial power up, the timer is in a setup state that requires users to program the time,
date, year, Daylight Saving Time (DST) option, Seasonal Adjust offset, and low speed
event. Optional high speed and auxiliary circuit ON/OFF events can also be configured
at initial startup. After the setup events are programmed, the timer advances to AUTO
Mode, where relays can be automatically turned ON and OFF according to programmed
events. The relays can also be manually turned ON/OFF by pressing the applicable button
under the active load.
MODE
DAY
1
LOAD
LOAD
OFF
EVENT
ENTER
NEXT
CLEAR MEM
2
3
LOAD
OFF
4
LOAD
OFF
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
HI
LO
OFF
AUX
C
LE
EN
AT
RR
Y
+
-
Seasonal Adjust Overview
The Seasonal Adjust feature is a user-configured offset (10-minute intervals between 10 and
120 minutes) that increases/decreases the OFF time of the pump. The the timer adds the
offset value to the high and low speed OFF events in March, May, and July. Then the timer
subtracts the offset to the OFF events September, November and January 1st. This ensures
that the pump runs longer in summer swim months and shorter in fall and winter months to
accommodate pool usage. NOTE: The timer divides the offset equally between the high speed event and the low speed
event. If only the low speed event is used, the complete offset value is added/subtracted to
the low speed event.
NOTE: If you have a single speed pump, be sure to only set the low speed. The high speed
event is not applicable to single speed pumps.
Connecting the PE103/1403ME Wiring
The single speed or two-speed pump and optional auxiliary component wires must be
connected to the applicable terminals on the PE103/P1403ME timer. Refer to Figure 2 to
connect the PE103/P1403ME wiring.
AC
IN
NO-1 COM1 NO-2
COM2 NO-3 COM3
NO-4 COM4
Figure 1 Front View of the Timer
LOAD
1OFFLOAD2OFFLOAD3 OFFLOAD4
ENTER
NEXT
CLEAR MEM
ON/
OFF
ON/
OFF
HI
LO
OFF
AUX
-
EVENT
2
1
LOAD
LOAD
OFF
OFF
CLEAR MEM
AC
IN NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
LINE
LOAD
ENTER
NEXT
LINE
120 VAC
PUMP
BREAKER
ON/
OFF
DAY
240 VAC
PUMP
BREAKER
LOAD
AC
ON/
OFF
MODE
+
3
LOAD
OFF
4
C
LE
EN
AT
RR
Y
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
HI
LO
OFF
AUX
+
-
IN NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
LOAD
DAY
EVENT
C
LE
EN
AT
RR
Y
OFF
LINE
MODE
LINE
LINE
NEUTRAL
HIGH
LOW
COMMON
MODE
EVENT
LOAD
1
ENTER
NEXT
CLEAR MEM
HI
ON/
OFF
LO
ON/
OFF
OFF
4
-
DAY
EVENT
1
AC
IN NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
240 VAC
PUMP
BREAKER
2
LOAD
LOAD
OFF
OFF
CLEAR MEM
AUX
LINE
LOAD
ENTER
NEXT
ON/
OFF
LOAD
120 VAC
PUMP
BREAKER
ON/
OFF
3
LOAD
OFF
MODE
+
LINE
AC
2
LOAD
LOAD
OFF
OFF
C
LE
EN
AT
RR
Y
OFF
3
LOAD
OFF
4
C
LE
EN
AT
RR
Y
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
HI
LO
OFF
AUX
+
-
IN NO-1 COM1 NO-2 COM2 NO-3 COM3 NO-4 COM4
LINE
DAY
240 VAC
2-SPEED PUMP
GND
120 VAC
2-SPEED PUMP
GND
LOW
COMMON
LINE
LOAD
HIGH
LINE
NEUTRAL
LINE
LINE
LINE
LINE
240 VAC SINGLE
SPEED PUMP
GND
120 VAC SINGLE
SPEED PUMP
GND
Figure 2 PE103/P1403ME 120 and 240 VAC wiring for 2-speed and single speed pumps.
Verifying Wire Installation
Verify that the timer wires are connected properly. Press the LO button on the controller to verify that LO appears on the screen. If your pump
uses high speed, press the HI button to verify HI appears on the screen. If you are using the auxiliary circuit, press the AUX button. The screen
displays ON next to LOAD 4. If any of the circuits do not activate on command, review Figure 2 above to adjust the wiring as needed.
NOTE: After a circuit button is pressed, the circuit will shutoff after 30 seconds.
MODE
DAY
1
LOAD
LOAD
OFF
EVENT
2
3
LOAD
OFF
4
LOAD
OFF
OFF
ENTER
NEXT
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
CLEAR MEM
HI
LO
OFF
AUX
C
LE
EN
AT
RR
Y
+
-
Auxiliary
Circuit ON/OFF
Button
HI (high speed)
Circuit ON/OFF Button
LO (low speed)
Circuit ON/OFF Button
Circuit
Override
Button
AC
IN
NO-1 COM1 NO-2
COM2 NO-3 COM3
NO-4 COM4
Figure 3 Controller with circuit buttons.
Initial Setup
This section provides setup instructions for the timer. The timer screen will not move until these initial setup procedures are completed: month,
year, day, time of day, Daylight Saving Time (DST) option, and low speed events. Optional high speed and auxiliary circuit ON/OFF events
should also be configured at initial startup.
NOTE: If you have single speed pump, do not configure a high speed event.
NOTE: If date, time, adjustment,and low speed pump a re configured after the
timer was inactive for five minutes, the timer will enter AUTO mode, saving the
parameter and using the currently displayed parameter as the correct parameter.
1. Turn the controller ON. Hyphens appear on the screen as shown in Figure 4.
2. Press MODE. The first three digit dashes flash.
3. Press + or - to scroll to the current month and press ENTER/NEXT. The two
digit dashes next to the month flash.
NOTE: Press + or - simultaneously to delete a time, date, or event
ON/OFF time displayed on the screen.
4. Press + or - to scroll to the current day of the month and press ENTER/NEXT.
The two-digit dashes next to the day of the month flash.
5. Press + or - to scroll to the desired two-digit year (ex: 12 for the year 2012) and
press MODE to save. The screen displays SET CLOCK. (See Figure 5).
6. Press + or - to scroll to the desired time and press MODE.
NOTE: Press and hold + or - to rapidly scroll to the desired time.
7. From the DST screen press MODE to keep the DST ON or press + or - to turn
DST OFF. Press MODE to advance to SET ADJ. (See Figure 6).
8. Press + or - to set the seasonal adjustment offset value and press MODE to save
and advance to the LO ON event screen.
NOTE: See Seasonal Adjust Overview section for an overview of the feature.
9. From the LO ON event screen, press + or - to set the time when the low speed
pump will turn ON and press ENTER/NEXT.
10. From the LO OFF event screen, press + or - to set the time when the low speed
pump will turn OFF and press MODE to save. The Hi ON event screen appears.
11. Take one of these actions:
If...
Then...
Your pump has high speed operation,
Your pump does not have high speed
operation, but you are using the
auxiliary circuit.
Your pump does not have high speed
operation or an auxiliary circuit.
Go to step 12 to set Hi speed pump event
Press MODE to scroll to the AU (auxiliary
circuit) ON screen and go to step 14.
Press MODE to scroll to AUTO mode (see
Figure 8). The Initial Setup is complete.
Figure 4 Initial screen after power up
SET
MODE
CLOCK
C
LE
EN
AT
RR
Y
DAY
+
-
EVENT
ON/
OFF
ENTER
NEXT
ON/
OFF
HI
LO
CLEAR MEM
Figure 5 Setting the clock
ON/
OFF
ON/
OFF
OFF
AUX
SET
MODE
C
LE
EN
AT
RR
Y
DAY
+
-
EVENT
ENTER
NEXT
CLEAR MEM
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
HI
LO
OFF
AUX
Figure 6 Setting the Seasonal Adjust Offset
12. From the HI ON event screen, press + or - to set the time when the high speed
pump will turn ON and press ENTER/NEXT.
13.Press + or - to set the time when the high speed pump will turn OFF and press
MODE
MODE. The AU (auxiliary circuit) screen appears.
NOTE: if you are not using the auxiliary circuit on the timer, then the initial setup
DAY
is complete. Press MODE to scroll to AUTO mode.
14. From the AU ON event screen, press + or - to set the time when the auxiliary
EVENT
circuit will turn ON and press ENTER/NEXT.
15.Press + or - to set the time when the auxiliary circuit will turn OFF and press MODE.
The screen displays AUTO (Auto Mode) as shown in Figure 8. The initial setup is
complete.
SET
ON/OFF EVENTS
EVENT #
[email protected]
ON/
OFF
ENTER
NEXT
ON/
OFF
ON/
OFF
C
LE
EN
AT
RR
Y
+
-
ON/
OFF
HI
LO
AUX
OFF
CLEAR MEM
Figure 7 Setting the LO speed pump ON event
Adjusting PE103/P1403ME Program Settings
All programs and events set during Initial Setup can be adjusted as needed.
Follow this procedure to adjust a setting.
1. Press MODE to advance to the setting you want to adjust.
2. Press + or - to adjust the program and then press MODE to save.
NOTE: If you are adjusting an ON/OFF event, press DAY (EVENT) to bypass the date,
time, year, SET ADJ, and DST screens and advance to the LO ON event. From there,
press MODE to advance to the ON or OFF event you want to adjust.
AUTO
MODE
DAY
EVENT
1
LOAD
LOAD
OFF
ENTER
NEXT
CLEAR MEM
2
3
LOAD
OFF
4
C
LE
EN
AT
RR
Y
LOAD
OFF
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
HI
LO
OFF
AUX
Figure 8 AUTO mode screen
+
-
Resetting the Timer
The Reset command enables users to reboot the timer. To reset the timer, press the reset button.
NOTE: The timer does not erase the configured settings during a reset.
AUTO
MODE
DAY
EVENT
1
LOAD
ENTER
NEXT
Reset
Button
LOAD
OFF
ON/
OFF
2
3
LOAD
OFF
ON/
OFF
4
C
LE
EN
AT
RR
Y
+
-
LOAD
OFF
ON/
OFF
OFF
ON/
OFF
HI
LO
AUX
OFF
CLEAR MEM
Figure 9 Setting the LO speed pump ON event
Clearing the Timer Memory
To clear the timer memory, press and release the reset button and then immediately press and hold the ENTER/NEXT until MEMCLR followed
by DONE appears on the screen. Release ENTER/NEXT. The following occurs:
• All calendar and clock information is erased
• All events are erased
• The Seasonal Adjust offset value is erased
• The DST command is automatically set to ON
Specifications
Time Switch
• Input Voltage: 120 to 277 VAC, 50/60 Hz
• Power Consumption” 7 watts maximum
Switch Ratings: 30 A Inductive & Resistive @ 24 VAC,
120-277 VAC, 16 FLA, 96 LRA @ 120 VAC;
17 FLA, 80 LRA @ 240 VAC 20A Resistive @ 28 VDC;
5 A Tungsten @ 120 VAC - 277 VAC
Events: Time switch can support up to 3 timed ON and 3 timed OFF events (1 ON/OFF event for high, low, and auxiliary circuits)
Clock Backup: Up to 100-hour Supercapacitor
Minimum ON or OFF time: 1 minute
Maximum ON or OFF time: 23 hours, 59 minutes
Shipping Weight: 2.5 lb. (1.1 kg)
Enclosures: Type 3R indoor/outdoor lockable metal enclosure
Knockouts: Combination 1/2 - 3/4 inch size, 1 on back and each side, 2 on bottom
Wire Size: AWG #10 through #18
LIMITED ONE-YEAR WARRANTY
If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units
caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart
or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s
and batteries; (f) the finish on any portion of the product,such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial
installation costs, removal costs, or reinstallation costs.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED
WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY
MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or (b) completing a warranty claim online at
www.intermatic.com.
This warranty is made by: Intermatic Incorporated, Customer Service 7777 Winn Rd., Spring Grove, Illinois 60081-9698. For warranty service go to: http://www.
Intermatic.com or call 815-675-7000.
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
158--01225
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
