FUJITSU

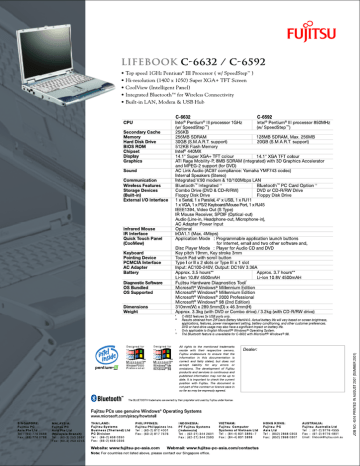

LIFEBOOK C-6632 / C-6592
* Top speed 1GHz Pentium? III Processor ( w/ SpeedStep” )
= e Hi-resolution (1400 x 1050) Super XGA + TFT Screen
ge CoolView (Intelligent Panel)
o Integrated Bluetooth" for Wireless Connectivity
® Built-in LAN, Modem & USB Hub
C-6632 C-6592
CPU Intel® Pentium® lll processor 1GHz Intel® Pentium® lll processor 850MHz
(w/ SpeedStep™) (w/ SpeedStep™)
Secondary Cache 256KB
Memory 256MB SDRAM 128MB SDRAM, Max. 256MB
Hard Disk Drive 30GB (S.M.A.R.T. support) 20GB (S.M.A.R.T. support)
BIOS ROM 512KB Flash Memory
Chipset Intel® 440MX
Display 14.1" Super XGA+ TFT colour 14.1" XGA TFT colour
Graphics ATI Rage Mobility-P, 8MB SDRAM (Integrated) with 3D Graphics Accelerator
and MPEG-2 support (for DVD)
Sound AC Link Audio (AC97 compliance: Yamaha YMF743 codec)
Internal Speakers (Stereo)
Communication Integrated V.90 modem & 10/100Mbps LAN
Wireless Features
Storage Devices
(Built-in)
External 1/O Interface
Infrared Mouse
Bluetooth™ PC Card Option "'
DVD or CD-R/RW Drive
Floppy Disk Drive
Bluetooth” Integrated "
Combo Drive (DVD & CD-R/RW)
Floppy Disk Drive
1 x Serial, 1 x Parallel, 4* x USB, 1 x RJ11
1x VGA, 1 x PS/2 Keyboard/Mouse Port, 1 x RJ45
IEEE1394, Video Out (S Type)
IR Mouse Receiver, SPDIF (Optical-out)
Audio (Line-in, Headphone-out, Microphone-in),
AC Adapter Power Input
Optional
IR Interface IrDA1.1 (Max. 4Mbps)
Quick Touch Panel Application Mode : Programmable application launch buttons
(CoolView) for Internet, email and two other software and,
Disc Player Mode : Player for Audio CD and DVD
Keyboard Key pitch 19mm, Key stroke 3mm
Pointing Device Touch Pad with scroll button
PCMCIA Interface Type | or II x 2 slots or Type Ill x 1 slot
AC Adapter Input: AC100-240V, Output: DC16V 3.36A
Battery Approx. 3.5 hours™ Approx. 3.7 hours**
Li-lon 10.8V 4500mAH Li-lon 10.8V 4500mAH
Diagnostic Software Fujitsu Hardware Diagnostics Tool’
OS Bundled Microsoft® Windows® Millennium Edition
OS Supported Microsoft® Windows® Millennium Edition
Microsoft® Windows® 2000 Professional
Microsoft® Windows® 98 (2nd Edition)
Dimensions 310mm(W) x 289.5mm(D) x 46.3mm(H)
Weight Approx. 3.3kg (with DVD or Combo drive) / 3.2kg (with CD-R/RW drive)
PC Division
Tel : (66-2) 658 0350
Fax: (66-2) 658 0356
Designed for
Designed for
tees leew reside with their respective owners.
eee "я й
“sg 7... Fujitsu endeavours to ensure that the
zen o es o information in this documentation is
Microsoft? Microsoft* correct and fairly stated, but does not
. HI Windows®2000 Windows® Me accept liability for any errors or
pentium Professional Windows? 98 omissions. The development of Fujitsu
Fax: (63-2) 817 7576
Website: www.fujitsu-pc-asia.com
Note: For countries not listed above, please contact our Singapore office.
C-6632 features 3x USB ports only.
** Results obtained from Ziff Davis Battery MarkV4.0. Actual battery life will vary based on screen brightness,
applications, features, power management setting, battery conditioning, and other customer preferences.
DVD or hard drive usage may also have a significant impact on battery life.
* Only applicable to English Microsoft® Windows® Operating System.
* The Bluetooth feature is unavailable for C-6632 with Microsoft® Windows® 98.
All rights to the mentioned trademarks
Dealer:
products and services is continuous and
published information may not be up to
date. It is important to check the current
position with Fujitsu. The document is
not part of the contract or licence save in
so far as may be expressly agreed.
™
Q B | Ц eto oth The BLUETOOTH trademarks are owned by their proprietor and used by Fujitsu under license.
Fujitsu PCs use genuine Windows® Operating Systems
www.microsoft.com/piracy/howtotell
THAILAND: PHILIPPINES: INDONESIA: VIETNAM: HONG KONG: AUSTRALIA:
Fujitsu Systems Fujitsu Philippines Inc. PT Fujitsu Systems Fujitsu Computer Fujitsu PC Fujitsu Australia Ltd
Business (Thailand) Ltd Tel : (63-2) 812 4001 (Indonesia) Systems of Vietnam Ltd Asia Ltd Tel : (61-2) 9776 4555
Tel : (62-21) 344 2601
Fax: (62-21) 344 2593
Tel : (84-4) 831 3895-7
Fax: (84-4) 831 3898
Tel : (852) 2868 0303 Fax : (61-2) 9776 4801
Fax: (852) 2868 0307 Email: [email protected]
