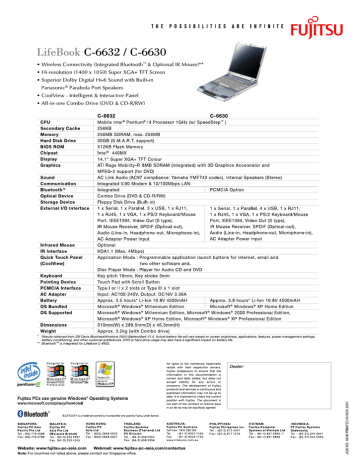

LiteBook C-6632 / C-6630
e Wireless Connectivity (Integrated Bluetooth™ & Optional IR Mouse)**
o Hi-resolution (1400 x 1050) Super XGA+ TFT Screen
* Superior Dolby Digital Hi-fi Sound with Built-in
e CoolView - Intelligent & Interactive Panel
e All-in-one Combo Drive (DVD 8: CD-R/RW)
Panasonic Parabola Port Speakers
CPU
Secondary Cache
Memory
Hard Disk Drive
BIOS ROM
Chipset
Display
Graphics
Sound
Communication
Bluetooth"
Optical Device
Storage Device
External 1/O Interface
Infrared Mouse
IR Interface
Quick Touch Panel
(CoolView)
Keyboard
Pointing Device
PCMCIA Interface
AC Adapter
Battery
OS Bundled
OS Supported
Dimensions
Weight
o
THE POSSIBILITIES ARE INFINITE FUJITSU
C-6632 C-6630
Mobile Intel® Pentium® Ill Processor 1GHz (w/ SpeedStep™)
256KB
256MB SDRAM, max. 256 MB
30GB (S.M.A.R.T. support)
512KB Flash Memory
Intel® 440MX
14.1" Super XGA+ TFT Colour
ATI Rage Mobility-P, SMB SDRAM (integrated) with 3D Graphics Accelerator and
MPEG-2 support (for DVD)
AC Link Audio (AC97 compliance: Yamaha YMF743 codec), Internal Speakers (Stereo)
Integrated V.90 Modem & 10/100Mbps LAN
Integrated
Combo Drive (DVD & CD-R/RW)
Floppy Disk Drive (Built-in)
1 x Serial, 1 x Parallel, 3 x USB, 1 x RJ11,
1 x RJ45, 1 x VGA, 1 x PS/2 Keyboard/Mouse
Port, IEEE1394, Video Out (S type),
IR Mouse Receiver, SPDIF (Optical-out),
Audio (Line-in, Headphone-out, Microphone-in),
AC Adapter Power Input
Optional
IrDA1.1 (Max. 4Mbps)
Application Mode : Programmable application launch buttons for Internet, email and
two other software and,
Disc Player Mode : Player for Audio CD and DVD
Key pitch 19mm, Key stroke 3mm
Touch Pad with Scroll Button
Type | or Il x 2 slots or Type III x 1 slot
Input: AC100-240V, Output: DC16V 3.36A
Approx. 3.5 hours* Li-lon 10.8V 4500mAH Approx. 3.8 hours* Li-lon 10.8V 4500mAH
Microsoft® Windows® Millennium Edition Microsoft® Windows® XP Home Edition
Microsoft® Windows® Millennium Edition, Microsoft® Windows® 2000 Professional Edition,
Microsoft® Windows® XP Home Edition, Microsoft® Windows® XP Professional Edition
310mm(W) x 289.5mm(D) x 46.3mm(H)
Approx. 3.2kg (with Combo drive)
PCMCIA Option
1 x Serial, 1 x Parallel, 4 x USB, 1 x RJ11,
1 x RJ45, 1 x VGA, 1 x PS/2 Keyboard/Mouse
Port, IEEE1394, Video Out (S type),
IR Mouse Receiver, SPDIF (Optical-out),
Audio (Line-in, Headphone-out, Microphone-in),
AC Adapter Power Input
* Results obtained from Ziff Davis (BusinessWinstone 2001) BatteryMark V1.0. Actual battery life will vary based on screen brightness, applications, features, power management settings,
battery conditioning, and other customer preferences. DVD or hard drive usage may also have a significant impact on battery life.
** Bluetooth™ is integrated for LifeBook C-6632.
Designed for Designed for All rights to the mentioned trademarks
ce reside with their respective owners. Dealer:
i Fujitsu endeavours to ensure that the
a e information in this documentation is
Microsoft? Microsoft® correct and fairly stated, but does not
. Windows®2000 Windows® Me accept liability for any errors or
pentiume;// Professional omissions. The development of Fujitsu
products and services is continuous and
published information may not be up to
". . . ® . date. It is important to check the current
Fujitsu PCs use genuine Windows® Operating Systems position with Fujitsu. The document is
www.microsoft.com/ piracy/ howtotell not part of the contract or licence save
in so far as may be expressly agreed.
TM
Q Blueto oth BLUETOOTH is a trademark owned by its proprietor and used by Fujitsu under license.
SINGAPORE: MALAYSIA: HONG KONG: THAILAND: AUSTRALIA: PHILIPPINES: VIETNAM: INDONESIA:
Fujitsu PC Asia Fujitsu PC Fujitsu PC Fujitsu Systems Fujitsu PC Australia Fujitsu Philippines Inc. Fujitsu Computer PT Fujitsu Systems
Pacific Pte Ltd Asia Pte Ltd Asia Ltd Business (Thailand) Ltd Toll Free: 1800 288 283 Tel : (63-2) 812 4001 Systems of Vietnam Ltd (Indonesia)
Tel : (65) 776 0688 (Malaysia Branch) Tel : (852) 2868 0303 PC Division Tel : (61-2) 9004 7455 Fax: (63-2) 817 7576 Tel : (84-4) 831 3895~7 Tel : (62-21) 344 2601
Fax: (65) 776 0788 Tel : (60-3) 253 3997 Fax: (852) 2868 0307 Tel : (66-2) 658 0350 Fax :(61-2)9004 7720 Fax: (84-4) 831 3898 Fax: (62-21) 344 2593
Fax: (60-3) 253 4245
Website: www.fujitsu-pc-asia.com
Note: For countries not listed above, please contact our Singapore office.
Fax: (66-2) 658 0356 www.lifebook.com.au
Webmail: www.fujitsu-pc-asia.com/contactus
JOB NO: 4648 PRINTED IN NOV 2001
