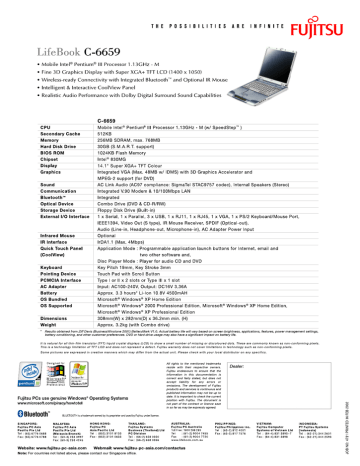

LifeBook C-6659
* Mobile Intel® Pentium? III Processor 1.13GHz - M
* Fine 3D Graphics Display with Super XGA+ TFT LCD (1400 x 1050)
o Wireless-ready Connectivity with Integrated Bluetooth™ and Optional IR Mouse
O Bluetooth”
SINGAPORE:
Fujitsu PC Asia
Pacific Pte Ltd
Tel
: (65) 6776 0688
CPU
Secondary Cache
Memory
Hard Disk Drive
BIOS ROM
Chipset
Display
Graphics
Sound
Communication
Bluetooth™
Optical Device
Storage Device
External 1/O Interface
Infrared Mouse
IR Interface
Quick Touch Panel
(CoolView)
Keyboard
Pointing Device
PCMCIA Interface
AC Adapter
Battery
OS Bundled
OS Supported
Dimensions
Weight
СЭ
THE POSSIBILITIES ARE INFINITE FUJITSU
C-6659
Mobile Intel® Pentium® Ill Processor 1.13GHz - M (w/ SpeedStep” )
512KB
256MB SDRAM, max. 768MB
30GB (S.M.A.R.T. support)
1024KB Flash Memory
Intel® 830MG
14.1" Super XGA+ TFT Colour
Integrated VGA (Max. 48MB w/ IDMS) with 3D Graphics Accelerator and
MPEG-2 support (for DVD)
AC Link Audio (AC97 compliance: SigmaTel STAC9757 codec), Internal Speakers (Stereo)
Integrated V.90 Modem & 10/100Mbps LAN
Integrated
Combo Drive (DVD & CD-R/RW)
Floppy Disk Drive (Built-in)
1 x Serial, 1 x Parallel, 3 x USB, 1 x RJ11, 1 x RJ45, 1 x VGA, 1 x PS/2 Keyboard/Mouse Port,
IEEE1394, Video Out (S type), IR Mouse Receiver, SPDIF (Optical-out),
Audio (Line-in, Headphone-out, Microphone-in), AC Adapter Power Input
Optional
IrDA1.1 (Max. 4Mbps)
Application Mode : Programmable application launch buttons for Internet, email and
two other software and,
Disc Player Mode : Player for audio CD and DVD
Key Pitch 19mm, Key Stroke 3mm
Touch Pad with Scroll Button
Type | or Il x 2 slots or Type Ill x 1 slot
Input: AC100-240V, Output: DC16V 3.36A
Approx. 3.3 hours* Li-lon 10.8V 4500mAH
Microsoft® Windows® XP Home Edition
Microsoft® Windows® 2000 Professional Edition, Microsoft® Windows® XP Home Edition,
Microsoft® Windows® XP Professional Edition
308mm(W) x 282mm(D) x 36.2mm min. (H)
Approx. 3.2kg (with Combo drive)
* Results obtained from Ziff Davis (BusinessWinstone 2001) BatteryMark V1.0. Actual battery life will vary based on screen brightness, applications, features, power management settings,
battery conditioning, and other customer preferences. DVD or hard drive usage may also have a significant impact on battery life.
It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discoloured dots. These are commonly known as non-conforming pixels.
This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
Some pictures are expressed in creative manners which may differ from the actual unit. Please check with your local distributor on any specifics.
Designed for
All rights to the mentioned trademarks
tree reside with their respective owners. Dealer:
À Fujitsu endeavours to ensure that the
22 o information in this documentation is
Microsoft® correct and fairly stated, but does not
Windows®2000 accept liability for any errors or
Professional omissions. The development of Fujitsu
products and services is continuous and
published information may not be up to
". . . . date. It is important to check the current
Fujitsu PCs use genuine Windows® Operating Systems position with Fujitsu, The document is
www.microsoft.com/ piracy/ howtotell not part of the contract or licence save
in so far as may be expressly agreed.
BLUETOOTH is a trademark owned by its proprietor and used by Fujitsu under license.
MALAYSIA: HONG KONG: THAILAND: AUSTRALIA: PHILIPPINES: VIETNAM: INDONESIA:
Fujitsu PC Asia Fujitsu PC Fujitsu Systems Fujitsu PC Australia Fujitsu Philippines Inc. Fujitsu Computer PT Fujitsu Systems
Pacific Pte Ltd Asia Pacific Ltd Business (Thailand) Ltd Toll Free: 1800 288 283 Tel : (63-2) 812 4001 Systems of Vietnam Ltd (Indonesia)
(Malaysia Branch) : (852) 3101 8133 PC Division Tel : (61-2) 9004 7455 Fax: (63-2) 817 7576 Tel : (84-4) 831 3895-7 Tel : (62-21) 344 2601
Tel : (60-3) 253 3997 Fax: (852) 3101 0633 Tel : (66-2) 658 0350 Fax :(61-2) 90047720 Fax: (84-4) 831 3898 Fax: (62-21) 344 2593
Fax: (65) 6776 0788
Fax: (60-3) 253 4245
Website: www.fujitsu-pc-asia.com
Note: For countries not listed above, please contact our Singapore office.
Fax: (66-2) 658 0356 www.lifebook.com.au
Webmail: www.fujitsu-pc-asia.com/contactus
JOB NO: 4731 PRINTED IN FEB 2002
