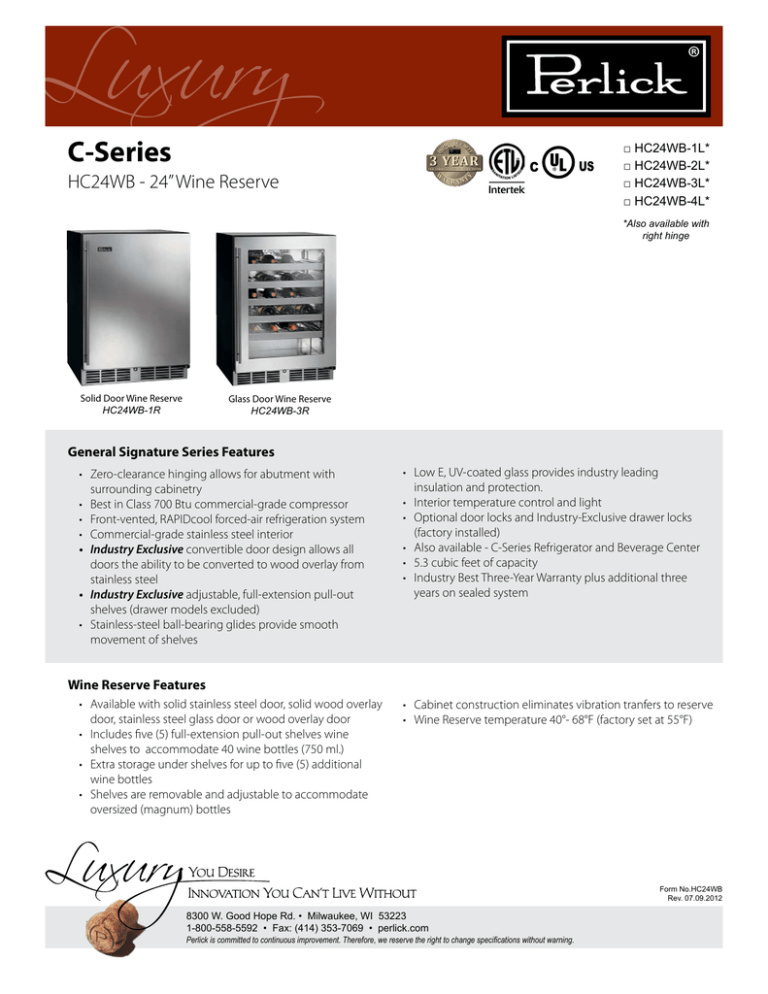

Luxury C-Series HC24WB - 24” Wine Reserve 3 YEAR

Luxury C-Series HC24WB	-	24”	Wine	Reserve 3 YEAR
IN
3 YEAR
FULL 3 YEARS, 6 YEARS ON SEALED SYSTEM
AR
RANT
Y
HC24WB - 24” Wine Reserve
ST
C-Series
STRY’S BE
DU
W
Luxury
C
US
□ HC24WB-1L*
□ HC24WB-2L*
□ HC24WB-3L*
□ HC24WB-4L*
*Also available with
right hinge
Solid Door Wine Reserve
HC24WB-1R
Glass Door Wine Reserve
HC24WB-3R
General Signature Series Features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Best in Class 700 Btu commercial-grade compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models excluded)
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
• Low E, UV-coated glass provides industry leading
insulation and protection.
• Interior temperature control and light
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Also available - C-Series Refrigerator and Beverage Center
• 5.3 cubic feet of capacity
• Industry Best Three-Year Warranty plus additional three
years on sealed system
Wine Reserve Features
• Available with solid stainless steel door, solid wood overlay
door, stainless steel glass door or wood overlay door
• Includes five (5) full-extension pull-out shelves wine
shelves to accommodate 40 wine bottles (750 ml.)
• Extra storage under shelves for up to five (5) additional
wine bottles
• Shelves are removable and adjustable to accommodate
oversized (magnum) bottles
• Cabinet construction eliminates vibration tranfers to reserve
• Wine Reserve temperature 40°- 68°F (factory set at 55°F)
Form No.HC24WB
Rev. 07.09.2012
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
Product Specifications
Available Models - 24” Wine Reserve
23-7/8” (60.64 cm)
HC24WB-1L*
Solid stainless steel door, hinge left
Overall Height
34-1/4” (86.96 cm)
HC24WB-2L*
Solid wood overlay door, hinge left
Overall Depth
24” (60.96 cm)
HC24WB-3L*
Stainless steel glass door, hinge left
Opening Width
24” (60.96 cm.)
HC24WB-4L*
Wood overlay glass door, hinge left
Opening Height
34-3/8” (87.31 cm.)
Opening Depth
24” (60.96 cm.)
Refrigerated Volume
5.3 cu. ft.
Door Swing Clearance
25” (63.50 cm) minimum
Electrical
115V, 60Hz., 1 Phase,
2.3 amps
Plumbing
None Required
Shipping Weight
215 lbs (97.52 kg)
* Also available hinge right
STRY’S BE
DU
ST
IN
Overall Width
3 YEAR
C
FULL 3 YEARS, 6 YEARS ON SEALED SYSTEM
RANT
Y
W
AR
US
50" Area in which
electrical outlet must be located.
9
7 16"
CSERIES HC24 CABINET
Power cord 65/8" off floor.*
1
6 4"
3
1 16" Min.
20"
clearance from
a corner to
acheive 90
door swing.
90° Swing
required for
pullout shelf
clearance.
3
18 16"
7
11 8"
* Leg leveler can add
3/4" to these dimensions
when fully extended.
15
16"
Min. clearance
for door swing.
24
3
25 8" Values may change
due to custom pull
with a wood overlay door.
24"
(with 1/16" tolerance)
3
18 16"
7
23 8"
20"
1
23 16"
9
26 16"
1
*34 4"
1
3 2"
PERLICK CORPORATION
MILWAUKEE, WI 53223
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
9
26 16"
1
23 16"
2" Shelf
adjustability.
1
3 2"
1
4 4" Lowest
shelf location.
*3 7/8"
7
11 8"
1
6 4"
drw
PRINTED
4/20/2012
SCALE:
DR.:
1:10
JMP DATE: 4/20/2012
95079
SHEET 1 OF 2
Form No.HC24WB
Rev. 07.09.2012
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
