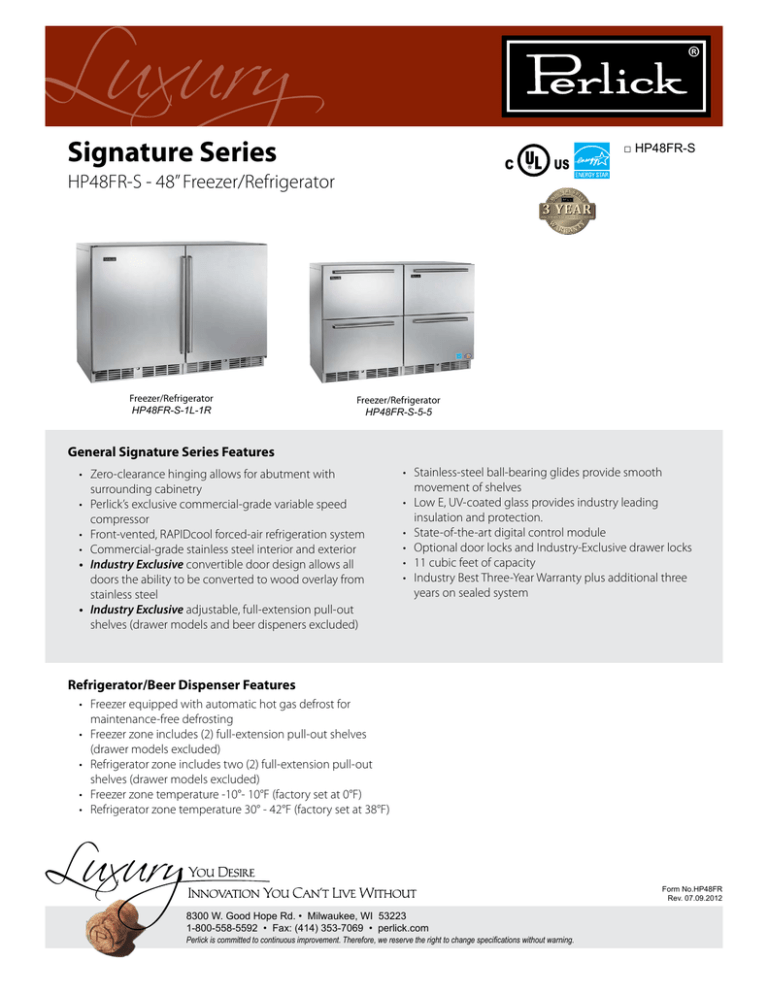

Luxury Signature Series HP48FR-S - 48” Freezer/Refrigerator 3 YEAR

Luxury Signature Series HP48FR-S	-	48”	Freezer/Refrigerator 3 YEAR
Luxury
Signature Series
C
STRY’S BE
DU
ST
IN
HP48FR-S - 48” Freezer/Refrigerator
□ HP48FR-S
US
3 YEAR
FULL 3 YEARS, 6 YEARS ON SEALED SYSTEM
Freezer/Refrigerator
HP48FR-S-1L-1R
RANT
Y
W
AR
Freezer/Refrigerator
HP48FR-S-5-5
General Signature Series Features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Perlick’s exclusive commercial-grade variable speed
compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior and exterior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models and beer dispeners excluded)
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
• Low E, UV-coated glass provides industry leading
insulation and protection.
• State-of-the-art digital control module
• Optional door locks and Industry-Exclusive drawer locks
• 11 cubic feet of capacity
• Industry Best Three-Year Warranty plus additional three
years on sealed system
Refrigerator/Beer Dispenser Features
• Freezer equipped with automatic hot gas defrost for
maintenance-free defrosting
• Freezer zone includes (2) full-extension pull-out shelves
(drawer models excluded)
• Refrigerator zone includes two (2) full-extension pull-out
shelves (drawer models excluded)
• Freezer zone temperature -10°- 10°F (factory set at 0°F)
• Refrigerator zone temperature 30° - 42°F (factory set at 38°F)
Form No.HP48FR
Rev. 07.09.2012
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
Product Specifications
Available Models - 48” Freezer/Refrigerator
HP48FR-S
47-7/8” (121.60 cm.)
Overall Height
34-1/4” (86.96 cm.)
Overall Depth
24” (60.96 cm.)
Opening Width
48” (121.92 cm.)
1
Solid Stainless Door (left or right hinge)
Opening Height
34-3/8” (87.31 cm.)
2
Solid Wood Overlay Door (left or right hinge)
Opening Depth
24” (60.96 cm.)
5
Solid Stainless Steel Drawers
Refrigerated Volume
Compartment 1 (left)
Compartment 2 (right)
11.0 cu. ft.
5.0 cu. ft.
6.0 cu. ft.
6
Wood Overlay Drawers
Door Swing Clearance
25” (63.50 cm.) minimum
1
Solid Stainless Door (left or right hinge)
Electrical
115V, 60Hz., 1 Phase,
2.3 amps
2
Solid Wood Overlay Door (left or right hinge)
Plumbing
None Required
3
Stainless Glass Door (left or right hinge)
Annual Energy Usage
448 kWh/yr
4
Wood Overlay Glass Door (left or right hinge)
Shipping Weight
332 lbs (150.60 kg.)
5
Solid Stainless Steel Drawers
6
Wood Overlay Drawers
3 YEAR C
FULL 3 YEARS, 6 YEARS ON SEALED SYSTEM
Refrigerator Door Options
Signature Series HP48 Models
50" Area in which
electrical outlet must be located.
US
12 1/4"
Power cord 81/4" off floor.*
RANT
Y
W
AR
48” Freezer/Refrigerator
Freezer Door Options
STRY’S BE
DU
ST
IN
Overall Width
6 3/8"
20 5/8"
22"
* Leg leveler can add
3/4" to these dimensions
when fully extended.
44"
1 1/4" Min.
clearance from
a corner to
acheive 90
door swing.
90° Swing
required for
pullout shelf
clearance.
11 3/4"
24 15/16"
Min. clearance
for door swing.
25 7/16" Values may change
due to custom pull
with a wood overlay door.
25 7/16" Values may change
due to custom pull
with a wood overlay door.
24"
(with 1/16" tolerance)
24"
(with 1/16" tolerance)
18 1/8"
1 11/16"
1 11/16"
19 5/8"
2" Shelf
adjustability.
47 7/8"
19 5/8"
26 9/16"
5 1/4"
19 7/8"
20 11/16"
1 11/16"
19 7/8"
26 9/16"
*34 5/16"
2" Shelf
adjustability.
26 9/16" 24 7/8"
5 1/4"
6 3/16" Lowest
shelf location.
6 3/8"
2 1/4" Lowest
shelf location.
11 3/4"
*4"
PERLICK CORPORATION
MILWAUKEE, WI 53223
DR.:
50" Area in which
electrical outlet must be located.
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
SCALE:
95006
Signature Series HP48 Models
PRINTED
4/24/2012
J:\Dwg\95000\95006.slddrw
12 1/4"
1:12
JMP DATE: 4/24/2012
SHEET 1 OF 3
Power cord 81/4" off floor.*
* Leg leveler can add
3/4" to these dimensions
when fully extended.
17 11/16"
24"
(with 1/16" tolerance)
5 9/16" Max.
product ht.
17 13/16"
Inside drawer
(Top & Bottom)
25 7/16" Values may change
due to custom pull
with a wood overlay door.
1 3/8"
25 7/16" Values may change
due to custom pull
with a wood overlay door.
17 1/4"
17 13/16"
Inside drawer
(Top & Bottom)
24"
(with 1/16" tolerance)
47 7/8"
6 3/16"
9 3/16" Max.
product ht.
9 3/16" Max.
product ht. 6 3/16"
17 1/4"
*34 5/16"
3 3/16"
6 3/4"
10 1/2"
8 3/8"
10 13/16" Max.
product ht.
10 13/16" Max.
product ht.
6 3/16"
17 1/4"
*4"
SCALE:
DR.:
PERLICK CORPORATION
MILWAUKEE,
WI 53223Rd. • Milwaukee, WI 53223
8300 W. Good
Hope
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
J:\Dwg\95000\95006.slddrw
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
PRINTED
4/24/2012
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
1:12
JMP DATE: 4/24/2012
95006
SHEET 2 OF 3
Form No.HP48FR
Rev. 07.09.2012
