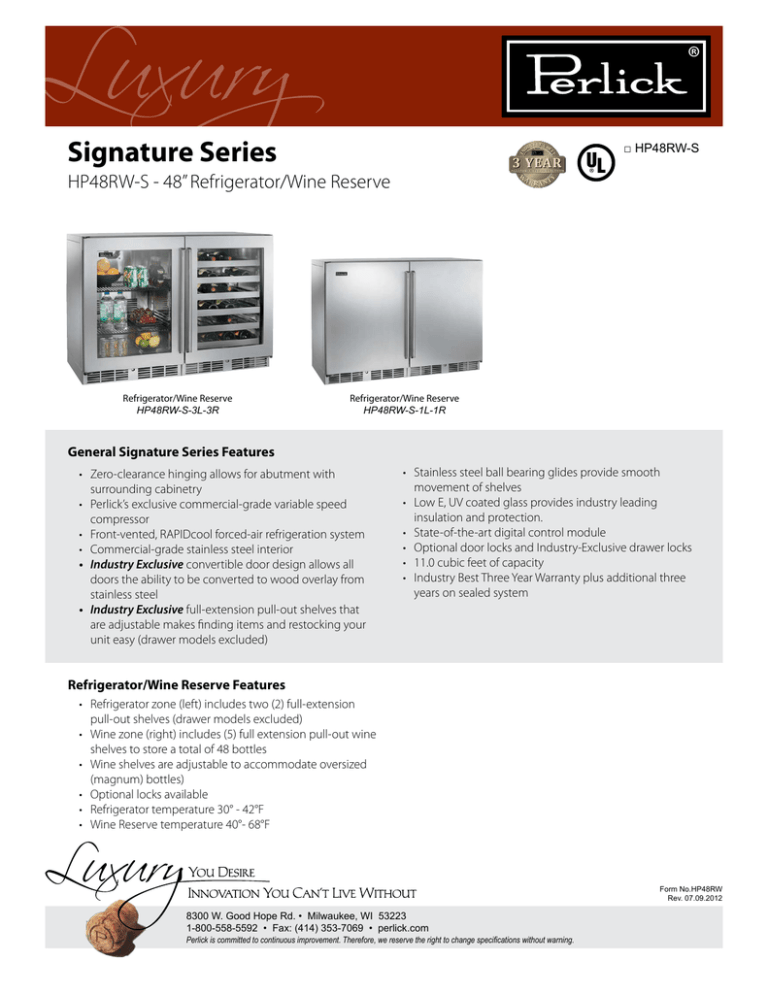

Luxury Signature Series HP48RW-S - 48” Refrigerator/Wine Reserve 3 YEAR

Luxury Signature Series HP48RW-S	-	48”	Refrigerator/Wine	Reserve 3 YEAR
IN
Signature Series
3 YEAR
□ HP48RW-S
FULL 3 YEARS, 6 YEARS ON SEALED SYSTEM
W
AR
RANT
Y
HP48RW-S - 48” Refrigerator/Wine Reserve
Refrigerator/Wine Reserve
HP48RW-S-3L-3R
STRY’S BE
DU
ST
Luxury
Refrigerator/Wine Reserve
HP48RW-S-1L-1R
General Signature Series Features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Perlick’s exclusive commercial-grade variable speed
compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive full-extension pull-out shelves that
are adjustable makes finding items and restocking your
unit easy (drawer models excluded)
• Stainless steel ball bearing glides provide smooth
movement of shelves
• Low E, UV coated glass provides industry leading
insulation and protection.
• State-of-the-art digital control module
• Optional door locks and Industry-Exclusive drawer locks
• 11.0 cubic feet of capacity
• Industry Best Three Year Warranty plus additional three
years on sealed system
Refrigerator/Wine Reserve Features
• Refrigerator zone (left) includes two (2) full-extension
pull-out shelves (drawer models excluded)
• Wine zone (right) includes (5) full extension pull-out wine
shelves to store a total of 48 bottles
• Wine shelves are adjustable to accommodate oversized
(magnum) bottles)
• Optional locks available
• Refrigerator temperature 30° - 42°F
• Wine Reserve temperature 40°- 68°F
Form No.HP48RW
Rev. 07.09.2012
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
Product Specifications
Available Models - 48” Refrigerator/Wine Reserve
HP48RW-S
47-7/8” (121.60 cm)
Overall Height
34-1/4” (86.96 cm)
Overall Depth
24” (60.96 cm)
Refrigerated Volume
11.0 cu. ft.
1
Solid Stainless Door (left or right hinge)
Door Swing Clearance
25” (63.50 cm) minimum
2
Solid Wood Overlay Door (left or right hinge)
Electrical
115V, 60Hz., 1 Phase,
2.3 amps
3
Stainless Glass Door (left or right hinge)
4
Wood Overlay Glass Door (left or right hinge)
Plumbing
None Required
5
Stainless Steel Drawers
Shipping Weight
332 lbs (150.60 kg)
6
Wood Overlay Drawers
STRY’S BE
DU
Wine Reserve Door Options
3 YEAR
FULL 3 YEARS, 6 YEARS ON SEALED SYSTEM
RANT
Y
W
AR
48” Refrigerator/Wine Reserve
Refrigerator Door Options
ST
IN
Overall Width
1
Solid Stainless Door (left or right hinge)
2
Solid Wood Overlay Door (left or right hinge)
3
Stainless Glass Door (left or right hinge)
4
Wood Overlay Glass Door (left or right hinge)
Signature Series HP48 Models
50" Area in which
electrical outlet must be located.
12 1/4"
Power cord 81/4" off floor.*
6 3/8"
20 5/8"
22"
* Leg leveler can add
3/4" to these dimensions
when fully extended.
44"
1 1/4" Min.
clearance from
a corner to
acheive 90
door swing.
90° Swing
required for
pullout shelf
clearance.
11 3/4"
24 15/16"
Min. clearance
for door swing.
25 7/16" Values may change
due to custom pull
with a wood overlay door.
25 7/16" Values may change
due to custom pull
with a wood overlay door.
24"
(with 1/16" tolerance)
24"
(with 1/16" tolerance)
18 1/8"
1 11/16"
19 5/8"
2" Shelf
adjustability.
26 9/16"
5 1/4"
47 7/8"
1 11/16"
19 5/8"
19 7/8"
1 11/16"
19 7/8"
26 9/16"
*34 5/16"
20 11/16"
2" Shelf
adjustability.
26 9/16" 24 7/8"
5 1/4"
6 3/16" Lowest
shelf location.
6 3/8"
11 3/4"
2 1/4" Lowest
shelf location.
*4"
PERLICK CORPORATION
MILWAUKEE, WI 53223
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
SCALE:
DR.:
PRINTED
4/24/2012
1:12
JMP DATE: 4/24/2012
95006
SHEET 1 OF 3
J:\Dwg\95000\95006.slddrw
Form No.HP48RW
Rev. 07.09.2012
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
