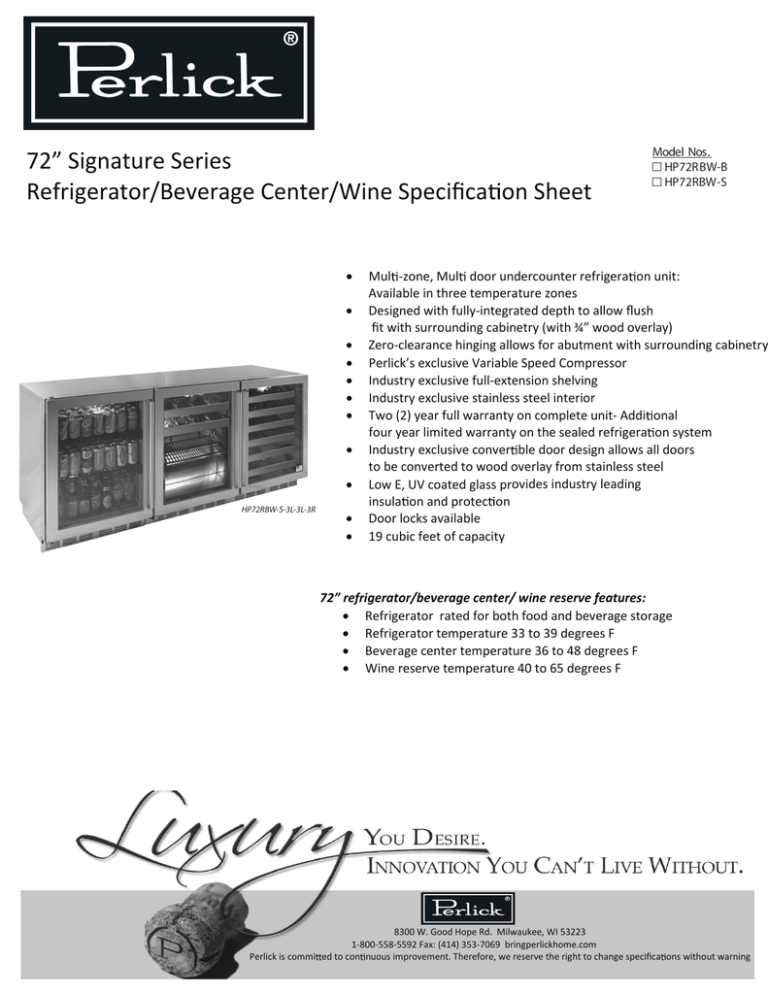

72” Signature Series
Refrigerator/Beverage Center/Wine Specifica on Sheet
•
•
•
•
•
•
•
•
•
HP72RBW-S-3L-3L-3R
•
•
Model Nos.
HP72RBW-B
HP72RBW-S
Mul -zone, Mul door undercounter refrigera on unit:
Available in three temperature zones
Designed with fully-integrated depth to allow flush
fit with surrounding cabinetry (with ¾” wood overlay)
Zero-clearance hinging allows for abutment with surrounding cabinetry
Perlick’s exclusive Variable Speed Compressor
Industry exclusive full-extension shelving
Industry exclusive stainless steel interior
Two (2) year full warranty on complete unit- Addi onal
four year limited warranty on the sealed refrigera on system
Industry exclusive conver ble door design allows all doors
to be converted to wood overlay from stainless steel
Low E, UV coated glass provides industry leading
insula on and protec on
Door locks available
19 cubic feet of capacity
72” refrigerator/beverage center/ wine reserve features:
• Refrigerator rated for both food and beverage storage
• Refrigerator temperature 33 to 39 degrees F
• Beverage center temperature 36 to 48 degrees F
• Wine reserve temperature 40 to 65 degrees F
8300 W. Good Hope Rd. Milwaukee, WI 53223
1-800-558-5592 Fax: (414) 353-7069 bringperlickhome.com
Perlick is commi ed to con nuous improvement. Therefore, we reserve the right to change specifica ons without warning
Indoor Models
H72RBW-B
H72RBW-S
Refrigerator/Beverage Center/Wine
72”refrigerator/beverage center/wine-built-in
72” refrigerator/beverage center/wine-freestanding
Refrigerator Door Options
1 -solid stainless door (Left or Right hinge)
2 - solid wood overlay door (Left or Right hinge)
3 - stainless glass door (Left or Right hinge)
4 - wood overlay glass door (Left or Right hinge)
5 - solid stainless steel drawers
6 - solid wood overlay drawers
Beverage Center Options
1- solid stainless door (Left or Right hinge)
2- solid wood overlay door (Left or Right hinge)
3- stainless glass door (Left or Right hinge)
4- wood overlay glass door (Left or Right hinge)
Job _______________
Area ______________
Item No . __________
Model No. __________
Wine Reserve Door Options
1-solid stainless door (Left or Right hinge)
2- solid wood overlay door (Left or Right hinge)
3- stainless glass door (Left or Right hinge)
4- wood overlay glass door (Left or Right hinge)
Overall Width:
Overall Height:
Overall Depth:
Capacity:
Minimum Height Required:
Door Swing Clearance:
Electrical:
Plumbing:
Shipping Weight:
71-7/8”, 182.563 cm
34-5/16”, 87.154 cm
23-15/16”, 60.801 cm
19 cubic .
34-3/8
24-25/32”
115V, 60 Hz., 1 phase AC, 2.3 amps
none required
540 lbs.
8300 W. Good Hope Rd. Milwaukee, WI 53223
1-800-558-5592 Fax: (414) 353-7069 bringperlickhome.com
Perlick is commi ed to con nuous improvement. Therefore, we reserve the right to change specifica ons without warning
