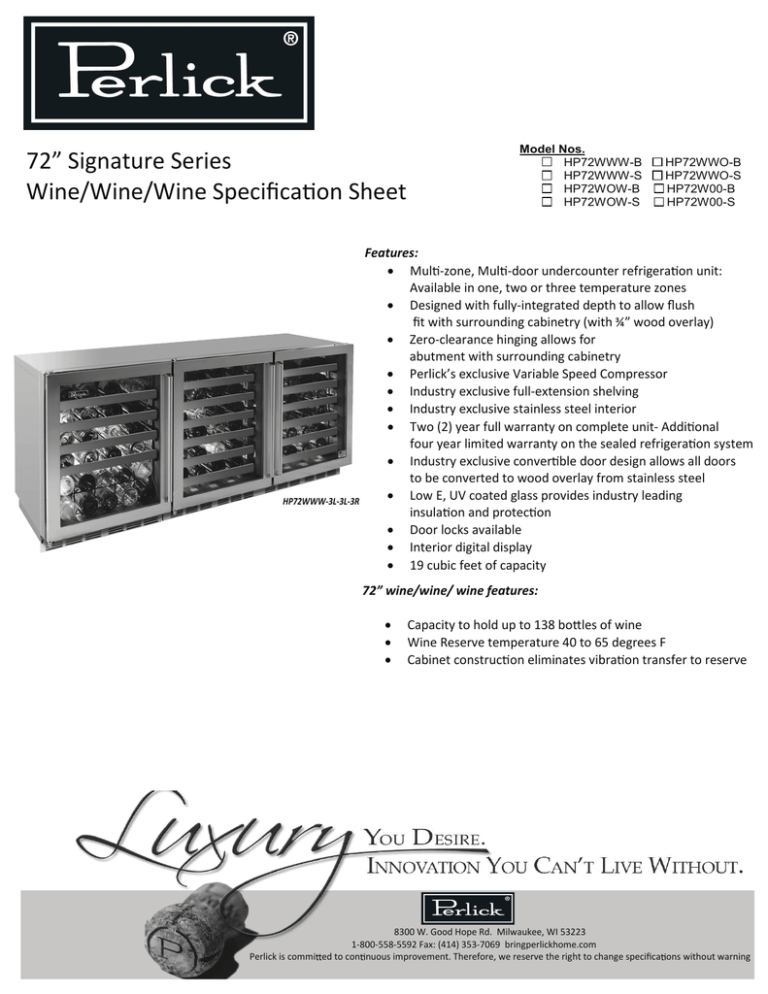

72” Signature Series
Wine/Wine/Wine Specification Sheet
HP72WWW-3L-3L-3R
Model Nos.
HP72WWW-B
HP72WWW-S
HP72WOW-B
HP72WOW-S
HP72WWO-B
HP72WWO-S
HP72W00-B
HP72W00-S
Features:
• Multi-zone, Multi-door undercounter refrigeration unit:
Available in one, two or three temperature zones
• Designed with fully-integrated depth to allow flush
fit with surrounding cabinetry (with ¾” wood overlay)
• Zero-clearance hinging allows for
abutment with surrounding cabinetry
• Perlick’s exclusive Variable Speed Compressor
• Industry exclusive full-extension shelving
• Industry exclusive stainless steel interior
• Two (2) year full warranty on complete unit- Additional
four year limited warranty on the sealed refrigeration system
• Industry exclusive convertible door design allows all doors
to be converted to wood overlay from stainless steel
• Low E, UV coated glass provides industry leading
insulation and protection
• Door locks available
• Interior digital display
• 19 cubic feet of capacity
72” wine/wine/ wine features:
•
•
•
Capacity to hold up to 138 bottles of wine
Wine Reserve temperature 40 to 65 degrees F
Cabinet construction eliminates vibration transfer to reserve
8300 W. Good Hope Rd. Milwaukee, WI 53223
1-800-558-5592 Fax: (414) 353-7069 bringperlickhome.com
Perlick is commi ed to con nuous improvement. Therefore, we reserve the right to change specifica ons without warning
Indoor Models
HP72WWW-B
HP72WWW-S
HP72WOW-B
HP72WOW-S
HP72WWO-B
HP72WWO-S
HP72WOO-B
HP72WOO-S
Wine/Wine/Wine
72” wine/wine/wine- built-in
72” wine/wine/wine- freestanding
72” wine=wine/wine- built-in
72”wine= wine/wine-freestanding
72” wine/wine=wine-built-in
72” wine/wine= wine- freestanding
72”wine=wine=wine- built-in
72” wine= wine=wine- freestanding
Wine Reserve Door Options
1-solid stainless door (Left or Right hinge)
2- solid wood overlay door (Left or Right hinge)
3- stainless glass door (Left or Right hinge)
4- wood overlay glass door (Left or Right hinge)
Job _______________
Area ______________
Item No . __________
Model No. __________
Overall Width:
Overall Height:
Overall Depth:
Capacity:
Minimum Height Required:
Door Swing Clearance:
Electrical:
Plumbing:
Shipping Weight:
71-7/8”, 182.563 cm
34-5/16”, 87.154 cm
23-15/16”, 60.801 cm
5.3 cubic ft.
34-3/8
24-25/32”
115V, 60 Hz., 1 phase AC, 2.3 amps
none required
540 lbs.
8300 W. Good Hope Rd. Milwaukee, WI 53223
1-800-558-5592 Fax: (414) 353-7069 bringperlickhome.com
Perlick is commi ed to con nuous improvement. Therefore, we reserve the right to change specifica ons without warning
