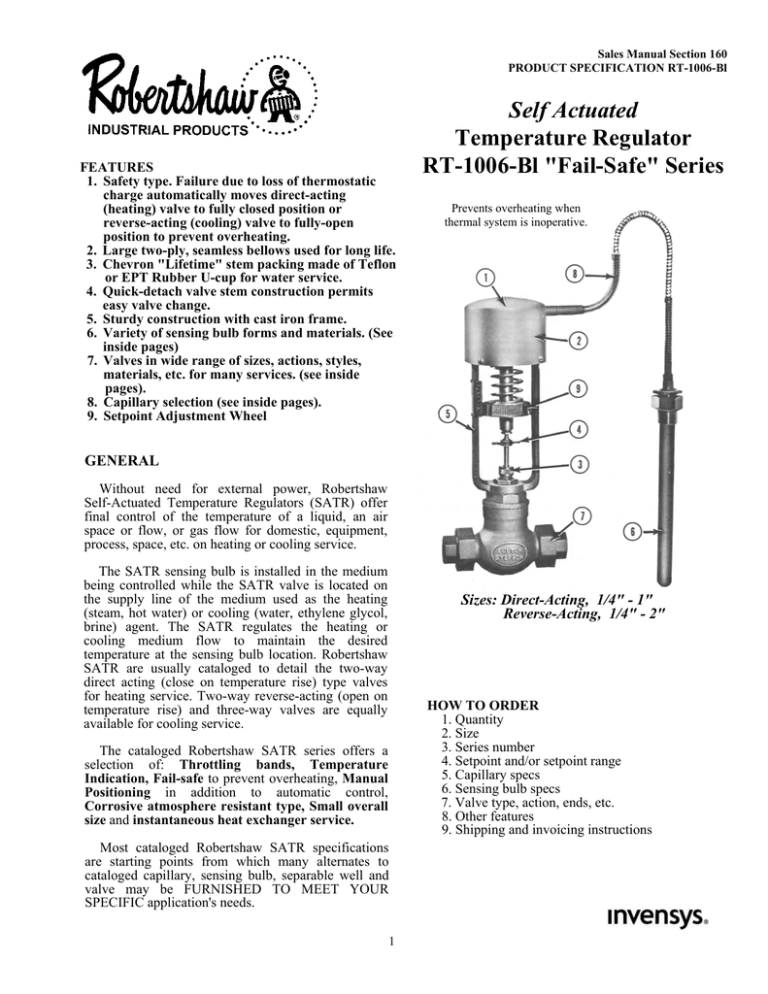

Sales Manual Section 160
PRODUCT SPECIFICATION RT-1006-Bl
FEATURES
1. Safety type. Failure due to loss of thermostatic
charge automatically moves direct-acting
(heating) valve to fully closed position or
reverse-acting (cooling) valve to fully-open
position to prevent overheating.
2. Large two-ply, seamless bellows used for long life.
3. Chevron "Lifetime" stem packing made of Teflon
or EPT Rubber U-cup for water service.
4. Quick-detach valve stem construction permits
easy valve change.
5. Sturdy construction with cast iron frame.
6. Variety of sensing bulb forms and materials. (See
inside pages)
7. Valves in wide range of sizes, actions, styles,
materials, etc. for many services. (see inside
pages).
8. Capillary selection (see inside pages).
9. Setpoint Adjustment Wheel
Self Actuated
Temperature Regulator
RT-1006-Bl "Fail-Safe" Series
Prevents overheating when
thermal system is inoperative.
GENERAL
Without need for external power, Robertshaw
Self-Actuated Temperature Regulators (SATR) offer
final control of the temperature of a liquid, an air
space or flow, or gas flow for domestic, equipment,
process, space, etc. on heating or cooling service.
The SATR sensing bulb is installed in the medium
being controlled while the SATR valve is located on
the supply line of the medium used as the heating
(steam, hot water) or cooling (water, ethylene glycol,
brine) agent. The SATR regulates the heating or
cooling medium flow to maintain the desired
temperature at the sensing bulb location. Robertshaw
SATR are usually cataloged to detail the two-way
direct acting (close on temperature rise) type valves
for heating service. Two-way reverse-acting (open on
temperature rise) and three-way valves are equally
available for cooling service.
Sizes: Direct-Acting, 1/4" - 1"
Reverse-Acting, 1/4" - 2"
HOW TO ORDER
1. Quantity
2. Size
3. Series number
4. Setpoint and/or setpoint range
5. Capillary specs
6. Sensing bulb specs
7. Valve type, action, ends, etc.
8. Other features
9. Shipping and invoicing instructions
The cataloged Robertshaw SATR series offers a
selection of: Throttling bands, Temperature
Indication, Fail-safe to prevent overheating, Manual
Positioning in addition to automatic control,
Corrosive atmosphere resistant type, Small overall
size and instantaneous heat exchanger service.
Most cataloged Robertshaw SATR specifications
are starting points from which many alternates to
cataloged capillary, sensing bulb, separable well and
valve may be FURNISHED TO MEET YOUR
SPECIFIC application's needs.
1
RT-1006-Bl SERIES
The RT-1006-BI series is a non-indicating design
suited to heating or cooling applications where
temperature overheating is of basic concern. This
series is designed and constructed to push the stem
downward in the event of a loss of thermal charge.
It will close a direct-acting valve or open a reverse-
acting, on charge lost, to prevent the overheating
associated with other temperature regulators.
For larger valves, greater valve stroke or higher
pressure drops see the RT-1007-Al series.
For cataloging and pricing purposes, the RT-1006-BI series is detailed with
direct acting valves for heating, 8 ft. capillary (copper tube/ brass armor), type
12B (threaded bushing) copper sensing bulb, cast iron frame and other non-listed
parts of non-ferrous metals. Alternate specifications are available.
Regulator Number
Valve Size, Inches .
Valve Type, Direct-acting (closes with bulb rising at
sensing temperature
End Connections
Valve Trim (poppet and seats), material
Valve Stem (highly finished), material
Stem Packing (spring loaded chevrons)
Body Material
Body Rating, Pounds
Pressure Drop Limit, psi (for higher pressures,
consult our representative)
Full open Cv
RT-1006-B1
3/8
1/2
3/4
1
Single-seated
Single-seated
Unbalanced
Fully balanced
A
A
A
MA
MA
1/2" Screwed Unions
Screwed Unions
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
Teflon
Teflon
Teflon
Teflon
Teflon
Bronze Bronze Bronze
Bronze
Bronze
225
225
225
250
250
1/4
125
125
90
250
250
1.0
1.6
2.1
9.5
13.0
The RT-1006-B I series is available with any of the adjustable
setpoint ranges listed below. The range should be selected so that
the setpoint falls within the upper third of the range span.
-50° - -25° F
-35° - -5° F
-15° - 15° F
10° - 40° F
35° - 65° F
45° - 75° F
85° - 115° F
105° - 135° F
125° - 155° F
135° - 165° F
160° - 190° F
180° - 210° F
195° - 225° F
VALVE SIZING
Valve sizing is critical to control and life of regulator.
Use Robertshaw's "Flo-Rule" Valve Sizing Slide Rule and
valve Cv chart or contact our representative or factory. The
application requirement can frequently be satisfied by one
or two sizes smaller valve than the supply pipeline size.
ALTERNATES INCLUDE:
Capillary:
Length ............................................ 1 ft. to 50 ft. or more
Materials ..........Copper tube with brass armor (standard)
or 304 stainless steel tube with SS braid
Sensing Bulbs:
Type12B .............................................. Copper (standard)
Type 12BP ........................................... 316 stainless steel
Type 12B or 12BP .........................with "dead extension"
Type 54 ................................... Copper, externally finned,
Plain (54A),
Bushed (54J),
Flanged (54K)
Type 6 ........................................... Plain for open vessels,
Copper with copper tube and brass armor (6A),
316 SS with 304 SS tube and no braid (6AP)
Separable Wells (for sensing bulb protection or ease
or removal):
Material: ................................................................ 316 SS
Type GA or GA with lagging extension ...........................
Mounting thread one size larger than bulb size
Type GB ..............Mounting thread same size as bulb size
Valves: ...................................Types A, FA, MA, MAS, WA
as illustrated
Note 1- IMPORTANT - If valve seat leakage can cause a
problem or a hazard, the following should be taken into
account. Maximum leakage of new valves: single-seated
Types A, WA - 0.05% of full open valve capacity;
single-seated balanced Types MA, MAS - 0.01% of full
open valve capacity; double-seated Type FA - 0.5% of full
open valve capacity. This leakage will usually increase
somewhat as the valve seats wear in service.
2
DIMENSIONS, SHIPPING WEIGHTS AND
SENSING BULB SIZES
Regulator No.
RT-1006-B1
Valve Size,
Inches
1/4
3/8
1/2
3/4
1
Direct-Acting
Valve, Type
A
A
A
MA
MA
A
12-9/16 12-9/16 12-9/16 14-7/16 14-7/16
B
11
11
11
11
11
D
1-9/16 1-9/16 1-9/16
3-7/16 3-7/16
E
4-3/4
4-3/4
4-3/4
6-15/16 7-1/8
Standard bulb for temperature ranges begining at 120° F. or above.
G
1
1
1
1
1
H
11
11
11
11
14
T*
1
1
1
1
1
"Standard bulb for temperature ranges beginning below 120° F.
G
1-1/4
1-1/4
1-1/4
1-1/4
1-1/4
H
18
18
18
18
20
T*
1-1/4
1-1/4
1-1/4
1-1/4
1-1/4
8 FT. CATALOGED
'* Standard pipe thread
** Bulb sizes for ranges beginning below 120° F. are necessary to
provide "cross ambient" charge. This assures operation with
ambient temperatures either above or below the control setting.
Under some conditions, smaller bulbs may be used with lower
ranges. If the larger bulb cannot be used, consult the factory or
nearest representative.
SATR VALVES FOR RT-1006-Bl SERIES
(See valve spec sheets for full details)
THREE WAY
TWO WAY
Style A
Single seated
Unbalanced
Union ends
Bronze body
SS trim
Direct acting
Sizes 1/4" - 1"
Reverse acting
Sizes 1/4" - 1"
Style MA & MAS
Single seated
Fully balanced
SS Trim
Direct acting only
MA Sizes 3/4" - 1"
Union ends
Bronze body
MAS Sizes 3/4" - 1"
Threaded ends
Steel body
MAS Size 1"
Flanged
Steel body
Style FA
Double seated
Semi-balanced
Reverse acting only
Sizes 3/4" – 1-1/2"
Bronze unions, Bronze body
Bronze or Monel trim
Size 2"
Flanged, Bronze body
Bronze or Monel trim
Size 2"
Flanged, Cast Iron body
Bronze or SS trim
Style WA
Unbalanced
Union ends (2)
Threaded end (bottom)
Sizes 1/2" - 1"
Bronze body
SS trim.
For reverse-acting (cooling) applications using the relatively short stroked FA valve the following sizes are available. The
following table gives bulb size, as well as the valve pressure drop ratings, for the RT-1006-B 1 in these sizes:
Valve Size
Pressure Drop Limits
Bulb Size for 120° F or above
Bulb Size for below 120° F
3/4"
125 lbs.
1" x 11"
1-1/4" x 18"
1"
125 lbs.
1" x 11"
1-1/4" x 18"
1-1/4"
125 lbs.
1" x 11"
1-1/4" x 18"
3
1-1/2”
90 lbs.
1" x 11"
1-1/4" x 18"
2”
40 lbs.
1" x 14"
1-1/4" x 20"
Q-4039 (11/04)
4
Printed in U.S.A.
Sales Manual Section 160
PRODUCT SPECIFICATION RT-1007-Al
Self-Actuated
Temperature Regulator
RT-1007-Al "Fail-Safe" Series
FEATURES
1.
2.
3.
4.
5.
6.
7.
8.
9.
Safety type. Failure due to loss of thermostatic
charge automatically moves direct-acting (heating)
valve to fully closed position or reverse-acting
valve (cooling) valve to fully-open position to
prevent overheating.
Extra large, two-ply, seamless bellows used for
long fife and extra power.
Chevron "Lifetime" stem packing made of Teflon
or EPT Rubber U-cup for water service.
Quick-detach valve stem construction permits easy
valve change.
Sturdy construction with cast iron frame.
Variety of sensing bulb forms and materials. (See
inside pages)
Valves in wide range of sizes, actions, styles,
materials, etc. for many services. (See inside
pages).
Capillary selection (See inside pages).
Setpoint Adjustment Wheel
Prevents Overheating when
Thermal System is inoperative
GENERAL
Without need for external power, Robertshaw
Self-Actuated Temperature Regulators (SATR) offer
final control of the temperature of a liquid, an air
space or flow, or gas flow for domestic, equipment,
process, space, etc. on heating or cooling service.
The SATR sensing bulb is installed in the medium
being controlled while the SATR valve is located on
the supply line of the medium used as the heating
(steam, hot water) or cooling (water, ethylene glycol,
brine) agent. The SATR regulates the heating or
cooling medium flow to maintain the desired
temperature at the sensing bulb location. Robertshaw
SATR are usually cataloged to detail the two-way
direct acting (close on temperature rise) type valves
for heating service. Two-way reverse-acting (open on
temperature rise) and three-way valves are equally
available for cooling service.
Cataloged Sizes: Direct-acting, 1-1/4” - 4"
Reverse-acting, 2-1/2 - 4"
Most cataloged Robertshaw SATR specifications
are starting points from which many alternates to
cataloged capillary, sensing bulb, separable well and
valve may be FURNISHED TO MEET YOUR
SPECIFIC application's needs.
The cataloged Robertshaw SATR series offers a
selection of: Throttling bands, Temperature Indication,
Fail-safe to prevent overheating, Manual Positioning
in addition to automatic control, Corrosive atmosphere
resistant type, Small overall size and instantaneous
heat exchanger service.
HOW TO ORDER
1. Quantity
2. Size
3. Series number
4. Setpoint and/or setpoint range
5. Capillary specs
6. Sensing bulb specs
7. Valve type, action, ends, etc.
8. Other features
9. Shipping and invoicing instructions
Most cataloged Robertshaw SATR specifications
are starting points from which many alternates to
cataloged capillary, sensing bulb, separable well and
valve may be FURNISHED TO MEET YOUR
SPECIFIC application's needs.
1
RT-1007-Al Series
The RT-1007-Al series is a non-indicating design suited
to heating or cooling applications where temperature
overheating is of basic concern. This series is designed and
constructed to push the stem downward in the event of a
loss of thermal charge. It will close a direct-acting valve or
open a reverse-acting valve, on charge loss, to prevent the
overheating associated with other temperature regulators.
The RT-1007-Al series can be supplied with small valve
sizes; however, the more economical RT-1006-BI is
normally used with the advantage of smaller bulb size, etc.
For cataloging and pricing purposes, the RT-1007-Al series is detailed with direct acting valves for heating
service, 8 ft. capillary (copper with brass armor), 12 type (threaded bushing) copper sensing bulb, cast iron
frame and other non-listed parts of non-ferrous metals. Alternate specifications are available.
Regulator No.
Valve size, Inches
Valve Type, Direct-acting (closes with rising
temperature at bulb)
End Connections
Valve Trim (poppet and seats), material
Valve Stem (highly finished), material
Stem Packing (spring loaded chevrons)
Body Material
Body Rating, Pounds
Pressure Drop Limit, psi (For higher pressures,
consult our representative)
Full open Cv
RT-1007-Al
1-1/4
1-1/2
2
2-1/2
3
4
Single seated, Balanced
Double seated, Semi-balanced
MA
MA
MA
FA
FA
FA
Screwed unions
Flanged (125 lb. ANSI)
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
S.S.
Teflon Teflon
Teflon
Teflon
Teflon
Teflon
Bronze Bronze Cast iron Cast iron Cast iron
Cast iron
250
250
175
175
175
175
250
250
100
45
35
25
18.6
26.0
47.8
82.5
130.0
226.0
The RT-1007-Al series is available with any of the adjustable
setpoint ranges listed below. The range should be selected so that
the setpoint falls within the upper third of the range span.
-50° - -25°F
-35° - -5°F
-15° - 15°F
l 0° - 40°F
35° - 65°F
45° - 75°F
85° - 115°F
105° - 135°F
125° - 155°F
135° - 165°F
160° - 190°F
180° - 210°F
195° - 225°F
ALTERNATES INCLUDE
VALVE SIZING
Capillary:
Length ............................................. 1 ft. to 50 ft. or more
Materials .......... Copper tube with brass armor (standard)
or 304 stainless steel tube with SS braid
Sensing Bulbs:
Type 12B ..............................................Copper (standard)
Type 12BP ...........................................316 stainless steel
Type 12B or 12BP ........................ with "dead extension"
Type 54 ...................................Copper, externally finned,
Plain (54A)
Bushed (54J)
Flanged (54K)
Type 6 ...........................................Plain for open vessels,
Copper with copper tube and brass armor (6A)
316 SS with 304 SS tube and no braid (6AP)
Separable Wells (for sensing bulb protection or ease of
removal):
Materials ............................................................... 316 SS
Type GA or GA with lagging extension ...........................
Mounting thread one size larger than bulb size
Type GB ............. Mounting thread same size as bulb size
Valves: .........................Types A, FA, MA, MAS, WA, WD
as illustrated
Valve sizing is critical to control and life of regulator.
Use Robertshaw's "Flo-Rule" Valve Sizing Slide Rule and
valve Cv chart, or contact our representative or factory. The
application requirement can frequently be satisfied by one
or two sizes smaller valve than the supply pipeline size.
NOTE 1 - IMPORTANT - If valve seat leakage can cause
a problem or a hazard, the following should be taken into
account. Maximum leakage of new valves: single-seated
Types A, WA - 0.05% of full open valve capacity;
single-seated balanced Types MA, MAS - 0.01% of full
open valve capacity; single seated Type WD – 1% of full
open valve capacity; double-seated Type FA - 0.5% of full
open valve capacity. This leakage will usually increase
somewhat as the valve seats wear in service.
2
DIMENSIONS, SHIPPING WEIGHTS
AND SENSING BULB SIZES
Regulator No.
Valve Size, Inches
Direct-Acting
Valve, Type
Shipping Wt., Lbs.
A
B
D
E
1-1/4
1-1/2
MA
MA
RT-1007-Al
2
2-1/2
MA
37
43
15-13/16 16-5/16
12-3/16 12-3/16
3-5/8
4-1/8
7-1/2
8-1/2
FA
8 FT CATALOGED
3
4
FA
FA
48
100
130
160
17-1/8 16-15/16 16-15/16
18
12-3/16 12-3/16 12-3/16 12-3/16
4-15/16
4-3/4
4-3/4
5-13/16
7
7-3/4
8-5/8
l0-1/4
Standard bulb for temperature ranges beginning at 120° F. or above
G
1-1/4
1-1/4
1-1/4
1-1/4
1-1/4
H
18
18
24
18
18
T*
1-1/4
1-1/4
1-1/4
1-1/4
1-1/4
1-1/4
24
1-1/4
**Standard bulb for temperature ranges beginning below 120° F.
G
1-1/2
1-1/2
1-1/2
1-1/2
1-1/2
H
28
28
32
28
28
T*
1-1/2
1-1/2
1-1/2
1-1/2
1-1/2
1-1/2
32
1-1/2
* Standard pipe thread.
** Bulb sizes for ranges beginning below 120° F. are necessary to provide
"Cross-ambient" charge. This assures operation with ambient temperatures
either above or below the control setting. Under some conditions smaller
bulbs may be used with lower ranges. If the larger bulb cannot be used,
consult the factory or nearest representative.
SATR VALVES FOR RT-1007-Al SERIES
(See Valve spec sheets for full details)
TWO WAY
Style A
Union Ends
Single Stated
Unbalanced
Bronze Body
SS Trim
Direct Acting
Sizes 1/4" – 1"
Reverse Acting
Sizes 1/4" – 1-1/2"
Style MA
Single Seated
Fully Balanced
Direct Acting only
SS Trim
MA Sizes 3/4" – 1-1/2"
Union Ends
Bronze Body
MA Size 2"
Flanged
Bronze or Cast Iron Body
MAS Sizes 1" – 2"
Flanged
Steel Body
MAS Sizes 3/4" – 1-1/2"
Threaded Ends
Steel Body
THREE WAY
Style FA
Double Seated
Semi-Balanced
Reverse Acting: 3/4" – 1-1/2"
Bronze Unions, Bronze Body
Bronze or Monel Trim
Reverse Acting: 2"
Flanged, Bronze Body
Bronze or Monel Trim
Reverse Acting: 2"
Flanged, Cast Iron Body
Bronze or SS Trim
Reverse Acting: 2-1/2" – 4"
Flanged, Bronze Body
Monel Trim
Reverse Acting: 2-1/2" – 4"
Flanged, Cast Iron Body
SS Trim
Direct Acting: 2-1/2" – 4"
Flanged, Cast Iron Body
SS Trim
3
Style WA
Union Ends (2)
Threaded End (Bottom)
Unbalanced
Sizes 1/2" – 1-1/2"
Bronze Body
SS Trim
Style WD
Balanced
Sizes 2" – 2-1/2"
Flanged
Bronze Body
Bronze Trim
Q-4040 (11/04)
4
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
