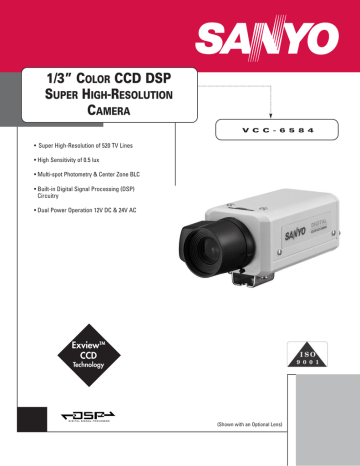

1/3” COLOR CCD DSP
SUPER HIGH-RESOLUTION
CAMERA
V C C - 6 5 8 4
• Super High-Resolution of 520 TV Lines
• High Sensitivity of 0.5 lux
• Multi-spot Photometry & Center Zone BLC
• Built-in Digital Signal Processing (DSP)
Circuitry
• Dual Power Operation 12V DC & 24V AC
ExviewTM
CCD
Technology
(Shown with an Optional Lens)
1/3” COLOR CCD DSP
SUPER HIGH-RESOLUTION
CAMERA
Specifications
VCC-6584
Scanning System
NTSC Standard: 525 lines, 30 Frames/Sec.
Image Sensor
1/3” (Approx. 4.8mm x 3.6mm) interline transfer method
Effective Picture Elements
768 (H) x 494 (V)
Resolution
Horizontal: 520TV lines, Vertical: 350TV lines
Minimum illumination
0.5 lux (GAIN HI) / 1.0 lux (GAIN NORM) @f1.2
Video output level
1.0 Vp-p @ 75 ohms, composite
Video S/N ratio
More than 50db (AGC off)
Backlight Compensation
ON / OFF – Slide SW (side)
ON = Multi-spot photometry system (64-section) / Center-zone
photometry system; Slide SW (side) (activated when auto iris lens used)
White Balance
Auto / Manual – Slide SW (side)
Gain Control
Normal / High – Slide SW (side)
Light Control
Auto iris / Electronic iris
Lens Mount
CS Mount
Flange Back
12.5mm ± 0.5mm adjustment
Auto Iris Lens
DC type
Auto Iris Output
DC: Drive coil (+,–), Brake (damp) coil (+,–)
Electronic Iris
ON (EI) / OFF (AI) – Slide SW (side)
Electronic Iris Range
1.0 lux to 50,000 lux (with f1.2 lens)
Synchronizing System
Internal sync / Line lock – Slide SW (side)
V Phase Adjustment
LINE PHASE – VR (rear)
Sockets
Video Signal
VIDEO OUT
BNC.
Auto Iris Lens
LENS
4-pin
(Side)
Power Supply
24V AC, GND
3-pin terminal
(Rear)
12 to 15V DC
2-pin terminal
(Rear)
Environmental Conditions
Operating: Temperature:
Humidity:
Storage:
(Rear)
-10˚C to +50˚C / +14˚F to 122˚F
Within 90% RH
Temperature:
-20˚C to +70˚C / -4˚F to 158˚F
Humidity:
Within 70% RH
Power Requirement
24V AC, 60Hz / 12 to 15 V DC
Power Consumption (approx.)
3.6 W
Camera Mount
1/4" – 20 UNC (top / bottom selectable)
Dimensions (W x H x D)
2.21(w) x 1.77(h) x 3.9(d) inches (56 x 45 x 99mm) (excluding protrusions)
Weight
9.88 oz. (280g) (w/o Lens)
Dimensions
(1.0)
Specifications and product design are subject to change without notice.
©2006 SANYO Security Products
SANYO Security Products
21605 Plummer Street
Chatsworth, CA 91311
Phone: (888) 893-7403
Fax: (888) 818-2597
Technical Support: (888) 66-SANYO
www.sanyocctv.com
