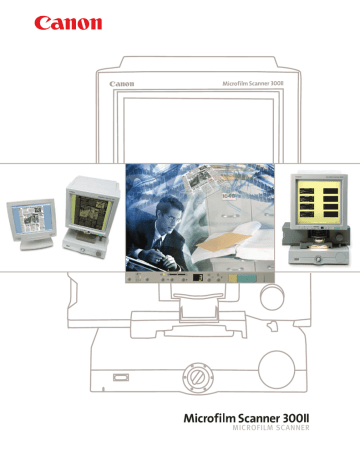

MICROFILM SCANNER
EXPLORE HISTORIC ARCHIVES.
ACCESS VITAL RECORDS.
RESEARCH TRANSACTIONS.
PUT YOUR MICROFILM ONLINE!
History is on your side
Offering Hi-Speed USB 2.0 interface along with SCSI-II, the
MS-300II will continue the legacy of the MS-300 model, like
its renowned siblings of MS-Series Scanners, the Canon
MS-300II optimizes scanning performance. Delivering high
speeds and superior resolution, the MS-300II promises
capabilities beyond expectations, not budgets, and offers
reliability exclusive to the industry leader. Think of Canon’s
MS-300II as the on-ramp to online microfilm. All aboard!
Easy connections mean timely
arrivals at any destination
The MS-300II scans as fast as 5.5 seconds per frame,
easily integrating microfilm images with today’s
document management systems. Thanks to standard PC
and network printer connectivity, the MS-300II simplifies
image retrieval and provides digital conversion of film
archives, on demand. Once scanned, images are ready
for delivery via the Internet, e-mail, or fax—ideal for
financial institutions and walk-up use in libraries or as
a component of a high-end imaging system.
Just how far can you reach
when sitting at a PC?
The MS-300II comes with Canon’s powerful CapturePerfect
software for convenient Scan-to-E-mail capability,
PDF file-saving, text enhancements, image quality adjustments, and more, right from your desktop. TWAIN and
ISIS® drivers get things up and running quickly. And the
user-friendly Scan Panel provides easy access to a wide
range of automatic features and user-preference settings.
The MS-300II also functions as a Reader-Printer, thanks to
PC-independent application software. Now you can create
digital files for outputting to a network printer or for electronic storage. Canon’s MS-300II gives you just what you
want, not more than you need—perfect for upgrading an
analog reader-printer or adding microfilm imaging to an
existing digital information system.
Fileprint 470
Fileprint 270
Ask less of the user and get
more productivity in response
Optional Canon printers
deliver performance
Optional image.SCAN software offers even more userfriendly control, with step-by-step tutorial videos and
an easy-to-use, touch-screen interface. One-touch image
correction plus many time-saving functions—both automatic and on-the-fly—get even walk-up patrons up to
speed quickly. Best of all, each workstation can be customconfigured for individual needs, making your microfilm
collection an invaluable on-line resource.
For scan-to-print applications, the MS-300II can be
configured to connect directly to a Canon Fileprint laser
printer without the need of a PC connection. With the
MS-300II’s optional Digital Micro Printer (DMP) Board
installed, you can easily connect a choice of two compact
printers employing Canon’s leading-edge laser printing
technology. Whether your needs call for the versatile, highcapacity Fileprint 470 or the economical Fileprint 270, you
can be assured of high-quality output. And with 600-dpi
resolution, you can faithfully reproduce a wide range of
microimages, including those hardest to read.
How to exploit the media
Among its many talents, the MS-300II converts microfilm
to other media, synchronizing film scanning with image
processing and automatic indexing. Better yet, used with
an optional FS Controller, it gives you fast access to large
volumes of information, automatic search and retrieval,
and advanced printing features. Could you be any more
productive?
File-format friendly
Various output resolutions are useful for saving images
as TIFF, BMP, PDF, or JPEG files. Several interchangeable
film carriers provide easy handling of 16/35mm roll film,
ANSI/3M cartridges, fiche jackets, and aperture cards.
With the MS-300II, image quality refers to digital output
with high resolution, up to 600 dpi. And four different
scan modes include black and white, error diffusion, text
enhanced, and 8-bit grayscale with 256 levels of gray.
The Canon Fileprint 470 produces 600-dpi output at 12
pages per minute and delivers high-quality laser printouts from letter- to ledger-sized pages. Users can also
automatically enlarge 8-1/2" x 11" screen images to fit
11" x 17" paper for large-format documents. A universal
250-page paper cassette is standard and an optional,
large-capacity 500-page paper cassette can be added for
high-volume printing or when the application calls for userselection of different paper sizes. For optimum efficiency
with the MS-300II, there’s Canon’s economical Fileprint
270 laser printer for letter-sized printing — a real
space-saver, its reliable output will enhance your
workflow.
ELECTRONIC
FILING
SYSTEMS
SCANNERS
Image Filing Systems Division
S P E C I F I C AT I O N S
Authorized Full Line Dealer Network
Microfilm Scanner 300II
Fileprint 470
Type:
Film Formats:
Film Types:
Type:
Item Code:
Print Speed (LTR):
Resolution:
Stacker Capacity:
Paper Size:
Dimensions (H x W x D):
Weight:
Power Consumption:
Screen:
Image Scanning
Resolution:
Scan Modes:
Scan Sizes (U.S.):
Scan Speed:
Image Rotation/Focusing/
Zooming:
Exposure Control:
Print Border and
Standard Features:
Standard Interface:
Image Polarity Detection:
Scanner Drivers:
Electrical Requirements:
Dimensions (H x W x D)
Main Unit:
Weight:
Options:
Software Options:
Bundled Software:
*
Desktop Digital Microfilm Reader/Scanner
Universal with Interchangeable Carriers
Both Negative and Positive Images of
Silver or Diazo 16mm/35mm Film,
Aperture Cards, and Microfiche
11.81" x 11.81"
Up to 600 dpi
Black and White, 256-Level Grayscale
8-1/2" x 11", 11" x 14"
5.5 Seconds, 8-1/2" x 11"*
Desktop Laser Printer
1514B002
12 ppm on MS-300II
600 dpi
250 Sheets
Letter, Legal, 11 x 17
10.9" x 20.4" x 17.3"
42.5 lb.
Average 360W or Less
(Energy-Saving Mode:
36W or Less)
Manual Controls
Automatic or Manual
Note: DMP Board required for use with MS-300II model.
Border Removal, Trimming, Centering,
Full Framing, Automatic Page Size
Detection, Deskew
SCSI-II and Hi-Speed USB 2.0
Automatic/Manual
ISIS and TWAIN
120V, 50/60Hz, 1.9A
Fileprint 270
26.3" x 17.4" x 21.3"
57.32 lb.
Interchangeable Lenses–Single Lens: 7X;
Zoom Lens: 9.5X-16X,
10X-24X, 16X-32X, 30X-55X;
Framing Kit for Trimming Print
Image, Interchangeable Carriers,
Workstation IV/II
image.SCAN (for Public Use)
Canon CapturePerfect 1.0
MICROGRAPHIC
HYBRID
SYSTEMS
Type:
Item Code:
Print Speed (LTR):
Resolution:
Stacker Capacity:
Paper Size:
Dimensions (H x W x D):
Weight:
Power Consumption:
Desktop Laser Printer
1304B005
13 ppm
600 dpi
100 Sheets
Letter, Legal
8.5" x 14.6" x 9.9"
12.57 lb.
Average 266W or Less
(Energy-Saving Mode:
3.4W or Less)
Note: DMP Board required for use with MS-300II model.
Examples based on typical settings at 200 dpi. Actual processing speeds
may vary based on PC performance and application software.
ISIS is a trademark of EMC Corporation. CapturePerfect is a registered trademark of Canon
Electronics, Inc. CANON is a registered trademark of Canon Inc. in the United States and
may also be a registered trademark or trademark in other countries. IMAGEANYWARE is a
trademark of Canon. All referenced product names and other marks are trademarks of their
respective owners.
Specifications and availability subject to change without notice.
©2008 Canon U.S.A., Inc. All rights reserved.
