Canon 08011-41-UD2-003 All in One Printer User Manual

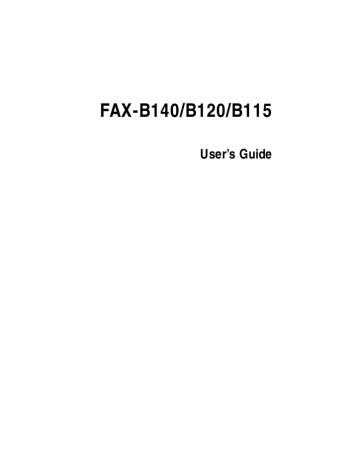

FAX-B140/B120/B115
User’s Guide
1 SETTING UP
Unpacking
1
Main unit
Handset (FAX-B140/B120 only)
Multi-purpose tray
Document tray
BX-3 Black BJ cartridge
You should also have the followings:
• Power cord
• Telephone line cord
• B.T. adaptor (U.K. only)
• Documentation
• Warranty*
• One-touch sheet*
If any of these items are damaged or missing, contact your local authorised Canon dealer or the Canon help
line immediately.
* These items are only included in some countries.
1-1
SETTING UP
As you unpack your fax, save the carton and packing material in case you want to move or ship the fax in
the future.
Carefully remove all items from the box.
• It is best to have someone hold the box while you lift the fax and its protective packaging out of the carton.
Make sure you have the following items:
2 PREPARING TO USE
YOUR FAX
Main components of your fax
2
Multi-purpose tray
Document guide
01
Handset
(FAX-B140/
B120 only)
Report
02
Cleaning
04
R
FAX-
05
Space
07
03
Send
Options
1
06
Clear
08
Ink Sav
09
er
Caller
Mode
History
Resoluti
on Fun
ction
Polling
Receive
2
DEF
5
6
JKL
7
3
ABC
4
GHI
MNO
8
TU
PQRS
B140
9
V
WXYZ
0
#
Operation panel
Printer cover
Cartridge holder
Document release
button
Please note that your fax may differ from the illustration above.
Note
2-1
PREPARING TO USE YOUR FAX
Document tray
3 DOCUMENTS AND
PAPER
Types of documents you can scan
3
DOCUMENTS AND PAPER
K Size
The fax can scan standard A4-, letter-, or legal-size documents.
K Scanned area
The actual area scanned by the fax is shown below.
3.0w3.0 mm
A4
292
2.0w2.0 mm
1.0w3.5 mm
208 mm
1.0w3.5 mm
The margin on either side of the sheet and the margin on the top and bottom are not picked up by the scanner.
Problem documents_________________________
• To prevent document jams in the document tray, do not attempt to load the following types of document
into the fax:
– Wrinkled or creased paper
– Torn paper
– Coated paper or glossy paper
– Thick paper
• Remove all staples, paper clips, etc. before loading the document into the document tray.
• Make sure any glue, ink or correction fluid on the paper is completely dry before loading the document
into the document tray.
• Make a photocopy of any document that will not feed into the fax so that you can then load the copy into
the document tray.
3-1
4 MAKING COPIES
Copying documents
One of the convenient features of the fax is its ability to make high quality copies. You can make up to 99
copies of one document at a time.
If you make copies of multiple documents at a time, the number of pages the fax can scan into memory
varies depending on the scanning resolutions (see p. 5-1) as follows:
• STANDARD/FINE
= 25 pages
• PHOTO
= 1 page
1
• STANDARD and FINE result in the same resolution when making copies.
• If MEMORY FULL appears on the LCD when making multiple copies, see Copying problems, p. 9-13.
Load the document face up into the document tray.
See Loading documents, p. 3-2.
2
Press [Resolution].
You can select STANDARD/FINE or PHOTO.
COPY PAGE
01
D
Press [Start/Copy].
3
Enter the number of copies (up to 99) using the
numeric buttons.
To make a correction to the number of copies, press [Clear]
and re-enter the number.
D
Press [Start/Copy].
To stop copying anytime, press [Stop]. You may then need
to press [Start/Copy] for a few seconds, then the fax will
feed out the document. See Jams in the document tray,
p. 9-1.
4-1
MAKING COPIES
Note
4
5 SENDING
DOCUMENTS
Preparing to send a document
Before you send a document, see Chapter 3: DOCUMENTS AND PAPER.
Adjusting the quality of your documents _________
5
K Setting the scanning resolution
The higher the resolution, the higher the output quality, but the slower the scanning speed.
Note
1
2
Load the document face up into the document tray.
See Loading documents, p. 3-2.
Press [Resolution] to select the resolution.
You can select STANDARD, FINE or PHOTO.
After about 5 seconds, the fax returns to standby mode.
Note
You can change the resolution setting while the document is being scanned for sending. However,
please note that your new setting will only be effective from the next page scanned.
K Setting the scanning contrast
Contrast is the difference in brightness between the lightest and darkest parts of a printed document. You can
adjust the contrast your fax uses to send or copy documents, according to how light or dark your document is.
1
Press [Function].
D
DATE & TIME
Press [Start/Copy] twice.
2
3
Use [3] or [4] to select SCAN CONTRAST.
D
Press [Start/Copy].
STANDARD
Use [3] or [4] to adjust the scanning contrast.
You can select STANDARD, DARKER or LIGHTER.
D
Press [Start/Copy].
4
Press [Stop].
Setting ends and the fax returns to standby mode.
5-1
SENDING DOCUMENTS
Resolution is a measure of the fineness or clarity of a printout. Low resolutions may cause text and graphics
to have a jagged appearance, while higher resolutions provide smoother curves and lines, crisp text and
graphics, and a better match to traditional typeface designs.
6 RECEIVING
DOCUMENTS
Different ways to receive a document
Your fax provides you with several modes for receiving documents. To determine which mode best suits
your requirements, see the table below.
Main Use
Operation
Requirements
FAX ONLY MODE
Fax
Answers all calls as fax calls.
Receives documents
automatically and
disconnects voice calls.
Separate telephone
p. 8-4
line for fax use only.
If you want to be
alerted when a fax call
is received, connect
the handset, or an
extension phone to the
fax, and enable the
INCOMING RING
setting.
FAX/TEL AUTO SW
(Fax/Tel mode)
Fax/Tel
Automatically switches
between fax and voice calls.
Receives documents
automatically and rings for
voice calls.
Handset or extension
phone connected to
the fax.
p. 6-2
MANUAL MODE
Tel
Handset or extension
Rings for every call,
regardless of whether the call phone connected to
the fax.
is a fax call or a voice call.
For a fax call, you have to
manually activate reception
of the fax.
p. 6-4
ANS.MACHINE
Fax/Tel
MODE
(FAX-B120/B115 only)
Receives documents
automatically and routes
voice calls to the answering
machine.
Answering machine
connected to the fax.
p. 6-4
NET SWITCH*
Allows you to have one
telephone line with two
numbers: one for fax and one
for telephone.
Subscription to the
Telstra FaxStreamTM
Duet service
(Australia) or the
Telecom FaxAbility
service (New
Zealand).
Fax/Tel
Details
6
RECEIVING DOCUMENTS
Receive Mode
* This setting is only available for some countries.
6-1
7 USING THE BUILT-IN ANSWERING
MACHINE (TAM MODE) (FAX-B140 only)
Recording the outgoing message
Before you use TAM MODE, you must record an outgoing message. Use the microphone on the operation
panel to record your outgoing message. Only one outgoing message, no longer than 20 seconds, can be
recorded.
Types of messages that can be recorded ________
OUTGOING MESSAGE: Answering machine message
ALT OUTGOING MSG: Answering message only, used when the recording time is set to 0 or the
memory is full. Caller cannot leave a message.
See p. 7-6.
FAXTEL MESSAGE:
Message played when the Fax/Tel mode is set.
FORWARDING MSG:
Message played when any new telephone messages are forwarded to a
forwarding number.
Recording the outgoing message ______________
To record another type of message, select the type of message you want to record in step 1, and then follow
the procedure below to record it.
1
2
Use [3] or [4] to select OUTGOING MESSAGE.
Press [Record] and speak into the microphone to
record your outgoing message.
TIME LEFT
19
The remaining recording time is displayed on the LCD.
-orPress [Start/Copy], use [3] or [4] to select
RECORD and press [Start/Copy] again. Then speak
into the microphone to record your outgoing
message.
3
Press [Stop] twice when recording is finished.
You can record an alternative outgoing message, fax/
telephone switching message or forwarding message by
selecting the appropriate option in step 1 above and then
continuing on to steps 2 and 3.
Note
You cannot delete the OUTGOING MESSAGE. To record a new outgoing message, repeat steps 1
to 3 above. The old outgoing message will be automatically deleted when you record your new
message.
7-1
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
VOICE MEMO:
7
8 SETTINGS AND
ACTIVITY REPORTS
Selecting a menu
The USER SETTINGS, REPORT SETTINGS, TX SETTINGS, RX SETTINGS, PRINTER SETTINGS,
SYSTEM SETTINGS, and TAM SETTINGS* menus allow you to customise the way your fax works. Each
menu contains settings that control different functions of your fax.
1
2
Press [Function].
D
Press [Start/Copy].
USER SETTINGS
Use [3] and [4] to scroll through the menus and
select the menu you want.
You can select the USER SETTINGS, REPORT
SETTINGS, TX SETTINGS, RX SETTINGS, PRINTER
SETTINGS, SYSTEM SETTINGS or TAM SETTINGS*
menu (see pp. 8-2 to 8-6).
4
Press [Start/Copy] to access the settings under the
menu you selected.
See the tables on the following pages (see pp. 8-2
to 8-6) for guidelines on selecting and registering
settings.
DATE & TIME
• Use [3] and [4] to scroll through the settings.
• To register a setting or access a sub-setting, press [Start/
Copy].
• To return to a previous level, press [Function].
5
Press [Stop].
Setting ends and the fax returns to standby mode.
Note
• If at any stage you want to return to standby mode, press [Stop].
• If you pause for more than 60 seconds while accessing a menu, the fax will automatically return to
standby mode.
* FAX-B140 only.
8-1
SETTINGS AND ACTIVITY REPORTS
3
8
9 SOLUTIONS TO
COMMON PROBLEMS
Clearing jams
Jams in the document tray ___________________
When a document jams or misfeeds in the document tray, OPEN COVER and SEE FIG. 1 are displayed on
the LCD. If the fax does not feed out the document after you press [Start/Copy] for a few seconds, follow
the procedures below to remove the document.
You do not need to unplug the fax when clearing document jams.
Note
1
Open the printer cover by gently pulling it
towards you.
Do not try to pull the document out without
opening the printer cover since you may tear or
smudge the document.
9
Push the document release button on the
left-side panel of the fax.
3
Remove the document.
4
When you are finished, close the printer
cover.
5
Press [Stop].
• Pull it gently in either direction.
• If you cannot pull the document out easily,
hold down [Start/Copy] for a few seconds. The
document will be fed out automatically.
• If a multipage document is loaded, remove the
entire document from the document tray.
The fax returns to standby mode.
Be sure to close the printer cover until it locks
into place, or the fax will not function properly.
9-1
SOLUTIONS TO COMMON PROBLEMS
2
Specifications
Scanning sheet size:
Effective scanning size:
Effective printing size:
Transmission time:
Scanning line density:
Recording method:
Paper tray capacity:
Paper type:
Image memory:
Auto dial functions:
Ink cartridge:
Power source:
Power consumption:
Operating environment:
Dimensions:
Weight:
Width:
Thickness:
Max. 216 mm
Max. 0.13 mm
Min. 210 mm
Min. 0.06 mm
Width: (A4): 208 mm
Width: 203 mm
G3 ECM MMR: Approx. 6 seconds*
Horizontal:
Vertical Standard:
Vertical Fine:
8.00 dots/mm
3.85 lines/mm
7.70 lines/mm
Bubble Jet printing
Maximum: 50 sheets (75 g/m2)
Plain cut sheet paper (A4/Letter/Legal)
Paper weight:
64 g/m2 to 90 g/m2
Paper thickness: 0.08 mm to 0.13 mm
Up to 21 A4-size pages* (standard resolution)
One-touch speed dialling (Registration for 9 numbers)
Coded speed dialling (Registration for 50 numbers)
Canon BX-3 Black BJ cartridge
200-240 V/50-60 Hz
Standby:
Operation:
Approx. 4.5 W
Approx. 8 W, maximum 34 W
Temperature: 10°C to 32.5°C
Humidity:
20% to 85% RH
410 mm (W) × 307 mm (D) × 308 mm (H) (including trays)
Approx. 4.7 kg (with handset)
Specifications are subject to change without notice.
* Based on the Canon FAX Standard Chart No.1, Standard mode.
S-1
Index
t (extension phone) jack 1-5
h (handset) jack 1-4
L (telephone line) jack 1-4
A
AC power cord, connecting 1-6
Access type, registering 1-13
ACTIVITY REPORT
description 8-8
printing 8-7
setting 8-3
Adaptor, B.T. 1-1
ALARM VOLUME setting 8-2
ALT OUTGOING MSG
(Alternative outgoing
message)
description 7-1
ANS.MACHINE MODE
description 6-1, 6-4
setting 6-4
Answering machine 1-4
connecting 1-4
using fax with 6-4
Attaching components 1-3
AUTO PRINT setting 8-3
AUTO REDIAL
for FWD SETTINGS 8-6
message 9-15
setting 5-9, 8-3
Automatic
dialling 5-5
Automatic redialling
cancelling 5-9
description 5-9
setting options for 5-10
AUTO TEST PRINT 8-5
B
B.T. adaptor 1-1, 1-5
BJ cartridge
BX-3 Black 1-1, 1-9
cleaning 9-5
guidelines 1-9
installing 1-9, 1-10
print head (See Print head)
replacing 9-6
Broadcasting, sequential 5-13
BUSY/NO SIGNAL message 9-15
Buttons 2-2, 2-3 (See also
individual button names)
cursor 2-3, 2-5
FAX-B140 2-3
FAX-B120 2-3
FAX-B115 2-3
numeric 2-2, 2-4
one-touch speed dialling 2-2
Rewind/Forward 2-2, 7-8
scroll 2-3, 8-1
special function 2-2
BX-3 Black BJ cartridge 1-1, 1-9
C
Caller history 5-8
CALLING VOLUME setting 8-2
Cancelling
automatic redialling 5-9
delayed sending 5-11
manual redialling 5-9
receiving 6-6
sending 5-5
Cartridge (See BJ cartridge)
Cartridge holder 2-1
CARTRIDGE JAMMED
message 9-15
CHANGE CARTRIDGE
message 9-16
CHECK DOCUMENT message
9-16
CHECK PAPER SIZE message
9-16
CHECK PRINTER message 9-16
Cleaning
BJ cartridge print head 9-5
button 2-2, 9-5, 9-6
exterior of fax 9-3
interior of fax 9-3, 9-4
periodic 9-3
print head 9-6
scanner components 9-4
Clear button 2-2, 2-5
CLEAR PAPER JAM message
9-17
Coded dial/Directory button 2-3,
5-5, 5-6
Coded speed dialling
description 2-12
list (See Coded speed dialling list)
registering numbers and names
for 2-12
sending a document using 5-5
Coded speed dialling list
description 8-8
printing 8-7
Components
attaching 1-3
main 2-1
Connecting
AC power cord 1-6
answering machine 1-4
extension phone 1-6
external devices 1-4
handset 1-4
telephone 1-5
telephone line 1-4
Connector, power cord 1-6
Contrast, setting scanning 5-1
Copying
documents 4-1
problems 9-13
setting scanning contrast 5-1
Cord, power 1-6
Correcting mistakes 2-5
Cursor buttons 2-3, 2-5
Customer support v
D
DATE & TIME setting 2-6, 8-2
Date, setting 2-6
DATE SETUP setting 8-5
Delayed Sending 5-10
cancelling 5-11
sending other documents while
fax is set for 5-11
Delete button 2-3, 7-7
Deleting
document from memory 5-15
message 7-7
Dialling
automatic 5-5
directory 5-6
long-distance 5-8
methods 5-2
regular 5-2
special 5-8
through a switchboard 1-12
using caller history 5-8
I-1
Index
Directory dialling, sending a
document using 5-6
DISPLAY LANGUAGE setting
8-5
DOC. MEMORY LIST
description 8-8
printing 8-7
DOC. TOO LONG message 9-17
Documentation 1-1
Documents
Copying 4-1
deleting from memory 5-15
different ways to receive 6-1
guides 2-1
loading 3-2
polling to receive 6-5
printing document in memory
5-14
printing list of documents in
memory 5-14
problem 3-1
problems with multipage 3-2
receiving in memory when a
problem occurs 6-5
receiving manually 6-4
receiving while performing other
tasks 6-5
receiving with an answering
machine 6-4
requirements for scanning 3-1
scanned area 3-1
sending 5-2
sending to more than one
location 5-13
size 3-1
tray 1-1, 2-1
type 3-1
E
ECM RX
message 9-17
setting 8-4
ECM TX
message 9-17
setting 8-3
Extension phone 1-4
connecting 1-5
External devices, connecting 1-4
I-2
F
H
Fax
assembling 1-3
cleaning 9-3
main components 2-1
main unit 1-1
making connections 1-4
name, registering 2-7
number, registering 2-7
operation panel 2-2
testing 1-11
unpacking 1-1
weight S-1
FAX-B140 1-1, 2-2, 2-3
FAX-B120 1-1, 2-2, 2-3
FAX-B115 2-2, 2-3
FAX ONLY MODE
description 6-1
FAX/TEL AUTO SW (Fax/Tel
mode)
description 6-1
setting 6-2
Fax/Tel mode
description 6-1
setting 6-2
Fax/Telephone number,
registering 2-7
Faxing problems 9-9
FAXTEL MESSAGE
deleting 7-7
description 7-1
Forwarded call, when a call is
received 7-15
FORWARDING MSG
deleting 7-7
description 7-1
Forwarding number, setting 7-12
Forwarding telephone messages
7-12
Function button 2-2
FWD SETTINGS 8-6
FWD TEL NUMBER setting 8-6
Handling and maintenance, safety
instructions vi
Handset 1-1, 2-1
connecting 1-4
Hook button 2-3, 5-4
G
General problems 9-14
Guide
document 2-1
I
INCOMING RING setting 8-4
Ink Saver button 2-2, 6-5
Installing, BJ cartridge 1-9
J
Jack
t (extension phone) 1-5
h (handset) 1-4
L (telephone line) 1-4
Jams
clearing 9-1
in document tray 9-1
in multi-purpose tray 9-2
K
KEYPAD VOLUME setting 8-2
L
LCD 2-2
messages 9-15 to 9-18 (See
also individual message
names)
Letters, entering 2-4
LINE MONITOR VOL setting
8-2
Line, telephone 1-4, 1-12
List (See individual list names)
Loading
documents 3-2
paper 1-7, 1-8
Location, safety instructions vii
Long-distance dialling 5-8
Lowercase letter mode 2-4
M
Main unit 1-1
MAN/AUTO SWITCH setting
8-4
Index
MANUAL MODE
description 6-1
receiving in 6-4
setting 6-4
Manual redialling 5-9
cancelling 5-9
Manual sending 5-4
cancelling 5-5
Memory
deleting document from 5-15
documents in 5-14
printing document in 5-14
printing list of documents in
5-14
receiving when problem occurs
6-5
sending (See Memory sending)
MEMORY CLEAR REPORT
description 9-19
MEMORY FULL message 9-17,
9-18
MEMORY RX setting 8-4
Memory sending 5-3
cancelling 5-4
Menu (See individual menu names)
PRINTER SETTINGS 8-4
REPORT SETTINGS 8-3
RX (Reception) SETTINGS 8-4
SYSTEM SETTINGS 8-5
TAM SETTINGS 8-6
TX (Transmission) SETTINGS
8-3
USER SETTINGS 8-2
MESSAGE LENGTH setting 8-6
Messages
deleting 7-7
forwarding telephone 7-12
LCD 9-15 (See also individual
message names)
playing telephone 7-8
recording the outgoing 7-1
setting the recording time for a
7-3
types that can be recorded 7-1
Microphone (FAX-B140 only)
2-2
MID PAUSE SET setting 8-3
Mistakes, correcting 2-5
Modes, switching number and
letter 2-4
MSG DATA LOST message 9-17
Multi-purpose tray 2-1
capacity S-1
jams in 9-2
loading paper in 1-11
MULTI TX/RX (Transaction)
REPORT 8-8
N
NO DATA message 9-18
NO OGM message 9-18
Nozzle check pattern
printing 9-5
Number mode 2-4
Numbers, entering 2-4
Numeric buttons 2-2, 2-4
O
OFFHOOK ALARM setting 5-4,
8-2
One-touch speed dialling
buttons 2-2
description 2-10
list (See One-touch speed dialling
list)
registering numbers and names
for 2-10
sending a document using 5-5
One-touch speed dialling list
description 8-8
printing 8-7
Operation panel 2-1, 2-2, 2-3
OUTGOING MESSAGE
description 7-1
recording 7-1
Outside line access number,
registering 1-13
P
Paper
guide 1-8
guidelines 1-7
limit mark (See Paper limit mark)
loading 1-7
loading in multi-purpose tray 1-8
quantity S-1
requirements 3-3
size 3-3
weight S-1
Paper feeding problems 9-8
Paper limit mark 1-7
PAPER SIZE setting 8-4
PASSWORD setting
in TAM SETTINGS menu 8-6
Pause, entering 5-8
PBX
ACCESS NUMBER setting 8-2
ACCESS TYPE setting 8-2
PIN ENTRY setting 7-14, 8-6
Play button 2-3, 7-8
Playing telephone messages 7-8
Polling button 2-2, 6-5
Power cord 1-1, 1-6
Power failure
during 9-19
in case of 9-19
Power supply, safety instructions
vii
Print head
cleaning 9-6
testing 9-5
Print quality problems 9-14
Printable area 3-3
Printer cover 2-1
PRINTER SETTINGS
menu 8-4
Printing
1-TOUCH LIST 8-7
ACTIVITY REPORT 8-7
CODED DIAL LIST 8-7
DOC. MEMORY LIST 8-7
document in memory 5-14
list of document in memory 5-14
nozzle check pattern 9-5
USER DATA LIST 8-7
Problem documents 3-2
Problems
copying 9-13
faxing 9-9
general 9-14
paper feeding 9-8
print quality 9-14
receiving 9-10
receiving in memory when 6-5
sending 9-9
telephone 9-13
PSTN setting 8-2
PUT IN CARTRIDGE message
1-8
I-3
Index
Q
Quality
adjusting 5-1
print problems 9-14
Quantity, paper S-1
R
R button 1-12, 2-2
registering 1-13
R-KEY SETTING 1-13, 8-2
REC’D IN MEMORY message
9-18
Receive mode Chapter 6
Receive mode button 2-2,
Chapter 6
Receiving (See also individual
receive modes)
cancelling 6-6
in memory when problem
occurs 6-5
methods 6-1
problems 9-10
while performing other tasks 6-5
with answering machine 6-4
Record button 2-3, 7-1
Recording
outgoing message 7-1
voice memo 7-6
REDIAL INTERVAL setting
5-10, 8-3
Redial/Pause button 2-3, 5-8, 5-9
REDIAL setting 8-3
REDIAL TIMES setting 5-10, 8-3
Redialling
automatic 5-9
manual 5-9
REDUCE DIMENSION setting
8-4
Registering
access type 1-13
coded speed dialling numbers and
names 2-12
fax/telephone number 2-7
name 2-7
one-touch speed dialling numbers
and names 2-10
outside line access number 1-13
R button 1-12, 2-2
sender information 2-6
I-4
Remote control
features 7-9
list of commands 7-11
registering password for 7-9
using 7-10
Replacing
BJ cartridge 9-6
Report button 2-2, 8-7
REPORT SETTINGS
menu 8-3
Resolution
button 2-2, 4-1, 5-1
setting scanning 5-1
Rewind/Forward buttons 2-2, 7-8
RING COUNT setting
for INCOMING RING setting
8-4
for TOLL SAVER setting 8-6
Ringer volume switch 1-5
ROTARY PULSE setting 1-12,
8-2
RX CALL LEVEL setting 8-2
RX REDUCTION setting 8-4
RX (Reception) REPORT
description 8-8
setting 8-3
RX SETTINGS
menu 8-4
RX START SPEED setting 8-5
S
Safety instructions
handling and maintenance vi
location vii
power supply vii
SCAN CONTRAST setting 8-2
Scanning
contrast, setting 5-1
document requirements 3-1
resolution, setting 5-1
Scroll buttons 2-3, 8-1
Send options 5-3
Sender information, registering
2-6
Sending
cancelling 5-5
delayed 5-11
documents 5-2
manual 5-4
memory 5-3
methods 5-2
preparing for 5-1
problems 9-9
sequential broadcasting 5-13
setting scanning contrast 5-1
setting scanning resolution 5-1
to more than one location (See
Sequential broadcasting)
using caller history 5-8
using coded speed dialling 5-5
using one-touch speed dialling
5-5
using UCanTalk 5-7
Sequential broadcasting 5-12
Setting date and time 2-6
Setting forwarding number 7-12
Setting PIN ENTRY 7-14
Setting TAM MODE 7-2
Shipping materials, removing 1-2
Special
dialling 5-8
function buttons 2-2 (See also
individual button names)
Speed dialling
coded 2-12
lists 8-8
one-touch 2-10
printing lists 8-7
Start/Copy button 2-3
Stop button 2-3
Switchboard, dialling through
1-12
Symbols, entering 2-5
SYSTEM SETTINGS
menu 8-5
T
TAM button 2-3, 7-2
TAM MEMORY FULL message
9-18
TAM MODE
description 7-2
setting 7-2 to 7-5
TAM MONITOR setting 7-4, 8-6
TAM SETTINGS menu 8-6
TEL LINE TYPE setting 1-12, 8-2
Telephone
connecting 1-4
problems 9-13
Index
TELEPHONE # MARK setting
8-2
Telephone line 1-1
connecting 1-4
setting type 1-12
Telephone message
deleting 7-7
forwarding 7-12
playing 7-8
setting recording time for 7-3
Telephone problems 9-13
Testing
BJ cartridge print head 9-5
fax 1-11
Time, setting 2-6
TOLL SAVER setting 7-5, 8-6
Tray
document 1-1, 2-1
multi-purpose 2-1
TTI (Transmit Terminal
Identification) 2-6
TTI position setting 8-2
TX (Transmission) REPORT
description 8-8
setting 8-3
TX SETTINGS
menu list 8-3
TX START SPEED setting 8-5
TX TERMINAL ID setting 8-2
TX/RX CANCELLED message
9-18
TX/RX NO. nnnn message 9-18
Volume
ALARM VOLUME setting 8-2
CALLING VOLUME setting
8-2
KEYPAD VOLUME setting
8-2
LINE MONITOR VOL setting
8-2
VOLUME CONTROL setting
8-2
VOLUME CONTROL setting
8-2
W
WAIT COOLING message 9-18
Warranty 1-1
Weight
document S-1
paper S-1
U
UNIT NAME setting 8-2
UNIT TELEPHONE # setting 8-2
Unpacking 1-1
Uppercase letter mode 2-4
USER SETTINGS menu list 8-2
USER’S DATA LIST
description 8-8
printing 8-7
USER’S GUIDE
using this guide v
V
VOICE MEMO
description 7-6
recording 7-6
I-5
Jams in the multi-purpose tray ________________
If paper jams in the multi-purpose tray, CLEAR PAPER JAM is displayed on the LCD.
You do not need to unplug the fax when clearing paper jams.
Note
1
Gently pull any jammed paper out of the
fax as shown.
Pull it gently in either direction.
2
Remove the paper stack from the multipurpose tray and reload it (see p. 1-8).
Make sure the stack does not exceed the paper
limit mark (P).
3
9-2
Press [Stop].
Periodic cleaning
Your fax requires little periodic maintenance. This section describes the necessary cleaning procedures for
the fax. Please note the following before cleaning:
• Be sure to disconnect the power cord before cleaning the fax. Since documents in memory are erased when
the power is disconnected, print any documents stored in memory before disconnecting the power cord
(see p. 5-14).
• Do not use tissue paper, paper towels, or similar materials for cleaning; they can stick to the components
or generate static charges.
Never use volatile liquids such as thinners, benzene, acetone, or any other chemical cleaner to clean
the interior of the fax.
Caution
Cleaning the exterior of the fax ________________
1
Disconnect the power cord from the fax.
3
When you are finished, reconnect the
power cord.
2
Wipe the exterior of the fax with a clean,
soft, lint-free cloth moistened with water
or diluted dishwashing detergent solution.
9
K Cleaning inside the printer cover
To prevent ink spots and paper dust from accumulating inside the fax and affecting print quality, clean the
print area of the fax periodically.
1
Disconnect the power cord from the fax.
2
Open the printer cover.
Do not touch the components or any
metal parts.
Caution
3
Use a clean, soft, dry, lint-free cloth to remove any ink or paper debris from the interior of
the fax (shaded area), especially around the four pinch rollers.
Dirt and dust particles that collect on the underside of the printer cover affect the quality of the
documents you copy or send.
Pinch rollers
Be careful not to touch the BJ cartridge or its holder.
9-3
SOLUTIONS TO COMMON PROBLEMS
Cleaning the interior of the fax ________________
4
When you are finished, close the printer
cover.
5
Reconnect the power cord.
Be sure to close the printer cover until it locks
into place.
K Cleaning the scanner components
• If the scanner components are dirty, the documents you send or copy will also be dirty.
• Use a soft, lint-free cloth.
Note
Do not use tissue paper, paper towels, or similar materials for cleaning.
Caution
1
3
Disconnect the power cord from the fax.
While holding the white sheet open, clean
the components:
Wipe with a clean, soft, lint-free cloth
moistened with water, then wipe with a clean,
soft, dry, lint-free cloth.
White sheet
Scanning glass
5
9-4
Reconnect the power cord.
2
4
Open the printer cover.
When you are finished, close the printer
cover.
Be sure to close the printer cover until it locks
into place.
Periodic cleaning
Testing and cleaning the BJ cartridge print head __
The print head in the BJ cartridge contains nozzles through which ink is propelled onto the paper. To
maintain the best possible print quality, these nozzles need to be cleaned from time to time. Your fax is
equipped with a print head cleaning function that does this.
K Printing the nozzle check pattern
Before cleaning the print head, you may want to print the nozzle check pattern to test the print head of the
BJ cartridge installed in the fax. This test shows if each print head nozzle is operating properly.
1
2
Press [Function].
D
Press [Cleaning].
Use [3] or [4] to select NOZZLE CHECK.
D
Press [Start/Copy].
The fax prints the nozzle check pattern.
9
Note
Print the nozzle check pattern again after cleaning the BJ cartridge print head to check if cleaning corrected
the problem.
9-5
SOLUTIONS TO COMMON PROBLEMS
Nozzle check pattern
If the pattern is broken or
missing, clean the BJ
cartridge print head (see
p. 9-6).
K Cleaning the BJ cartridge print head
If your printouts become faint or streaked, or if their quality otherwise deteriorates, print the nozzle check
pattern to see if the print head nozzles are operating properly (see p. 9-5). If the pattern is broken or missing,
clean the BJ cartridge print head.
Note
1
2
• To maintain the best possible print quality, clean the BJ cartridge print head from time to time.
• Cleaning the print head consumes a small amount of ink. Cleaning too often reduces the amount of ink
in the BJ cartridge.
Press [Function].
D
Press [Cleaning].
Use [3] or [4] to select HEAD CLEANING.
D
Press [Start/Copy].
The fax cleans the print head.
Note
• You can clean the print head up to five consecutive times if necessary.
• After cleaning, print the nozzle check pattern to check if cleaning corrected the problem
(see p. 9-5).
• If cleaning does not improve print quality, replace the BJ cartridge (see below).
Replacing the BJ cartridge ___________________
Note
1
• Do not replace the BJ cartridge while the fax is printing or performing another operation.
• If you need to unplug the fax, wait until it returns to standby mode (time and receive mode displayed on
the LCD). Otherwise the cartridge holder may not be in its home position, causing the BJ cartridge to
remain uncapped and dry out.
Make sure the fax is plugged in.
2
Open the printer cover.
Caution
9-6
• Do not try to manually move or stop
the cartridge holder.
• Do not touch the components shown or
any metal parts.
Periodic cleaning
3
Raise the cartridge lock lever a on the
cartridge holder and remove the BJ
cartridge b.
4
Remove the new BJ cartridge from its
package, then remove the orange
protective cap a and tape b.
1
1
2
2
• Discard the old BJ cartridge immediately
according to the local laws and regulations for
disposal of consumables. You may want to place
it in a plastic bag to keep any residual ink from
spilling.
• Spilled ink can stain any surface; protect yourself
and your work area.
5
2
1
6
Close the printer cover.
If the AUTO TEST PRINT setting is set to
ON:
The fax automatically prints a test page.
The fax prints a test page every time you
insert a BJ cartridge.
• Load the paper in the multi-purpose tray before
you replace the BJ cartridge.
• You can turn off automatic test printing by
changing the AUTO TEST PRINT setting. See
SYSTEM SETTINGS, p. 8-5.
The white post (BJ cartridge guide) should be
visible through the slot.
The BJ cartridge tilts slightly to the left in the
loaded position.
9-7
9
SOLUTIONS TO COMMON PROBLEMS
With the label facing outwards, insert the
BJ cartridge into the cartridge holder a.
Lower the cartridge lock lever b until you
hear a click to lock the cartridge in place.
• Discard the cap and tape. Never attempt to
reattach them to the BJ cartridge print head.
• Install the BJ cartridge immediately after
removing the cap and tape.
• Spilled ink can stain any surface; protect yourself
and your work area.
Troubleshooting
Paper feeding problems _____________________
o Paper does not load.
The multi-purpose tray may contain too many sheets.
• Make sure the paper stack in the multi-purpose tray does not exceed the paper limit mark (P)
(see p. 1-7).
Paper may not be loaded correctly.
• Make sure the paper stack is loaded properly in the multi-purpose tray, and that the paper guide is
adjusted correctly (see p. 1-8).
o Paper is loaded skewed. (Printing is skewed.)
Paper may not be loaded correctly.
• Make sure the paper stack is loaded properly in the multi-purpose tray, and that the paper guide is
adjusted correctly (see p. 1-8).
• Make sure the right edge of the paper stack is aligned with the right side of the multi-purpose tray and
the paper guide is aligned with the left edge of the stack (see p. 1-8).
• Make sure the paper exit path is clear.
o Multiple sheets load into the fax at the same time.
Paper may not be loaded correctly.
• Make sure the paper stack is loaded properly in the multi-purpose tray, and that the paper guide is
adjusted correctly (see p. 1-8).
Sheets of paper may be sticking together.
• Be sure to fan the paper stack before loading it in the multi-purpose tray. This keeps the sheets of paper
from sticking together (see p. 1-8).
The multi-purpose tray may contain too many sheets.
• Make sure the paper stack in the multi-purpose tray does not exceed the paper limit mark (P)
(see p. 1-7).
• Do not exceed the maximum loading capacity of the multi-purpose tray (see p. 1-7).
• Do not force the paper stack into the multi-purpose tray.
Different types of paper may be loaded in the multi-purpose tray.
• Load only one type of paper.
• Make sure you load paper that meets the paper requirements for the fax (see Chapter 3).
o Repeated paper jams occur.
The paper you are using may be causing the jams.
• Be sure to fan the paper stack before loading it in the multi-purpose tray. This keeps the sheets of paper
from sticking together (see p. 1-8).
• Check that the paper you are using and your printing environment (see pp. 1-7, S-1) are within the
specifications of the fax (see Chapter 3).
9-8
Troubleshooting
Faxing problems ___________________________
Sending problems
o You cannot send a document.
o Documents sent from the fax are spotted or dirty.
The receiving fax machine may not be working properly.
• Check the fax by making a copy (see p. 4-1). If the copy is clear, the problem may be in the receiving
fax machine. If the copy is spotted or dirty, clean the scanner components (see p. 9-4).
The document may not have been loaded correctly into the document tray.
• Remove the document, stack it if necessary, and load it into the document tray correctly (see p. 3-2).
9-9
9
SOLUTIONS TO COMMON PROBLEMS
The BJ cartridge may not be installed properly.
• Make sure the BJ cartridge is installed properly. Do not remove a used BJ cartridge except to replace
it with a new one.
The fax may have overheated.
• Unplug the fax and let it cool for several minutes. Then plug it back in and try sending again.
The fax may not be set for the type of telephone line in use (pulse/tone).
• Make sure the fax is set for the correct telephone line type (see p. 1-12).
The document may not have been loaded correctly into the document tray.
• Remove the document, stack it if necessary, and load it into the document tray correctly (see p. 3-2).
• Make sure the printer cover is closed.
The one-touch speed dialling button or coded speed dialling code you entered may not be
registered for the feature you want to use.
• Check the one-touch speed dialling button or coded speed dialling code and make sure it is registered
correctly (see Chapter 2).
You dialled or have been provided with an incorrect number.
• Dial the number again, or check that you have the correct number.
The receiving party’s fax machine may be out of paper.
• Call the receiving party and ask them to make sure paper is loaded in their fax machine.
There may be other documents being sent from memory.
• Allow time for those documents to finish sending.
An error may have occurred during sending.
• Print an activity report and check for an error (see p. 8-7).
The telephone line may not be working properly.
• Make sure there is a dial tone when you press [Hook] or when you lift the handset. If there is no dial
tone, contact your local telephone company.
The receiving fax machine may not be a G3 fax machine.
• Make sure the receiving fax machine is compatible with the fax (which is a G3 fax machine).
o Cannot send using Error Correction Mode (ECM).
The receiving party’s fax machine may not support ECM.
• If the receiving party’s fax machine does not support ECM, then the document is sent in normal mode
without error checking.
ECM may be disabled.
• Make sure ECM is on (see ECM TX, p. 8-3).
o o Errors occur frequently while sending.
The telephone lines may be in poor condition, or you may have a bad connection.
• Lower the transmission speed (see TX START SPEED, p. 8-5).
Receiving problems
o Cannot receive a document automatically.
The fax may not be set to receive automatically.
• For the fax to receive faxes automatically, the receive mode must be set to FAX ONLY MODE, FAX/
TEL AUTO SW (Fax/Tel mode), or ANS.MACHINE MODE* (see Chapter 6). If you have set
ANS.MACHINE MODE*, check that an answering machine is connected to the fax and that it is
turned on with an outgoing message properly recorded (see p. 7-1).
The fax may have a document stored in memory.
• Print out any documents stored in memory (see p. 5-14).
An error may have occurred during reception.
• Check the LCD for an error message (see p. 9-15).
• Print an activity report and check for an error (see p. 8-7).
The multi-purpose tray may be empty.
• Make sure paper is loaded in the multi-purpose tray (see p. 1-8).
The telephone line may not be connected properly.
• Make sure all line connections are secure (see p. 1-4).
* FAX-B120/B115 only.
9-10
Troubleshooting
o The fax does not switch automatically between telephone and fax
reception.
The fax may not be set to switch automatically between telephone and fax reception.
• For the fax to switch automatically, the receive mode must be set to FAX/TEL AUTO SW (Fax/Tel
mode) or ANS.MACHINE MODE* (see Chapter 6). If you have set ANS.MACHINE MODE*, check
that an answering machine is connected to the fax and that it is turned on with an outgoing message
properly recorded (see p. 7-1).
An error may have occurred during reception.
• Check the LCD for an error message (see p. 9-15).
• Print an activity report and check for an error (see p. 8-7).
The multi-purpose tray may be empty.
• Make sure paper is loaded in the multi-purpose tray (see p. 1-8).
The sending fax machine may not send the CNG signal that tells the fax that the incoming signal
is a fax.
• Some fax machines cannot send the CNG signal that tells your fax the incoming call is from a fax
machine. In such cases, you will have to receive the document manually (see p. 6-4).
o Cannot receive a document manually.
o Print quality is poor.
You may not be using the correct type of paper.
• Make sure you load paper that meets the paper requirements for the fax (see Chapter 3).
The BJ cartridge print head may need cleaning.
• Clean the BJ cartridge print head if necessary (see p. 9-6).
The sending fax machine may not be functioning properly.
• The sending fax machine usually determines the quality of the document. Call the sender and have
them make sure the top cover and scanning glass of their fax machine are clean.
Error Correction Mode (ECM) may be disabled.
• Make sure ECM is on (see ECM RX, p. 8-4).
* FAX-B120/B115 only.
9-11
9
SOLUTIONS TO COMMON PROBLEMS
You may have disconnected the call by pressing [Start/Copy] or dialling the remote receiving ID
after hanging up the handset of the extension phone.
• Always press [Start/Copy] or dial the remote receiving ID before hanging up the handset, otherwise
you will disconnect the call.
o Fax does not print.
The BJ cartridge may not be installed properly.
• Make sure the BJ cartridge is installed properly (see p. 1-9).
• Be sure to remove the orange protective tape from the BJ cartridge before you install it (see p. 1-10).
The BJ cartridge print head may need cleaning.
• Clean the BJ cartridge print head if necessary (see p. 9-6).
The BJ cartridge may need to be replaced.
• Determine if the problem is with the BJ cartridge and replace it if necessary (see p. 9-6).
o Fax images print blotched or uneven.
The telephone lines may be in poor condition, or you may have a bad connection.
• Error Correction Mode (ECM) sending/receiving should eliminate such problems. However, if the
telephone lines are in poor condition, you may have to try again.
The sending fax machine may not be functioning properly.
• The sending fax machine usually determines the quality of the document. Call the sender and have
them make sure the top cover and scanning glass of their fax machine are clean.
o Cannot receive using Error Correction Mode (ECM).
The sending fax machine may not support ECM.
• If the sending fax machine does not support ECM, then the document is received in normal mode
without error checking.
ECM may be disabled.
• Make sure ECM is on (see ECM RX, p. 8-4).
o Errors occur frequently while receiving.
The telephone lines may be in poor condition, or you may have a bad connection.
• Lower the reception speed (see RX START SPEED, p. 8-5).
The sending fax machine may not be functioning properly.
• Call the sender and have them check that their fax machine is functioning properly.
9-12
Troubleshooting
Copying problems __________________________
o The fax does not make a copy.
The BJ cartridge may need to be replaced.
• Determine if the problem is with the BJ cartridge and replace if necessary (see p. 9-6).
The document may not have been loaded correctly into the document tray.
• Remove the document, stack it if necessary, and load it into the document tray correctly (see p. 3-2).
• Make sure the printer cover is closed.
The BJ cartridge may not be installed properly.
• Make sure the BJ cartridge is installed properly (see p. 1-9).
The fax may not be operating properly.
• Print the nozzle check pattern (see p. 9-5).
o MEMORY FULL appears on the LCD when making multiple copies.
For additional troubleshooting, see Print quality problems, p. 9-14.
Note
Telephone problems ________________________
o You cannot dial.
The telephone line may not be connected properly.
• Make sure all line connections are secure (see p. 1-4).
The power cord may not be plugged in securely.
• Check that the power cord is plugged securely into the fax and into the wall outlet (see p. 1-6). If the
fax is plugged into a power strip, make sure the power strip is plugged in and turned on.
The fax may not be set for the type of telephone line in use (pulse/tone).
• Make sure the fax is set for the correct telephone line type (see p. 1-12).
o The handset, telephone, or extension phone disconnects while you are
talking.
The power cord may not be plugged in securely.
• Check that the power cord is plugged securely into the fax and into the wall outlet (see p. 1-6). If the
fax is plugged into a power strip, make sure the power strip is plugged in and turned on.
o There is interference on the line.
A mobile phone or cordless phone may be in use near the fax.
• Make sure that mobile phones and cordless phones are not used near the fax.
9-13
9
SOLUTIONS TO COMMON PROBLEMS
The fax’s memory is full.
• Print or delete any documents stored in memory (see pp. 5-14, 5-15) to free up space in the fax’s
memory, then start again.
• If you have any page fed out without being copied, simply try copying those pages again.
• Change the scanning resolution and try copying again.
The document you are copying may have too many graphics.
• If multiple pages are being copied, separate the pages into smaller stacks. If not, make the desired
number of copies one at a time as needed.
Print quality problems _______________________
o The print quality is not what you expect; print is not clear, is splashed,
has missing dots or white streaks.
The paper you are using may not be supported by the fax.
• Make sure you are using the recommended paper (see p. 3-3).
You may be printing on the wrong side of the paper.
• Some papers have a “right” side for printing. If the print quality is not as clear as you would like it to
be, try turning the paper over and printing on the other side.
The nozzles on the BJ cartridge print head may be clogged.
• Clean the BJ cartridge print head if necessary (see p. 9-6).
The BJ cartridge may not be installed properly.
• Make sure the BJ cartridge is installed properly (see p. 1-9).
The BJ cartridge print head may be empty or damaged.
• Determine if the problem is with the BJ cartridge print head (see p. 9-5) and replace the BJ cartridge
if necessary (see p. 9-6).
o The printout contains blurred or smudged ink.
The paper you are using may not be supported by the fax.
• Make sure you are using the recommended paper (see p. 3-3).
You may be printing on the wrong side of the paper.
• Some papers have a “right” side for printing. If the print quality is not as clear as you would like it to
be, try turning the paper over and printing on the other side.
General problems __________________________
o The fax has no power.
The power cord may not be plugged in securely.
• Check that the power cord is plugged securely into the fax and into the wall outlet (see p. 1-6). If the
fax is plugged into a power strip, make sure the power strip is plugged in and turned on.
The power cord may not be supplying power.
• Check the power cord by substituting with another, or by using a voltmeter to test it for continuity.
o The fax will not print reports.
The BJ cartridge may need to be replaced.
• Determine if the problem is with the BJ cartridge and replace it if necessary (see p. 9-6).
o Nothing appears on the LCD.
The power cord may not be plugged in securely.
• Check that the power cord is plugged securely into the fax and into the wall outlet (see p. 1-6). If the
fax is plugged into a power strip, make sure the power strip is plugged in and turned on. If the LCD
remains blank, unplug the fax, wait five seconds, then plug it in again.
9-14
LCD messages
The following messages are displayed on the LCD when the fax is performing a function or encounters an
error. The error code appears in the activity report (see p. 8-7).
Cause
Action
AUTO REDIAL
The fax is waiting to redial the
receiving number because the
line was busy or the receiving
party did not answer when you
tried to send the document.
Wait for the fax to automatically
redial the number. If you want to
cancel automatic redialling, wait
until the fax starts dialling the
number, and press [Stop]
(see p. 5-9).
BUSY/NO SIGNAL
The telephone number you
dialled is busy. (#018)
Try sending the document at a
later time.
The fax number dialled was
incorrect.
Check the fax number and dial
again.
The other party’s fax machine is
not working.
Contact the other party and
have them check their fax
machine.
The other party is not using a
G3 machine.
Contact the other party and ask
them to send or receive the
document using a G3 machine.
The touch tone/rotary pulse
setting on your fax is incorrect.
Set your fax to the setting that
matches your telephone line
(see p. 1-12).
The receiving fax machine did
not answer within 55 seconds
(after all automatic redialling
attempts).
Contact the receiving party and
have them check their fax
machine. You can try to send
the document using manual
sending (see p. 5-4). For longdistance call, add pauses to the
registered number (see p. 5-8).
The cartridge holder cannot
move. This is normally due to a
paper jam.
Clear the paper jam or whatever
is obstructing the cartridge
holder and then press [Stop]
and start again. Do not attempt
to move the cartridge holder
manually.
The scanner unit may not be in
the fully upright position.
Press the document release
button, then gently move the
scanner unit to the fully upright
position.
CARTRIDGE JAMMED
9-15
9
SOLUTIONS TO COMMON PROBLEMS
Message
Message
Cause
Action
CHANGE CARTRIDGE
The BJ cartridge is empty.
Replace the BJ cartridge
(see p. 9-6). The fax will then
print automatically any
documents received in memory.
CHECK DOCUMENT
The document is not set in the
document tray.
Set the document you are trying
to send or copy (see p. 3-2) and
start again.
CHECK PAPER SIZE
The size of the paper in the
multi-purpose tray and that
specified in the PAPER SIZE
setting are different.
Load the correct paper size or
change the PAPER SIZE setting
(see p. 8-4).
CHECK PRINTER
There may be an obstruction
that is not allowing the cartridge
holder mechanism to move.
Check for any obstruction
(paper clip, small object, etc.)
and also that the orange
protective cap and tape are
removed from the BJ cartridge.
Check also for a paper jam and
clear the jam if necessary (see
p. 9-1). Then press [Stop] and
start again.
The BJ cartridge may be
defective.
Press [Stop]. Reinstall the BJ
cartridge (see p. 1-9) and start
again.
In either case, if the error does
not clear, try unplugging the fax.
Wait several minutes, then plug
it back in. Also, try replacing the
BJ cartridge with a new one
(see p. 9-6).
The waste ink tank (which holds
the ink used for print head
cleaning) may be full.
9-16
Contact your local authorised
Canon dealer or the Canon help
line to have the waste ink tank
replaced immediately. Clear the
paper jam (see p. 9-1).
LCD messages
Cause
Action
CLEAR PAPER JAM
There is a paper jam.
Clear the paper jam (see p. 9-1)
and reload paper in the multipurpose tray. Press [Stop].
DATA ERROR
An error has occurred and all
one-touch speed dialling, coded
speed dialling, and user data
have been lost.
Press [Start/Copy], then reregister the data (see
Chapter 2).
DOC. TOO LONG
The document is longer than
750 mm.
Use a copier to make a reduced
copy of the document and then
send the copy.
ECM RX
The fax is receiving a document
using Error Correction Mode
(ECM).
ECM receptions may take
longer than normal receptions.
Turn off ECM if you need to
receive quickly, or if you know
your local lines are in good
condition (see ECM RX, p. 8-4).
ECM TX
The fax is sending a document
using Error Correction Mode
(ECM).
ECM transmissions may take
longer than normal
transmissions. Turn off ECM if
you need to transmit quickly, or if
you know your local lines are in
good condition (see ECM TX,
p. 8-3).
The fax’s memory is full
because it has received too
many documents, or a very long
or detailed document.
Print any documents stored in
memory (see p. 5-14).
Then start again.
The fax’s memory is full
because you either tried to send
too many pages at once, or you
tried to send a very long or
detailed document.
Free up space in the fax’s
memory by printing or deleting
any documents in memory you
no longer need (see pp. 5-14,
5-15).
If multiple pages are loaded,
separate the pages into smaller
stacks. If not, try sending the
document by direct sending
(see p. 5-2).
An error has occurred and all
voice message data has been
lost.
Re-record all answering
machine messages, such as the
outgoing message and
alternative outgoing message
(see p. 7-1).
MEMORY FULL
MSG DATA LOST
9-17
9
SOLUTIONS TO COMMON PROBLEMS
Message
Message
Cause
Action
NO DATA
The one-touch speed dialling
button or coded speed dialling
code you entered has not been
registered.
Register the one-touch speed
dialling button or coded speed
dialling code (see pp. 2-10,
2-12).
NO OGM
The outgoing message has not
been recorded.
Record an outgoing message
(see p. 7-1).
REC’D IN MEMORY
The fax received the document
in memory because paper or ink
ran out, a paper jam occurred,
or the incorrect BJ cartridge was
installed.
Load paper in the multi-purpose
tray (see p. 1-8), replace the BJ
cartridge (see p. 9-6) or clear
the paper jam (see p. 9-1).
TAM MEMORY FULL
Either 50 messages have been
recorded or the total maximum
recording time of 10 minutes
has been reached.
Listen to your telephone
messages and delete any
unnecessary messages.
Alternatively, erase all telephone
messages stored in the fax
memory (see p. 7-7).
TX/RX CANCELLED
You pressed [Stop] to cancel the If required, try sending again.
transmission.
TX/RX NO. nnnn
When the fax sends or receives
a document, it assigns it a
unique identification number
(nnnn).
Write the number down if you
will need it later.
WAIT COOLING
During printing, the BJ cartridge
print head may have become
too hot.
Allow the fax to cool down. The
fax will resume printing when it
has cooled down.
9-18
In case of a power failure
The user data settings and registered data for one-touch speed dialling and coded speed dialling are saved
during a power failure using a built-in battery*. However, documents stored in the fax memory will be
deleted. If a power failure occurs or the power is turned off, the fax will automatically print a memory clear
report as soon as the power is turned on or the power is restored. This report includes a list of the documents
that were stored in the memory at the time of power failure.
During a power failure _______________________
The following restrictions apply to the function of the fax during a power failure or while the power is turned
off:
• You cannot use the fax to make telephone calls. Also, if your fax is connected to a telephone, you may not
be able to make telephone calls.
• You cannot send, receive, or copy documents.
• You can receive voice calls only if the handset, a telephone, or an extension phone is connected to your
fax.
Memory clear report ________________________
* TAM Messages are also saved if the power fails.
9-19
9
SOLUTIONS TO COMMON PROBLEMS
If you experience a power failure, the documents in the fax memory will be lost.
As soon as power is restored and the fax is turned on again, the fax will automatically print out a list of
documents that were stored in the memory at the time of the power failure.
9-20
USER SETTINGS
Name
Description
DATE & TIME
Set the date and time (24-hour clock) using the numeric buttons.
-
UNIT TELEPHONE #
Enter your fax number using the numeric buttons.
-
UNIT NAME
This is the name that appears at the top of each fax page you send (see p.
2-6).
-
TX TERMINAL ID
This option sets the parameters for the identification header that appears
on every page you send.
ON/OFF
TTI POSITION
Select the position of the TTI.
TELEPHONE # MARK
Settings
INSIDE IMAGE/
OUTSIDE IMAGE
Select the icon for the fax number.
TEL/FAX
SCAN CONTRAST
Set the density of the reproduction.
STANDARD/DARKER/
LIGHTER
OFFHOOK ALARM
Enable/disable the off hook alarm. The alarm alerts you that the handset is
not seated properly in its cradle.
VOLUME CONTROL
Set the volume of the fax sounds.
LINE MONITOR VOL
Set the volume of the line monitor (sound during dialling).
CALLING VOLUME
Set the volume of the ring produced when the fax detects a voice call
during FAX/TEL switchover.
ALARM VOLUME
Set the volume of the error alarm sound.
KEYPAD VOLUME
Set the volume of the keypad.
ON/OFF
0 (off)/1/2/3
1/2/3
0 (off)/1/2/3
0 (off)/1/2/3
RX CALL LEVEL
Set the ring tone.
STANDARD/HIGH
TEL LINE TYPE
Set the dialling method the fax uses to match the type of phone line you
have.
TOUCH TONE/
ROTARY PULSE
R-KEY SETTING
Set the type of PBX through which your fax is connected.
Your fax is connected to an outside line.
PSTN
PBX: ACCESS TYPE
Your fax is connected through a PBX.
ACCESS NUMBER If you select PREFIX, you can enter an outside line number of up to 19
PSTN/PBX
PREFIX/HOOKING
-
digits.
AUTO VOICE DIAL
8-2
Enable/disable automatic dialling for UCanTalk.
ON/OFF
Selecting a menu
REPORT SETTINGS
Name
Description
TX REPORT
Enable/disable automatic printing of the transmission report.
OUTPUT NO: Turn off the activity report feature.
OUTPUT YES: Set the fax to print an activity report every time you send a
document.
PRINT ERROR ONLY: Print only when an error occurs during sending.
OUTPUT NO/
OUTPUT YES/
PRINT ERROR ONLY
RX REPORT
Enable/disable automatic printing of the reception report.
OUTPUT NO: Turn off the activity report feature.
OUTPUT YES: Set the fax to print an activity report every time you receive
a document.
PRINT ERROR ONLY: Print only when an error occurs during receiving.
OUTPUT NO/
OUTPUT YES/
PRINT ERROR ONLY/
ACTIVITY REPORT
Enable/disable automatic printing of the activity report.
AUTO PRINT
When you set ON, your fax is set to print an activity report for every 20
transactions (sending and receiving).
TX/RX SEPARATE
Divide the activity management report into sending and receiving
transactions.
Settings
OUTPUT NO/
OUTPUT YES
ON/OFF
8
Name
Description
ECM TX
Enable/disable error correction during transmission.
MID PAUSE SET
Set the length of the pause you insert into a dialling sequence.
AUTO REDIAL
Determine whether the fax will redial a number if it fails to get a response
on the first attempt.
REDIAL TIMES
Set the number of retries.
REDIAL INTERVAL
Set the period of time between redialling attempts.
Settings
ON/OFF
4 seconds (1 to 15)
ON/OFF
2 times (1 to 10)
2 minutes (2 to 99)
8-3
SETTINGS AND ACTIVITY REPORTS
TX SETTINGS
RX SETTINGS
Name
Description
ECM RX
Enable/disable error correction during reception.
FAX/TEL AUTO SW
Enable/disable FAX/TEL switchover. When ON, this feature answers calls,
and if no fax tone is detected, the fax rings to alert you of an incoming call.
RING START TIME
Set the duration that the fax listens for a fax tone before starting to ring.
F/T RING TIME
Set the length of time the fax will ring to alert you of an incoming call.
DEFAULT ACTION
Select the action taken after the F/T RING TIME expires.
INCOMING RING
RING COUNT
MAN/AUTO SWITCH
RING TIME
REMOTE RX
REMOTE RX ID
When the handset or an extension phone is connected, set the fax to ring
when it receives a call.
Set the number of incoming rings before the fax answers.
Determine if the fax switches to document receive mode after the fax rings
for a specified time when the fax is in the manual receive mode.
Set the amount of time the fax will ring before switching to document
receive mode.
Enables/disables remote receiving.
If you set REMOTE RX to ON, you can select the remote receiving ID.
Settings
ON/OFF
8 seconds (0 to 30)
22 seconds (10 to 60)
DISCONNECT/RECEIVE
ON/OFF
2 times (1 to 99)
ON/OFF
15 seconds (1 to 99)
ON/OFF
25 (00 to 99)
MEMORY RX
Turn on/off memory receiving of a document.
ON/OFF
CALLER ID*
Determine if the fax displays the caller’s name and fax number when
receiving a call.
ON/OFF
* Only available in some countries.
PRINTER SETTINGS
Name
Description
RX REDUCTION
Enable/disable reduction for received documents.
FIXED REDUCTION
Select the reduction rate.
REDUCE DIMENSION
Select reduction in height only or both width and height.
PAPER SIZE
8-4
Select the size of the loaded fax paper.
Settings
ON/OFF
STANDARD/
A41LTR/
LGL1LTR
VERTICAL ONLY/
HORIZ & VERTICAL
A4/LTR/LGL
Selecting a menu
SYSTEM SETTINGS
Name
Description
Settings
AUTO TEST PRINT
Enable/disable auto test printing whenever the BJ cartridge is replaced.
DATE SETUP
Set the date format.
DISPLAY LANGUAGE
Set the language of the LCD messages.
TX START SPEED
Set the speed at which the fax starts transmitting. Set this to a lower speed
if you have difficulties connecting over long distance or noisy lines.
14400bps/9600bps/
7200bps/4800bps
RX START SPEED
Set the speed at which the fax starts receiving. Set this to a lower speed if
you have difficulties connecting over long distance or noisy lines.
9600bps/7200bps/
4800bps
COUNTRY SELECT*
Set the country.
SUMMER TIME
Enable/disable the summer time system.
ON/OFF
YYYY MM/DD
MM/DD/YYYY
DD/MM YYYY
ENGLISH/FRENCH/
SPANISH/GERMAN/
ITALIAN/DUTCH/
FINNISH/PORTUGUESE/
NORWEGIAN/SWEDISH/
DANISH/SLOVENE/
CZECH/HUNGARIAN/
RUSSIAN
ON/OFF
BEGIN DATE/TIME
Set the beginning of the summer time period.
-
END DATE/TIME
Set the end of the summer time period.
-
MONTH: Set the beginning/end month.
JANUARY/FEBRUARY/
MARCH/APRIL/MAY/
JUNE/JULY/AUGUST/
SEPTEMBER/OCTOBER/
NOVEMBER/DECEMBER
WEEK: Set the beginning/end week.
DAY: Set the beginning/end day of the week.
TIME: Set the beginning/end time.
FIRST WEEK/SECOND
WEEK/THIRD WEEK/
FOURTH WEEK/LAST
WEEK
MONDAY/TUESDAY/
WEDNESDAY/
THURSDAY/FRIDAY/
SATURDAY/SUNDAY
-
* Only available in some countries.
8-5
8
SETTINGS AND ACTIVITY REPORTS
OTHERS/UK/GERMANY/
FRANCE/ITALY/SPAIN/
HOLLAND/DENMARK/
NORWAY/SWEDEN/
FINLAND/AUSTRIA/
BELGIUM/
SWITZERLAND/
PORTUGAL/IRELAND/
GREECE/LUXEMBOURG/
HUNGARY/CZECH/
RUSSIA/SLOVENIA/
SOUTH AFRICA
TAM SETTINGS (FAX-B140 only)
Name
Description
MESSAGE LENGTH
Set the maximum recording time for each recorded message.
PASSWORD
Set a four-digit PIN so that you can access the fax from remote locations.
1234 (0000 to 9999)
TOLL SAVER
Setting this feature to ON allows calls to be picked up after 2 rings when
you have a new message.
ON/OFF
RING COUNT
FWD SETTINGS
If you set TOLL SAVER to OFF, this feature allows you to set the number of
times the fax rings.
Allows you to forward messages.
Settings
0 seconds/30 seconds/
60 seconds/120 seconds
2 times (1 to 15)
ON/OFF
FWD TEL NUMBER
Forwarding telephone number
A maximum of 40 digits can be entered.
AUTO REDIAL
Redial the previously dialled number.
REDIAL TIMES: Set the number of retries.
REDIAL INTERVAL: Set the period of time between redialling attempts.
PIN ENTRY
Pin confirmation
ON/OFF
Allows you to screen all incoming calls.
ON/OFF
TAM MONITOR
8-6
ON/OFF
2 times (1 to 10)
2 minutes (2 to 99)
Activity reports
Your fax keeps track of most of its sending and receiving operations. These operations can be printed out
in the form of activity reports that can help you check the dates and times of fax transmissions and whether
or not each transaction was successful.
How to print a report ________________________
Depending on the type of report, you can have the fax print the report automatically, or you can print it
directly. The TX report, RX report, MULTI TX/RX report, and Memory clear report can only be printed
automatically. See REPORT SETTINGS (p. 8-3) on how and when reports are printed automatically.
1
2
Press [Function].
D
Press [Report].
Use [3] or [4] to display the type of report you
want to print.
D
Press [Start/Copy].
8
SETTINGS AND ACTIVITY REPORTS
You can select ACTIVITY REPORT, 1-TOUCH LIST,
CODED DIAL LIST, or USER DATA LIST.
You can select the order in which you want destinations in
the 1-TOUCH LIST or CODED DIAL LIST to be listed.
8-7
Activity report______________________________
Summarises the information for the sending and receiving activities of your fax after 20 transactions. For
automatic printing, see ACTIVITY REPORT, p. 8-3.
Transactions in an activity report are listed chronologically.
One-touch speed dialling list __________________
Lists the numbers and names registered under one-touch speed dialling buttons.
Coded speed dialling list _____________________
Lists the numbers and names registered under coded speed dialling codes.
User’s data list_____________________________
Lists the current settings of the fax and the registered sender information.
Doc. memory list ___________________________
Lists the documents currently stored in the fax’s memory (see p. 5-14).
TX (Transmission) report_____________________
You can set the fax to print an activity report every time you send a document. See TX REPORT, p. 8-3.
RX (Reception) report _______________________
Normally the fax does not print an activity report for receiving, but you can set the fax to print an activity
report every time you receive a document. See RX REPORT, p. 8-3.
You can set the fax to print an activity report only when an error occurs during receiving. See RX REPORT,
p. 8-3.
Multi TX/RX (Transaction) report ______________
Lists the result of a sequential broadcasting.
If you set the fax to print activity reports (TX REPORT or RX REPORT) and then use sequential
broadcasting, a MULTI TX/RX REPORT will be printed instead of a TX (Transmission) REPORT. See TX
REPORT, p. 8-3.
Note
8-8
A memory clear report is printed automatically when power is restored after a power failure. See Memory
clear report, p. 9-19.
Setting TAM MODE
Setting TAM MODE allows you to receive telephone messages and fax transmissions while the fax is
unattended. When you cancel TAM MODE, any new telephone messages will be played automatically.
1
Press [TAM] to set TAM MODE.
• When you set TAM MODE, the TAM LED lights up and the
outgoing message is played.
• When you cancel TAM MODE, the TAM LED switches off.
If you have any new telephone messages, the messages are
played automatically.
• To cancel TAM MODE, press [TAM] again.
Note
15:00
:00
• NO OGM is displayed on the LCD when no outgoing message has been recorded. You must record
an outgoing message before you can set TAM MODE (see p. 7-1).
• A maximum of 55 messages, including an outgoing message, alternative message and voice
memos, with a total maximum recording time of 10 minutes can be recorded. You can set a
maximum recording time of 120 seconds for each telephone message (see p. 7-3).
• If you have any new telephone messages, the TAM LED blinks and the number of messages
appears on the LCD.
• The date and time when the telephone message was recorded, the number of telephone messages
and the number of the message being played (ICM No.) are displayed whenever a message is
played.
When TAM MODE is set and a call is received, the fax will respond as described below.
1
The fax will ring 2 or 5 times, when TOLL SAVER is
set to ON, depending on whether there are any
telephone messages (see p. 7-5).
When TOLL SAVER is set to OFF, you can specify the
number of times the fax will ring.
2
3
The outgoing message is played to the other party.
If the other party sends a fax after they leave a
message, or if the call is a fax call, the fax is
received automatically.
Note
7-2
When the fax is set to MANUAL MODE and MAN/AUTO SWITCH has been set to OFF, TAM
MODE will be activated if the fax rings 15 times and the call is not answered (only when an outgoing
message has been recorded). When the call is disconnected, the fax returns to MANUAL MODE.
Setting TAM MODE
Setting the recording time for a telephone
message _________________________________
1
2
3
Press [Function].
D
Press [Start/Copy].
Use [3] or [4] to select TAM SETTINGS.
D
Press [Start/Copy] twice.
USER SETTINGS
30 SECONDS
Use [3] or [4] to select the recording time.
The recording time can be set to 0, 30, 60 or 120 seconds.
D
Press [Start/Copy].
4
7
Press [Stop].
Note
When the recording time is set to 0, the alternative outgoing message is played. If an alternative
outgoing message has not been recorded, the outgoing message is played. In this case, there will be
no beep after the message is played and the caller will not be able to leave a message.
7-3
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
Setting ends and the fax returns to standby mode.
Setting TAM MONITOR ______________________
TAM MONITOR allows you to screen all incoming calls.
Note
1
2
3
4
5
To use this feature, LINE MONITOR VOL (see p. 8-2) must be set to a setting other than 0. If LINE
MONITOR VOL is set to 0, you will not be able to hear any incoming messages as they are being recorded.
Press [Function].
D
Press [Start/Copy].
USER SETTINGS
Use [3] or [4] to select TAM SETTINGS.
D
Press [Start/Copy].
MESSAGE LENGTH
Use [3] or [4] to select TAM MONITOR.
D
Press [Start/Copy].
Use [3] or [4] to select ON.
D
Press [Start/Copy].
Press [Stop].
Setting ends and the fax returns to standby mode.
7-4
OFF
Setting TAM MODE
Setting TOLL SAVER _______________________
Setting TOLL SAVER allows you to check whether you have any new messages when you call from a
remote location.
1
2
3
Press [Function].
D
Press [Start/Copy].
USER SETTINGS
Use [3] or [4] to select TAM SETTINGS.
D
Press [Start/Copy].
MESSAGE LENGTH
Use [3] or [4] to select TOLL SAVER.
D
Press [Start/Copy].
ON
7
4
5
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
• When TOLL SAVER is set to ON and there are telephone
messages, the fax will ring twice before answering the call.
• When TOLL SAVER is set to ON and there are no telephone
messages, the fax will ring five times before answering the
call.
Press [Start/Copy].
Press [Stop].
Setting ends and the fax returns to standby mode.
7-5
Recording voice memos
Use this feature when you are going out and want to leave a message for another member of the family.
Use the microphone on the printer cover to record your voice memo.
Only one voice memo, 30, 60, or 120 seconds*, can be recorded. If you record a new voice memo when
there is already a voice memo recorded, the old voice memo will be deleted.
1
2
Use [3] or [4] to select VOICE MEMO.
Press [Record] and speak into the microphone to
record your voice memo.
TIME LEFT
29
The remaining recording time is displayed on the LCD.
-orPress [Start/Copy], use [3] or [4] to select
RECORD and press [Start/Copy] again. Then speak
into the microphone to record your voice memo.
3
Press [Stop] twice when recording is finished.
The fax returns to standby mode.
Note
15:00
:00
To play a voice memo, repeat step 1 above and then press [Play]. Alternatively, carry out step 1
above, press [Start/Copy], select PLAY and then press [Start/Copy].
-or1
1
2
Press [Record].
RECORD A MESSAGE
Press [Record] or [Start/Copy]. Then speak into the
microphone to record your voice memo.
TIME LEFT
29
The remaining recording time is displayed on the LCD.
3
Press [Stop] when recording is finished.
The fax returns to standby mode.
* The recording time for a voice memo can be set to the same settings as the recording time for a telephone
message. However, if you set 0 as the recording time for each telephone message, voice memo recording
time will be set to 30.
7-6
Deleting messages
1
2
Use [3] or [4] to select the type of message you
want to delete.
FAXTEL MESSAGE
Press [Delete].
YES=(A) NO=(#)
The fax asks you to confirm that you want to delete the
message.
3
Press [:] to delete the message.
If you do not want to delete the message, press [#].
-or-
1
PLAY
Use [3] or [4] to select ERASE.
Press [Start/Copy] .
The fax asks you to confirm that you want to delete the
message.
4
7
FAXTEL MESSAGE
YES=(A) NO=(#)
Press [:] to delete the message.
If you do not want to delete the message, press [#].
Note
You cannot delete the OUTGOING MESSAGE. The old outgoing message will be automatically
deleted when you record your new message.
7-7
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
2
3
Use [3] or [4] to select the type of message you
want to delete.
D
Press [Start/Copy].
Playing telephone messages
Telephone messages will be played back in order from the oldest message recorded. If a voice memo has
been recorded, it will be played back first.
1
Press [Play].
The date and time when the telephone message was
recorded, the number of telephone messages and the number
of the message being played (ICM No.) are displayed
whenever a message is played.
Note
•
•
•
•
•
•
SUN 17:15
02/05
Press [
] to listen to the message again. (Repeat)
Press [
] to play the next message. (Skip)
Press [
] twice to play the previous message.
Press [Stop] to stop playback.
Press [Delete] during playback to delete a message.
Use [3] or [4] to change the volume.
Follow the procedures below to delete all messages.
1
Press [Delete].
2
Press [:] to delete all messages.
If you change your mind and decide not to delete all
messages, press [#].
7-8
YES=(A) NO=(#)
Remote control features
Use these features when you call home to play back any messages you may have received. You can also use
the remote control features to set TAM MODE.
You must register a four-digit PIN as your password before you can use these features (see below).
Registering the password for remote control _____
1
2
3
5
USER SETTINGS
Use [3] or [4] to select TAM SETTINGS.
D
Press [Start/Copy].
MESSAGE LENGTH
Use [3] or [4] to select PASSWORD.
D
Press [Start/Copy].
PASSWORD
1234
7
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
4
Press [Function].
D
Press [Start/Copy].
Use the numeric buttons to enter a four-digit PIN as
your password.
D
Press [Start/Copy].
Press [Stop].
Registration ends and the fax returns to standby mode.
7-9
Using remote control
1
2
3
4
Call home.
The outgoing message will be played.
Press [#] while the outgoing message is playing.
Enter your password when you hear the beeps
indicating that you should enter your password.
When your password is accepted, you will hear a
confirmation tone (a short series of beeps).
The fax will now accept remote control commands
(see List of remote control commands, p. 7-11).
For example, press [1][1][#] to play back any telephone
messages you may have received. When playback has
finished, press [9][9][#] to end the remote control.
5
End the remote control and hang up the handset.
Note
7-10
• A password is required to use the remote control features. However, if PIN ENTRY is set to OFF
(see p. 8-6), it is not necessary to enter your password when you use the FORWARDING MSG
feature (see p. 7-12).
• If you enter an invalid password, you will hear an error tone. If you enter two invalid passwords
consecutively, the call will be disconnected.
• You should enter a remote command within 20 seconds of entering your password. If more than
20 seconds elapse after you enter your password and you do not enter a remote command, the call
will be disconnected.
• The remote control features can be used even when the fax is set to a mode other than TAM
MODE.
• In FAX ONLY MODE, the outgoing message will not be played. Press [#] when the call is
connected.
• In Fax/Tel mode (FAX/TEL AUTO SW), press [#] while the Fax/Tel message is playing. If you
have not set a Fax/Tel message, press [#] when the call is connected.
• In MANUAL MODE, press [#] if MAN/AUTO SWITCH has been set. If MAN/AUTO SWITCH
is off, the fax will ring 15 times. Press [#] while the outgoing message is playing. Then, enter your
password when you hear the beeps.
Using remote control
K List of remote control commands
Command
11#
Sub-command*
4#
6#
5#
9#
19#
20#
#
21#
4#
5#
29#
31#
#
#
33#
#
34#
#
41#
4#
5#
42#
4#
5#
43#
4#
5#
44#
4#
5#
50#
51#
60#
61#
89#
99#
7
* Sub-commands are only valid while the command they are linked to is active.
** When no forwarding number has been set, ICM forwarding mode cannot be set. When TAM MODE
has not been set, entering this command activates TAM MODE and ICM forwarding mode
simultaneously.
7-11
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
32#
Description
Play ICM
Repeat
Skip
Stop playback
Delete
Delete all ICM
Record voice memo
End recording
Play voice memo
Repeat
Stop playback
Delete voice memo
Record outgoing message
End recording
Record alternative outgoing message
End recording
Record forwarding message
End recording
Record FAX/TEL switching message
End recording
Play outgoing message
Repeat
Stop playback
Play alternative outgoing message
Repeat
Stop playback
Play forwarding message
Repeat
Stop playback
Play FAX/TEL switching message
Repeat
Stop playback
Cancel TAM MODE
Set TAM MODE
Cancel ICM forwarding mode
Set ICM forwarding mode**
Delete voice memo/all ICM messages
End remote control
Forwarding telephone messages
This feature allows you to automatically forward telephone messages, recorded when the fax is set to TAM
MODE, to a registered forwarding number.
You can use remote control to access the forwarding number and listen to your telephone messages.
Note
• You must register a forwarding number and set TAM MODE before you can use this feature. Remote
control cannot be used to set this feature unless a forwarding number has been registered.
• If you set FWD SETTINGS to ON when a forwarding message has not been recorded, you will hear a
tone instead of a forwarding message when telephone messages are forwarded.
Setting the forwarding number ________________
1
2
3
4
5
Press [Function].
D
Press [Start/Copy].
USER SETTINGS
Use [3] or [4] to select TAM SETTINGS.
D
Press [Start/Copy].
MESSAGE LENGTH
Use [3] or [4] to select FWD SETTINGS.
D
Press [Start/Copy].
Use [3] or [4] to select ON.
D
Press [Start/Copy] twice.
Use the numeric buttons to enter the forwarding
number.
A maximum of 40 digits can be entered.
D
Press [Start/Copy].
6
Press [Stop].
Setting ends and the fax returns to standby mode.
7-12
OFF
TEL=
Forwarding telephone messages
Setting the number of redial times _____________
1
2
3
4
6
Use [3] or [4] to select AUTO REDIAL.
D
Press [Start/Copy].
Use [3] or [4] to select ON.
D
Press [Start/Copy] twice.
Use the numeric buttons to enter the number of
redial times.
D
Press [Start/Copy] twice.
FWD TEL NUMBER
OFF
2TIMES
2MIN.
7
Use the numeric buttons to enter the redial interval.
D
Press [Start/Copy].
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
5
Follow steps 1 to 5 on p. 7-12.
Press [Stop].
Setting ends and the fax returns to standby mode.
7-13
Setting PIN ENTRY _________________________
1
2
3
4
Follow steps 1 to 5 on p. 7-12.
FWD TEL NUMBER
Use [3] or [4] to select PIN ENTRY.
D
Press [Start/Copy].
Use [3] or [4] to select ON.
D
Press [Start/Copy].
OFF
FWD TEL NUMBER
Press [Stop].
Setting ends and the fax returns to standby mode.
Note
7-14
If PIN ENTRY is set to OFF, it is not necessary to enter your password when you use the FORWARDING
MSG feature (see p. 7-12).
When a forwarded call is received
When FWD SETTINGS is set to ON, telephone messages recorded when the fax is set to TAM MODE will
be automatically forwarded to a registered forwarding number.
1
2
3
A call is received at the forwarding number.
When you answer the phone you will hear your
forwarding message.
Press [#] while the forwarding message is playing.
If you have not set a forwarding message, press [#] when
you hear the tone.
4
Enter your password when you hear the beeps
• When PIN ENTRY is set to OFF (see p. 7-14), step 4 is not
required.
• If you enter an invalid password, you will hear an error tone.
If you enter two invalid passwords consecutively, the call
will be disconnected.
7
Any new telephone messages will be played.
When playback ends, it will be possible to use the
remote control features.
or the remote control features, see pp. 7-9 to 7-11.
Hang up the handset when you have finished.
Note
• When forwarding is not possible:
You can set the fax to redial the forwarding number a certain number of times at specified intervals
when forwarding is not possible, such as at times when the forwarding number is busy or the phone
is unattended. If forwarding is still not possible after the fax redials the forwarding number the
specified number of times, the forwarding setting will be temporarily cancelled. However, the fax
will dial the forwarding number again when any new telephone messages are received.
• You should enter a remote command within 20 seconds of entering your password. If more than
20 seconds elapse after you enter your password and you do not enter a remote command, the call
will be disconnected.
7-15
USING THE BUILT-IN ANSWERING MACHINE
(TAM MODE) (FAX-B140 only)
5
6
7
7-16
Setting the receive mode
Once you have decided which mode is suitable for your needs, set the mode by pressing [Receive Mode].
1
Press [Receive Mode].
Every time you press [Receive Mode], the mode changes
cyclically.
D
Press [Start/Copy].
The fax returns to standby mode.
Receiving both documents and telephone calls
automatically: Fax/Tel mode __________________
If you set Fax/Tel mode, you can control precisely how the fax handles incoming calls by adjusting the
following settings:
• Adjust the time the fax takes to check whether a call is from a fax machine or a telephone (RING START
TIME setting).
• Adjust the length of time the fax rings when the call is a voice call (F/T RING TIME setting).
• Set whether the fax switches to receive mode after the ring time set in F/T RING TIME has elapsed
(DEFAULT ACTION setting).
1
2
3
4
6-2
Press [Function].
D
Press [Start/Copy].
USER SETTINGS
Use [3] or [4] to select RX SETTINGS.
D
Press [Start/Copy].
ECM RX
Use [3] or [4] to select FAX/TEL AUTO SW.
D
Press [Start/Copy].
RING START TIME
Press [Start/Copy].
8SEC
Setting the receive mode
5
6
7
Use the numeric buttons to enter the time the fax
waits before ringing when it receives a call.
D
Press [Start/Copy] twice.
22SEC
Use the numeric buttons to enter the time the fax
rings while waiting for someone to pick up the
handset.
D
Press [Start/Copy] twice.
RECEIVE
Use [3] or [4] to select RECEIVE or
DISCONNECT.
6
This setting tells the fax what to do if the handset is not
picked up within the specified ring time set in step 6.
8
9
RECEIVING DOCUMENTS
D
Press [Start/Copy].
Press [Stop].
Setting ends and the fax returns to standby mode.
6-3
Receiving documents manually: MANUAL MODE _
1
2
3
4
Check that Manual is displayed on the LCD
(see p. 6-2).
15:00
Manual
Check that the handset or extension phone is
connected to the fax (see p. 1-4).
When you hear the handset or extension phone
rings, pick up the handset.
K If you hear a person’s voice:
Start your conversation. If the caller wants to
send a document after talking to you, ask them
to press the start button on their fax machine.
When you hear a slow beep, press [Start/Copy]
on the fax to begin receiving the document. Hang
up the handset.
• If the extension phone is located away from your fax, dial
25 (the remote receiving ID) on the extension phone and
hang up.
• The fax begins receiving the document.
K If you hear a slow beep tone:
Someone is trying to send you a document.
• Press [Start/Copy] and hang up the handset.
• If the extension phone is located away from your fax, dial
25 (the remote receiving ID) on the extension phone and
hang up.
• The fax begins receiving the document.
Be sure to hang up the handset after you press [Start/Copy] otherwise the call will be disconnected.
Note
Receiving documents with an answering machine:
ANS.MACHINE MODE (FAX-B120/B115 only) ____
Connecting an answering machine to your fax allows you to receive documents and telephone messages
while you are out.
K Using your fax with an answering machine
Follow these guidelines when using your fax with an answering machine.
• Set the answering machine to answer on the first or second ring.
• When recording an outgoing message on the answering machine, the entire message must be no longer
than 15 seconds.
6-4
Other features
Saving ink while receiving documents __________
You can enable/disable ink-saving feature by pressing the [Ink Saver] button when the [Function] button is
pressed.
1
2
Press [Function].
D
Press [Ink Saver].
Use [3] or [4] to select ON or OFF.
D
Press [Start/Copy].
6
The fax returns to standby mode.
If your fax is performing another task or encounters a problem when receiving a document, it automatically
stores the unprinted pages in memory, and the LCD displays REC’D IN MEMORY as well as one or more
messages. For an explanation of the message(s) and details on the action to take, see p. 9-18.
Note
• You can set the fax not to store documents in memory if a problem occurs during reception (see
MEMORY RX, p. 8-4).
• Once the pages are printed, they are deleted from memory.
Polling to receive documents _________________
The polling feature allows you to request a document to be faxed to you from another fax machine. The
sending party only needs to make sure the document is on a fax machine and ready to be sent. Thus, when
your fax polls the other fax machine, the document is sent automatically. The fax can poll any fax machine
that supports polling.
Note
• Before attempting to poll a fax machine, make sure that the other fax machine supports polling.
• If the other party is using a Canon fax machine which has the Polling ID function, ask them to set the
Polling ID of their fax machine to 255 (11111111 binary number).
• For details on the Polling ID, see the other party’s fax machine manual. In all other cases the Polling ID
is not a concern.
• Your fax cannot be polled by another fax machine.
6-5
RECEIVING DOCUMENTS
Receiving documents in memory while performing
another task or when a problem occurs _________
1
2
Press [Function].
D
Press [Polling].
D
Press [Start/Copy].
Dial the fax number of the fax machine you wish to
poll.
Use one of the dialling methods described on page 5-2.
3
Press [Start/Copy].
Your fax begins receiving the document.
Cancelling receiving
1
6-6
Press [Stop].
TEL= 34567890
Sending methods___________________________
K Direct sending (see below)
K Memory sending (see p. 5-3)
K Manual sending (see p. 5-4)
Dialling methods ___________________________
There are several methods of dialling the receiving party’s number, depending on how your fax is set up.
K Regular dialling
K One-touch speed dialling (see p. 5-5)
K Coded speed dialling (see p. 5-5)
K Directory dialling (see p. 5-6)
K UCanTalk (see p. 5-7)
Sending documents
Direct sending _____________________________
1
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and contrast (see p. 5-1).
2
Dial the receiving party’s fax number.
Use one of the dialling methods described in this chapter.
3
TEL=
34567890
Press [Start/Copy] twice.
The fax begins sending.
Note
5-2
• If an error occurs during sending, the fax beeps intermittently for a few seconds and an error
message appears on the LCD. If this happens, correct the error and then press [Stop], then try
sending the document again. See LCD messages, p. 9-15.
• The fax automatically redials if the receiving party does not answer or if the line is busy. (You can
specify the number of times it redials; see AUTO REDIAL, p. 8-3.)
Sending documents
Memory sending ___________________________
The fax normally uses direct sending to send your document, but you can send it with memory sending (see
below). In this case, the fax quickly scans the document into memory. Then it sends the document from
memory. This means you do not have to wait for the fax to finish sending before you can retrieve your
original document.
You can send up to 15 A4-size pages at a time with memory sending (based on the Canon FAX Standard
Chart No.1, standard resolution).
Note
1
If MEMORY FULL appears on the LCD when you load the document into the document tray or during
the scanning process, re-start sending the document using direct sending (see p. 5-2).
5
Load the document face up into the document tray.
2
3
4
Press [Function].
D
Press [Send Options].
Use [3] or [4] to select MEMORY TX.
D
Press [Start/Copy].
Dial the receiving party’s fax number.
Use one of the dialling methods described in this chapter
(see p. 5-2).
5
TEL=
34567890
Press [Start/Copy] twice.
The fax scans the document into memory and begins
sending.
5-3
SENDING DOCUMENTS
See Loading documents, p. 3-2.
You can set the scanning resolution and contrast (see p. 5-1).
Manual sending ____________________________
If you would like to first speak with the person you are sending the document to, use manual sending. You
need to connect the handset or extension phone to the fax for manual sending.
1
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and contrast (see p. 5-1).
2
Pick up the handset or press [Hook] and dial the
receiving party’s fax number.
TEL=
34567890
Use one of the dialling methods described in this chapter
(see p. 5-2).
3
If a person answers, converse normally, then ask
them to press the start button on their fax. Press
[Start/Copy] and hang up.
If you hear a high pitch tone, press [Start/Copy] and hang
up.
Note
5-4
• The fax will beep if the handset is not hung up properly. Make sure the handset is seated properly
in its cradle. If you do not want the fax to beep, disable the OFFHOOK ALARM setting (see
p. 8-2).
• If an error occurs during sending, the fax beeps intermittently for a few seconds and an error
message appears on the LCD. If this happens, correct the error and then press [Stop], then try
sending the document again. See LCD messages, p. 9-15.
Cancelling sending
1
Press [Stop].
Note
• When you cancel sending, you may need to press [Start/Copy] for a few seconds, then the fax will
feed out the document.
• The fax prints an ERROR TX REPORT (see p. 8-7).
Automatic dialling
5
To use this feature you must first register numbers for one-touch speed dialling (see pp. 2-10, 2-11) or coded
speed dialling (see p. 2-12).
1
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and the contrast (see
p. 5-1).
2
Press the one-touch speed dialling button under
which the number you wish to fax is registered.
-orPress [Coded Dial/Directory] and enter the
appropriate two-digit coded speed dialling code.
TEL=
905 795 1111
TEL=
1 49 39 25 25
The registered name and number appear.
• If you make a mistake, press [Stop]. Then press the
correct one-touch speed dialling button or press [Coded
Dial/Directory] and re-enter the code.
• If an error message appears on the LCD, correct the error
and press [Stop]. If necessary, see Faxing problems,
p. 9-9.
3
Press [Start/Copy].
The fax begins sending.
5-5
SENDING DOCUMENTS
Sending a document using one-touch speed dialling
or coded speed dialling numbers ______________
Sending a document using directory dialling _____
This feature is convenient when you know the other party’s name but cannot recall the one-touch speed
dialling button or the code for coded speed dialling where the number is registered.
This procedure can also be used to look up the other party’s name and retrieve the number for dialling.
1
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and the contrast (see
p. 5-1).
2
3
4
Press [Coded Dial/Directory] twice.
Press a numeric button to enter the first letter of the
name of the party you are searching for.
Press [3] or [4] to display the other names and
numbers registered for the button letter group.
• The names for one-touch speed dialling numbers are
prefixed with two digits and the names for coded speed
dialling numbers are prefixed with an asterisk (A) and two
digits.
• When you reach the last name and number registered for the
letter group, you will return to the first name and number in
the group.
• If the LCD does not change after you press [3] or [4], this
means only one name and number is registered for the
button you just pressed.
• Press [Redial/Pause] to switch between the name and
number on the LCD.
5
5-6
With the telephone number you want to dial
displayed, press [Start/Copy] to start the document
transmission.
DIRECTORY DIAL
A01 Canon CANADA
Automatic dialling
Sending a document using UCanTalk
(FAX-B140 only) ___________________________
To use this feature you must first register the voice tags for UCanTalk (see p. 2-13).
1
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and the contrast (see
p. 5-1).
2
Press [UCanTalk]. Then speak the voice tag into
the microphone.
5
CANON
The registered name will be displayed on the LCD.
SENDING DOCUMENTS
3
With the party’s name you wish to dial displayed,
press [Start/Copy] to start the document
transmission.
• If the AUTO VOICE DIAL setting is set to ON, the fax
automatically starts the document transmission (see p. 8-2).
• If the displayed party’s name is not what you are searching
for, press [Stop] to cancel the procedure, and re-start from
step 2.
• If an error occurs every time you speak into the microphone,
re-register the voice tag and try again (see pp. 2-10 to 2-13).
5-7
Special dialling
Sending a document using caller history ________
If the CALLER ID setting is set to ON, the caller’s name and phone/fax number appear on the LCD when
you receive a call (see p. 8-4). The fax keeps up to 20 latest caller IDs in memory.
Note
1
The caller history feature is only available in some countries. The feature uses the ETS300778 protocol.
Contact your local telephone company for detailed information.
Press [Function].
D
Press [Caller History].
The date and time, names, and numbers from which you
have received calls recently will be displayed on the LCD.
• Press [Redial/Pause] or [Coded Dial/Directory] to switch
between the date and time, name, and phone number on the
LCD.
2
20/12
13:30
CANON
TEL=
34567890
Use [3] or [4] to select the receiving party.
D
Press [Start/Copy].
The fax begins calling the number.
3
If a person answers, pick up the handset and
converse normally.
If you want to send a document, load the document
face up into the document tray (see Loading
documents, p. 3-2) and ask them to press the start
button on their fax.
See Manual sending, p. 5-4.
4
When you hear a high pitch tone, press [Start/
Copy] and hang up.
The fax begins sending the document.
Long-distance dialling _______________________
When you register a long-distance number, you may have to insert a pause within or after the number. For
long-distance dialling, the location and length of the pause may differ depending on the telephone system.
To enter a pause, press [Redial/Pause]. A pause within a number is 2 seconds long.
The length of this pause can be adjusted. See MID PAUSE SET, p. 8-3. A pause at the end of a number is
fixed at 10 seconds.
5-8
Redialling when the line is busy
There are two methods of redialling: manual redialling and automatic redialling. This section explains these
two methods.
Manual redialling ___________________________
Press [Redial/Pause] to dial the last number you dialled with the numeric buttons. (This starts redialling
regardless of whether automatic redialling is enabled.)
K Cancelling manual redialling
5
To cancel manual redialling, press [Stop].
K What is automatic redialling?
When you are sending a document and the receiving party’s line is busy, the fax waits the specified time
and then dials the same number again. You can set the fax to redial several times if previous attempts fail
because of a busy signal.
Automatic redialling can be turned off and on. The number of redialling attempts and the time interval
between attempts can also be adjusted (see AUTO REDIAL, p. 8-3).
If all redialling attempts are unsuccessful, the fax will cancel the transmission and print an ERROR TX
REPORT to remind you that the transmission was not completed (see p. 8-7).
When automatic redialling is in use, the LCD displays AUTO REDIAL while it is waiting to redial.
K Cancelling automatic redialling
Automatic redialling cannot be cancelled with the [Stop] button while the fax is waiting to redial.
1
2
Wait until the fax begins redialling.
Press [Stop].
Note
If you want to cancel a memory-sending transmission while the fax is waiting to redial, you will have
to delete the document from memory (see p. 5-15).
5-9
SENDING DOCUMENTS
Automatic redialling _________________________
K Setting the options for automatic redialling
You can set the following options for automatic redialling:
• Whether or not the fax redials automatically.
• The number of times the fax attempts to redial.
• The time interval between redialling attempts.
1
2
3
Press [Function].
D
Press [Start/Copy].
USER SETTINGS
Use [3] or [4] to select TX SETTINGS.
D
Press [Start/Copy].
ECM TX
Use [3] or [4] to select AUTO REDIAL.
D
Press [Start/Copy].
ON
• To disable automatic redialling, use [3] or [4] to select
OFF, then press [Start/Copy]. Press [Stop] to return to
standby mode.
• To enable automatic redialling, use [3] or [4] to select ON
and continue with the steps below.
4
5
Press [Start/Copy] twice.
Use the numeric buttons to enter the number of
times you want the fax to redial.
You can select from 1 to 10 times (see p. 8-3).
D
Press [Start/Copy] twice.
6
Use the numeric buttons to enter the time interval
between redialling attempts.
You can select from 2 to 99 minutes (see p. 8-3).
D
Press [Start/Copy].
7
Press [Stop].
The fax returns to standby mode.
5-10
2TIMES
2MIN.
Delayed sending
Your fax can send a document automatically at a preset time. This allows you to take advantage of lower
late-night long-distance rates offered by some telephone companies.
1
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and contrast (see p. 5-1).
2
3
Use [3] or [4] to select DELAYED TX.
D
Press [Start/Copy].
5
SET TIME
15:00
SENDING DOCUMENTS
4
Press [Function].
D
Press [Send Options].
Enter the desired sending time (24-hour clock)
using the numeric buttons.
• Set the time using the 24-hour clock system.
Precede single digits with a zero.
Example: 3:00 p.m. = 15:00
• Press [Clear] if you need to re-enter the time.
• You can also use [3] or [4] to move the cursor.
5
6
Press [Start/Copy].
Enter the receiving party’s fax number.
• You can enter the receiving party’s fax number using the
numeric buttons, one-touch speed dialling, coded speed
dialling, or directory dialling (see pp. 5-5, 5-6).
• If you use the numeric buttons, press [Start/Copy] after
entering the number to register it before going on to the next
number.
7
Press [Start/Copy] twice.
The fax scans the document into memory.
8
When the set time comes, the fax dials and sends
the document.
5-11
Sending other documents while the fax is set for
delayed sending ___________________________
You can send, receive, and copy other documents even when the fax is set for sending at a preset time.
The fax can only register one preset sending operation at a time.
To send or copy other documents after setting the fax for delayed sending, simply send or copy using any
other sending procedure in this guide.
Note
Delayed sequential broadcasting is applicable for sending one document to more than one location at a
later time when multiple fax numbers are dialled (see p. 5-13).
Cancelling delayed sending __________________
1
2
3
4
Press [Function].
Use [3] or [4] to select MEMORY REFERENCE.
D
Press [Start/Copy].
Use [3] or [4] to select DELETE DOCUMENT.\
D
Press [Start/Copy].
TX/RX NO.
Use [3] or [4] to select the transaction number
(TX/RX NO.) of the document you want to delete.
YES=(A) NO=(#)
• If the LCD does not change after you press [3] or [4], this
means only one transaction is stored in memory.
• If you are unsure of the transaction number (TX/RX NO.),
print the Doc. memory list (see p 5-14).
D
Press [Start/Copy].
5
Press [:] to delete the file.
If you change your mind and want to continue sending,
press [#].
6
Press [Stop].
The fax returns to standby mode.
5-12
0001
Sequential broadcasting
Sending a document to more than one location ___
Note
1
You must press each button within 10 seconds of the preceding one. The fax begins the operation
approximately 10 seconds after you press the last button.
Load the document face up into the document tray.
See Loading documents, p. 3-2.
You can set the scanning resolution and contrast (see p. 5-1).
2
Dial the receiving party’s fax numbers as you need.
You can also press [Redial/Pause] to redial the last number
dialled with the numeric buttons.
3
TEL=
34567890
Press [Start/Copy].
• The fax reads the document into memory and begins
sending.
• To cancel a transmission, press [Stop] during dialling or
transmission. All transmissions in the sequence are
cancelled.
5-13
5
SENDING DOCUMENTS
Sequential broadcasting sends one document to more than one location.
You can send to a total of 60 locations as follows:
• One-touch speed dialling
=
9 locations
• Coded speed dialling
=
50 locations
• Regular dialling (Numeric buttons dialling)
=
1 location
You can enter the one-touch speed dialling and coded speed dialling locations in any order. You simply
press the one-touch speed dialling button, or press [Coded Dial/Directory] followed by the two-digit code.
You can also include one location using regular dialling. Remember that when using regular dialling, you
must press [Start/Copy] after entering the number.
Documents stored in memory
Printing a list of documents in memory __________
Your fax can print a list of documents stored in memory, along with the transaction number (TX/RX NO.)
of each document. Once you know the transaction number of a document in memory, you can print it or
delete it.
1
2
3
Press [Function].
Use [3] or [4] to select MEMORY REFERENCE.
D
Press [Start/Copy].
DOC. MEMORY LIST
Press [Start/Copy].
Printing a document in memory________________
1
2
3
4
Press [Function].
Use [3] or [4] to select MEMORY REFERENCE.
D
Press [Start/Copy].
DOC. MEMORY LIST
Use [3] or [4] to select PRINT DOCUMENT.
D
Press [Start/Copy].
TX/RX NO.
Use [3] or [4] to select the transaction number
(TX/RX NO.) of the document you want to print.
If you are unsure of the transaction number (TX/RX NO.),
print the Doc. memory list (see above).
5
Press [Start/Copy].
1ST PG ONLY?
1 sec.
YES=(A) NO=(#)
5-14
0001
Documents stored in memory
6
Press [:] to print the first page only, or press [#] to
print all pages of the document.
The fax prints the document.
7
To continue printing other documents in memory,
repeat the procedure from step 4.
To finish, press [Stop].
Deleting a document from memory _____________
3
4
5
Press [Function].
Use [3] or [4] to select MEMORY REFERENCE.
D
Press [Start/Copy].
DOC. MEMORY LIST
Use [3] or [4] to select DELETE DOCUMENT.
D
Press [Start/Copy].
TX/RX NO. 0001
Use [3] or [4] to select the transaction number
(TX/RX NO.) of the document you want to delete.
• If the LCD does not change after you press [3] or [4], this
means only one transaction is stored in memory.
• If you are unsure of the transaction number (TX/RX NO.),
print the Doc. memory list (see p. 5-14).
5
Press [Start/Copy].
The fax asks you to confirm that you want to delete the
document.
6
YES=(A) NO=(#)
Press [:] to delete the document.
If you change your mind and want to keep the document in
memory, press [#].
7
To continue deleting other documents in memory,
repeat the procedure from step 4.
To finish, press [Stop].
5-15
SENDING DOCUMENTS
1
2
5-16
4-2
Loading documents
1
Adjust the document guide to the width of
the document, and gently insert the top of
the document face up into the document
tray until you hear a beep.
Note
• For a multipage document, the pages are fed
one by one from the top of the stack.
• Wait until all pages of your document have
been scanned before starting a new job.
• Make sure you follow the procedure above to
load documents into the document tray. If the
document is not loaded into the document
tray correctly, it may not be fed into the fax
properly; resulting in a jam, or in pages not
being sent.
• If you want to send a document with more
than 15 pages, divide the document into 2
sections and send each section in a separate
transmission.
Problems with multipage documents____________
If you have trouble feeding multipage documents from the document tray into the fax, remove the stack and
tap it on a flat surface to even the edges. Then slant the stack so that its front edge is bevelled, and insert the
stack into the document tray.
To avoid feeding problems, make sure the document meets the document requirements (see p. 3-1).
Note
3-2
Paper requirements
Your fax supports A4-, letter-, and legal-size paper in portrait orientation. You can use regular copier paper,
cotton bond paper, or typical letterhead. Your fax does not require special ink jet paper. Always use paper
without curls, folds, staples, or damaged edges. Look at the label on the package to see if the paper has a
preferred side for printing.
Be sure to test paper before purchasing large quantities.
3
Note
The shaded area below shows the printable area of A4-size paper. Be sure to print within this area.
210 mm
3.0w1.5 mm
297 mm
A4
FEED
DIRECTION
7 mm
3.4w1.5 mm
3.4 mm ~
Loading paper _____________________________
For details on loading paper in the multi-purpose tray, see p. 1-8.
3-3
DOCUMENTS AND PAPER
Printable area _____________________________
3-4
Fax controls – the operation panel
TAM LED
(FAX-B140 only)
LCD
Microphone
(FAX-B140 only)
Rewind/Forward buttons
(FAX-B140 only)
FAX-B140
01
02
Report
Cleaning
04
R
06
Space
07
08
Polling
Ink Saver
Receive Mode
1
03
Send Options
05
Clear
09
Caller History
Resolution
02
Report
04
Cleaning
05
R
07
Polling
03
Send Options
06
Space
08
Ink Saver
Receive Mode Resolution
Clear
09
Caller History
7
PQRS
2
3
ABC
DEF
5
JKL
MNO
8
6
9
TUV
WXYZ
0
#
Function
One-touch speed
dialling/Special
function buttons
(see below)
01
4
GHI
u
Numeric buttons
These are the buttons on the
FAX-B140 operation panel.
See p. 2-3 for buttons on the
FAX-B120/B115 operation
panel.
Report button (see p. 8-7)
Cleaning button (see p. 9-5)
Send Options button (see p. 5-3)
R button (see p. 1-12)
Space button (see p. 2-5)
Clear button (see p. 2-5)
Polling button (see p. 6-6)
Ink Saver button (see p. 6-5)
Caller History button (see p. 5-8)
Function
Receive Mode button (see p. 6-2)
Resolution button (see pp. 4-1, 5-1)
Function button (see p. 1-12)
The buttons on the left of the operation panel have the following two functions:
• One-touch speed dialling buttons (see p. 2-10)
• Special function buttons
When the [Function] button is pressed, the special function buttons (function marked under each button)
can be used to perform various operations.
2-2
Fax controls – the operation panel
K FAX-B120/B115
Scroll/Cursor buttons (see pp. 2-5, 8-1)
2
PREPARING TO USE YOUR FAX
Redial/Pause button (see p. 5-8)
Coded Dial/Directory button (see pp. 5-5, 5-6)
Stop button
Start/Copy button
Hook button (see p. 5-4)
K FAX-B140
Scroll/Cursor buttons (see pp. 2-5, 8-1)
TAM button (see p. 7-2)
Delete button (see p. 7-7)
Record button (see p. 7-1)
Play button (see p. 7-8)
Redial/Pause button (see pp. 5-8, 5-9)
UCanTalk button (see p. 5-7)
Coded Dial/Directory button (see p. 5-4)
Stop button
Start/Copy button
Hook button (see p. 5-4)
2-3
Guidelines for entering numbers,
letters, and symbols
When you come to a step that requires you to enter a name or number, see the table below to determine
which numeric button to press for the letter you want.
Button
Uppercase Letter
Mode (:A)
Lowercase Letter
Mode (:a)
Numer Mode
(:1)
1
ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
PQRS
7
TUV
8
WXYZ
9
0
#
Uppercase Letter
mode (:A)
Note
Lowercase Letter
mode (:a)
Numer mode
(:1)
After 60 seconds of no operation panel input, the fax returns to standby mode and any unregistered changes
are lost.
K Entering letters and numbers
1
2
Press [:] to switch mode.
Press the numeric button that contains the letter
you want.
• Press repeatedly until the letter you want appears.
• If you are unsure which button to press, see the table above.
2-4
:A
C
:A
Guidelines for entering numbers, letters, and symbols
3
Continue entering other letters using the numeric
buttons.
• If the next letter you want to enter is under a different
numeric button, simply press that button until the letter you
want appears.
-orIf the next letter you want to enter is under the same numeric
button you pressed in step 2, press [4] to move the cursor to
the right. Then press that same numeric button repeatedly
until the letter you want appears.
• To enter a space, press [Space].
2
1
2
Press [#] repeatedly until the symbol you want
appears.
#
:1
If you want to enter another symbol, press [4] to
move the cursor to the right, then press [#]
repeatedly until the symbol you want appears.
Correcting mistakes_________________________
You can clear an entire entry by pressing [Clear]. Alternatively, follow the procedure below to correct
individual letters:
1
2
3
Use [3] or [4] to move the cursor under the
incorrect letter.
CANEN
:A
Use the numeric buttons to enter the correct letter
over the incorrect letter.
CANON
:A
When you have finished making corrections, press
[Start/Copy] to register your new entry.
2-5
PREPARING TO USE YOUR FAX
K Entering symbols
Registering sender information
Personalising your fax _______________________
K Identifying your documents
When sending a document, you can have your fax number and your name (known as your ID), and the
current date and time printed out by the receiving fax machine. This information is called your TTI
(Transmit Terminal Identification) and appears at the top of the faxed document in small type.
By identifying the documents you send, the receiving party will be able to recognise your fax messages at
a glance. The illustration below shows a sample document with the identifying information.
27/12 2002 10:12 FAX 123 4567
CANON
CANON CANADA
01
The page number
THE SLEREXE COMPANY LIMITED
SAPORS LANE•BOOLE•DORSET•BH25 8ER
TELEPHONE BOOLE (945 13) 51617 – FAX 123456
Our Ref. 350/PJC/EAC
The name of the party who is receiving the
document
Your name or compagny name
Your fax/telephone number
TELEPHONE # MARK (You can select TEL or FAX, see p. 8-2.)
The date and time you sent the document
The top line includes the name of the receiving party if you send the document using one-touch speed
dialling or coded speed dialling and you registered the party’s name.
Setting the date and time ____________________
The date and time appear on the LCD as well as on the documents you send.
1
2
Press [Function].
D
Press [Start/Copy] three times.
Use the numeric buttons to enter the date and time
using the day-month-year format (DD/MM YYYY).
• Set the time using the 24-hour clock system.
Precede single digits with a zero.
Example: 3:00 p.m. = 15:00
• To change the date format, see SYSTEM SETTINGS, p. 8-5.
2-6
20/12 2002
13:30
Registering sender information
3
4
Press [Start/Copy].
Press [Stop].
Registration ends and the fax returns to standby mode.
Registering your fax/telephone number and name _
1
2
3
Press [Function].
D
Press [Start/Copy] twice.
DATE & TIME
Use [3] or [4] to select UNIT TELEPHONE #.
D
Press [Start/Copy].
Enter your fax number (up to 20 digits) using the
numeric buttons.
TEL=
123 4567
You can enter a plus sign (+) or space to make your number
easier to read. To enter a plus sign (+), press [#].
D
Press [Start/Copy] twice.
4
5
Enter your name (up to 16 letters) using the
numeric buttons (see p. 2-4).
D
Press [Start/Copy].
CANON
:A
Press [Stop].
Registration ends and the fax returns to standby mode.
2-7
PREPARING TO USE YOUR FAX
This information appears at the top of each document you send.
2
Setting the summer time _____________________
Some countries adopt the summer time system that shifts the clock time ahead or back according to the
change in seasons. You can select if the time information in your FAX changes to match your country’s
summer time system and set the day and time when the summer time begins and ends.
1
2
3
4
5
6
7
2-8
Press [Function].
D
Press [Start/Copy].
Use [3] or [4] tot select SYSTEM SETTINGS.
D
Press [Start/Copy].
Use [3] or [4] tot select SUMMER TIME.
D
Press [Start/Copy].
ON
Use [3] or [4] tot select ON or OFF.
D
Press [Start/Copy].
• If you selected OFF in step 4, press [Stop] to
return to standby mode.
• If you selected ON in step 4, use [3] or [4] to
select BEGIN DATE/TIME.
D
Press [Start/Copy] twice.
Use [3] or [4] tot select the month in which the
summer time starts.
D
Press [Start/Copy].
Use [3] or [4] to select WEEK.
D
Press [Start/Copy].
JANUARY
MONTH
FIRST WEEK
Registering sender information
8
9
Use [3] or [4] to select the week in which the
summer time starts.
D
Press [Start/Copy].
WEEK
10 Use [3] or [4] to select the day of the week which
the summer time starts.
D
Press [Start/Copy].
11 Use [3] or [4] to select TIME.
D
Press [Start/Copy].
12 Use the numeric buttons to enter the time at which
the summer time compensation is made.
D
Press [Start/Copy].
13 Press [Function].
14 Use [3] or [4] to select END DATE/TIME.
D
Press [Start/Copy] twice.
SUNDAY
DAY
TIME
01:00
TIME
JANUARY
15 Set the month, week, the day of the week, and time
when the summer time ends, as in step 6 to 12.
16 Press [Stop].
Setting ends and the fax returns to standby mode.
2-9
2
PREPARING TO USE YOUR FAX
Use [3] or [4] to select DAY.
D
Press [Start/Copy].
Registering one-touch speed dialling
numbers and names
The quickest way to dial a fax number is to use one-touch speed dialling. This allows you to dial a number
by pressing a single button. Before you can use one-touch speed dialling, you must register the receiving
number (up to 50 digits) with your fax.
You can also register the name of the party (up to 16 letters) and a voice tag*; the name appears on the
printout of the one-touch speed dialling list.
1
2
3
4
Press [Function].
Use [3] or [4] to select TEL REGISTRATION.
D
Press [Start/Copy].
1-TOUCH SPD DIAL
Press [Start/Copy].
01=
Use [3] or [4] to select the number of the onetouch speed dialling button you want to use for the
number.
If a number is already registered under this one-touch speed
dialling button, the number is displayed on the LCD.**
5
6
7
Enter the party’s number (up to 50 digits) using the
numeric buttons.
D
Press [Start/Copy] to register the number.
03=
Enter the party’s name (up to 16 letters) using the
numeric buttons (see p. 2-4).
D
Press [Start/Copy] to register the name.
CANON
Register the party’s voice tag for UCanTalk*.
YES=(A)
See Registering UCanTalk voice tags, p. 2-13.
The fax asks you if you want to register the voice tag.
2 50921
:A
NO=(#)
D
Press [:] or [#] to select YES or NO.
* FAX-B140 only.
** To delete the name and number registered under the one-touch speed dialling button, press [Clear] and
[Start/Copy] after you perform steps 1 to 4 above.
2-10
Registering one-touch speed dialling numbers and names
8
• If you selected NO in step 7, proceed to step 9.
• If you selected YES in step 7:
After a tone, speak the party’s name into the
microphone.
2
The fax asks you to speak the party’s name again.
9
PREPARING TO USE YOUR FAX
D
After a tone, speak into the microphone again.
To assign additional one-touch speed dialling
numbers, start from step 4.
To finish, press [Stop].
2-11
Registering coded speed dialling
numbers and names
Use coded speed dialling to dial a fax number at the press of three buttons. A fax/telephone number up to
50 digits can be registered under each two-digit speed dialling code (01-50) and you can register up to 50
locations. You can also register the name of the party (up to 16 letters) and a voice tag*; the name appears
on the printout of the coded speed dialling list.
1
2
3
4
Press [Function].
Use [3] or [4] to select TEL REGISTRATION.
D
Press [Start/Copy].
Use [3] or [4] to select CODED SPEED DIAL.
D
Press [Start/Copy].
1-TOUCH SPD DIAL
A01=
Use [3] or [4] to select the two-digit code under
which you want to register the number.
If a number is already registered under this coded speed
dialling code, the number is displayed on the LCD.**
5
Enter the party’s number and name the same way
you registered them for one-touch speed dialling.
A03=
81 773 3173
See steps 5 to 8, Registering one-touch speed dialling
numbers and names, p. 2-10.
6
7
Register the party’s voice tag the same way you
registered it for one-touch speed dialling (see
pp. 2-10, 2-13).
To assign additional coded speed dialling numbers,
start from step 4.
To finish, press [Stop].
* FAX-B140 only.
** To delete the name and number registered under the coded speed dialling code, press [Clear]
and [Start/Copy] after you perform steps 1 to 4 above.
2-12
Registering UCanTalk voice tags
(Fax-B140 only)
UCanTalk allows you to dial a number by speaking the receiving party’s name to the fax. Before you can
use the UCanTalk feature, you must register voice tags.
You can register a name or phrase (no longer than 3 seconds) you want to use to retrieve the party, such as the first
name, family name, nickname, company name, official position, and so forth. You can register up to 15 voice tags.
Registering voice tags with one-touch/coded speed
dialling numbers and names __________________
Follow the procedures on Registering one-touch/coded speed dialling numbers and names, pp. 2-10 to 2-12.
Adding voice tags to the one-touch/coded speed
dialling numbers ___________________________
1
2
3
4
5
Press [Function].
Use [3] or [4] to select TEL REGISTRATION.
D
Press [Start/Copy].
Use [3] or [4] to select 1-TOUCH SPD DIAL or
CODED SPEED DIAL.
D
Press [Start/Copy].
Use [3] or [4] to select the receiving party you
want to add a voice tag to.
D
Press [Start/Copy] twice.
When the fax asks you if you want to add a voice
tag, press [:] to select YES.
If a voice tag is already registered under this speed dialling
number, the fax asks you if you want to modify the voice tag
(see Modifying voice tags, p. 2-14).
2-13
2
PREPARING TO USE YOUR FAX
Note
You can check whether a voice tag has been registered for a specific one-touch or coded speed dialling
entry by printing the speed dialling lists. Entries with a voice tag are preceded by an icon.
6
After the tone, speak the party’s name into the
microphone.
The fax asks you to speak the name again.
D
After the tone, speak into the microphone again.
• Keep background noise to a minimum to ensure reliable
operation.
• Registering the same or similar voice tags for different
parties may cause an error when you try to retrieve the party.
7
To assign additional voice tags, start from step 4.
To finish, press [Stop].
Modifying voice tags ________________________
1
2
3
Perform steps 1 to 4 on p. 2-13.
If a voice tag is already registered under the speed
dialling number, the fax asks you if you want to
modify the voice tag.
D
Press [:] to select YES.
Use [3] or [4] to select REDO VOICETAG.
D
Press [Start/Copy].
The fax asks you to confirm that you want to redo the voice
tag registration.
4
Press [:] to select YES and proceed to step 6 on
p. 2-13.
Press [#] to cancel the procedure.
Deleting voice tags _________________________
1
2
Perform steps 1 and 2 on Modifying voice tags
above.
Use [3] or [4] to select DELETE VOICETAG.
D
Press [Start/Copy].
The fax asks you to confirm that you want to delete the voice
tag.
3
Press [:] to select YES to delete the voice tag.
Press [#] to cancel the procedure.
2-14
Removing the shipping materials ______________
1
Remove the shipping tapes a from the
top of the fax and the protective piece b.
2
Open the printer cover by gently pulling it
towards you.
1
1
2
3
Remove the shipping tape a and the
protective piece b.
Close the printer cover until it locks into
place.
1
2
The actual shipping materials may differ in shape, quantity, and position from the ones shown above.
Note
1-2
Assembling the fax
Attaching components_______________________
1
Insert the tabs on the
multi-purpose tray into
the slots on the unit.
2
Insert the tabs on the
document tray into the
corresponding slots.
1-3
1
SETTING UP
Note
For user convenience, the one-touch sheet provided with your fax (in some countries) should be fitted over
the one-touch speed dialling buttons on the left of the operation panel.
Making connections
Connecting the telephone line, handset, and
external devices____________________________
There are three jacks on the left side of the fax for connection of the following:
Handset
Extension phone (i.e. an
additional telephone that you may
wish to place away from the fax to
answer calls from a different
location) or answering machine.*
Telephone line
If you only have one telephone line and plan to use the fax for receiving both fax and voice calls, you will
need to connect the handset or an answering machine* to the fax.
Be sure to connect any external devices before using the fax.
1
Connect the supplied telephone line cord
to the L jack, then the other end to the
telephone line jack on your wall.
2
Place the handset in its cradle, and
connect it to the h jack.
* An answering machine can be connected to the FAX-B120/B115 only.
1-4
Making connections
Ringer volume switch
Adjust the volume of the ringer. Use a pen or
other pointed object to adjust the switch to
HIGH, LOW or OFF.
3
Connect an extension phone or
answering machine* to the t jack.
1
SETTING UP
Note
• Due to the range of specifications, Canon cannot guarantee that all answering machines* will be
compatible with your fax.
• If you have connected an external device to your fax, be sure to select the correct receive mode (see
Chapter 6).
• To connect an extension phone as well as an answering machine, connect the extension phone to the
answering machine, and then connect the answering machine* to your fax.
• If the extension phone does not have its own power supply, any redial data in the extension phone
memory may be lost after an extended fax transmission.
Users in the U.K. only:
When you connect a telephone, be sure to connect
the B.T. Adaptor. Contact your local authorised
Canon dealer or the Canon help line.
B.T. adaptor
* An answering machine can be connected to the FAX-B120/B115 only.
1-5
Connecting the AC power cord ________________
Plug the fax into a 200-240 volt AC 50/60 Hz outlet.
1
Plug the power cord connector into the
rear of the fax.
2
Plug the other end of the power cord into
a properly grounded AC power outlet.
There is no power switch on the fax. The power is on as long as the fax is plugged in.
Note
Setting the language and country ______________
When you plug in the fax for the first time, you need to select the correct language for the LCD display and
reports, and the country* of use. See pp. 2-2, 2-3 for the buttons on the operation panel.
1
2
3
Press [Start/Copy].
Use [3] or [4] to select the preferred language for
the LCD display and reports.
D
Press [Start/Copy].
Wait a second for COUNTRY SELECT* to appear.
D
Press [Start/Copy].
Use [3] or [4] to select the country where you are
using the fax*.
D
Press [Start/Copy].
Registration ends and the fax enters standby mode.
* This setting is only available for some countries.
1-6
EUROPE
Loading paper
Paper guidelines ___________________________
Paper limit mark
Tab
No gaps here
• Let the paper run out before refilling the multi-purpose tray. Avoid mixing new stock with paper already
loaded.
• Do not leave paper stacked in the multi-purpose tray for long periods of time since it may bend or curl and
cause problems.
• Certain environmental conditions, such as extreme temperatures or humidity, can cause some paper to
misfeed in the multi-purpose tray. If you have trouble, feed one sheet at a time.
• Depending on the density of the printed pages, the ink may need time to dry. Within two or three seconds,
the ink becomes smudge-resistant. After drying for several minutes, the ink becomes water-resistant.
• If your printed page contains a large amount of graphics, the ink on the page may be damp due to the print
density. Leave the page for 30 to 60 seconds to allow the ink to dry. Then remove the page carefully
without touching any surfaces.
• If paper curls after printing, remove it immediately; otherwise paper jams may occur.
• The platen (a roller inside the fax) may become inked if you print data beyond the width of the page. If
this happens, clean inside the fax (see p. 9-3).
1-7
1
SETTING UP
• Be sure to load paper of the correct size, weight, and quantity recommended for your fax (see pp. 3-1, S-1).
• Store all paper wrapped and on a flat surface until ready to use. Keep opened packs in their original
packaging, in a cool, dry location.
• Store paper at 18°-24°C, 40%-60% relative humidity.
• To avoid paper jams and poor print quality, do not print on damp, curled, wrinkled, or torn paper.
• Use cut-sheet paper only, not paper that comes on a roll.
• Use only paper that has a thickness of between 0.08 and 0.13 mm. Thick paper may damage the BJ
cartridge print head.
• Do not load paper beyond the paper limit mark (P) or beyond the tab on the paper guide. Doing so may
cause problems. Also, make sure there are no gaps on either side of the paper stack.
Loading paper in the multi-purpose tray _________
1
Move the paper guide to the left.
3
Insert the stack into the multi-purpose
tray a, and align the right edge of the
stack with the right side of the multipurpose tray. Then slide the paper guide
snugly against the left edge of the stack
b.
If necessary, remove the document tray when
loading paper.
1
2
1-8
2
Fan the stack of paper that you want to
feed into the fax. Then tap the edge of the
stack on a flat surface to even the stack.
Installing the BJ cartridge
The first time you set up your fax, you have to install the BJ cartridge before you can begin receiving and
copying documents.
For information on replacing the BJ cartridge, see p. 9-6.
• Use only a Canon BX-3 Black BJ cartridge in your fax.
• Store BJ cartridges at room temperature.
• When the BJ cartridge print head is left exposed, it easily dries out and becomes unusable. To avoid this,
keep the followings:
– Keep BJ cartridges in the packaging until you are ready to use them.
– Never remove the BJ cartridge unless you are going to replace it.
– Keep the cartridge holder in the home position (on the right side of the fax) when you are not using the
fax.
• Replace BJ cartridges after one year of use.
Note
If you need to unplug the fax, wait until it returns to standby mode (time and receive mode displayed on
the LCD). Otherwise the cartridge holder may not be in its home position; causing the BJ cartridge to
remain uncapped and dry out.
• Store BJ cartridges out of the reach of children.
If a child inadvertently ingests ink, consult a
Caution physician immediately.
• Do not touch the precision components on the
BJ cartridge.
Do not touch these metallic areas.
The ink in the BJ cartridge is difficult to clean up if spilled. Follow the precautions below when handling
the BJ cartridge.
• Carefully remove packaging from BJ cartridges.
• Do not attempt to disassemble or refill BJ cartridges.
• Do not shake or drop BJ cartridges.
1-9
SETTING UP
Guidelines ________________________________
1
Installing the BJ cartridge in your fax ___________
When there is no BJ cartridge installed in your fax, PUT IN CARTRIDGE is displayed on the LCD.
1
3
Make sure the fax is plugged in.
5
Remove the BJ cartridge from its
package, then remove the orange
protective cap a and tape b.
Open the printer cover by gently pulling it
towards you (see p. 1-2).
2
4
Load the paper in the multi-purpose tray.
6
With the label facing outwards, insert the
BJ cartridge into the cartridge holder.
Lower the cartridge lock lever until you
hear a click to lock the cartridge in place.
Raise the cartridge lock lever on the
cartridge holder.
1
2
Discard the cap and tape. Never attempt to
reattach them to the BJ cartridge print head.
1-10
The white post (BJ cartridge guide) should be
visible through the slot. The BJ cartridge tilts
slightly to the left in the loaded position.
Installing the BJ cartridge
7
Close the printer cover.
If the AUTO TEST PRINT setting is set to
ON:
The fax automatically prints a test page.
The fax prints a test page every time you
insert a BJ cartridge.
1
SETTING UP
You can turn off automatic test printing by
changing the AUTO TEST PRINT setting. See
SYSTEM SETTINGS, p. 8-5.
• Do not try to manually move or stop the cartridge holder.
• Do not touch the components shown below or any metal parts.
Caution
Ribbon cable
Round shaft
Guide rail
Circuit board
Testing the fax_____________________________
After you have assembled the fax, installed the BJ cartridge, and loaded the paper, you can make sure the
fax is printing properly by making several copies of a document (see p. 4-1).
If you have problems printing, see Chapter 9.
1-11
Setting the TEL LINE TYPE
See pp. 2-2, 2-3 for the buttons on the operation panel.
1
2
3
4
Press [Function].
D
Press [Start/Copy] twice.
Use [3] or [4] to select TEL LINE TYPE.
D
Press [Start/Copy].
Use [3] or [4] to select TOUCH TONE.
D
Press [Start/Copy].
DATE & TIME
ROTARY PULSE
R-KEY SETTING
Press [Stop].
Setting ends and the fax returns to standby mode.
Dialling through a switchboard (PBX)
A PBX (private branch exchange) is an on-site telephone switchboard.
• If your fax is connected through a switchboard, dial an outside line access number first. Then dial the rest
of the number.
• If you want to dial with automatic dialling, you may have to insert a pause between the outside line number
and the telephone number when you register the number for one-touch or coded speed dialling.
• When the fax is connected to a PBX or other telephone switching system, you can register the access type
and outside access line number under the [R] button (see p. 1-13). Once you have registered them, you
simply need to press [R] before dialling a fax or telephone number.
1-12
Dialling through a switchboard (PBX)
Registering the access type and the outside line
access number ____________________________
1
See pp. 2-2, 2-3 for the buttons on the operation panel.
3
4
5
Press [Function].
Press [Start/Copy] twice.
DATE & TIME
Use [3] or [4] to select R-KEY SETTING.
D
Press [Start/Copy].
PSTN
Use [3] or [4] to select PBX.
D
Press [Start/Copy].
HOOKING
Use [3] or [4] to select the access line type for the
switching system.
You can select PREFIX or HOOKING.
D
Press [Start/Copy].
6
7
If you chose PREFIX in step 5:
Enter the outside line access number (up to 19
digits) using the numeric buttons and then press
[Redial/Pause].
D
Press [Start/Copy].
TEL=
123456P
Press [Stop].
Registration ends and the fax returns to standby mode.
1-13
SETTING UP
1
2
1-14
Table of Contents
INTRODUCTION
Using this guide .............................................................. v
Customer support ........................................................... v
Important safety instructions .......................................... vi
1. SETTING UP
Unpacking ................................................................... 1-1
Removing the shipping materials ........................................... 1-2
Assembling the fax ...................................................... 1-3
Attaching components ............................................................ 1-3
Making connections ..................................................... 1-4
Connecting the telephone line, handset, and external
devices ................................................................................. 1-4
Connecting the AC power cord............................................... 1-6
Setting the language and country........................................... 1-6
Loading paper.............................................................. 1-7
Paper guidelines..................................................................... 1-7
Loading paper in the multi-purpose tray ................................. 1-8
Installing the BJ cartridge ............................................ 1-9
Guidelines............................................................................... 1-9
Installing the BJ cartridge in your fax.................................... 1-10
Testing the fax ...................................................................... 1-11
Setting the TEL LINE TYPE ....................................... 1-12
Dialling through a switchboard (PBX) ......................... 1-12
Registering the access type and the outside line access
number ............................................................................... 1-13
2. PREPARING TO
USE YOUR FAX
Main components of your fax ....................................... 2-1
Fax controls — the operation panel.............................. 2-2
Guidelines for entering numbers, letters, and symbols . 2-4
Correcting mistakes................................................................ 2-5
Registering sender information .................................... 2-6
Personalising your fax ............................................................ 2-6
Setting the date and time........................................................ 2-6
Registering your fax/telephone number and name................. 2-7
Setting the summer time......................................................... 2-8
Registering one-touch speed dialling numbers and
names ..................................................................... 2-10
Registering coded speed dialling numbers and
names ..................................................................... 2-12
Registering UCanTalk voice tags (Fax-B140 only)...... 2-13
Registering voice tags with one-touch/coded speed dialling
numbers and names .......................................................... 2-13
Adding voice tags to the one-touch/coded speed dialling
numbers ............................................................................. 2-13
Modifying voice tags ............................................................. 2-14
Deleting voice tags ............................................................... 2-14
ii
Table of Contents
3. DOCUMENTS
AND PAPER
Preparing documents................................................... 3-1
Types of documents you can scan ......................................... 3-1
Problem documents................................................................ 3-1
Loading documents...................................................... 3-2
Problems with multipage documents...................................... 3-2
Paper requirements ..................................................... 3-3
Printable area ......................................................................... 3-3
Loading paper......................................................................... 3-3
4. MAKING
Copying documents ..................................................... 4-1
COPIES
5. SENDING
DOCUMENTS
Preparing to send a document ..................................... 5-1
Adjusting the quality of your documents................................. 5-1
Sending methods.................................................................... 5-2
Dialling methods ..................................................................... 5-2
Sending documents ..................................................... 5-2
Direct sending......................................................................... 5-2
Memory sending ..................................................................... 5-3
Manual sending ...................................................................... 5-4
Cancelling sending ...................................................... 5-5
Automatic dialling ........................................................ 5-5
Sending a document using one-touch speed dialling or
coded speed dialling numbers ............................................. 5-5
Sending a document using directory dialling .......................... 5-6
Sending a document using UCanTalk (FAX-B140 only) ........ 5-7
Special dialling ............................................................ 5-8
Sending a document using caller history ................................ 5-8
Long-distance dialling............................................................. 5-8
Redialling when the line is busy ................................... 5-9
Manual redialling .................................................................... 5-9
Automatic redialling ................................................................ 5-9
Delayed sending ........................................................ 5-11
Sending other documents while the fax is set for
delayed sending ................................................................. 5-12
Cancelling delayed sending.................................................. 5-12
Sequential broadcasting ............................................ 5-13
Sending a document to more than one location ................... 5-13
Documents stored in memory..................................... 5-14
Printing a list of documents in memory................................. 5-14
Printing a document in memory............................................ 5-14
Deleting a document from memory ...................................... 5-15
iii
Table of Contents
6. RECEIVING
DOCUMENTS
Different ways to receive a document........................... 6-1
Setting the receive mode ............................................. 6-2
Receiving both documents and telephone calls
automatically: Fax/Tel mode ................................................ 6-2
Receiving documents manually: MANUAL MODE ................. 6-4
Receiving documents with an answering machine:
ANS.MACHINE MODE (FAX-B120/B115 only) ................... 6-4
Other features ............................................................. 6-5
Saving ink while receiving documents.................................... 6-5
Receiving documents in memory while performing
another task or when a problem occurs ............................... 6-5
Polling to receive documents.................................................. 6-5
Cancelling receiving..................................................... 6-6
7. USING THE
BUILT-IN
ANSWERING
MACHINE
(TAM MODE)
(FAX-B140 only)
Recording the outgoing message ................................. 7-1
Types of messages that can be recorded .............................. 7-1
Recording the outgoing message........................................... 7-1
Setting TAM MODE ..................................................... 7-2
Setting the recording time for a telephone message .............. 7-3
Setting TAM MONITOR.......................................................... 7-4
Setting TOLL SAVER ............................................................. 7-5
Recording voice memos............................................... 7-6
Deleting messages ...................................................... 7-7
Playing telephone messages ....................................... 7-8
Remote control features............................................... 7-9
Registering the password for remote control.......................... 7-9
Using remote control ............................................................ 7-10
Forwarding telephone messages................................ 7-12
Setting the forwarding number ............................................. 7-12
Setting the number of redial times........................................ 7-13
Setting PIN ENTRY .............................................................. 7-14
When a forwarded call is received.............................. 7-15
iv
Table of Contents
8. SETTINGS AND
ACTIVITY
REPORTS
9. SOLUTIONS TO
COMMON
PROBLEMS
Selecting a menu ......................................................... 8-1
Activity reports............................................................. 8-7
How to print a report ............................................................... 8-7
Activity report .......................................................................... 8-8
One-touch speed dialling list .................................................. 8-8
Coded speed dialling list......................................................... 8-8
User’s data list ........................................................................ 8-8
Doc. memory list..................................................................... 8-8
TX (Transmission) report........................................................ 8-8
RX (Reception) report............................................................. 8-8
Multi TX/RX (Transaction) report............................................ 8-8
Clearing jams .............................................................. 9-1
Jams in the document tray ..................................................... 9-1
Jams in the multi-purpose tray ............................................... 9-2
Periodic cleaning ......................................................... 9-3
Cleaning the exterior of the fax............................................... 9-3
Cleaning the interior of the fax................................................ 9-3
Testing and cleaning the BJ cartridge print
head........................................................................................ 9-5
Replacing the BJ cartridge ..................................................... 9-6
Troubleshooting........................................................... 9-8
Paper feeding problems ......................................................... 9-8
Faxing problems ..................................................................... 9-9
Copying problems................................................................. 9-13
Telephone problems............................................................. 9-13
Print quality problems ........................................................... 9-14
General problems ................................................................. 9-14
LCD messages .......................................................... 9-15
In case of a power failure ........................................... 9-19
During a power failure .......................................................... 9-19
Memory clear report ............................................................. 9-19
Specifications.................................................................................................S-1
Index............................................................................................................... I-1
v
This equipment conforms with the essential requirements of EC Directive 1999/5/EC.
We declare that this product conforms with the EMC requirements of EC Directive 1999/
5/EC at nominal mains input 230V, 50Hz although the rated input of the product is 200V240V, 50/60Hz.
If you move to another EU country and are experiencing trouble, please call the Canon
Help Desk.
(For Europe Only)
Model Name
• H12263 (FAX-B140)
• H12261 (FAX-B120/B115)
Copyright
Copyright F 2002 by Canon Inc. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language
in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise,
without the prior written permission of Canon Inc.
Trademarks
Canon, UCanTalk, and BJ are registered trademarks. UHQ is a trademark of Canon Inc.
All other product and brand names are registered trademarks, trademarks or service marks of their
respective owners.
As an ENERGY STARH Partner, Canon Inc. has determined that these products meet
the ENERGY STARH guidelines for energy efficiency.
vi
Using this guide
This guide provides detailed information on how to set up, operate, maintain, and troubleshoot your fax.
Please read the list below to become familiar with the symbols, terms, and abbreviations used in this guide.
Cautions tell you how to avoid actions that could injure you or damage your fax. In order to use your
fax safely, always observe these cautions.
Caution
Note
Notes provide advice on using your fax more effectively, describe operating restrictions, and tell you how
to avoid minor difficulties. Reading these is recommended to make the most of your fax and its functions.
(see p. xx)
default
document
menu
3 and 4 buttons
transaction number
TX/RX NO.
TX
RX
TRANSMITTING OK
Indicates a page number that you can refer to for more information on the
topic of the previous sentence or paragraph.
A setting that remains in effect unless you change it.
The original sheet(s) of paper you send or receive with your fax.
A list of settings from which you select an item to set up or change. A
menu has a title which appears on the LCD.
Used to select an item in a menu. Press 4 to select the
next item, and press 3 to select the previous item.
When you send or receive a document, your fax automatically assigns the
document a unique transaction number. A transaction number is a fourdigit number that will help you keep track of documents you send and
receive.
TX/RX NO. is the abbreviation used for “transaction number.”
Denotes Transmission.
Denotes Reception.
LCD display. The contents of the LCD display may vary depending on the
current settings.
In addition, this guide uses brackets to identify the buttons you press when performing different functions:
[Stop].
Note
This guide contains information for three Canon models. Please note that the illustrations of the fax in this
guide may differ from your model. Instructions for specific models are labelled with the fax names.
Customer support
Your fax is designed with the latest technology to provide trouble-free operation. If you encounter a
problem with the fax’s operation, try to solve it by using the information in Chapter 9. If you cannot solve
the problem or if you think your fax needs servicing, contact your local authorised Canon dealer or the
Canon help line.
vii
Important safety instructions
Read these safety instructions thoroughly before using your fax.
Caution
Except as specifically described in this guide, do not attempt to service the fax yourself. Never
attempt to disassemble the fax: opening and removing its interior covers will expose you to
dangerous voltages and other risks. For all service, contact your local authorised Canon dealer or
the Canon help line.
K Handling and maintenance
•
•
•
•
Follow all warnings and instructions marked on the fax.
Do not subject the fax to strong physical shock or vibration.
Always unplug the fax before moving or cleaning it.
To avoid paper jams, never unplug the power cord, open the printer cover, or remove paper from the multipurpose tray while printing.
• When transporting the fax, leave the BJ cartridge installed in the cartridge holder and tape the cartridge
holder to the right side of the fax. This will prevent ink spilling inside the fax.
• Always lift the fax by its base as shown below. Never lift it by any of its attachments or covers.
• Do not push objects of any kind into the slots or openings on the fax as they may touch dangerous voltage
points or short out parts. This could result in fire or electric shock.
• Do not allow small objects (such as pins, paper clips, or staples) to fall into the fax. If something does fall
into the fax, unplug it immediately and contact your local authorised Canon dealer or the Canon help line.
• To avoid spillage in or around the fax, do not eat or drink near it. If you spill liquid or if any substance
falls into the fax, unplug the fax immediately and contact your local authorised Canon dealer or the Canon
help line.
• Keep the fax clean. Dust accumulation can prevent the fax from operating properly.
• Unplug the fax from the wall outlet and refer service to qualified personnel under the following
conditions:
– When the power cord or plug is damaged or frayed.
– If liquid has spilled into the fax.
– If the fax has been exposed to rain or water.
– If the fax does not operate normally when you have followed the instructions in this guide. Adjust only
those controls that are covered by the instructions in this guide. Improper adjustment of other controls
may result in damage and may require extensive work by a qualified technician to restore the product to
normal operation.
– If the fax has been dropped or the body has been damaged.
– If the fax exhibits a distinct change in performance, indicating a need for servicing.
viii
K Location
• Place the fax on a flat, stable, vibration-free surface.
• Place the fax in a cool, dry, clean, well ventilated place.
– Make sure the area is free from dust.
– Make sure the location is not affected by extreme temperature changes, and always stays between 10°
and 32.5°C.
– Make sure the area’s relative humidity is always between 20% and 85%.
• Keep the fax away from direct sunlight.
• Do not use the fax near water. Make sure that no wet or humid objects come into contact with the fax.
• Do not use or store the fax outdoors.
• Do not install the fax near devices that contain magnets or generate magnetic fields, such as speakers.
• Place the fax near a standard 200_240 V AC power outlet.
• To ensure reliable operation of the fax and to protect it from overheating, do not block the exhaust vent
and never block or cover any openings on the fax by placing it on a bed, sofa, rug, or other similar surface.
Do not place the fax in a cupboard or built-in installation, or near a radiator or other heat source unless
proper ventilation is provided. Install the fax approximately 10 cm away from walls and other equipment.
For the dimensions of the fax, see p. S-1.
• Do not stack boxes or furniture around the power outlet. Keep the area free so you can reach the outlet
quickly. If you notice anything unusual (smoke, strange odours, noises) around the fax, unplug it
immediately. Contact your local authorised Canon dealer or the Canon help line.
• Do not allow anything to rest on the power cord, and do not place the fax where the cord will be walked
on. Make sure the cord is not knotted or kinked.
K Power supply
• During electrical storms, disconnect the power cord from the power outlet. (Please note that any
documents stored in the fax’s memory will be deleted when you unplug the fax.)
• Whenever you unplug the fax, wait at least five seconds before you plug it in again.
• If dust accumulates around the plug of the power cord when it is connected to a power outlet, unplug the
fax and wipe the plug with a clean, dry cloth.
Caution
This product emits low level magnetic flux.
If you use a cardiac pacemaker and feel abnormalities, please move away from this product and
consult your doctor.
ix
x
