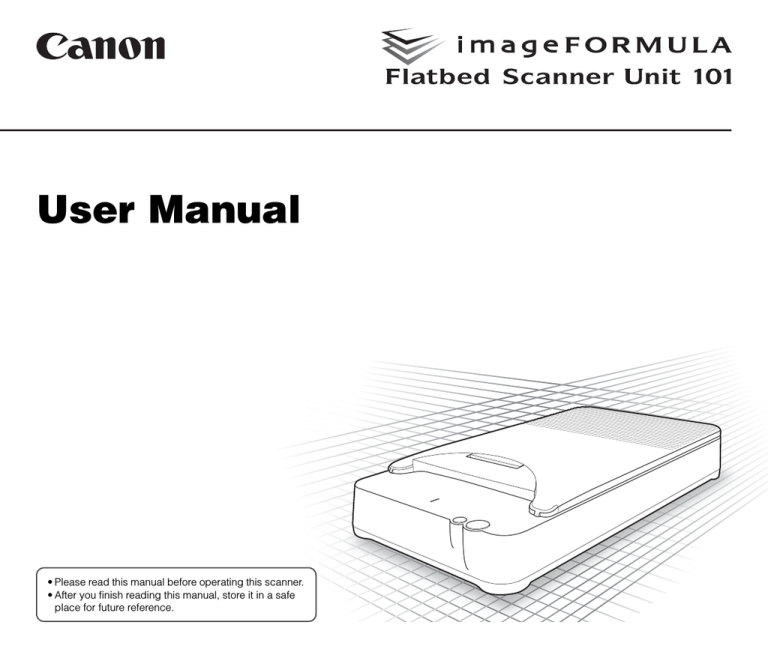

User Manual
• Please read this manual before operating this scanner.
• After you finish reading this manual, store it in a safe
place for future reference.
READ CAREFULLY BEFORE OPENING THE SEALED
DISK PACKAGE
2. BACK-UP COPY: You may make one copy of the SOFTWARE
solely for a back-up purpose or copy the SOFTWARE onto the
permanent storage device (e.g. a hard disk) of your computer and
retain the original for a back-up purpose. Except as expressly
permitted under the applicable law, any other copying of the
SOFTWARE is a violation of this Agreement. You must reproduce and
include the copyright notice on the back-up copy.
CANON SOFTWARE LICENSE AGREEMENT
IMPORTANT-READ THIS AGREEMENT BEFORE OPENING THE
SEALED DISK PACKAGE! BY OPENING THE SEALED DISK
PACKAGE, YOU ARE DEEMED TO AGREE TO BE BOUND BY
THIS AGREEMENT.
3. SUPPORT AND UPDATE: Canon, Canon’s affiliate, their
distributor or dealer is not responsible for maintaining or helping you
to use the SOFTWARE. No updates, fixes or support will be made
available for the SOFTWARE.
This legal document is a license agreement between you and CANON
ELECTRONICS INC. (“Canon”). BY OPENING THE SEALED DISK
PACKAGE, YOU ARE DEEMED TO AGREE TO BE BOUND BY THE
TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THE
TERMS OF THIS AGREEMENT, DO NOT OPEN THE SEALED DISK
PACKAGE AND PROMPTLY RETURN THE CANON SCANNER,
THE DISK PACKAGE CONTAINING SCANNER DRIVER
SOFTWARE PROGRAMS AND/OR SCANNER UTILITY
SOFTWARE PROGRAM PROPRIETARY TO CANON OR ITS
LICENSOR (THE “SOFTWARE”) AND THE ACCOMPANYING
DOCUMENTATION AND OTHER ITEMS TO THE PLACE WHERE
YOU OBTAINED THEM FOR A REFUND BEFORE THEY ARE
USED OR OPENED OR UNPACKED.
4. LIMITED WARRANTY AND DISCLAIMER OF INDEMNITY:
Canon, Canon’s affiliate, their distributor or dealer will not guarantee
uninterrupted service, or absence or correction of errors. Therefore,
the SOFTWARE is licensed on an “AS IS” basis without warranty of
any kind. The diskette on which the SOFTWARE is recorded is
warranted against defective material or workmanship under normal
use for a period of ninety (90) days from the date you purchased the
same as evidenced by a receipt or otherwise. The limited warranty
does not apply if the failure of the diskette resulted from accident,
abuse or misapplication of the SOFTWARE and shall not extend to
anyone other than the original user of the SOFTWARE.
In consideration of the right to use the SOFTWARE, you agree to
abide by the terms and conditions of this Agreement.
CANON, CANON’S AFFILIATE, THEIR DISTRIBUTOR OR DEALER
DISCLAIMS ALL IMPLIED WARRANTIES, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE
OR ACCOMPANYING DOCUMENTATION.
1. GRANT OF LICENSE: Canon grants you the personal, nonexclusive right to use the SOFTWARE only on a single computer. You
shall need to obtain multiple licenses separately from Canon when
you shall install the SOFTWARE on multiple computers.
NEITHER CANON, CANON’S AFFILIATE, THEIR DISTRIBUTOR
NOR DEALER IS LIABLE FOR ANY LOSS OR DAMAGE
INCLUDING CONSEQUENTIAL OR INCIDENTAL LOSS OR
DAMAGE SUCH AS LOSS OF PROFITS, EXPENSE OR
INCONVENIENCE, WHATSOEVER CAUSED BY OR ARISING OUT
OF THE SOFTWARE, ACCOMPANYING DOCUMENTATION OR
THE USE THEREOF.
You shall not assign, sublicense, sell, rent, lease, loan, convey or
transfer to any third party, or send or bring the SOFTWARE out of the
country where you originally obtain it to other countries without
required authorization of applicable governments, or copy, duplicate,
translate or convert to another programming language the
SOFTWARE or accompanying documentation, except as expressly
provided herein.
CANON, CANON’S AFFILIATE, THEIR DISTRIBUTOR OR DEALER
SHALL HAVE NO OBLIGATION TO INDEMNIFY YOU AGAINST
ANY CLAIM OR SUIT BROUGHT BY A THIRD PARTY ALLEGING
THAT THE SOFTWARE, ACCOMPANYING DOCUMENTATION OR
THE USE THEREOF INFRINGES ANY INTELLECTUAL PROPERTY
OF SUCH THIRD PARTY.
Except as expressly permitted under the applicable law, you shall not
alter, modify, disassemble, decompile or otherwise reverse engineer
the SOFTWARE or accompanying documentation and you also shall
not have any third party do so.
2
■ International ENERGY STAR® Office Equipment
Program
THE ABOVE IS CANON’S ENTIRE LIABILITY AND YOUR
EXCLUSIVE REMEDY IN CONNECTION WITH THE SOFTWARE
AND ACCOMPANYING DOCUMENTATION.
As an ENERGY STAR® Partner, Canon Electronics
Inc. has determined that this machine meets the
ENERGY STAR® Program guidelines for energy
efficiency.
The International ENERGY STAR® Office
Equipment Program is an international program that promotes
energy saving through the use of computers and other office
equipment.
The program backs the development and dissemination of
products with functions that effectively reduce energy
consumption. It is an open system in which business proprietors
can participate voluntarily. The targeted products are office
equipment, such as computers, monitors, printers, fax, machine,
copiers, and scanners. The standards and logos are uniform
among participating nations.
This model doesn’t provide setting options for power management.
5. TERM: This Agreement is effective upon opening the sealed disk
package and remains in effect until terminated. You may terminate
this Agreement by destroying the SOFTWARE and any copy thereof.
This Agreement will also terminate if you fail to comply with any of the
terms of this Agreement. In addition to Canon enforcing its respective
legal rights, you must then promptly destroy the SOFTWARE and any
copy thereof.
6. U.S. GOVERNMENT RESTRICTED RIGHTS NOTICE: The
SOFTWARE is provided with RESTRICTED RIGHTS. Use,
duplication or disclosure is subject to restrictions as set forth in either
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARs 252.227-7013 or subparagraph (c) (1) and
(2) of the Commercial Computer Software Restricted Rights Clause at
FAR 52.227-19, as applicable.
■ European Union (and EEA) only.
7. SEVERABILITY: In the event that provision of this Agreement is
declared or found to be illegal by any court or tribunal of competent
jurisdiction, such provision shall be null and void with respect to the
jurisdiction of that court or tribunal and all the remaining provisions of
this Agreement shall remain in full force and effect.
This symbol indicates that this product is not to be
disposed of with your household waste, according to the
WEEE Directive (2002/96/EC) and your national law.
This product should be handed over to a designated
collection point, e.g., on an authorized one-for-one
basis when you buy a new similar product or to an
authorized collection site for recycling waste electrical and
electronic equipment (EEE). Improper handling of this type of
waste could have a possible negative impact on the environment
and human health due to potentially hazardous substances that
are generally associated with EEE. At the same time, your
cooperation in the correct disposal of this product will contribute to
the effective usage of natural resources. For more information
about where you can drop off your waste equipment for recycling,
please contact your local city office, waste authority, approved
WEEE scheme or your household waste disposal service. For
more information regarding return and recycling of WEEE
products, please visit www.canon-europe.com.
(EEA: Norway, Iceland and Liechtenstein)
8. ACKNOWLEDGEMENT: BY OPENING THE SEALED DISK
PACKAGE, YOU ACKNOWLEDGE THAT YOU HAVE READ THIS
AGREEMENT, UNDERSTOOD IT, AND AGREE TO BE BOUND BY
ITS TERMS AND CONDITIONS. YOU ALSO AGREE THAT THIS
AGREEMENT IS THE COMPLETE AND EXCLUSIVE STATEMENT
OF AGREEMENT BETWEEN YOU AND CANON CONCERNING
THE SUBJECT MATTER HEREOF AND SUPERSEDES ALL
PROPOSALS OR PRIOR AGREEMENTS, VERBAL OR WRITTEN,
AND ANY OTHER COMMUNICATIONS BETWEEN YOU AND
CANON RELATING TO THE SUBJECT MATTER HEREOF. NO
AMENDMENT TO THIS AGREEMENT SHALL BE EFFECTIVE
UNLESS SIGNED BY A DULY AUTHORIZED REPRESENTATIVE
OF CANON.
Should you have any questions concerning this Agreement, or if you
desire to contact Canon for any reason, please write to Canon’s local
affiliate.
3
■ Trademarks
IF YOU INTEND TO DISCARD THE ORIGINALS OF SCANNED
DOCUMENTS, YOU THE CUSTOMER ARE RESPONSIBLE
FOR INSPECTING THE SCANNED IMAGES AND VERIFYING
THAT DATA IS INTACT.
THE MAXIMUM LIABILITY OF CANON ELECTRONICS INC.
UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE
PRICE OF THE PRODUCT COVERED BY THE WARRANTY.
• Canon and the Canon logo are registered trademarks of Canon
Inc. in the United States and may also be trademarks or
registered trademarks in other countries.
• Microsoft, Windows, and Windows Vista are registered
trademarks of Microsoft Corporation in the United States and
other countries.
• ISIS is a registered trademark of Emc Corporation in the United
States.
• Intel and Pentium are registered trademarks of Intel Corporation.
• ENERGY STAR® is a registered trademark of the United States
Environmental Protection Agency.
• Adobe is the registered trademark of Adobe Systems
Incorporated in the United States and/or other countries.
• imageFORMULA is a trademark of CANON ELECTRONICS
INC.
• Other product and company names herein may be the
trademarks of their respective owners.
■ FCC REGULATIONS (For 120 V model)
Document Scanner, Model M181011
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment OFF and ON, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Use of shielded cable is required to comply with Class B limits in
Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment
unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success NY 11042, U.S.A.
Tel. No. (516)328-5000
■ Copyright
Copyright 2010 by CANON ELECTRONICS INC. All rights
reserved.
No part of this publication may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including
photocopying and recording, or by any information storage or
retrieval system without the prior written permission of CANON
ELECTRONICS INC.
■ Disclaimers
The information in this document is subject to change without
notice.
CANON ELECTRONICS INC. MAKES NO WARRANTY OF ANY
KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS
OR IMPLIED, EXPECT AS PROVIDED HEREIN, INCLUDING
WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO
MARKETABILITY, MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT.
CANON ELECTRONICS INC. SHALL NOT BE LIABLE FOR ANY
DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
THE USE OF THIS MATERIAL.
CANON ELECTRONICS INC. IS NOT LIABLE FOR THE
STORAGE AND HANDLING OF DOCUMENTS SCANNED WITH
THIS PRODUCT, OR THE STORAGE AND HANDLING OF
RESULTING SCANNED IMAGE DATA.
4
■ RADIO INTERFERENCE REGULATIONS (For 120 V
models)
Table of Contents
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Industry Canada.
Setup Guide..........................................................................6
Introduction........................................................................10
Symbols Used in This Manual................................................... 10
Important Safety Instructions ...........................................11
■ RÈGLEMENT SUR LE BROUILLAGE
RADIOÉLECTRIQUE (For 120 V models)
Installation Location...................................................................
AC Adapter................................................................................
Moving the Flatbed....................................................................
Handling ....................................................................................
Disposal.....................................................................................
When Sending the Flatbed for Repairs .....................................
Cet appareil numérique respecte les limites de bruits
radioélectriques applicables aux appareils numériques de Classe
B prescrites dans la norme sur le matériel brouilleur: “Appareils
Numériques”, NMB-003 édictée par l’Industrie Canada.
■ MODEL NAMES
11
11
12
12
13
13
Features............................................................................. 13
Names and Functions of Parts .........................................14
Documents .........................................................................15
The following names may be provided for the safety regulations in
each sales region of the document scanner.
Model Flatbed Scanner Unit 101 is identical to model M181011.
Model Flatbed Scanner Unit 101 is the sales name of model
M181011.
Placing Documents ................................................................... 15
Scanning Methods.............................................................16
Feeder Scanning ....................................................................... 16
Limitations ................................................................................. 16
Supported Functions ................................................................. 16
Scanning with Job Functions/CaptureOnTouch ............18
Scanning with Job Functions..................................................... 18
Scanning with CaptureOnTouch ............................................... 18
Scanning with CapturePerfect..........................................19
Other Methods for Scanning ............................................24
Changing the Feeding Option for Scanning .............................. 24
Using Two Scanners ................................................................. 26
Troubleshooting ................................................................27
Common Problems and Solutions ............................................. 27
Appendix ............................................................................28
Routine Cleaning....................................................................... 28
Specifications ............................................................................ 29
External Dimensions Diagram ......................................... 30
Copyright © 2010 CANON ELECTRONICS INC. ALL RIGHTS RESERVED
5
Setup Guide
Please read first.
Checking the Accessories
If any of the items listed below are missing or damaged, contact your local authorized
Canon dealer or service representative.
Flatbed Scanner
Unit 101
USB Cable
Type A/Type B
(Length: 1.8 m) (2)
AC Adapter/Power Cord*
(Connected length: 2.6 m)
• Items included in this manual are subject to change
without notice.
• You must keep the machine’s packaging and packing
materials for storing or transporting the machine.
User Manual
(This Document)
Registration Card
(U.S.A and
Canada only)
* The shape of the power plug varies by country and region.
Removing the Protective Material
Remove the flatbed from the box, and remove the orange tape and protective sheets (▼) from the flatbed.
Releasing the Lock Switch
The flatbed is shipped with the internal
scanning unit locked into place. Before using
the flatbed, set the lock switch on the underside
of the flatbed to the
position to release the
scanning unit.
Lock Switch
6
Warranty Card
(U.S.A and
Canada only)
Setup Disc
Installing the Software
Before Installation
If you connect a scanner and turn it
ON before you install the software,
the following wizard screen will
appear. If this wizard is displayed,
click the [Cancel] button to exit the
wizard, and turn the scanner OFF.
● Do not connect the scanners to the computer before
installing the software.
● Log on to Windows as an Administrator.
● Close all other applications before installing the
software.
● Make sure that the driver for the connected Canon
DR-series document scanner is already installed.
1
Insert the Setup Disc into the computer’s
CD-ROM drive.
The setup menu automatically starts up when
you insert the CD-ROM into the drive. (If the
menu does not start up, execute setup.exe
from the CD-ROM.)
3
Click [Install].
For Windows Vista
If the following screen appears, enter
the current administrator password and
click [OK].
4
Follow the instructions on the
screen to complete the installation.
7
2
Click [Typical Installation].
5
Click [Exit] to close the
setup menu.
Connecting the Scanners to a Computer
For scanners that use an AC adapter (DR-2010C, DR-2510C, DR-3010C)
When connecting the flatbed and the Canon DR-series
scanner, do not use the USB cable supplied with the
DR-series scanner. Instead, use the two USB cables
supplied with the flatbed.
For scanners that do not use an AC adapter (DR-4010C, DR-6010C, DR-6050C, DR-7550C, DR-9050C)
If you own multiple Canon DR-series scanners
If you own multiple Canon DR-series scanners, with the exception of the Canon DR-series scanner connected to the flatbed, do not connect any
other scanners to the computer, regardless of compatibility. Proper functioning is not guaranteed if multiple scanners are connected.
8
Connecting the Scanners to a Power Supply
Turning the Scanners ON
Turn ON the flatbed first, and then turn ON the Canon DR-series scanner.
This completes the setup.
9
Introduction
Thank you for purchasing the Canon imageFORMULA Flatbed
Scanner Unit 101. Please read this manual thoroughly before using
the scanner to familiarize yourself with its capabilities, and to make the
most of its many functions. After reading this manual, store it in a safe
place for future reference.
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures,
restrictions, handling precautions, and instructions that should be
observed for safety.
NOTE
WARNING
An electronic version of this manual is installed to the following
location as a PDF (Portable Documents Format) file during software
installation from the setup disc.
Indicates a warning concerning operations that may lead to death or
injury to persons if not performed correctly. To use the machine safely,
always pay attention to these warnings.
CAUTION
Indicates a caution concerning operations that may lead to injury to
persons, or damage to property if not performed correctly. To use the
machine safely, always pay attention to these cautions.
IMPORTANT
Indicates operational requirements and restrictions. Be sure to read
these items carefully to operate the machine correctly, and avoid
damage to the machine.
NOTE
Indicates a clarification of an operation, or contains additional
explanations for a procedure. Reading these notes is highly
recommended.
10
Important Safety Instructions
● Avoid exposing the flatbed to rapid changes in temperature. If the
room in which the flatbed is installed is cold but rapidly heated,
water droplets (condensation) may form inside the flatbed. This
may result in a noticeable degradation in scanning quality.
● The following conditions are recommended for optimal scanning
quality:
Room temperature: 50 °F to 90.5 °F (10 °C to 32.5 °C)
Humidity: 20% to 80% RH
● Avoid installing the flatbed near equipment that generates a
magnetic field (e.g., speakers, televisions, or radios.)
To ensure the safe operation of this flatbed, make sure to read the
safety warnings and precautions described below.
Installation Location
The performance of this flatbed is affected by the environment in
which it is installed. Make sure that the location where the flatbed is
installed meets the following environmental requirements.
● Provide adequate space around the flatbed for operation,
maintenance, and ventilation.
AC Adapter
6.7" (170 mm)
6.7" (170 mm)
● Connect the AC adapter only to a power outlet of the rated voltage
and power supply frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz
depending on your region).
● Do not connect other electrical equipment to the same power outlet
to which the flatbed is connected. Also, if you use an extension
cord, make sure that the extension cord is rated for the current
requirements of the flatbed.
● Never disassemble or modify the AC adapter, as this is dangerous.
● The power cord may become damaged if it is often stepped on or if
heavy objects are placed on it. Continued use of a damaged power
cord and AC adapter may lead to an accident, such as a fire or
electrical shock.
● Do not use the power cord while it is coiled.
● Do not pull directly on the power cord. When disconnecting the
power cord, grasp the power plug and remove it from the power
outlet.
● Keep the area around the power cord clear of objects so that the
power cord can be disconnected easily in an emergency.
● Do not use an AC adapter other than the one provided with the
flatbed. Do not use the AC adapter provided with the flatbed with
other products.
● If you have any questions regarding the power supply, contact your
local authorized Canon dealer or service representative for further
information.
6.7" (170 mm)
● Avoid installing the flatbed in direct sunlight. If this is unavoidable,
use curtains to shade the flatbed.
● Avoid locations with excessive dust. Dust can have negative effects
on the inner parts of the flatbed.
● Avoid warm or humid locations, such as in the vicinity of a water
faucet, water heater, or humidifier.
● Avoid locations where ammonia gas is emitted.
● Avoid locations near volatile or flammable chemicals, such as
alcohol or paint thinner.
● Avoid locations that are subject to vibration.
11
■ Never disassemble or modify the AC adapter, as this is dangerous.
■ When cleaning the flatbed, turn the power switch OFF and
disconnect the power cord from the power supply.
■ Clean the flatbed using a slightly dampened cloth that has been well
wrung out. Never use alcohol, benzene, paint thinner, or any other
flammable substances.
■ Disconnect the power cord from the power outlet regularly, and
clean the area around the base of the power plug’s metal pins and
the power outlet with a dry cloth to ensure that all dust and grime is
removed. If the power cord is connected for a long period of time in
a damp, dusty, or smoky location, dust can build up around the
power plug and become damp. This may cause a short circuit and
result in a fire.
■ If the flatbed makes strange noises, or gives off smoke, heat or
strange odors, or the flatbed does not function or other
abnormalities occur when you use the flatbed, immediately turn the
power switch OFF and disconnect the power plug from the power
outlet. Then, contact your local authorized Canon dealer or service
representative for further information.
■ Do not drop the flatbed, or subject it to impact or strong shock.
Should the flatbed ever become damaged, immediately turn the
power switch OFF, and disconnect the power plug from the power
outlet. Then, contact your local authorized Canon dealer or service
representative to have the unit serviced.
■ Before moving the flatbed, be sure to turn the power switch OFF,
and disconnect the power plug from the power outlet.
Moving the Flatbed
● If you move the flatbed, make sure to first set the lock switch on the
underside of the flatbed to the
position to lock the scanning unit
into place. Make sure to carry the flatbed it with both hands so as
not to drop it. The flatbed weighs approximately 7.7 lb. (3.5 kg).
Lock Switch
● Before you use the flatbed, make sure to set the lock switch on the
underside of the flatbed to the
position to release the scanning
unit.
● Make sure to disconnect the interface cable and AC adapter before
you move the flatbed. If the flatbed is transported with these items
connected, the plugs and connectors may be damaged, or cause
the flatbed to fall and result in personal injury or damage to the
flatbed.
Handling
CAUTION
■ Do not install the flatbed on a surface that is unstable, tilted, or
subject to excessive vibrations. Doing so may cause the flatbed to
fall, resulting in personal injury or damage to the flatbed.
■ Never place small metal objects, such as staples, paper clips, or
jewelry on the flatbed. These items may fall into the flatbed, and
cause a fire or electric shock. If such objects ever fall inside the
flatbed, immediately turn the power switch OFF, and disconnect the
power plug from the power outlet. Then, contact your local
authorized Canon dealer or service representative to have the unit
serviced.
■ Do not install the flatbed in a humid or dusty location. Doing so may
cause a fire or electric shock.
■ Do not place objects on top of the flatbed, as these objects may tip
or fall over, resulting in personal injury.
WARNING
■ Never use alcohol, benzene, paint thinner, aerosol sprays, or any
other flammable substance near the flatbed.
■ Do not cut, damage, or modify the power cord. Do not place heavy
objects on the power cord, and do not pull or excessively bend the
power cord.
■ Never connect the power cord when your hands are wet.
■ Do not connect the flatbed to a multiplug power strip.
■ Do not knot or coil the power cord, as this may result in a fire or
electric shock. When connecting the power cord, make sure that the
power plug is securely and completely inserted into the power
outlet.
■ Do not use a power cord or AC adapter other than the ones
provided with this flatbed.
■ Do not take the flatbed apart or modify it.
12
■ Connect the AC adapter only to a power outlet of the rated voltage
and power supply frequency (120 V, 60 Hz or 220-240 V, 50/60 Hz
depending on your region).
■ When unplugging the power cord, grasp it firmly by its power plug.
Do not pull directly on the power cord, as this may damage or
expose the cord’s internal wiring, resulting in a fire or electric shock.
■ Leave sufficient space around the power plug so that it can be
disconnected easily. If objects are placed around the power plug,
you will be unable to disconnect it in an emergency.
■ Do not allow water or flammable substances (alcohol, paint thinner,
benzene, etc.) to spill onto the flatbed, as this may result in a fire or
electric shock.
■ Turn OFF the power switch for safety when not using the flatbed for
a long period of time, such as overnight. Also, turn OFF the power
switch, and disconnect the power cord from the power outlet for
safety when the machine will not be used for an extended period of
time, such as during consecutive holidays.
■ Open and close the document cover gently. Failure to do so may
result in a malfunction or personal injury.
■ Be careful when closing the document cover to avoid pinching your
hands. Failure to do so may result in personal injury.
■ Do not press down hard on the document cover. Doing so may
result in damage to the glass, a malfunction, or personal injury.
■ Never place any object other than documents to be scanned onto
the scanning glass. Doing so may result in a malfunction or
personal injury.
■ When using the flatbed in cold temperatures, wait a few moments
after turning the power switch ON. Failure to do so may result in a
condensation error.
Features
The Flatbed Scanner Unit 101 is intended to be used in combination
with the Canon DR-series document scanners. The flatbed cannot
operate as a stand-alone unit
The main features of the flatbed are described below.
● Supports a Variety of Document Types
Connect the flatbed scanner unit to a Canon DR-series scanner to
enable flatbed scanning. The flatbed allows you to scan books,
magazines, thin document sheets, and a variety of other documents
that cannot be scanned using a feeder.
● High Image Quality
The flatbed enables high-quality 1,200 dpi scanning in 24-bit color,
grayscale, and black and white scanning modes.
● Document Cover Designed for Continuous Scanning
The folding document cover is designed to improve efficiency when
scanning by allowing you to replace documents without having to
open and close the cover for each document.
● Easy Scanning with One Button Touch
Press the start button to start job functions or the CaptureOnTouch
scanning application, and begin scanning the document placed on
the flatbed.
● Seamless Dual-Scanner Operation
Use two scanners to create a single scanned image from a single
scan procedure.
Disposal
● Supports Legal Page Size
Scan documents as large as legal-size documents.
When disposing the flatbed or AC adapter, make sure to follow the
local ordinances and laws or consult with your local authorized Canon
dealer or service representative.
NOTE
The flatbed does not support all of the scanning options available on
the connected Canon DR-series scanner. (See “Supported
Functions” on p. 16.)
When Sending the Flatbed for Repairs
If you need to send the flatbed out for repairs, use the packing box in
which it came. Firmly secure the flatbed with packaging material when
you place it in the packing box.
13
Names and Functions of Parts
A Document Cover
Close this to keep documents in place while scanning.
You can fold this cover for easy document placement during
continuous scanning of multiple small documents.
B Scanning Glass
C Power Indicator
This lights when the flatbed is turned ON and flashes when
scanning is in progress.
D Stop Button
Press this button to stop scan procedures in progress.
E Start Button
Press this button to start scanning the document placed on the
scanning glass.
F Lock Switch
Use this to lock the internal scanning unit into place.
G Power Switch
Use this to turn the flatbed ON and OFF.
H USB Connector (Type B)
Use this connector to connect the flatbed to a scanner that uses an
AC adapter.
This connector is not used when a scanner that does not use an
AC adapter is used.
I USB Connector (Type A)
Use this connector to connect the flatbed to a computer.
J Power Connector
Connect the provided AC adapter here.
14
Documents
When Scanning with the Document
Cover Folded
The flatbed can scan documents ranging from 8.5" (216 mm) to 14.0"
(356 mm) in size.
The document cover can be set to two positions when folded. Each
position exposes an A5R or LTR/A4 size area, respectively, on the
scanning glass, enabling easy document placement during
continuous scanning of multiple documents.
Placing Documents
Open the document cover, and place the document on the scanning
glass, as shown below, with the scanning side facing down. Make sure
the bottom right corner of the scanning side is aligned with the bottom
left corner of the scanning glass. Close the document cover.
Adjust the document cover into one of the three positions based on the
size of the document placed on the scanning glass.
A5R Document
Position
LTR/A4 Document
Position
Legal-Size Document
Position
IMPORTANT
• Do not place objects other than the document to be scanned onto
the scanning glass. Doing so may result in damage or personal
injury.
• Open and close the document cover gently. Excessive force may
result in damage to the cover or breaking the scanning glass and
personal injury.
• Depending on your scanning application, you may have to align the
top left corner of the document with the top right corner of the
scanning glass when placing the document.
• You cannot scan film.
• Make sure to straighten wrinkled or curled documents before
placing them on the flatbed, and gently press down on the
document cover while scanning is in progress.
IMPORTANT
Be careful when folding the document cover to avoid pinching your
hands.
NOTE
Make sure to click the [Ambient Light Canceling Mode] check box
under <Scanning Side> on the driver settings screen when you scan
with the document cover folded. (See “Scanner Settings” on p. 22.)
15
Scanning Methods
When the flatbed scanner unit is connected to a scanner and
computer, you can select one of the following methods to scan
documents, based on the document type and intended purpose.
Flatbed
Scanning
Limitations
• To use the flatbed, you must install the software included on the
provided setup disc. (See the Setup Guide page insert of this
document.)
• The software that operates the connected Canon DR-series scanner
(ISIS/TWAIN driver) must also be installed.
• The flatbed cannot operate as a stand-alone unit. A Canon
DR-series scanner must be connected.
• Both the flatbed and the connected Canon DR-series scanner must
be turned ON to scan using the flatbed. If the flatbed is turned ON
but the Canon DR-series scanner is turned OFF, you cannot scan
documents using the flatbed. However, you can scan documents
using the Canon DR-series scanner while it is turned ON, even if the
flatbed is turned OFF.
• When the conditions for scanning require a large amount of the
computer’s memory, scanning may not be possible if the memory is
insufficient. If a memory error appears during scanning, exit the
application and change the scanning conditions before attempting to
scan again.
Feeder
Scanning
Flatbed Scanning
You can use the flatbed to scan documents one sheet at a time, single
page documents, or documents that cannot be scanned using the
feeder.
When you place the document on the scanning glass and press the
start button, the job functions supported by the flatbed or
CaptureOnTouch starts, and document scanning begins
automatically.
You can also use scanning applications such as CapturePerfect, to
specify advanced scanning conditions before scanning.
Supported Functions
To scan using the functions supported by the flatbed, the connected
Canon DR-series scanner must also support the functions used.
Support
Feeder Scanning
Use the feeder on a connected Canon DR-series scanner to perform
operations such as multipage document scanning. When scanning
with this method, the operations on the connected Canon DR-series
scanner are the same as those during stand-alone use. For details on
feeder scanning, refer to the User Manual of the connected Canon
DR-series scanner.
Supported by
the Flatbed
16
Function
• Detect Page size
• Auto Color Detection
• Advanced Text
Enhancement II
• Document Orientation
• Punch Hole Removal
• Gamma Correction
• Panel-Feeding
• MultiStream
• Text Orientation
Recognition
•
•
•
•
•
Deskew
Moire Reduction
Edge emphasis
Border Removal
Prevent Bleed
Through / Remove
Background
• Color drop-out / color
enhance
• Barcodes
Support
Not
Supported by
the Flatbed
Function
•
•
•
•
•
•
•
•
•
Duplex scanning
Folio
Reverse side
Staple Detection
Manual Feeding
Verify Count
Addon
Batch Separation
Hi-Speed Text
Enhancement
• Drop-out color custom
• JPEG Transfer
• Advanced Text
Enhancement
• Skip Blank Page
• Back-side settings
• Double Feed Detection
• Imprinter
• Patchcode
• Speed priority
• Auto brightness
• Custom color enhance
• Rapid recovery system
• Prescan
• Margin
NOTE
• When using the Canon DR-series scanner to scan documents, all of
its supported functions will be available.
• The above functions may change as newer Canon DR-series
scanners are released.
17
Scanning with Job Functions/CaptureOnTouch
3
Scanning with Job Functions
Press the start button on the flatbed.
By using Job Registration Tool or the job function in CaptureOnTouch,
you can register scanning conditions as jobs. Registered jobs can be
executed by pressing the start button on the flatbed.
The following software supplied with Canon DR-series scanners is
required to use the job function.
Canon DR-Series Scanner
Required Software
DR-2010C, DR-2510C,
DR-3010C
CaptureOnTouch
DR-6010C, DR-6050C,
DR-9050C
Job Registration Tool
Start Button
The job function or CaptureOnTouch starts, and the document
placed on the flatbed is scanned automatically.
IMPORTANT
IMPORTANT
• If you connect the flatbed to a Canon DR-series scanner that you
have been using since before the flatbed was purchased, make
sure to download the latest version of the above software from the
Canon support Web site (http://www.canon.com).
• For details on compatibility with newer models that are not listed
above, contact your local authorized Canon dealer.
1
Do not move the document placed on the scanning glass while
the power indicator is flashing and scanning is in progress.
NOTE
Registered jobs can also be assigned to the buttons on the
connected Canon DR-series scanner (start button or job buttons,
depending on the scanner model).
Register a job.
Start Job Registration Tool or CaptureOnTouch, and register a
job. For details, refer to the Help for Job Registration Tool or
CaptureOnTouch.
2
Scanning with CaptureOnTouch
You can scan documents placed on the flatbed using the software for
the connected scanner, CaptureOnTouch.
Scan First is assigned to the start button on both the flatbed and the
connected Canon DR-series scanner. You can start a scan procedure
by pressing the start button on the scanner in which the document is
placed.
Other operations for scanning are the same as those during standalone use of the Canon DR-series scanner. For details, refer to the
User Manual of the connected Canon DR-series scanner.
Place the document (See p. 15).
18
Scanning with CapturePerfect
You can use the CapturePerfect software provided with the connected
Canon DR-series scanner to specify the scanning conditions and
saving options before scanning.
The following describes how to scan documents with CapturePerfect
using the [Scan Batch to File] setting. When you use this scanning
method, documents that are scanned one sheet at a time on the
flatbed are saved to the same image file.
CapturePerfect starts.
NOTE
For details on how to scan using other methods, refer to the
CapturePerfect 3.0 Operation Guide.
1
From the Windows Taskbar, click [Start] and select [All
Programs], [CapturePerfect 3.0], and [CapturePerfect
3.0].
2
Select [Select Scanner] from the [Scan] menu.
The [Select Scanner] dialog box appears.
19
3
6
Select the scanner you are using (the name of the
connected Canon DR-series scanner should be followed
by “w/flatbed”), and click [Settings].
Click [Scanner Setting], and configure the scanner
settings.
The [Configure Device Settings] dialog box appears.
IMPORTANT
If the flatbed and the Canon DR-series scanner are connected
properly, “w/flatbed” should appear after the scanner name. If
only the scanner name appears, try reinstalling the software
included on the setup disc provided with the flatbed.
4
5
Click [OK] to finish scanner selection.
Select [Scan Batch to File] from the [Scan] menu.
The properties dialog box for the scanner driver appears.
The [Scan Batch to File Setting] dialog box appears.
20
7
11 Place the documents to be scanned, and click [Save] to
Configure the [Main Scanner/Flatbed] setting.
start scanning.
Select [Flatbed] if the document is placed on the flatbed, and
select [Main Scanner] if the document is placed in the Canon
DR-series scanner. If you select [Auto], the scanner in which the
document is placed is detected automatically.
8
IMPORTANT
• The method for placing documents differs, depending on the
[Feeding Option] setting. For details, see “Changing the
Feeding Option for Scanning” on p. 24.
• Do not move the document placed on the scanning glass while
the power indicator is flashing and scanning is in progress.
Configure the Canon DR-series scanner’s settings if
necessary.
Click the [More] button to open the settings dialog box for the
Canon DR-series scanner. When you finish configuring settings,
click [OK] to close the dialog box.
For details on each setting, refer to the Help.
12 When the [Continue Scanning] dialog box appears, check
whether a document is placed, and click [Continue
Scanning] or [Stop Scanning].
NOTE
If [Use Continue Scanning dialog] is not selected from the [Scan]
menu, scanning finishes without displaying the [Continue
Scanning] dialog box.
9
Configure the scanning conditions.
For details on settings, see “Scanner Settings” on p. 22.
10 Specify the file name and format for the image file to be
saved.
For details on other settings in the [Scan Batch to File Setting]
dialog box, refer to the CapturePerfect 3.0 Operation Guide.
21
Scanner Settings
13 When scanning is complete, select [Exit] from the [File]
When you open the settings dialog box for your scanner while the
flatbed is connected, you can configure scan conditions with the
following settings.
menu to exit CapturePerfect.
IMPORTANT
Make sure to configure the [Main Scanner/Flatbed] setting first. The
settings in the scanner settings dialog box are saved separately for
each selection option of the [Main Scanner/Flatbed] setting. If you
change the [Main Scanner/Flatbed] option midway through
configurations, any settings configured before the change will be
disabled.
[User Preference]
Enter a name and click [Save]. You can recall the name and its
configurations in the settings dialog box, whenever necessary.
[Main Scanner/Flatbed]
Select [Flatbed] to scan the document placed on the flatbed. Select
[Main Scanner] to scan documents placed in the feeder of the
connected Canon DR-series scanner.
If you select [Auto], the scanner in which the document is placed is
detected automatically.
For details, see “Using Two Scanners” on p. 26.
22
[Mode]
[More]
Select the scanning mode.
Click this to display the settings dialog box for the connected Canon
DR-series scanner, and configure advanced scan conditions. For
details on settings, refer to the Help for the ISIS/TWAIN driver.
[Page Size]
Select the page size of the document to be scanned.
If you select [Auto-detection], the document size is detected
automatically. The [Settings] button is also enabled with this selection.
Click the button to open a dialog box for specifying the detection area
based on the size of the document to be scanned (All Area, A4 area,
A5R area).
[Default]
Return all configurations in the settings dialog box to their default
values.
[Dots per inch]
Specify the scanning resolution.
[Brightness]
Adjust the brightness of scanned images.
[Contrast]
Adjust the contrast of scanned images.
[Scanning Side]
When scanning documents placed in the feeder of the connected
Canon DR-series scanner, select which sides of a document to scan.
[Deskew]
Click to ensure that if a document is scanned at an angle, the slant is
detected and straightened out in the scanned image.
[Ambient Light Canceling Mode]
Click to ensure that if you are scanning documents on the flatbed with
the document cover open, light that enters from the edges of the
document is removed in the scanned images. Depending on the
nature of the ambient light and other scanning condition settings, the
ambient light may not be completely removed.
This setting is only available when [Page Size] is set to A4 or smaller.
If you enable [Ambient Light Canceling Mode] while [Page Size] is set
to [Auto-detection] and the size detection area is set to [All Area], the
size detection area setting will change to [A4 area] automatically.
[Area]
Click this to display a dialog box for specifying the area of the
document to scan.
23
Other Methods for Scanning
Configuring the Feeding Option
This section describes the various scanning options.
This section describes how to set [Feeding Option] to [PanelFeeding].
Changing the Feeding Option for
Scanning
1
Changing the feeding option setting in the scanner settings dialog box
can be helpful when scanning multipage documents.
The following three feeding options are available:
● [Standard Feeding]
This is the standard feeding method. The scanning operation ends
when the documents placed in either scanner finish scanning.
● [Panel-Feeding]
When the documents placed in either scanner finish scanning, the
scanner enters a standby state and waits for additional documents
to be placed. When you place additional documents and press the
Start button, scanning continues.
● [Automatic Feeding]
When additional documents are placed after a document finishes
feeding, the scanner automatically detects these documents and
continues scanning.
This feeding option only applies to documents placed in the feeder
of the connected Canon DR-series scanner. Documents placed on
the flatbed are not detected automatically.
Open the scanner settings dialog box from your
application.
When using CapturePerfect, for example, select [Scanner Setting]
from the [Scan] menu. For details on how to open the settings
dialog box from other applications, refer to the operation manual
of the application.
2
Configure the [Main Scanner/Flatbed] setting.
If the document is placed in the feeder of the connected Canon
DR-series scanner, select [Main Scanner]. If you plan to switch
between using the feeder and flatbed for scanning, select [Auto].
24
3
5
6
7
8
Click the [More] button to open the settings dialog box for
the Canon DR-series scanner.
9
4
Set [Feeding Option] to [Panel-Feeding].
Click [OK] to close the settings screen.
Click [OK] to close the scanner settings dialog box.
Place the document in the scanner, and start the scan
procedure from the application.
Press the start button on the scanner in which the
document is placed.
If the document is placed in the Canon DR-series scanner,
pressing the start button on the scanner will start the scan
procedure.
If the document is placed on the flatbed, pressing the start button
on the flatbed will start the scan procedure.
When the document finishes scanning, the scanner waits for the
next document to be placed.
Click the [Others] tab.
10 Place the next document to be scanned.
If you selected [Auto] for [Main Scanner/Flatbed] in step 2, you
can place the document in either the feeder or the flatbed to
continue scanning.
11 Repeat steps 9 and 10 until all documents are scanned.
12 Press the start button on the scanner when all documents
have been scanned.
This completes the scan procedure.
25
Using Two Scanners
Setting [Main Scanner/Flatbed] to [Auto] in the scanner settings dialog
box makes it easy to scan certain types of documents with one
scanner or the other, or scan using a combination both scanners.
Example 1: Scan using the appropriate scanner for each
scan operation
By configuring the following settings, you can scan documents suited
for the flatbed (e.g., a single page of a book) or documents suited for
the connected Canon DR-series scanner (e.g., one or more document
sheets), without having to specify the scanner.
[Main Scanner/Flatbed]: [Auto]
[Feeding Option]:
[Standard]
Example 2: Scan different document types to a single
image file
By configuring the following settings, you can scan multiple
documents of different types (e.g., multiple pages of a book and
multiple document sheets) to a single file.
[Main Scanner/Flatbed]: [Auto]
[Feeding Option]:
[Panel-Feeding]
For example, perform the following to scan a multipage application
form and a passport.
(1) Start the scan procedure from the application.
(2) Place the application form in the Canon DR-series scanner, and
press the start button on the DR-series scanner.
(3) When the application form is scanned, place the passport on the
flatbed, and press the start button on the flatbed.
(4) When you are finished scanning, press the stop button on the
flatbed or DR-series scanner.
26
Troubleshooting
Problem 4
Common Problems and Solutions
This section provides recommended solutions to common problems.
If you have a problem that is not solved by the following, contact your
local authorized Canon dealer.
Problem 1
Solutions
Problem 2
Solutions
Problem 3
Solution
Solution
The flatbed will not turn ON.
(1) Confirm that the power switch is set correctly.
(2) Confirm that the AC adapter is plugged firmly into a
power outlet.
The flatbed is not recognized.
(1) Confirm that the flatbed is properly connected to the
computer with a USB cable.
(2) Confirm that the scanners (both the flatbed and the
connected Canon DR-series scanner) are turned
ON. If the flatbed is turned ON but the Canon
DR-series scanner is turned OFF, the flatbed will not
operate. See Problem 1 if the scanner does not turn
ON.
(3) The computer’s USB interface may not support the
flatbed. The flatbed cannot be guaranteed to work
with all USB interfaces.
(4) Confirm that the supplied USB cable is used to
connect the flatbed to the computer. The flatbed
cannot be guaranteed to work with all available USB
cables.
(5) If the flatbed is connected to the computer via a USB
hub, try removing the hub and connecting the flatbed
directly to the computer.
White lines or streaks appear in scanned images.
Clean the scanning glass. If a sticky substance such as
glue or correction fluid is found, carefully wipe with just
enough pressure to clean the area where the lines
appear. If the problem cannot be solved by cleaning, the
internal glass may be scratched. In this case, contact
your local authorized Canon dealer.
Problem 5
Solution
Problem 6
Solution
27
Text is not enhanced in scanned images, even
though text enhancement mode is enabled in the
Canon DR-series scanner’s ISIS/TWAIN driver
settings dialog box.
This flatbed only supports Advanced Text Enhancement
II. If you scan a document using the flatbed with any
other text enhancement mode, a black and white image
will result. However, the other text enhancement modes
will function properly if the document is scanned using
the connected Canon DR-series scanner.
The scanner is recognized by the computer, but
scanning does not start.
Check the position of the lock switch on the underside of
the flatbed (See p. 12). If the lock switch is set to the
locked position, set it to the unlocked position.
Job functions do not start when the start button is
pressed.
If another application that uses the flatbed’s driver is
running, job function scanning is disabled.
Appendix
Cleaning the Scanning Glass and
Pressure Board
Routine Cleaning
Clean the flatbed on a regular basis to maintain scanning
performance.
If streaks appear in scanned images, or if scanned documents
become dirty, the scanning glass and pressure board may be dirty. Be
sure to clean them regularly.
WARNING
1
For safety, always turn the power switch OFF and disconnect the
power cord from the power outlet before cleaning the flatbed.
Do not use spray-type cleaners to clean the flatbed. Precision
mechanisms may get wet and malfunction.
Never use paint thinner, alcohol, or other solvents to clean the
flatbed. Doing so may deform, discolor, or dissolve surfaces, or result
in a fire or electric shock.
Open the document cover gently, and use a clean, dry
cloth to wipe the scanning glass and pressure board
clean.
Cleaning the Flatbed
Use a cloth dampened with water and thoroughly wrung out to clean
the outside of the flatbed, and use a clean dry cloth to wipe the flatbed
dry.
Pressure Board
Scanning Glass
2
Close the document cover gently.
CAUTION
If you use excessive force when you close the document cover,
it may result in damage to the glass, malfunction, or personal
injury.
28
Power Supply (using AC adapter)
DC 24 V, 2.2 A
Power Consumption
Scanning:
Maximum 15.2 W
In Sleep mode:
Maximum 5.1 W
With power turned OFF: Maximum 0.5 W
Noise
Not more than 59 dB
Operating Environment
Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity:
20% to 80% RH
Specifications
Main Unit
Type
Desktop flatbed
Scanning Document Size
Width: 8.5" (216 mm)
Length: 14.02" (356 mm)
Scanning Sensor
CCD
Light Source
LED
Scanning Side Simplex
Scanning Modes
Black and White, Error Diffusion, 256-level
Grayscale, Advanced Text Enhancement II, 24-bit
Color
Scanning Resolution (Primary Scan Lines x Secondary Scan Lines)
100 x 100dpi/150 x 150dpi/200 x 200dpi
240 x 240dpi/300 x 300dpi/400 x 400dpi
600 x 600dpi/1,200 x 1,200dpi
Scanning Speed
(Conditions: Pentium 4 3.2 GHz CPU, 1 GB memory, LTR/A4
document size)
24-bit color
1200 dpi
37 sec.
600 dpi
10 sec.
400 dpi
8 sec.
300 dpi
4 sec.
200 dpi
3 sec.
150 dpi
3 sec.
100 dpi
3 sec.
Grayscale
1200 dpi
35 sec.
600 dpi
6 sec.
400 dpi
5 sec.
300 dpi
3 sec.
200 dpi
3 sec.
150 dpi
3 sec.
100 dpi
3 sec.
Interface
Hi-Speed USB 2.0 (Type A x 1, Type B x 1)
External Dimensions
11.4" x 20.2" x 3.48" (W x D x H)
290 mm x 513 mm x 88.5 mm (W x D x H)
Weight (without AC adapter)
Approximately 7.7 lb. (3.5 kg)
AC Adapter (100 to 240 V type)
Model Number
Input
Output
Weight
MG1-4314
AC 100 to 240 V, 50/60 Hz, 65 VA to 82 VA
DC 24 V, 2.2 A
Approximately 0.88 lb. (0.4 kg) (including power cord)
Recommended Operating Environment
CPU:
Intel Core 2 Duo 3.0 GHz or faster
Memory:
1 GB or more
Hard Disk:
1 GB or more fee space
Monitor:
Resolution of 1024 x 768 (XGA) or higher
USB Interface: Hi-Speed USB 2.0
Other:
CD-ROM drive
Operating System:
Microsoft Windows 2000 Professional with Service
Pack 4 or later
Microsoft Windows XP with Service Pack 3 or later
Microsoft Windows XP x64 Edition with Service Pack
2 or later (32-bit and 64-bit editions)
Microsoft Windows Vista with Service Pack 2 or later
(32-bit and 64-bit editions)
Microsoft Windows 7 (32-bit and 64-bit editions)
29
11.4" (290 mm)
19.8" (504 mm)
3.11" (79 mm)
External Dimensions Diagram
20.2" (513 mm)
21.8" (554 mm)
30
CANON ELECTRONICS INC.
1248, SHIMOKAGEMORI, CHICHIBU-SHI, SAITAMA 369-1892, JAPAN
CANON U.S.A. INC.
ONE CANON PLAZA, LAKE SUCCESS, N.Y. 11042, U.S.A.
CANON CANADA INC.
6390 DIXIE ROAD, MISSISSAUGA, ONTARIO L5T 1P7, CANADA
CANON EUROPA N.V.
BOVENKERKERWEG 59-61, P.O.BOX 2262, 1180 EG AMSTELVEEN, THE NETHERLANDS
CANON LATIN AMERICA, INC.
703 WATERFORD WAY, SUITE 400 MIAMI, FLORIDA 33126, U.S.A.
CANON AUSTRALIA PTY. LTD.
1 THOMAS HOLT DRIVE, NORTH RYDE, SYDNEY. N.S.W, 2113. AUSTRALIA
CANON SINGAPORE PTE. LTD.
1 HARBOUR FRONT AVENUE #04-01, KEPPEL BAY TOWER, SINGAPORE 098632
CANON HONGKONG COMPANY LTD.
19TH FLOOR, THE METROPOLIS TOWER, 10 METROPOLIS DRIVE, HUNGHOM, KOWLOON, HONG KONG.
CANON KOREA BUSINESS SOLUTIONS INC.
168-12 SAMSEONG-DONG, GANGNAM-GU, SEOUL, KOREA
PUB. CE-IE-821-02
© CANON ELECTRONICS INC. 2010
