Check!
Read this guide first.
Please read this guide before operating this
product. After you finish reading this guide,
store it in a safe place for future reference.

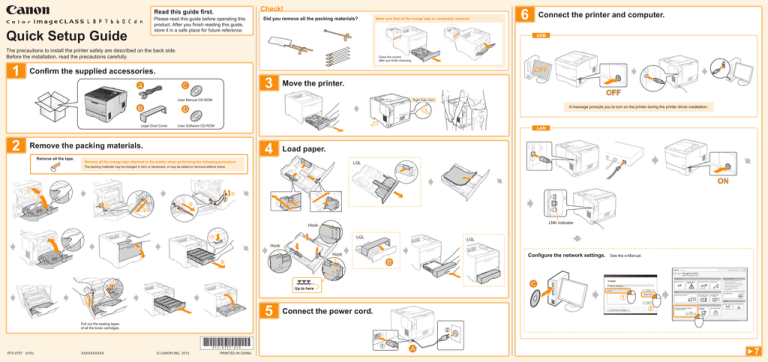

Quick Setup Guide
Did you remove all the packing materials?
3
C
Move the printer.
OFF
User Manual CD-ROM
B
Right Side View
A message prompts you to turn on the printer during the printer driver installation.
D
Legal Dust Cover
2
User Software CD-ROM
LAN
4
Remove the packing materials.
Remove all the tape.
Connect the printer and computer.
Close the covers
after you finish checking.
Confirm the supplied accessories.
A
6
USB
The precautions to install the printer safely are described on the back side.
Before the installation, read the precautions carefully.
1
Make sure that all the orange tape is completely removed.
Load paper.
Remove all the orange tape attached to the printer when performing the following procedure.
LGL
The packing materials may be changed in form or placement, or may be added or removed without notice.
ON
LNK indicator
Hook
LGL
LGL
Hook
Hook
Configure the network settings.
B
See the e-Manual.
C
Up to here
1
5
2
Connect the power cord.
Pull out the sealing tapes
of all the toner cartridges.
RT5-0757 (010)
XXXXXXXXXX
© CANON INC. 2013
PRINTED IN CHINA
A
7
7
9
Install the driver.
Check the operation.
Important Safety Instructions
This manual describes only warnings and cautions for the installation and the power
supply. Be sure to read "Important Safety Instructions" described in the e-Manual
(HTML manual) included in the supplied User Manual CD-ROM also.
Installation
D
Follow the instructions on the screen.
If you have any questions about operations, see the Printer Driver Installation Guide.
Setup finished.
Symbols
- Do not install the printer in a location near alcohol, paint thinner, or other
flammable substances. If flammable substances come into contact with
electrical parts inside the printer, this may result in a fire or electrical
shock.
- Do not place the following items on the printer.
- Necklaces and other metal objects
- Cups, vases, flowerpots, and other containers filled with water or
liquids
If these items come into contact with a high-voltage area inside the
printer, this may result in a fire or electrical shock.
If these items are dropped or spilled inside the printer, immediately turn
OFF the power switch (1) and disconnect the interface cables if they are
connected (2). Then, unplug the power plug from the AC power outlet (3)
and contact your local authorized Canon dealer.
(2)
10
(2)
(1)
Next, see the e-Manual.
(1)
(3)
- When installing or removing the optional accessories, be sure to turn the
printer OFF, unplug the power plug, and then disconnect all the interface
cables and power cord from the printer. Otherwise, the power cord or
interface cables may be damaged, resulting in a fire or electrical shock.
8
Registering the Paper Size and Type.
1
2
C
See the e-Manual.
User Manual CD-ROM
- Do not install the printer in unstable locations, such as on unsteady
platforms or inclined floors, or in locations subject to excessive
vibrations, as this may cause the printer to fall or tip over, resulting in
personal injury.
- The ventilation slots are provided for proper ventilation of working parts
inside the printer. Never place the printer on a soft surface, such as a
bed, sofa, or rug. Blocking the slots can cause the printer to overheat,
resulting in a fire.
- Do not install the printer in the following locations, as this may result in a
fire or electrical shock.
- A damp or dusty location
- A location exposed to smoke and steam, such as near a cookery or
humidifier
- A location exposed to rain or snow
- A location near a water faucet or water
- A location exposed to direct sunlight
- A location subject to high temperatures
- A location near open flames
- When installing the printer, gently lower the printer to the installation site
so as not to catch your hands between the printer and the floor or
between the printer and other equipment, as this may result in personal
injury.
- When connecting the interface cable, connect it properly by following the
instructions in the e-Manual. If not connected properly, this may result in
malfunction or electrical shock.
- Be careful when handling the main board or the ROM. Touching the main
board or the sharp parts such as the edges of the ROM may result in
personal injury.
- When moving the printer, follow the instructions in the e-Manual to hold it
correctly. Failure to do so may cause you to drop the printer, resulting in
personal injury.
Indicates a warning concerning operations that may lead to
death or injury to persons if not performed correctly. To use the
machine safely, always pay attention to these warnings.
Indicates a caution concerning operations that may lead to injury
to persons if not performed correctly. To use the machine safely,
always pay attention to these cautions.
Power Supply
- Do not damage or modify the power cord. Also, do not place heavy
objects on the power cord or pull on or excessively bend it, as this can
cause electrical damage, resulting in fire or electrical shock.
- Keep the power cord away from all heat sources. Failure to do so can
cause the power cord insulation to melt, resulting in a fire or electrical
shock.
- The power cord should not be taut, as this may lead to a loose
connection and cause overheating, which could result in a fire.
- The power cord may become damaged if it is stepped on, fixed with
staples, or if heavy objects are placed on it. Continued use of a
damaged power cord can lead to an accident, such as a fire or electrical
shock.
- Do not plug or unplug the power plug with wet hands, as this can result
in electrical shock.
- Do not plug the power cord into a multi-plug power strip, as this can
result in a fire or electrical shock.
- Do not bundle up or tie up the power cord in a knot, as this can result in
a fire or electrical shock.
- Insert the power plug completely in the AC power outlet. Failure to do
so can result in a fire or electrical shock.
- If excessive stress is applied to the connection part of the power cord, it
may damage the power cord or the wires inside the machine may
disconnect. This could result in a fire. Avoid the following situations:
- Connecting and disconnecting the power cord frequently.
- Tripping over the power cord.
- The power cord is bent near the connection part, and continuous stress
is being applied to the power outlet or the connection part.
- Applying a shock to the power connector.
- Do not use power cords other than the one provided, as this can result in
a fire or electrical shock.
- As a general rule, do not use extension cords. Using an extension cord
may result in a fire or electrical shock.
- Do not use a power supply voltage other than that listed herein, as this
may result in a fire or electrical shock.
- Always grasp the power plug when unplugging the power plug. Do not
pull on the power cord, as this may expose the core wire of the power
cord or damage the cord insulation, causing electricity to leak, resulting
in a fire or electrical shock.
- Leave sufficient space around the power plug so that it can be
unplugged easily. If objects are placed around the power plug, you may
be unable to unplug it in an emergency.
Others
To avoid the risk of personal injury or damage to the printer, and for legal
information, make sure to read the "Legal Notices" and "Important Safety
Instructions" in the e-Manual included on the accompanying User Manual
CD-ROM carefully before using the printer.
