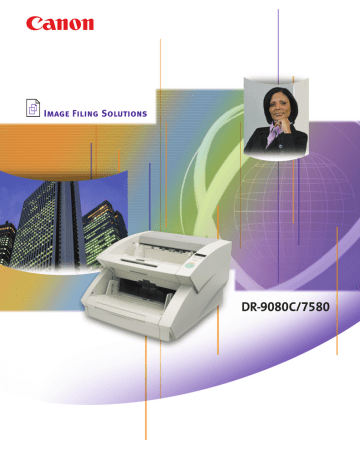

Image Filing Solutions
DR-9080C/7580
I m ag e F i l i n g S o lu t i o ns
A FRESH OUTLOOK ON AFFORDABLE,
PRODUCTION-LEVEL SCANNING
You shouldn’t have to pay a high price for the latest
technology in high-speed document scanning. The
Canon DR-9080C/7580 models are high-performance
desktop production scanners that offer outstanding
image quality, easy handling, and versatility—all at
a price to suit virtually any company’s budget.
DR-9080C/7580
OPTIMIZED THROUGHPUT AND RELIABILITY
A unique feeding system and advanced sensor technology help
ensure that batches of mixed paper sizes or other challenging
scan operations are handled with minimal operator intervention
at maximum scanning speed–exactly what a high-volume production scanner is expected to do.
DR-9080C–Scanning speeds of up to 90 pages per minute in
simplex or 180 images per minute* in duplex. Scanning modes
include black and white, grayscale, and color.
DR-7580–Scanning speeds of up to 75 pages per minute in
simplex or 150 images per minute* in duplex. Scanning modes
include black and white and grayscale.
Equipped with on-board JPEG compression, the DR-9080C/7580
scanners offer fast image processing, even with large data files.
With daily duty-cycles of 10,000 pages, the DR-9080C/7580
scanners were engineered for reliable day-in/day-out operation.
FREE YOURSELF FROM LABOR-INTENSIVE
DOCUMENT IMAGING DUTIES
Pre-sorting, job-preparation, and the need to rescan become
a thing of the past when using the DR-9080C/7580 scanners.
You can simply load the 500-sheet Automatic Document
Feeder with a batch of mixed document types and hit “Start.”
Whether scanning vouchers or paper sizes up to 11" x 17", the
DR-9080C/7580 devices will self-adjust automatically to each
document size or thickness in a mixed batch. For additional
flexibility, larger documents—up to 39" long—are supported in
Long Document Mode.
With up to 100 customizable user-preference settings, there’s
no need to manually enter settings such as scan resolution,
document size, scanning mode, and simplex or duplex prior to
every scan job. What’s more, you can initiate most scan operations directly from the user-friendly control panel. Switching to
Bypass Mode ensures smooth feeding of carbonless paper and
multipart forms. Ideally suited for Service Bureau operations and
back-file conversion jobs, the DR-9080C/7580 scanners offer a
Display Counter and Verify Mode to confirm the total number of
documents in a batch process. Printable patch code sheets in PDF
format are included for automatic batch separation. Further
adding to the value of the DR-9080C/7580 scanners are several
available options, among them the Imprinter, Endorser, and
Barcode Software Module, to help satisfy even the most advanced
document processing requirements.
INTUITIVE DOCUMENT HANDLING
In the best-case scenario, a forgotten staple means lost working
time. In the worst case, it could cause a system breakdown or
damage the original document. But with Canon’s exclusive,
patented on-board Staple Detection feature, the DR-9080C/7580
devices detect certain stapled documents and automatically
stop the scanning process.† When it comes to high-volume,
paper-intensive environments, Canon’s DR-9080C/7580 scanners were designed with production scanning needs in mind.
The DR-9080C/7580 scanners also feature Ultrasonic DoubleFeed Detector sensors. This highly accurate technology monitors
documents for double-feeding with an ultrasonic signal. Upon
detection of a potential overlap or double-feed, scanning is suspended while an error alert message is sent to the operator for
immediate correction. Truly production-class machines, the
DR-9080C/7580 scanners even include both hardware and
software deskewing capabilities.
CONSISTENT, HIGH-QUALITY IMAGING
Designed with advanced CIS sensor technology and 600-dpi
optical resolution, these devices capture fine print and other
small details with exceptional clarity. The ability to recognize
and rotate text orientation, correct skewed images, enhance
faint text, and adjust gamma settings allow the DR-9080C/7580
scanners to efficiently and accurately recognize valuable information included on contracts and forms. And automatic shading functions ensure consistent, high-quality image capture.
You’ll enjoy the benefits of a space-saving design, low power
consumption, and enhanced image quality. Plus, no warm-up
time is necessary, so the DR-9080C/7580 models are ready to
start scanning from the moment power is turned on.
AN INVESTMENT FOR THE LONG HAUL
Because production-level scanning requires durability, the
DR-9080C/7580 devices are rugged yet compact scanners,
ready to handle almost any large processing job thrown their
way. Industry-standard ISIS® and TWAIN drivers, as well as
dual SCSI-III and USB 2.0 interfaces, ensure streamlined integration and easy installation. The DR-9080C/7580 scanners
come bundled with Canon’s latest image capture software,
CapturePerfect® 3.0, which incorporates many advanced software functionality enhancements, including the ability to
save images in multiple file formats for compatibility with
popular imaging systems, including searchable, encrypted,
or password-protected PDF file creation, scan-to-e-mail,
built-in OCR for file indexing, and a user-friendly GUI.
† See user manual for details.
DR-9080C/7580
Specifications
MAIN UNIT
Type:
Item Number:
Document Feeding:
Document Size
Width:
Length:
Weight:
Automatic Feeding:
Manual Feeding:
Feeder Capacity:
Grayscale:
Color:
Scanning Element:
Light Source:
Scanning Modes:
Production Document Scanner
DR-9080C (8926A002)
DR-7580 (0640B002)
Automatic or Manual
2.2" - 12"
2.8" - 17"
(Up to 39.4" Long Document Mode)
14 - 32 lb. Bond
11 - 40 lb. Bond
500 Sheets
8-Bit
24-Bit (DR-9080C Only)
Contact Image Sensor (CMOS)
RGB LED x 4
Simplex, Duplex, Color (DR-9080C
Only), Black and White, Grayscale,
Advanced Text Enhancement,
Smoothing (DR-9080C only),
MultiStream
RGB,User-Selectable (Front/Back/Both)
Dropout Color:
Optical Resolution:
600 dpi
100/150/200/240/300/400/600 dpi
Output Resolution:
Scanning Speeds:*
(LTR Portrait @ 200 dpi)
Simplex
Duplex
DR-9080C
90 ppm
180 ipm
Black and White:
Grayscale:
90 ppm
180 ipm
54 ppm
92 ipm
Color:**
Simplex
Duplex
DR-7580
Black and White:
75 ppm
150 ipm
75 ppm
150 ipm
Grayscale:
Interface:
2 SCSI-III and 1 Hi-Speed USB 2.0
Scanner Drivers:
For Windows® 98SE/2000/Me/XP
Windows NT ® 4.0: ISIS/TWAIN
Dimensions (H x W x D): 12.2" x 18.1" x 20.7"
Weight:
Approximately 55 lb.
Power Consumption: 28W or Less
(Energy Saving Mode: 7W or Less)
Daily Duty Cycle:
Approximately 10,000 Scans
As an ENERGY STAR® Partner, Canon U.S.A., Inc. has determined that these products meet
the ENERGY STAR guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks. ISIS is a trademark of Captiva Software Corporation. Windows and
Windows NT are registered trademarks of Microsoft Corporation in the United States and/or
other countries. CapturePerfect is a registered trademark of Canon Electronics Inc. CANON is
a registered trademark of Canon Inc. in the United States and may also be a registered trademark or trademark in other countries. IMAGEANYWARE is a trademark of Canon. All referenced product names and other marks are trademarks of their respective owners.
Specifications subject to change without notice.
©2006 Canon U.S.A., Inc. All rights reserved.
0061W059
0306-9080C/7580-5M-LCR
printed on recycled
paper in the u.s.a.
Bundled Software
ISIS/TWAIN Drivers
CapturePerfect 3.0
Options
Imprinter (8927A001)
Endorser ED-600 (3650A005)
Mechanical Counter (8927A002)
Barcode Software Module (0434B003)
Exchange Roller Kit (8927A004)
Other Features
Ultrasonic Double-Feed Detection
Staple Detection
Count Only Mode
Verify Mode
* Examples based on typical settings, rated in pages/images
per minute with letter-sized documents, portrait feeding
direction, at 200 dpi. Actual processing speeds may vary
based on PC performance and application software.
** With JPEG compression.
NOTE: The DR-9080C and DR-7580 models have been tested
for compatibility with many of the industry’s leading document
management solution providers. Please visit the scanners’
respective product pages on Canon U.S.A.’s Web site at
www.usa.canon.com for a comprehensive compatibility listing.
