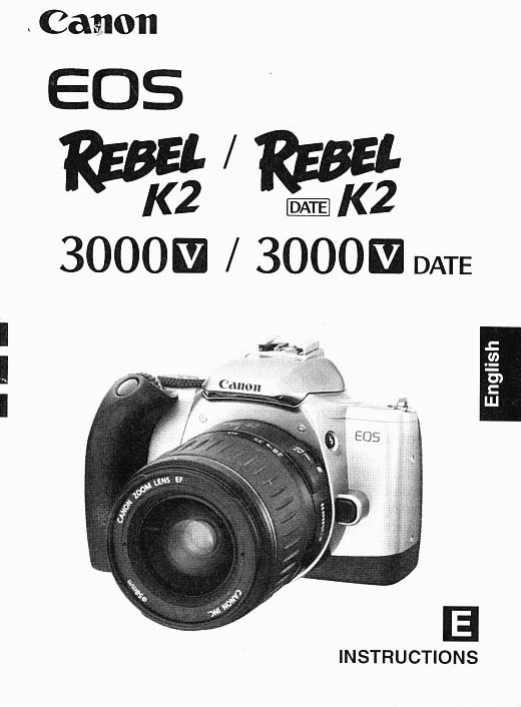

Canon
EOS
REBEL / REBEL
K2 "“o=K2
30008 | 30008 DATE
INSTRUCTIONS
Thank you for purchasing a Canon product.
The EOS REBEL K2 (DATE) / 3000V (DATE) is a very compact
autofocus, single-lens reflex camera. It can be used for a wide
variety of subjects and situations with fully automatic and user-
controlled shooting modes.
Read this Instructions and familiarize yourself with your new camera
before taking pictures.
Also read "Handling Cautions” on page 4 to prevent camera
malfunction and damage.
Keep this instruction booklet handy for easy reference.
Before Using Your Camera
+ Before shooting an important event, be sure to take test shots
to make sure the camera operates properly.
FOS cameras have a lens mount for dedicated operation
(autofocusing, exposure control, etc.) with Canon EF lenses.
Using a non-Canon EF lens with an EOS camera may not
result in proper camera or lens operation. Note that the
warranty does not cover any camera malfunction or damage
occurring with the use of non-Canon products.
Conventions Used in this Instructions
« The <> icon indicates the Main Dial,
All operation procedures described in this booklet assume that
the Mode Dial is set to a mode except < MD >. Before
proceeding with any operation, be sure that the Mode Dial is
set to a shooting mode.
Reference page numbers are indicated by (p.+=).
The camera control icons and markings used in this booklet
correspond to the actual icons and markings found on the
camera.
The (64) and (56) icons indicate that the respective function
remains in effect for 4 and 6 sec. respectively after the button
is released.
Contents uma na aa EN SE ES
Conventions Used in this Instructions 2
ЗОН СЛОН Е one numa sarao apre
Nomenciature ......... e... rn re ee ers B
Before You Start..........................
Installing the Batteries..................... iiem 17
Checking the Battery Level... 12
Mounting and Detaching a Lens... 13
How the Shutter Button Works 14
@ Loading and Unloading Film ……………………………………15
<= Midroll Rewind .....................——.. 16
Fully Automatic Shooting...............-.. ww...
Since everything is automatic, all you do is press the
shutter button.
User-Controlled Shooting.................-....
You can set the desired shutter speed or aperture value to
obtain the exposure you want. You take control of the
camera.
Reference.............e....
Symbols
0 îhe Caution symbol alerts you to actions to prevent
shooting problems.
Е) The Note symbol gives supplemental information.
Handling Cautions mum N
Camera Care and Storage
* The camera is a precision instrument. Do not drop it or subject it to
physical shock.
« The camera is nol waterproof and should not be used in wet
conditions or underwater. If the camera gets wet, take it to your
nearest Canon dealer as soon as possible. If small amounts of
water splash onto the camera, wipe it with a clean dry cloth. If the
camera is exposed to sally air, wipe it thoroughly with a slightly
damp cloth,
* Do not leave the camera in places prone to excessive heat such as
in a car on a sunny day. Excessive heat can cause the camera 10
malfunction.
* The camera contains precisión electronic circuitry. Never attempt to
disassemble the camera.
« Use only a blower brush to blow away any dust on the lens,
eyepiece, mirror, focusing screen, film compartment, etc. Do not
clean the camera body or lens with any cleaner containing an
organic solvent. For stubborn dirt, consult your nearest Canon
dealer.
« The shutter curtains are extremely thin. Use only a blower to clean
them. Be careful not lo blow air too forcefully on the shutter
curtains. The shuller curtains can be easily deformed or damaged.
Also, when loading and unloading film, be careful not to touch the
shutter curtains,
* Do not touch the electrical contacts with your fingers. Otherwise
corrosion may develop on the contacts, resulting in improper
camera operation.
* |! the camera is not to be used for an extended period, remove the
battery. Store the camera in a well-ventilated, cool, dry place,
During the storage period, press the shutter button to release the
shutter a few times once in a while.
* Avoid storing the camera in a laboratory, cabinet, etc., where
corrosive chemicals are present.
TEE 1 == Tru TE ACA re ta 1 a " CI A ANT
=
* |f you have not used the camera for some time or are planning to
take shots you will not want to lose (overseas vacation, etc.), have
the camera checked by your Canon dealer beforehand, or check
for yourself that the camera components are working properly.
LCD Displays
By their nature, LCD displays react more slowly at low
temperatures, and may appear dark at high temperatures. The
display will return to normal at room temperature.
Batteries
* Before installing the batteries, wipe the battery contacts to remove
any fingerprints and smudges. This is to prevent faulty connections
and corrosion.
* Never disassemble or recharge the batteries. Also. never store a
battery in high-temperature places or short circuit the battery
contacts or toss a battery into a fire.
* Although the batteries work well even at low temperatures, battery
performance may decline slightly at freezing temperatures, In such
a case, keep spare batteries warm in a pocket, etc., and use and
warm the batteries alternately.
How Low Battery Levels Affect Camera Operation
On the LCD panel, if the <£ J> icon blinks or it is not displayed, a
proper exposure can still be obtained as long as the shutter
releases. However, when the battery level is low, film advance and
auto rewind might stop midway or not work at all and <d > icon
may blink on the LCD panel. After the batteries are replaced with
new ones, film advance will be possible and film rewind can resume
by pressing the <@&a32> button.
Lens Electrical Contacts
After detaching the lens from the camera, put
on the lens caps or put down the lens with
the rear end up to avoid scratching the lens
surface and electrical contacts.
Contacts
Nomenclature grrr NEUE UA AE
» Reference page numbers are indicated by (p.=).
Built-in flash / Red-eye reduction lamp
AF-assist beam (p.22)
(р.43/19) |
|| Hot shoe
Mode Dial (p.10) Flash-syne contact
<> Main Dial
a"
Shutter button (p.14)
— <%= Flash button
(р.43)
<->
Film plane
mark
*Remote control
sensor / Self-timer/
*Remote control
lamp (p.24/23/24) — Strap
> Mount
(р.7)
Grip / Battery
compartment
(p.11)
| — Lens release
| button (p.13)
Facus mode switch
(p.13)
— Zooming ring
— Focusing ring (p.30)
Body cap (p.13) * DATE Model only
"With an EX-series Speedlite.
TEE ER Re EE EE EE PET ARE AE EE EE
Viewfinder eyepiece — — <Avld> Aperture value setting /
E 94 Exposure compensation /
st я, -SÈT button (p.36/38/26)
Film check —
window
! —<#> AE lock (p.40) /
Back "FE lock button
cover |
<> АЕ рой!
selection button
(p.28
release |
lever fF
(p.15)
Back cover
<FUNC.>
Ea — Function button
panel {p.22, 25, 26,
(p-8) 39, 41, 42)
— Guide hole
Ballery compartiment
cover (p.11)
— Battery compartment
cover release lever (p.11)
<E= > Midroll rewind button —
(p.16)
<Oy/&j> Film advance mode /
Sel-timer Remate control button
(p.31/23/24)
Attaching the Strap
Pass the end of the strap through the
cameras strap mount from the bottom, Then
pass it through the strap's buckle as shown
in the illustration. Pull the strap to make sure
it does not slip out of the buckle,
* The eyepiece cover is also attached to the
strap. (p.24)
— Evepiece cover
Nomenclature ==
i
LCD Panel
Shutter speed — <B> Manual focus
ISO film speed |
Date — Aperture value
"FE lock Red-eye reduction setting
AEB amount
Date
DATE Model |
Canon runc
999 a » [3 - <B> Date
| - b ISO—- <ISO> ISO film speed
AF point mark [am] OD > G—- <O> Redeye reduction
Film advance Odo, , > = <> Multiple
mode 2.1.0.1.7 р @ exposures
<> Single frame «== © Dl <> AEB
<Qy> Continuous —*. SEE
__ shooting |
who Sle — <P> Function pointer
Baltery level mark
des) (Ca Cm {C0
<@ > Film mark
Non-DATE Model
Canon
8888 ВВ, о
PODA»
De Gas dd re
{== @ Arie
= Frame counter
Multiple-exposure setting
Self-timer operalion
Remote control operation
— Exposure level indicator
Exposure compensation amount
AEB level
Red-eye reduction lamp-on indicator
Film transporl indicator
“With an EX-series Speedlite.
+ The actual display will show only the
applicable items.
Viewfinder Information
AF points (7)
Focusing Screen
pel: [CCT RAR
<@ = Focus
confirmation light
|
<> AE lock / — —— || |
"FE lack |
AEB in progress
prog Exposure level indicator
<4> Flash-eady —— | Exposure compensation
“Improper FE lock amount
warning | AEB level
| Red-eye reduction
<H> "*High-speed sync lamp-on indicator
(FP flash) | — AF point mark
Shutter speed
“FE lock
— Aperture value
Nomenclature |
Mode Dial
The dial is divided into two zones.
Full Auto
(1) Basic Zone
10
Fully automatic mode where
the camera takes care of
everything,
O: Full Auto (p.18)
Basically, all you do is point
and shoot.
Image Zone (p.20)
Fully automatic modes for a
particular subject.
D : Portrait
MA Landscape
& Close-up
& : Sports
Fi Night Portrait
E) : Flash off
Basic 207°
or
(2) Creative Zone
Semi-automatic and manual
modes enable you to take
control of the camera to
obtain the desired result.
P : Program AE (p.32)
Tv: Shutter-priority AE
(p.34)
Av :Aperture-priority AE
(p.35)
M : Manual exposure
(p.36)
A-DEP : Automatic Depth-of-
field AE (p.37)
: OFF
EN Before You Start
Installing the Batteries mms
= Batteries are not included in camera body A (not kit) sold in North
America. Obtain batteries separately.
The camera uses two == lithium batteries.
E 1 Open the battery compartment
| cover,
® Slide the release lever in the
direction shown by the arrow in the
diagram, and open the cover.
, Install the batteries.
e Make sure the battery contacts (+
and =) are properly oriented as
shown.
e Do not mix old and new batteries.
Close the battery compartment
cover.
e Press the cover until it snaps shut.
e The date and time must be set. See
page 26. (DATE Model only)
Fi For places where CR2 batteries may not be easily available, take
spare batteries with you. Also carry spare batteries for extended
shooling sessions.
Checking the Battery Level mms
Check the battery level after replacing the batteries and before
using the camera.
Turn the Mode Dial to a shooting
mode.
e The camera will then turn on and the
LCD panel will display one of the
following battery level mark:
== : Battery level OK.
«= : The battery level is low. Keep
spare batteries handy.
8 - The batteries will soon be
completely exhausted.
—-- : Replace the balleries.
Battery Life (With 24-ex. rolls)
Temperature | 0% Flash Use | 50% Flash Use |100% Flash Use
At20C 67 rolls 30 rolls 22 rolls
At -10°C 44 rolls 20 rolls 15 rolls
* The battery life shown above is based on Canon's testing
conditions with new batteries.
al = If nothing is displayed on the LCD panel, the batteries may have
been installed incorrectly. Take out the batteries and install
correctly.
* |f you often press the shutter button halfway for a prolonged
period or just autofocus without taking a picture, the battery life
will be affected.
* When not using the camera, set the Mode Dial to < >.
12
Mounting and Detaching a Lens rm
Mounting a Lens
\ Remove the caps.
© e Hemove the rear lens cap and the
camera body cap.
> Mount the lens.
<= e Align the red dots on the lens and
camera and turn the lens as shown
by the arrow until it snaps in place.
> On the lens, set the focus mode
“ Switch to <AF>.
e |f the focus mode switch is set to
<MF=, autofocus will not operate.
/ Remove the front lens cap.
While pressing the lens release
button, turn the lens as shown
by the arrow.
e Turn the lens until it stops, then
detach it.
Gl * Keep the removed caps where you will not lose them.
* <AF> stands for “Auto Focus” and <MF> stands for “Manual
Focus."
* An EF-5 lens cannot be attached to the camera.
How the Shutter Button Works mm
The shutter button has two stages. You can press it down halfway or
fully. The two levels of shutter button operation are às follows:
When it is pressed halfway:
e Pressing the shutter button down
halfway activates autofocusing
(AF), and also activates the
automatic exposure (AE)
mechanism and sets the shutter
speed and aperture value.
e The exposure (the combination of
shutter speed and aperture value)
appears on the LCD panel and in
the viewfinder (4).
When it is pressed fully:
e The shutter is released to take the
picture and the film advances by
one frame.
ús If an Extender (optional) is used and the maximum aperture (the
lowest number) of the lens becomes smaller than f/5.6,
autofocusing will not operate.
À Camera movement during the moment of exposure is called
camera shake. Camera shake can cause blurred pictures, To
prevent blurred pictures due to camera shake:
* Hold the camera steady.
. Firmly grasp the camera grip with your right hand, and press
your both elbows lightly against your body.
- Hold the lens at the bottom with your left hand.
- Press the camera against your face and look through the viewfinder.
- To maintain a stable stance, place one foot in front of the other
instead of lining up both feet.
* Use your finger tip to touch the shutter button, grasp the camera
with your entire right hand, then press the shutter button gently.
14
@ Loading and Unloading Film
Loading Film
After you load the film, the camera first winds the entire roll onto the
camera's take-up spool. With DX-coded film, the camera
automatically sets the film's ISO speed. Then each time a picture is
taken, one frame of film is rewound back into the film cartridge. The -
frame counter shows always number of shots remaining.
Turn the Mode Dial to any
setting except < C3 >.
Open the back cover.
e Slide down the back cover release
lever and open the back.
Insert the film cartridge at a
slight angle.
Align the film leader edge with
the < À > mark.
® Hold down the film cartridge while
pulling out the film leader. If you
pull out the film leader too much,
rewind it back into the film
cartridge.
Close the back cover.
® Close the back cover until it snaps
shut.
» Film prewind will start and there will
be a shutter-release sound about
ЧЕ 10 sec. later. The < E) > icon and
ны. x ;
» frame count will also be displayed
on the LCD panel.
» During the film prewind, the ISO
50
+
speed will be displayed on the LCD
NA ; panel.
E Loading and Unloading Film ===
Y * The shutter curtains have been manufactured with very high
precision, Never touch them with your fingers. When loading film,
do not touch or damage the curtains with your fingers or film.
* In hot and humid environments, do not remove the film packaging
until you are ready to load the film.
« Infrared film cannot be used with this camera.
ВБ If the film is not loaded properly. the < @ = icon will blink on the LCD
panel and the shutter will not work. Reload the film cartridge
properly.
Unloading Film
After the film's last frame is exposed, the camera rewinds the film
automatically.
= Aîter the film is rewound, there will
be a shutter-release sound. Check
that the <@> icon is blinking on the
LCD panel, then open the back
cover and take out the film cartridge.
Canon
ER,
A
@+ Midroll Rewind
To rewind the film in midroll, follow the procedure below.
Press the <C)<1> button.
> Film rewind will begin.
e Make sure the < E > icon is
blinking, then take out film
cartridge.
v If you take out the film cartridge in midroll without rewinding the film
and then load a new roll of film and press the shutter button
completely, the new film will only rewind into the cartridge. Before
loading a new roll of film in this case, close the camera back and
press the shutter button.
Fully Automatic Shooting
CFU Auto MOTE eevee,
AF-Assist beam with the Built-in Flash.................
Programmed Image Control Modes ...............—e e...
Portrait / M4 Landscape / $ Close-up /
& Sports / EINight Portrait EjFlash off
E Using Red-eye Reduction ...
& Self-timer Operation
i Wireless Remote Control (DATE Model only) ...........
Using the Eyepiece Cover ............ EG
NB Imprinting the Date or Time (DATE Model only) ......
This chapter describes how to use the camera's Basic Zone modes
<LI> <P> <a> <b> <K> <El> <> for quick and easy
shooting. In these modes, all you do is point and shoot. Also, to
prevent accidental operation, the <E=]> <Elj> <> <B> <>
<150= buttons are disabled.
Turn the Mode Dial to <>, <>,
<A>, <b>, <>, <B> or <>.
* The picture-taking procedure is the same
as with the “<CJ> Full Auto mode" on
page 18.
17
OFull Auto Mode mums нони
All you do is point the camera and press the shutter button.
Everything is automatic so it is easy to photograph any subject. With
seven AF points to focus the subject, anyone can just point and
shoot.
1 Turn the Mode Dial to <=.
2 Aim any of the AF points on the
. subject.
The image was removed e The main subject, as determined
dueto by the camera, will be focused by
one of the AF points.
e To focus a subject not covered by
any of the AF points, see "Focus
Lock” on page 29.
3 Focus the subject.
e Press the shutter button halfway to
focus.
» When necessary, the built-in flash
will pop up automatically.
» When focus is achieved, the AF
= 5 : point mark and focus confirmation
Shutter speed light < @=> in the viewfinder will
Aperture value flash.
AF point mark
Check the exposure setting.
» The shutter speed and aperture
value will be set automatically and
displayed in the viewfinder and on
the LCD panel.
= EC 5 Take the picture.
в e Compose the shot and press the
shutter button fully.
e = If you want to zoom, do it before focusing. Turning the zooming
ring after achieving focus may throw off the focus.
» |f the built-in flash's pop-up operation is obstructed, the <>
icon will blink on the LCD panel. Press the shutter button halfway
to resolve the problem.
3 * When focus is achieved, the autofocus and auto exposure setting Е
will also be locked.
= If the focus confirmation light <@ > blinks, the picture cannot be
taken. (p.30)
* Out of the seven AF paints, the one covering the closest subject is
selected automatically to achieve focus.
» If multiple AF point marks will light, it means that all of them have
achieved focus at the respective points.
* In the Basic Zone modes (except < ak > <& > <>), the built-in
flash will pop up and fire automatically in low-light or backlit
conditions. To retract the flash, push it back down.
AF-Assist beam with the Built-in Flash
Under low-light conditions, the built-in flash fires a brief burst of
flashes when you press the shutter button halfway. This is to
illuminate the subject to enable easier autofocusing.
В * The AF-assist beam does not function in the < A > <a > <>
modes.
* The built-in flash's AF-assist beam is effective up to about 4
meters/13.1 feet.
* In the Creative Zone modes when the built-in flash is popped up
with the <%= button, the AF-assist beam may be emitted.
19
Programmed Image Control Modes mmm
Select a shooting mode to suit the target subject, and the camera
will be set to obtain the best results.
Portrait
This mode blurs the background to make the
human subject stand out.
* Holding down the shutter button executes
continuous shooting.
* To improve the background blur, use a
telepholo lens and fill the frame with the
subject or have the subject stand farther away
trom the background.
The image was removed
due to
copyright restrictions
a Landscape
This is for wide scenic views, night scenes,
The image was removed etc.
dut * Using a wide-angle lens will further enhance
copyright restrictions the depth and breadth of the picture.
¥, Close-up
Use this mode to take close-up shots of
flowers, insects, etc.
* As much as possible, focus the subject at the
lens’ closest focusing distance.
* To obtain a larger magnification, use the
telephoto end of a zoom lens.
The image was removed
due to
copyright restrictions
ih A blinking shutter speed indicates that the shutter speed is too slow
to prevent a blurred picture due to camera shake. Be careful to hold
the camera steady and press the shutter button smoothly, or use a
tripod. (The shutter speed indicator still blinks when you use a
tripod, but camera shake will not be a problem.)
20
SO EE I ARS
& Sports
This is for fast-moving subjects when you
want to freeze the action.
« The camera will first track the subject with the
center AF point. Focus tracking will then
continue with any of the seven AF points
covering the subject.
* While you hold down the shutter button,
focusing will continue for continuous shooting.
« Using a telephoto lens and ISO 400 or higher
speed film is recommended.
By Night Portrait
This mode is for taking pictures of people at Е
twilight or at night. The flash illuminates the
subject while a slow sync speed obtains a
The image was removed
due to
copyright restrictions
The image was removed
due to ;
i natural-looking exposure of the background.
copynght restrictions |, If you want he eh only a A
(without people), use the < 444 > mode
instead.
= Tell the subject to keep still even after the
flash fires.
(5) Flash off
You can disable the flash when you do not
; want it to fire.
The image was removed |, The built-in flash or any external Speedie wil
copyright restrictions not fire.
db In the <B> mode, use a tripod to prevent camera shake.
21
O Using Red-eye Reduction (with the built-in flash) №8
When flash is used in a low-light environment, the subjects eyes
may come out red in the photograph. To reduce this "Red eye” the
red-eye reduction lamp shines a light into the subject's eyes before
the flash is fired. Red-eye reduction works in all shooting modes
except < А > < > <>.
Move the <P> arrow to the
<> icon on the LCD panel.
® Look at the LCD panel and press
the <FUNC.> button to move the
arrow. (56)
Turn the <> dial to set “ | ”
on the LCD panel.
e Press the shutter button halfway to
return to normal camera operation.
e To cancel red-eye reduction, set
“0" onthe LCD panel.
В * When you press the shutter button
halfway, the red-eye reduction lamp-on
indicator will appear in viewfinder and
on the LCD panel. 100
« Red-eye reduction will not work unless Te
the subject locks at the red-eye reduction Red-eye reduction
lamp. Tell the subject to look at the lamp. lamp-on indicator
* For maximum effectiveness, press the shutter button fully after the
red-eye reduction lamp turns off (after 1.5 sec.).
* You can take a picture even while the red-eye reduction lamp is lit.
* The effectiveness of red-eye reduction varies depending on the
subject.
* To further increase the effectiveness ot red-eye reduction, go to a
brighter environment or move closer to the subject.
22
À Self-timer Operation sens
You can use self-timer in any Basic mode or Creative mode. We
recommend using a tripod when you use the self-timer.
| OT | Press the <1/8)i> button.
> Er - e While looking at the LCD panel,
Бо o" press the <4/0)i> button to select
|
<i>.
sor
2 Take the picture.
* The picture-taking procedure is the
same as with the <CJ> Full Auto
mode on page 18.
* Look through the viewfinder and
press the shutter button fully to
start the self-timer.
> The picture will be taken about 10
sec. later.
First 8 sec.: Self-timer lamp blinks
slowly.
Final 2 sec.: Self-timer lamp blinks
quickly.
» During the self-timer operation, the
LCD panel counts down the
seconds until the picture is taken.
és Do not stand in front of the camera when vou press the shutter
button to start the self-limer. Doing so prevents the camera from
focusing on the subject.
Ы * To cancel the self-timer after it starts, press the <4/j> button.
* When using the self-timer to take a picture of only yourself, first
lock the focus (p.29) on an object at the same distance where you
will be in the picture.
23
i Wireless Remote Control (DATE Model only) E
With Remote Controller RC-5 (optional), wireless operation is
possible up to 5 m/16.4 ft away from the front of the camera.
Press the <21/80i> button.
e While looking at the LCD panel,
press the < 21/05 > button to select
<i>,
Take the picture.
e Point the controller toward the
camera's remote control sensor
and press the transmit button.
» Taken about 2 sec, later.
* The indicator will be the same as
during the last 2 sec. of the self-timer.
Remote control sensor
ib Certain types of fluorescent lights might cause the remote control
operation to work improperly. Place the camera away from any
fluorescent lights as far as possible.
В IF you set <Wi=> and do nothing for four minutes, the remote control
mode will be canceled automatically to save battery power.
Using the Eyepiece Cover msm
During self-timer or remote control operation when your eye does
not cover the viewfinder eyepiece, stray light may enter the
eyepiece and affect the exposure when the picture is taken. To
prevent this, use the eyepiece cover to cover the eyepiece. (p.7)
[EE 1 Remove the eyecup from the
Tf (To . vee
— | mo > Attach the eyepiece cover.
y | e Slide the eyepiece cover down into
e = the eyepiece groove to attach it.
4 When you reattach the eyecup, press it with your fingers so that it is
attached tightly to the camera.
24
" BAB Imprinting the Date or Time (DATE Model only) E!
The camera has a date feature with
an automatic calendar to 2099. It
- can imprint the date or time on the
The image was removed photograph as shown in the left
copyright restrictions + [The date or time can be imprinted in
any shooting mode.
Date position
1 Move the <> arrow to < В >.
e Look at the LCD panel and press
the <FUNC.> button. (66)
e |f the date and time has not been
set, * ------ "will blink on the LCD
panel. See page 26 to set the date
and time.
Select the date format.
e Turn the <> dial.
» The date format will change in the
following loop:
03 8 BB. 8025) В TE
Year, month, day Month, day, year Day, month, year
-- = 8 is
Blank Day, hour, minute
25
Imprinting the Date or Time (DATE Model only) RE
Setting the Date and Time
1 Move the <> arrow to <B>.
2
14
Select the digit to be set.
e Press the <GET> button.
e The digit selection will change in
the following sequence: year,
month, day, hour, minute, “ - ”.
Set the correct number.
e Turn the <> dial.
® Repeat steps 2 and 3 until all the
date and time digits are set correctly.
Finalize the date and time setting.
e Keep pressing the <EE0> button
until no digits are blinking.
e If you press the <GET)> button while
“+ "is blinking, O sec. will be set.
© If à picture is taken while the date and time are blinking, the date
and time will not be imprinted on that picture.
À The date and time setting can be retained for about 10 min. after
the camera's batteries are removed.
26
Uset-Controlled Shooting
bd Selecting an AF point... eee enero rens 28
Focus Lock... ; 29
When Autofocus Fails (Manual Focusing) A 30
QySelecting the Film Advance Mode... 31
Metering Modes .......... serai
P Program AE ne... AE
Tv Shutter-Priority AÉ................w.—... 434
Av Aperture-Priority AE .. ae ВИ 35
M Manual Exposure ... Зин res O
A-DEP Automatic Dei -of-Field AE. Ee se 37
Av Exposure Compensation ores 38
Ea Auto Exposure Bracketing (ACB)... eee 39
YE AE Lock .......i.... ene. cs 40
Bulb Exposures. TT TE 41
mi Multiple EXposures......... EEE 41
ISO Setting the ISO Film Speed... 42
Using the Builtin Flash ............—....—— cn
With Creative Zone modes, you can set
the desired shutter speed or aperture
value to obtain the exposure you want. You
take control of the camera.
* In Creative Zone modes, you can select
the desired AF point and set the film
advance mode, exposure compensation
amount, AEB, AE lock, bulb exposures,
multiple exposures, and ISO speed.
27
1) Selecting an AF point numa
The AF point is used for focusing. The AF point can be selected
automatically by the camera or manually by you. In the Basic Zone
modes and <A-DEP> mode, the AF point selection is automatic only.
In the <P> <Tv> <Av> <M> modes, the AF point can be
selected either automatically or manually.
= Automatic AF point Selection
The camera selects the AF point automatically according to
situation.
* Manual AF point Selection
You can select any of the seven AF points manually. This is best
when you want to be sure to focus on a particular subject, or to
compose a particular shot quickly.
1 Press the <> button. (66)
» The current AF point will be
indicated on the LCD panel and in
the viewfinder.
2 Select the desired AF point.
e While looking at the LCD panel or
viewfinder, turn the <> dial,
e After selecting the AF point, press
the shutter button halfway. The
camera will then be ready to take
pictures.
Automatic AF Manual AF
Point Selection Po Point Selection
pera JerCs Jl 7 JC Je JC Jer a Sil
Focus Lock
After achieving focus, you can lock the focus on a subject and
recompose the shot. This is called "focus lock.”
Set the camera to a Creative
Zone mode.
e Set a Creative Zone mode except
< A-DEP >.
2 Select the desired AF point.
3 Focus the subject.
* Aim the AF point on the subject,
The image was removed then press the shutter button
due to halfway.
copyright restrictions
4 Keep pressing the shutter E
button halfway and recompose
the picture as desired.
The image was removed
dueto — 5 Take the picture.
copyright restrictions
ä * If focus has not been achieved, the focus confirmation light < @ >
in the viewfinder will blink. In this case, you cannot take a picture
even when you press the shutter button fully. Recompose the shot
and focus again or see “When Autofocus Fails” (p.30).
» If you use an external, EOS-dedicated Speedlite and focus cannot
be achieved with the AF-assist light, select the center AF point.
* Focus lock also works in the Basic Zone modes (except <'&_ =).
Just start from step 3 above.
29
When Autofocus Fails (Manual Focusing) =
Autofocus can fail to achieve focus (the focus confirmation light
<> blinks) with certain subjects such as the following:
Difficult Subjects for Autofocusing
= Low-contrast subjects.
Example: Blue sky, flat surface with a solid color.
« Subjects in very low light.
« Extremely backlit or reflective subjects.
Example: Automobile with a strong reflection.
= Overlapping near and far objects.
Example: Animal behind bars in a cage.
In such cases, do one of the following:
(1) Focus lock an object at the same distance as the subject and
recompose. т
(2) Set the lens focus mode switch to <MF> and focus manually.
Set the lens focus mode switch
to <MF>.
2 Focus the subject,
® Focus by turning the lens focusing
ring until the subject is in focus in
the viewfinder.
Focus ring
Ы If you hold down the shutter button halfway while focusing manually,
the active AF point mark and the focus confirmation light <@ = will
light when focus is achieved.
30
‘Jy Selecting the Film Advance Mode mu
Two film advance modes are provided: single-frame and continuous
shooting (Max. 1.5 frames per sec.).
Press the <G1/5}}> button.
® Look at the LCD panel and press
the <4/)i> button.
CJ : Single frame
+
By : Continuous shooting
+
dj : Self-timer/
Remote control
Metering Modes mms mmm
The camera has three metering modes: Evaluative, partial, and
center-weighted average metering.
T1111 | Evaluative metering 8
ET This is the camera's standard metering mode suited for
Fiel 11] | most shooting including backlit conditions. Based on Ihe
subject's position in the viewfinder, brightness, background,
front or back lighting conditions, elc., the camera always
calculates the proper exposure for the subject.
Partial metering
; sa : This mode is set automatically when AE lock is used in
| = a Creative Zone mode. It is effective for backlit subjects
| when Ihere is a strong light behind the subject. The
viewfinder center covering about 9.5% of the viewfinder
area is used for metering. The partial metering area is
shown on the left.
' Center-weighted average metering
a | This is set automatically in the <M> mode. The
ie metering is weighted al the center and then averaged for
the entire scene.
31
P Program AE sass fis
Like the <(D> (Full Auto) mode,
this is a general-purpose mode to
; make picture-taking easy. It sets the
Ш = ar dil lo shutter speed and aperture value
jelly automatically to suit the subject's
copyright restrictions brightness.
« <P> stands for Program.
* "AE" stands for auto exposure.
1 Turn the Mode Dial to <P >.
AF point
2 Focus the subject.
* Move the AF point over the subject
The image was removed and press the shutter button
due to halfway.
copyright restrictions
Shutter speed 3 Check the display.
Aperture value » The shutter speed and aperture
; value are set automatically and
AF pomtmark dieplayed In the viewfinder and on
the LCD panel.
® |f the shutter speed and aperture
value do not blink, a correct
exposure will be obtained.
32
4 Take the picture.
*e Compose the shot and press the
shutter button fully.
© Fa « If 30" " and the maximum aperture value blink, it
indicates underexposure. Use flash.
: * [f* 2000 " and the minimum aperture value blink, it
Eres indicates overexposure. Use an ND filter to reduce
the light entering the lens.
В The Difference Between <P> and <>
* The shutter speed and aperture value are set in the same way in
both modes.
* The following features can be used in the <P> mode, but not in
the <> mode.
- Manual AF point selection - AE lock with the <> button
- Film advance mode selection . Multiple exposures
- Program shift - Built-in flash manual firing and
- Exposure compensation flash OFF
- AEB - FE lock, high-speed sync
(with EX-series Speediites)
About Program Shift
* In the Program AE mode, you can freely change the shutter speed
and aperture value combination (program) set by the camera while
retaining the same exposure. This is called program shift.
* To shift the program, press the shutter button halfway and turn the
<> dial until the desired shutter speed or aperture value is
displayed.
* Program shift is canceled automatically after the picture is taken.
* Program shift cannot be set when the built-in flash is used.
33
Tv Shutter-Priority AE EEE
In this mode, you set the shutter speed and the camera sets the
aperture value automatically to suit the subject brightness. A fast
shutter speed can freeze the motion of a fast-moving subject and a
slow shutter speed can blur the subject to give the impression of
motion.
* <TV> stands for Time value which is the shutter speed.
7 7 1 Turn the Mode Dial to <Tv >.
: Select the desired shutter
~~ speed.
e Turn the <> dial.
* The shutter speed can be set in
half-stop increments.
3 Focus the subject.
» The aperture value is set
automatically.
4 Check the viewfinder display
and take the picture.
e |f the aperture value display is not
blinking, a correct exposure will be
obtained.
U Ea * |f the maximum aperture value blinks, it indicates
underexposure. Turn the <5> dial to set a
slower shutter speed until the blinking stops.
ETE « If the minimum aperture value blinks, it indicates
overexposure. Turn the <> dial to set a faster
shutter speed until the blinking stops.
À] Shutter Speed Display
The shutter speeds from “ 2000" to “ 2" indicate the denominator of
the fractional shutter speed. For example, “ 125 " indicates 1/125
sec. Also, “ 0" " indicates 0.7 sec, and “I5'' " indicates 15 sec.
34
Av Aperture-Priority AE mms
In this mode, you set the desired aperture value and the camera sets
the shutter speed automatically to suit the subject brightness.
The larger or brighter the aperture value (lower number) the more
blurred the background will become. This effect is ideal for portraits.
The smaller or darker the aperture value (higher f/number), the clearer
the focus will be for both near and far objects (wider depth of field).
L < Av> stands for aperture value.
1 Turn the Mode Dial to < Av >.
Select the desired aperture
value.
e Turn the <> dial.
® The aperture value can be set in
half-stop increments.
Focus the subject.
» The shutter speed is set
automatically.
EEE 4 Check the viewfinder display 7
and take the picture,
e |f the shutter speed display does
not blink, a correct exposure will be
obtained.
0 » |f the slowest shutter speed blinks, it indicates
EE underexposure. In such a case, tum the </5> dial
to set a larger aperture value (smaller ffnumber)
until the shutter speed display stops blinking.
« |f the fastest shutter speed blinks, it indicates
ETE overexposure. In such a case, turn the <i> dial
to set a smaller aperture value (larger ffnumber)
until the shutter speed display stops blinking.
Е Aperture Value Display
The larger the f/number, the smaller the diaphragm will be. The
aperture value display will differ depending on the lens. When no lens
is attached to the camera, “ 00” will be display for the aperture value.
35
M Manual Exposure msm"
In this mode, you set both the shutter speed and aperture value as
desired. To determine the exposure, refer to the exposure level
indicator in the viewfinder or use a handheld exposure meter. This
method is called manual exposure. In the <M> mode, the
center-weighted average metering will be set automatically.
* <M> stands for Manual.
1 Turn the Mode Dial to <M>.
2 Set the shutter speed and
aperture value.
e To set the shutter speed, turn the
<> dial,
e To set the aperture value, hold
down the < Ау > button and turn
the <> dial,
3 Focus the subject.
> The exposure setting will be
displayed.
* The exposure level mark <I>
indicates how close the exposure
level is to the correct exposure,
4 Determine the exposure.
e Look at the exposure level indicator
Exposure level mark and set the shutter speed and
aperture value as desired.
5 Take the picture.
В If the exposure level mark <I> blinks at the <2*> or <-2> level, it
indicates that the difference between the standard exposure
exceeds +/-2 stops.
36
A-DEP Automatic Depth-of-Field AE um
This mode is for obtaining a wide depth of field automatically
between a near subject and far subject. It is effective for group
photos and landscapes.
The camera uses the 7 AF points to detect the nearest and farthest
subjects to be in focus.
« <A-DEP> stands for Auto-depth of field.
1 Turn the Mode Dial to <A-DEP >.
> Focus the subject.
e Move the AF point over the subject
The image was removed and press the shutter button
due to halfway.
copyright restrictions e Focus is achieved at all the AF
point marks that light.
3 Take the picture.
és The <A-DEP> mode cannot be used if the lens’ focus mode switch is
set to <MF>.
* |f the aperture value blinks, it indicates that the exposure level is
correct but the desired depth of field cannot be achieved. Either
use a wide-angle lens or move further away from the subjects.
* In this shooting mode, you cannot freely change the shutter speed
and aperture value. If the camera sels a slow shutter speed, hold
the camera steady or use a tripod.
+ If flash is used, the result will be the same as using flash in the
<P> mode.
37
AvE4 Exposure Compensation mms
Exposure compensation is used to alter the camera's standard
exposure setting. You can make the picture look lighter (increased
exposure) or darker (decreased exposure). The exposure
compensation amount can be set up to +/-2 stops in half-stop
increments.
Turn the Mode Dial to a Creative
Zone mode except <M>.
2 Check the exposure setting.
e Press the shutter button halfway
and check the display.
3 Set the exposure compensation
amount,
® Hold down the < AvÆ> button and
turn the <> dial.
e To cancel the exposure
compensation, set the exposure
compensation amount to <} >.
Standard exposure index 4 Take the picture.
Decreased «--» Increased
exposure exposure
Exposure level mark
В * The exposure compensation amount set is retained even after the
Mode Dial is set to <@l3 >.
* The exposure compensation amount is canceled automatically
when you turn the Mode Dial to a Basic Zone mode.
+ Assuming that a shutter speed of 1/125 sec. and an aperture
value of (5.6 will give a correct exposure, setting the exposure
compensation amount to plus or minus 1 stop will change the
shutter speed or aperture value as follows:
-1stlop « 0 — +1stop
Shutter speed 250 — 125 — 60
Aperture value 8.0 = 56 — 4.0
‘@ Auto Exposure Bracketing (AEB) zum
With AEB, the camera automatically changes the exposure within the set
range {up to +/-2 stops in 1/2-stop increments) for three successive frames.
Move the <P> arrow to the
AEB amount < Za > icon.
* Look at the LCD panel and press
n = the <FUNC.> button. (6)
50
a
=
тру By
Set the desired AEB amount,
e Turn the <> dial.
® Press the shutter button halfway to
return to normal camera operation.
3 Take the picture.
» The three bracketed shots will be
exposed in the following sequence:
standard exposure, decreased
decreased exposure exposure, a" increased exposure.
DEI > As shown on the left, the respective
; bracketing amount will be displayed
Increnzad exposure AS cach a ea en
e The picture will be taken in the
current film advance mode.
e After the three AEB shots are
taken, the AEB will not be canceled
automatically. To cancel AEB, set
the AEB amount back to “ 00 ”.
AEB range
standard exposure
В » During AEB shooting, the <P> arrow will appear next to the
<&#,> icon and the AEB level <B> will be displayed. In the
viewfinder, the <%= icon will blink.
* in the <> film advance mode, the camera stops shooting
automatically after taking the three AEB shots. In the <[1> (single
frame) mode, press the shutter button completely three times to
take the three AEB shots.
* |f you use the sell-timer or remote control, the three AEB shots
will be taken continuously automatically.
* AEB can be combined with exposure compensation.
+ AEB cannot be used with flash or bulb exposures.
39
X AE LOCK Green aaa aaa aa
AE lock enables you to lock the exposure at a different place from
the point of focus. After locking the exposure, you can recompose
the shot while maintaining the desired exposure level. This feature is
useful for backlit and spotlighted subjects. For AE lock, partial
metering is used automatically.
1 Focus the subject.
» The exposure setting will be
displayed.
Press the <3 > button. (34)
® Aim the center of the viewfinder
over the subject where the
exposure is to be locked, then
press the <> button.
» The <> icon will light in the
viewfinder to indicate that the
exposure setting has been locked
(AE lock).
# Each time you press the <>
button, it locks the current exposure
setting.
AE lock indicator
3 Compose the shot and take the
picture.
e If you want to maintain the AE lock
while taking more pictures, hold
down the <#> button and press
the shutter button to take another
picture.
40
Bulb Exposures mme
When bulb is set, the shutter is open during the time you keep
pressing the shutter button fully. Bulb exposures are useful when
long exposures are required for night scenes, fireworks,
astronomical photography, etc.
1 Turn the Mode Dial to <M >.
Set the shutter speed to “ bulb ™.
e Look at the LCD panel and turn the < 4 %> dial to select * bul b ”.
e“ bul b" follows “ 30''”,
3 Select the desired aperture value.
e Hold down the <AvEd> button and turn the <á3> dial.
4 Start the bulb exposure.
» During the bulb exposure, “ bul b " blinks on the LCD panel.
® The bulb exposure continues as long as you hold down the
shutter button.
* Remote Controller AC-5 (optional) can also be used for bulb
exposures (p.24). When you press Ihe transmit button, the
exposure will start 2 sec. later. To stop the exposure, press the
button again. (DATE Model only)
s With a new set of batteries, the maximum bulb exposure time (at
20°C) will be about 4 hours.
[mh Multiple Exposures mmm
Since the film is not advanced after each shot, you can expose
multiple shots on the same frame. You can expose up to nine shots
on a single frame.
1 Move the <> arrow to the < mi > icon.
® Look at the LCD panel and press the <FUNC.> button. (56)
»* | ” will be displayed.
2 Set the desired number of multiple exposures.
e Turn the <> dial,
e Press the shutter button halfway to return to normal camera
operation.
41
[a Multiple Exposures sss 0 ana
3 Take the picture.
> Alfter you take all the multiple exposures, the film advances to
the next frame automatically and the multiple-exposure setting
Is canceled.
4 If you shoot multiple exposures on the first few or last few frames of
a roll, the multiple exposures might not be precisely aligned due to
the film curling.
E » During multiple-exposure shooting, the <B> arrow next to the <) >
icon on the LCD panel will blink.
« To cancel multiple exposures before shooting, set the number of multiple
exposures to“ { °.
« To cancel multiple exposures after shooting, follow steps 1 and 2 to
sel the number of multiple exposures to blank.
ISO Setting the ISO Film Speed mmm
If the film is not DX-coded or if you want to set a different film
speed, load the film in the camera and set the film speed manually
as follows. The settable film speed range is 150 6 to 6400.
Move the <> arrow to the
<|50> icon.
e Look at the LCD panel and press
the <FUNC.> button to move the
arrow. (66)
» The current film speed is displayed.
2 Set the desired film speed.
e Turn the <> dial to set the film
speed.
В The manually-set film speed will be canceled if the film is taken out
and DX-coded film is loaded.
42
Using the Built-in Flash mess
In a Basic Zone Mode
In low-light or backlit conditions, the built-in flash will pop up and fire
automatically (except in < 4 > < > <[E)> modes).
In a Creative Zone Mode
Press the <5> button to pop up the built-in flash.
P :Usethis mode for automatic flash photography. The flash
sync speed (1/90 sec.) and aperture value will be set
automatically as with the <CJ> (Full Auto) mode.
Tv : Use this mode if you want to set the flash sync speed
manually (within 30 sec. - 1/90 sec.). The camera will set
the flash aperture value automatically to obtain a correct
flash exposure.
Av : Use this mode if you want to set the flash aperture value.
The camera will set the flash sync speed (within 30 sec. -
1/90 sec.) automatically to obtain the best exposure for the
aperture you set. For portraits with a night scene or dark
background, a slow sync speed will be set to obtain a
proper exposure for both the subject and background. The
flash illuminates the subject, while the background is
properly exposed with a slow shutter speed.
* Because automatic slow-sync shooting uses a slow
shutter speed, always use a tripod.
M : You can manually set both the flash sync speed (within
Bulb - 1/90 sec.) and aperture value. The subject is properly
exposed with the flash and the background is exposed with
the flash sync speed and aperture value you have set.
A-DEP : The result will be the same as using the <P> mode.
Flash Distance (With EF28-90mm
ISO
43
Using the Built-in Flash massa
Flash Distance (With EF28-80mm f/3.5-5.6)
ISO
1-48
i» * When using the built-in flash, stay at least 1 meter/3.3 feet away
from the subject. Otherwise, part of the photo will look dark.
«When using the built-in flash, detach any hood attached to the
lens. A lens hood will partially obstruct the flash coverage.
* When a super telephoto lens or a fast, large-aperture lens is
attached, the built-in flash coverage might be obstructed.
* The built-in flash's flash coverage is 28mm lens angle.
* |f you use a flash unit (with multiple contacts) dedicated to another
camera brand or a high-voltage flash, the camera may not work
properly or malfunction may result.
E * To retract the built-in flash, push it down.
* |f more light is required, use an external, EOS-dedicated Speedlite
(optional).
| Reference
Feature Availability Table mum
@ : Set automatically. : User-selectable/settable.
Mode Dial Mode |C)| |A 6 |) | Р |Ту | Ам | М
ele
OJOJO|JO|/OJO/JO|/O/O/O|/O/0
AF Mode and Film Advance Mode mua
AF Mode Single frame Continuous
The picture cannot be taken until |The same conditions explained
focus is achieved. When focus is [on the left apply during
achieved, It also locks at the same [continuous shooting. (Max. 1.5
One Shot AF [time. The evaluative metering'’s — |Irames per sec.)
exposure selling is also locked.
(The exposure setting is retained
until the picture is taken.)
The subject is focus-tracked for [The same conditions explained on
continuous autofocus. The the left apply during continuous
Al Servo AF (exposure is set when the picture |shooting. Autolocusing continues
is taken. during continuous shooting. (Max.
1.3 Irames per sec.)
Automatically switches between One Shot AF and Al Serva AF
according to the subject stalus.
Al Focus AF
Troubleshooting Guide muaa aaa
If there is a problem, first refer to this Troubleshooting Guide.
# Nothing is displayed on the LCD panel.
The batteries are exhausted. / The batteries have been installed incorrectly.
» Replace the batteries with new ones. / Install the batteries correctly. (p.11)
® The picture looks blurred.
The lens focus mode switch is set to <MF>.
> Set Ihe lens focus mode switch to <AF> (p.13)
There was camera shake when the picture was taken.
» Hold the camera steady or use a faster shutter speed. (p. 14)
* The shutter does not work.
On the LCD panel, the frame count is not displayed and the < E) > icon blinks.
> Take out the film and load it correctly. (p.15)
The focus confirmation light <> in the viewfinder blinks and focus
cannot be achieved.
» Select another AF point, (p.28) -
IF focus still cannot be achieved, focus manually. (p.30)
# The <{__)> icon blinks on the LCD panel.
The battery level is very low.
» Replace the batteries with new ones. (p.11)
A misoperation has occurred.
» Press the shutter button halfwayw. (p.14) / Remove the batteries and reload
it. (p.11) Ifthe blinking <I> icon does not tur off, consult your nearest
Canon dealer.
45
Major Specifications BEN
» PD
di ...35 mm AF/AE SLR camera with built-in flash
ecording media... 45 mm film
Image size .. ине meme 24 x 35 mm
Compatible lenses .. „Canon EF lenses
Lens mount ..........=. em. Canon EF mount
* Viewfinder
Type Eye-level pentamirror
Coverage . Asli sis …Approx. 90% verlically and horizontally
0.7x (-1 diopter with 50mm lens at infinity)
Eyepoint.... wre .. 18.5 mm
Focusing screen . ...Fixed, all-matte screen
Mirror Quick-return half mirror (Transmission: reflection rate ol
40:60, No mirror cut-off with EF300mm 1/2.8L plus
Extender 2x or shorter lens)
Viewfinder information ..........AF {AF pointmark, focus confirmation light); Exposure
{ speed, aperture value, exposure level, AE lock):
Flash (flash ready, hi-speed sync, FE lock, red-eye reduction)
= Autofocus
TYDE irren 1 TL-CT-SIR with a CMOS (Complementary Metal Oxide
Semiconductor) sensor
AF points 7 AF points
AF working range .................EV 1 - 18 (150 100)
Focusing modes UE Shot AF, Al Servo AF, Al Focus AF, manual focusing (MF)
AF point selection
Selected AF oki E ..AF point mark in the viewfinder and on LCD panel
AF-assist beam... ...Jntemnitent firing of the built-in Nash
Working distance: Approx. 4 m/13.1 Hat center,
Approx. 3.5 m/11.5 ft al outer edge
= Exposure control
Exposure metering modes... TTL lull aperture metering with 35-zone SPC
= Evaluative metering (linkable to any AF point)
= Partial metering (approx. 9.5% of viewfinder at center)
* Center-weighted average melering (automatically sel in
manual exposure mode)
Melering range... —...EV 1-20 (normal temperature, 50mm (1.4, = 100)
Exposure control..................Program AE (Full Auto, Ропгай, Landscape, Close-up,
Sporis, Night Portrait, Flash off, Program), shutter-priority
AE, aperture-priority AE, depih-of-field AE, manual
exposure, E-TTL/A- TTUTTL autollash
Film speeds ............ooiee 150 6 - 6400 (Set automatically for DX-coded film within
ISO 25 - 5000)
Exposure compensation .......Manual exposure compensalion: +/— 2 stops in 1/2-stop
incremenis (can be used with AEB)
Auto Exposure Brackeling (AEB): +/- 2 siops in 1/2-stop increments
AE lock Auto AE lock: Operates in One Shoal AF mode with
evaluative metering when focus is achieved
Manual AE lock: By AE lock button in partial metering mode
Multiple ex Max. 9 exposures
46
» Shutter .
Type cally controlled focal-plane shutter
EA es 12000 a aan
Shutter release .. ...SON touch electromagnetic release
SOM-UNVOS .ncvoucccsoussecsrcemensonmes Shoot alter 10 sec. delay
Remate control .. ..Remote Controller AC-1/AC-5 {DATE Model only)
« Flash
Bull+in Nash... .—.w———.AF point-linked, 3-2one autoflash
Guide No. 12 (ISO 100, in meters), 39 (150 100, in feet)
Recycling lime: Approx. 2 sec.
Flash coverage: 28 mm lens angle covered
Red-eye reduction: Lamp
External EQOS-dedicaled Mash ...E-TTL / A-TTL / TTL autoflash
* Film transport
Film Madimg air nenn ...dUtomalic prewind
Film advance modes... …Bingle- re ous shooting
Continuous shooting speeds.. .One Shot AF: Max. 1.5 Ips
Al Servo AF: Max, 1,3 fps
Film rewind ........—... e... Automatic. Mid-roll rewind
= Date imprinting (DATE ota! only)
Automatic dating) .........—.—.=. omalic calendar to 2099
* Power sou > e CR2 lithium batteries
« Dimensions (W x H x D)..130 x 88 x 64 mm/5.1 x 35x25 in
VONT. serrer одненнь 340 g°12.0 oz (body only)
= All the specifications above are based on Canon's lesling and measuring standards.
= Specifications and physical appearance are subject to change wilhoul notice.
This device complies with Part 15 of the FCC Rules. Operation is subject to the followmng two
conditions; (1) This device may nol cause harmful interference, and (2) this device must
accept any inlerderence received, including inlederence thal may cause undesired operation.
Do not make amy changes or modifications 1o the equipment unless otherwise specified in
the instructions. if such changes or modifications should be made. you could be required to
slop operation of the equipment.
This equipment has been tested and lound 10 comply with the lmits jor a class B digital
device, pursuant to part 15 ol he FCC Rules. These limits are designed lo provide
reasonable protection against harmbul intederence in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if nol installed and used in
accordance with the instructions, may cause harmlul inledarence to radio communications.
However, There is no guaranties That mberderence will nof occur in à particular installation. HN
this equipment does cause harmiul interference lo radio or television reception, which can
be determined by turning Ihe equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
* Rearient or relocate the receiving antenna.
« Increase the separalion between Ihe equipment and receiver.
* Consult the dealer or an experienced radio/TV technician for help.
This digital apparatus does nol exceed the Class B limits for radio noise
noise emissions from
digital apparatus as sel oLi in the imererence-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Industry Canada.
C € The CE Mark is a Directive conformity mark of the European Community (EC)
47
Canon
Company information that is not current has been removed.
if you have any questions about this model and are calling from the USA,
please call 1 800 OK CANON
CT1-1248-000 © CANON INC. 2003 PRINTED IN TAIWAN
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
