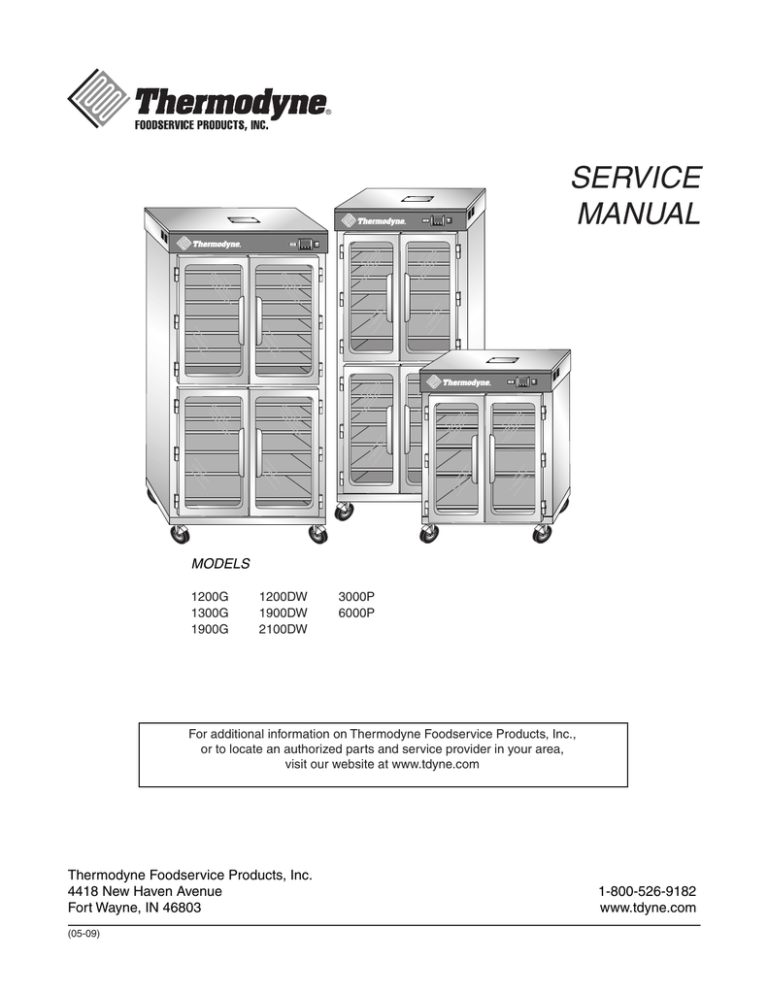

SERVICE MANUAL MODELS

SERVICE MANUAL MODELS
SERVICE
MANUAL
MODELS
1200G
1300G
1900G
1200DW
1900DW
2100DW
3000P
6000P
For additional information on Thermodyne Foodservice Products, Inc.,
or to locate an authorized parts and service provider in your area,
visit our website at www.tdyne.com
Thermodyne Foodservice Products, Inc.
4418 New Haven Avenue
Fort Wayne, IN 46803
(05-09)
1-800-526-9182
www.tdyne.com
ELECTRICAL WARNINGS
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL ELECTRICAL
EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD STARTUP AND ADJUSTMENTS OF
THE EQUIPMENT COVERED BY THIS MANUAL.
READ THIS MANUAL THOROUGHLY BEFORE OPERATING, INSTALLING OR PERFORMING
MAINTENANCE ON THE EQUIPMENT.
WARNING: Failure to follow all the instructions in this manual can cause property
damage, injury or death.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death.
WARNING: Electrical connections should be performed only by a certified professional.
WARNING: Electrical and grounding connections must comply with the applicable
portions of the National Electric Code and/or all local electric codes. Failure to comply with this
procedure can cause property damage, injury or death.
WARNING: Before connecting the unit to the electrical supply, verify that the electrical and
grounding connections comply with the applicable portions of the National Electric Code and/or
other local electrical codes. Failure to comply with this procedure can cause property damage,
injury or death.
WARNING: Before connecting the unit to the electrical supply, verify that the electrical
connection agrees with the specifications on the data plate. Failure to comply with this
procedure can cause property damage, injury or death.
WARNING: UL73 grounding instructions: This appliance must be connected to a
grounded, metal, permanent wiring system. Or an equipment-grounding conductor must be run
with the circuit conductors and connected to the equipment-grounding terminal or lead on the
appliance. Failure to comply with this procedure can cause property damage, injury or death.
WARNING: Appliances equipped with a flexible electric supply cord, are provided with
a three-prong grounding plug. It is imperative that this plug be connected into a properly
grounded three-prong receptacle. Failure to comply with this procedure can cause property
damage, injury or death.
WARNING: If the receptacle is not the proper grounding type, contact an electrician. Do
not remove the grounding prong from the plug. Failure to comply with this procedure can cause
property damage, injury or death.
——
WARNING: Before performing any service that involves electrical connection or
disconnection and/or exposure to electrical components, always perform the Electrical
LOCKOUT/TAGOUT Procedure. Disconnect all circuits. Failure to comply with this procedure
can cause property damage, injury or death.
WARNING: Before removing any sheet metal panels, always perform the Electrical
LOCKOUT/TAGOUT Procedure. Be sure all circuits are disconnected. Failure to comply with this
procedure can cause property damage, injury or death.
WARNING: Do not operate this equipment without properly placing and securing all
covers and access panels. Failure to comply with this procedure can cause property damage,
injury or death.
WARNING: Do not use or store gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance. Failure to comply can cause property damage, injury or
death.
WARNING: In the event of a power failure, do not attempt to operate this appliance. Failure
to comply can cause property damage, injury or death.
——
TABLE OF CONTENTS
ELECTRICAL LOCKOUT/TAGOUT PROCEDURE........................................................................................... 5
COVERS AND PANELS.................................................................................................................................... 6
Top Fill Cover.............................................................................................................................................. 6
Power Head Lid........................................................................................................................................... 6
Side Panels................................................................................................................................................. 7
Doors.......................................................................................................................................................... 7
COMPONENT LOCATOR................................................................................................................................. 8
Power Head Components........................................................................................................................... 8
Delivery Manifold Components................................................................................................................... 9
Return Manifold Components................................................................................................................... 10
COMPONENT REMOVAL AND REPLACEMENT........................................................................................... 11
Electrical Components................................................................................................................. 11
Power Toggle Switch........................................................................................................................... 11
Add Fluid Light.................................................................................................................................... 11
Temperature Controller....................................................................................................................... 12
Cooling Fan........................................................................................................................................ 13
Power Cord......................................................................................................................................... 14
POWER BOARD COMPONENTS............................................................................................................ 15
Solid State Relay................................................................................................................................ 15
Float Board......................................................................................................................................... 16
Plumbing Components.................................................................................................................... 16
B&G Pump.......................................................................................................................................... 16
Teflon Hoses....................................................................................................................................... 17
Fluid Level Probes.............................................................................................................................. 19
Snap Disc........................................................................................................................................... 20
Thermocouple.................................................................................................................................... 21
Heat Elements.................................................................................................................................... 22
MAINTENANCE PROCEDURES.................................................................................................................... 24
Temperature Controller Set Up Procedures.............................................................................................. 24
Unlock the Controller.......................................................................................................................... 24
Set Up................................................................................................................................................. 24
9300 Ogden Throwback Controller..................................................................................................... 26
Changing the Heat Transfer Fluid.............................................................................................................. 28
Door Adjustment....................................................................................................................................... 29
Stainless Steel Care................................................................................................................................. 30
Cleaning............................................................................................................................................. 30
Preserving & Restoring...................................................................................................................... 30
Heat Tint............................................................................................................................................. 30
TROUBLESHOOTING..................................................................................................................................... 31
WIRING SCHEMATICS................................................................................................................................... 32
WARRANTY.................................................................................................................................................... 34
HEAT TRANSFER FLUID MSDS.................................................................................................................... 34
——
ELECTRICAL LOCKOUT/TAGOUT PROCEDURE
1. In electrical box, place appliance circuit breaker
into OFF position.
WARNING
Before performing any service that involves
electrical connection or disconnection
and/or exposure to electrical components,
always follow the Electrical LOCKOUT/
TAGOUT Procedure. Disconnect all circuits.
Failure to comply can cause property
damage, injury or death.
2. Place a lock or other device on electrical box
cover to prevent someone from placing circuit
breaker ON.
3. Place a tag on electrical box cover to indicate
that appliance has been disconnected for
service and power should not be restored until
tag is removed by maintenance personnel.
The Electrical LOCKOUT/TAGOUT Procedure is
used to protect personnel working on an electrical
appliance. Before performing any maintenance
or service that requires exposure to electrical
components, follow these steps:
4. Disconnect appliance power cord from
electrical outlet.
5. Place a tag on the cord to indicate that unit
has been disconnected for service and power
should not be restored until tag is removed by
maintenance personnel.
——
COVERS AND PANELS
Power Head Lid
Top Fill Cover
The Top Fill Cover provides access to the Reservoir
Tank Cap without the requirement to remove the
entire Power Head Lid. Remove the cover to access
the Reservoir Tank Cap when the Add Fluid Light
is illuminated.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
1. Place the Power Toggle Switch to the OFF
position.
2. Remove the Philips screws securing the Top
Fill Cover.
Removing the Power Head Lid provides access to all
of the components of the Power Head Assembly.
3. Remove the Top Fill Cover.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
4. Reverse the procedure to reinstall the Top Fill
Cover.
2. Remove the Philips screws securing the Power
Head Lid.
Top Fill Cover
3. Remove the Power Head Lid.
4. Reverse the procedure to reinstall the Power
Head Lid.
Power Head Lid
Figure 1 – Top Fill Cover
Figure 2 – Power Head Lid
——
Side Panels
Doors
All DW, G & P models are supplied with doors that
lift off hinges. To remove the doors, open the door
slightly and lift it straight up and off the hinge.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
The Side Panels provide access to the Fluid
Delivery and Fluid Return systems.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Using a regular screwdriver turn the Quarter
Turn Post counterclockwise until it unlatches.
3. Repeat until all Quarter Turn Posts are loose.
4. Lift the Side Panel up and away from the unit.
5. Reverse the procedure to reinstall the Side
Panel.
Side
Panel
Figure 3 – Side Panel Removal
——
COMPONENT LOCATOR
Power Head Components
12
13
17
14
15
16
1
3
4
15
5
11
10
9
8
1 2
3 4
5 6
6
7 8
9 10
11 12
7
Figure 4: Power Head Components
1. Cooling Fan
10.120VAC Float Board
2. B&G Pump
11.Neutral Lug
3. Reservoir Fill Cap
12.Heater Elements
4. Reservoir Assembly
13.Snap Disc
5. Contactor
14.16 PSI Pressure Cap
6. Lighted Power Toggle Switch
15.Fluid Level Probes
7. Add Fluid Light
16.Thermocouple
8. Temperature Controller
17.Heater Tank Assembly
9. Solid State Relay
——
2
Delivery Manifold Components
1
2
3
7
4
6
5
Figure 5: Delivery Manifold Components
1. Delivery Line
2. Teflon Washer
3. Shelf Plug
4. Power Cord
5. Delivery Manifold Assembly
6. Short Teflon Hose
7. Shelf Elbow
——
Return Manifold Components
1
2
8
3
4
7
6
Figure 6: Return Manifold Components
1. Overflow Tube
2. Shelf Plug
3. Teflon Washer
4. Drain Tube
5. Drain Tube ON/OFF Valve
6. Return Manifold
7. Long Teflon Hose
8. Shelf Elbow
— 10 —
5
COMPONENT REMOVAL AND REPLACEMENT
Electrical Components
Spring
Tab
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
Power
Toggle
Switch
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
Figure 7: Power Toggle Switch Removal
Power Toggle Switch
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
CAUTION: Always use pliers when removing
electrical wire connectors. Do NOT pull on
the wires to remove the connectors.
2. Perform the POWER HEAD LID removal
procedure.
5. Insert the new switch through the front of the
unit ensuring that the tabs lock into place.
3. Tag and disconnect the wires connected to
the Power Toggle Switch.
6. Refer to the tags or wiring schematic to reconnect
the wires to the new Power Toggle Switch.
4. Squeeze the spring tabs that hold the switch
in place and push the switch through the front
of the unit.
7. Restore power to the unit and check the Power
Toggle Switch for proper operation.
Note: If the switch being removed is damaged,
it may be easier to break the spring tabs
off of the switch rather than attempting to
squeeze the spring tabs. If this method
is used, remember to remove the broken
tabs from the inside of the Power Head.
9. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
8. Remove power from the unit.
10.Restore power to the unit and verify proper
operation.
Add Fluid Light
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
— 11 —
7. Remove power from the unit.
WARNING
8. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
9. Restore power to the unit and verify proper
operation.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
Temperature Controller
2. Perform the POWER HEAD LID removal
procedure.
WARNING
Note: It is not necessary to remove wire connectors
to replace the Add Fluid Light bulb.
3. Pull out and remove the light socket from the
Add Fluid Light cover.
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
4. Remove and replace the defective bulb.
WARNING
Power
Toggle
Switch
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
Add Fluid
Light
The Temperature Controller consists of three parts,
the Controller Back (wire harness connector),
the Controller Body and the Controller Mounting
Bracket.
Light
Socket
Spring
Tabs
Controller
Mounting
Bracket
Retaining
Clamp
Figure 8: Add Fluid Light Removal
5. Reverse the procedure to reinstall the Add
Fluid Light.
6. Restore power to the unit and check the Add
Fluid Light for proper operation.
Note: The Add Fluid Light will not illuminate if
the Heat Transfer Fluid level is sufficient.
Drain fluid as necessary in order to test
for proper light operation. Refer to the
CHANGING HEAT TRANSFER FLUID
procedure for draining and adding Heat
Transfer Fluid.
Temperature
Controller
Body
Controller
Back
Figure 9: Top View of Temperature Controller
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
— 12 —
2. Perform the POWER HEAD LID removal
procedure.
3. Carefully spread the tabs apart to unplug the
Controller Back. Be careful not to strain the
wires mounted to the Controller Back.
4. Unplug the Controller Back.
Mounting
Tabs
Front
Panel
Figure 12: Temperature Controller Removed
7. Slide the new controller body through the front
of the unit.
8. Hold the controller in place and slide the
Retaining Clamp onto it from the rear until it
is secure.
Controller
Back
9. Reconnect the Controller Back ensure the tabs
lock it into position.
Figure 10: Controller Back Removed
5. Push the mounting tabs together and slide
the Retaining Clamp off the Temperature
Controller Body.
10. Restore power to the unit and check the
controller for proper operation.
11. Remove power from the unit.
12. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
Retaining
Clamp
13. Restore power to the unit and ensure it is
operating correctly.
Note: The new Temperature Controller may
require set up.Refer to theTEMPERATURE
CONTROLLER SET UP procedure for set
up procedures.
Cooling Fan
Figure 11: Retaining Clamp Slid Back
WARNING
6. Slide the Temperature Controller out through
the front of the unit.
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
— 13 —
Power Cord
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
WARNING
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform the POWER HEAD LID removal
procedure.
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
WARNING
3. Unplug the leads from the fan.
4. Remove the four screws securing the fan to
the Power Head.
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform the POWER HEAD LID removal
procedure.
3. Disconnect the Power Cord from the Contactor
and remove the ground screw securing the
green ground wire to the unit frame.
4. Refer to the wiring schematic to connect the
new power cord.
5. Restore power to the unit.
6. Verify the unit is working properly.
Figure 13: Cooling Fan Removal
7. Remove power from the unit.
5. Reverse this procedure to install the new
Cooling Fan.
8. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
6. Restore power to the unit and ensure it is
operating correctly.
9. Restore power to the unit and ensure it is
operating correctly.
— 14 —
POWER BOARD COMPONENTS
The Power Board Components include the Solid
State Relay, Contactor, Float Board and the Neutral
Lug. Under normal circumstances it should not
be necessary to replace either the Contactor or
the Neutral Lug.
Note: The Power Board is mounted on plastic
risers that allow for air to flow on the
underside of the board. It is not necessary
to remove the Power Board when replacing
one of its components; however it may
be necessary to loosen the screws that
secure the Power Board to the unit. Loosen
but do not remove the screws as they hold
the plastic risers in place.
Neutral
Lug
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform the POWER HEAD LID removal
procedure.
3. Tag and disconnect the wires to the Solid State
Relay.
4. Remove the Solid State Relay by removing the
two screws securing it to the Power Board.
It may be necessary to loosen the screws
securing the Power Board to gain access to the
screws at the front of the Solid state Relay.
Relay
Mounting
Screws
Contactor
120VAC
Float
Board
Power
Board
Solid State
Relay
Power Board
Mounting Screws
Plastic
Riser
Figure 14: Power Board Components
Figure 15: Solid State Relay Removal
Solid State Relay
5. Install the new Solid State Relay.
6. Reattach the screws securing the Power Board
to the unit.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
7. Refer to the tags or the wiring schematic to
reconnect the wires to the new Solid State
Relay.
8. Restore power to the unit and verify
operation.
9. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
10. Restore power to the unit and ensure it is
operating correctly.
— 15 —
Float Board
6. Refer to the tags or the wiring schematic to
reconnect the wires to the new Float Board.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
7. Restore power to the unit and check it for
proper operation.
8. Remove power from the unit.
9. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
10. Restore power to the unit and ensure it is
operating correctly.
WARNING
Plumbing Components
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
B&G Pump
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform the POWER HEAD LID removal
procedure.
3. Tag and disconnect the wires attached to the
Float Board.
Note: It is NOT necessary to loosen the Power
Board screws to gain access to the Float
Board.
4. Remove the screws and plastic risers securing
the Float Board to the Power Board and lift the
Float Board out of the unit.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
WARNING
Float Board
Mounting
Screws
Before servicing the plumbing system the heat
transfer fluid must be drained from the system.
Additional tools required for this procedure:
• 1-1/16 Wrench
• 1-3/8 Wrench
• 7/16 Wrench
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
Plastic
Riser
2. Perform the POWER HEAD LID removal
procedure.
Figure 16: Float Board Removal
3. Perform the SIDE PANEL removal procedure
to remove the left side panel.
5. Install the new Float Board making sure a
plastic riser is attached to each screw.
4. Locate the Drain Tube and place it into an
empty pan.
— 16 —
9. Using the 1-1/16 wrench, remove the Delivery
Line.
10. Using the 1-3/8 wrench, unscrew the unions
on both sides of the pump.
11. Using the 7/16 wrench, remove the u-clamp
securing the pump to the Pump Bracket and
remove the pump.
Drain
Tube
12. Place the new pump into position.
13. Loosely connect the u-clamp.
14. Ensure NEW gaskets are in place at both unions
and tighten the unions using the 1-3/8 wrench.
Drain Valve
15. Tighten the 7/16 nuts on the u-clamp.
16. Reconnect the Delivery Line.
Figure 17: Drain Tube and Drain Valve
Location
17. Refer to the tags or wiring schematic to
reconnect the pump wires.
5. Remove both the Heater Tank Pressure and
the Reservoir Caps.
19. Restore power to the unit.
20. Fill the Heater Tank with FRESH Heat Transfer
Fluid and replace Heater Tank Pressure Cap.
Gaskets
Heater Tank
Cap
18. Close the Drain Valve.
21. Fill the Reservoir Tank until the Add Fluid Light
goes out and replace Reservoir Tank Cap.
B&G Pump
Reservoir
Cap
22. Ensure there are no leaks at the pump unions
or Delivery Line fittings.
23. Remove power from the unit.
Pump
Unions
24. Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
Delivery
Hose
Fitting
25. Reverse the SIDE PANEL removal procedure
to reinstall the panel.
26. Restore the power to the unit and check it for
proper operation. It may be necessary to add
additional fluid after the unit has operated for
several minutes.
Pump
Bracket
Figure 18: B&G Pump Removal
Teflon Hoses
6. Open the Drain Valve to drain the Heat
Transfer Fluid.
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data
Sheet provided at the end of this manual for
proper disposal of the fluid.
8. Tag and disconnect the B&G pump wires.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
— 17 —
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
Manifold
WARNING
Before servicing the plumbing system the
heat transfer fluid must be drained from
the system.
Shelf
Elbow
Under normal operating circumstances it should
not be necessary to replace a hose. Should a
hose become damaged or begin leaking it must
be replaced. There are two sets of Teflon Hoses
installed on each unit. The short Teflon Hoses are
located on the delivery side (left side) of the unit.
The long Teflon Hoses are located on the return
side (right side) of the unit. Both sets of hoses are
replaced in the following manner:
Teflon Tube
Drain Tube
Figure 19: Return Side of Unit
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform the POWER HEAD LID removal
procedure.
3. Perform the SIDE PANEL removal procedure
to remove the applicable side panel.
Manifold
4. Locate the Drain Tube and place it into an
empty pan.
Shelf
Elbow
5. Remove Heater Tank Cap and Reservoir
Cap.
6. Open the Drain Valve to drain the Heat Transfer
Fluid.
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data Sheet
provided at the end of this manual for proper
disposal of the fluid.
8. Using an open end 3/4 wrench remove the
hose from the Shelf Elbow side first.
9. Using an open end 7/16 wrench remove the
hose from the manifold.
Teflon Tube
Figure 20: Delivery Side of Unit
10.Attach the replacement Teflon Hose to the
manifold first, then attach the other end
to the Shelf Elbow using the appropriate
wrenches.
11.Close the Drain Valve.
12.Restore power to the unit.
13.Fill the Heater Tank with FRESH Heat Transfer
Fluid and replace Heater Tank Pressure
Cap.
— 18 —
14.Fill the Reservoir Tank until the Add Fluid
Light goes out and replace the Reservoir
Tank Cap.
16.Remove power from the unit.
the Reservoir Tank. Before changing either of the
probes, check the fluid levels in the Heater and
the Reservoir Tanks. Also, check the electrical
connection to the probes. The probes should test
as open with a continuity test when the tanks are
filled with fluid.With an empty tank the probe should
test as closed during a continuity test.
17.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
18.Reverse the SIDE PANEL removal procedure
to reinstall the applicable side panel.
2. Perform the POWER HEAD LID removal
procedure.
19.Restore power to the unit and check it for
proper operation. It may be necessary to add
additional fluid after the unit has operated for
several minutes.
3. Perform the SIDE PANEL removal procedure
to remove the left side panel.
15.Ensure there are no leaks around the fittings
of the new hose.
20.After the unit has operated for several minutes
remove the Side Panel where the hose was
replaced and ensure that it is not leaking.
Tighten as necessary.
21.Reattach the removed Side Panel.
4. Locate the Drain Tube and place it into an
empty pan.
5. Remove the Heater Tank Cap and the Reservoir
Cap.
6. Open the Drain Valve to drain the Heat Transfer
Fluid.
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data Sheet
provided at the end of this manual for proper
disposal of the fluid.
Fluid Level Probes
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
Fluid
Sensor
Probes
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
WARNING
Before servicing the plumbing system the
heat transfer fluid must be drained from
the system.
Figure 21: Fluid Level Probe Removal
8. Disconnect the Fluid Level Probe lead.
There are two Fluid Level Probes. One is installed
in the Heater Tank and the other is installed in
9. Remove the defective probe.
— 19 —
10.Install the new probe.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
11.Reconnect the probe lead.
2. Perform the POWER HEAD LID removal
procedure.
12.Restore power to the unit.
13.Close the fluid Drain Valve.
14.Fill the Heater Tank and Reservoir Tank with
fluid until the Low Fluid Light goes out.
15.Ensure that are no leaks around the newly
installed probe, tighten as needed.
16.Remove power from the unit.
17.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
18.Reverse the SIDE PANEL removal procedure
to reinstall the panel.
19.Restore power to the unit and verify the unit
is operating correctly. It may be necessary to
add additional fluid after the unit has operated
for several minutes.
3. Perform the SIDE PANEL removal procedure
to remove the left side panel.
4. Locate the Drain Tube and place it into an
empty pan.
5. Remove Heater Tank Cap and Reservoir Cap.
6. Open the Drain Valve to drain the Heat
Transfer Fluid.
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data Sheet
provided at the end of this manual for proper
disposal of the fluid.
8. Tag and disconnect the Snap Disc wires.
Heater Tank
Cap
Snap Disc
Snap Disk
Reservoir
Cap
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
Figure 22: Snap Disc Location and Removal
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
9. Remove the defective Snap Disc.
10.Install the new Snap Disc.
11.Refer to the tags or the wiring schematic to
reconnect the wires to the new Snap Disc.
12.Restore power to the unit.
13.Close the fluid Drain Valve.
WARNING
Before servicing the plumbing system the
heat transfer fluid must be drained from
the system.
14.Fill the Heater Tank and Reservoir Tank with
fluid until the Low Fluid Light goes out.
15.Ensure that are no leaks around the newly
installed probe, tighten as needed.
The Snap Disc is located on the Heater Tank
and provides over-temperature protection for the
unit.
16.Remove power from the unit.
17.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
— 20 —
18.Reverse the SIDE PANEL removal procedure
to reinstall the panel.
provided at the end of this manual for proper
disposal of the fluid.
19.Restore power to the unit and verify the unit
is operating correctly. It may be necessary to
add additional fluid after the unit has operated
for several minutes.
8. Carefully spread the tabs apart to unplug the
Controller Back. Unplug the Controller Back.
Mounting
Tabs
Thermocouple
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
Controller
Back
property damage, injury or death.
Figure 23: Controller Back Unplugged
WARNING
9. Tag and disconnect the Thermocouple wires
on the Controller Back.
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
10. Remove Thermocouple from the Heater Tank.
Thermocouple
WARNING
Before servicing the plumbing system the
heat transfer fluid must be drained from
the system.
The Thermocouple is located on the Heater Tank.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform the POWER HEAD LID removal
procedure.
3. Perform the SIDE PANEL removal procedure
to remove the left side panel.
4. Locate the Drain Tube and place it into an
empty pan.
Figure 24: Thermocouple Location
and Removal
5. Remove Heater Tank Cap and Reservoir Cap.
6. Open the Drain Valve to drain the Heat Transfer
Fluid.
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data Sheet
11.Install the new Thermocouple into the Heater
Tank. Exercise care to avoid damaging the
Thermocouple lead during installation.
— 21 —
12.Refer to the tags or the wiring schematic to
reconnect the new Thermocouple leads to the
Controller back.
13.Attach the Controller Back to the Temperature
Controller.
14.Restore power to the unit.
15.Close the fluid Drain Valve.
16.Fill the Heater Tank and Reservoir Tank with
fluid until the Low Fluid Light goes out.
17.Ensure that are no leaks around the newly
installed Thermocouple, tighten as needed.
18.Remove power from the unit.
19.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
20.Reverse the SIDE PANEL removal procedure
to reinstall the panel.
21.Restore power to the unit and verify the unit
is operating correctly. It may be necessary to
add additional fluid after the unit has operated
for several minutes.
Heat Elements
The Heat Elements are located inside the Heater
Tank. The Heater Tank must be removed to gain
access to the Heat Elements.
Note: Before performing this procedure check
each Heat Element with a continuity meter.
It is only necessary to replace the faulty
element.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform POWER HEAD LID removal procedure.
3. Perform the SIDE PANEL removal procedure
to remove the left side panel.
4. Locate the Drain Tube and place it into an
empty pan.
5. Remove Heater Tank Cap and Reservoir Cap.
6. Open the Drain Valve to drain the Heat
Transfer Fluid.
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data
Sheet provided at the end of this manual for
proper disposal of the fluid.
8. Tag and disconnect Snap Disc Leads.
9. Tag and disconnect Fluid Level Probe wires.
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
10.Tag and disconnect Heat Element leads.
11.Tag and disconnect Heater Tank ground wire.
Note: It may not be necessary to remove
the Thermocouple to change the Heat
Elements. If Thermocouple needs to be
removed refer to the THERMOCOUPLE
removal procedure.
9. Before removing the Heater Tank loosen the
Heat Elements with an appropriately sized
wrench.
10.Remove the nuts and bolts securing the Heater
Tank to the Return Manifold.
WARNING
Before servicing the plumbing system the
heat transfer fluid must be drained from
the system.
— 22 —
Loosen
Heat Elements
Remove
Heat Elements
Heater Tank
Heater Tank
Connection
Manifold Connection
Figure 27: Heat Element Removal
Flange
Gasket
15.Unscrew and remove the defective Heat
Element.
16.Install the new Heat Element.
17.Using a NEW Flange Gasket reconnect the
Heater Tank to the Return Manifold.
Figure 25: Heater Tank to
Return Manifold Connection
11.Disconnect the Overflow Tube at the Pressure
Cap on the Heater Tank.
18.Reattach the Heater Tank to the Power Head
chassis.
19.Tighten the Heat Element that was replaced.
12.Completely loosen the Pump Union on the
tank side of the pump.
20.Using a new Pump Union Gasket, reconnect
the pump to the tank.
13.Remove the nuts and bolts securing the Heater
Tank to the unit’s chassis.
21.Reconnect the Overflow Tube.
Heater Tank
Mounting
Nuts
Loosen
Pump
Union
22.Refer to the tags or the wiring schematic to
reconnect all of the wires and leads. If the
Thermocouple was removed, reinstall it.
23.Restore power to the unit.
24.Fill the Heater Tank and Reservoir Tank with
fresh Heat Transfer fluid until the Low Fluid
Level light goes out.
25.Check for leaks at the Return Manifold
Flange, Pump Union, Heat Element and the
Thermocouple if it was removed. Tighten
as needed.
26.Remove power from the unit.
27.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
Figure 26: Heater Tank Removal
14.Carefully lift the Heater Tank out of the Power
Head. If the Thermocouple is still attached
be careful not to place undue stress on the
Thermocouple wires.
28.Reverse the SIDE PANEL removal procedure
to reinstall the panel.
29.Restore power to the unit and verify the unit
is operating correctly. It may be necessary to
add additional fluid after the unit has operated
for several minutes.
— 23 —
MAINTENANCE PROCEDURES
Temperature Controller
Set Up Procedures
9. Slide Temperature Controller back into unit.
10.Slide the Retaining Bracket tight against the
Power Head front wall.
Unlock the Controller
11.Plug in the Controller Back.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
12.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
2. Perform POWER HEAD LID removal procedure.
13.Restore power to the unit and turn it on.
3. Carefully spread the tabs apart to unplug the
Controller Back. Exercise care to not strain
the wires mounted to the Controller Back.
14.Test the Temperature Controller by trying to
change the temperature up or down.
4. Unplug the Controller Back.
Set Up
5. Push the mounting tabs together and slide the
Retaining Clamp off of theTemperature Controller
Body. Slide the Retaining Bracket off.
Key Functions
Touch Function Description
Key
Up
Press and release quickly
Key
to increase the value of the
displayed parameter.
6. Slide the Temperature Controller out of the
front of the unit.
7. Locate the Access Hole on the bottom of the
Temperature Controller.
Bottom of
Temperature
Controller
Down
Key
Access
Hole
Press and hold to accelerate
increment speed.
Press and release quickly
to decrease the value of the
displayed parameter.
Press and hold to accelerate
decrement speed.
1. Press the Up or Down touch key as needed
to adjust the displayed temperature.
Figure 28: DIP Switch Access Hole Location
8. Flip the DIP switch labeled as #4 to the OFF
position as illustrated below as UNLOCKED.
2. The OUT LED will be lit solid during warm up.
(normal operation)
3. When the OUT LED starts blinking, the unit
has reached the desired temperature.
Note: This Temperature Controller does not
indicate fluid levels in the Heater or
Reservoir Tanks.
Figure 29: DIP Switch Arrangement
— 24 —
2. Press Button 1 four times until the display
shown in Figure 32 is displayed.
Alarm 1 Indicator
Alarm 2 / Output 2 Indicator
Process Value Indicator
A1 A2
Process Unit
Indicator
A1 A2
Set
Point
Value
Indicator
Output 1
Indicator
PV
ϒC ϒF
Upper
Display
SV
PV
ϒC ϒF
PV
ϒC ϒF
PV
ϒC ϒF
OUT
Lower
Display
Rubber buttons control
setup and set point adjustment.
ϒC ϒF
SV
Displays
process value,
menu symbol
and error code.
OUT
PV
A1 A2
Displays set
point value,
parameter
value or control
output value.
SV
OUT
Figure 30: Controller Keys and Display
1. Press buttons (1) and (3) together for 3-5
seconds.
A1 A2
A1 A2
PV
ϒC ϒF
SV
OUT
SV
OUT
A1 A2
1
2
3
SV
OUT
Figure 31: Result of Pressing
Buttons 1 and 3
Figure 32: Toggling Through the Functions
— 25 —
3. Press the Up or Down touch keys to toggle
between Fahrenheit and Celsius.
A1 A2
PV
3. Set shift to 0°F:
a. Press and hold button (1), then push button
(1) two times.
b. Press button (3) until it reads 0°F.
ϒC ϒF
A1 A2
SV
PV
ϒC ϒF
OUT
SV
OUT
Figure 33: Controller Set To Fahrenheit
4. Lock out the Temperature Controller by
reversing the UNLOCK THE CONTROLLER
procedure.
1
2
3
Figure 35: Set Shift to 0°F
9300 Ogden
Throwback Controller
4. Set high limit:
a. Press buttons (1) and (3) together and
release.
1. Use the Ogden 9300 controller with an alarm.
2. Wiring:
b. Press button (1) twenty-five times until it
reads SP1.H.
a. Wire the controller using standard
procedure.
c. Press the increase or decrease touch key
until it reads 230°F.
b. Add jumper wire from terminal 7 to
terminal 13.
c. Add jumper wire from terminal 8 to
terminal 14.
2a.
1
2
3
4
5
A1 A2
PV
ϒC ϒF
2b. & 2c.
6
7
8
1
2
3
4
5
6
7
SV
8
Standard
Throw
Back
91 10 11 12 13 14 15 16
91 10 11 12 13 14 15 16
OUT
1
2
3
Figure 36: Set Hi Limit
Figure 34: Controller Wiring Combinations
5. EiFn = SP2 (May already be set from factory):
a. Press buttons (1) and (3) together and
release.
— 26 —
b. Press button (1) eighteen times to read
EiFn, set at SP2.
7. Change Set Point to desired temperature
(i.e. 200°F):
c. Press button (2) or (3) to scroll through the
options.
a. Press button (2) to increase desired set
point temperature.
d. Press buttons (2) and (3) and release to
return to beginning.
b. Press button (3) to decrease desired set
point temperature.
A1 A2
PV
A1 A2
ϒC ϒF
PV
ϒC ϒF
SV
SV
OUT
OUT
1
2
1
3
2
3
Figure 39: Change Set Point Temperature
Figure 37: Set EiFn
8. Change Hold Temperature:
6. A1Fn = Timer:
a. Press buttons (1) and (3) together and
release.
a. Press and hold button (1) for three seconds
and release.
b. Press button (1) twelve times to read A1Fn,
set at Timer ( ).
b. Press button (1) six times to read SP2, set
to desired temperature (i.e. 150°F).
c. Press button (2) or (3) to scroll through the
options.
c. Press button (2) to increase desired hold
temperature.
d. Press buttons (2) and (3) and release to
return to beginning.
d. Press button (3) to decrease desired hold
temperature.
e. Press buttons (2) and (3) and release to
return to beginning.
A1 A2
PV
ϒC ϒF
A1 A2
PV
ϒC ϒF
SV
OUT
SV
OUT
1
2
3
1
Figure 38: Set Timer
2
3
Figure 40: Change Hold Time
— 27 —
9. Change Hold Time (i.e. 120 minutes):
a. Press and hold button (1) for three seconds
and release.
WARNING
b. To read the time, change to desired
minutes.
Before servicing the plumbing system the
heat transfer fluid must be drained from the
system.
c. Press button (2) to increase desired hold
time.
The Heat Transfer Fluid must be changed on an
annual basis.
d. Press button (3) to decrease desired hold
time.
NEVER SUBSTITUTE THERMODYNE HEAT
TRANSFER FLUID WITH WATER OR OTHER
LIQUID
e. Press buttons (2) and (3) and release to
return to beginning.
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
2. Perform POWER HEAD LID removal procedure.
A1 A2
PV
ϒC ϒF
3. Perform the SIDE PANEL removal procedure to
remove the left side panel.
4. Locate the Drain Tube and place it into an
empty pan.
SV
OUT
1
2
3
Drain
Tube
Figure 41: Change Hold Time
Changing the Heat Transfer Fluid
Drain Valve
WARNING
Before removing any sheet metal panels or
servicing this equipment, always perform
the Electrical LOCKOUT/TAGOUT Procedure.
Be sure all circuits are disconnected. Failure
to comply with this procedure can cause
property damage, injury or death.
WARNING
Certain components may be hot if the
unit was in operation prior to performing
a procedure. Allow the unit to cool before
beginning work.
— 28 —
Figure 42: Drain Tube and Valve Location
Door Adjustment
5. Remove Heater Tank Cap and Reservoir Cap.
Heater Tank
Cap
1. Perform the ELECTRICAL LOCKOUT/
TAGOUT procedure.
Reservoir
Cap
2. Allow the unit to cool.
3. Perform the SIDE PANEL removal procedure
to remove the side panels.
4. Lift the door(s) up and off of the unit.
5. Loosen the hinges on the unit.
Figure 43: Heater Tank and Reservoir Cap
Location and Removal
6. Open the Drain Valve to drain the Heat
Transfer Fluid.
Hinge
Screws
7. Discard the drained fluid. Refer to the Heat
Transfer Fluid Material Safety Data Sheet
provided at the end of this manual for proper
disposal of the fluid.
8. Close the Drain Valve and stow the Drain Tube
inside the cabinet.
9. Reverse the SIDE PANEL removal procedure
to reinstall the left side panel.
10.Reverse the POWER HEAD LID removal
procedure to reinstall the Power Head Lid.
Figure 44: Location of Door Hinge Screws
11.Restore power to the unit and turn it on.
7. Reattach the door(s) to the loosened hinges.
12.Fill Heater Tank and replace Pressure Cap.
8. Close the door(s) and align them in the closed
position.
13.Fill the Reservoir until the Add Fluid Light goes
out and replace the Reservoir Cap.
9. Tighten the hinge screws.
14.The Add Fluid Light may come on after a few
minutes of operation.
10.Make sure the doors open and close
properly.
15.Remove the Fill Cap Cover on the Power Head
Lid and the Reservoir Cap.
11.Reverse the SIDE PANEL removal procedure
to reinstall the side panels.
16.Add fluid to the Reservoir until the Add Fluid
Light goes out.
12.Restore power to the unit.
17.Reattach the Fill Cap Cover to the Power
Head Lid.
18.It may be necessary to add additional fluid after
the unit has operated for several minutes.
— 29 —
Stainless Steel Care
Cleaning
Stainless steel contains 70-80% iron, which will
rust if not properly maintained. It also contains 1230% chromium, which forms an invisible passive,
protective film that shields against corrosion. If the
film remains intact, the stainless steel will remain
intact. However, if the film is damaged, the stainless
steel can break down and rust.To prevent stainless
steel breakdown, follow these steps:
CAUTION
Never use any metal tools. Scrapers, files, wire
brushes or scouring pads (except for stainless
steel scouring pads) will mar the surface.
CAUTION
Never use steel wool, which will leave behind
particles that rust.
CAUTION
Never use acid-based or chloride-containing
cleaning solutions, which will break down the
protective film.
CAUTION
Never rub in a circular motion.
CAUTION
For routine cleaning, use warm water, mild soap or
detergent and a sponge or soft cloth. For heavyduty cleaning, use warm water, a degreaser and a
plastic, stainless steel or Scotch-Brite pad. Always
rinse thoroughly. Always rub gently in the direction
of the steel grain.
Preserving & Restoring
Special stainless steel polishing cleaners can
preserve and restore the protective film.
Preserve the life of stainless steel with a regular
application of a high quality stainless steel polishing
cleaner as a final step to daily cleaning.
If signs of breakdown appear, restore the stainless
steel surface. First, thoroughly clean, rinse and
dry the surface. Then, on a daily basis, apply a
high-quality stainless steel polish according to
manufacturer’s instructions.
Heat Tint
Darkened areas, called heat tint, may appear
on stainless steel exposed to excessive heat,
which causes the protective film to thicken. It is
unsightly but is not a sign of permanent damage.
To remove heat tint, follow the routine cleaning
procedure. Stubborn heat tint will require heavyduty cleaning.
To reduce heat tint, limit the exposure of equipment
to excessive heat.
Never leave any food products or salt on the
surface. Many foods are acidic. Salt contains
chloride.
— 30 —
TROUBLESHOOTING
Problem
Probable Cause
Suggested Solution
No Power
Power Toggle Switch Off
Place Power Toggle Switch in ON position.
Unit not plugged in
Ensure unit is plugged into a live receptacle.
Circuit Breaker off or tripped
Check and reset the Circuit Breaker.
Contactor Failure
Replace the Contactor.
On/Off switch
illuminated but
controller will not
illuminate
Heater Tank fluid level low
Remove unit from power source and fill Heater Tank to Pressure
Cap neck with fresh Heat Transfer Fluid.
Fluid Level Probe defective
Determine which Fluid Level Probe is defective and replace it.
Unit continuously shuts
down and requires fluid
replenishment
Fluid leak
Remove the unit from power and remove the Power Head Lid and
Side Covers. Restore power and place the ON/OFF switch in its
ON position. Observe the unit for leaks. Repair leak and top off
fluid levels.
Add Fluid light is
illuminated but unit is
operating normally
Reservoir Tank low on fluid
Top off Reservoir with fresh Heat Transfer Fluid.
Unit not reaching
desired temperature
Controller not set to 189°F.
Refer to Temperature Controller Set Up Procedures and set
temperature to 189°F.
Defective Controller
Refer to Temperature Controller removal procedure and replace
controller.
Defective Solid State Relay
Refer to Solid State Relay removal procedure and replace relay.
Note: If relay LED is illuminated check Snap Disc.
Defective or tripped Snap
Disc
Reset Snap Disc. If unit fails to warm up, perform the Snap Disc
removal procedure and replace the Snap Disc.
Some shelves heat
while others remain
cold
Shelf or Delivery/Return
Hose is plugged.
Replace defective shelf or defective hose.
Extreme Electrical
Load, clicking noise or
controller turning on
and off
Fluid Level in Heater Tank
low
Remove unit from power and top off Heater Tank with fresh Heat
Transfer Fluid.
Faulty Contactor
Replace the Contactor.
Loud Squealing Noise
Defective Pressure Cap or
Pressure Cap Gasket
Replace the 16 PSI Pressure Cap.
Defective B&G Pump
Refer to B&G Pump replacement procedure and replace pump.
Defective Thermocouple
Refer to Thermocouple replacement procedure and replace the
Thermocouple.
– Or –
Add Fluid light
illuminates every
couple of days
OUT light illuminated
but unit not heating up
Controller reads SBER
on top screen
Note: Delivery and Return hoses are different lengths.
— 31 —
WIRING SCHEMATICS
FAST TIMER
OPTION
FAST TIMER
T1 T2
ON / OFF
R-18
80 TO 260
VOLTS IN
OGDEN 9300
TRANSFORMER
24V
W-20
R-20
TC+ TC-
T1
T2
ADD FLUID
110 V
BR-18
SNAP
DISK
BL-18
BK-10
PR-18
BK-10
BK-10
RELAY / 55 AMP RES.
RESET
BUTTON
HEATERS
W-18
GR-18
BK-18
RESERVOIR
TANK
BK-10
BK-18
LEVEL PROBE
BK-18
THERMOCOUPLE
PROBE
R-10
R-10
PUMP
110 V
BK-18
LEVEL
PROBES
Y-18
W-18
W-18
W-18
HEATER TANK
W-18
REAR FAN
110 V
GN
TO POWER BOARD TERMINALS
L1 L2
BK WH GN
BK-10
BK-10
#LNC-NS211-120
3-32 VDC
R-18
BK-18
BK-18
R-10
R-10
LIQUID LEVEL
CONTROL
SOLID STATE RELAY
BK-18
BK-18
PRIMARY
POWER BOARD
120 VOLT
SUPPLY
Figure 45: Standard 120 VAC Wiring
— 32 —
FAST TIMER
OPTION
FAST TIMER
T1 T2
ON / OFF
R-18
80 TO 260
VOLTS IN
OGDEN 9300
TRANSFORMER
24V
W-20
R-20
TC+ TC-
T1
T2
ADD FLUID
110 V
BR-18
SNAP
DISK
BL-18
BK-10
PR-18
BK-10
BK-10
RELAY / 55 AMP RES.
RESET
BUTTON
HEATERS
W-18
GR-18
RESERVOIR
TANK
BK-10
BK-18
LEVEL PROBE
BK-18
THERMOCOUPLE
PROBE
R-10
R-10
PUMP
110 V
BK-18
LEVEL
PROBES
Y-18
W-18
W-18
W-18
HEATER TANK
W-18
GN
NOTE: REMOVE JUMPER FOR
120-208/240 VOLT CONNECTION
TO POWER BOARD TERMINALS
L1 L2
L1 L2 N
BK WH GN
BK R W
120 VOLT
SUPPLY
GN
BK-10
BK-10
#LNC-NS211-120
3-32 VDC
R-18
BK-18
BK-18
R-10
R-10
LIQUID LEVEL
CONTROL
SOLID STATE RELAY
BK-18
BK-18
PRIMARY
POWER BOARD
208/240 VOLT
SUPPLY
Figure 46: 120-208/240 VAC Wiring
— 33 —
REAR FAN
110 V
WARRANTY
Thermodyne Foodservice Products, Inc.
warrants to the original purchaser for use
of each new Thermodyne Conductive
Cooking/Holding Oven the following: Any
part which proves to be defective in materials
or workmanship within the warranty period
will, subject to the terms of this warranty,
be repaired or replaced at Thermodyne
Foodservice, Inc.’s option. Claims under this
warranty must be presented to Thermodyne
Foodservice Products, Inc. in writing, promptly.
Thermodyne stainless steel cabinets are
warranted for 5 years and all other original
equipment parts such as heat transfer plates,
doors, casters, fluid system components and
electrical components are warranted against
defect for one year from the date of purchase.
This warranty applies only to Thermodyne
Conductive Cooking/Holding Ovens in the
Continental United States. This warranty shall
not apply if the oven or any part is subjected to
accident, casualty, alteration, misuse, abuse,
neglect, faulty installation, or if the date of
manufacture is altered or removed.
The obligation of Thermodyne Foodservice
Products, Inc. is limited specifically to the
aforementioned. No additional guarantees
or warranty, expressed or implied, to include
without limitation warranties of Fitness or
Merchantability with respect to Thermodyne
Conduction Ovens and Thermodyne
Foodservice Products, Inc. regarding other
liability with respect thereto including, without
limitation, liability for incidental, special, or
consequential damages.
RESPONSIBILITIES OF PURCHASER
It is the responsibility of the purchaser to:
1.
Arrange on site electrical services
in accordance with Thermodyne
specifications.
2.
Receive shipment of Thermodyne
conduction oven to include unloading,
uncrating, inspecting for damage in
shipment, and installation of the oven in
its proper location; in accordance with
installation instructions.
3.
Arrange that the electric services are
connected properly by a qualified
technician. All such connections must
be in accordance with applicable code
requirements and Thermodyne installation
procedures.
Please note the specific details on the Warranty
and make certain that service connections
are made to the proper utility services. This
warranty and purchasers responsibility
information should be retained for future
reference.
For assistance please call:
Toll Free:(800) 526-9182
Local:
(260) 428-2535
HEAT TRANSFER FLUID MSDS
Dow Chemical U.S.A.
Midland, MI 48674
Emergency Phone: 517-636-4400
Product Code: 23545
Product Name: PROPYLENE GLYCOL
HEAT TRANSFER FLUID
Effective Date: 03-02-88
Date Printed: 06/02/88
MSDS: 000130
1. INGREDIENTS:
Propylene glycol CAS# 000057-55-6
95%
Dipotassium phosphate CAS# 00775811-4 <5%
Deionized water CAS# 007732-18-5
<5%
This document is prepared pursuant to the
OSHA Hazard Communication Standard
(29CFR 1910.1200). In addition, other
substances not ‘Hazardous’ per this
OSHA Standard may be listed. Where
proprietary ingredient shows, the identity
may be made available as provided in
this standard.
2.
PHYSICAL DATA:
BOILING POINT: 370F, 188C
VAP. PRESS: 0.22 mmHg @ 20C, 68F
VAP. DENSITY: 2.62
SOL. IN WATER; Complete
SP. Gravity: 1,050 @ 60/60F, 16C
APPEARANCE: Colorless.
ODOR: Odorless liquid.
3. FIRE AND EXPLOSION HAZARD
DATA:
FLASH POINT: 215F, 102C
METHOD USED: COC
FLAMMABLE LIMITS
LFL: 2.6% @ 100C
UFL: 12.5% @ 130C
EXTINGUISHING MEDIA: Water fog,
alcohol foam, dry chemical
FIRE AND EXPLOSION HAZARDS:
None.
FIRE-FIGHTING EQUIPMENT: None.
4. REACTIVITY DATA:
STABILITY: (CONDITIONS TO AVOID)
Stable over normal
Operating temperature range of –30F to
250F.
I N C O M PAT I B I L I T Y: ( S P E C I F I C
MATERIALS TO AVOID)
Oxidizing material.
HAZARDOUS DECOMPOSITION
PRODUCTS: None
HAZARDOUS POLYMERIZATION: Will
not occur,
5. ENVIROMENTAL AND DISPOSAL
INFORMATION:
ACTION TO TAKE FOR SPILLS/LEAKS:
Cover with absorbent material, soak up
and sweep into bag.
6. HEALTH HAZARD DATA:
EYE: May cause slight transient eye
irritation. Corneal injury is unlikely.
SKIN CONTACT: Essentially nonirritating
to skin on prolonged contact.
SKIN ABSORPTION: A single prolonged
skin exposure is not likely to result in
— 34 —
absorption of harmful amounts.The LD50
for skin absorption in rabbits is >10,000
mg/kg.
Repeated exposures may cause slight
flaking, tenderness and softening of
skin.
INGESTION: Single does oral toxicity is
low. The LD50 for female rats is about
20.3 g/kg
INHALATION: A single prolonged (hours)
inhalation exposure is not likely to cause
adverse side effects. Mists are not to be
hazardous.
SYSTEMIC & OTHER EFFECTS:
Repeated excessive ingestion may
cause central nervous system effects.
No carcinogenic effects have been
seen in long-term animal studies. Birth
defects are unlikely. Exposures having
no adverse effects on the mother
should have no effect on the fetus. In
animal studies, has been shown not to
interfere with reproduction. Results of
mutagenicity tests in vitro (test tube) and
in animals have been negative.
7. FIRST AID
EYES: Irrigate immediately with water
for at least 5 minutes.
SKIN: wash off in flowing water or
shower
INGESTION: Induce vomiting if large
amounts are ingested, consult medical
INHALATION: Remove to fresh air if
effects occur. Consult medical.
NOTE TO PHYSICIAN: No specific
antidote. Supportive care. Treatment
based on judgment of the physician in
response to reactions of the patient.
8. HANDLING PRECAUTIONS:
EXPOSURE GUIDELINE (S): Dow IHG
is 10mg/m3 for propylene glycol mist.
Dow IHG 440 ppm for propylene glycol
vapors.
VENTILATION; Good general ventilation
sufficient.
RESPIRATORY PROTECTION: No
respirator y protection should be
needed.
SKIN PROTECTION: No precautions
other than clean body covering should
be needed.
EYE PROTECTION: Use safety
glasses.
9. ADDITIONAL INFORMATION:
REGULATORY REQUIREMENTS:
SARA HAZARD CATEGORY:This product
has been reviewed according to the EPA
‘Hazard Categories’ promulgated under
Section 311 and 312 of the Superfund
Amendment and Reauthorization Act of
1986 (SARA Title III) and is considered,
under applicable definitions, to meet the
following categories: A delayed hazard.
SPECIAL PRECAUTIONS TO BE TAKEN
IN HANDLING AND STORAGE: Exercise
reasonable care and caution.
MSDS STATUS: Revised Section 9
NOTES
— 35 —
— 36 —
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
