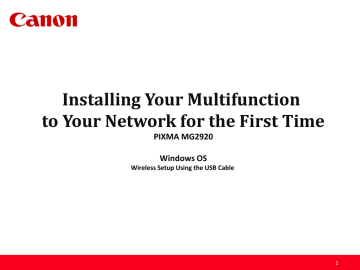

Installing Your Multifunction
to Your Network for the First Time
PIXMA MG2920
Windows OS
Wireless Setup Using the USB Cable
1
Installing Your Multifunction
to Your Network for the First Time
PIXMA MG2920
Windows OS
Preparing to Connect My Multifunction to My Network
Network Requirements
Notes on Wireless Connection
Installing the Drivers & Software
3
3
4
5
2
Preparing to Connect the Multifunction
To the Network
Network Requirements
Before connecting the machine to the network, make sure that configuration of the computer and access point or router is
complete, and that the computer is connected to the network.
Wireless Connection
Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that
configuration of the computer and access point or router is complete.
3
Preparing to Connect the Multifunction
To the Network
Notes on Network Connection
• The configuration, router functions, setup procedures and security settings of
the network device vary depending on your system environment. For details,
refer to your device's instruction manual or contact its manufacturer.
• In an office setup, consult your network administrator
• If you connect to a network that is not protected with security measures, there
is a risk of disclosing data such as your personal information to a third party.
• Place the machine and computer on the same network segment.
4
Installing the Drivers & Software
Software Installation
To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk.
Installation time varies depending on the computer environment or the number of application software to be installed.
IMPORTANT
• Log on as the administrator (or a member of the Administrators group).
• Quit all running applications before installation.
• Do not switch users during the installation process.
• Internet connection may be required during the installation. Connection fees may apply. Consult the internet service provider.
• It may be necessary to restart your computer during the installation process. Follow the on-screen instructions and do not remove the
Setup CD-ROM during restarting. The installation resumes once your computer has restarted.
• If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access
the network. If such a warning message appears, set the security software to always allow access.
5
Installing the Drivers & Software
To begin setup of your PIXMA MG2920 on your wireless network, insert the Setup CD-ROM* in your computer.
The setup program will start automatically. The setup instructions presented in this document describe the “ Wireless Setup Using the USB
Cable” , whereby a USB cable is temporarily connected between the printer and computer during setup. This setup method is used if your
computer’s operating system is Windows XP or the printer is not detected using other methods.
*If you don’t have or cannot use the Setup CD-ROM, follow the steps below to start the setup.
• Download the software (click the link to download)
• Double-click the downloaded .exe file (Win-mg2900-1_0-ucd.exe)
If the User Account Control dialog box appears during the setup, click Yes or Continue.
6
Installing the Drivers & Software
Click Next on the initial screen.
7
Installing the Drivers & Software
On the following screen, select Wireless LAN Connection, then click Next.
8
Installing the Drivers & Software
On the following screen, select Access Point Connection, then click Next.
9
Installing the Drivers & Software
Continue following on-screen instructions. On the Printers on Network List screen, check the Setting printer could not be found on the
list checkbox and click Next.
10
Installing the Drivers & Software
Continue to follow on-screen instructions.
Select Other setup on the Setup Procedure Selection screen (2-1).
If the Install .NET Framework screen
appears, Click Yes
11
Installing the Drivers & Software
Select Wireless Setup Using the USB Cable on the Setup Procedure Selection screen. (2-2).
12
Installing the Drivers & Software
Continue following on-screen instructions. On the Software Installation List, select *software to install and click Next.
*MP Drivers is required and cannot be deselected. We recommend installing My Image Garden and Quick Menu to take full
advantage of the printer’s features.
13
Installing the Drivers & Software
Carefully follow on-screen instructions. When the Check Printer Settings screen appears, check the Set up the network connection
via USB checkbox. Click Next
14
Installing the Drivers & Software
Connect the USB Cable when the Connect Cable window appears. The window will close once the printer is detected.
15
Installing the Drivers & Software
<< Previous
Next >>
If the Detected Access Points List* appears, select the one you wish to connect to, enter the network key and click connect.
*This screen normally appears if you have multiple access points or multiple access points exist in your immediate area. For details
on how to check the Access Point name/network name (SSID) and network key, refer to the manual supplied with your access
point or contact its manufacturer.
16
Installing the Drivers & Software
<< Previous
Next >>
If the Confirm Connection Access Point* screen appears, verify the information then click Yes
*This screen normally appears when you have only one access point
17
Installing the Drivers & Software
Continue following on-screen instructions.
When the Setup Completion dialog box appears, click Complete.
At this point, setup of the printer and network is complete. Continue to follow any remaining on-screen instructions to finish and exit
the setup program.
18
