Canon MP495 Printer User Manual

Canon MP495 Printer User Manual
<< Previous
Next >>

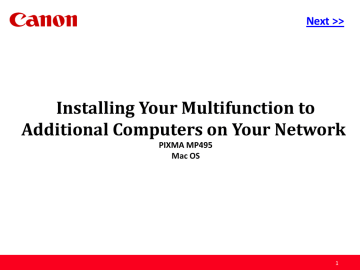

Installing Your Multifunction to
Additional Computers on Your Network
PIXMA MP495
Mac OS
1
<< Previous
Next >>
Installing Your Multifunction to
Additional Computers on Your Network
PIXMA MP495
Mac OS
Preparing to Connect My Multifunction To My Network
Network Requirements
Notes on Wireless Connection
Using the Machine from Additional Computers
Registering the Printer & Scanner
3
3
4
5
10
2
Preparing to Connect My Multifunction
To My Network
<< Previous
Next >>
Network Requirements
Before connecting the machine to the network, make sure that configuration of the computer and access point or router is
complete, and that the computer is connected to the network.
Wireless Connection
Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that
configuration of the computer and access point or router is complete.
3
Preparing to Connect My Multifunction
To My Network
<< Previous
Next >>
An "Ad-hoc connection," which establishes a direct
connection to the computer over a wireless connection
without using an access point, is not supported.
Notes on Network Connection
• The configuration, router functions, setup procedures and security settings of
the network device vary depending on your system environment. For details,
refer to your device's instruction manual or contact its manufacturer.
• In an office setup, consult your network administrator
• If you connect to a network that is not protected with security measures, there
is a risk of disclosing data such as your personal information to a third party.
• If an error message appears or if you have trouble with the network
connection, refer to the printed manual: Network Setup Troubleshooting.
• Place the machine and computer on the same network segment.
4
Using the Machine from Additional Computers
<< Previous
Next >>
Software Installation
If the machine is already connected to a wireless connection, it can be used from additional computers on the same network.
To use from additional computers
IMPORTANT
• Log on as the administrator (or a member of the Administrators group).
• Quit all running applications before installation.
• If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access
the network. If such a warning message appears, set the security software to always allow access.
5
Using the Machine from Additional Computers
<< Previous
Next >>
Step One
Step Two
Turn on the computer, then insert the Setup CDROM into the CD-ROM drive. If you are using
Windows, the setup program starts automatically.
Click Run Msetup4.exe on the AutoPlay screen, then click Yes or
Continue on the User Account Control dialog box.
If the User Account Control dialog box reappears in following steps,
click Yes or Continue.
6
Using the Machine from Additional Computers
Step Three
Step Four
The drivers, application software, and on-screen manuals are
installed.
Click Install.
<< Previous
Next >>
Note:
If you want to select particular items to install, click Custom
Install.
7
Using the Machine from Additional Computers
<< Previous
Next >>
Step Five
Step Six
Select Use the printer on network, then click Next.
Easy-WebPrint EX is Web print software that is installed on the
computer when installing the supplied software. Internet
Explorer 7 or later is required to use this software. An Internet
connection is required for installation.
Follow any on-screen instructions to proceed with the
software installation.
Select Next or Skip. Selecting Next will download and install
the Easy-WebPrint EX software.
8
•
Using the Machine from Additional Computers
<< Previous
Next >>
Step Seven
Step Eight
When the Printer Detection screen appears, click Next.
Make sure the machine is turned on, then click OK.
IMPORTANT
If the Printer Connection screen appears instead of the screen above, the connection
method is not correctly selected in 5.
Follow on-screen instructions and proceed with the installation. Click Exit on the
installation complete screen, then start again from 2 and be sure to select Use the
printer on network in 5.
9
•
Using the Machine from Additional Computers
<< Previous
Next >>
Step Nine
Step Ten
When the Detected Printers List screen appears, click Next.
If the Detected Access Points List screen appears, select the
target access point name/network name (SSID), enter the
network key and click Connect
10
•
Using the Machine from Additional Computers
<< Previous
Step Ten (Continued)
Step Eleven
If the Confirm Connection Access Point screen appears, make sure
that the target access point is displayed,then click Yes.
Click Complete on the Setup Completion screen.
Next >>
11
Registering the Printer & Scanner
<< Previous
Step Twelve
Setup is now complete
Follow any on-screen instructions to proceed with the
remaining software installation.
12
