Canon MX882 Printer User Manual

Canon MX882 Printer User Manual
Next>>

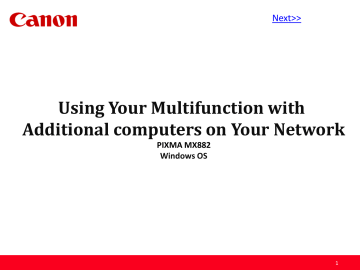

Using Your Multifunction with
Additional computers on Your Network
PIXMA MX882
Windows OS
1
<<Previous
Next>>
Using Your Multifunction with
Additional computers on Your Network
PIXMA MX882
Windows OS
Preparing to Connect My Multifunction to My Network
Network Requirements
Important Information You Need Before Adding Your Multifunction
Installing the Drivers & Software
3
3
3
5
2
Preparing to Connect My Multifunction
To My Network
<< Previous
Next >>
Network Requirements
Before connecting the machine to the network, make sure that configuration of the computer and access point or router is
complete, and that the computer is connected to the network.
Notes on Network Connection
•
The configuration, router functions, setup procedures and security settings of the network device vary depending on your
system environment. For details, refer to your device's instruction manual or contact its manufacturer.
•
The machine cannot be used over a wireless and wired connection at the same time.
Wireless Connection
Connect to your network environment over a wireless connection.
3
Preparing to Connect My Multifunction
To My Network
<< Previous
Next >>
An "Ad-hoc connection," which establishes a direct
connection to the computer over a wireless connection
without using an access point, is not supported.
Be sure to prepare an access point.
Important Information You Need Before Adding Your Multifunction
The following information is required to connect to your access point or router.
• Access Point Name/Network Name:
Also referred to as SSID. A name to identify the specific access point.
• Network Key:
Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.
A password required to set to prevent unauthorized access to communication.
Check your access point or router for the following information, and then write it down.
NOTE: For details on how to check the following information, refer to the manual of your access point or router, or contact its manufacturer.
4
Installing the Drivers & Application Software
Step One
insert the Setup CD-ROM into the CD-ROM drive. If the
program does not start automatically, double-click the
CD-ROM icon in Computer or My Computer, then doubleclick
MSETUP4.EXE.
<<Previous
Next>>
Step Two
Click Easy Install.
The drivers, application software, and on-screen
manuals are installed.
For Windows 7/Windows Vista: Click Run Msetup4.exe on
the AutoPlay screen, then click Yes or Continue on the User
Account Control dialog box. If the User Account Control
dialog box reappears in following steps, click Yes or
Continue.
5
Installing the Drivers and Software
Step Three
On the next screen click Install
<<Previous
Next>>
Step Four
Select Use the printer with wireless LAN connection, then click Next.
6
Installing the Drivers and Software
<<Previous
Step Five
Step Six
Click Yes for the License Agreement
Click Yes or No for the License Agreement Adobe RGB
Next>>
7
Installing the Drivers and Software
<<Previous
Step Seven
Step Eight
Click Next if the Please Allow All Install Wizard Processes appears
Click Next on the Printer Detection screen
Next>>
8
Installing the Drivers and Software
<<Previous
<<Previous
Step Nine
Step Ten
When the Detected Printers List appears, select Canon MX880 series
Then click Next.
Click Complete or OK on the Setup Completion screen. Your device and software
have now been set up. Please follow any remaining on-screen instructions to
finish and exit.
9
