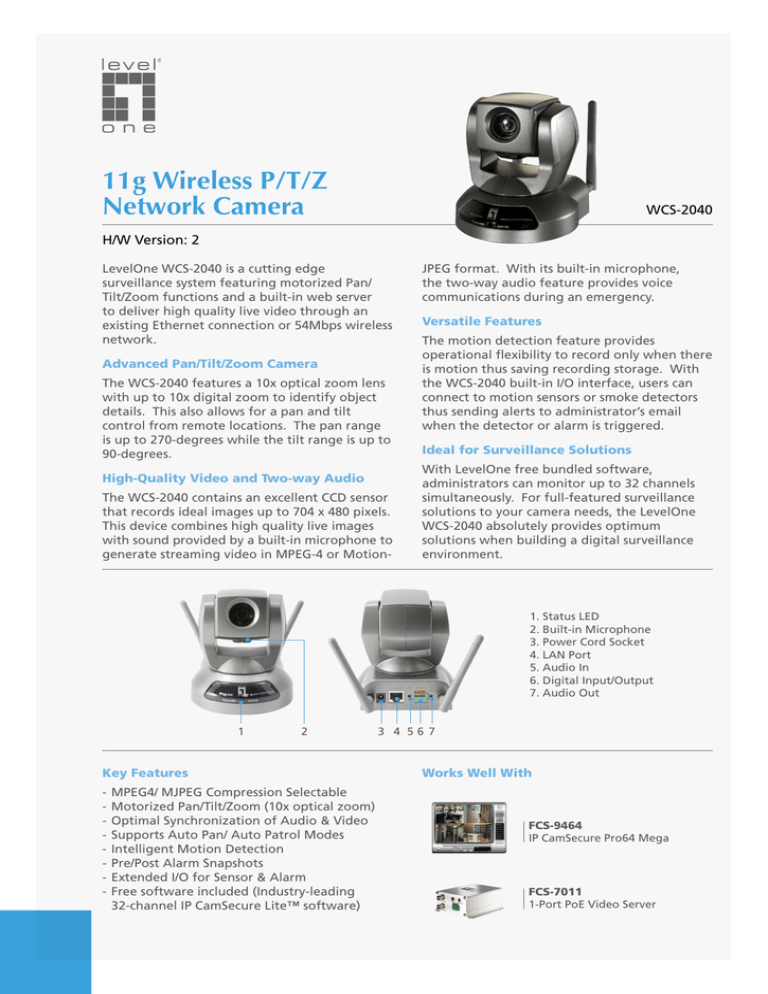

11g Wireless P/T/Z
Network Camera
WCS-2040
H/W Version: 2
LevelOne WCS-2040 is a cutting edge
surveillance system featuring motorized Pan/
Tilt/Zoom functions and a built-in web server
to deliver high quality live video through an
existing Ethernet connection or 54Mbps wireless
network.
Advanced Pan/Tilt/Zoom Camera
The WCS-2040 features a 10x optical zoom lens
with up to 10x digital zoom to identify object
details. This also allows for a pan and tilt
control from remote locations. The pan range
is up to 270-degrees while the tilt range is up to
90-degrees.
High-Quality Video and Two-way Audio
The WCS-2040 contains an excellent CCD sensor
that records ideal images up to 704 x 480 pixels.
This device combines high quality live images
with sound provided by a built-in microphone to
generate streaming video in MPEG-4 or Motion-
JPEG format. With its built-in microphone,
the two-way audio feature provides voice
communications during an emergency.
Versatile Features
The motion detection feature provides
operational flexibility to record only when there
is motion thus saving recording storage. With
the WCS-2040 built-in I/O interface, users can
connect to motion sensors or smoke detectors
thus sending alerts to administrator’s email
when the detector or alarm is triggered.
Ideal for Surveillance Solutions
With LevelOne free bundled software,
administrators can monitor up to 32 channels
simultaneously. For full-featured surveillance
solutions to your camera needs, the LevelOne
WCS-2040 absolutely provides optimum
solutions when building a digital surveillance
environment.
1. Status LED
2. Built-in Microphone
3. Power Cord Socket
4. LAN Port
5. Audio In
6. Digital Input/Output
7. Audio Out
1
2
Key Features
-MPEG4/ MJPEG Compression Selectable
-Motorized Pan/Tilt/Zoom (10x optical zoom)
-Optimal Synchronization of Audio & Video
-Supports Auto Pan/ Auto Patrol Modes
-Intelligent Motion Detection
-Pre/Post Alarm Snapshots
-Extended I/O for Sensor & Alarm
-Free software included (Industry-leading
32-channel IP CamSecure Lite™ software)
3 4 56 7
Works Well With
FCS-9464
IP CamSecure Pro64 Mega
FCS-7011
1-Port PoE Video Server
www.level1.com I one world_one brand_one level_
Network Camera
Technical Specification
Network
Standards Compliance
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.11b/g
Ports
1 x RJ-45 10/100 Mbps port
Wireless Ethernet
802.11g wireless LAN
Video
Compression Mode
Streaming video: MPEG4 (Simple Profile)/ MJPEG
selectable
Still Image: JPEG
Max. Resolution
704x480 pixels(NTSC)
704x576 pixels(PAL)
Frame Rate
176x120: 30/25fps
352x240: 30/25fps
704x480: 15/12fps
Still Picture
JPEG
Video Record
AVI
Camera
Sensor
1/4 inch color CCD sensor
Lens
Focal length: 4.2~42mm
Aperture: F1.8~2.9
View Angle
Vertical 36°-3.6°
Horizontal 47°- 4.9°
Minimum Illumination
Typical: 1.5 Lux / F1.8; Low Lux mode: 0.05 Lux/F1.8
Electronic Shutter (Sec)
1/60~1/100,000(NTSC), 1/50~1/100,000(PAL)
AGC/AWB/AES
Auto Iris Control
Audio
Audio In
External Microphone Input*1
Built-in Microphone
Omni-directional
Frequency: 20 – 20,000Hz
Audio Out
Audio output connetor
Audio Codec
8/24/32kbps Full-Duplex
S/N Ratio
>58dB
PTZ
Pan
270 º (Range+135 º ~-135 º)
Tilt
135 º (Range +90 º ~-45 º)
Number of preset positions
20
Digital Zoom
2x,4x,6x,10x digital zoom
Optical Zoom
1x~10x optical zoom
Hardware & Environment
Flash ROM
4MB Flash ROM
SDRAM
16MB SDRAM
Housing
Indoor use
Digital I/O
1 sensor input(max. 12VDC 50mA)
1 relay output(max. 24VDC 1A, 125VAC 0.5A)
Power
Consumption: 13 W (Max.)
Adapter output: 12VDC, 1.5A
Temperature
Operating: 0-40°C/32-104°F
Humidity
Operating: 85% (RH)
Dimension
105mm(L) * 104mm(W) * 125mm(H)
Weight
420g
Software
Bundled with 32-Channel LevelOne IP CamSecure Lite
surveillance management software
Viewing System Requirement
OS
Microsoft Windows 2000/XP/Vista
Browser
IE 6.x or above
EMI and Safety
FCC, CE
Product Diagram
WCS-2040
Wireless AP
Switch
LAN Control
Console
WCS-2040
Broadband
Router
Broadband
Modem
NAS
Order Information
WCS-2040: 11g, Wireless P/T/Z Network Camera
Package Contents
WCS-2040
Power Adapter
Antennas
Camera Stand
AC Cable
CD Manual/Utility
Quick Installation Guide
All mentioned brand names are registered trademarks and property of their owners. Technical specifications are subject to change without notice.
© Copyright 2008 Digital Data Communications GmbH. All Rights Reserved.
