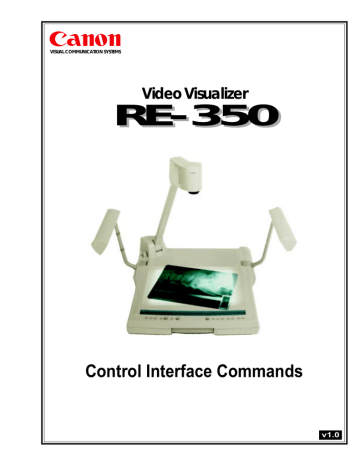

VISUAL COMMUNICATION SYSTEMS

Video Visualizer

Control Interface Commands

v1.0

1

Control Interface Command Index

1.0 Operations and Functions

1.1 Panel Diagrams ............................................................................................................................................. 3

1.2 Description of the Panel Functions .......................................................................................................... 4–8

1.3 Operational Procedures Overview ........................................................................................................... 9–13

1.4 The Default Setting of Each Function ......................................................................................................... 14

1.5 Meaning of Each

LED

Status ...................................................................................................................... 14

1.6 Control Protocol ........................................................................................................................................ 15

1.7 Packet Discrimination Code Assignment ..................................................................................................... 15

1.8 Data Packet Configuration .......................................................................................................................... 16

“Control Command Packet” Format.......................................................................................................... 16

“C-response Data Packet” Format.............................................................................................................. 16

“Event Data Packet” Format ...................................................................................................................... 16

“E-response Data Packet” Format .............................................................................................................. 16

“FP Data Packet” Format .......................................................................................................................... 16

1.9 Operational Flow Charts ....................................................................................................................... 17–18

Command Communication Flow Pattern ................................................................................................... 17

Event Packet Flow Pattern ......................................................................................................................... 17

[N

OTIFICATION

] Mode Flow Pattern ............................................................................................................ 18

2.0 Control Command and Packet Tables

2.1 Camera Control Commands Table .............................................................................................................. 19

2.2 System Control Commands Table ............................................................................................................... 20

2.3 “C-response Data Packet” Table ................................................................................................................. 21

2.4 “Event Data Packet” Table ......................................................................................................................... 22

2.5 “E-response Data Packet” Table ................................................................................................................. 23

2.6 “FP Data Packet” Table .............................................................................................................................. 24

3.0 Description of Command Data Packet

3.1 Zoom ................................................................................................................................................... 25–29

3.2 Focus ................................................................................................................................................... 30–32

3.3 White Balance ............................................................................................................................................. 33

3.4 Exposure .................................................................................................................................................... 34

3.5 Detail ......................................................................................................................................................... 35

3.6 Negative/Positive ....................................................................................................................................... 36

3.7 Color/B

&

W ............................................................................................................................................... 37

4.0 System Control Commands

4.1 Detailed System Control Commands .................................................................................................... 38–54

5.0 Control Cable Pin Assignments

5.1 RS-232C Control Cable Pin Assignments ............................................................................................. 55–57

6.0 Timing Charts

6.1 RTS/CTS Flow Control Timing Chart ....................................................................................................... 58

6.2 RTS Flow Control Timing Chart ................................................................................................................ 59

Appendix A – Disk Information ......................................................................................................................... 60–63

2

1.0 Operations and Functions

1.1 Panel Diagrams

Operation Panel

POWER

RS-232

CONTROL

INPUT

SELECT

LOCAL

CONTROL

DISABLED

NEGA

WHITE BALANCE

MANUAL

AUTO

RED

BLUE

B/W DETAIL

SOFT HARD

EXPOSURE

-

+

AUTO

FOCUS

MANUAL

NEAR FAR

ZOOM

WIDE TELE

LIGHTS

BACK

LIGHT

1

2

3

4

5 6 7

8

9

10

11

12 13 14 15 16

Rear Panel

OUT

R

Audio

L

Video

R L

IN

S-Video

R

RGB OUT

G

B

EXT

RS-232C

SYNC

ON

75

OFF

ON

SYNC OFF

24/96

100/60

ID/0

ID/1

AC Outlet

21

22

23

24 25 26 27 28

29

30

AC Inlet

31

Side Panel

MIC LEVEL

32

MIC

33

1 2

34

3 4

SC

PHASE

H

35 36

37

3

1.2 Description of the Front and Rear Panel Functions

Button/

Control Knob

RS-232

CONTROL

(Button)

Key

2

Function

Switches the mode from [O

N

-L

INE

] Mode to [O

FF

-L

INE

] Mode or from [O

FF

-L

INE

]

Mode to [O

N

-L

INE

] Mode.

In the [O

FF

-L

INE

] Mode the

RE-350

will send the “Event Data Packet” for ‘Request on line’. In the [O

N

-L

INE

] Mode or [N

OTIFICATION

] Mode the

RE-350

will send the

“Event Data Packet” for ‘Request off line’.

3

[O

FF

-L

INE

] Mode

The

RE-350

will reject the

RS-232

commands from the

PC

except for the [O

N

-L

INE

]

Mode command or the [N

OTIFICATION

] Mode command. The

RE-350

should be set to [O

FF

-L

INE

] Mode when it is to be controlled from the front panel. The

RS-232

LED

will be off.

[O

N

-L

INE

] Mode

The

RE-350

will reject every input from the front panel except from the {

RS-232

Control}

button and will accept only

RS-232

command data packets from the

PC

.

The

RS-232 LED

will be on.

[N

OTIFICATION

] Mode

(Used in [

O

N

-L

INE

] Mode only.)

The

RE-350

reports the condition of each button/control knob pressed to the

PC using the “Event Data Packet”. Each

RE-350

function will be controlled by the

“Command Data Packet” from the

PC

.

The only function which can respond is manual operation of the {

RS-232

} button.

Selects the input video signal or document camera signal to send to the video output terminal (Composite Video and S-video).

INPUT

SELECT

(Button)

NEGA

(Button)

WHITE BAL.

AUTO

(Button)

4

5

Negative/Positive conversion toggle button. Toggles the video output between positive and negative.

Press to set the white balance automatically. This tries, for

6

seconds, to find a proper white balance position, if the proper position is not found, the White Balance Auto

LED

will be turned off to show that no proper white balance position was found.

Note: The

RE-350

will Auto White Balance once at start-up.

WHITE BAL.

MANUAL

(Control Knob)

6

Adjusts the color balance.

The resulting auto white balance position will be used as the center value for this control knob. The color will shift to blue when this control knob is turned right, and to red when turned left. This control knob will operate under Positive and Negative mode. This control knob does not work while the

RE-350

is auto focusing.

† The {RS-232 Control} button will be referred to as the {RS-232} button.

4

Button/

Control Knob

B/W

(Button)

Detail

(Control Knob)

EXP

(Control Knob)

Key

7

8

9

FOCUS AUTO

(Button)

FOCUS NEAR

(Button)

FOCUS FAR

(Button)

ZOOM WIDE

(Button)

ZOOM TELE

(Button)

LIGHTS

(Button)

10

11

12

13

14

15

Function

Toggles the video output between color and black

&

white.

Adjusts the sharpness of the output video image. Turning to the right sharpens the image and turning to the left softens the image.

Adjusts the exposure control. The

RE-350

has an auto-

IRIS

function. If any adjustment is necessary, the exposure can be changed. Turning it to the right makes the image brighter and turning it to the left makes it darker.

One Time Focus Adjustment

When this button is pushed, the

RE-350

starts to find the best focal point. Once the best focal point is successfully found, the

RE-350

will stop the focus lens at that point. If the

RE-350

cannot find the best focal point in

6

seconds, the

RE-350

will stop the search operation and turn off the Focus

LED

.

While this button is being pushed, the

RE-350

moves the focus lens towards the

NEAR

focus point. If the button is released or the focus lens arrives at it's maximum focal point, the

RE-350

will stop its focus lens adjustment.

While this button is being pushed, the

RE-350

moves the focus lens towards the

FAR

focus point. If the button is released or the focus lens arrives at it's maximum point, the

RE-350

will stop its focus lens adjustment.

While this button is being pushed, the

RE-350

moves the zoom lens in the

WIDE

zoom direction. If the button is released or the zoom lens arrives at the maximum point, the

RE-350

stops it's zoom lens movement.

If this button continues to be pressed for longer than one second, the speed of the zoom lens is accelerated.

While this button is being pushed, the

RE-350

moves the zoom lens in the

TELE

zoom direction. If the button is released or the zoom lens arrives at the maximum point, the

RE-350

stops it's zoom lens movement.

If this button continues to be pressed for longer than one second, the speed of the zoom lens is accelerated.

Preheats, then turns on the document lights. The white balance will be adjusted once. If the backlight is on, it will be automatically turned off when the document light button is pressed.

BACKLIGHT

(Button)

16

Turns on the backlight. The white balance will be adjusted once. If the document lights are on, they will be automatically turned off when the backlight button is pressed.

5

Button/

Control Knob

Audio

In/Out

C-Video

In/Out

S-Video

In/Out

RGB OUT

Key

Sync On/Off

Function

21

22

23

24

25

External audio input (

10 k

)

RCA

terminal

3 dB ~ -12 dB

Audio output (

1k

)

Composite video input (

BNC

terminal

75

)

Composite video output (

BNC

terminal

75

)

S-video in (

S-DIN

connector

75

)

S-video out (

S-DIN

connector

75

)

RGB

signal (

BNC

terminal

75

):

B/W

mode is not available when using

RGB

out.

G-signal will have a sync when the {Sync on/off} switch is on.

While {Sync on/off} switch is off, this

BNC

terminal will have a synchronization signal

4.0 V

±

0.8 Vp-p

.

75

On/Off

26

External Synchronization signal impedance sets.

Ext

27

A referencing video signal input terminal for genlock function. (

BNC

terminal)

RS232C I/F

Digital Switches

AC Output

AC Input

28

RS232C

serial communication terminal (

2400

bps or

9600

bps) to receive control commands from a PC or other control box.

(See page 7 for full explanation.)

29

30

31

120 V AC

output with 3 pin (2 signal and Ground) terminal.

120 V AC

input terminal.

6

Button/

Control Knob

Digital Switches

Key

29

Function

Sets the electronic shutter speed,

RS232C

communication bit rate and

ID

number of the

RE-350

.

[

RS232C

communication speed]

Switch 1

0

Communication Speed

9600 bps

1 2400 bps

[Electronic shutter speed]

Switch 2

0

Shutter Speed

1/60 sec

1

[Identification number (

ID

)]

Switch 3 Switch 4

1/100 sec

ID Number

0 0 0

1

0

1

0

1

1

1

2

3

Note:

The electronic shutter speed will be updated as soon as the digital switch is set.

The communication speed switch and

ID

number switch will be updated only when the main power is turned on.

The

1/100

sec electronic shutter can reduce the flicker effect caused by a

50

hz power supply.

7

Button/

Control Knob

Audio

Volume

(slider)

Audio Input

SCp90

°

(switch)

SCp180

°

(switch)

SCp

(Control Knob)

Hp

(Control Knob)

Key

32

33

34

35

36

38

Controls the audio output level.

1 : 0 degree shift

2: 90 degree shift

3: 0 degree shift

4: 180 degree shift

Function

450 ~1200

(Level: -20db ~ -68 dB at 1Khz signal)

Sub-carrier phase will be adjustable

0 ~ 90

degree by this knob.

Adjust the Horizontal video output phase (

0

~

2

µ

sec) on the base of the external signal.

8

1.3 Operational Procedures Overview

1.3.1 Procedure for using the Front Panel

Order

1

Operations

With the shutter speed switch, set the proper shutter of the

RE-350

.

2

RE-350's Condition and LED Status

Turn on the main power.

1. The power

LED

on the

RE-350

will be turned on

2. Automatically the

RE-350

will be initialized.

3. The White Balance will be adjusted automatically and the White balance

LED

will blink while finding a proper white balanced setting. If the

RE-

350

can not find a proper setting, the White Balance

LED

will be off, if setting is found, the

LED

will be on.

4. The

RE-350

will start to find the point of focus, the Auto Focus

LED

will be blinking. Once the appropriate point of focus is found, the Auto Focus

LED

will be on, if not, the

LED

will be off.

3

4

Operate designated switches.

The

RE-350

will operate according to the condition of the switches.

Turn off the main power.

The

RE-350

will be turned off and every

LED

will be off.

9

1.3.2 Procedure for Using the RS-232C Serial Interface

Order

1

Operations

With the shutter speed switch, set the shutter of the

RE-350

.

RE-350's Condition and LED Status

2

3

4

5

6

7

Set an

ID

number for this

RE-350

using the

DIP

switches on the rear panel.

Set communication speed for

RS-232C I/F with the

DIP

switches on the rear panel.

Properly connect the

RE-350

to the

PC with an approved serial cable.

Turn on the

PC

. (This operation may be done after the

RE-350

is turned on.)

Turn on the main power of the

RE-350

.

1. The power

LED

on the

RE-350

will be turned on

2. Automatically the

RE-350

will be initialized.

3. The White Balance will be adjusted automatically and the

White Balance

LED will blink while finding a proper white balanced setting. If the

RE-350

can not find a proper setting, the White Balance

LED

will be off, if setting is found, the

LED

will be on.

4. The

RE-350

will start to find the point of focus, the Auto

Focus

LED

will be blinking. Once the appropriate point of focus is found, the Auto Focus

LED

will be on, if not, the

LED

will be off.

Set the

RE-350

to [O

N

-L

INE

] Mode.

In order to put the

RE-350

in [O

N

-L

INE

]

Mode, the following two methods will be available:

1. Push the {

RS-232

} button

on the front panel.

1. The

RE-350

will send Request On Line event data to the

PC

, the

RS-232 LED

will blink.

2. After the reception of <Accepted> E-response data, the

RE-350

's status shifts to [O

N

-L

INE

] Mode and the

RS-

232 LED

will turn on. If the

RE-350

receives <Denied>

E-response data, the

RE-350

remains in [O

FF

-L

INE

]

Mode and turns the

RS-232 LED

off.

(Refer to Section 2.5)

2. The PC sends an [O

N

-L

INE

]

or [N

OTIFICATION

] command.

The

RE-350

responds with C-response data and its status shifts to the requested mode and turns the

RS-232 LED

on.

10

O rder

8

Operations RE-350's Condition and LED Status

Send designated commands to the

RE-350 for control.

The

RE-350

will operate according to the given commands. (Refer to Section 2.0)

9

10

Set the

RE-350

to [O

FF

-L

INE

] Mode.

In order to put the

RE-350

in [O

FF

-L

INE

]

Mode, the following two methods will be available:

1. Push the {

RS-232

} button on

the front panel.

1. The

RE-350

will send Request Off Line event data to the

PC

and the

RS-232 LED

will blink.

2. After the reception of <Accepted> E-response data, the

RE-350

's status shifts to [O

FF

-L

INE

] mode and the

RS-

232 LED

will turn off. If the

RE-350

receives <Denied>

E-response data, the

RE-350

stays in [O

N

-L

INE

] Mode and the

RS-232 LED

remains on.

If the

PC

does not respond in one second with Eresponse data, the

RE-350

will repeat Request Off Line event data up to twice and if still no E-response data, the

RE-350

stays in [O

N

-L

INE

] Mode and maintains

RS-

232 LED

on. (Refer to Section 2.5)

2. The

PC

sends the [O

FF

-L

INE

]

command to the

RE-350

.

The

RE-350

responds with C-response data and it shifts to

[O

FF

-L

INE

] Mode and the

RS-232 LED

turns off.

Turn off the main power on the

RE-350

.

The main power of the

RE-350

will be off and every

LED will be off.

11

1.3.3 Procedure for Using the Control Knobs

Mode

[O

FF

-L

INE

] Mode

[O

N

-L

INE

] Mode

[N

OTIFICATION

] Mode

Meaning

Adjusting the value of each control knob.

The physical position of each control knob on the front panel is used to measure and adjust it's respective value.

Setting the center target value for Auto-White Balance.

The physical position of the white balance control knob will be used as the center value to measure and adjust the white balance.

Adjusting the value of each control knob.

The physical position of each control knob on the front panel will be disregarded and the value of the “command data packet” from the

PC

will be used to measure and adjust the control knob's respective value.

Setting the center target value for Auto-White Balance.

The control knob's physical position will be saved into the Auto-White Balance position buffer when the

RE-350

shifts to [O

N

-L

INE

] Mode. If the

PC

gives the proper command data to set the Auto-White Balance control knob's position, the buffer data will be updated.

Adjusting the value of each control knob..

The physical position of each control knob on the front panel will be disregarded and the value of the “command data packet” from the

PC

will be used to adjust the control's respective value.

Setting the center target value for Auto-White Balance

The control knob's physical position will be saved into the Auto-White Balance position buffer when the

RE-350

shifts to [O

N

-L

INE

] Mode. If the

PC

gives the proper command data to set the Auto-White Balance control knob's position into the buffer, the given data will be updated.

Note:

When the mode of the

RE-350

shifts from [O

N

-L

INE

] Mode or [N

OTIFICATION

] Mode to [O

FF

-L

INE

] Mode, the center target value for Auto-White Balance will be changed from the value in the Auto-White Balance control knob position buffer to the physical position of the Auto-White Balance control knob automatically. The manual white balance data given from the

PC

will be disregarded.

12

1.3.4 Procedure for Using the {RS-232} Button

Function of {

RS-232

} button

By pressing this button, toggles the

RE-350's RS232C I/F

from active to inactive for communication with the

PC

or another controller device.

Once the

RE-350

detects that the {

RS-232

} button was pressed, the

RE-350

will send an Event data packet to the

PC through the

RS232C I/F

to tell the PC that the operator is trying to change the mode.

The Event data packet will differ according to the

RE-350

's current mode.

Current Mode

OFF

ON

Notification

The Kind of Event-data-packet

LineRequest ON Line

LineRequest OFF Line

Request OFF Line

Note:

1. The

RE-350

will shift its mode after the

RE-350

receives an <Accepted> E-response data from the

PC

.

The

RE-350

can not shift its mode to [N

OTIFICATION

] Mode directly. In order to set

RE-350

to [N

OTIFICATION

]

Mode, the PC has to give the <Notification> command to the

RE-350

while in [O

N

L

INE

] Mode.

2. After the {

RS-232

} button is pressed and before the mode of the

RE-350

is determined, the

RE-350

will be in a mode transition. To tell this transition status to the operator, the

RE-350

's

RS-232 LED

will blink. While the

RE-350 is in this transition, every button, control knob or command from the

PC

, will be disregarded.

13

1.4 The Default Setting of Each Function After Power-On

Function

Communication mode

Input signal selection

Nega/Posi

White Balance

Color / B&W

Focus

Zoom

Document lights

Back light

Electronic shutter speed

Communication speed

ID number

Default Setting

[O

FF

-L

INE

] Mode

Document Camera

Positive

Locked at the proper white balance

Color

Stopped at the maximum focus point

Stopped

Off

Off

Depends upon the setting of the digital switches

Depends upon the setting of the digital switches

Depends upon the setting of the digital switches

1.5 The Meaning of Each LED Status

RS-232

LED

INPUT SELECT

NEGA

WHITE BALANCE

AUTO

B/W

FOCUS AUTO

LIGHTS

BACKLIGHT

Status

Meaning

on off blink on

Communication mode is [O

N

-L

INE

] or [N

OTIFICATION

] Mode.

Communication mode is [O

FF

-L

INE

] Mode.

Communication mode is transferring.

External Video signal is selected.

3 Hz off Document camera signal is selected.

blink

N.A.

on off

Negative video signal is output.

Normal video signal is output.

blink

N.A.

on The auto-white balance was adjusted successfully.

off The auto-white balance could not be adjusted.

blink Auto-white balance is being adjusted.

on off

Output video signal is black and white.

Output video signal is color.

blink

N.A.

on Auto focusing was done successfully.

3 Hz off Auto focusing failed or is in manual focusing mode.

blink Auto focus is being adjusted.

on off

Document Lights are on.

Document Lights are off.

blink Document lights are being preheated.

on Backlight is on.

off Backlight is off.

blink

N.A.

3 Hz

3 Hz

14

1.6 Control Protocol

RS-232C Interface Connection

Transmission Mode .................................................Full Duplex

Transfer Speed .........................................................9600 bps or 2400 bps

Start Bit ..................................................................1 bit

Data Bit ..................................................................8 bit

Parity ......................................................................0 bit

Stop Bit ...................................................................2 bit

Handshake ..............................................................RTS/CTS flow control

Others .....................................................................One response per Command

Note:

RS-232C

hand shake control signals originate from the

PC

side (

DTE

) in this document. In this document, hexadecimal data will be defined with “$” in front of a number or “h” in back of a number.

1.7 Packet Discrimination Code Assignment

Hexadecimal Function

10h .........................................................................“Command Data Packet”

A0h .........................................................................“C-response Data Packet”

20h .........................................................................“Event Data Packet”

B0h .........................................................................“E-response Data Packet”

30Fh .......................................................................“FP Data Packet”

Every data packet consists of 5 bytes of data.

If the

RE-350

receives another kind of data packet which will be described below, the

RE-350

will disregard the data packet and while the

RE-350

recognizes the data packet is incorrect, the

RE-350

will inactivate the

CTS

signal line to the

PC

.

ID number

Each

RE-350

can have an individual

ID

number, (

0,1,2

or

3

), which will be set by digital switches 3 and 4 on the rear panel. The

RE-350

will neglect the command data packet which has a different

ID

number. The

PC

can recognize which

RE-350

responds.

Parameter

Each data packet has this parameter. If the data packet does not need the parameter, the content should be set by

$0000

.

15

1.8 Data Packet Configuration

Control Command Packet Format (PC —> RE-350)

The

PC

can request an operation from the

RE-350

using this command.

Header ID number Command number

10h * *h * *h

Parameter

MSH LSH

C-Response Data Packet Format (PC <— RE-350)

The

PC

can determine whether the

RE-350

could perform and finish an operation command given to it by the

PC

or failed to perform the operation command given to it by the

PC

.

Header ID number Response number Parameter

A0h * *h * *h MSH LSH

Event Data Packet Format (PC <— RE-350)

When the

RE-350

's {

RS-232

} button is pushed, the

RE-350

will send this packet to the

PC

.

Header ID number Event number

20h * *h * *h

Parameter

MSH LSH

E-Response Data Packet Format (PC —> RE-350)

When the

PC

receives the “Event Data Packet” from the

RE-350

, the

PC

should respond to the

RE-350

with this data packet.

Header ID number Response number Parameter

B0h * *h * *h MSH LSH

FP Data Packet Format (PC <— RE-350)

In [N

OTIFICATION

] Mode, the

RE-350

can notify the

PC

of the condition of each button and

LED

using this data packet.

Header ID number FP data number Parameter

30h * *h * *h MSH LSH

16

1.9 The Operational Flow Chart

There will be three kinds of communication flow between the

RE-350

and the

PC

as follows:

Flow Pattern 1: Command Communication Flow Pattern

This flow will be applied when the

PC

sends a command to the

RE-350

to request an operation.

PC

Command

RE-350

The

RE-350

is under operation.

C-response

Flow Pattern 2: Event Packet Flow Pattern

This flow will be applied when the

RE-350

sends an “Event Data Packet” to the

PC

to tell that the {

RS-232

} button on the operation panel was pressed.

PC

RE-350

Event Data Packet

The

PC

is under operation for this data.

E-response

17

Flow Pattern 3: [N

OTIFICATION

] Mode Flow Pattern

This flow is applied when the

RE-350

is in [N

OTIFICATION

] Mode to tell the

PC

the condition of the buttons and control knobs on the front panel of the

RE-350

.

PC RE-350

FP Data Packet

The

PC

will compare the current

FP

data with the previous

FP

data to recognize which button's or control knob's status has changed. If there is any difference, the

PC

sends a command to the

RE-350

to request the operation defined by the difference in

FP

data value.

Command

RE-350

is under operation

C-response data

18

2.0 Control Command and Packet Tables

2.1 Camera Control Commands Table

#

Name

Description

Maximum

operation time(ms)

1

2 Step wide Zooming

3

4

5

6

Zoom

Cons-Spd wide Zoom

Cons-Spd Tele Zoom

Step Tele Zooming

Stop Zooming

Access-to-Zoom

High speed Wide zoom

Step feed wide zooming

High speed Tele zoom

Step feed tele zooming

Stop zooming motor

500

2000

500

2000

500

Access to a Zoom Position 9000

7 Request Zoom

8 Wide Zoom w/ AF

9 Tele Zoom w/ AF

Request Zoom position

High spd Wide zoom w/AF

High spd Tele zoom w/AF

100

500

500

10

Focus

OP AF Operate auto focus

11 Cons-Spd focus near High speed focus near

12 Step focus near

13 Cons-Spd focus far

Step feed focus near

High speed focus far

14

15

Step focus far

Stop focusing

Color

16 OP AWB

Step feed focus far

Stop the auto focus

20000

500

2000

500

2000

500

17

18

19 Access to Detail

20 Set Positive mode

††

21 Set Negative mode

††

22

23

Access to WB

Access to EXP

Set Color mode

Set B/W mode

Operate Auto White Bal.

Access to a WB position

7000

500

Access to a EXP position 500

Access to a Detail position 500

Set positive image mode

Set negative image mode

Set Color output mode

Set B/W output mode

500

500

500

500

1 byte

Header

2 byte

ID number

3 byte

Command

4 byte

Param(H)

5 byte

Param(L)

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$38

$38

$40

$40

$20

$22

$2A

$30

$10

$12

$12

$13

$13

$14

$02

$03

$04

$05

$06

$00

$00

$01

$01

$00

$01

$00

$01

$00

$00

$00

$00

$00

$01

$03

$01

$03

$00

$00

$00

$00

$00

$00

$01

$03

$01

$03

$00

$00

$00

$00

$00

$00

$00

$**

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$**

$**

$**

† The

RE-350

responds with a C-response data packet immediately after the reception of this command, but it is still working on the Zoom control and

AF

adjustment.

†† The

RE-350

responds with a C-response data packet immediately after the reception of this command, but it is still working on the

AWB

adjustment.

19

2.2 System Control Commands Table

#

Name

Description

Maximum

operation time(ms)

Select Input Signal

1 Select Document Video Output Camera signal

2 Select External video Output External signal

Light on/off Control

3 Lights On ††

4 Lights Off ††

5 Backlight On ††

6 Backlight Off ††

Turn Light On

Turn Light Off

Turn Backlight On

Turn Backlight Off

500

500

7

LED

LED Normal

8 LED On

9 LED Off

10 LED Blink

Communication Control

Set LED Condition Normal

Turn LED On

Turn LED Off

Blink LED

11 OFF Line

12 ON Line

13 Notification

Status Request

Set to [OFF LINE] Mode

Set to [ON LINE] Mode

500

500

Set to [Notification] Mode 500

500

500

500

500

500

500

500

500

14 Status of Group A

15 Status of Group B

Request Status Group A

Request Status Group B

16 Status of Button Request Button condition

17 Status of WB Control Request WB vol. position

18 Status of EXP Control Request EXP vol. position

19 Status of Detail Vol.

Request Detail vol. position

100

100

20 Status of AWB Result Request AWB result data

21 Name of Equipment Request Name of equip.

22 Version of ROM

Set to Special Mode

Request ROM version

100

100

100

100

100

100

100

23 Set to Temporary Mode Set to temp. mode

24 Set to Service Mode Set to service mode

25 Set to Data Read Out Set to data read mode

100

100

100

1 byte

Header

2 byte

ID number

3 byte

Command

4 byte

Param(H)

5 byte

Param(L)

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$10

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$50

$50

$82

$82

$83

$88

$88

$80

$80

$81

$82

$68

$69

$6A

$6B

$F0

$F1

$F1

$70

$70

$70

$58

$58

$59

$59

$00

$01

$01

$02

$00

$00

$01

$00

$01

$00

$00

$00

$FF

$FF

$00

$01

$02

$**

$**

$**

$**

$00

$01

$00

$01

$00

$00

$00

$FF

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

$00

†† The

RE-350

responds with a C-response data packet immediately after the reception of this command, but it is still working on the

AWB

adjustment.

20

2.3 C-response Data Packet Table

C-response Description 1 byte 2 byte 3 byte 4 byte 5 byte

Header ID #

Response

Para(H) Para(L)

Response without parameter

Read Zoom position

$A0

$A0

$8*

$8*

$00

$10

$00

$00

$00

$**

Status of Group A

Status of Group B

Status of Button

Status of WB control knob

Status of EXP control knob

Status of Detail control knob

Status of AWB result

Name of the Equipment

Version of ROM

System Error

Mode Error

Time out error

$41

$42

$43

$48

$20

$21

$30

$40

$49

$F0

$F0

$F0

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$8*

$A0

$A0

$A0

$A0

$A0

$A0

$A0

$A0

$A0

$A0

$A0

$A0

$00

$00

$00

$**

$**

$**

$**

$00

$**

$00

$00

$00

$**

$**

$**

$**

$**

$00

$**

$**

$**

$00

$01

$02

System error response

If the

RE-350

has a fatal error which it cannot recover from while performing a command from the

PC

, the

RE-350 will send this response and stop the current operation.

Mode error response

Depending on the mode, [O

N

-L

INE

] or [O

FF

-L

INE

], the RE-350 may not be able to execute some commands. In this case, the Mode error response will be sent to the PC.

For Example: If the

RE-350

is in the [O

FF

-L

INE

] Mode and the <Zoom Wide> command is issued, the

RE-350

will give a Mode error response because in this mode such a command cannot be executed.

Time out error response

When the

RE-350

is given the command <

OP AF

> or <

OP AWB

> from the

PC

and it tries to perform the command but cannot finish the operation successfully in an expected period, this error is given.

21

2.4 Event Data Packet Table

Event Description 1 byte 2 byte 3 byte 4 byte 5 byte

Header ID # EVENT# Para(H) Para(L)

Request ON Line $20 $8* $00 $00 $00

Request OFF Line $20 $8* $00 $01 $00

Request ON line

When the {

RS-232

} button on the front panel is pushed and the

RTS

signal line from the

PC

is on, the

RE-350

will send this “Event Data Packet” to the

PC

. If the

RE-350

can receive the <Accepted> of the “E-response Packet” in 1 second, the

RE-350

’s mode will switch to [O

N

-L

INE

]. If not or no E-response after repeating the above “Event data packet” twice, the

RE-350

will stay in [O

FF

-L

INE

] mode.

Request OFF line

When the {

RS-232

} button on the front panel is pushed to try to set the

RE-350

to [O

FF

-L

INE

] Mode and the

RTS signal line from the

PC

is on, the

RE-350

will send this “Event Data Packet” to the

PC

. If the

RE-350

can receive the

<Accepted> of the “E-response packet”, the

RE-350

’s mode will shift to the [O

FF

-L

INE

] Mode. Also, if there is no response from the

PC

, then the

RE-350

's mode changes to [O

FF

-L

INE

].

22

2.5 E-response Data Packet Table

E-response Description 1 byte 2 byte 3 byte 4 byte 5 byte

Header ID # EVENT# Para(H) Para(L)

Accepted $B0 $8* $00 $00 $00

Denied $B0 $8* $00 $01 $00

Accepted

When the

PC

receives an “Event Data Packet” (‘Request

ON

line’ or ‘Request

OFF

line’) from the

RE-350

, the

PC should send this E-response packet back to the

RE-350

to tell that the PC can disconnect from or connect to the

RE-

350

. After the

RE-350

receives this request, it takes one second to complete.

Denied

When the

PC

receives an “Event Data Packet” (‘Request

ON

line’ or ‘Request

OFF

line’) from the

RE-350

, and the

PC cannot accept this request, the

PC

should send this response packet to the

RE-350

. After the

RE-350

receives this request, it takes one second to complete.

23

2.6 FP Data Packet Table

FP data description 1 byte 2 byte 3 byte 4 byte 5 byte

Header ID # EVENT# Para(H) Para(L)

Front panel switch information $30 $8* $00 $** $**

FP Data Packet

When the

RE-350

is in [N

OTIFICATION

] Mode, it will send the “

FP

Data Packet” to the

PC

. This tells the condition of each button and control knob every time the condition varies.

The bit assignment of the parameter is as follows:

D15 D14 D13 D12 D11 D10 D9 D8

W/B Vol 0 Focus Auto B/W W/B Auto Nega Inputselect 0

D7 D6 D5 D4 D3 D2 D1 D0

Detail Vol EXP Vol Back light Lights Zoom Tele Zoom Wide Focus Far Focus Near

If a control knob has not been used for longer than

500

milliseconds, the

RE-350

will send the “

FP

-Data Packet” with the corresponding control knob bit cleared.

Note:

If the

RTS

signal line of the PC is off and the

RE-350

is in [N

OTIFICATION

] Mode, the

RE-350

will start to send the “

FP

-Data Packet” which explains the button and control knob condition at the time when the

RTS

signal line comes on.

24

3.0 Description Command Data Packet

3.1 Zoom Commands

Wide Zoom: Constant Speed

• Function:

Moves the zoom lens in the wider direction at a constant speed. This operation will be stopped with the reception of the <Stop Zooming> command or if the zoom lens reaches the wide-end limit.

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens start to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 0 $ 0 1 $ 0 0

Note:

The speed of the zooming will be constant from the beginning to the end of this operation. This is different from when the {

ZOOM WIDE

} button on the front panel is pushed. If the {

ZOOM WIDE

} button is pushed and continues to be pushed for longer than one second, the zooming will increase to a faster speed.

Wide Zoom: Step

• Function:

Moves the zoom lens in the wider direction one step. This operation will be stopped automatically after the zoom lens has stopped.

• Timing of the “C-response packet” sent to the PC:

Right after the zoom lens stops.

• The parameter of the “C-response packet”:

$0000 fixed

• The maximum operation time (msec):

2000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 0 $ 0 3 $ 0 0

25

Tele Zoom: Constant Speed

• Function:

Moves the zoom lens in the tele direction at a constant speed. This operation will be stopped with the reception of the <Stop Zooming> command or the zoom lens reaches the tele-end limit.

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens start to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 1 $ 0 1 $ 0 0

Note:

The speed of the zooming will be constant from the beginning to the end of this operation. This is different from when the {

ZOOM TELE

} button on the panel is pushed. If the {

ZOOM TELE

} button is pushed and continues to be pushed for longer than one second, the zooming will increase to a faster speed.

Tele Zoom: Step

• Function:

Moves the zoom lens in the tele direction one step. This operation will be stopped automatically after the zoom lens has stepped.

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens stops.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

2000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 1 $ 0 3 $ 0 0

26

Zoom: Stop

• Function:

Stops the movement of the zooming lens.

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens stops to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 2 $ 0 0 $ 0 0

Zoom: Access To Position

• Function:

Moves the zoom lens to a designated position determined by the parameter in this command packet.

• The available parameter value:

LSH: $00 ~ $FF

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens reaches the designated position.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

9000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 3 $ 0 0 $ * *

27

Zoom: Request Position

• Function:

Requests the present position of the zoom lens from the RE-350.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is accepted by the RE-350.

• The parameter of the “C-response Packet”:

The present zoom lens position data:

MSH:$00 fixed LSH:$00 ~ $FF

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 4 $ 0 0 $ 0 0

28

Zoom Wide: Constant Speed w/ AF

• Function:

Moves the zoom lens in the wider direction at a constant speed. This operation will be stopped with the reception of the <Stop Zooming> command or if the zoom lens reaches the wide-end limit.

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens start to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 5 $ 0 0 $ 0 0

Zoom Tele: Constant Speed w/ AF

• Function:

Moves the zoom lens in the tele direction at a constant speed. This operation will be stopped with the reception of the <Stop Zooming> command or the zoom lens reaches the tele-end limit.

• Timing of the “C-response Packet” sent to the PC:

Right after the zoom lens start to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 0 6 $ 0 0 $ 0 0

† The speed of the zooming will be constant from the beginning to the end of this operation. This is different from when the {

ZOOM WIDE

} or {

ZOOM TELE

} button on the front panel is pushed. If the {

ZOOM WIDE

} or {

ZOOM

TELE

} button is pushed and continues to be pushed for longer than one second, the zooming will increase to a faster speed.

The

RE-350

responds with a C-response data packet immediately after the reception of this command, but it is still working on the Zoom control and

AF

adjustment.

29

3.2 Focus Commands

OP AF (Operate Auto Focus)

• Function:

Perform AF once, finding out the best focused position.

• Timing of the “C-response Packet” sent to the PC:

Right after having found out the best focal point or, after a 6 second trial, having failed to find the best focal point.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

20000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 1 0 $ 0 0 $ 0 0

Focus Near: Constant Speed

• Function:

Moves the focus lens in the near direction at a constant speed. This operation will be stopped with the reception of the <Stop focusing> command or the focus lens reaches the near-end limit.

• Timing of the “C-response Packet” sent to the PC:

Right after the focus lens starts to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $1 2 $ 0 1 $ 0 0

30

Focus Near: Step

• Function:

Moves the focus lens in the near direction one step.

This operation will be stopped automatically.

• Timing of the “C-response Packet” sent to the PC:

Right after the focus lens stops.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

2000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 1 2 $ 0 3 $ 0 0

Focus Far: Constant Speed

• Function:

Moves the focus lens in the far direction at a constant speed. This operation will be stopped with the reception of the <Stop focusing> command or the focus lens reaches the far-end limit.

• Timing of the “C-response Packet” sent to the PC:

Right after the focus lens starts to move.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $1 3 $ 0 1 $ 0 0

31

Focus Far: Step

• Function:

Moves the focus lens in the far direction one step. This operation stops automatically.

• Timing of the “C-response Packet” sent to the PC:

Right after the focus lens stops

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

2000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 1 3 $ 0 3 $ 0 0

Focus: Stop

• Function:

Stops the focusing motor that moves the focus lens.

• Timing of the “C-response Packet” sent to the PC:

Right after the focus lens stops.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $1 4 $ 0 0 $ 0 0

32

3.3 White Balance Commands

OP AWB (Operate Auto-White Balance)

• Function:

Instructs the auto white balance to find the best white balance.

• Timing of the “C-response Packet” sent to the PC:

Right after having found out the best white balance point or, after 6 seconds, having failed to find a proper

WB

.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

7000 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 2 0 $ 0 0 $ 0 0

White Balance: Manual Access To

• Function:

Sets a designated white balance position, which is determined by the parameter of this command, based on the Auto

White Balance value as returned by the <Status of

AWB

Result> command (p.

51

). The

AWB

value should be known so the adjustment can be made properly, in the correct direction. This command is similar to rotating the manual control knob on the front panel. Note: The control knob’s physical position is not updated by this command.

• Available parameter value:

LSH: $ 00 ~ $ FF

• Timing of the “C-response Packet” sent to the PC:

Right after the compensation of

WB

is performed.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $2 2 $ 0 0 $ * *

33

3.4 Exposure Commands

Exposure: Manual Access To

• Function:

Sets a designated exposure position, which is determined by the parameter of this command. The result is the same as rotating the manual control knob on the front panel.

Note:

The control knob’s physical position is not updated by this command.

This command simply modifies the target exposure default value which is $80.

• Available parameter value:

LSH: $ 00 (darker)~ $ FF (brighter)

• Timing of the “C-response Packet” sent to the PC:

Right after the Manual Exposure command is performed.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 2A $ 0 0 $* *

34

3.5 Detail Commands

Detail: Manual Access To

• Function:

Sets a designated sharpness position, which is determined by the parameter of this command. The result is the same as rotating the manual control knob on the front panel.

Note:

The control knob’s physical position is not updated by this command.

This command simply modifies the target exposure default value which is $80.

• Available parameter value:

LSH: $ 00 (less detail)~ $ FF (more detail)

• Timing of the “C-response Packet” sent to the PC:

Right after the sharpness is adjusted.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $3 0 $ 0 0 $ * *

35

3.6 Positive/Negative Commands

Set Positive Mode

• Function:

Sets the video output to normal (positive). (Also, the Auto-White Balance will be adjusted once.)

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 3 8 $ 0 0 $ 0 0

Set Negative Mode

• Function:

Sets the video output to negative. (Also, the Auto-White Balance will be adjusted once.)

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 38 $ 0 1 $ 0 0

The

RE-350

responds in

500

msec with a C-response data packet after the reception of this command, but it will be still working on the

AWB

adjustment. (The real

AWB

operation time will be longer than

500

msec.)

36

3.7 Color/B

&

W Commands

Set Color Mode

• Function:

Sets the video output to color.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 4 0 $ 0 0 $ 0 0

Set B/W Mode

• Function:

Sets the video output to black

&

white.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 4 0 $ 0 1 $ 0 0

37

4.0 System Control Commands

4.1 Detailed System Control Commands

Select Document Video

• Function:

Selects the Document camera video.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 5 0 $ 0 0 $ 0 0

Select External Video

• Function:

Selects the external video input signal.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $5 0 $ 0 1 $ 0 0

38

Document Lights: On

• Function:

Turns on the document lights above the document table. (Also, the Auto-White Balance will be adjusted once.)

Note:

If the Backlight is already on, and the Document Lights are turned on, then the Backlight will be turned off automatically and only the Document Lights will remain on.

• Timing of the “C-response Packet” sent to the PC:

Right after turning on the lights.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 5 8 $ 0 0 $ 0 0

Document Lights: Off

• Function:

Turns off the Document Lights above the document table. (Also, the Auto-White Balance will be adjusted once.)

• Timing of the “C-response Packet” sent to the PC:

Right after turning off the lights.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $5 8 $ 0 1 $ 0 0

† The

RE-350

responds in

500

msec with a C-response data packet after the reception of this command, but it will be still working on the

AWB

adjustment. (The real

AWB

operation time will be longer than

500

msec.)

39

Backlight: On

• Function:

Turns on the Backlight under the document table. (Also, the Auto-White Balance will be adjusted once.)

Note:

If the Document Lights are already on, and the Backlight is turned on, then the Document Lights will be turned off automatically and only the backlight will remain on.

• Timing of the “C-response Packet” sent to the PC:

Right after turning on the backlight.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 5 9 $ 0 $ 0 0

Backlight: Off

• Function:

Turns off the document lights above the document table. (Also, the Auto-White Balance will be adjusted once.)

• Timing of the “C-response Packet” sent to the PC:

Right after turning off the backlight.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $5 9 $ 0 1 $ 0 0

† The

RE-350

responds in

500

msec with a C-response data packet after the reception of this command, but it will be still working on the

AWB

adjustment. (The real

AWB

operation time will be longer than

500

msec.)

40

LED: Normal

• Function:

The

LED

indicated by the parameter data will be set to normal operation. This command is available in the

[N

OTIFICATION

] Mode. If the

RE-350

receives this command from the

PC

in another mode, the

RE-350

will send a

“C-response Packet” with the Mode Error response.

• The available parameter value:

LSH: $00 ~ $FF

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 6 8 $ * * $ 0 0

• The bit assignment for the parameter data:

Each bit corresponds to each

LED

on the operation panel.

D15 D14 D13 D12 D11 D10 D9 D8

RS-232 Input select NEGA WB Auto B/W Focus Auto Lights Backlight

41

LED: On

• Function:

The

LED

indicated by the parameter data will be turned on. This command is available in the [N

OTIFICATION

] Mode.

If the

RE-350

receives this command from the

PC

in another mode, the

RE-350

will send a “C-response Packet” with the Mode Error response.

• The available parameter value:

LSH: $00 ~ $FF

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 6 9 $ * * $ 0 0

• The bit assignment for the parameter data:

Each bit corresponds to each

LED

on the operation panel.

D15 D14 D13 D12 D11 D10 D9 D8

RS-232 Input select NEGA WB Auto B/W Focus Auto Lights Backlight

42

LED: Off

• Function:

The

LED

indicated by the parameter data will be turned off. This command is available in the [N

OTIFICATION

] Mode.

If the

RE-350

receives this command from the

PC

in another mode, the

RE-350

will send a “C-response Packet” with the Mode Error response.

• The available parameter value:

LSH: $00 ~ $FF

• Timing of the “C-response packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 6 A $ * * $ 0 0

• The bit assignment for the parameter data:

Each bit corresponds to each

LED

on the operation panel.

D15 D14 D13 D12 D11 D10 D9 D8

RS-232 Input select NEGA W/B Auto B/W Focus Auto Lights Backlight

43

LED: Blink

• Function:

The

LED

indicated by the parameter data will be made to blink. This command is available in the [N

OTIFICATION

]

Mode. If the

RE-350

receives this command from the

PC

in another mode, the

RE-350

will send a “C-response

Packet” with the Mode Error response.

• The available parameter value:

LSH: $00 ~ $FF

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 6 B $ * * $ 0 0

• The bit assignment for the parameter data:

Each bit corresponds to each

LED

on the operation panel.

D15 D14 D13 D12 D11 D10 D9 D8

RS-232 Input select NEGA W/B Auto B/W Focus Auto Lights Backlight

44

[O

FF

-L

INE

] Mode

• Function:

Sets the RE-350 to [O

FF

-L

INE

] Mode.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 7 0 $ 0 0 $ 0 0

[O

N

-L

INE

] Mode

• Function:

Sets the RE-350 to [O

N

-L

INE

] Mode.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 7 0 $ 0 1 $ 0 0

45

[N

OTIFICATION

] Mode

• Function:

Sets the RE-350 to [N

OTIFICATION

] Mode.

• Timing of the “C-response Packet” sent to the PC:

Right after this setting is done.

• The parameter of the “C-response Packet”:

$0000 fixed

• The maximum operation time (msec):

500 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 7 0 $ 0 2 $ 0 0

46

Status of Group A

• Function:

To get the status data of Group

A

from the

RE-350

.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

The bit assignment to each status to explain the

RE-350

’s condition.

D15 D14 D13 D12 D11 D10 D9 D8

On-zoom On-zoom At-zoom At-zoom On-focus On-focus At-focus

Wide Tele Wide-end Tele-end Far Near Far-end

At-focus

Near-end

D7 D6 D5 D4 D3 D2 D1 D0

0 0 AF

good/NG

AWB good/NG

0 Video

P/N

Video

C/M

0

Note:

Good

P (posi)

C(color)

---> 1

---> 1

---> 1

NG

N(nega)

---> 0

---> 0

M(mono) ---> 0

On-zoom: actively zooming, At-zoom: Arrived at the maximum zoom position.

On-focus: actively focusing, At-focus: Arrived at the maximum focal position.

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 0 $ 0 0 $ 0 0

47

Status of Group B

• Function:

To get the status data of Group

B

from the

RE-350

.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

The bit assignment to each status to explain the

RE-350

’s condition.

D15 D14 D13 D12 D11 D10 D9 D8

Input Lights Backlight C MODE C MODE 0 0 0

Camera/Ext ON/OFF ON/OFF 1 0

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0

Note:

1 = ON 0 = OFF

C MODE 1

and

C MODE 0

explain the operational mode of the

RE-350

as follows:

MODE

O

FF

-L

INE

O

N

-L

INE

N

OTIFICATION not used

C MODE 1 C MODE 0

– – – –

0

1

1

0

1 1

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 0 $ 0 1 $ 0 0

48

Status of the Buttons

• Function:

To get the status of the buttons on the operation panel .

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

The bit assignment to each status to explain the

RE-350

’s condition.

D15 D14 D13 D12 D11 D10 D9 D8

0 0 Focus

Auto

B/W W/B NEGA Input

Select

RS-232

Control

D7 D6 D5 D4 D3 D2 D1 D0

0 0 Backlight Lights Zoom Zoom Focus Focus

TELE WIDE FAR NEAR

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 1 $ 0 0 $ 0 0

49

Status of WB control knob

• Function:

Gets the position data of the White Balance Manual control knob.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 ~ $FF

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 82 $ 0 0 $ 0 0

Status of EXP control knob

• Function:

Gets the position data of the

EXP

control knob. (

EXP

= exposure)

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 ~ $FF

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 82 $ 0 1 $ 0 0

50

Status of Detail control knob

• Function:

Gets the position data of the Detail control knob.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 ~ $FF

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 2 $ 0 2 $ 0 0

Status of AWB result

• Function:

Gets the position data of the White Balance Manual control knob where Auto-White Balance is completed.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 ~ $FF

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 3 $ 0 0 $ 0 0

51

Name of the Equipment

• Function:

Gets the code name of the equipment which is connected to the PC.

The code name of the

RE-350

is “

R1

”.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: fixed LSH: fixed

The code name of the

RE-350

is “

R1

”.

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 8 $ 0 0 $ 0 0

Version of ROM

• Function:

Gets the coded version number from each of the

RE-350

’s

ROM

's.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the RE-350.

• The parameter of the “C-response Packet”:

MSH: $XX LSH: $XX

The

MSH

parameter is the

ROM

version of the

RE-350

's camera head

CPU

.

The

LSH

parameter is the

ROM version of the

RE-350

's main body

CPU

.

The above parameters (in

ASCII

Code) are variable and are set by the firmware.

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $ 8 8 $ 0 1 $ 0 0

52

Set to Special Mode 1

• Function:

Lets the RE-350 transfer to Special Mode 1. The

RE-350

will accept this command independently from its

ID number.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 fixed

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $F 0 $ 0 0 $ 0 0

Note: This command is prepared for service purposes

ONLY

and it is not intended for use by the end-user.

Set to Special Mode 2

• Function:

Lets the

RE-350

transfer to Special Mode 2. The

RE-350

will accept this command independently from its

ID number.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 fixed

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $F 1 $F F $ 0 0

Note: This command is prepared for service purposes

ONLY

and it is not intended for use by the end-user.

53

Set to Service Mode

• Function:

Lets the

RE-350

transfer to Service Mode. The

RE-350

will accept this command independently from its

ID number.

• Timing of the “C-response Packet” sent to the PC:

Right after this command is received by the

RE-350

.

• The parameter of the “C-response Packet”:

MSH: $00 fixed LSH: $00 fixed

• The maximum operation time (msec):

100 millisecond

• Command format:

Header ID number Command Parameter MSH Parameter LSH

$10 $ 8 * $F 1 $F F $ F F

Note: This command is prepared for service purposes

ONLY

and it is not intended for use by the end-user.

54

5.0 Control Cable Pin Assignments

5.1 RS-232C Control Cable Pin Assignment

RE-350

RE-350

55

RE-350 Control Cable Pin Assignments

9 Pin DSUB RS-232C

RE-350

RE-350

56

RE-350 Control Cable Pin Assignments

RS-232C for Macintosh™ Computers

Note:

RS-232C

Specification allows cable length up to 15m, but it should be kept as short as possible.

The following cables which have the above connections can be used:

Apple

InMac

System Peripheral 8

74415 (for Image Writer II)

1.0m

1.8m

57

6.0 Timing Charts

6.1 RTS/CTS Flow Control Timing Chart

PC SIDE SIGNAL

RTS

T1

1

2

CTS

TXD

RXD

3

Command

4

T2

T3

T4

5

6

C-Response

Mark Duration period

Min.

Max.

T1

T2

T3

T4

-

0ms

10ms

10ms

300ms

200ms

T4-T2

*1

1

If the

PC

is ready to communicate with the

RE-350

, the

PC

should set the

RTS

line to

ON

. The

RE-350

will recognize that its

RS-232C

connector is connected to the

PC

. When the

RTS

is

OFF

and the

PC

tries to send some data, the

RE-350

will disregard the sent data.

2

Once the

RE-350

recognizes that the

RTS

of the

PC

is

ON

, the

RE-350

will set the

CTS

of the

PC

to

ON

within

T1

after

RTS

is

ON

. The application software on the

PC

can recognize if the

RE-350

is operating properly.

3

After the

PC

recognizes the

CTS

is

ON

, the

PC can send the command packet to the

RE-350

.

4

Once the

RE-350

receives the command packet, the

RE-350

will set

CTS

to

OFF

and perform the operation depending upon the command data from the

PC

to tell the

PC

that the

RE-350

cannot receive another command packet during this period.

5

After finishing the operation, the

RE-350

will set

CTS

to

ON

to tell the

PC

that the

RE-350

can receive another command packet.

6

At the same time, the

RE-350

will send the “C-response Packet” to notice the result of its operation. The period (

T4

) between the reception and transmission of the “C-response Packet” is determined by the type of command given.

Note: If the

RE-350

does not follow the above timing chart, the power or connection of the

I/F

cable is incorrect.

58

6.2 RTS flow control timing chart

The

PC

can suspend the transmission of the “C-response Packet” data for the period less than

1000

milliseconds from the

RE-350

by setting the

RTS

signal to

OFF

.

PC SIDE SIGNAL

RTS

CTS

TXD

Command

RXD

Mark Duration period

Min.

Max.

T5

(9600bps)

3.44ms

(2400bps)

4.58ms

T6 --

T7 --

300ms

300ms

1000ms

200ms

1

T6

3

T5

C-

2

T7

4

Response

1

If the

PC

wants to suspend the transmission of the “C-response Packet” data stream on its half, the

PC

should set the

RTS

line to

OFF

.

2

Once the

RE-350

recognizes the

RTS

of the

PC

is

OFF

, the

RE-350

will hold the transmission of the “C-response

Packet” data after the remaining maximum 3 byte data in its communication buffer is transmitted. The application software on the

PC

can recognize if the

RE-350

is operating properly. The time period required for transmitting the remaining data in the buffer will depend upon the communication speed of the

RS232C I/F

.

3

When the

PC

wants to resume the transmission, the

PC

should set

RTS

to

ON

immediately. The longest time period to be able to hold the transmission is

1000

milliseconds. If the

PC

fails to set the

RTS

line to

ON

in

1000 milliseconds, the

RE-350

will stop the sequence to send the “C-response Packet”. The

PC

can not receive the remaining C-response data any more.

4

Once the

RE-350

recognizes the

RTS

signal comes back to

ON

within

1000

milliseconds, the

RE-350

will resume the transmission of the “C-response Packet” data.

59

Appendix A – Disk Information

RE-350 Software Developer's Disk Installation

Description:

This disk contains one auto-extracting compressed file which once uncompressed contains 3 separate directories. The 3 directories are

APP

,

16BITSDK

, and

32BITSDK

. Within the

APP

directory is a Demo Application that was created using the documentation and example data files in this

SDK

. The

16BITSDK

and

32BITSDK

directories contain .

DLL

and

Example application files for programming in a 16bit or 32bit environment.

How to Install the Compressed File From MS-DOS:

1. Create a directory named “

RE350

” on your hard drive. Copy the contents of the

RE-350

Software Developer's Disk into that directory.

2. From the

RE350

directory, type “

RE350SDK.EXE

-d” at the

“C:\RE350>” DOS

prompt.

*** Make sure you use the -d option so that separate directories are created when the file is expanded. ***

Running this .exe file will create 3 directories, a

16BITSDK

directory, a

32BITSDK

directory and an

APP

directory within the

RE350

directory. See the following pages for a description of their individual contents.

How to Install the Compressed File From Windows:

1. Create a folder named “

RE350

” on your hard drive. Copy the contents of the

RE-350

Software Developer's Disk into that folder.

2. Using the Run command under the

START

button (Win95) OR the Run… command under the File menu in the

Program Manager (Win3.1), type “

C:\RE350\RE350SDK.EXE

-d” in the “Open:” text field box.

*** Make sure you use the -d option so that seperate directories are created when the file is expanded. ***

Running this .exe file will create 3 directories, a

16BITSDK

directory, a

32BITSDK

directory and an

APP

directory within the

RE350

directory. See the following pages for a description of their individual contents.

60

RE-350 Demo Application (

\APP

)

How to Use the Demo Application:

The

RE-350

Demo Application is a 16bit application that runs under Windows 95 and Windows 3.1.

1. Connect the

RE-350

to the computer. Using a correctly pinned

RS-232

cable (pp.

57–59

) connect one end to the

RS-

232C

output on the

RE-350

and connect the other end to an available

COM

port on your computer.

2. Turn on the

RE-350 and the computer and launch Windows.

3. In the

APP

directory that was created from the SDK disk is a file named

CTL3DV2.DLL

. This file should be placed into your System folder within Windows [c:\Windows\System].

4. Double click on the

RE-350

Demo Application icon in the

APP

directory.

When the application has successfully launched, the On-Line

LED

should be lit on the

RE-350

's front control panel and within the

GUI

of the software interface.

Very simply the

RE-350

Demo Application offers remote operation of all manual buttons and control knobs located on the front control panel via the

RE-350

graphical user interface.

If the Application Does Not Launch Properly Check:

COM

Port Setting – The

COM

port setting selection in the

RE-350

Demo Application should match the

COM

port the

RE-350

is connected to on the computer.

ID

Setting –

Baud Rate –

The

ID

Setting on the rear panel of the

RE-350

(p.3) should match the

ID Setting

the

RE-350

is set to.

The Baud Rate setting selection in the

RE-350

Demo Application should match the baud rate

Cable – selected via the switch on the rear panel of the

RE-350

(p.3).

Make sure you are using a correctly pinned cable. Check with the pin out diagram on pp.

57–59

.

RE-350 SDK File Definitions

re350.c

re350.h

re350.obj

re350dll.dll

re350dll.mak

example.c

example.obj

example.exe

example.def

example.mak

readme.doc

RE-350 communications driver.

Driver definitions.

Object file.

Dynamic Link Library.

Microsoft C/C++ Version 1.52 Project (NMAKE)

Sample Windows application.

Object file

Executable Windows Application

Module definition file.

Microsoft C/C++ Version 1.52 Project (NMAKE)

This file.

61

RE-350 16bit Sample Code (

\16BITSDK

)

Notes:

1) This example application was written and compiled with Microsoft C/C++ and

SDK

Version 1.52 (16 bits

ONLY

).

Open the project in Microsoft Visual C/C++ to edit and recompile.

The

DLL

and example application are built separately. You can use

RE350DLL.DLL

as is by importing the functions described below (or in

RE350.H

).

You can also rebuild the application in MS-DOS by typing:

nmake -fre350dll.mak

nmake -fexample.mak

2)

RE350.C

and

RE350.H

constitute the basic driver and are generalized to work with any application. All of the functions return an error code (defined in

RE350.H

) to indicate whether the operation was successful.

Initialize communications with the

RE-350

:

int FAR PASCAL RE350_Open( int iComPort ) int iComPort: RE350_COM1-RE350_COM4

Execute an

RE-350

command:

int FAR PASCAL int iDevice:

RE350_Command( int iDevice, int nCmd, WORD wRequest, LPWORD lpwResponse ); device 0-3 (check dip switch on the back) int nCmd: Command defined in RE350.H.

WORD wRequest: Request data if required by command.

(Use RE350_NULL_REQUEST if not required).

LPWORD wRequest:Pointer to response (or NULL).

Close communications with the

RE-350

:

VOID FAR PASCAL RE350_Close( VOID );

4)

EXAMPLE.C

is a simple application which demonstrates the operation of the driver. After getting this to compile in your environment, you can add additional commands (via RE350_Command) to test the camera’s operation.

All of the

RE-350

commands are implemented through this function.

62

RE-350 32bit Sample Code (

\32BITSDK

)

Notes:

1) This example application was written and compiled with Microsoft C/C++ and

SDK

Version 4.0 (32 bits ONLY).

Open the project in Microsoft Visual C/C++ 4.0 to edit and recompile.

2) The

RE-350

driver (

RE350.DLL

) is located in

.\EXAMPLE\RE350

and has been setup as a sub-project of

EXAMPLE

.

It will be automatically updated if

EXAMPLE

is set as the project. The output is directed to the

EXAMPLE\RELEASE directory so any changes made to the

DLL

will be automatically loaded by the application next time it is run.

EXAMPLE

explicitly loads and unloads the

DLL

using LoadLibrary() and FreeLibrary() to facilitate this (see

EXAMPLE.C

).

3)

RE350.C

and

RE350.H

constitute the basic driver and are generalized to work with any application. All of the functions return an error code (defined in

RE350.H

) to indicate whether the operation was successful.

Initialize communications with the

RE-350

:

int FAR PASCAL int iComPort:

RE350_Open( int iComPort )

RE350_COM1-RE350_COM4

Execute an

RE-350

command:

int FAR PASCAL RE350_Command( int iDevice, int nCmd, WORD wRequest, LPWORD lpwResponse ); int iDevice: int nCmd: device 0-3 (check dipswitch on the back)

Command defined in RE350.H.

WORD wRequest: Request data if required by command.

(Use RE350_NULL_REQUEST if not required).

LPWORD wRequest:Pointer to response (or NULL).

Close communications with the

RE-350

:

VOID FAR PASCAL RE350_Close( VOID );

4)

EXAMPLE.C

is a simple application which demonstrates the operation of the driver. After getting this to compile in your environment, you can add additional commands (via RE350_Command) to test the camera’s operation.

All of the

RE-350

commands are implemented through this function.

This product is provided AS IS. For questions regarding product operation contact Canon Information

Technology Services at 1-800-828-4040

All rights are reserved. No part of this document may be photocopied, reproduced, translated to another language, stored in a retrieval system, or transmitted in any form without the prior written consent of Canon U.S.A., Inc.

The information contained in this document is subject to change without notice. Canon U.S.A., Inc. makes no warranty of any kind with reguard to this written material. Canon U.S.A., Inc. assumes no responsibility for any errors that may appear in this document or for incidental or consequential damages in connection with the furnishing, performance or use of this manual.

Canon is a registered trademark of Canon, Inc. ©1996 Canon U.S.A., Inc. 11.13.96

All trademarks and registered trademarks are the property of their respective owners.
