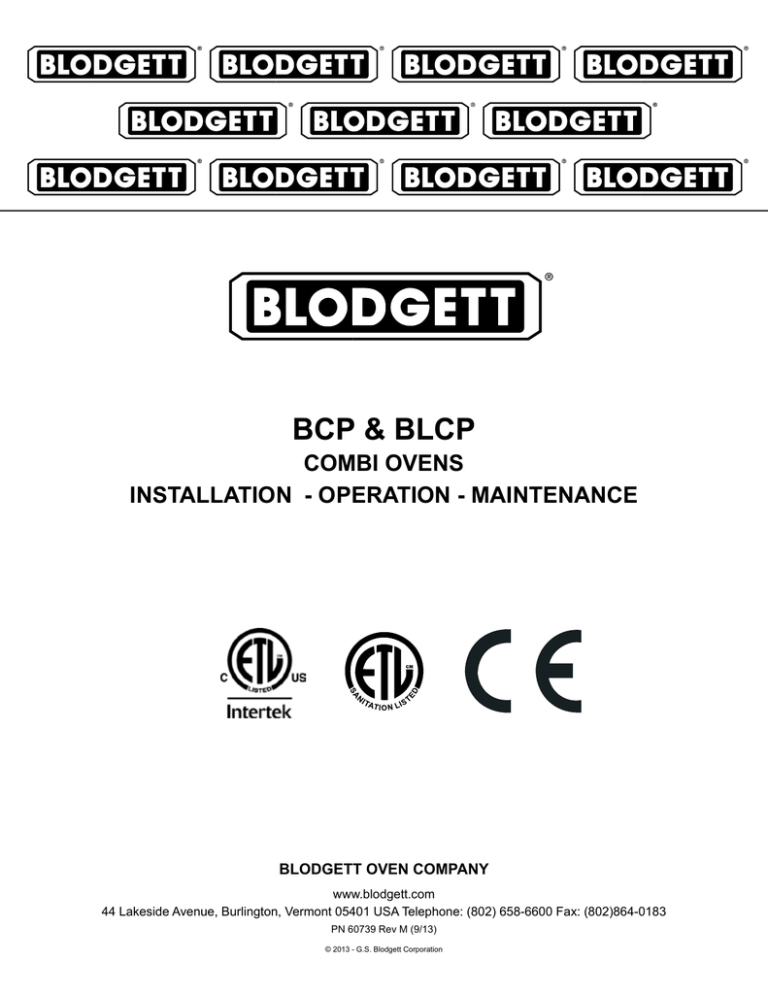

BCP & BLCP ComBi ovens insTALLATion - oPeRATion - mAinTenAnCe

BCP & BLCP ComBi ovens insTALLATion  - oPeRATion - mAinTenAnCe

BCP & BLCP

ComBi ovens insTALLATion - oPeRATion - mAinTenAnCe

BLoDGeTT oven ComPAnY

www.blodgett.com

44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802)864-0183

PN 60739 Rev M (9/13)

© 2013 - G.S. Blodgett Corporation

Your Service Agency’s Address:

Model

Serial number

Oven installed by

Installation checked by

imPoRTAnT

WARninG: improper installa-

tion, adjustment, alternation, service or maintenance can cause property damage, injury or death. Read the instllation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

INSTRUCTIONS TO BE FOL-

LOWED IN THE EVENT THE

USER SMELLS GAS MUST BE

POSTED IN A PROMINENT LO-

CATION. This information may be obtained by contacting your local gas supplier.

FoR YoUR sAFeTY

Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

The information contained in this manual is important for the proper installation, use, and maintenance of this oven. Adherence to these procedures and instructions will result in satisfactory baking results and long, trouble free service. Please read this manual carefully and retain it for future reference.

eRRoRs: Descriptive, typographic or pictorial errors are subject to correction. Specifications are subject to change without notice.

TABLe oF ConTenTs

insTALLATion

Utility Connections - Standards and Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

The Blodgett Combi-Oven/Steamer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Description of the Combi-Oven/Steamer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Utility Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Oven Assembly to Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Oven Location and Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Plumbing Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Electrical Connection and Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Gas Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Gas Hose Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Final Check Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

oPeRATion

Safety Information for Gas Ovens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Blodgett Programmable Control Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cooking Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Welcome Screen and Work Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Manual Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Core Probe Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Programmed Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Programming a Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Setting a Timed Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Setting Preset Time & Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Oven Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

USB Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

HACCP Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Optional CombiNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

mAinTenAnCe

Cleaning & Preventative Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Deliming - BCP only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Installation

Utility Connections - standards and Codes

THE INSTALLATION INSTRUCTIONS CONTAINED

HEREIN ARE FOR THE USE OF QUALIFIED INSTAL-

LATION AND SERVICE PERSONNEL ONLY. INSTAL-

LATION OR SERVICE BY OTHER THAN QUALIFIED

PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN

AND/OR INJURY TO THE OPERATOR.

Qualified installation personnel are individuals, a firm, a corporation, or a company which either in person or through a representative are engaged in, and responsible for:

• the installation or replacement of gas piping and the connection, installation, repair or servicing of equipment.

• the installation of electrical wiring from the electric meter, main control box or service outlet to the electric appliance.

Qualified installation personnel must be experienced in such work, familiar with all precautions required, and have complied with all requirements of state or local authorities having jurisdiction.

U.s. and Canadian installations

The installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code,

ANSI Z223.1/NFPA 54, or the Natural Gas and Propane

Installation Code, CSA B149.1, as applicable.

Installation must conform with local codes, or in the absence of local codes, with the National Electrical Code,

ANSI/NFPA 70-Latest Edition and/or Canadian National

Electric Code C22.1 as applicable.

Appliance is to be installed with backflow prevention in accordance with applicable federal, province and local codes.

Australia and general export installations

Instllation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation and/or operation of your Blodgett oven, please contact your local distributor. If you do not have a local distributor, please call the Blodgett Oven Company at 0011-802-658-6600.

2

The Blodgett Combi-Oven/Steamer offers a completely new method of cooking. With the Oven/Steamer you have the choice of two cooking processes: Steam and Hot Air, either...

• Separately

• Combined, or

• In Sequence

And for easy operation you can choose from three modes:

In the steam mode you can: steam reheat reconstitute stew thaw simmer blanche preserve braise poach

In the Hot Air mode you can: roast bake grill gratinate broil

In the

Combination steam and Hot Air mode you can: defrost roast rethermalize reheat bake forced steam

There are four additional specialized modes to help you make the most of your time:

Retherm - for perfect reheating

Proofing - Proof and bake all in the same oven

Preheat - in this mode the oven will preheat to 575ºF

(300ºC) for 15 minutes. The oven will then automatically lower to 480ºF (249ºC) to protect the advanced electronic components.

Cool Down - allows the oven cavity to cool down rapidly with the door opened

Installation

The Blodgett Combi-oven/steamer

You can also use two or three functions in sequence during one cooking process. We call this:

• combi-steaming

• combi-roasting

• combi-baking

The combination of circulating hot air and steam in the space saving, high performance Combi-Oven/Steamer leads to improvements in the following areas:

• increased productivity in the kitchen

• a reduction in capital expenditures for multiple equipment replacement

• a wider range of menu choices

• a simplified cleaning process

The work process is simplified since products are prepared on or in steam table pans and trays. Food can be cooked, stored, and transported with the same pans.

Small amounts of product can be processed efficiently; pre-cooked and convenience foods can be reheated within minutes. Many frozen foods can be processed without pre-thawing. This flexibility in preparation reduces the need for kettles and steam tables since there is no need for large amounts of food to be kept warm for long periods of time.

Today the improvement of food quality is more important than ever. Vegetables are cooked in the Blodgett Combi-

Oven/Steamer without water at the optimal temperature of just under 212ºF (100ºC), maintaining valuable vitamins, minerals, nutrients and trace elements. Cooking meat in the Combi results in less shrinkage and a firmer, juicier product. The Blodgett Combi-Oven/Steamer is being used more and more for baking. Steam and Hot Air modes make it a general purpose baking appliance.

3

Installation

Description of the Combi-oven/steamer

ABoUT THe oven/sTeAmeR

Blodgett Combi-Oven/Steamers are quality produced using high-grade stainless steel with first class workmanship.

The multiple speed fan, which is guarded against accidental finger contact, is driven by a quiet and powerful motor. The condenser draws out excess steam from the appliance. Condensation and waste water, which result during steaming and cleaning, are continuously drained.

The use of high quality insulation impedes excessive heat radiation and saves energy.

The BCP/BLCP makes it possible to enjoy all of the advantages of a high quality steamer at the flick of a switch.

Fresh steam enters the oven cavity without pressure and is circulated at high speed. This process enables quick and gentle cooking and ensures high quality food while providing convenient working methods. The steam generator is completely automatic and protected from running dry.

oven/sTeAmeR oPeRATion

The practical oven door, with a viewing window, has a wide swing radius and handle which can be operated easily, even with wet or greasy hands.

Ease of operation is guaranteed through the simple to use touchscreen control. With graphical symbols and storage for 199 product recipes the BCP/BLCP is easy for even inexperienced kitchen staff to operate.

Cleaning is kept to a minimum thanks to the automatic

Combi Wash system.

4

Installation

Utility Specifications

PLUmBinG sPeCiFiCATions

WATeR

Water pressure

Water connection

Water pressure regulator setting

36.26 PSI (250 kPa, 2.5 bar) during Combi Wash

21.76 PSI (150 kPa, 1.5 bar) when Combi Wash is not active

87 PSI (600 kPa, 6 bar) maximum

3/4” garden hose cold water

TDS - less than 100 parts per million

Total Hardness - 80-120 parts per million

Chlorides - less than 30 parts per million pH Factor - 7.0-8.0

Chlorine - 0 parts per million

DRAinAGe

Drain type

Drain connection

Atmospheric Vented Drain

2.00” (50.8mm) Copper

Maximum water drain temperature 140ºF (60ºC)

model

BLCP-61G

BLCP-101G

BLCP-102G

BLCP-202G

Gas Type

Natural

Propane

Natural

Propane

Natural

Propane

Natural

Propane

RATinGs - GAs ovens input voltage

40,900 BTU 120

40,900 BTU

71,500 BTU

71,500 BTU

125,000 BTU

120

120

120

120

125,000 BTU

184,000 BTU

184,000 BTU

120

120

120

Phase

1

1

1

1

1

1

1

1

Amps

11

11

11

11

11

11

22

22

5

Installation

Utility Specifications

model

BLCP-23E

Mini Combi

BLCP-6E

Mini Combi

BLCP-10E

Mini Combi

BCP-61E

BLCP-61E

BCP-101E

BLCP-101E

BCP-102E

BLCP-102E

BCP202E

BLCP-202E

voltage

208/230/240

400/415

440/480

208/230/240

400/415

440/480

208/230/240

400/415

440/480

208

240

480

208

240

480

208

240

480

208

240

480

eLeCTRiCAL RATinGs kW Hz

2.7/3.3/3.6

50/60

2.7/3.3/3.6

5.4/6.6/7.2

50/60

50/60

6.6/7.2

5.4/5.8

5.4/6.5

3.5/4.2/4.6

3.5/4.2/4.6

6.9/8.4/9.2

8.4/9.2

8.4/9.2

6.9/8.3

10.4/12.7/13.8

10.4/12.7/13.8

50/60

50/60

50/60

50/60

50/60

50/60

50/60

50/60

50/60

50/60

50/60

12.7/13.8

12.7/13.8

10.4/12.4

9

9

9

18

18

18

60

60

60

27

27

27

60

60

60

60

60

60

50/60

50/60

50/60

60

60

60

60

60

60

3NAC

3AC

3AC

3

3

3

3

3

3

3

3

3

3

3

3

Phase

1NAC

2AC

3AC

2NAC

2AC

2AC

1NAC

2AC

3AC

2NAC

2AC

2AC

3AC

3NAC

20

20

18

25

22

11

52

52

25

80

80

36

175

175

80

max Load (amps)

15

15

30

15

15

39

19

19

18

34

34

15

19

19

6

Installation

oven Assembly to stand

Your Blodgett COMBI oven has been shipped with black plastic caps on the corners of its base. In order to mount your oven to its stand, please do the following:

1. Remove the stand from the packaging. Install the casters or feet into the base of the stand. If inserting casters ensure that the locking casters are at the front of the stand, see figure. Place the stand upright in an area readily available.

2. Remove all packaging from the oven, so that the oven can be picked up.

3. Remove the black plastic caps on each corner by removing the two screws holding them on. Do NOT discard these screws; they will be used to mount the oven to the stand.

4. Position the oven over the stand and align the corner brackets on the stand with the holes on the oven.

5. Use the screws from the plastics caps to mount the oven to the stand.

6. The oven has now been properly fastened to the stand.

Front of stand

Figure 1

Note difference in rail placement

7

Installation

oven Location and Leveling

The well planned and proper placement of your oven will result in long term operator convenience and satisfactory performance.

Certain minimum clearances must be maintained between the oven and any combustible or non-combustible construction.

size minimUm ReQUiReD CLeARAnCes sides Back Top electric ovens

61, 101,

102 & 202

2.75”

(7cm)

2”

(50mm) n/a

23, 6 & 10

Mini Combi

Gas ovens

61, 101,

102 & 202

2.75”

(69.9mm)

2.75”

(70mm)

2.75”

(69.9mm)

2” (50mm)

19.5”

(49.5cm) n/a

Strong sources of heat such as hotplates, tilting frying pans, deep fat fryers, etc. should not be placed near the oven, especially near its right side. An optional side heat shield is available.

In addition, the following clearances are recommended for servicing.

• Oven body sides - 12” (30cm)

• Oven body back - 12” (30cm)

To ensure that the oven functions correctly when installed, it should be placed upright and level (horizontally). This is measured at the front and side edge of the roof. The oven can be levelled using the adjusting screws on the stand or on the legs of table models. The height of the oven should also be adjusted to fit the trolley for rack.

Correct Installation

Figure 2

Incorrect Installation

8

WATeR ConneCTion

Blodgett BCP/BLCP ovens have two water connections.

Both are located at the back of the unit.

BCP/BLCP-61, 101, 102 and 202 models

• 1 connection for raw water for the condensation jet.

• 1 connection for steam generation and the Combi

Wash jet in the oven chamber. Must meet the requirements applying to water supplied to household appliances.

Quench

Steam

Figure 3

BLCP-23, 6 and 10 mini Combi models

• 1 water connection. Must meet the requirements applying to water supplied to household appliances.

Installation

Plumbing Connections

To facilitate cleaning and servicing, the oven should be connected with an approved flexible 3/4” hose. Permanent installations should be fitted with a stop-tap and a non-return valve.

Before connecting the oven to water, flush the tubes thoroughly. Connect the oven.

DRAin ConneCTion

Blodgett ovens are equipped with a drain system that removes surplus water from the oven chamber. This may be condensed water from the products, or it may occur when the oven chamber is cooled down with cold water, or when the oven chamber is cleaned.

WARninG!!

Connection must be carried out by an authorised plumber, to an open or closed drain.

The drain must never end directly beneath the oven.

The drain must be of stainless steel or an equally temperature-resistant material, have a diameter of at least 2”

(49 mm) and a fall of at least 3° or 5%.

Water connection

Figure 4

WARninG!!

if the water temperature exceeds 70°F (21°C), problems with regard to Combi optima calibration and cooling of the oven may occur.

The water connection must be carried out by an authorized plumber in accordance with existing local codes.

Clogged up water filters and dirt in the solenoid valves are not covered by the warranty.

9

Figure 5

Installation

Plumbing Connections

CLeAninG & DeLiminG CHemiCAL

1. BCP/BLCP-61, 101, 102 and 202 ovens only. The oven is supplied with a chemical bottle holder. The holder can be affixed to either side of the oven. Place it on the stand crossmember.

3. Insert the blue and red hoses into the proper bottles.

Red is for detergent, blue is for rinse aid.

4. BCP only - The last line is for the delimer. This is the tan colored tube protroding from the bottom of the oven. Cut the tubing to the proper length, if needed, and place the tubing into the delime bottle.

NOTE: If the tube is cut to length, remove the stainless steel weight from the end of the tube and reinsert.

Figure 6

2. Connect the supplied detergent tubes (red and blue) to the underside of the oven near the rear. Connect the blue hose to the fitting with the blue sticker and the red hose to the fitting with the red sticker.

Blue Sticker

Red Sticker

Red Tube

Blue Tube

Figure 7

10

eLeCTRiCAL ConneCTion

NOTE: Electrical connections must be performed by a qualified installer only.

Before making any electrical connections to these appliances, check that the power supply is adequate for the voltage, amperage, and phase requirements stated on the rating name plate mounted on the appliance.

1. The rating plate is located on the right side of the oven.

An approved plug outlet or a safety cutout must be located close to the oven so that the oven can be disconnected during installation and repair. The safety cutout must be able to cut off all poles with a total distance of break of at least 3 mm.

All appliances must be installed in accordance with Local or National Electrical codes.

The wiring diagram is located in the motor compartment.

NOTE: Disconnect the power supply to the appliance before servicing.

WARninG!!

improper installation may invalidate your warranty.

electric models

A strain relief for the power supply cord is provided. The installer must supply a cord that meets all Local and National installation standards.

Gas models

U.s. and Canadian installations

A power cord (115V units only) is supplied with a plug attached. Plug the power cord into the desired receptacle.

NOTE: The BLCP-202G must be hard wired.

This oven model uses a variable frequency inverter drive.

Appliances that use variable frequency inverter drives produce high frequency noise and require filters and shielded motor cabling. This causes higher leakage current toward Earth Ground. Especially, at the moment of switching ON this can cause an inadvertent trip of the appliance’s ground fault interrupter (GFCI). Some GFCIs are more sensitive than others. Blodgett has qualified the

Pass and Seymour brand, part number 2095, 20 A, 125

VAC, 60 Hz, specification grade GFCI duplex receptacle as being immune to the variable frequency inverter drive’s noise. Blodgett recommends using this specific GFCI for this model oven.

Installation

electrical Connection and ventilation

WARninG!!

if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

venTiLATion

Blodgett BCP/BLCP ovens are equipped with an open/ direct exhaust system that removes surplus humidity from the oven chamber. The exhaust system has an electrically operated damper.

The ventilation motor can be controlled directly from the oven. This means that the ventilation starts when a program is started and runs for 10 minutes after the program is completed.

The exhaust tube can be connected to a ventilation system. In that case, a special extraction funnel is fitted to avoid suction directly from the oven chamber. This extraction funnel can be ordered from Blodgett.

If an extraction hood is installed in the ceiling above the oven, it should project 20” (50 cm) over the front of the oven.

Figure 8

11

Installation

Gas Connection

GAs PiPinG

A properly sized gas supply system is essential for maximum oven performance. Piping should be sized to provide a supply of gas sufficient to meet the maximum demand of all appliances on the line without loss of pressure at the equipment.

Example:

NOTE: BTU values in the following example are for natural gas.

You purchase a BLCP-61G to add to your existing cook line.

1. Add the BTU rating of your current appliances.

Pitco Fryer

6 Burner Range

Deck Oven

120,000 BTU

60,000 BTU

50,000 BTU

Total 230,000 BTU

2. Add the BTU rating of the new oven to the total.

Previous Total

BLCP-61G

230,000 BTU

40,900 BTU

New Total 270,900 BTU

3. Measure the distance from the gas meter to the cook line. This is the pipe length. Let’s say the pipe length is 40’ (12.2 m) and the pipe size is 1” (2.54 cm).

4. Use the appropriate table to determine the total capacity of your current gas piping.

The total capacity for this example is 375,00 BTU. Since the total required gas pressure, 270,900 BTU is less than

375,000 BTU, the current gas piping will not have to be increased.

NOTE: The BTU capacities given in the tables are for straight pipe lengths only. Any elbows or other fittings will decrease pipe capacities. Contact your local gas supplier if you have any questions.

maximum Capacity of iron Pipe in Cubic Feet of natural Gas Per Hour

(Pressure drop of 0.5 Inch W.C.)

PiPe

LenGTH (FT)

10

20

30

40

50

60

3/4” nominAL size, inCHes

1” 1-1/4” 1-1/2” 2”

360 680 1400 2100 3950

250 465 950 1460 2750

200 375 770 1180 2200

170 320 660 990 1900

151 285 580 900 1680

138 260 530 810 1520

70

80

90

100

125

118

110

103

240

220

205

195

490

460

430

400

750

690

650

620

1400

1300

1220

1150

From the National Fuel Gas Code Part 10 Table 10-2

maximum Capacity of Pipe in Thousands of

BTU/hr of Undiluted L.P. Gas at 11” W.C.

(Pressure drop of 0.5 Inch W.C.)

PiPe

LenGTH (FT)

10

20

30

40

50

60

70

80

oUTsiDe DiAmeTeR, inCHes

3/4” 1” 1-1/2”

608

418

336

287

255

231

215

198

1146

788

632

541

480

435

404

372

3525

2423

1946

1665

1476

1337

1241

1144

90

100

187

175

351

330

1079

1014

From the National Fuel Gas Code Part 10 Table 10-15

12

PRessURe ReGULATion AnD TesTinG

The gas pressure to the appliance must be rated for each appliance while the burners are on. A sufficient gas pressure must be present at the inlet to satisfy these conditions. Refer to the table below for correct gas pressure.

Each appliance has been adjusted at the factory to operate with the type of gas specified on the rating plate.

Each oven is supplied with a regulator to maintain the proper gas pressure.

The regulator is essential to the proper operation of the oven and should not be removed.

DO NOT INSTALL AN ADDITIONAL REGULATOR

WHERE THE UNIT CONNECTS TO THE GAS SUPPLY

UNLESS THE INLET PRESSURE IS GREATER THAN

14” W.C. (1/2 PSI) (37mbar).

The oven and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.45kPa).

The oven must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas piping system at test pressures equal or less than 1/2 psig (3.45kPa).

Installation

Gas Connections

Prior to connecting the appliance, gas lines should be thoroughly purged of all metal filings, shavings, pipe dope, and other debris. After connection, the appliance must be checked for correct gas pressure.

U.s. and Canadian installations

Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code,

NFPA54/ANSI Z223.1-Latest Edition, the Natural Gas Installation Code CAN/CGA-B149.1 or the Propane Installation Code, CAN/CGA-B149.2 as applicable.

General export installations

Installation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation and/or operation of your appliance, please contact your local distributor. If you do not have a local distributor, please call Blodgett Combi at 0011-802-

658-6600.

model

BLCP-61G

BLCP-101G

BLCP-102G

BLCP-202G

GAs PRessURe

Gas Type

Natural

Propane

Natural

Propane

Natural

Propane

Natural

Propane

inlet Pressure

7.0” W.C.

11.0” W.C.

7.0” W.C.

11.0” W.C.

7.0-14.0” W.C.

12.0-14.0” W.C.

7.0-14.0” W.C.

12.0-14.0” W.C.

13

Installation

Gas Hose Restraint

If the appliance is mounted on casters, a commercial flexible connector with a minimum of 3/4” (1.9 cm) inside diameter must be used along with a quick connect device.

A restraint must be used to limit the movement of the appliance so that no strain is placed upon the flexible connector. The restraint should be fastened to the base frame of the oven as close to the flexible connector as possible.

It should be short enough to prevent any strain on the connector. With the restraint fully stretched the connector should be easy to install and quick connect.

The restraint (ie: heavy gauge cable) should be attached without damaging the building. DO NOT use the gas piping or electrical conduit for the attachment of the permanent end of the restraint! Use anchor bolts in concrete or cement block. On wooden walls, drive hi test wood lag screws into the studs of the wall.

WARninG!!

if the restraint is disconnected for any reason it must be reconnected when the appliance is returned to its original position.

U.s. and Canadian installations

The connector must comply with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or

Connectors For Moveable Gas Appliances CAN/CGA-

6.16 and a quick disconnect device that complies with the

Standard for Quick-Disconnect Devices for Use With Gas

Fuel, ANSI Z21.41 or Quick Disconnect For Use With Gas

Fuel CAN 1-6.9. Adequate means must be provided to limit the movement of the appliance without depending on the connection and the quick disconnect device or its associated piping.

A drip leg must be used at each appliance. Refer to

NFPA54/ANSI Z223.1 - Latest Edition (National Fuel Gas

Code) for proper drip leg installation.

General export installations

Installation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation and/or operation of your appliance, please contact your local distributor. If you do not have a local distributor, please call Blodgett Combi at 0011-802-

658-6600.

Attachment Plate

(secure with leg mount bolt)

Gas Hose

Quick Connect

Gas Supply Line

Restraint

IMPORTANT: Cable restraint should be fastened as close as possible to the flexible connector and short enough to prevent any strain on the flexible connector.

At maximum stretch of shortened restraint, the flexible connector should be easy to install and quick to connect.

installation of Gas Hose and Restraint

(Single Section Shown)

Figure 9

14

WARninG!!

Final check list must be performed by a qualified installer only.

oven exTeRioR

1. Check that the oven has not been damaged in transit

(dents, scratches, etc.)

2. Check/adjust the height and check that the oven is placed level (horizontally)

3. Check/adjust oven door

ConneCTions

1. Check for correct water connection

2. Turn on water supply

3. Check for leaks

4. Turn off water supply

5. Check and clean dirt filter

6. Turn on water supply again

7. Check hand shower

8. Check for correct electrical connection

9. Check for correct gas connection (if applicable)

10. Check connection to drip tray

11. Check for correct mounting of drip tray

12. Check for correct fall of hose from drip tray, and check for leaks

13. Check for correct exhaust and drain connection

14. Clean the oven

15. Apply steel oil

Installation

Final Check Lists

oven inTeRioR

1. Check that filter housing is mounted correctly

2. Check interior light

3. Clean the oven

ConTRoL

1. Check and adjust, if necessary, each of the preset values

2. Heat up the oven at 480°F (249°C) for approximately

5 minutes.

15

Operation

safety information for Gas ovens

The information contained in this section is provided for the use of qualified operating personnel. Qualified operating personnel are those who have carefully read the information contained in this manual, are familiar with the functions of the oven and/or have had previous experience with the operation of the equipment described. Adherence to the procedures recommended herein will assure the achievement of optimum performance and long, trouble-free service.

Please take the time to read the following safety and operating instructions. They are the key to the successful operation of your Blodgett oven.

sAFeTY TiPs

For your safety read before operating

What to do if you smell gas:

• DO NOT try to light any appliance.

• DO NOT touch any electrical switches.

• Use an exterior phone to call your gas supplier immediately.

• If you cannot reach your gas supplier, call the fire department.

What to do in the event of a power failure:

• Turn all switches to off.

• DO NOT attempt to operate the oven until the power is restored.

NOTE: In the event of a shut-down of any kind, allow a five (5) minute shut off period before attempting to restart the oven.

General safety tips:

• DO NOT use tools to turn off the gas control. If the gas cannot be turned off manually do not try to repair it. Call a qualified service technician.

• If the oven needs to be moved for any reason, the gas must be turned off and disconnected from the unit before removing the restraint cable. Reconnect the restraint after the oven has been returned to its original location.

• DO NOT remove the control panel cover unless the oven is unplugged.

16

Figure 10

Operation

Blodgett Programmable Control introduction

The BCP/BLCP ovens include the versatile Blodgett Programmable control. The control features:

• Multiple cooking modes include hot air, combi with

CombiOptima, reheating/regenerating, steaming, low-temperature steaming, forced steaming, proofing, cooling, and preheating

• CombiOptima automatically measures and controls the humidity level in the oven, helping to retain the appearance and juiciness of the product.

• Easy to use touch panel with crystal clear TFT display

• Stores up to 200 recipe programs with 10 cooking stages each. Recipes can be grouped into categories (beef, chicken, cookies, etc.) for easy retrieval.

• External core temperature probe with 3 measuring points. Ability to run 2 core probes simultaneously.

• Low temperature roast & hold and Delta-T cooking

• Reversible 9 speed fan for optimum baking and roasting results

• USB port for data, software and recipe transfer

• HACCP quality control enables you to control and document production. Includes production time, production duration, preparation temperature, and core temperature.

• CombiNet for monitoring and remote controlling the oven via computer or internet. Functions include recipe management, HACCP, service diagnosis and software updating

• Programmable time delay start

• Automatic service diagnosis

17

Operation

Cooking modes

ComBioPTimA moDe

CombiOptima offers you the possibility of adding up to

100% humidity to the oven chamber at temperatures from

160 to 480°F (70 to 250°C).

When using CombiOptima correctly, you minimise shrinkage and enhance the appearance and taste of your product.

Many products contain a large amount of water, increasing the humidity level during cooking. The oven automatically regulates the humidity to maintain the desired level.

setting the humidity level

1. Use the bottom keys on the left and right to set the desired humidity level. The blue and red bar indicated the actual humidity level in the oven cavity. The white number in the center of the bar indicated the desired humidty level.

NOTE: If the bar is all red, the oven containss 0% humidity. If the bar is all blue, the oven contains 100% humidity.

2. Preheat the oven for 5 minutes with the desired humidity content. Depending on the amount of product in the oven and the desired humidity level and temperature, the desired humidity is typically reached after 1 to 5 minutes.

Tips for setting the humidity level

• To make gravy when braising meat, apply 70 to 80% humidity at 300-325°F (145-65°C).

• For poaching fish, poultry and crispy vegetables, apply 70 to 95% humidity at 150-250°F (70-120°C).

• For short cook times and products, such as herbmarinated cuts of meat and fresh vegetables, use

70% humidity at 375°F (190°C ). Despite the short cook time, products such as cook very gently.

if the oven is not connected to a soft water plant,

Combioptima cannot function properly.

Humidty level setpoint

Actual humidty level bar

Press this key to decrease humidity level

Press this key to increase humidity level

Figure 11

18

sTeAm moDe

The steam mode provides 100% humidity in the cooking chamber. Use the steam mode for the following applications:

Low Temperature steaming

Steaming at 150-195°F (65-90°C) is recommended for delicate products such as fish.

Steaming fresh vegetables such as carrots, asparagus, and beans at 175°F (80°C) for 5 to 10 minutes produces products that keep their color and crispness.

Traditional steaming

Steaming at 208-212°F (98-100°C) is recommended for all kinds of root vegetables, potatoes, pasta, rice and meat.

Forced steaming

Steaming at 250°F (120°C) can be used for vegetables that need further processing and for faster preparation of pasta, rice, hard root vegetables and frozen vegetables.

Forced steaming should be used with care.

Tips for Using the steam mode

• We recommend that you start the steaming process

8 minutes before you place the products in the oven chamber. For food safety reasons, the oven automatically checks the water in the steam generator.

If the water temperature is below 150°F (65°C), the tank is emptied, refilled and the water is heated.

• To get the oven ready for production quickly and to ensure a perfect start of the steaming process, we recommend that you cool down the oven chamber to

175°F (80°C). To lower the temperature quickly, use the Cool Down mode and open the door.

if the oven is not connected to a soft water plant, the steam mode cannot function properly.

Operation

Cooking modes

ReTHeRm moDe

Reheating is a very gentle process 70-350°F (20-180°C).

The program operates with low fan speed and adds a carefully calculated amount of humidity which maintains the nice appearance and taste of the product.

Tips for Using Retherm

• To quicker retherming, products should not be covered.

• For best results, use a core temperature probe.

• When retherming sous-vide products, follow supplier recommendations.

Recommended Times & Temperatures

• 8 to12 minutes at 285°F (140°C) for plated meals with rice, meat and vegetables.

• 40 to 60 minutes at 250-285°F (120-140°C) for whole roasts, stews and sauces.

• 20 to 30 minutes at 250°F (120°C) for pasta and rice.

PRooFinG moDe

The oven is designed to maintain the perfect humidity for all products that need to be proofed before they are baked.

For your convenience, the Blodgett BCP/BLCP has a preset program called “Semiautomatic Bread”. In this program the bread is proofed and baked in the same process.

Recommended Times & Temperatures

• Low temperature and long proofing time of 90°F

(32°C) for 45 minutes for 14-28 ounces (400-800g) loaves of bread

• High temperature and short proving time 100°F

(38°C) for 25 minutes for 2-7 ounce (60-200g) rolls and baguettes.

PReHeAT moDe

In this mode the oven will preheat to 575°F (300°C) for 15 minutes. The oven will then automatically lower to 480°F

(249°C) to protect the advanced electronic components.

We recommend preheating the oven 80-100°F (27-38°C) above the cook temperature.

19

Operation

Welcome screen and Work menu

The welcome screen will appear when you power up your

BCP/BLCP oven.

1. Press the any of the 6 keys on either side of the control to access the WORK Menu.

WoRk menU

1. MAIN POWER SWITCH - controls power to the oven

2. MAIN MENU KEY - press to move to main menu

3. LEFT MODE SELECTION KEY - press to select mode to the left.

4. LEFT OVEN TEMP KEY - press to decrease set temperature.

5. LEFT COOK TIME KEY - press to decrease the set cook time

6. FAN & VENT KEY - press to access fan and vent submenus

7. PROGRAM KEY - press to access program menu

8. RIGHT MODE SELECTION KEY - press to select mode to the right.

9. RIGHT OVEN TEMP KEY - press to increase set temperature.

10. RIGHT COOK TIME KEY - press to increase the set cook time

11. CORE PROBE KEY - press to access core probe setting submmenu

12. START/STOP KEY - press to begin or cancel a cook cycle

1

2

3

4

5

6

8

9

10

11

7

12

Welcome screen Work menu

Figure 12

20

moDe seLeCTion

1. Use the keys on the right and left of the mode selection icons to select the desired mode.

NOTE: The selected icon will apper inside a red box in the center of the screen.

Operation

manual Cooking

setting Humidty Level in Combioptima

If CombiOptima is selected you will need to enter the desired humidity level.

Press this key to scroll to the left

Press this key to scroll to the right

Choose from the following oven modes:

Hot Air Combi

Optima

Steam Retherm Proofing Preheat Cool Down Combi

Wash

Figure 13

21

Operation

manual Cooking

seTTinG THe Cook TemPeRATURe

1. Use the 3rd keys down on the right or left to set the desired cook temperature. The large white number in the center of the screen displays the actual oven temperature. The smaller red number on the right of the screen displays the set temperature.

seTTinG THe Cook Time

1. Use the 4th keys down on the right or left to set the desired cook time. For continuous operation, press the left key until the display shown no time.

The smaller red number on the right of the screen displays the set cook time.

Once the cook cycle is activated, the large white number in the center of the screen displays the time remaining.

Actual oven temperature

Oven set temperature

Time remaining

Oven set time

Press this key to decrease set temperature

setting the Cook Temperature

Press this key to increase set temperature

Press this key to decrease set time

Figure 14 setting the Cook Time

Press this key to increase set time

22

seTTinG THe FAn sPeeD

The fan function is active in HOT AIR, STEAM and RE-

THERM only. In all other modes, the fan is controlled automatically by the oven.

1. Press the FAN and VENT key to access the FAN/

VENT submenu.

2. Use the 5th keys down on the right or left to set the desired fan speed.

NOTE: Note that the fan wheel is reversible. It will run clockwise for a few minutes, then reverse and run counterclockwise. This creates an even bake pattern.

Operation

manual Cooking

Tips for setting fan speed

• A fan speed between 20 and 50% is recommended for puff pastry, Danish pastry, cakes and small products as well as in the Delta-T and Cook & Hold modes.

• You should add 1 to 2 minutes of preparation time for each 1/2 hour when low fan speed is used.

• Fan speeds between 50% and 90% are recommended for particularly juicy end products that can accept longer cook times.

• Fan speeds below 50% cannot be used at temperatures above 390°F (200°C).

Work menu Fan/vent submenu

Press this key to access

FAN/VENT submenu

Press this key to cancel and return to

WORK Menu

Press this key to increase fan speed

Figure 15

23

Press this key to save settings

Press this key to decrease fan speed

Operation

manual Cooking

seTTinG THe venT PosiTion it is only possible to set the exhaust function in the

HoT AiR mode. In the other modes, the exhaust function is controlled automatically by the oven.

1. Press the VENT key to toggle between Vent Open or

Vent Closed.

Tips for setting vent position

• Open exhaust is recommended for bread and pastry, as well as roasting meat and to achieve a grill effect.

To ReTURn To WoRk menU

1. Press the OK key on the top right to save your settings and return to the WORK Menu. Press the top right key to return the the WORK Menu without saving your changes.

To iniTiATe mAnUAL Cook CYCLe

1. From the WORK Menu, press the START/STOP key located on the bottom left side of the control to initiate the cook cycle.

2. The square around the mode will flash and the display counts down the cook time. The cook time, temperature, fan speed and vent position may be changed during the cook cycle.

In Hot Air mode, press and hold the button on the bottom right of the screen to inject steam.

Press any key to turn on the oven lights.

3. When there is one minute left, the computer counts down from 59 seconds.

4. When the time has expired on the final stage, an alarm sounds and a message appears notifying you that the program is complete. Press the key to the left of ENTER, or open the door, to silence the alarm.

Fan/vent submenu manual Cook screen

Press this key to cancel and return to

WORK Menu

Press this key to save settings

Press this key to toggle the vent open or closed

Press START/

STOP key to initiate cook cycle

Figure 16

24

All Blodgett BCP/BLCP ovens come standard with one core temperature probe. It is possible to run two core probes at the same time. An additional probe may be purchased from your Blodgett dealer.

The core temperature sensor offers three cooking modes.

• Active

• Delta-T

• Cook & Hold

enTeRinG CoRe PRoBe moDes

Follow this procedure for all three core probe cooking modes.

NOTE: The core probe must be set up prior to activating a cook cycle.

1. Select the desired cooking mode. Refer to instructions on setting the cooking mode.

2. Set the desired fan speed if applicable. Refer to instructions on setting the fan speed.

Work menu

Operation

Core Probe Cooking

3. Set the vent position if applicable. Refer to instructions on setting the vent position.

4. Insert the core probe into the center of the product.

Then plug the probe into the oven at the connector located in the upper corner of the right side panel.

NOTE: Meat probe on mini combi models are internal and do not need to be plugged into the oven.

5. Press the CORE PROBE key on the WORK Menu.

The control displays the Core Probe submenu.

6. Press the key next to the core probe icon. The control displays the Set Core Probe screen.

The graph on the display illustrates the difference between the actual oven temperature and core temperature. The blue line represents core temperature probe 1. Core probe 2 is green. The red line is the actual oven temperature.

Core Probe submenu

Core probe status graph

Press this key to move to the

Core Probe submenu

Figure 17

Press this key to select the first core probe

25

Operation

Core Probe Cooking

ACTive CoRe PRoBe CookinG

In the active mode, the core probe will notify you when the product has reached the desired pull temperature. The cook temperature is constant in the active mode.

1. Follow steps 1-6 on the page 25 to enter the core probe cooking screens.

2. Use the keys on the left of the display to set the desired core probe pull temperature. The core probe set temperature is displayed in red.

3. Press the OK key to save the save the desired core probe temperature.

4. Press the START/STOP key to start the core probe cook cycle.

5. When the product has reached the desired core temperature an alarm sounds and the display reads EN-

TER. Press the key next to ENTER, or open the door, to silence the alarm.

6. Unplug the core probe and remove the product.

set Core Probe screen

CookinG WiTH TWo CoRe PRoBes

When one of the probes reaches the desired core temperature, an alarm sounds and a ENTER appears in the display.

1. Press the key next to ENTER, or open the door, to silence the alarm.

2. Take out the product and close the door.

3. The oven continues until the second probe reaches the desired core temperature.

Press this key to cancel and return to WORK Menu

Press this key to save your settings

Press this key to raise probe temp

Press this key to lower probe temp

Press this key to start the core probe cook cycle

Figure 18

26

DeLTA-T CookinG

In the Delta-T mode the oven temperature adjusts relative to the actual core temperature of the product. Delta-T provides gentle cooking resulting in a tender, juicy product.

Cooking with Delta-T reduces shrinkage by up to 20% compared to traditional modes of cooking.

1. Follow steps 1-6 on page 25 to enter the core probe cooking screens.

2. Press the CORE PROBE key on the WORK Menu.

The control displays the Core Probe submenu.

3. Press the Core Probe key twice to access the Delta-T cooking screen.

4. Use the keys on the left of the display to set the desired core probe pull temperature. The core probe set temperature is displayed in red.

5. Press the OK key to save the save the desired core probe temperature.

6. Press the START/STOP key to start the Delta-T cook cycle.

set Core Probe screen

Operation

Core Probe Cooking

7. When the product has reached the desired core temperature an alarm sounds and the display reads EN-

TER. Press the key next to ENTER, or open the door, to silence the alarm.

8. Unplug the core probe and remove the product.

Tips for Delta-T Cooking

• For best results start with an oven temperature of

85-100°F (30-40°C).

• HOT AIR mode is recommended for very fatty and small roasts. STEAM mode is recommended for large hams with bones. RETHERM mode is recommended for poultry and other lean pieces of meat.

Recommended Core Temperatures

• Rare 125-135°F (52-57°C)

• Medium 140-145°F (59-62°C)

• Well Done 160-185°F (72-85°C)

Delta-T Cooking screen

Press this key to save your settings

Press this key to raise probe temp

Press this key to start the Delta-T cook cycle

Press this key twice to access the Delta-T screen

Press this key to lower probe temp

Figure 19

27

Operation

Core Probe Cooking

Cook & HoLD

Cook & Hold is an extension of Delta-T cooking. The oven temperature adjusts relative to the actual core temperature of the product. When the desired core temperature is reached, the oven adjusts the cavity to maintain the core temperature, acting as a warming mode. Cook & hold is suitable for roasting over night when the staff is off duty.

1. Follow steps 1-6 to enter the core probe cooking screens.

2. Press the CORE PROBE key on the WORK Menu.

The control displays the Core Probe submenu.

3. Press the Core Probe key three times to access the

Cook & Hold cooking screen.

4. Use the keys on the left of the display to set the desired core probe temperature. The core probe set temperature is displayed in red.

5. Press the OK key to save the save the desired core probe temperature.

set Core Probe screen

6. Press the START/STOP key to start the Cook & Hold cook cycle.

7. When the product has reached the desired core temperature the display will read HOLD??? and the oven will adjust the cavity temperature to maintain the core probe temperature.

8. Unplug the core probe and remove the product when ready to serve.

Tips for Using Cook & Hold

• Recommended holding temperature is 140-150°F

(60-65°C). At higher temperatures a gradual dehydration of proteins takes place, the weight of the meat is reduced and the meat becomes less juicy.

• With a hold temperature of 140-150°F (60-65°C), the meat can be taken out immediately before carving.

• After being held for 5-6 hours shrinkage increases.

Cook & Hold screen

Press this key to save your settings

Press this key to raise probe temp

Press this key to start Cook & Hold

Press this key three times to access the

Cook & Hold screen

Press this key to lower probe temp

Figure 20

28

BCP/BLCP ovens can store 200 product programs with

10 cooking stages each. Products are grouped into categories (beef, chicken, bread, etc.) for easy retrieval. Use the following procedure to cook using a pre-programmed product recipe.

1. Press the PROGRAM key located on the bottom right of the control. The Program submenu is displayed.

The right side of the display shows the product categories. The green arrow at the bottom inducates there are more categories than displayed.

The left side of the display shows the recipes in the current category

Operation

Programmed Cooking

2. If the desired category is not visible, press the key next to the green arrow to display additional categories.

3. Press the key next to the desired product category.

4. The product programs in the choosen category are displayed on the right side of the screen. If the category has more than 5 products a scroll key will appear at the top of the category list. Press this key to scroll through the product programs in the category.

Bottom of BCP Control Program submenu

Press this key to display additional categories

Press this key to access the Program submenu

Product

Category keys

Press to scroll through all product programs within a category

Product

Program keys

Press this key to display additional categories

Figure 21

29

Operation

Programmed Cooking

5. Press the key next to the desired product program.

The display changes to the Edit Step screen. This screen gives the operator the chance to change the cook temperature, time, fan speed, vent and humidity level (if applicable) for any stage of the program.

Changes made will be for the current bake only. The program will not be changed for future bakes.

6. Press the START/STOP key to initiate the programmed cook cycle. The display shows the Program

Cooking screen.

NOTE: If the first stage of the program is a preheat, an alarm sounds at the end of the stage and a message appears notifying you that the preheat is complete. Press the key next to

ENTER to silence the alarm and proceed to stage 2.

edit step screen

7. The square around the mode for the current stage will flash and the display counts down the cook time.

8. When there is one minute left in each stage, the computer counts down from 59 seconds.

9. When the time has expired on the final stage, an alarm sounds and a message appears notifying you that the program is complete. Press the key to the left of ENTER, or open the door, to silence the alarm.

10. The control returns to the WORK Menu.

Program Cooking screen

Press to return to settings for the previous stage

Press to move to settings for the next stage

The yellow box indicated the current stage in edit mode.

Press to start product program

Figure 22

30

Use the following procedure to create a new product program or edit an existing program.

1. Press the MAIN MENU key in the upper left corner to advance the control to the main menu.

2. Press the EDIT PROGRAM key on the MAIN menu.

If, when one of the functions in the main menu is activated, a screen appears asking for a code, this func-

Work menu

Operation

Programming a Product

tion is blocked. You need a code to access. Select enter code, press 876412 and confirm by pressing

OK in the upper right corner.

3. To create a new product recipe, press the NEW REC-

IPE key. To edit an existing product recipe, follow the procedure on to select the product program to be edited.

main menu

Press to go to MAIN

Menu

Press to edit or create a program

Programmed Recipe screen

Press to create a new program

Figure 23

31

Operation

Programming a Product

4. The Edit Program screen is displayed. This is the main screen for creating and editing product programs.

naming or Renaming the Product Program

5. Press the Change Text key on the Edit Program screen. The ENTER TEXT screen is displayed.

NOTE: Skip this step if you are editing an existing program and do not need to change the name.

6. Use the keys on the right and left of the screen to enter a new name, or edit an existing product name. below for details.

Press the green arrow key on the top right at any time to cancel the edit and return to the EDIT PROGRAM screen without saving your changes.

7. Press the OK key to save your changes. The display return to the EDIT PROGRAM screen.

edit Program screen edit Text screen

Press to save name

Press to cancel

Press to move cursor to the left

Press to selects next letter to the left

Press to move quickly to the lef

Press to select upper or lower case letter

Press to erase letter to the left

Press to move cursor to the right

Press to select next letter to the right

Press to move quickly to the right

Press to write a letter in a red box

Figure 24

32

selecting or Changing the Product Category

8. Press the CHANGE ICON key on the Edit Program screen. The SELECT CATEGORY screen is displayed.

NOTE: Skip this step if you are editing an existing program and do not need to change the category.

Operation

Programming a Product

9. Use the keys on the right and left of the screen to select the desired product category. See below for details.

Press the green arrow key on the top right at any time to cancel the edit and return to the EDIT PROGRAM screen without saving your changes.

10. Press the OK key to save your changes. The display return to the EDIT PROGRAM screen.

edit Program screen select Category screen

Press to save category

Press to cancel

Press keys to move yellow box to the left

Press keys to move yellow box to the left

Figure 25

33

Operation

Programming a Product

Creating or Changing the Product Program Cooking steps

11. Press the CHANGE STEPS key on the Edit Program screen. The EDIT STEP screen is displayed.

NOTE: Skip this step if you are editing an existing program and do not need to change the program for any of the cooking steps.

12. If programming a new product be aware that the control will provide three steps automatically:

The 1st step is a preheat. Use the keys to the left and right to set the desired preheat temperature and time.

The 2nd step is a stop. This step will sound an alarm when the preheat step is complete alerting the operator that the oven is ready to accept product.

The 3rd step contains a default cook program that you can modify as needed.

13. Press one of the top two keys to scroll the yellow box to the 3rd step.

NOTE: If editing an existing program, use these keys to select the step to be edited.

14. Press the green arrow down key to advance to the

EDIT STEP CHANGE FUNCTION screen.

15. The mode for the selected step appears in a yellow box on the top row. Press the keys on the right and left of the bottom row until the desired mode appears inside the red box.

16. Use the keys to the side of the middle row to select either add, delete or change

ADD - Use Add to add a new step. The green line next to the current step indicates where the new step will be inserted. Use the keys to the right and left to move the green line if necessary.

DeLeTe - Use Delete to remove the current highlighted step.

CHAnGe - Use Change to modify the mode of the current highlighed step.

17. You may have up to 10 cooking steps. Preheat, Stop and Cool Down do not count as cooking steps. Once all steps have been added, deleted or changed, press the green up arrow key to return to the EDIT STEP screen.

18. To edit the cooking parameters, scroll the yellow box to the step to be edited.

19. Use the keys on the side to set the desired temperature, time, fan speed, vent postion and humidity (if applicable) for the selected step. You may also program a core probe cook. See the directions for core probe cooking.

20. When all steps are correct, press the green side arrow at the top left of the screen to return to the EDIT

PROGRAM screen.

saving the Product Program

21. Press the SAVE key to save your program to the oven control.

exiting Program mode

22. Press the green side arrow at the top left of the screen three times to return to the WORK menu.

34

Operation

Programming a Product

edit step Change Function screen edit Program screen

Press to scroll the yellow box to the left

Use these keys to lower the temperature, time, fan speed, vent postion and humidity (if applicable) for the current step.

Yellow box indicates current stage in edit mode.

edit step screen

Press to select the desired mode

Press to select Add, Delete or Change

Press to select step to be modified

Press to move to EDIT STEP

CHANGE FUNCTION screen

Press to scroll the yellow box to the right

Use these keys to raise the temperature, time, fan speed, vent postion and humidity (if applicable) for the current step.

Figure 26

35

Operation

setting a Timed start

Timer Start makes it possible to start the oven before staff arrives. This way, the oven will be hot when you come in in the morning.

1. Press the MAIN MENU key in the upper left corner to advance the control to the main menu.

2. Press the TIMED START key on the MAIN menu. The

Timer Start screen is displayed.

3. Choose between START TIME (for a single instance timed start) or DAILY START (to program a daily timed start).

Work menu Timer start screen

Press to go to MAIN Menu

main menu

Press for single instance timed start

Press for daily timed start

Press to select product program to use

Press to activate the timer

Press to set a timer start

Figure 27

36

single instance Timed start

1. The control displays the Starting Time screen.

2. Use the side arrow keys to select the parameter to set. The current parameter is indicated by the red box.

3. Use the up and down arrow keys to change the current parameter.

NOTE: Set only the date, disregarding month and year.

4. Press the OK key to save your settings and return to the TIMER START screen.

5. Press the RECIPE key to select the Product Program to run with the timed start. See instructions on selecting a product program.

starting Time screen

Operation

setting a Timed start

6. Press the STATUS key to activate the timed start.

7. When time setting is complete, press OK tosave your settings and return to the Main Menu.

8. Press the main power switch to turn off the oven. The oven restarts automatically when the set date and time is reached.

The door must be closed while

TimeR sTART is active.

NOTE: You may activate the timer and not turn off the oven until you have finished for the day.

Press to go to MAIN

Menu without saving settings

Press to move selection box to the left

Press to decrease date or time

Press to go to accept settings

Press to move selection box to the right

Press to increase date or time

Figure 28

37

Operation

setting a Timed start

Daily Timed start

1. The control displays the DAILY START screen.

2. If the clock next to a day is red, that day is not currently active. If the clock is green, a daily timer is currently active for that day.

To activate all 7 days at once press the DAILY TIMER key on the right of the screen.

3. Use the keys to on the right side of the screen to change the start time for each day.

4. Press the OK key to save your settings and return to the TIMER START screen.

5. Press the RECIPE key to select the Product Program to run with the timed start.

6. Press the STATUS key to activate the timed start.

7. When time setting is complete, press OK to save your settings and return to the Main Menu.

8. Press the main power switch to turn off the oven. The oven restarts automatically when the set date and time is reached.

The door must be closed while

TimeR sTART is active.

NOTE: You may activate the timer and not turn off the oven until you have finished for the day.

Daily Timer screen

Press to return to MAIN

Menu without saving settings

Press to go to accept settings

Press to activate all 7 days at once

Press to increase the time

Press to decrease the time

Figure 29

38

You can make changes to the preset time and temperature in all modes except CombiWash.

NOTE: Core temperature, fan/exhaust and Combi

Optima (humidity content) cannot be set in this menu.

1. From the Work menu select the mode to preset. Enter the desired preset time and temperature.

2. When all 3 parameters have been entered. Press the

MAIN menu key on the top left.

Operation

setting Preset Time & Temperature

3. Press the PRESELECTION key on the left side of the screen. The Preselection screen is displayed.

4. Verify the mode, time and temperature are correct.

5. Press the OK key to accept the parameters and return to the Main menu.

6. Press the Arrow key at the top left of the screen to return to the Work menu.

7. Repeat this procedure for any additional cooking modes.

Work menu Preselection screen

Press to access MAIN Menu

main menu

Press to return to MAIN Menu without saving settings

Press to accept preset parameters

Press to access

Preselection screen

Figure 30

39

Operation

oven setup

1. Press the MAIN MENU key in the upper left corner to advance the control to the main menu.

2. Press the OVEN SETUP key on the MAIN menu. The

Oven Setup menu is displayed.

seTTinG THe LAnGUAGe

1. Press the LANGUAGE key on the left of the screen.

2. Select the key next to the desired language. Only ten languages are displayed at one time. To view additional languages press the down arrow key at the top right of the screen.

3. Once the new language is selected all text on the screen is automatically translated. There is no need to accept the change.

seTTinG THe oven ALARm

1. Press the ALARM SOUND key on the right side of the control. The display changes to the Alarm Sound screen.

2. Use the keys on the left and right of the control to adjust the alarm volume, frequency and duration.

3. Press the OK key in the top right corner of the display to save the changes. The control returns to the Oven

Setup menu.

seTTinG THe oven Time

1. Press the SET TIME key on the right side of the control.

2. Use the side arrow keys to select the parameter to set. The current parameter is indicated by the red box.

3. Use the up and down arrow keys to change the current parameter.

NOTE: Set only the date, disregarding month and year.

4. Press the OK key to save your settings and return to the Oven Setup menu.

seTTinG THe oven seTUP

WARninG!!

incorrect changes to the set up of the oven may have a serious effect on its reliability in service. Contact your Blodgett service agent before making any changes.

1. Press the OVEN SETUP key on the right of the screen.

2. Select the oven parameter with the the vertical arrows on the right of the screen. Change the parameter using the horizontal arrows at the bottom of the screen.

3. When all parameters are set, press the OK key at the top right of the screen. The control returns to the

Oven Setup menu.

40

Work menu

Press to return to

MAIN Menu

Operation

oven setup

oven setup menu

Press to access MAIN Menu

main menu

Press to set language

Press to access

CombiNet

Press to set oven alarm

Press to set clock

Press to access oven setup parameters

Press to access OVEN

SETUP screen

Figure 31

41

Operation

UsB Functions

The Blodgett BCP/BLCP comes standard with a USB port located underneath the control compartment. The USB will enable upload and download of product recipes as well as HACCP data.

To Access UsB menu

1. Insert the USB card into the slot below the control compartment.

2. From the MAIN menu, press the SERVICE key. The

USB Menu is displayed.

To Backup system Data

1. Press the key labelled Take Backup on the left side of the USB screen.

2. The control briefly displays the files to be backed up including product recipe programs, counters, error logs, oven setup and Combi Optima data.

3. Data files are automatically named according to the year, month, date and time they were saved.

4. When backup is complete, the control returns to the

SERVICE menu.

main menu

UsB screen

Press to back up oven data to USB

Press to back up restore a previous data backup

Press to read files on USB key and test connection to computer

Press to access

USB screen

Press to access

SERVICE screen

service menu

Press to copy recipes from

USB to oven

Press to copy recipes from oven to USB

Figure 32

42

To Restore system Data from UsB

1. Press the key labelled Retrieve Backup on the left side of the USB screen.

2. Backup data is stored by oven serial number. If the same USB key is used for more than one oven, be sure to select the correct serial number.

3. Select the data file to be restored. Data files are automatically named according to the year, month, date and time they were saved.

4. Press the OK button in the upper right corner of the display to restore the selected data file.

5. Use the MAIN POWER key at the top of the control to reboot the oven.

Copy Recipes from UsB to oven

1. Press the key labelled Get Recipes from USB on the right side of the USB screen.

2. Select the recipes to be copied to the oven.

NOTE: The control displays the product categories in yellow as folders. Individual program recipes are displayed in white.

Operation

UsB Functions

3. Press the OK button in the upper right corner of the display to accept the recipes to be copied.

4. The RECIPE ACCEPT screen is displayed. Press

ADD to add the selected product programs to the oven. Press OVERWRITE to overwrite existing programs with the recipes on the USB.

Copy Recipes from oven to UsB

1. Press the key labelled Send Recipes to USB on the right side of the USB screen.

2. Select the location on the USB folder to save the product recipes. You may overwrite an existing file or create a new file with a name matching the serial number of the oven.

3. Press the OK button in the upper right corner of the display to copy the recipes from the oven to the USB.

Recipe Upload screen Upload Accept screen

Press to select or deselect individual recipes

Press to copy selected recipes to oven

Press to scroll up

Press to select all recipes

Press to deselect all recipes

Press to scroll down

Press to add recipes

Press to overwrite existing recipes

Figure 33

43

Operation

HACCP Library

The Blodgett BCP/BLCP comes standard with HACCP data recording. HACCP enables you to control and document production. Data recorded includes production time. production duration, preparation temperature and core temperature.

The HACCP library can hold approximately 1000 log files.

You will be notified when the memory is full so that you can empty the memory with the USB. If nothing is done, the computer will automatically start to overwrite the oldest files.

To Activate HACCP Data Recording

NOTE: HACCP data is stored under product recipe names. Therefore, HACCP is not available for manual cooking.

HACCP must be activated to record data.

1. Press the MAIN menu key in the upper left corner of the WORK menu to advance the control to the main menu.

2. Press the HACCP key on the left side of the control to access the HACCP menu.

3. Be sure that Active appears in the status bar at the bottom of the control. If the status is inactive, press the key on the left of the status bar to toggle to Active.

To view HACCP Data

1. From the HACCP menu, press the key labelled either

Show HACCP from Oven or Show HACCP from USB.

2. A list of HACCP log files is displayed. The files are logged by year, month, date and product name. Use the UP and DOWN ARROW keys to scroll through the list until the desired HACCP file is highlighted.

3. Press the OK key in the upper right of the control to display the HACCP chart.

4. Press the RETURN key at the top left of the screen to return to the HACCP screen.

To Backup HACCP Data

1. From the HACCP menu, press the key labelled Archive on USB.

2. The displays reads SAVING HACCP.

3. When the data is saved to the USB the control returns to the HACCP screen.

NOTE: The HACCP data on the USB can be located in the folder with the name of the oven serial number.

To Delete HACCP Data from the oven

1. From the HACCP menu, press the key labelled Delete HACCP Data from Oven.

2. The screen will ask you to confirm that you want to delete all HACCP files. Press the key next to Accept to delete the files. Press the key next to Regret to cancel.

3. The control returns to the HACCP screen.

44

Operation

HACCP Library

HAACP menu Work menu

Press to move to MAIN menu

main menu

Press to return to

HACCP menu

Press to access

HACCP Menu

HACCP DATA CHART CoLoR keY:

Red line

White lIne

Light green line

Preset temp.

Current oven temp.

Vertical blue line Door opened

#1 (left) core probe temp.

Light yellow line #2 (right) core probe temp.

Figure 34

45

HAACP Data Chart

Operation

optional Combinet

The optional CombiNet feature allows you run the oven remotely from a pc. This is useful for writing product recipes as well as viewing and downloading HACCP and other oven data with the convenience of a large screen and keyboard.

ConneCTinG To A neTWoRk oR PC

NOTE: CombiNet requires the installation of Java. The program can be downloaded from www.java.

com.

1. Remove the control panel cover.

2. Connect the oven to a network or pc via the ethernet cable. The connection can be found on the bottom of the control board.

3. Replace the control cover and connect the other end of the cable to your local network or directly to a pc.

4. Press the MAIN MENU key in the upper left corner to advance the control to the main menu.

5. Press the OVEN SETUP key on the MAIN menu. The

Oven Setup menu is displayed.

6. Press the NETWORK key on the left of the screen.

The screen displays the IP address of the oven.

NOTE: If the oven is connected to a pc, use the IP address displayed. If the oven is connected to a network you may need to change the IP address to match the naming configuration for your network

7. Press the OK key on the top right of the control. The oven will restart itself.

8. From the pc, open a network connections window.

NOTE: Refer to the instructions for your operating system to locate the window.

Create a network connection using the following settings: a. Select Local Area Network, right click and select properties.

b. Select TCPIP version 4. Click on properties.

c. Select “Use the following IP address”.

d. Enter the IP address from your oven control but change the last 3 digits. They must not match completely since each connection needs a unique IP address.

e. Enter the Subnet mask number from the oven control. This should be an exact match to the number on the oven control.

f. Click OK to save. Close the network connection window.

9. From the pc, open an Internet Exporer window and enter the IP address for the oven in the address bar.

Enter the following login information.

a. Username: superuser b. Password: 876412

46

RemoTe oven ConTRoL

1. Select Control Oven from the menu on the left of the screen.

2. The oven display appears in the window on the right.

You are now controlling the oven remotely. You may use your mouse to navigate through the oven menus and use your keyboard to enter data.

HACCP viA ComBi neT

1. Select HACCP from the menu on the left of the screen.

2. The HACCP data is displayed on the right side of the screen.

Operation

optional Combinet

RemoTe ReCiPe mAnAGmenT

1. Select Recipes from the menu on the left of the screen.

2. Press Get from Oven to retrieve product recipes currently programmed in the oven library.

3. Add new recipes and/or edit and delete recipes from the library now located on the pc.

4. Press Send to Oven to download all recipes from the pc to the oven control. If necessary, click the Browse button to select the desired recipe location. Click the

Upload button to upload the recipes.

select Function

Send recipes to oven

Recipe screen

Click to save recipes on pc

Click to add recipe

Click to import additional recipes

Click on category icon to open recipe

Figure 35

47

Click to copy recipe

Click to delete recipe

Maintenance

Cleaning & Preventative maintenance

DAiLY CLeAninG

Daily cleaning of your Combi oven is essential for sanitation, and to ensure against operational difficulties.

Cleaning the exterior

1. The exterior of the appliance may be cleaned and kept in good condition with a light oil. Saturate a cloth and wipe the appliance when it is cold; wipe dry with a clean cloth.

WARninG!!

Do noT spray the outside of the appliance with water or clean with a water jet. Cleaning with a water jet can impregnate chlorides into the stainless steel, causing the onset of corrosion.

Cleaning the interior

NOTE: DO NOT use corrosive cleaners not intended for oven cleaning on your Combi oven.

Blodgett recommends the following products for cleaning and rinsing of your Blodgett Combi oven. If you choose to use products other than what Blodgett recommends, please have your suppler send us the MSDS sheet on the proposed alternate so we can ensure it meets our standards. Non approved products can cause harm to your unit and can potentially void your warranty.

Recommended oven cleaners:

Johnson Diversey Suma Nova L-6

• Four, 1 gallon (3.78 litre) containers

Product code 57252280

• One, 5 gallon (18.9 litre) container

Product code 57252100

Recommended Rinse Aid:

Johnson Diversey Suma Maro A8.8

• Four, 1 gallon (3.78 litre) containers

Product code 57270280

• One, 5 gallon (18.9 litre) container

Product code 57270100

1. Open the oven door.

2. Use the attached spray hose, located beneath the control, to clean the front drip tray. Water will run to the drain in the oven cavity.

Run the CombiWash automatic cleaning cycle as follows:

1. Check that the oven cleaner and rinse agent containers are both full.

2. From the WORK menu, select the clean cycle. The

CombiWash menu is displayed.

3. CombiWash features four different cleaning cycles.

Use the Left and Right Arrow keys to select the desired cleaning cycle.

Step 1 (44 minutes)

Step 2 (1 hour)

Step 3 (1 hour, 49 minutes)

Step 4 (2 hours, 38 minutes)

NOTE: Use Steps 1 or 2 after steaming and roasting at low temperatures. Use Steps 3 or 4 after steaming and roasting at high temperatures.

4. Press the Start/Stop key to initiate the clean cycle.

5. If the cavity temperature is above 175ºF (80ºC), the oven will automatically enter cool down. When the cavity is below 175ºF (80ºC) the CombiWash cycle begins.

6. The control counts down the time remaining in the wash cycle.

7. When the wash cycle is over, the oven automatically switches to an energy saving standby mode.

48

CombiWash menu

Press to select cleaning mode

Press to start

CombiWash

Figure 36

Press to select cleaning mode

Maintenance

Cleaning & Preventative maintenance

WeekLY CLeAninG

In addition to the daily cleaning, it is necessasry to clean the control filter and behind the fan guard on a weekly basis. This is necessary for proper functioning of the oven.

Scale will build up on the fan and heat source leading to a less efficient oven.

Cleaning the Control Filter

The control filter is located below the control compartment, in front of the spray hose.

1. To remove, pull down on the black knob on the left of the filter.

2. Clean the filter with soap and water.

3. Reinstall the filter. Press up on the filter until the back of the knob is inserted into the hole in the bottom of the oven.

4. Push up on the center of the knob to expand the back of the knob securing the filter.

Cleaning Behind the Fan Guard

1. Loosen the two screws and on the fan guard (or baffle).

2. Swing the baffle forward.

3. Thoroughly spray cleaner onto the fan and heat source. Place the oven in the steam mode for approximately 10 minutes.

4. After ten minutes, rinse the cleaner off. Return the fan guard to the closed position. Rotate the two screws to secure the fan guard.

PRevenTive mAinTenAnCe

The best preventive maintenance measures are the proper initial installation of the equipment and a program for cleaning the appliance routinely. The Oven/

Steamer requires no lubrication. Contact the factory, the factory representative or a local Blodgett Combi service company to perform maintenance and repairs should they be required.

49

Maintenance

Deliming - BCP only

The control keeps track of boiler usage between deliming.

When the oven has reached 95% of the time the control warns the operator that the oven needs to be delimed.

This is a warning only, the oven can be used all day before deliming.

Deliming the oven

1. Be sure the container delivering the deliming agent to the appliance is full. Be sure to use a non-diluted deliming agent.

2. From the MAIN Menu, select the SERVICE key.

3. The control displays the SERVICE menu. Press the

Work menu

DELIME DIAGNOSIS key on the right of the control.

4. The control displays the Delime Diagnosis screen.

Press the START DELIMING key on the right side of the control.

5. The remainder of the process is automatic. The control displays the deliming steps as they occur.

NOTE: The oven can be delimed at any time.

main menu

Press to go to SERVICE

Menu

Press to go to

MAIN Menu

service menu

Delime Diagnosis screen

Press to start deliming process

Press to enter

DELIME Menu

Figure 37

50

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
