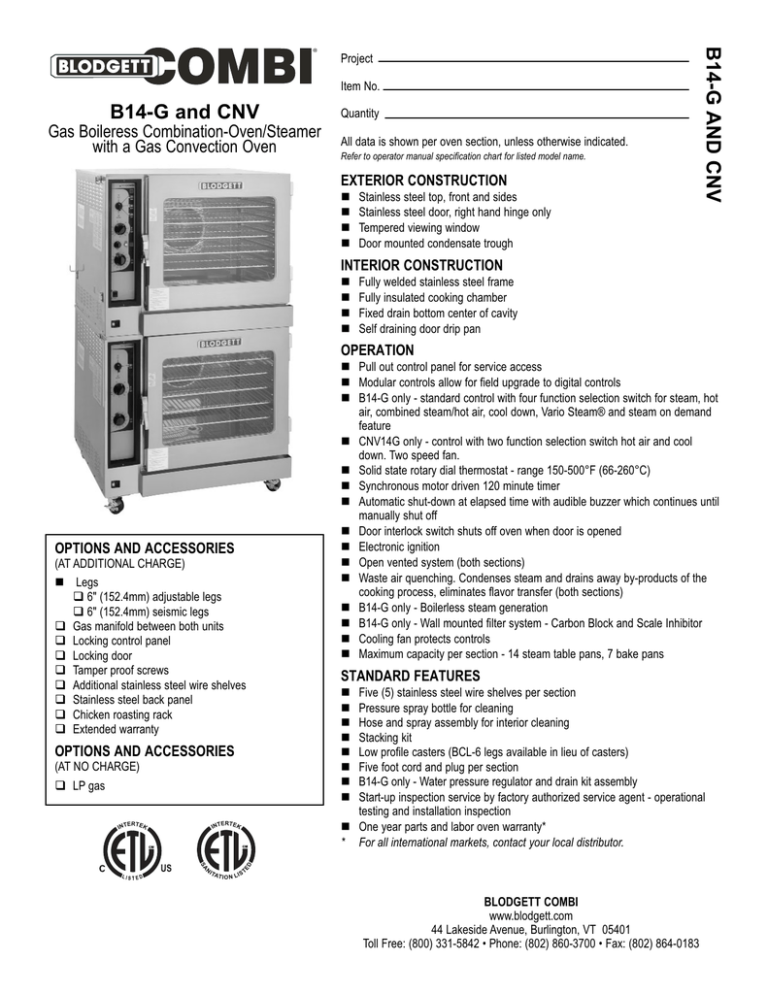

B14-G and CNV B14-G AND CNV Gas Boileress Combination-Oven/Steamer

B14-G and CNV B14-G AND CNV Gas Boileress Combination-Oven/Steamer
Item No.
B14-G and CNV
Gas Boileress Combination-Oven/Steamer
with a Gas Convection Oven
Quantity
All data is shown per oven section, unless otherwise indicated.
Refer to operator manual specification chart for listed model name.
EXTERIOR CONSTRUCTION
Stainless steel top, front and sides
Stainless steel door, right hand hinge only
Tempered viewing window
Door mounted condensate trough
B14-G AND CNV
Project
INTERIOR CONSTRUCTION
Fully welded stainless steel frame
Fully insulated cooking chamber
Fixed drain bottom center of cavity
Self draining door drip pan
OPERATION
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Legs
6" (152.4mm) adjustable legs
6" (152.4mm) seismic legs
Gas manifold between both units
Locking control panel
Locking door
Tamper proof screws
Additional stainless steel wire shelves
Stainless steel back panel
Chicken roasting rack
Extended warranty
OPTIONS AND ACCESSORIES
(AT NO CHARGE)
LP gas
Pull out control panel for service access
Modular controls allow for field upgrade to digital controls
B14-G only - standard control with four function selection switch for steam, hot
air, combined steam/hot air, cool down, Vario Steam® and steam on demand
feature
CNV14G only - control with two function selection switch hot air and cool
down. Two speed fan.
Solid state rotary dial thermostat - range 150-500°F (66-260°C)
Synchronous motor driven 120 minute timer
Automatic shut-down at elapsed time with audible buzzer which continues until
manually shut off
Door interlock switch shuts off oven when door is opened
Electronic ignition
Open vented system (both sections)
Waste air quenching. Condenses steam and drains away by-products of the
cooking process, eliminates flavor transfer (both sections)
B14-G only - Boilerless steam generation
B14-G only - Wall mounted filter system - Carbon Block and Scale Inhibitor
Cooling fan protects controls
Maximum capacity per section - 14 steam table pans, 7 bake pans
STANDARD FEATURES
Five (5) stainless steel wire shelves per section
Pressure spray bottle for cleaning
Hose and spray assembly for interior cleaning
Stacking kit
Low profile casters (BCL-6 legs available in lieu of casters)
Five foot cord and plug per section
B14-G only - Water pressure regulator and drain kit assembly
Start-up inspection service by factory authorized service agent - operational
testing and installation inspection
One year parts and labor oven warranty*
* For all international markets, contact your local distributor.
BLODGETT COMBI
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
B14-G AND CNV
APPROVAL/STAMP
SHORT FORM SPECIFICATIONS
Provide Blodgett Combi B14-G combination-oven/steamer and one convection oven section in a stacked configuration. Combi oven section shall have the ability to cook with pressureless steam, hot air or combination of steam and hot air with Steam-On-Demand feature. Convection oven section shall have the ability to cook with hot air. The interior of each shall have
the capability of being hosed down for cleaning. Each section shall be open vented with waste-air quenching. Each section shall have rapid cool down mode. Combi oven section shall
have boilerless steam generation and a wall mounted filter system with carbon block and scale inhibitor. Provide start-up inspection service by a factory authorized service agent.
DIMENSIONS:
POWER SUPPLY:
Floor space:
34-5/8" D x 40-1/8" W (879.4 x 1019.2mm)
Height:
Each section
33" (838mm)
Total
66" (1676.4mm)
Additional Height:
Low profile casters
4" (101.6mm)
6" adjustable legs
6-7/8" - 8" (174.6-203.2mm)
6" adjustable seismic legs
6-5/8" - 8" (168.3-203.2mm)
CNV14G
B14-G
OVEN CLEARANCES:
Right Side
Rear
Left Side
1" (26mm)
6" (152.4mm)
6" (152.4mm) with casters
12" (304.9mm) without casters
MINIMUM ENTRY CLEARANCE:
Uncrated
Crated
36-1/4" (921mm)
42" (1066.8mm)
SHIPPING INFORMATION:
Approx. Weight:
Crated
1075 lbs. (488kg)
Crate size per section:
53" H x 45" W x 42" D (1346.2 x 1143 x 1066.8mm)
115VAC 15 amp Nema 5-15 receptacle
115VAC 15 amp Nema 5-15 receptacle
GAS SUPPLY:
3/4" NPT
Inlet Pressure:
Natural
Propane
Maximum Input:
B14-G
CNV14G
7.0" W.C. static to unit
14.0" W.C. static to unit
65,000 BTU/hr
65,000 BTU/hr
WATER SUPPLY (B14-G only):
Water Quality Requirements
TDS: < 100 ppm
Hardness: 80-120 ppm pH: 7.0 - 8.0
Chlorine: < 30 ppm
Max. Water Temp: 100°F (38°C)
30(min)-50(max) PSI 2" drain connection
3/4" hose cold water
Distance from filter to oven: 7’ maximum
Filter weight (when full): 12 lbs
8’ hoses to connect oven to filter are supplied
NOTE: The company reserves the right to make substitutions
of components without prior notice
BLODGETT COMBI
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401 Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
Printed in U.S.A.
NOTE: FOR COMMERCIAL USE ONLY
P/N R11547 Rev A (8/06)
