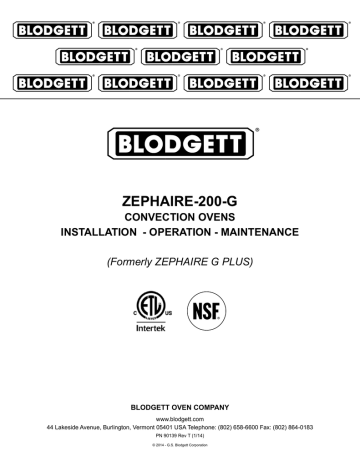

ZEPHAIRE-200-G

convEctIon ovEns

InstALLAtIon - oPERAtIon - MAIntEnAncE

(Formerly ZEPHAIRE G PLUS)

BLoDGEtt ovEn coMPAnY

www.blodgett.com

44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 864-0183

PN 90139 Rev T (1/14)

© 2014 - G.S. Blodgett Corporation

Your Service Agency’s Address:

Model

Serial number

Oven installed by

Installation checked by

IMPoRtAnt

WARnInG: Improper installa-

tion, adjustment, alternation, service or maintenance can cause property damage, injury or death. Read the instllation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

INSTRUCTIONS TO BE FOL-

LOWED IN THE EVENT THE

USER SMELLS GAS MUST BE

POSTED IN A PROMINENT LO-

CATION. This information may be obtained by contacting your local gas supplier.

FoR YoUR sAFEtY

Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

The information contained in this manual is important for the proper installation, use, and maintenance of this oven. Adherence to these procedures and instructions will result in satisfactory baking results and long, trouble free service. Please read this manual carefully and retain it for future reference.

ERRoRs: Descriptive, typographic or pictorial errors are subject to correction. Specifications are subject to change without notice.

tABLE oF contEnts

InstALLAtIon

Oven Description and Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Delivery and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Oven Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

NSF Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Leg Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Double Section Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Oven Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Utility Connections - Standards and Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Gas Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Initial Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

oPERAtIon

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

SSM Solid State Manual Control with 60 Minute Electro-Mechanical Timer . . . 16

SSD Solid State Digital Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

General Guidelines for Operating Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Suggested Times and Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

MAIntEnAncE

Cleaning and Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Installation

Oven Description and Specifications

Cooking in a convection oven differs from cooking in a conventional deck or range oven since heated air is constantly recirculated over the product by a fan in an enclosed chamber. The moving air continually strips away the layer of cool air surrounding the product, quickly allowing the heat to penetrate. The result is a high quality product, cooked at a lower temperature in a shorter amount of time.

Blodgett convection ovens represent the latest advancement in energy efficiency, reliability, and ease of operation. Heat normally lost, is recirculated within the cooking chamber before being vented from the oven: resulting in substantial reductions in energy consumption and enhanced oven performance.

Heating Value

Specific Gravity (air=1.0)

Oven Input

Manifold Pressure

Main Burner Orifice Size

Pilot Burner Orifice Size

GAs sPEcIFIcAtIons - Australia

Oven Input

Main Burner Orifice Size

NOTE: * - Multiple Twist Drill

Air Flow Pattern for Blodgett Convection Ovens

Figure 1

GAs RAtInGs - ZEPHAIRE-200-G natural Gas

Us Units

1000 BTU/cu. ft.

sI Units

37.3 MJ/m3

0.63

60,000 BTU/hr

0.63

17.6 kW

3.5” W.C.

38 MTD*

.021” dia.

.87 kPa

2.6 mm

.021” dia.

.1065” dia.

63 MJ/h

2.7 mm

Propane

Us Units

2550 BTU/cu. ft.

sI Units

95.0 MJ/m3

1.53

60,000 BTU/hr

1.53

17.6 kW

10” W.C.

1.55 mm

.014” dia.

2.49 kPa

1.55 mm

.36 mm

.0635” dia.

63 MJ/h

1.6 mm

2

DELIvERY AnD InsPEctIon

All Blodgett ovens are shipped in containers to prevent damage. Upon delivery of your new oven:

• Inspect the shipping container for external damage.

Any evidence of damage should be noted on the delivery receipt which must be signed by the driver.

• Uncrate the oven and check for internal damage.

Carriers will accept claims for concealed damage if notified within fifteen days of delivery and the shipping container is retained for inspection.

The Blodgett Oven Company cannot assume responsibility for loss or damage suffered in transit. The carrier assumed full responsibility for delivery in good order when the shipment was accepted. We are, however, prepared to assist you if filing a claim is necessary.

ovEn LocAtIon

The well planned and proper placement of your oven will result in long term operator convenience and satisfactory performance.

The following clearances must be maintained between the oven and any combustible or non-combustible construction.

• Oven body right side - 6” (15 cm)

• Oven body left side - 6” (15 cm)

• Oven body back - 6” (15 cm)

• Oven body bottom - 4.5” (11.4 cm)

The following clearances must be available for servicing.

• Oven body sides - 12” (30 cm)

• Oven body back - 12” (30 cm)

NOTE: On gas models, routine servicing can usually be accomplished within the limited movement provided by the gas hose restraint. If the oven needs to be moved further from the wall, the gas must first be turned off and disconnected from the oven before removing the restraint.

Reconnect the restraint after the oven has been returned to its normal position.

Installation

Delivery and Location

It is essential that an adequate air supply to the oven be maintained to provide a sufficient flow of combustion and ventilation air.

• Place the oven in an area that is free of drafts.

• Keep the oven area free and clear of all combustibles such as paper, cardboard, and flammable liquids and solvents.

• Do not place the oven on a curb base or seal to a wall. This will restrict the flow of air and prevent proper ventilation. Tripping of the blower motor’s thermal overload device is caused by an excessive ambient temperature on the right side of the oven.

This condition must be corrected to prevent permanent damage to the oven.

• The location must provide adequate clearance for the air opening into the combustion chamber.

Before making any utility connections to this oven, check the rating plate to be sure the oven specifications are compatible with the gas and electrical services supplied for the oven.

1. Remove the combustion compartment cover. The rating plate is attached to the frame on the left side of the combustion compartment.

3

Installation

oven Assembly

nsF BoLts

These bolts are required by NSF to block any exposed hole on the back of an oven. This includes:

• any unit, single or stacked, without a back panel.

• any holes in stacked units not used for mounting stacking brackets.

1. Locate the 5/16” bolts that were shipped with the oven.

2. Install the bolts as shown

Double Stacked Units

Figure 2

Units without back panels

4

LEG AttAcHMEnt

1. Push the oven onto a lift with the bottom of the oven down.

2. Align the threaded stud in each leg with the nut located inside each bottom corner of the oven frame. Turn the legs clockwise and tighten to the nearest full turn.

3. Align the two leg plate holes in each leg with those in the oven bottom. Secure each leg using two 1/2” bolts.

NOTE: If using casters see CASTER ASSEMBLY before proceeding.

4. Level the oven by screwing the adjustable leg feet in or out as necessary.

Installation

oven Assembly

cAstER AssEMBLY

NOTE: Install the locking casters on the front of the oven. Install the non-locking casters on the back of the oven.

NOTE: Use a gas hose restraint on all units with casters.

casters for single and Double stacked ovens:

1. Attach the legs as described.

2. Pry the adjustable feet out of the legs.

3. Insert one caster into each leg as shown. Tighten the large hex nut to secure the casters.

Adjustable

Leg Foot

Gas Hose

Restraint Bracket

Caster Assembly

Figure 4

Low Profile Casters for Double Stacked Ovens:

1. Align the three holes in each caster assembly plate with those in the oven bottom. Secure each caster using three 1/2” bolts.

6” (15 cm) Legs Shown

Figure 3

Gas Hose Restraint Bracket

Figure 5

5

Installation

oven Assembly

DoUBLE sEctIon AssEMBLY

NOTE: Old style ovens refer to units with painted exposed rear angle. New style ovens refer to units with rear angle iron enclosed in steel.

The following instructions apply to stacking two new style ovens.

1. Secure the short legs to the bottom sections as described.

2. Place the upper section in position on top of the lower oven.

3. Attach the stacking brackets using the remaining

5/16” bolts shipped with the ovens.

4. Attach the flue connector.

The following instructions apply to stacking a new style oven on an old style oven.

1. Secure the short legs to the bottom sections as described.

2. Place the upper section in position on top of the lower oven.

3. Attach the stacking brackets using the remaining

5/16” bolts shipped with the ovens.

4. Drill a clearance hole for a 5/16” bolt in the angle iron of the old style oven. Use the holes in the stacking brackets as a pilot.

5. Attach the stacking brackets to the old style oven with the 5/16” bolts and nuts provided in the kit.

6. Attach the flue connector.

WARnInG!!

When stacking ovens be sure to remove the single oven flue boxes prior to attaching three-piece connector.

ovEn LEvELInG

After assembly, the oven should be leveled and moved to the operating location.

1. The oven can be leveled by adjusting the feet or casters located on the bottom of each leg.

Figure 6

6

Flue Connector

On gas models the installation of a proper ventilation system cannot be over emphasized. This system removes unwanted vapors and products of combustion from the operating area.

This oven may be vented using either:

• A mechanically driven, canopy type, exhaust hood, or

• A direct flue arrangement.

U.s. and canadian installations

Refer to your local ventilation codes. In the absence of local codes, refer to the National ventilation code titled,

“Standard for the Installation of Equipment for the Removal of Smoke and Grease Laden Vapors from Commercial

Cooking Equipment”, NFPA-96-Latest Edition.

Australia and general export installations

Installation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation and/or operation of your Blodgett oven, please contact your local distributor. If you do not have a local distributor, please call the Blodgett Oven Company at 0011-802-658-6600.

WARnInG:

Failure to properly vent the oven can be hazardous to the health of the operator and may result in operational problems, unsatisfactory baking and possible damage to the equipment.

Damage sustained as a direct result of improper ventilation will not be covered by the manufacturer’s warranty.

Installation

ventilation

cAnoPY tYPE ExHAUst HooD

A mechanically driven, canopy type exhaust hood is the preferred method of ventilation.

The hood should be sized to completely cover the equipment plus an overhang of at least 6” (15 cm) on all sides not adjacent to a wall. The distance from the floor to the lower edge of the hood should not exceed 7’ (2.1m).

The total makeup and exhaust air requirements for hood capacity should be approximately 30 CFM (.85 m3) for each oven section.

Installing the canopy hood draft diverter

Ovens ordered for hood venting are supplied with a draft diverter. Install the draft diverter as follows:

1. Place the diverter over the flue connector with the open area facing the front of the oven.

2. Secure both ends with the sheet metal screws provided.

Draft Diverter

Front of Oven

Figure 7

7

Installation

ventilation

DIREct FLUE ARRAnGEMEnt

When the installation of a mechanically driven exhaust hood is impractical the oven may be vented by a direct flue arrangement.

WARnInG!!

It is essential that the direct flue be installed as follows. Incorrect installation will result in unsatisfactory baking and oven damage.

The flue must be class B or better with a diameter of 6”

(15 cm). The height of the flue should rise 6-8 ft (2-2.5 m) above the roof of the building or any proximate structure.

Never direct vent the oven into a hood. The flue should be capped with a UL Listed type vent cap to isolate the unit from external environmental conditions.

The direct vent cannot replace air consumed and vented by the oven. Provisions must be made to supply the room with sufficient make-up air. Total make-up air requirements for each oven section should be approximately 30

CFM (.85m3) per section. To increase the supply air entering the room, a ventilation expert should be consulted.

Installing the draft hood

Ovens ordered for direct venting are supplied with a draft hood. Install the draft hood as follows:

1. Place the draft hood over the flue connector.

2. Secure both ends with the sheet metal screws provided.

Flue

Draft Hood

Front of Oven

Figure 8

8

THE INSTALLATION INSTRUCTIONS CONTAINED

HEREIN ARE FOR THE USE OF QUALIFIED INSTAL-

LATION AND SERVICE PERSONNEL ONLY. INSTAL-

LATION OR SERVICE BY OTHER THAN QUALIFIED

PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN

AND/OR INJURY TO THE OPERATOR.

Qualified installation personnel are individuals, a firm, a corporation, or a company which either in person or through a representative are engaged in, and responsible for:

• the installation or replacement of gas piping and the connection, installation, repair or servicing of equipment.

• the installation of electrical wiring from the electric meter, main control box or service outlet to the electric appliance.

Qualified installation personnel must be experienced in such work, familiar with all precautions required, and have complied with all requirements of state or local authorities having jurisdiction.

Installation

Utility connections - standards and codes

U.s. and canadian installations

Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code,

NFPA54/ANSI Z223.1-Latest Edition, the Natural Gas Installation Code CAN/CGA-B149.1 or the Propane Installation Code, CAN/CGA-B149.2 as applicable.

Installation must conform with local codes, or in the absence of local codes, with the National Electrical Code,

ANSI/NFPA 70-Latest Edition and/or Canadian National

Electric Code C22.2 as applicable.

Appliance is to be installed with backflow prevention in accordance with applicable federal, province and local codes.

Australia and general export installations

Installation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation and/or operation of your Blodgett oven, please contact your local distributor. If you do not have a local distributor, please call the Blodgett Oven Company at 0011-802-658-6600.

9

Installation

Gas connection

GAs PIPInG

A properly sized gas supply system is essential for maximum oven performance. Piping should be sized to provide a supply of gas sufficient to meet the maximum demand of all appliances on the line without loss of pressure at the equipment.

Example:

NOTE: BTU values in the following example are for natural gas.

You purchase a Zephaire-200-G to add to your existing cook line.

1. Add the BTU rating of your current appliances.

Pitco Fryer

6 Burner Range

Deck Oven

120,000 BTU

60,000 BTU

50,000 BTU

Total 230,000 BTU

2. Add the BTU rating of the new oven to the total.

Previous Total

Zephaire-200-G

230,000 BTU

60,000 BTU

New Total 290,000 BTU

3. Measure the distance from the gas meter to the cook line. This is the pipe length. Let’s say the pipe length is 40’ (12.2 m) and the pipe size is 1” (2.54 cm).

4. Use the appropriate table to determine the total capacity of your current gas piping.

The total capacity for this example is 320,000 BTU. Since the total required gas pressure, 290,000 BTU is less than

320,000 BTU, the current gas piping will not have to be increased.

NOTE: The BTU capacities given in the tables are for straight pipe lengths only. Any elbows or other fittings will decrease pipe capacities. Contact your local gas supplier if you have any questions.

Maximum Capacity of Iron Pipe in Cubic Feet of natural Gas Per Hour

(Pressure drop of 0.5 Inch W.C.)

PIPE

LEnGtH (Ft)

10

20

30

40

50

60

3/4” noMInAL sIZE, IncHEs

1” 1-1/4” 1-1/2” 2”

360 680 1400 2100 3950

250 465 950 1460 2750

200 375 770 1180 2200

170 320 660 990 1900

151 285 580 900 1680

138 260 530 810 1520

70

80

90

100

125

118

110

103

240

220

205

195

490

460

430

400

750

690

650

620

1400

1300

1220

1150

From the National Fuel Gas Code Part 10 Table 10-2

Maximum Capacity of Pipe in Thousands of

BtU/hr of Undiluted L.P. Gas at 11” W.c.

(Pressure drop of 0.5 Inch W.C.)

PIPE

LEnGtH (Ft)

10

20

30

40

50

60

70

80

oUtsIDE DIAMEtER, IncHEs

3/4” 1” 1-1/2”

608

418

336

287

255

231

215

198

1146

788

632

541

480

435

404

372

3525

2423

1946

1665

1476

1337

1241

1144

90

100

187

175

351

330

1079

1014

From the National Fuel Gas Code Part 10 Table 10-15

10

PREssURE REGULAtIon AnD tEstInG

Zephaire-200-G ovens are rated at 60,000 BTU/Hr. (17.6 kW) (63 MJ) per section. Each oven has been adjusted at the factory to operate with the type of gas specified on the rating plate.

W.c.

kPa

W.c.

kPa

Min

InLEt PREssURE natural

Max Min

Propane

Max

7.0

10.5

11.0

13.0

1.43

2.61

2.74

3.23

MAnIFoLD PREssURE natural Propane

3.5

10.0

.87

2.49

Inlet Pressure - the pressure of the gas before it reaches the oven.

Manifold Pressure - the pressure of the gas as it enters the main burner(s).

Min - the minimum pressure recommended to operate the oven.

Max - the maximum pressure at which the manufacturer warrants the oven’s operation.

Installation

Gas connection

Each oven is supplied with a regulator to maintain the proper gas pressure. The regulator is essential to the proper operation of the oven and should not be removed. It is preset to provide the oven with 3.5” W.C.

(0.87 kPa) for natural gas and 10.5” W.C. (2.50 kPa) for

Propane at the manifold.

DO NOT INSTALL AN ADDITIONAL REGULATOR

WHERE THE OVEN CONNECTS TO THE GAS SUPPLY

UNLESS THE INLET PRESSURE IS ABOVE MAXIMUM.

Prior to connecting the oven, gas lines should be thoroughly purged of all metal filings, shavings, pipe dope, and other debris. After connection, the oven should be checked for correct gas pressure.

The oven and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.45kPa).

The oven must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas piping system at test pressures equal or less than 1/2 psig (3.45kPa).

Gas Connection 2.5” (64 mm)

Figure 9

Gas Connection 3.75” (86 mm)

11

Installation

Gas connection

GAs HosE REstRAInt

If the oven is mounted on casters, a commercial flexible connector with a minimum of 3/4” (1.9 cm) inside diameter must be used along with a quick connect device.

The restraint, supplied with the oven, must be used to limit the movement of the unit so that no strain is placed upon the flexible connector. With the restraint fully stretched the connector should be easy to install and quick connect.

The restraint (ie: heavy gauge cable) should be 1,000 lb.

(453 kg) test load and should be attached without damaging the building. DO NOT use the gas piping or electrical conduit for the attachment of the permanent end of the restraint! Use anchor bolts in concrete or cement block.

On wooden walls, drive hi test wood lag screws into the studs of the wall.

1. Mount the supplied bracket to the leg bolt just below the gas inlet.

2. Attach the clip on restraining cable to the mounting bracket.

WARnInG!!

If the restraint is disconnected for any reason it must be reconnected when the oven is returned to its original position.

U.s. and canadian installations

The connector must comply with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors For Moveable Gas Appliances CAN/CGA-6.16-

M87 and a quick disconnect device that complies with the

Standard for Quick-Disconnect Devices for Use With Gas

Fuel, ANSI Z21.41 or Quick Disconnect For Use With Gas

Fuel CAN 1-6.9. Adequate means must be provided to limit the movement of the appliance without depending on the connection and the quick disconnect device or its associated piping.

Australia and general export installations

The restraint and quick connect must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the proper installation and/or operation of your Blodgett oven, please contact your local distributor. If you do not have a local distributor, please call the Blodgett Oven Company at 0011-802-658-6600.

Back of Oven

Restraint Cable Bracket

Double stacked unit shown. Use the same procedure for single units with 25” (64 cm) legs.

Figure 10

12

ELEctRIcAL connEctIon

Wiring diagrams are located in the control compartment and on the back of the oven.

This oven is supplied for connection to 115 volt grounded circuits. The electric motor, indicator lights and related switches are connected through the 6’ electric supply cord found at the rear of the oven.

Installation

Electrical connection

WARnInG!!

this appliance is equipped with three prong grounding type plug for your protection against shock hazard and should be plugged directly into a properly grounded three prong receptacle. Do not cut or remove the grounding prong from this plug.

The Blodgett Oven Company cannot assume responsibility for loss or damage suffered as a result oF improper installation.

Hz volts

U.s. and canadian Installations

60 115

Australia and General Export Installations

50 220-240

ELEctRIcAL sPEcIFIcAtIons

Phase Amps

1

1

6

3

Electrical connection

(minimum size)

Cord set provided

Size per local code

13

Installation

Initial startup

The following is a check-list to be completed by qualified personnel prior to turning on the appliance for the first time.

1. Open the manual shut-off valve at the rear of the oven.

2. Remove the control panel and combustion covers.

3. Turn the combination valve’s manual shut-off to the on position.

4. Turn the selector switch to Cook, and the thermostat to 500ºF (260ºC).

The oven main burner lights, and the Oven Ready Light comes on. With the main burner on, check the following.

1. Verify there are no gas leaks, by checking all gas connections with a soapy water solution.

2. Verify that the inlet pressure is correct. The inlet pressure can be checked at the pressure tap located on the combination valve’s inlet side.

3. Verify that the manifold pressure is correct. The manifold pressure can be checked at the pressure tap located on the combination valve’s outlet side.

4. If the above pressure readings are set to the recommended pressure requirements, allow the oven to burn-off for 2 hours. If the pressure readings are not set correctly, turn off the oven and readjust accordingly.

WARnInG

The break in procedure burns off excess oils present in the metals during fabrication. smoke may be produced. Proper ventilation is required.

ADjUstMEnts AssocIAtED WItH InItIAL

InstALLAtIon

Each oven, and its component parts, have been thoroughly tested and inspected prior to shipment. However, it is often necessary to further test or adjust the oven as part of a normal and proper installation. These adjustments are the responsibility of the installer, or dealer. Since these adjustments are not considered defects in material or workmanship, they are not covered by the Original

Equipment Warranty. They include, but are not limited to:

• calibration of the thermostat

• adjustment of the doors

• burner adjustments

• leveling

• testing of gas pressure

• tightening of fasteners.

No installation should be considered complete without proper inspection, and if necessary, adjustment by qualified installation or service personnel.

14

The information contained in this section is provided for the use of qualified operating personnel. Qualified operating personnel are those who have carefully read the information contained in this manual, are familiar with the functions of the oven and/or have had previous experience with the operation of the equipment described. Adherence to the procedures recommended herein will assure the achievement of optimum performance and long, trouble-free service.

Please take the time to read the following safety and operating instructions. They are the key to the successful operation of your Blodgett oven.

sAFEtY tIPs

For your safety read before operating

What to do if you smell gas:

• DO NOT try to light any appliance.

• DO NOT touch any electrical switches.

• Use an exterior phone to call your gas supplier immediately.

• If you cannot reach your gas supplier, call the fire department.

Operation

safety Information

What to do in the event of a power failure:

• Turn all switches to off.

• DO NOT attempt to operate the oven until the power is restored.

NOTE: In the event of a shut-down of any kind, allow a five (5) minute shut off period before attempting to restart the oven.

General safety tips:

• DO NOT use tools to turn off the gas control. If the gas cannot be turned off manually do not try to repair it. Call a qualified service technician.

• If the oven needs to be moved for any reason, the gas must be turned off and disconnected from the unit before removing the restraint cable. Reconnect the restraint after the oven has been returned to its original location.

• DO NOT remove the control panel cover unless the oven is unplugged.

15

Operation

ssM solid state Manual control with 60 Minute Electro-Mechanical timer

1

2

4

5

ON

OFF

LIGHTS

HI

OFF

LOW

BLOWER

MAN

AUTO

COOL

DOWN

LIGHT OFF OVEN READY

3

contRoL DEscRIPtIon

1. CAVITY LIGHTS ON/OFF - Operates the oven cavity lights.

2. BLOWER HI/LO/OFF SWITCH - Controls the operation of the blower. If the blower switch is in the OFF position the oven will be turned off.

3. COOL DOWN SWITCH - When the switch is in the

AUTO position, the oven can be used to cook. When the switch is in the MAN position, the oven is cooling down for the next bake.

4. OVEN READY LIGHT - When lit indicates burners are operating. When the light goes out the oven has reached operating temperature.

5. THERMOSTAT - Controls the temperature at which the oven will operate. Temperatures can range from

200-500ºF (93-260ºC).

6. COOK TIMER - Used to time the length of the cooking operation. When the set time expires, a buzzer will sound.

7. HEAT CUTOFF - used to turn gas on or off

6

GAS ON

oPERAtIon

1. Set the COOL DOWN switch (3) to the AUTO position. Turn the THERMOSTAT (5) to the desired operating temperature.

2. Set the BLOWER switch (2) to the HI position. When the OVEN READY light (4) goes out, load the product and set the COOK TIMER (6).

3. When the timer sounds, remove the product. If the next product requires a lower operating temperature, then the cool down mode can be used. Set the BLOWER switch (2) to the LO position. Turn the COOL DOWN

SWITCH (3) to the MAN position. Make sure that the door is open.

4. Turn the oven off by setting the BLOWER switch (2) to the OFF position.

7

GAS OFF

WARnInG!!

A complete five minute shutdown must be observed before the oven is relighted.

Figure 11

16

9

12

5

6

1

2

ON

OFF

LIGHTS

HI

OFF

LOW

BLOWER

MAN

AUTO

COOL

DOWN

3

4

7

8

10

11

13

14

GAS ON

GAS OFF

Operation

ssD solid state Digital control

contRoL DEscRIPtIon

1. CAVITY LIGHTS ON/OFF - Operates the oven cavity lights.

2. BLOWER ON/OFF SWITCH - Controls the operation of the blower. If the blower switch is in the OFF position the oven will be turned off.

3. COOL DOWN SWITCH - When the switch is in the

AUTO position, the oven can be used to cook. When the switch is in the MAN position, the oven is cooling down for the next bake.

4. DISPLAY - displays time or temperature and other information related to oven function.

5. HEAT LAMP - lights when heater is on.

6. PULSE LAMP - lights when Pulsed Fan Mode is turned on.

7. HOLD LAMP - lights when Hold Mode is turned on.

8. DIAL - used to enter set points in display

9. START/STOP KEY - starts or stops the timer.

10. TIME KEY - used to show time in the display.

11. TEMP KEY - used to show set temperature in the display.

NOTE: Actual temperature is shown while the

TEMP key is held down.

12. HOLD KEY - turns Hold Mode on or off.

13. PULSE KEY - turns Pulse Mode on or off.

14. HEAT CUTOFF - used to turn gas on or off

PRoGRAMMInG to set the cook temperature:

1. Press TEMP (11) key.

2. Rotate dial (8) to enter temperature.

to set the cook time:

1. Press TIME (10) key.

2. Rotate the dial (8) to enter time.

NOTE: Time is entered in hours : minutes or minutes : seconds.

Figure 12

17

Operation

ssD solid state Digital control

to set the hold time:

1. Press HOLD key (12) to turn hold mode on.

NOTE: HOLD light is on.

2. Rotate dial (8) to enter the hold temperature.

3. Press START/STOP key (9)

to set the pulse time:

1. Press PULSE KEY (13) to turn pulse mode on.

NOTE: Pulse light is on.

2. Rotate DIAL (8) to enter the pulse time. Pulse time is a portion of the pre-set cook time.

oPERAtIon cook only:

1. Turn the BLOWER switch (2) to the desired position.

2. Enter the cook time and temperature.

3. Load product into the oven.

NOTE: The display reads LOAD when the oven is near the set temperature.

4. Press the START/STOP key (9). The timer begins to count down.

5. When the cook timer reaches 00:00 the buzzer sounds and the display reads DONE.

6. Press the START/STOP key (9) to silence the buzzer.

7. Remove the product.

cook with Hold:

NOTE: HOLD light is on when hold mode is on and off when hold mode is off.

1. Turn the BLOWER switch (2) to the desired position.

2. Enter the cook time and temperature.

3. Press the HOLD key (12). Enter the hold temperature.

4. Load product into the oven.

NOTE: The display reads LOAD when the oven is near the set temperature.

5. Push the START/STOP (9) key. Timer begins to count down.

6. When the cook timer reaches 00:00 the buzzer sounds and the display reads DONE. The buzzer turns off after a few seconds. The display reads HOLD until the oven reaches the hold temperature. Then the timer begins to count up.

7. Push the START/STOP key (9) to stop timer.

8. Remove the product.

9. Push HOLD (12) key to turn off hold mode.

cook with Pulse:

NOTE: PULSE light is on when pulse mode is on and off when pulse mode is off.

1. Turn the BLOWER switch (2) to the desired position.

2. Enter cook time and cook temperature.

3. Press PULSE KEY (13). Enter the pulse time.

NOTE: Pulse time is a portion of the cook time and does not increase the previously entered cook time.

4. Load product into the oven.

NOTE: The display reads LOAD when the oven is near the set temperature.

5. Push START/STOP KEY (9). The timer begins to count down the cook time. The oven will be in pulse mode for the set pulse time. Once the set time has expired, the unit will automatically switch to cook mode and continue counting down.

6. When the cook timer reaches 00:00 the buzzer sounds and the display reads DONE.

7. Push the START/STOP KEY (9) to turn the buzzer off.

8. Remove the product.

WARnInG!!

A complete five minute shutdown must be observed before the oven is relighted.

18

cook tIMEs AnD tEMPERAtUREs

Preheating the oven

Always preheat the oven before baking or roasting. We recommend preheating 50°F (28°C) above the cook temperature to offset the drop in temperature when the doors are opened and cold product is loaded into the oven. Set the thermostat to the cook temperature after the product is loaded.

NOTE: For frozen product, preheat the oven 100°F

(56°C) above the cook temperature.

cook temperatures

Generally, cook temperatures should be 50°F (28°C) lower than deck or range oven recipes. If the edges of the product are done but the center is raw, or if there is color variation, reduce the thermostat setting another 15-25°F

(10-15°C). Continue to reduce the cook temperature on successive loads until the desired results are achieved.

NOTE: Cooking at excessive temperatures will not reduce cook time, it will produce unsatisfactory baking and roasting results.

cook time

Check the product in about half the time recommended for deck or range oven recipes. Record times and temperatures which provide best results for future reference.

NOTE: Cook time will vary with the amount of product loaded, the type of pan and the temperature.

Operation

General Guidelines for operating Personnel

oPERAtInG tIPs

Pans and Racks

Product or pan height determines how many racks are used. The oven holds up to ten 18” x 26” (45.7 x 66.0 cm) bun pans.

Load the oven from the bottom, centering the pans on the rack. Never place a pan or aluminum foil on the bottom of the oven. This obstructs the flow of air and results in uneven baking and roasting.

Roasting

To reduce shrinkage when roasting, place meat directly on the racks. Place a sheet pan one-half full of water in the bottom rack position. The water evaporates, increasing humidity in the oven chamber. The pan catches grease from the meat, making oven cleaning easier.

Baking

Weigh the product to ensure equal distribution in each pan. Varying amounts of product will cause uneven baking results.

Fans

The fan must be operating for the oven to heat. Use the

Pulse Plus feature to allow light or liquid product to set in the pan and to avoid rippling towards the fan. If your oven is not equipped with this feature use the following procedure.

1. Preheat the oven 25°F (15°C) above the baking temperature.

2. Load the oven with product. Close the doors.

3. Set the thermostat to the baking temperature.

4. Turn the oven off.

5. Allow the product to set for 5-7 minutes with the fan off. The residual heat in the oven sets the product.

6. Turn the oven on for the remainder of the bake.

Lights

Turn the oven lights off when not viewing the product.

Leaving the lights on for extended periods of time shortens the bulb life considerably.

19

Operation

suggested times and temperatures

PRoDUct

Meats

Hamburger Patties (5 per lb)

Steamship Round (80 lb. quartered)

Standing Rib Choice (20 lbs, trimmed, rare)

Banquet Shell Steaks (10 oz. meat)

Swiss Steak after Braising

Baked Stuffed Pork Chop

Boned Veal Roast (15 lbs.)

tEMPERAtURE

400°F (205°C)

275°F (135°C)

235°F (115°C)

450°F (235°C)

275°F (135°C)

tIME

8-10 mins.

2 hrs 45 mins.

2 hrs 45 mins.

7-8 mins.

1 hr.

# sHELvEs

10

2

2

5

5

Lamb Chops (small loin)

Bacon (on racks in 18” x 26” pans)

Poultry

Chicken Breast & Thigh

Chicken Back & Wing

Chicken (21/2 lbs. quartered)

Turkey Rolled (18 lb. rolls)

Fish and seafood

Halibut Steaks, Cod Fish (frozen 5 oz)

Baked Stuffed Lobster (21/2 lb.)

Lobster Tails (frozen)

cheese

Macaroni & Cheese Casserole

375°F (190°C)

300°F (150°C)

400°F (205°C)

400°F (205°C)

350°F (175°C)

350°F (175°C)

350°F (175°C)

310°F (155°C)

350°F (175°C)

400°F (205°C)

425°F (220°C)

25-30 mins.

3 hrs. 10 mins.

7-8 mins.

5-7 mins.

40 mins.

35 mins.

30 mins.

3 hrs 45 mins.

20 mins.

10 mins.

9 mins.

5

2

5

10

5

5

5

3

5

3

5

Melted Cheese Sandwiches

Potatoes

Idaho Potatoes (120 ct.)

Oven Roasted Potatoes (sliced or diced)

Baked Goods

Frozen Berry Pies (22 oz)

Fresh Apple Pie (20 oz.)

Pumpkin Pies (32 oz.)

Fruit Crisp

Bread (24 - 1 lb. loaves)

Southern Corn Bread

Baking Soda Biscuits

Brown & Serve Rolls

350°F (175°C)

400°F (205°C)

400°F (205°C)

325°F (165°C)

325°F (150°C)

350°F (175°C)

300°F (150°C)

300°F (150°C)

325°F (155°C)

375°F (190°C)

30 mins.

8 mins.

50 mins.

10 mins.

35 mins.

25-30 mins.

30-50 mins.

25 mins.

30 mins.

15-20 mins.

5

10

5

5

5 (30 pies)

5 (30 pies)

5 (20 pies)

5

3

5

400°F (205°C)

350°F (175°C)

6 mins.

15 mins.

5

5

Sheet Cakes (5 lb. mixed batter per pan)

Chocolate Cake

325°F (160°C)

325°F (160°C)

16-18 mins.

20 mins.

5

5

Brownies 325°F (150°C) 15 mins.

5

NOTE: Actual times and temperatures may vary considerably from those shown above. They are affected by weight of load, temperature of the product, recipe, type of pan and calibration of thermostat. Should your recipe vary, write in your proven time and temperature for ready reference.

20

cLEAnInG tHE ovEn

Painted and stainless steel ovens may be kept clean and in good condition with a light oil.

1. Saturate a cloth, and wipe the oven when it is cold.

2. Dry the oven with a clean cloth.

On the stainless front or interiors, deposits of baked on splatter may be removed with any non-toxic industrial stainless steel cleaner. Heat tint and heavy discoloration may be removed with any non-toxic commercial oven cleaner.

1. Apply cleaners when the oven is cold. Always rub with the grain of the metal.

The porcelain interior can be cleaned with any commercial oven cleaner. Be sure caustic cleaning compounds

DO NOT come in contact with the blower wheel and the aluminized steel panel directly behind it.

1. Remove the racks, rack supports and blower wheel from the oven.

2. Soak the parts in a solution of ammonia and water.

3. Reinstall after cleaning.

NOTE: If the oven is moved the restraint must be reconnected after the unit is returned to it’s regular position.

Blower Wheel

Maintenance

cleaning and Preventative Maintenance

PREvEntAtIvE MAIntEnAncE

The best preventative maintenance measures are, the proper installation of the equipment and a program for routinely cleaning the ovens.

Annual Maintenance

This oven requires no lubrication, however, the venting system should be checked annually for possible deterioration resulting from moisture and corrosive flue products.

If maintenance or repairs are required, contact your local

Blodgett service company, a factory representative or the

Blodgett Oven company.

WARnInG!!

Always disconnect the appliance from the power supply before servicing or cleaning.

Blower Wheel

Cover

Figure 13

21

Maintenance

troubleshooting Guide

PossIBLE cAUsE(s)

SYMPTOM: Oven will not fire.

• Gas turned off.

• Oven not plugged in.

• Power switch on the control panel is off.

• Control set below ambient temperature.

• Doors are open.

sUGGEstED REMEDY

• Turn the gas valve to ON.

• Plug in electrical supply cord.

• Set the control panel to COOK or OVEN ON.

• Set to desired cook temperature.

• Close doors.

sYMPtoM: oven does not come to ready.

• The oven has not reached preheat temperature.

• Gas valve not turned on completely.

• The quick disconnect is not connected.

• Gas pressure to oven is too low.

• Internal problem with main temperature control.

sYMPtoM: convection fan does not run.

• Oven is not plugged in.

• Circuit breaker tripped.

• Doors are open

sYMPtoM: General baking problems.

• Thermostat out of calibration.

• Improper oven venting.

• Wait for oven to reach preheat temperature.

• Check the gas valve, turn on fully if necessary.

• Reconnect the quick connect. Check all gas connections.

• Call your local gas representative.

• *

• Plug in electrical supply cord.

• Reset the breaker.

• Close doors.

• *

• *

*Denotes remedy is a difficult operation and should be performed by qualified personnel only. It is recommended, however, that All repairs and/or adjustments be done by your local Blodgett service agency and not by the owner/operator.

Blodgett cannot assume responsibility for damage as a result of servicing done by unqualified personnel.

WARnInG!!

Always disconnect the power supply before cleaning or servicing the oven.

22

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
