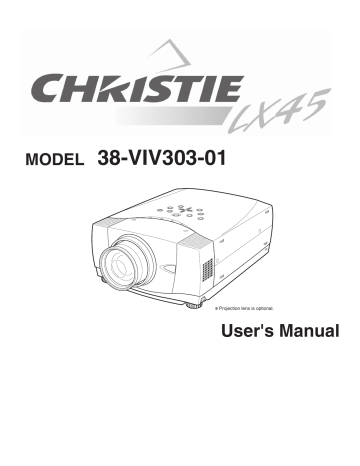

MODEL

38-VIV303-01

Projection lens is optional.

User's Manual

TO THE OWNER

Before operating this projector, read this manual thoroughly and operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section at the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROJECTOR TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens. Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector. Minimum distance should be taken. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

3.3" (1 m)

SIDE and TOP

3.3" (1 m)

3.3" (1 m)

REAR

3.3" (1 m)

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

● The Remote Control Unit, supplied with this projector, emits a laser beam with the laser pointer function from

Laser Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS USER'S MANUAL FOR LATER USE.

2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT

OPERATING AND MAINTENANCE INSTRUCTIONS IN THE

USER'S MANUAL WITH THIS UNIT.

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.

The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd.

Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

3

4

COMPLIANCES

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number

Trade Name

Responsible party

Address

Telephone No.

: 38-VIV303-01

: Christie

: CHRISTIE DIGITAL SYSTEMS, Inc.

: 10550 Camden Drive Cypress, CA 90630 USA

: (714) 236-8610

AC POWER CORD REQUIREMENT

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters

Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

NAME OF EACH PART OF PROJECTOR

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

LENS INSTALLATION

POSITIONING PROJECTOR

ADJUSTABLE FEET

INSTALLING PROJECTOR IN PROPER POSITION

MOVING PROJECTOR

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

CONNECTING TO COMPUTER

CONNECTING TO VIDEO EQUIPMENT

6

7

7

8

8

9

9

10

10

11

12

12

13

14

COMPUTER INPUT

SELECTING INPUT SOURCE

SELECTING COMPUTER SYSTEM

PC ADJUSTMENT

AUTO PC ADJUSTMENT

MANUAL PC ADJUSTMENT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT

PICTURE SCREEN ADJUSTMENT

VIDEO INPUT

SELECTING INPUT SOURCE

SELECTING VIDEO SYSTEM

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT

PICTURE SCREEN ADJUSTMENT

PICTURE IMAGE

PICTURE IMAGE ADJUSTMENTS

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

LASER POINTER FUNCTION

REMOTE CONTROL BATTERIES INSTALLATION

TOP CONTROLS AND INDICATORS

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

MENU BAR

15

15

15

16

17

18

18

18

19

SETTING

SETTING MENU

37

37

BASIC OPERATION

TURNING ON / OFF PROJECTOR

ADJUSTING SCREEN

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

LENS SHIFT ADJUSTMENT

KEYSTONE ADJUSTMENT

PICTURE FREEZE FUNCTION

NO SHOW FUNCTION

P-TIMER FUNCTION

SOUND ADJUSTMENT

20

20

21

21

21

21

21

22

22

22

22

APPENDIX

OPERATING WIRELESS MOUSE

MAINTENANCE

WARNING TEMP. INDICATOR

AIR FILTER CARE AND CLEANING

CLEANING PROJECTION LENS

LAMP REPLACEMENT

LAMP REPLACE COUNTER

TROUBLESHOOTING

INDICATORS AND PROJECTOR CONDITION

COMPATIBLE COMPUTER SPECIFICATION

MENU TREE

TECHNICAL SPECIFICATIONS

CONFIGURATIONS OF TERMINALS

OPTIONAL PARTS

LENS REPLACEMENT

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the user's manual is a trademark or a registered trademark of its respective corporation.

41

49

50

52

53

41

42

42

43

43

44

45

46

48

54

54

30

30

31

32

32

33

34

34

23

23

23

25

25

26

28

28

29

5

6

FEATURES AND DESIGN

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compact Design

This projector is extremely compact in size and weight.

It is designed to carry and work anywhere you wish to use.

Compatibility

This projector widely accepts various video and computer input signals including;

Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-

N color system can be connected.

Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i,

480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

High Resolution Image

This projector provides 1024 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer between XGA (1024 x 768) and SXGA

(1280 x 1024) is compressed into 1024 x 768 dots. This projector cannot display image of over 1280 x 1024 dots.

When resolution of your computer is over than 1280 x

1024, reset a computer output for lower resolution.

Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

Digital Zoom (for Computer)

Digital Zoom function adjusts image size to approx. 1/4 ~

49 times of original image size, allowing you to focus on crucial information at a presentation.

Keystone Correction

Positioning of a projector may result in distorted image being displayed in a trapezoid shape. Keystone

Correction solves this problem by digitally altering projection to produce undistorted images.

Power Management

Power Management function is provided to reduce power consumption while a projector is not in use.

This Power Management function operates to turn

Projection Lamp off when a projector detects signal interruption and any button is not pressed. Projection

Lamp is automatically turned on again when a projector detects signal or any operation button is pressed.

This projector is shipped with this function ON.

Digital Visual Interface

This projector is equipped with DVI 24-pin terminal for connecting DVI output from a computer.

Laser Pointer Function

Remote Control Unit supplied with this projector includes

Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

Wireless Mouse

Remote Control Unit supplied with this projector has

Wireless Mouse function for a connected computer. This function enables you to operate both projector and computer with Remote Control Unit only.

Multilanguage Menu Display

Operation menu is displayed in; English, German,

French, Italian, Spanish, Portuguese, Dutch, Swedish,

Russian, Chinese, Korean or Japanese.

One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC

Adjustment. No complicated setup is necessary and projection is always precise.

Motor-driven Lens Shift

Projection lens can be moved up and down with motordriven lens shift function. This function makes it easy to provide projected image where you want.

Zoom and focus can be also adjusted with motor-driven operation.

PREPARATION

NAME OF EACH PART OF PROJECTOR

FRONT OF CABINET

TOP CONTROLS

AND INDICATORS

PROJECTION LENS

AIR INTAKE

VENT

LENS COVER

SPEAKERS

INFRARED

REMOTE RECEIVER

BACK OF CABINET

EXHAUST VENT

POWER CORD

CONNECTOR

TERMINALS

AND CONNECTORS

HOT AIR EXHAUSTED !

Air blown from exhaust vent is hot. When using or installing a projector, following precautions should be taken.

● Do not put a flammable object near this vent.

● Keep rear grills at least 3.3’(1 m) away from any object, especially heat-sensitive object.

● Do not touch this area, especially screws and metallic parts. This area will become hot while a projector is used.

This projector detects internal temperature and automatically controls operating power of Cooling Fans.

LAMP COVER

INFRARED

REMOTE RECEIVER

CARRYING

HANDLE

BOTTOM OF CABINET

AIR INTAKE VENTS

This projector is equipped with cooling fans for protection from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover vent slots.

● Keep side clear of any objects. Obstructions may block cooling air.

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

7

8

PREPARATION

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

This projector uses nominal input voltages of 100-120 V or 200-240

V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of the type of power supply used.

Connect the projector with peripheral equipment before turning the projector on. (Refer to pages 12 ~ 14 for connection.)

CAUTION

For safety, unplug AC Power Cord when an appliance is not used.

When this projector is connected to the outlet with an AC Power

Cord, the appliance is in Stand-by Mode and consumes a little electric power.

Connect the AC Power Cord (supplied) to the projector.

The AC outlet must be near this equipment and must be easily accessible.

CAUTION

The AC Power Cord must meet the requirement of the country where you use the projector.

Confirm the AC plug type with the chart below. The proper AC Power Cord must be used.

If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.

Projector side AC Outlet side

For U.S.A. and Canada

For Continental Europe

Ground

To POWER CORD

CONNECTOR on the projector.

To AC Outlet.

(120 V AC)

To AC Outlet.

(200 - 240 V AC)

PREPARATION

LENS INSTALLATION

Before setting up a projector, install Projection Lens on

Projector.

1. Before installation, check where a projector is used and prepare a suitable lens. For specifications of a Projection

Lens, contact sales dealer where you purchased a projector.

2. For installation, refer to lens replacement and installation manual.

NOTE;

When installing the lens, remove the cover cap in the projector.

COVER CAP

POSITIONING PROJECTOR

This projector is designed to project on a flat projection surface.

ROOM LIGHT

Brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide best image.

SCREEN

LENS SHIFT ADJUSTMENT

Projection lens can be moved up and down with motor-driven lens shift function. This function makes it easy to provide projected image where you want. U/D ratio can be adjusted 10 : 0 ~ 1 : 1 (refer to figure below.). Refer to P 21 for operation.

Highest (10 : 0) Lowest (1 : 1)

1

10 : 0

1

9

PREPARATION

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted to 10.5 degrees.

1

2

3

Lift front of a projector and pull FEET LOCK LATCHES on both sides of a projector.

Release FEET LOCK LATCHES to lock ADJUSTABLE

FEET and rotate ADJUSTABLE FEET to fine tune position and tilt.

To shorten ADJUSTABLE FEET, lift front of a projector and pull and undo FEET LOCK LATCHES.

Position and keystone distortion of image can be adjusted using Menu Operation. (Refer to P 21 and 37.)

ADJUSTABLE FEET FEET LOCK

LATCHES

INSTALLING PROJECTOR IN PROPER POSITION

Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.

10˚

Do not tilt the projector more than 10 degrees above and below.

10˚

Do not point the projector up to project an image.

NO UPWARD

Do not point the projector down to project an image.

NO DOWNWARD

Do not put the projector on either side to project an image.

NO SIDEWAYS

10

MOVING PROJECTOR

Use Carry Handle when moving a Projector.

When moving a projector, replace lens cover and retract feet to prevent damage to lens and cabinet.

When this projector is not in use for an extended period, put it into case (dust cover) supplied with this projector.

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR

● Do not drop or bump a projector, otherwise damages or malfunctions may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer for best way.

11

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 12 to 14 and connect properly.

COMPUTER AUDIO

INPUT 1/AUDIO MONITOR

OUTPUT JACK

This terminal is switchable and can be used as computer audio input 1 or audio monitor output (variable).

Set the terminal up as either

Computer audio input 1 or

Audio Monitor output properly before using this terminal.

Refer to P13, P23.)

COMPUTER INPUT/MONITOR

OUTPUT TERMINAL (ANALOG)

This terminal is switchable and can be used as computer input or monitor output. Set the terminal up as either Computer input or

Monitor output properly before using this terminal.

Refer to P13, P23.)

Note; This terminal outputs from 5

BNC type computer input on

INPUT 2 jacks only.

COMPUTER INPUT

TERMINAL (DIGITAL)

Connect computer output

(Digital DVI-D type) to this terminal.

HD (HDCP Compatible) signal can also be connected.

Refer to P13.)

COMPUTER AUDIO

INPUT 2 JACK

Connect an audio output

(stereo) from computer to this jack.

(Refer to P13.)

ANALOG IN/OUT

INPUT 1

DIGITAL(DVI-D)

R/C JACK

R/C JACK

When using Wired/Wireless

Remote Control Unit as Wired

Remote Control, Connect

Wired Remote Control Unit to this jack with Remote Control

Cable (supplied).

USB CONNECTOR (Series B)

When controlling computer with

Remote Control Unit of this projector, connect USB terminal of your personal computer to this terminal. (Refer to P13.)

RESET BUTTON

This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart unit. Do not use RESET function excessively.

AUDIO 1

IN/OUT

USB RESET

AUDIO 2

CONTROL PORT

G B R H/V

VIDEO/Y Cb/Pb

VIDEO/Y Cb/Pb Cr/Pr

Cr/Pr

INPUT 2

R–AUDIO–L

S–VIDEO

INPUT 3

(MONO)

V

CONTROL PORT CONNECTOR

When controlling computer with Remote Control Unit of this projector, connect mouse port of your personal computer to this connector. (Refer to

P13.)

5 BNC INPUT JACKS

Connect component video output (Y, Cb, Cr or Y, Pb, Pr) from video equipment to

VIDEO/Y, Cb/Pb and Cr/Pr jacks or connect computer output {5 BNC Type (Green,

Blue, Red, Horiz. Sync and

Vert. Sync.)} from computer to G, B, R, H/V and V jacks.

(Refer to P13 and 14.)

VIDEO INPUT JACKS

Connect composite video output from video equipment to VIDEO/Y jack or connect component video outputs to

VIDEO/Y, Cb/Pb and Cr/Pr jacks. (Refer to P14.)

AUDIO INPUT JACKS

Connect an audio output from video equipment to these jacks.

(Refer to P14.)

S-VIDEO INPUT JACK

Connect S-VIDEO output from video equipment to this jack. (Refer to P14.)

12

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

Cables used for connection

(

✽ = Cable or adapter is not supplied with this projector.)

• VGA Cable (HDB 15 pin)

• DVI-Digital Cable (for Single Link T.M.D.S.)

• BNC Cable ✽

• Control Cable for Serial Port

• Control Cable for PS2 Port ✽, or ADB Port ✽

• USB Cable

• MAC Adapter (When connecting to Macintosh computer) ✽

• Audio Cables (Mini Plug (stereo) x 2) ✽

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

Desktop type Laptop type

Monitor Output

Monitor Output or

Monitor Input

Monitor Output

USB port

Audio Output

Serial port

PS/2 port

ADB port

BNC

Cable ✽

MAC Adapter

Set slide switches according to chart below.

VGA Cable

DVI

Cable

USB

Cable

Audio

Cable

(stereo)

Control Cable for Serial Port

Terminal

Control Cable for PS/2 Port

Terminal

Control Cable for ADB Port

Terminal

COMPUTER

AUDIO IN 1 or 2

Use one of these Control

Cables corresponding with terminal of your computer.

USB

NOTE;

This terminal is switchable.

Set the terminal up as either Computer input or

Monitor output before using this terminal.

(See page 23.)

Terminals of a Projector

COMPUTER IN ANALOG

ANALOG IN/OUT

INPUT 1

DIGITAL(DVI-D)

R/C JACK

AUDIO 1

IN/OUT

USB

RESET

AUDIO 2

CONTROL PORT

G B R H/V V

VIDEO/Y Cb/Pb

VIDEO/Y Cb/Pb Cr/Pr

Cr/Pr

INPUT 2

R–AUDIO–L

S–VIDEO

INPUT 3

(MONO)

COMPUTER IN DIGITAL

CONTROL

PORT

AUDIO OUT

NOTE;

This terminal is switchable.

Set the terminal up as either

Computer audio input 1 or audio monitor output (variable) before using this terminal. (See page 23.)

MAC ADAPTER

Set switches as shown in table below depending on RESOLU-

TION MODE that you want to use before you turn on projector and computer.

ON

OFF

ON DIP

1 2 3 4 5 6

13" MODE (640 x 480)

16" MODE (832 x 624)

19" MODE (1024 x 768)

21" MODE (1152 x 870)

1 2 3

ON ON

OFF ON

OFF

ON

OFF

OFF

ON ON

ON ON

4 5 6

OFF OFF OFF

ON OFF OFF

OFF OFF OFF

ON OFF OFF

Audio Cable

(stereo) ✽

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.

Audio Input

External Audio Equipment

Audio Amplifier

Audio Speaker

(stereo)

13

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Cables used for connection

( ✽ = Cable is not supplied with this projector.)

• Video Cable (RCA x 1 or RCA x 3) ✽

• BNC Cable ✽

• S-VIDEO Cable ✽

• Audio Cable (RCA x 2)

• Audio Cable {Mini Plug (stereo)} ✽

• Scart Cable ✽

Video Source (example)

Video Cassette Recorder

Video Disc Player

Component video output equipment.

(such as DVD player or high-definition TV source.)

RGB Scart

21-pin Output

Composite

Video Output

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Composite

Video Output

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Audio Output S-VIDEO

Output

Scart Cable ✽

Video Cables

(

RCA x 1 or

RCA x 3

) ✽

BNC Cable ✽

VIDEO

Y - Cb/Pb - Cr/Pr

VIDEO

Audio Cable

(RCA x 2) ✽

S-VIDEO

Cable ✽

Y - Cb/Pb - Cr/Pr AUDIO IN

S-VIDEO

COMPUTER IN ANALOG

AUDIO OUT

Audio Cable

(stereo) ✽

Audio Input

NOTE;

This terminal is switchable.

Set the terminal up as either

Computer audio input 1 or audio monitor output (variable) before using this terminal.

(See page 23.)

External Audio Equipment

Audio Amplifier

Audio Speaker

(stereo)

ANALOG IN/OUT

INPUT 1

DIGITAL(DVI-D)

R/C JACK

AUDIO 1

IN/OUT

USB RESET

AUDIO 2

CONTROL PORT

G B R H/V V

VIDEO/Y Cb/Pb

VIDEO/Y Cb/Pb Cr/Pr

Cr/Pr

INPUT 2

R–AUDIO–L

S–VIDEO

INPUT 3

(MONO)

Terminals of a Projector

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet.

14

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

Left Side

LASER POINTER (Drag ON)

INDICATOR

Lights red while laser beam is emitted from Laser Light

Window.

Lights green when drag ON position. (P41)

MUTE BUTTON

Used to mute sound. (P22)

ALL-OFF SWITCH

When using Remote Control Unit, turn this switch to “ON.” And turn it to “ALL OFF” when it is not used.

DRAG ON/OFF BUTTON

Used to select drag ON/OFF position. (P41)

INSIDE THE BATTERY

COMPARTMENT BOX

This remote control provide the DIP switches into the battery compartment box.

Slide the SW4 (LASER ON/OFF switch) to "OFF" position. The laser pointer function is not operated.

Set switches 1-3 as shown in table below depending on Code No. that you want to select remote control code.

(Refer to P39.)

LEFT CLICK BUTTON

Used as a PC mouse in

Wireless Mouse Operation.

Press this button and the mouse pointer button to drag a selected screen object.

(P41)

LASER BUTTON

Used to operate Laser Pointer

Function. Laser beam is emitted while pressing this button within 1 minute.

When using this Laser Pointer for more than 1 minute, release LASER button and press it again.

DIP SWITCH SETTING

SW4 ........ LASER ON/OFF

SW1 SW2 SW3 Code No.

ON ON

ON

ON

ON

OFF

OFF

OFF

OFF

ON

OFF

OFF

ON

ON

OFF

OFF

ON

OFF

ON

OFF

ON

OFF OFF

Code 2

Code 3

Code 4

Code 5

Code 6

Code 7

Code 8

FOCUS BUTTON

Used to adjust focus. (P21)

AUTO PC ON-OFF

D.ZOOM

FREEZE NO SHOW

MUTE IMAGE

VOLUME-

SELECT

VOLUME+

MENU KEYSTONE

LASER

P-TIMER

ZOOM

COLOR.M

FOCUS LENS

POWER ON-OFF BUTTON

Used to turn projector on or off. (P20)

AUTO PC ADJ. BUTTON

Use to operate AUTO PC

Adjustment function. (P25)

IMAGE BUTTON

Used to select image level. (P28, 32)

KEYSTONE BUTTON

Used to correct keystone distortion. (P21, 37)

MOUSE POINTER

Used as a PC mouse in

Wireless Mouse Operation.

(P41)

RIGHT CLICK BUTTON

Used as a PC mouse in

Wireless Mouse Operation.

(P41)

LENS SHIFT BUTTON

Used to select LENS

SHIFT function. (P21)

WIRED REMOTE JACK

When using as Wired

Remote Control, connect

Remote Control Cable to this jack.

Battery installation is required when using as

Wired Remote Control.

LASER POINTER FUNCTION

This Remote Control Unit emits a laser beam as laser pointer function from Laser Light Window. When LASER button is pressed, laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is released, light goes off. LASER POINTER INDICATOR lights RED and Laser is emitted with RED light to indicate laser beam is being emitted.

Laser emitted is a class II laser; therefore, do not look into Laser Light Window or shine laser beam on yourself or other people. Three marks below are caution labels for laser beam.

CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result hazardous radiation exposure.

These caution labels are put on remote control.

LASER POINTER INDICATOR

Laser Light Window

15

BEFORE OPERATION

D.ZOOM BUTTON

Used to select DIGITAL

ZOOM +/– mode and resize image. (P29)

SELECT BUTTON

Used to execute the selected item, or to expand or compress image in DIGITAL ZOOM

+/- mode. (P29)

MENU BUTTON

Used to select MENU operation. (P18, 19)

AUTO PC ON-OFF

D.ZOOM

FREEZE NO SHOW

MUTE


VOLUMESELECT VOLUME+

MENU KEYSTONE

P-TIMER BUTTON

Used to operate P-

TIMER function. (P22)

ZOOM BUTTON

Used to adjust zoom. (P21)

COLOR MANAGEMENT

BUTTON

Used to operate COLOR

MANAGEMENT.

(P34)

LASER

P-TIMER

ZOOM COLOR.M

FOCUS LENS

NO SHOW BUTTON

Used to turn picture into black image. (P22)

FREEZE BUTTON

Used to freeze picture. (P22)

POINT (VOLUME +/-)

BUTTONS

Used to select an item or adjust value in ON-SCREEN

MENU. They are also used to pan image in DIGITAL

ZOOM +/- mode. (P29)

POINT LEFT/RIGHT buttons are also used as VOLUME

+/- buttons. (P22)

INPUT 1 BUTTON

Used to select input source (INPUT 1).

(P23)

INPUT 2 BUTTON

Used to select input source (INPUT 2).

(P24, 30)

INPUT 3 BUTTON

Used to select input source (INPUT 3).

(P30)

Operating Range

Point Remote Control Unit toward projector (Receiver Window) whenever pressing any button.

Maximum operating range for

Remote Control Unit is about 16.4’

(5m) and 60° in front and rear of a projector.

16.4’

(5 m)

60°

16.4’

(5 m)

60°

16

1

Remove battery compartment lid.

Remote Control Batteries Installation

Press lid downward and slide it.

2

Slide batteries into compartment.

Two AA size batteries

For correct polarity (+ and

–), be sure battery terminals are in contact with pins in compartment.

3

Replace compartment lid.

To insure safe operation, please observe following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at same time.

● Do not use a new battery with an used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to batteries manufacturers instructions and local rules.

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

LAMP REPLACE INDICATOR

Turns to yellow when life of projection lamp draws to an end. (P44)

WARNING TEMP. INDICATOR

Flashes red when internal projector temperature is too high. (P42)

READY INDICATOR

Lights green when a projector is ready to be turned on. And it flashes green in Power

Management mode.

(P39)

LAMP INDICATOR

Becomes dim when a projector is turned on.

And bright when a projector is in stand-by mode.

POWER ON–OFF BUTTON

Used to turn a projector on or off. (P20)

MENU BUTTON

Used to open or close

MENU operation. (P18,

19)

INPUT BUTTON

Used to select input source. (P23, 24, 30)

ZOOM BUTTON

Used to adjust zoom.

(P21)

FOCUS BUTTON

Used to adjust focus.

(P21)

LENS SHIFT BUTTON

Used to select LENS

SHIFT function. (P21)

POINT (VOLUME + / – ) BUTTONS

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in

DIGITAL ZOOM

+/– mode. (P29)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons.

SELECT BUTTON

Used to execute the selected item.

It is also used to expand/compress image in DIGITAL ZOOM mode.

(P29)

IMAGE BUTTON

Used to select image level. (P28, 32)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC

Adjustment function. (P25)

17

BEFORE OPERATION

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN

MENU. Refer to following pages to operate each adjustment on

ON-SCREEN MENU.

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

2 MOVING POINTER

Move pointer ( ✽ see below) or adjust value of item by pressing

POINT button(s) on Top Control or on Remote Control Unit.

✽ Pointer is icon on ON-SCREEN MENU to select item. See figures on section "FLOW OF ON-SCREEN MENU OPERATION" below.

3 SELECT ITEM

Select item or set selected function by pressing SELECT button.

REMOTE CONTROL UNIT

AUTO PC ON-OFF

D.ZOOM

FREEZE NO SHOW


VOLUMESELECT VOLUME+

MENU

KEYSTONE

MENU BUTTON SELECT BUTTON

Used to select the item.

TOP CONTROL

POINT BUTTONS

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

POINT BUTTONS

Used to move Pointer

UP/ DOWN/ RIGHT/

LEFT.

MENU BUTTON

ZOOM

LASER

P-TIMER

COMPUTER 1

COMPUTER 2

VIDEO

SELECT BUTTON

Used to select item.

FOCUS LENS

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

1

Press MENU button to display ON-SCREEN MENU (MENU

BAR). A red frame is POINTER.

MENU BAR

2

Select Menu to be adjusted

Move POINTER (red frame) to MENU ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

ITEM

MENU ICON

POINTER (red frame)

Press POINT UP/DOWN button to move POINTER.

POINTER

(red frame)

3

Control or adjust item through ON-SCREEN MENU

Press POINT UP/DOWN button and move POINTER (red frame or red arrow) to ITEM that you want to adjust, and then press SELECT button to show ITEM DATA.

4

Adjust ITEM DATA by pressing POINT RIGHT / LEFT buttons.

Refer to following pages for details of respective adjustments.

SELECT

BUTTON

ITEM DATA

Press POINT LEFT/RIGHT buttons to adjust value or set function.

18

BEFORE OPERATION

MENU BAR

Press MENU BUTTON while connecting to PC input source.

FOR PC SOURCE

GUIDE WINDOW

Shows selected item of ON-

SCREEN MENU.

PC SYSTEM MENU

Used to select computer system.

(Refer to P23, 24)

IMAGE SELECT MENU

Used to select image level among

Standard, Real and Image 1 ~ 4.

(Refer to P28)

SCREEN MENU

Used to adjust size of image. [Normal

/ True / Wide /

Digital zoom +/–]

(Refer to P29)

SETTING MENU

Used to change settings of projector or reset Lamp

Replace Counter.

(Refer to P37-40)

INPUT MENU

Used to select input source (Input

1, Input 2 or Input

3). (Refer to P23)

PC ADJUST MENU

Used to adjust parameters to match with input signal format.

(Refer to P25-27)

IMAGE ADJUST MENU

Used to adjust computer image.

[Contrast/Brightness/Color

/Tint/Color management

/Auto picture control

/Color temp.

/White balance (R/G/B)

/Sharpness/Gamma/Noise reduction/Progressive]

(Refer to P34-36)

FOR VIDEO SOURCE

Press MENU BUTTON while connecting to VIDEO input source.

INPUT MENU

Used to select input source

(Input 1, Input 2 or Input 3).

(Refer to P30)

IMAGE SELECT MENU

Used to select image level among

Standard, Cinema and Image 1 ~ 4.

(Refer to P32)

SCREEN MENU

Used to set size of image to Normal or Wide.

(Refer to P33)

SOUND MENU

Used to adjust volume or mute sound.

(Refer to P22)

Same function as

Menu for PC source.

AV SYSTEM MENU

Used to select system of selected video source.

(Refer to P31)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast/Brightness/Color/Tint

/Color management

/Auto picture control/Color temp.

/White balance (R/G/B)

/Sharpness/Gamma

/Noise reduction/Progressive]

(Refer to P34-36)

Same function as

Menu for PC source.

19

BASIC OPERATION

TURNING ON / OFF PROJECTOR

TURNING ON PROJECTOR

1

Complete peripheral connections (with Computer, VCR, etc.) before turning on projector. (Refer to "CONNECTING TO

PROJECTOR" on pages 12~14 for connecting that equipment.)

2

Connect a projector's AC Power Cord into an AC outlet. LAMP

Indicator lights RED, and READY Indicator lights GREEN.

NOTE : When “On start” function is ON, this projector is turned on automatically by connecting AC Power Cord to an

AC outlet. (Refer to page 39.)

3

Press POWER ON-OFF button on Top Control or on Remote

Control Unit to ON. LAMP Indicator dims, and Cooling Fans start to operate. Preparation Display appears on a screen and count-down starts. Signal from PC or Video source appears after

30 seconds.

Current Input position and Lamp mode status are also displayed on screen for 5 seconds. (Refer to "LAMP MODE" on page 37.)

Input position and

Lamp mode status

30

Preparation Display disappears after 30 seconds.

1

TURNING OFF PROJECTOR

Press POWER ON-OFF button on Top Control or on Remote

Control Unit, and a message "Power off?" appears on a screen.

2

Press POWER ON-OFF button again to turn off projector. LAMP

Indicator lights bright and READY Indicator turns off. After projector is turned off, Cooling Fans operate (for 90 seconds).

During this "Cooling Down" period, projector cannot be turned on.

3

When projector has cooled down, READY Indicator lights

GREEN again and you can turn projector on. After cooling down completely, disconnect AC Power Cord.

Message disappears after 4 seconds.

TO MAINTAIN LIFE OF LAMP, ONCE YOU TURN

PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE

TURNING IT OFF.

When “Power Management” function mode is Ready or Shut down, projector detects signal interruption and turns off the

Projection Lamp automatically. Refer to “Power management” on page 39.

When WARNING TEMP. Indicator is flashing, projector cannot be turned on, refer to the section "MAINTENANCE" on page 42.

When the both WARNING TEMP. and READY Indicator flashing, refer to the section "MAINTENANCE" on page 42.

20

BASIC OPERATION

ADJUSTING SCREEN

ZOOM ADJUSTMENT

1

Press ZOOM button on Top Control or ZOOM

▲/▼ button on

Remote Control Unit. Message “Zoom” is displayed.

2

Press ZOOM

▲ button or POINT UP button to make image larger, and press ZOOM

▼ button or POINT DOWN button to make image smaller.

Message disappears after 4 seconds.

FOCUS ADJUSTMENT

1

Press FOCUS button on Top Control or FOCUS

▲/▼ button on

Remote Control Unit. Message “Focus” is displayed.

2

Adjust focus of image by pressing FOCUS

▲/▼ button or

POINT UP/DOWN button(s) .

NOTE;

Focus adjustment may not function properly if the image is corrected by KEYSTONE adjustment.

Message disappears after 4 seconds.

LENS SHIFT ADJUSTMENT

1

Press LENS SHIFT button on Top Control or LENS SHIFT

▲/▼ button on Remote Control Unit. Message “Lens shift” is displayed.

2

Press POINT UP button or LENS SHIFT

▲ button to move image up, press POINT DOWN or LENS SHIFT

▼ button to move image down.

KEYSTONE ADJUSTMENT

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

1

Press KEYSTONE button on Remote Control Unit or select

Keystone on SETTING menu. (Refer to page 37.) Keystone dialog box appears.

2

Correct keystone distortion by pressing POINT

UP/DOWN/LEFT/RIGHT button(s). Press POINT UP button to reduce the upper part of the image, and press POINT DOWN button to reduce the lower part. Press POINT LEFT button to reduce the left part, and press POINT RIGHT button to reduce the right part.

Reduce the upper width with POINT UP button.

Reduce the lower width with POINT DOWN button.

• Arrows are white in no correction.

• Arrow(s) of direction being corrected turn(s) red.

• Arrow(s) disappear(s) at the maximum correction.

• If you press the KEYSTONE button on Top

Control or on Remote Control Unit once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

Reduce the left part with

POINT LEFT button.

Reduce the right part with

POINT RIGHT button.

21

BASIC OPERATION

PICTURE FREEZE FUNCTION

Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button.

NO SHOW FUNCTION

Press NO SHOW button on Remote Control Unit to black out image.

To restore to normal, press NO SHOW button again or press any other button.

22

Message disappears after 4 seconds.

P-TIMER FUNCTION

Press P-TIMER button on Remote Control unit. Timer display “00 : 00” appears on screen and timer starts to count time (00 : 00 ~ 59 : 59).

To stop P-TIMER display, press P-TIMER button. And then, press P-

TIMER button again to cancel P-TIMER function.

SOUND ADJUSTMENT

DIRECT OPERATION

Volume

Press VOLUME (+/–) button(s) on Top Control or on Remote Control

Unit to adjust volume. Volume dialog box appears on screen for a few seconds.

(+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press

Volume (+/–) button(s).

Indicates roughly level of volume.

Press MUTE button to set

Mute function On or Off.

Display disappears after 4 seconds.

1

2

MENU OPERATION

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to

SOUND Menu icon.

Press POINT UP/DOWN button to move a red frame pointer to item that you want to select, and then press SELECT button.

Volume

To increase volume, press POINT RIGHT button, and press POINT

LEFT button for decreasing.

Built-in SP.

Press POINT LEFT/RIGHT button(s) to switch built-in speaker on and off.

SOUND MENU

Indicates roughly level of volume.

Close SOUND Menu.

SOUND Menu icon

Mute

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

COMPUTER INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Select INPUT source by pressing INPUT button on Top Control.

Select INPUT source by pressing INPUT 1, INPUT 2 or INPUT 3 button on Remote Control Unit.

If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).

NOTE

● Input 1 terminal is switchable and can be used as computer input or monitor output.

INPUT button

Input 1

Input 2

Input 3

Input 1 is not displayed when the Input 1 is used as

Monitor out.

1

2

MENU OPERATION

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to

INPUT Menu icon.

Press POINT UP/DOWN button and a red-arrow icon will appear. Move arrow to INPUT source that you want to select, and then press SELECT button.

INPUT Menu icon

SELECTING COMPUTER SYSTEM

1

2

3

WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )

INPUT MENU

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

INPUT Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to

Input 1 and then press SELECT button. Source Select Menu will appear.

Move a pointer to source that you want to select and then press

SELECT button.

INPUT Menu icon

Move a pointer (red arrow) to

Input 1 and press SELECT button.

Input 1

RGB(Analog)

When your computer is connected to INPUT 1 (ANALOG) terminal, select RGB(Analog).

RGB(Scart)

When video equipment is connected to INPUT 1 (ANALOG) terminal, select RGB(Scart).

RGB(PC Digital)

When your computer is connected to INPUT 1 (DIGITAL) terminal, select RGB(PC Digital).

RGB(AV HDCP)

If a HDCP-compatible signal source is connected to the INPUT 1

(DIGITAL) terminal, select RGB(AV HDCP).

Monitor out

If the INPUT 1 ANALOG terminal is being used as a MONITOR

OUT terminal, select Monitor out.

Source Select Menu

Move a pointer to source and press SELECT button.

NOTE;

HDCP (High-bandwidth Digital Content

Protection) is a system for protecting digital entertainment content which is delivered by DVI

(Digital Visual Interface) from being copied.

The specification of HDCP is decided and controlled by Digital Content Protection, LLC.

Should the specification be changed, this projector may not display the digital content protected by HDCP.

23

COMPUTER INPUT

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

When connect a computer output [5 BNC Type (Green, Blue, Red,

Horiz. Sync and Vert. Sync.)] from a computer to G, B, R, H/HV and V jacks.

INPUT MENU

1

2

3

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

INPUT Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to

Input 2 and then press SELECT button. Source Select Menu will appear.

Press POINT UP/DOWN button and a red-arrow icon will appear. Move arrow to "RGB", and then press SELECT button.

Input 2

INPUT Menu icon

Move a pointer (red arrow) to

Input 2 and press SELECT button.

Source Select Menu

Move a pointer to RGB and press SELECT button.

AUTOMATIC MULTI-SCAN SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to

“COMPATIBLE COMPUTER SPECIFICATION” on page 49). When a computer is selected, this projector automatically tunes to incoming signal and projects the proper image without any special setting. (Some computers need to be set manually.)

The projector displays one of the Auto, -----, Mode 1/2/3/4/5, or the system provided in the projector.

Auto

––––

When projector cannot recognize connected signal as PC system provided in this projector, Auto PC Adjustment function operates to adjust projector and message “Auto” is displayed on SYSTEM Menu icon.

When image is not provided properly, manual adjustment is required. (Refer to P26 and 27.)

There is no signal input from computer. Make sure connection of computer and a projector is set correctly.

(Refer to TROUBLESHOOTING on page 46.)

PC SYSTEM MENU

PC SYSTEM Menu icon

Displays system being selected.

Mode 1

User preset adjustment in MANUAL PC ADJUSTMENT.

Adjustment data can be stored in the Mode 1-5.

SVGA 1

Computer systems provided in the projector. The projector chooses proper system and displays it.

Mode 1 and SVGA 1 are examples.

SELECT COMPUTER SYSTEM MANUALLY

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to PC

SYSTEM Menu icon.

2

Press POINT UP/DOWN button to move a red arrow pointer to system that you want to set, and then press SELECT button.

PC SYSTEM MENU

PC SYSTEM Menu icon

Displays system being selected.

Systems on this dialog box can be selected.

Custom Mode (1~5) set in PC

ADJUST Menu. (P26, 27)

24

COMPUTER INPUT

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.

1

Auto PC Adj.

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to PC

ADJUST Menu icon.

2

Press POINT UP/DOWN button to move a red frame pointer to

AUTO PC Adj. icon and then press SELECT button.

This Auto PC Adjustment can be also executed by pressing

AUTO PC ADJ. button on Top Control or on Remote Control

Unit.

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame pointer to AUTO

PC Adj. icon and press SELECT button.

Store adjustment parameters.

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P24). Refer to step 3 of MANUAL PC ADJUSTMENT section (P27).

NOTE

● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When image is not provided properly through this function, manual adjustments are required. (Refer to page 26,

27.)

● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “480p”, “575p”, “480i”, “575i”

“720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.

25

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal is selected on PC SYSTEM

MENU (P24).

PC ADJUST MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to PC

ADJUST Menu icon.

2

Press POINT UP/DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button.

Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

PC ADJUST Menu icon

Move a red frame icon to item and press SELECT button.

Fine sync

Adjusts an image as necessary to eliminate flicker from display.

Press POINT LEFT/RIGHT button to adjust value. (From 0 to 31.)

Total dots

Adjust the number of total dots in one horizontal period. Press

POINT LEFT/RIGHT button(s) and adjust number to match your PC image.

Horizontal

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Vertical

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Current mode

Press SELECT button to show information of computer selected.

Clamp

Adjusts clamp position. When image has a dark bar(s), try this adjustment.

Selected Mode

Shows status

(Stored / Free) of selected Mode.

Press POINT LEFT/RIGHT button to adjust value.

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Current mode

Press SELECT button at

Current mode icon to show information of computer connected.

Press SELECT button at this icon to display previous items.

26

COMPUTER INPUT

Display area

Selects area displayed with this projector. Select resolution at

Display area dialog box.

Display area H

Adjustment of horizontal area displayed with this projector. Press

POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area V

Adjustment of vertical area displayed with this projector. Press

POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Full screen

Press POINT LEFT/RIGHT button(s) to switch Full screen function to

“On” or “Off.” Set “On” to resize image with 4 x 3 aspect ratio to fit screen. This function cannot be adjusted when “ON” is selected on

Anamorphic function (P38).

3

NOTE : Fine sync, Display area, Display area H, Display area V and

Full screen cannot be adjusted when “480p”, “575p”, “480i”,

“575i”, “720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P24).

Store

To store adjustment parameters, move a red frame pointer to

Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 5 that you want to store and then press SELECT button.

Mode free

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then SELECT button. Move a red arrow pointer to Mode that you want to clear and then press SELECT button.

Other icons operates as follows.

Reset

Reset all adjust parameters on adjustment dialog box to previous figure.

Quit

Closes PC ADJUST MENU.

Press SELECT button at

Display area icon and Display area dialog box appears.

Display area

Press POINT LEFT

/RIGHT button(s) to adjust value and then press SELECT button.

To store adjustment data.

This Mode has parameters being stored.

Store icon Vacant Mode Shows values of “Total dots,”

“Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

To clear adjustment data.

Mode free icon

Close this dialog box.

27

COMPUTER INPUT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote

Control Unit.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P36).

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

IMAGE SELECT MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

IMAGE SELECT Menu icon.

2

Press POINT UP/DOWN button to move a red frame pointer to level that you want to set and then press SELECT button.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P36).

IMAGE SELECT

Menu icon

Move a red frame icon to level and press SELECT button.

Level being selected.

28

COMPUTER INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red frame pointer to

SCREEN Menu icon.

SCREEN MENU

2

Press POINT UP/DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

SCREEN Menu icon

Move red frame to function and press

SELECT button.

Normal

Provides image to fit screen size.

True

Provides image in its original size. When original image size is larger than screen size (1024 x 768), this projector enters “Digital zoom +” mode automatically.

Wide

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

Digital zoom +

When Digital zoom + is selected, ON-SCREEN MENU disappears and message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan image. Panning function can work only when image is larger than screen size.

A projected image can be also expanded by pressing D.ZOOM

▲ button on Remote Control Unit.

NOTE

● True and Digital zoom +/– cannot be operated when “480i”, “575i”, “480p”, “575p”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM

Menu (P24).

● Wide cannot be selected when “720p (HDTV)”,

“1035i (HDTV)” or “1080i (HDTV)” is selected on

PC SYSTEM Menu (P24).

● This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset resolution to lower before connecting projector.

● Image data in other than XGA (1024 x 768) is modified to fit screen size in initial mode.

● Panning function may not operate properly if computer system prepared on PC ADJUST Menu is used.

Digital Zoom –

When Digital zoom – is selected, ON-SCREEN MENU disappears and message “D. Zoom –” is displayed. Press SELECT button to compress image size.

A projected image can be also compressed by pressing D.ZOOM

▼ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM

▲/▼, SELECT, POINT and LASER buttons.

29

VIDEO INPUT

SELECTING INPUT SOURCE

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

When connecting to those equipment, select a type of Video source in SOURCE SELECT Menu.

INPUT MENU

1

2

3

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

INPUT Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to

Input 2 and then press SELECT button. Source Select Menu will appear.

Move a pointer to source that you want to select and then press

SELECT button.

Input 2

INPUT Menu icon

Move a pointer (red arrow) to

Input 2 and press SELECT button.

Source Select Menu

Move a pointer to Video or

Y, Pb/Cb, Pr/Cr and press

SELECT button.

Video

When video input signal is connected to VIDEO jack, select Video.

Y,Pb/Cb,Pr/Cr

When video input signal is connected to Y-Pb/Cb-

Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

WHEN SELECT INPUT 3 (AV TERMINALS )

INPUT MENU

When connecting to those equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

1

2

3

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

INPUT Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to

Input 3 and then press SELECT button. Source Select Menu will appear.

Move a pointer to source that you want to select and then press

SELECT button.

Input 3

INPUT Menu icon

Move a pointer (red arrow) to

Input 3 and press SELECT button.

Source Select Menu (VIDEO)

Move a pointer to source and press SELECT button.

Video

When video input signal is connected to VIDEO jack, select Video.

Y,Pb/Cb,Pr/Cr

S-Video

When video input signal is connected to Y-Pb/Cb-

Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

When video input signal is connected to S-VIDEO jack, select S-Video.

30

VIDEO INPUT

1

2

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to AV

SYSTEM Menu icon.

Press POINT UP/DOWN button to move a red arrow pointer to system that you want to select and then press SELECT button.

VIDEO JACK OR S-VIDEO JACK

Auto

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select system manually first.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC,

NTSC 4.43, PAL-M, and PAL-N.

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM Menu icon

This box indicates system being selected.

Move pointer to system and press SELECT button.

Y, Pb/Cb, Pr/Cr JACKS

Auto

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance.

When Video System is 1035i or 1080i, select system manually first.

AV SYSTEM MENU (COMPONENT VIDEO)

COMPONENT VIDEO SIGNAL FORMAT

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i,

480p, 575p, 720p, 1035i and 1080i.

AV SYSTEM Menu icon

This box indicates system being selected.

Move pointer to system and press SELECT button.

31

VIDEO INPUT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2,

Image 3 and Image 4 by pressing IMAGE button on Top Control or on

Remote Control Unit.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P36).

IMAGE button

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

IMAGE SELECT MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

IMAGE SELECT Menu icon.

2

Press POINT UP/DOWN button to move a red frame pointer to level that you want to set and then press SELECT button.

IMAGE SELECT

Menu icon

Standard

Normal picture level preset on this projector.

Move red frame pointer to level and press SELECT button.

Level being selected.

Cinema

Picture level adjusted for picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P36).

32

VIDEO INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red frame pointer to

SCREEN Menu icon.

SCREEN MENU

2

Press POINT UP/DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

Normal

Provides image at a normal video aspect ratio of 4 : 3.

SCREEN Menu icon

Move red frame to function and press

SELECT button.

Wide

Provides image at a wide screen ratio of 16 : 9.

NOTE : SCREEN Menu cannot be operated when

“720p,” “1035i,” or “1080i” is selected on AV

SYSTEM Menu (P31).

33

PICTURE IMAGE

PICTURE IMAGE ADJUSTMENTS

IMAGE ADJUST MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to

IMAGE ADJUST Menu icon.

2

Press POINT UP/DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button.

Level of each item is displayed. Adjust each level by pressing

POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

IMAGE ADJUST

Menu icon

Move a red frame pointer to item to be selected and then press SELECT button.

Brightness

Press POINT LEFT button to adjust image darker, and POINT

RIGHT button to adjust brighter. (From 0 to 63.)

Color

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Tint

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

Press POINT LEFT/RIGHT buttons to adjust value.

Color Management

The Color management function can be used to adjust the level, phase and gamma of the selected display colors on the screen, and to replace these colors with other colors if required.

The projector lets you replace up to eight colors for each image.

There are four preset images for VIDEO mode and four preset images for PC, giving a total of eight images.

1

Press the POINT UP/DOWN button to move the red frame pointer to "COLOR MANAGEMENT", and then press the SELECT button. The COLOR MANAGEMENT menu will appear and pointer mode will be enabled. The image that was being projected when the button was pressed will be paused, and the COLOR

MANAGEMENT POINTER will appear.

2

Use the POINT buttons to move the pointer to a section of the paused image that contains the color that you would like to adjust, and then press the SELECT button. The mode will change to COLOR SELECTION mode, and the color in the center of the pointer will be selected and adjustment will be possible.

3

Use the POINT buttons to adjust the level and phase of the color, and then press the SELECT button to confirm the setting.

Next, use the POINT buttons to adjust the gamma correction for the color, and then press the SELECT button to accept the setting. When the SELECT button is pressed, the mode will change to LIST mode.

POINTER MODE

COLOR

MANAGEMENT

POINTER

NOTE;

Press the COLOR M. button on the remote control to display the COLOR MANAGEMENT menu.

If you would like to check or re-adjust a color management setting that has already been made, press the COLOR M. button on the remote control once more to change to LIST mode.

34

PICTURE IMAGE

4

To move the red frame pointer to "MENU", and then press the

SELECT button. The message "OK"? is displayed. Move the pointer to [Yes] and then press SELECT button. The COLOR

MANAGEMENT menu will be exited and the display will return to the IMAGE ADJUST menu. (At this time, the image will stop being paused and normal projection will resume.) After changing the COLOR MANAGEMENT settings, use the IMAGE

ADJUST menu to store the changed settings.

COLOR SELECTION MODE

CANCEL

The mode will return to the pointer mode (even if you press the

MENU key on the projector or the remote control). (You will need to reselect and re-adjust the color in this case.)

QUIT

The COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "LIST" using the POINT buttons and change to the next mode (LIST mode).

LIST MODE

COLOR SELECTION

MODE

Level and phase adjustment palette.

LIST

LIST MODE

Gamma adjustment palette.

CANCEL QUIT

COLOR PALETTE

DEL

The check mark will be cleared and the effect of the setting adjustment for that line on the projected images will be momentarily canceled.

COLOR PALETTE

The mode will return to COLOR SELECTION mode so that you can re-adjust the setting for the color in that line. This option is not available if the check mark has been cleared by the operation immediately above.)

DEL

The setting adjustment for the color in that line will be canceled.

ALL DEL

The setting adjustment for the colors in all lines will be canceled.

COLOR M.

The mode will return to POINTER mode.

ALL DEL MENU COLOR M.

NOTE;

If you press the COLOR M. button on the remote control, the COLOR MANAGEMENT menu will be exited and the display will return to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select "MENU" using the

POINT buttons and store the settings.

Auto picture control

Press either POINT LEFT button or POINT RIGHT button to Auto picture control position that you want to select . (Off, L1 or L2)

Off ······· Auto picture control OFF position.

L1 ········ Auto picture control LEVEL 1 position.

L2 ········ Auto picture control LEVEL 2 position.

35

PICTURE IMAGE

Color temp.

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften the image, and POINT RIGHT button to sharpen the image. (From 0 to 31.)

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Noise reduction

Press POINT LEFT/RIGHT button(s) to change noise reduction mode. Dialog box display is changed to “On” to reduce noise (rough parts) of image. Press POINT LEFT/RIGHT button(s) again, to change noise reduction mode to off.

Progressive scan

Press POINT LEFT/RIGHT button(s) to change progressive scan mode. Dialog box display is changed to “Off”, “L1”, “L2”.

Off ··· Progressive scan mode to OFF.

L1 ···· Progressive scan mode to ON (for active picture).

L2 ···· Progressive scan mode to ON (for still picture).

Store

To store manually preset image, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear.

Move a red frame pointer to Image 1 to 4 where you want to set and then press SELECT button.

Other icons operates as follows.

Reset

Reset all adjustment to previous figure.

Quit

Closes IMAGE MENU.

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT buttons to adjust value.

Image Level Menu

Move a red frame pointer to any of Image 1 to 4 where you want to set and then press

SELECT button.

Store icon

Press SELECT button at this icon to store the adjustment.

NOTE :

Tint cannot be adjusted when the video system is

PAL, SECAM, PAL-M or PAL-N.

Progressive cannot be operated when “480p”, “575p” or “720p” is selected on AV SYSTEM MENU (P31).

36

SETTING

SETTING MENU

1

2

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red-frame pointer to

SETTING icon.

Press POINT DOWN button to move a red-frame pointer to item that you want to set and then press SELECT button. Setting dialog box appears.

Language

Language used in ON-SCREEN MENU is selectable from among

English, German, French, Italian, Spanish, Portuguese, Dutch,

Swedish, Russian, Chinese, Korean and Japanese.

SETTING MENU

Set a red frame pointer to item and press SELECT button.

SETTING Menu icon

Lamp mode

When selecting the Lamp mode, the projector reduce the brightness and set into the low power consumption mode.

Normal mode

Auto mode

The brightness is adjusted automatically to a level that is suitable for the screen.

Eco mode

The brightness is reduced to 80% of Normal mode.

When pressing SELECT button at Language,

Language Menu appears.

Keystone

When the image is distorted, select Keystone. ON-SCREEN MENU disappears and Keystone dialog box is displayed.

Store ··· Store the keystone adjustment data when disconnect AC

Power Cord from an AC outlet.

Reset ··· Reset the keystone adjustment data when disconnect AC

Power Cord from an AC outlet.

When a SELECT button is pressed, the mode changes to keystone adjustment mode. Correct keystone distortion by pressing POINT

UP/DOWN/LEFT/RIGHT button(s). Refer to KEYSTONE

ADJUSTMENT on page 21.

Aspect V

Aspect H

These adjust the vertical and horizontal scale and position of the screen. Use the POINT RIGHT/LEFT button(s) to select Store or

Reset.

Store ··· Store the adjustment data when disconnect AC Power

Cord from an AC outlet.

Reset ··· Reset the adjustment data when disconnect AC Power Cord from an AC outlet.

When a SELECT button is pressed, the mode changes to Scale or

Position adjustment mode. Use the POINT LEFT/RIGHT button(s) to select whether you wish to adjust Scale or Position, and then use the

POINT UP/DOWN button(s) to adjust the values.

NOTE :

When the Aspect H/V is adjusted and the keystone adjustment is made, the adjustment data for the Aspect H/V is cleared.

To maintain the adjustment data, perform keystone adjustment first, and then adjust the Aspect H/V.

Move a pointer to item and then press POINT

LEFT/RIGHT button(s).

37

SETTING

Anamorphic

When this function is “On,” the screen image is forcibly changed to a

4:3 image, even if the input signal is HDTV.

Blue back

When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when any input source is unplugged or turned off.

Display

This function decides whether to display On-Screen Displays.

On ··· shows all the On-Screen Displays.

Off ···· sets On-Screen Displays disappeared except;

● ON-SCREEN MENU

● “Power off?” message

● P-TIMER

● “No signal” message

● “Wait a moment” message

Menu position

This function is used to adjust the on-screen menu display position.

When a SELECT button is pressed, the adjustment screen is displayed (arrows appear). Use the POINT UP/DOWN/LEFT/RIGHT button(s) to adjust the position. After making the adjustment, press a

SELECT button to return to the Menu screen.

Logo

When this function is “On,” projector displays logo when starting up.

Ceiling

When this function is “On,” picture is top / bottom and left / right reversed. This function is used to project the image from a ceiling mounting the projector.

Ceiling function

Rear

When this function is “On,” picture is left / right reversed. This function is used to project the image to a rear projection screen.

Rear function

38

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

SETTING

Power management

This projector is equipped with a power management function. When the input signal is interrupted and any button is not pressed for 30 seconds or more, the power management function operates in order to reduce power consumption and conserve lamp operating time. The factory default settings for power management are "Ready" and "5 Min".

OPERATION

1) If the input signal is interrupted and any button is not pressed for 30 seconds or more, the message "No signal" and the timer display appears on the screen. Then the count-down starts for the time being set.

If "Ready" is selected

2) When the set time is elapsed, the lamp will be switched off and lamp cooling starts. The READY indicator will be switched off while the lamp cooling is in progress, and the projector cannot be operated during this time.

3) When the lamp cooling is completed, the READY indicator starts flashing to notify the operator that power management mode is active. In this condition, the lamp will turn on and images will be projected if a signal starts being input or the projector is operated.

If "Shut down" is selected

2) When the set time is elapsed, the lamp will be switched off and lamp cooling starts. The READY indicator will be switched off while the lamp cooling is in progress, and the projector cannot be operated during this time.

3) When the lamp cooling is completed, the power switches off.

If "Off" is selected

The power management function is canceled.

When a SELECT button is pressed, the adjustment screen is displayed.

Use the POINT LEFT/RIGHT button(s) to select the power management function mode ("Off", "Ready" or "Shut down").

Use the POINT DOWN button to move the pointer to the time setting, and then use the POINT LEFT/RIGHT button(s) to set the time (1 minute to 30 minutes).

Time left until Lamp off.

On start

When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet.

Note ; Be sure to turn projector off properly (refer to section

“TURNING OFF PROJECTOR” on P20). If projector is turned off in wrong steps, On Start function does not operate properly.

Remote control

This projector has eight different remote control codes; the factoryset normal code (Code 1) and the other seven codes (Code 2 to

Code 8). This switching function prevents remote control operation mixture (jam) when operating several projectors or video equipment together.

For example operating projector in “Code 7,” both projector and

Remote Control Unit must be switched to “Code 7.”

To change the code of Projector;

To change the Remote control code of the projector used in ON-

SCREEN MENU is selectable from Code 1 to Code 8.

To change the code of the Remote Control Unit;

To change the remote control code of the Remote Control Unit, set the DIP switches 1-3 inside the battery compartment box of the

Remote Control Unit. (Refer to P15.)

When pressing SELECT button at

Remote control, Remote control code Menu appears.

39

SETTING

USB

This Projector is equipped with USB port for interactive operation between a projector and computer. Set mode following steps below.

Wireless Mouse mode

Select " this projector.

" when controlling a computer with Remote Control of

Projector mode

Select " " when controlling a projector with computer.

NOTE: This is provided not for basic operation but for future use.

Key lock

This function locks the operation of the projector's control panel and the remote control.

This locks operation of the projector's control panel.

This locks operation of the remote control.

This cancels the Key lock function.

If the projector's control panel accidentally becomes locked and you do not have the remote control nearby, disconnect the AC cord to turn off the power, and then while pressing a SELECT button, reinsert the AC cord, This will cancel the projector's control panel lock.

Lamp counter reset

This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 45 for operation.

Factory default

This function returns all setting values except for the lamp counter to the factory default settings.

Press POINT UP/DOWN button to move a red frame pointer to

“Factory default” and then press SELECT button. The message

"Return to Factory default?" is displayed. Move the pointer to [Yes] and then press SELECT button.

Another confirmation dialog box appears and select [Yes] and then press SELECT button. Return the projector to Factory default.

40

APPENDIX

OPERATING WIRELESS MOUSE

Wireless Remote Control Unit is not only able to operate this projector but also function as a wireless mouse for most

Personal Computers. POINT button, drag ON/OFF button and two CLICK buttons are used for wireless mouse operation.

This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen.

INSTALLATION

To use Wireless Remote Control Unit as Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse port (or USB port) of a Personal Computer is activated.

1

2

Connect the mouse port (or USB port) of your computer to

Control Port (or USB connector) of this projector with Control

Cable (or USB cable). (Refer to page 12, 13 for connection.)

Turn the projector on first, and then turn on your computer.

When the computer is switched on first, Wireless Mouse may not work properly.

Note : When your computer has no mouse port, connect Serial Port of your computer to Control Port of the projector with Control Cable for Serial

Port (supplied).

OPERATING WIRELESS MOUSE

When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, Drag ON/OFF button, LEFT CLICK button and RIGHT CLICK button on Wireless Remote Control Unit.

AUTO PC ON-OFF

POINT button

Used to move PC mouse pointer. The pointer is moved corresponding with the direction you are pressing.

DRAG ON

INDICATOR

D.ZOOM

FREEZE NO SHOW

MUTE


LEFT CLICK button

This button has the same function as the left button in a PC mouse.

Press this button and the POINT button to drag a selected screen object.

VOLUME-

SELECT

VOLUME+

RIGHT CLICK button

This button has the same function as the right button in a PC mouse.

MENU KEYSTONE

DRAG ON/OFF button

Use this button and the POINT button to drag a selected screen object. Press and release the Drag ON/OFF button, DRAG ON

INDICATOR lights green and the remote control is in Drag mode.

Use the POINT button in the direction that you want to drag the screen object. Press and release the Drag ON/OFF button again or press any other button, to drop the object at the new screen location.

DRAG ON/OFF button

POINT button

(Move the pointer)

LEFT CLICK button

(left button of the mouse) (right button of the mouse)

P-TIMER

COMPUTER 1

ZOOM

COMPUTER 2

VIDEO

FOCUS LENS

41

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

The Warning Temp. Indicator flashes red to let you know the internal temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator will go out. (The

Warning Temp. Indicator continues flashing.) After the cooling-off period, the

Ready Indicator lights on again and the projector can be turned on by pressing the

On/Off button on the remote control unit or on the top control. When you turn on the projector, the Warning Temp. Indicator will go out.

If the Warning Temp. Indicator is still flashing, check the followings;

TOP CONTROL

Warning Temp.

Indicator

Ready

Indicator

1

2

3

Ventilation Slots of a projector may be blocked. In such an event, reposition a projector so that Ventilation Slots are not obstructed.

Air Filter may be clogged with dust particles. Clean Air Filter by following section AIR FILTER CARE AND CLEANING on next page.

If WARNING TEMP. Indicator remains on after performing above checks,

Cooling Fans or Internal Circuits may be malfunctioning. Contact the service station.

When both of the Warning Temp. and Ready indicators are flashing:

When the projector detects an internal problem, it will shut down automatically and both of the Warning temp. and Ready

Indicators starts flashing. In this condition, the projector cannot be turned on even if you press the On/Off button on the remote control unit or on the top control. If this case happenes, disconnect and reconnect the AC power cord, and then turn on the projector again to check its operation. If the projector shuts down again or fails to be turned on, the internal check and repair will be required. Plug off the AC power cord and contact service station.

42

APPENDIX

AIR FILTER CARE AND CLEANING

3

4

Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect life of a projector. Clean Air Filter following steps below:

1

2

Turn off a projector, and disconnect AC power cord from AC outlet.

Turn a projector upside down and remove Air Filter (2 used) by pulling latches upward.

Clean Air Filter with a brush or wash out dust and particles.

Replace Air Filter properly. Make sure that Air Filter is fully inserted.

CAUTION

Do not operate a projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality.

Do not put small parts into Air Intake Vents. It may result in malfunction of a projector.

AIR FILTER

Pull up and remove.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside a projector. This condition may degrade quality of a projected image.

When above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

CLEANING PROJECTION LENS

2

3

Follow these steps to clean Projection Lens:

1

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.

Abrasive cleaners, solvents or other harsh chemicals might scratch a surface.

Lightly wipe a cleaning cloth over Projection Lens.

When a projector is not in use, replace Lens Cover.

43

APPENDIX

LAMP REPLACEMENT

LAMP REPLACE

When the life of the Projection Lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly.

TOP CONTROL

This indicator lights yellow when the life of the projection lamp draws to an end.

Replace the Projection Lamp with a new one promptly.

44

Allow a projector to cool, for at least 45 minutes before you open Lamp Cover. The inside of a projector can become very hot.

CAUTION

For continued safety, replace with a lamp assembly of the same type.

Do not drop a lamp assembly or touch a glass bulb! The glass can shatter and may cause injury.

2

3

Follow these steps to replace lamp assembly.

1

Turn off a projector and disconnect AC plug. Allow a projector to cool for at least 45 minutes.

Loosen 2 screws with a screwdriver and open Lamp Cover.

4

Loosen 2 screws with a screwdriver and pull out Lamp Assembly by grasping Handle.

Replace Lamp Assembly with a new one and tighten 2 screws back. Make sure that Lamp Assembly is set properly. Replace

Lamp Cover and tighten 2 screws.

5

6

Connect AC Power Cord to a projector and turn it on.

Reset Lamp Replace Counter (refer to next page “Lamp Replace

Counter” section).

NOTE : Do not reset Lamp Replace Counter when Projection

Lamp is not replaced.

LAMP

ASSEMBLY

LAMP COVER

HANDLE

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer.

Model No. of your projector

Replacement Lamp Type No.

:

:

38-VIV303-01

03-000750-01P

(Service Parts No. 610 306 5977)

APPENDIX

LAMP REPLACE COUNTER

Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset, the LAMP REPLACE Indicator stops lighting.

1

2

Turn projector on, press MENU button and ON-SCREEN

MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SETTING Menu icon (refer to page 40).

Press POINT UP/DOWN button to move a red frame pointer to “Lamp counter reset” and then press SELECT button. The message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.

3

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

Move the pointer to Lamp counter reset and then press

SELECT button. The message “Lamp replace counter reset?” is displayed.

NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

45

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check matters below once again.

1. Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING

PROJECTOR" on pages 12 ~ 14.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If a projector still does not produce an image, re-start your computer.

5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display.

Problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to turn computer and monitor off before you power up a projector. Power equipment back on in order of : Projector and computer.)

6. If problem still exists, check following chart.

Problem:

No power.

Image is out of focus.

Try these Solutions

● Plug a projector into your AC outlet.

● Make sure READY Indicator lights.

● Wait 90 seconds after a projector is turned OFF when turning a projector back on.

NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as follows:

1. LAMP indicator lights bright and READY indicator turns off.

2. After 90 seconds, READY indicator lights green again and a projector may be turned on by pressing Power ON-OFF button.

● Check WARNING TEMP. and READY indicator. If both WARNING TEMP. and READY indicator flashes, a projector cannot be turned on.

(See "TURNING ON/OFF PROJECTOR" section on page 20.)

● Check Projection Lamp. (Refer to page 44.)

● Adjust focus of a projector.

● Make sure a projection screen is at least 4.6’ (1.4m) from a projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving a projector from a cool temperature location to a warm temperature location may result in moisture condensation on Projection Lens. In such an event, leave a projector OFF and wait until condensation disappears.

● Check Ceiling/Rear feature. (See “SETTING” section on page 38.)

Picture is Left/Right reversed.

Picture is

Top/Bottom reversed.

Some displays are not seen during

Operation.

No image.

No sound.

● Check Ceiling feature. (See “SETTING” section on page 38.)

● Check Display feature.(See “SETTING” section on page 38.)

● Check connection between your computer or video equipment and a projector.

● When turning a projector on, it takes about 30 seconds to display an image.

● Check system that you select is corresponding with your computer or video equipment.

● Make sure temperature is not out of Operating Temperature (5°C ~ 35°C).

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press VOLUME (+) button.

● Press MUTE button.

46

APPENDIX

Problem:

Remote Control Unit does not work.

Wireless Mouse function does not work.

Try these Solutions

● Check batteries.

● Check ALL-OFF switch on Remote Control Unit is set to “ON”.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure you are not too far from a projector when using Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Check transmitted signal mode from Remote Control Unit.

(See“SETTING” section on page 39.)

● Check cable connection between a projector and your computer.

● Check mouse setting on your computer.

● Turn a projector on before turning on a computer.

SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open cabinet.

You can often correct operating problems yourself. If the projector fails to work properly, see the "TROU-

BLESHOOTING" section on pages 46 and 47.

If after following all operating instructions, you find that service is necessary, contact the Christie Service Station or store where you purchased the unit.

Give the model number and explain the difficulty. We will advise you how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

47

APPENDIX

INDICATORS AND PROJECTOR CONDITION

Check the Indicators for projector condition.

LAMP

REPLACE

yellow

Indicators

WARNING

TEMP.

red

READY

green

LAMP

red

Projector Condition

The projector is OFF. (The AC Power Cord is unplugged.)

The projector is READY to be turned on with the POWER ON-

OFF button.

The projector is operating normally.

The Warning Temp. Indicator flashes red to let you know the internal temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator will go out. When the projector is cooled down enough and the temperature returns to normal, the READY indicator lights green and the projector can be turned on. (The WARNING TEMP. indicator keeps flashing.)

Check and clean the Air Filter.

The projector is cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING

TEMP. indicator stops flashing. Check and clean the Air Filter.

The projector is being cooled down. It cannot be turned on until the READY indicator lights green.

The projector detects an abnormal condition and cannot be turned on. Unplug the AC Power Cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC Power Cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause electric shock or a fire hazard.

The projector is in the Power management mode.

• • • on • • • flashing • • • dim • • • off

✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the Lamp Replace Counter after replacement of the lamp.

48

APPENDIX

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 180 MHz of Dot Clock.

ON-SCREEN

DISPLAY

VGA 1

VGA 2

VGA 3

VGA 4

VGA 5

VGA 6

VGA 7

RESOLUTION

640 x 480

720 x 400

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

MAC LC13 640 x 480

MAC 13

480p

575p

480i

575i

SVGA 1

640 x 480

––––––––

( Progressive )

––––––––

( Progressive )

––––––––

(Interlace)

––––––––

(Interlace)

800 x 600

SVGA 2 800 x 600

SVGA 3

SVGA 4

SVGA 5

SVGA 6

SVGA 7

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

SVGA 8

SVGA 9

800 x 600

800 x 600

SVGA 10 800 x 600

SVGA 11 800 x 600

MAC 16 832 x 624

XGA 1

XGA 2

1024 x 768

1024 x 768

XGA 3

XGA 4

XGA 5

1024 x 768

1024 x 768

1024 x 768

XGA 6

XGA 7

XGA 8

XGA 9

1024 x 768

1024 x 768

1024 x 768

1024 x 768

(Interlace)

ON-SCREEN

DISPLAY

D-VGA

D-480p

D-575p

D-SVGA

RESOLUTION

640 x 480

720 x 480

( Progressive )

768 x 575

( Progressive )

800 x 600

D-XGA 1024 x 768

D-SXGA1 1280 x 1024

H-Freq.

(kHz)

31.47

31.47

31.47

37.86

37.86

37.50

43.269

34.97

35.00

31.47

31.25

15.734

15.625

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

32.70

38.00

49.72

48.36

68.677

60.023

56.476

60.31

48.50

44.00

63.48

36.00

V-Freq.

(Hz)

59.88

70.09

70.09

74.38

72.81

75.00

85.00

66.60

66.67

59.88

50.00

30.00

25.00

56.25

60.32

75.00

85.06

72.19

61.03

55.38

60.51

60.31

51.09

60.51

74.55

60.00

84.997

75.03

70.07

74.92

60.02

54.58

79.35

43.59

ON-SCREEN

DISPLAY

XGA 10

XGA 11

XGA 12

XGA 13

XGA 14

XGA15

RESOLUTION

1024 x 768

1024 x 768

1024 x 768

(Interlace)

1024 x 768

1024 x 768

1024 x 768

MAC 19

MAC 21

1024 x 768

1152 x 870

SXGA 1 1152 x 864

SXGA 2 1280 x 1024

SXGA 3 1280 x 1024

SXGA 4 1280 x 1024

SXGA 5 1280 x 1024

SXGA 6 1280 x 1024

SXGA 7 1280 x 1024

SXGA 8 1280 x 1024

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

SXGA 11 1152 x 900

SXGA 12 1152 x 900

SXGA 13

SXGA 14

1280 x 1024

(Interlace)

1280 x 1024

(Interlace)

SXGA 15 1280 x 1024

SXGA 16 1280 x 1024

SXGA 17 1152 x 900

SXGA 18

1280 x 1024

(Interlace)

SXGA 19 1280 x 1024

SXGA 21 1400 x 1050

MAC

MAC

720p (HDTV)

1035i (HDTV)

1080i (HDTV)

1080i (HDTV)

1280 x 960

1280 x 1024

––––––––

(Progressive)

––––––––

(Interlace)

––––––––

(Interlace)

––––––––

(Interlace)

When a input signal is digital from DVI terminal, refer to chart below.

H-Freq.

(kHz)

31.47

31.47

31.25

37.879

43.363

63.98

V-Freq.

(Hz)

59.94

59.94

50.00

60.32

60.00

60.02

50.00

50.00

63.37

76.97

61.85

46.43

63.79

63.9

63.90

63.34

63.74

71.69

81.13

63.98

79.976

60.00

61.20

71.40

75.00

80.00

45.00

33.75

33.75

28.125

H-Freq.

(kHz)

62.04

61.00

35.522

46.90

47.00

58.03

60.24

68.68

64.20

62.50

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

D-SXGA2 1280 x 1024

60.276

D-SXGA3

D-720p

D-1035i

D-1080i

D-1080i

1280 x 1024

1280 x 720

( Progressive )

1920 x 1035

(Interlace)

1920 x 1080

( Interlace )

1920 x 1080

(Interlace)

31.65

45.00

33.75

33.75

28.125

43.00

47.00

60.01

72.00

66.00

43.35

60.18

60.00

60.00

59.98

60.01

67.19

76.107

60.02

75.025

60.00

65.20

75.60

75.08

75.08

60.00

30.00

30.00

25.00

V-Freq.

(Hz)

77.07

75.70

43.48

58.20

58.30

72.0

75.08

75.06

70.40

58.60

V-Freq.

(Hz)

58.069

29.8

60.00

30.00

30.00

25.00

NOTE : Specifications are subject to change without notice.

49

APPENDIX

MENU TREE

Input

Input

PC source

Input 1

Input 2

Input 3

System

1)

Mode 1

Mode 2

VGA 1

SVGA 1

XGA 1


Standard

Real

Image 1

Image 2

Image 3

Image 4

RGB

RGB( Scart)

RGB(PC Digital)

RGB( AV HDCP )

Monitor out

Video

Y, Pb/Cb, Pr/Cr

RGB

Video

Y, Pb/Cb, Pr/Cr

S-Video

Screen

PC adjust

SYSTEM

1)

SYSTEM

1)

SYSTEM

2)

SYSTEM

3)

SYSTEM

4)

SYSTEM

1)

SYSTEM

3)

SYSTEM

4)

SYSTEM

3)

Normal

True

Wide

Digital zoom +

Digital zoom -

Auto PC Adj.

Fine sync

Total dots

Horizontal

Vertical

Current mode

Clamp

Display area

Video source

Display area H

Display area V

Full screen

Reset

Mode free

Store

0 - 31

System

2)

System

3)

640 x 480

720 x 400

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1400 x 1050

1600 x 1200

Quit

System

4)


On/Off

Yes/No

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Quit

Screen

D-480p

Auto

1080i

1035i

720p

575p

480p

575i

480i

Auto

PAL

SECAM

NTSC

NTSC 4.43

PAL-M

PAL-N

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

Normal

Wide

Quit

50

APPENDIX

System

Setting

Sound

Language

Lamp mode

Keystone

Aspect V

Aspect H

Anamorphic

Blue back

Display

Menu position

Logo

Ceiling

Rear

Power management

On start

Remote control code

USB

Key lock

Lamp counter reset

Factory default

Volume

Built-in SP.

Mute

Quit

0 - 63

On/Off

On/Off

English

German

French

Italian

Spanish

Portuguese

Dutch

Swedish

Russian

Chinese

Korean

Japanese

Quit

Normal/Auto/Eco

Store/Reset

Store/Reset

Store/Reset

On/Off

On/Off

On/Off

On/Off

On/Off

On/Off

Off/Ready/Shut down

On/Off

Code 1

Code 2

Code 3

Code 4

Code 5

Code 6

Code 7

Code 8

Quit

Mouse

Projector

Off

Control panel

Remote control

Yes/No

Yes/No

Image adjust

Scale

Position

Scale

Position

Contrast

Brightness

Color

Tint

Color management

Auto picture control

0 - 63

Off/L1/L2

Color temp.

XLow/Low/Mid/High

Red

Green

0 - 63

0 - 63

Blue

Sharpness

Gamma

Noise reduction

Progressive

Reset

Store

0 - 63

0 - 63

0 - 63

0 - 63

0 - 63

0 - 31

0 - 15

On/Off

Off/L1/L2

Yes/No

Image 1

Image 2

Image 3

Image 4

Quit

Quit

51

APPENDIX

TECHNICAL SPECIFICATIONS

Projector Type

Dimensions

Net Weight

(W x H x D)

LCD Panel System

Panel Resolution

Number of Pixels

Color System

High Definition TV Signal

Scanning Frequency

Motorized Lens Shift

Horizontal Resolution

Projection Lamp

Input 1/Monitor Output Jacks

Input 2 Jacks

Input 3 Jacks

Other Jacks

Multi-media Projector

12.6" x 6.6" x 18.5" (319 mm x 168 mm x 429.5 mm)

17.4 lbs (7.9 kg)

1.3" TFT Active Matrix type, 3 panels

1024 x 768 dots

2,359,296 (1024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

480i, 480p, 575i, 575p, 720p, 1035i and 1080i

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Up and Down

800 TV lines (HDTV)

300 watt type

DVI Terminal (Digital) HDCP Compatible, HDB 15-pin Terminal (Analog) and Stereo Mini Type Jack (Audio)

BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H or H/V and V),

Stereo Mini Type Jack (Audio)

RCA Type x 3 (VIDEO/Y, Cb/Pb and Cr/Pr), RCA Type x 2 (Audio R and L) and DIN 4-pin (S-Video)

DIN 8-pin (Control port), USB port (Series B receptacle) and

Wired Remote Jack

INT. SP. Stereo (R and L), 2 watt RMS (T.H.D. 10%)

0˚ to 10.5˚

Built-in Speakers

Feet Adjustment

Voltage and

Power Consumption

Operating Temperature

Storage Temperature

Remote Control Transmitter

Accessories

AC 100 ~ 120 V (5.0 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)

AC 200 ~ 240 V (2.5 A Max. Ampere), 50 / 60 Hz (Continental Europe)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Power Source : AA, UM3 or R06 Type x 2

Operating Range : 16.4’ (5m) / ±30˚

Dimensions : 2.0” x 1.4” x 7.6” (50mm x 36mm x 193mm)

Net Weight

Laser Pointer

: 0.35 lbs (160 g) (including batteries)

: Class II Laser

(Max. Output : 1mW / Wave length : 650±20nm)

User’s Manual

AC Power Cord

Wireless/Wired Remote Control Transmitter and Batteries

Remote Control Cable

VGA Cable

USB Cable

Control Cable for Serial port

Protective Dust Cover

Lens Attachment

● Specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

52

APPENDIX

CONFIGURATIONS OF TERMINALS

COMPUTER INPUT-1 and MONITOR OUT TERMINALS (ANALOG)

Terminal : HDB15-PIN

Pin Configuration

5 4 3

15

10 9

14 13

8

2

12

7

1

11

6

6

7

4

5

8

1

2

3

Red Input

Green Input

Blue Input

Sense 2

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

12

13

14

15

9

10

11

+5V Power

Ground (Vert.sync.)

Sense 0

DDC Data

Horiz. sync.

Vert. sync.

DDC Clock

COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal : DVI 24-pin

Pin Configuration

1

9

2

10

17 18

3

11

4

12

19 20

5

13

21

6

14

7

15

8

16

22 23 24

6

7

4

5

8

1

2

3

T.M.D.S. Data2–

T.M.D.S. Data2+

T.M.D.S. Data2 Shield

No Connect

No Connect

DDC Clock

DDC Data

No Connect

12

13

14

15

16

9

10

11

T.M.D.S. Data1–

T.M.D.S. Data1+

T.M.D.S. Data1 Shield

No Connect

No Connect

+5V Power

Ground (for +5V)

Hot Plug Detect

20

21

22

23

24

17

18

19

T.M.D.S. Data0–

T.M.D.S. Data0+

T.M.D.S. Data0 Shield

No Connect

No Connect

T.M.D.S. Clock Shield

T.M.D.S. Clock+

T.M.D.S. Clock–

CONTROL PORT CONNECTOR

Terminal : Mini DIN 8-PIN

Pin Configuration

5

8 7 6

4 3

2 1

7

8

5

6

3

4

1

2

PS/2

-----

CLK

DATA

GND

-----

-----

GND

-----

Serial

R X D

-----

-----

GND

RTS / CTS

T X D

GND

GND

ADB

-----

ADB

-----

GND

-----

-----

-----

GND

USB CONNECTOR (Series B)

Pin Configuration

2 1

3 4

3

4

1

2

Vcc

- Data

+ Data

Ground

53

APPENDIX

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.

Standard Zoom Lens

Short Zoom Lens

Long Zoom Lens

Short Fixed Lens

Type No. : 38-809051-01

Type No. : 38-809047-01

Type No. : 38-809048-01

Type No. : 38-809049-01

LENS REPLACEMENT

The lens of this projector can be replaced with other optional lens which are sold separately. This feature enables you to use the projector for wide variety of uses.

For installation and replacement of the lens, always contact the sales dealer. The projector lens must be installed or replaced by well-trained sales or service engineers. Do not attempt to do by yourself as it may cause injury.

To the sales and service engineer;

Referring to the attached lens replacement and installation manual, replace or install the lens properly.

After installing the lens, attach the lens cap to the lens when setting up the projector.

Do not hold the lens when carrying or lifting the projector. It may cause serious damage to the projector.

54

APPENDIX

55

CHRISTIE DIGITAL SYSTEMS, Inc.

809 Wellington Street North

Kitchener, Ontario

Canada N2G 4Y7

Telephone (519) 744-8005

North America call toll-free

1-800-265-2171 (sales)

Fax (519) 749-3136

CHRISTIE DIGITAL SYSTEMS, Inc.

10550 Camden Drive

Cypress, CA 90630

USA

Telephone (714) 236-8610

Fax (714) 503-3385

Toll Free 1-800-407-7727

Toll Free 1-800-333-3816

CHRISTIE DIGITAL SYSTEMS, Inc.

ViewPoint

200 Ashville Way

Wokingham, Berkshire, U.K.

RG41 2PL

Telephone +44 118 977-8000

Fax +44 118 977-8100 [email protected]

CHRISTIE DIGITAL SYSTEMS, Inc.

Willicher Damm 129

D-41066 Mönchengladbach Germany

Telephone +49 2161 664540

Fax +49 2161 664546 [email protected]

CHRISTIE DIGITAL SYSTEMS, Inc.

627A Aljunied Road

#05-02 Biz Tech Centre

Singapore 389842

Telephone 65-877-8737

Fax 65-877-8747

Printed in Japan

Part No. 10-A 610 309 0559 (1AA6P1P4203-- MR3KL)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
