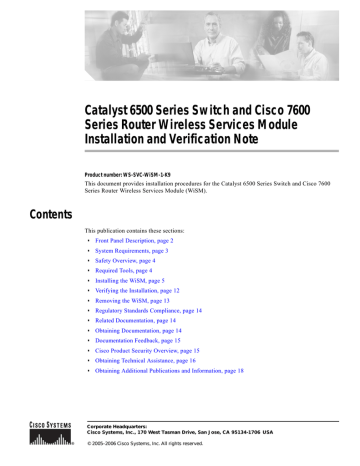

Cisco Systems 6500 Switch User Manual

Catalyst 6500 Series Switch and Cisco 7600
Series Router Wireless Services Module
Installation and Verification Note
Product number: WS-SVC-WiSM-1-K9
This document provides installation procedures for the Catalyst 6500 Series Switch and Cisco 7600
Series Router Wireless Services Module (WiSM).
Contents
This publication contains these sections:
•
Front Panel Description, page 2
•
System Requirements, page 3
•
Safety Overview, page 4
•
Required Tools, page 4
•
Installing the WiSM, page 5
•
Verifying the Installation, page 12
•
Removing the WiSM, page 13
•
Regulatory Standards Compliance, page 14
•
Related Documentation, page 14
•
Obtaining Documentation, page 14
•
Documentation Feedback, page 15
•
Cisco Product Security Overview, page 15
•
Obtaining Technical Assistance, page 16
•
Obtaining Additional Publications and Information, page 18
Corporate Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
© 2005–2006 Cisco Systems, Inc. All rights reserved.
Front Panel Description
Front Panel Description
The Cisco WiSM front panel (see Figure 1) includes a POWER LED, two STATUS LEDs, and two
CONSOLE ports.
The Compact Flash is internal; it is not a field-replaceable unit (FRU).
Figure 1
WiSM Front Panel
Status 1
LED
Power
LED
Status 2
LED
STATUS 1
POWER
STATUS 2
DISK 2
DISK 1
CONSOLE 1
Console 1
port
CONSOLE 2
137548
Note
Console 2
port
These sections describe the Cisco WiSM front panel:
•
LEDs, page 2
•
CONSOLE Ports, page 3
LEDs
The LEDs on the WiSM front panel indicate the status of the module. Table 1 lists the LEDs and their
functions.
Table 1
WiSM LEDs
LED
Color/Description
POWER
The POWER LED is green when the module is receiving power and is off
when power is removed.
STATUS 1
STATUS 2
The STATUS LEDs shows the status as follows:
•
Orange—Booting the bootloader and running diagnostics
•
Green (flashing)—Software is accessing the Compact Flash
•
Green—Controller is initializing
•
Off—Controller is running normally
Catalyst 6500 Series Switch and Cisco 7600 Series Router Wireless Services Module Installation and Verification Note
2
78-17121-04
System Requirements
CONSOLE Ports
The CONSOLE ports allow you to access each controller either locally (with a console terminal) or
remotely (with a modem). The CONSOLE ports are EIA/TIA-232 asynchronous, serial connections with
hardware flow control and RJ-45 connectors.
System Requirements
These sections describe the hardware and software requirements:
•
Hardware Components, page 3
•
Power Requirements, page 3
•
Software Requirements, page 4
Hardware Components
The Catalyst 6500 series or Cisco 7609 or 7613 chassis in which the Cisco WiSM is installed requires a
Supervisor 720 module. The supported slots for the Cisco WiSM are listed in Table 2.
Table 2
Supported Slots for the Cisco WiSM
Slot
Catalyst 6503
Catalyst 6504
Catalyst 6506
Catalyst 6509
Cisco 7609
Catalyst 6513
Cisco 7613
1–3
x
x
x
x
–
4
–
x
x
x
–
5–6
–
–
x
–
–
7–8
–
–
–
x
–
9
–
–
–
x
x
10–13
–
–
–
–
x
Power Requirements
The Cisco WiSM module requires 254W for operation. Make sure that your chassis can provide this
power.
Note
All Catalyst 6500 chassis (except the Catalyst 6503) require the fan tray 2 module, which requires the
2500W power supply for proper operation. For planning purposes, be aware that the 2500Wt power
supply requires a 20A input power circuit with a NEMA plug.
You can use the show power command to view power details for your installation, including the system
power available and power statistics for installed power supplies and cards.
Catalyst 6500 Series Switch and Cisco 7600 Series Router Wireless Services Module Installation and Verification Note
78-17121-04
3
Safety Overview
Software Requirements
Before you install the WiSM into the chassis, make sure that the module and the chassis meet the
software requirements. Refer to the Release Notes for Cisco Wireless LAN Controllers and Lightweight
Access Points at this URL:
http://www.cisco.com/univercd/cc/td/doc/product/wireless/control/c44/index.htm
Safety Overview
Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may
harm you. A warning symbol precedes each warning statement.
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this
device. Statement 1071
SAVE THESE INSTRUCTIONS
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Blank faceplates and cover panels serve three important functions: they prevent exposure to
hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI)
that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not
operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Statement 1029
Required Tools
These tools are required to install the WiSM in the Catalyst 6500 series switches or the Cisco 7600 series
routers:
•
Number 2 Phillips screwdriver
•
Antistatic mat or antistatic foam
•
Your own electrostatic discharge (ESD) grounding strap or the disposable ESD strap included with
the system
Catalyst 6500 Series Switch and Cisco 7600 Series Router Wireless Services Module Installation and Verification Note
4
78-17121-04
Installing the WiSM
Warning
Blank faceplates and cover panels serve three important functions: they prevent exposure to
hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI)
that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not
operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Statement 1029
Installing the WiSM
This section describes how to install the WiSM in the Catalyst 6500 series switches or the Cisco 7600
series routers.
Caution
Note
To prevent ESD damage, handle modules by the carrier edges only and wear grounding wrist straps.
Specific combinations of supervisor engines and modules may not be supported in your chassis. Refer
to the release notes of the software version running on your system for specific information on modules
and supervisor engine combinations that are not supported.
To install the WiSM in the chassis, follow these steps:
Step 1
Choose a slot for the WiSM.
Step 2
Verify that there is enough clearance to accommodate any interface equipment that you will connect
directly to the WiSM ports. If possible, place modules between empty slots that contain only module
filler plates.
Step 3
Verify that the captive installation screws are tightened on all modules installed in the chassis. This
assures that the EMI gaskets on all modules are fully compressed in order to maximize the opening space
for the new module or the replacement module.
Note
If the captive installation screws are loose, the EMI gaskets on the installed modules will push
adjacent modules toward the open slot, reducing the opening size and making it difficult to
install the replacement module.
Step 4
Remove the module filler plate by removing the two Phillips pan-head screws from the filler plate.
To remove a module, see the “Removing the WiSM” section on page 13.
Step 5
Fully open both ejector levers on the WiSM. (See Figure 2.)
Step 6
Depending on the orientation of the slots in the chassis (horizontal or vertical), perform one of the
following two sets of substeps.
Catalyst 6500 Series Switch and Cisco 7600 Series Router Wireless Services Module Installation and Verification Note
78-17121-04
5
Installing the WiSM
Horizontal slots
Caution
a.
Position the WiSM in the slot. (See Figure 2.) Make sure that you align the sides of the module
carrier with the slot guides on each side of the slot.
b.
Carefully slide the WiSM into the slot until the EMI gasket along the top edge of the module makes
contact with the module in the slot above it and both ejector levers have closed to approximately 45
degrees with respect to the module faceplate. (See Figure 3.)
c.
Using the thumb and forefinger of each hand, grasp the two ejector levers and press down to create
a small (0.040 inch [1 mm]) gap between the module’s EMI gasket and the module above it.
(See Figure 3.)
Do not press down too hard on the levers. They will bend and be damaged.
d.
Note
e.
Note
f.
While pressing down, simultaneously close the left and right ejector levers to fully seat the
supervisor engine or module in the backplane connector. The ejector levers are fully closed when
they are flush with the module faceplate. (See Figure 4.)
Failure to fully seat the module in the backplane connector can result in error messages.
Tighten the two captive installation screws on the WiSM.
Make sure the ejector levers are fully closed before tightening the captive installation screws.
Verify that the WiSM STATUS LED is lit. Check the STATUS LED periodically. If the STATUS
LED changes from orange to green, the WiSM has successfully completed the boot process and is
now online. If the STATUS LED remains orange or turns red, the WiSM has not successfully
completed the boot process and may have encountered an error.
Catalyst 6500 Series Switch and Cisco 7600 Series Router Wireless Services Module Installation and Verification Note
6
78-17121-04
Installing the WiSM
Figure 2
Positioning the Module in a Horizontal Slot Chassis
Insert module
between slot guides
EMI gasket
3
4
5
6
4
5
6
WS-X6K-SUP2-2GE
1
T
E
US
NS
ST
SY
GM
OL
EM
AT
ST
R
CO
M
Switch
100%
T
SE
PW
Load
CONSOLE
PORT
MODE
RE
PORT 1
PORT 2
CONSOLE
SUPERVISOR2
PCMCIA
EJECT
1%
WS-X6K-SUP2-2GE
2
T
E
US
NS
ST
SY
GM
OL
EM
AT
ST
CO
R
PW
M
Switch
100%
T
SE
Load
CONSOLE
PORT
MODE
RE
PORT 1
PORT 2
CONSOLE
SUPERVISOR2
PCMCIA
EJECT
1%
3
4
FAN
STATUS 5
6
WS-X6224
US
VE
AT
TI
AC
SE
LE
24 PORT 100FX
NE
EMI gasket
CT
XT
58569
ST
o
o
INPUT
OK
FAN
OK
OUTPUT
FAIL
INPUT
OK
FAN
OK
OUTPUT
FAIL
WS-C6500-SFM
US
AT
ST
E
TIV
AC
SWITCH FABRIC MDL
Ejector lever fully
extended
Catalyst 6500 Series Switch and Cisco 7600 Series Router Wireless Services Module Installation and Verification Note
78-17121-04
7
