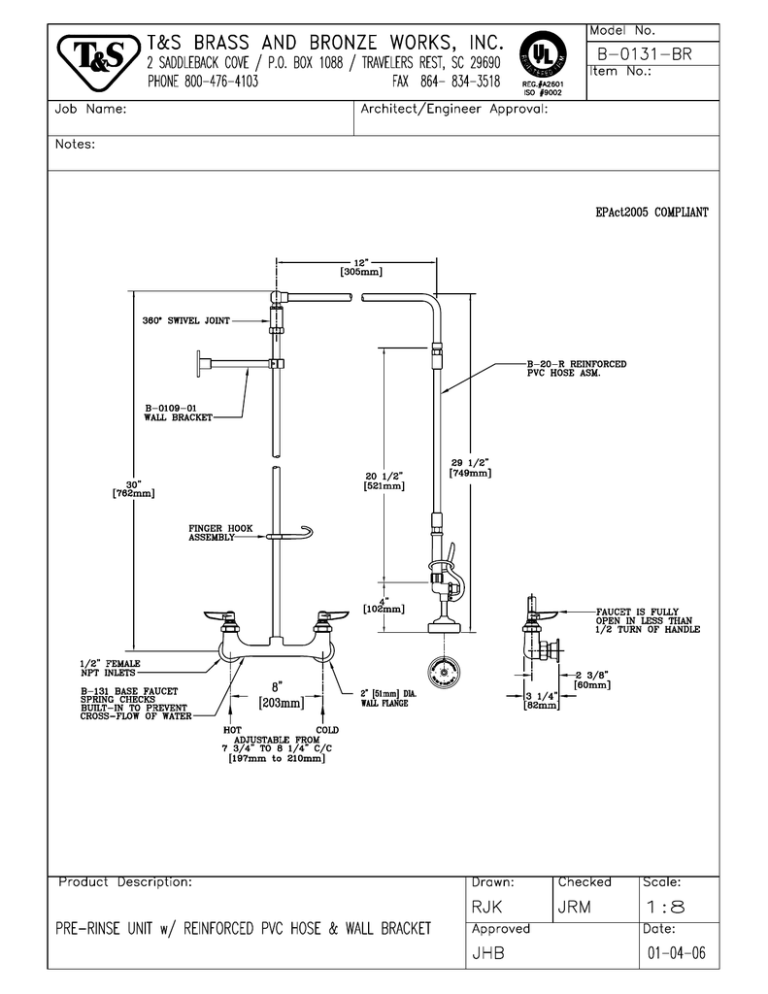

 T&S BRASS AND BRONZE WORKS, INC.
1aS 2 SADDLEBACK COVE / P.O. BOX 1088 / TRAVELERS REST, SC 29690
PHONE 800-476-4105 FAX 864- 854-3518
REG
#A2601
ISO #9002
Model No.
B-0131-BR
Item No.:
Job Name: Architect /Engineer Approval:
Notes:
12”
[305mm]
| y a ON
360° SWIVEL JOINT
_ TES
B—0109—01
WALL BRACKET
~ 29 1/2"
20 1 /2” [749mm]
[762 ] [521mm]
mm
FINGER HOOK
ASSEMBLY—C 1 —>
4”
Ho
1/2" FEMALE |
EPAct2005 COMPLIANT
R REINFORCED
PVC HOSE ASM.
FAUCET IS FULLY
OPEN IN LESS THAN
1/2 TURN OF HANDLE
NPT INLETS | — 2 3/8"
B—131 BASE FAUCET | 8” | 2" [5tmm] DIA ,| [60mm]
mm] DIA. 3 1/4
A As mi AS Boca
CROSS-FLOW OF WATER
HOT COLD
ADJUSTABLE FROM
7 3/4" To 8 1/4" C/C
[197mm to 210mm]
Product Description: Drawn: Checked Scale:
RJK JRM 1:8
PRE-RINSE UNIT w/ REINFORCED PVC HOSE de WALL BRACKET Approved Date:
JHB 01-04-06
