 Model No.
T&S BRASS AND BRONZE WORKS, INC. 5-0405—03
Le S/ > siomenier ve / Po, BOX 1088 / TRAVELERS REST, SC 29690 ELO Пет
PHONE 800-476-4103 FAX 804— 834-3518 TA I
Job Name: Architect/Engineer Approval:
Notes:
3/8” NPT ATMOSPHERIC TYPE
VACUUM BREAKER. NOT FOR
CONTINUOUS PRESSURE
NE 1
И
|
3/8” NPSM FEMALE OUTLET w/
STREAM REGULATOR |
| 8 7/8”
[226mm]
5 8 9/16” |
[218mm |
41/2"
[115mm] |
|
y == y
3/8” NPT MALE INLET.
FITS STANDARD T&S
3/8” RIGID BASES.
Product Description: Drawn: Checked Scale:
WJS JKD 1:2

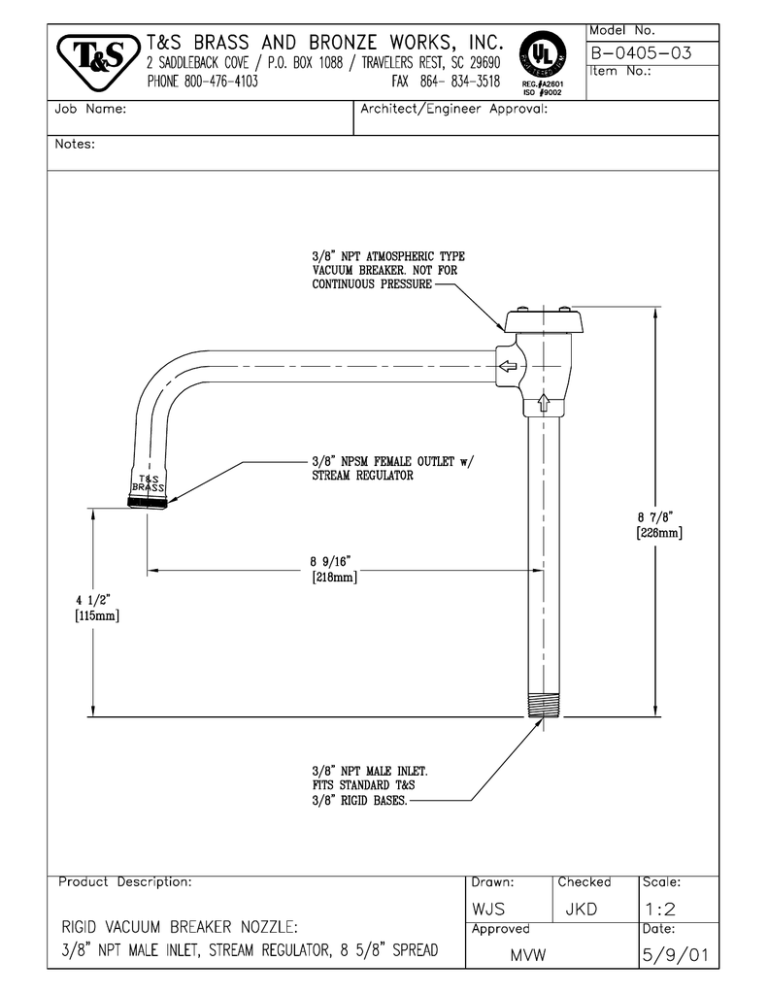

RIGID VACUUM BREAKER NOZZLE: Approved Date:
3/8" NPT MALE INLET, STREAM REGULATOR, 8 5/8" SPREAD VW 5/9/01
