 Model No.
T&S BRASS AND BRONZE WORKS, INC. 3-0406-03
1aS 2 SADDLEBACK COVE / P.O. BOX 1088 / TRAVELERS REST, SC 29690 Qed Tor Noo
PHONE 800-476-4103 FAX 804- 834-3518 TA -
Job Name: Architect/Engineer Approval:
Notes:

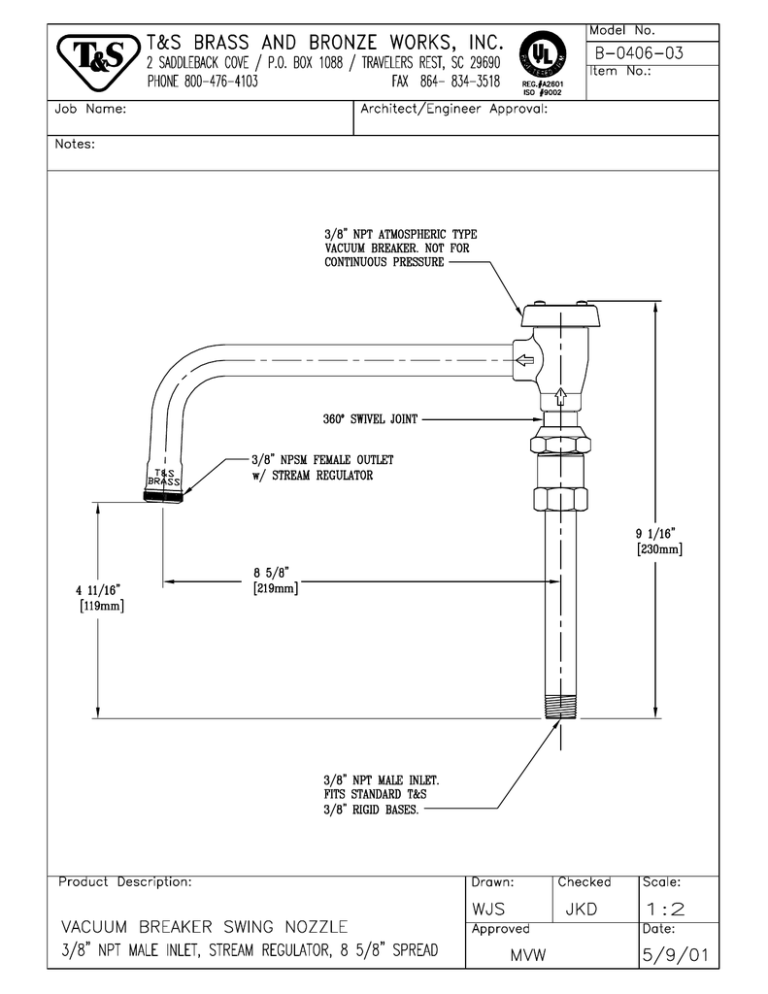

3/8” NPT ATMOSPHERIC TYPE
VACUUM BREAKER. NOT FOR
CONTINUOUS PRESSURE
A
7 —_— _
360° SWIVEL JOINT
| 3/8" NPSM FEMALE OUTLET
be Ss w/ STREAM REGULATOR
|
| 9 1/16”
[230mm]
_ 8 5/0 _
4 11/16” a [219mm] —
[119mm]
|
|
y = y
3/8" NPT MALE INLET.
FITS STANDARD T&S
3/8" RIGID BASES.
Product Description: Drawn: Checked Scale:
WJS JKD 1:2
VACUUM BREAKER SWING NOZZLE Approved Date:
3/8" NPT MALE INLET, STREAM REGULATOR, 8 5/8" SPREAD VW 5/9/01
