 Model No.
T&S BRASS AND BRONZE WORKS, INC. 3_0409-07
185 2 sontemcx oie / po. Bot 1088 / TRVELERS REST, SC 29680 em No
PHONE 800-476-4105 FAX 804- 834-3518 rec frac о
Job Name: Architect /Engineer Approval:
Notes:
B—0968

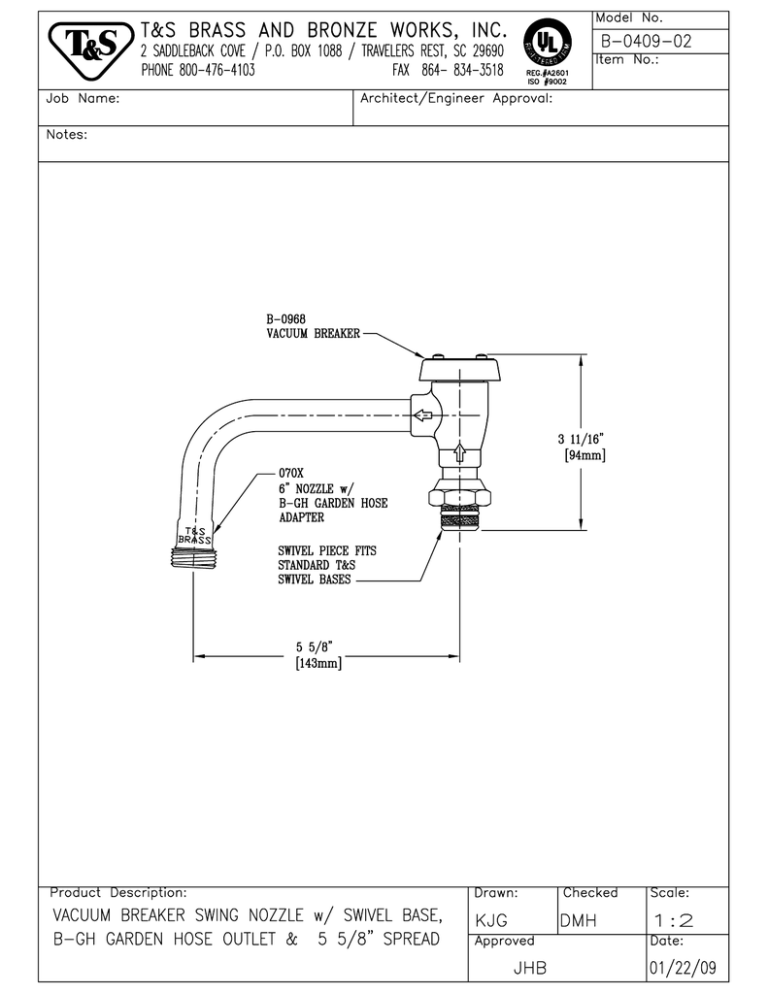

VACUUM BREAKER
| | |
3 11/16”
[94mm |
070X
6" NOZZLE w/ |
B—GH GARDEN HOSE pvc
ADAPTER ESTA
4 |
SWIVEL PIECE FITS
STANDARD T&S
SWIVEL BASES
- 5 5/8" _
[143mm]
Product Description: Drawn: Checked Scale:
VACUUM BREAKER SWING NOZZLE w/ SWIVEL BASE, |KJC MH 1-95
B—GH GARDEN HOSE OUTLET & 5 5/8" SPREAD Approved Date:
JHB 01/22/09
