 T&S BRASS AND BRONZE WORKS, INC.
Model No.
185) 2 sionieaick corr / 70. Box 1088 / TRAELERS REST, SC 29690 2009-04
PHONE 800-476-4105 FAX 804- 834-3518 rec frac о
Job Name: Architect /Engineer Approval:
Notes:
B—0968
VACUUM BREAKER DD
|
SWIVEL PIECE FITS
STANDARD T&S
N SWIVEL BASES
072X
12” NOZZLE w/ B-GH
GARDEN HOSE OUTLET
I 11 5/8"
3 11/16”
[94mm]
[295mm]

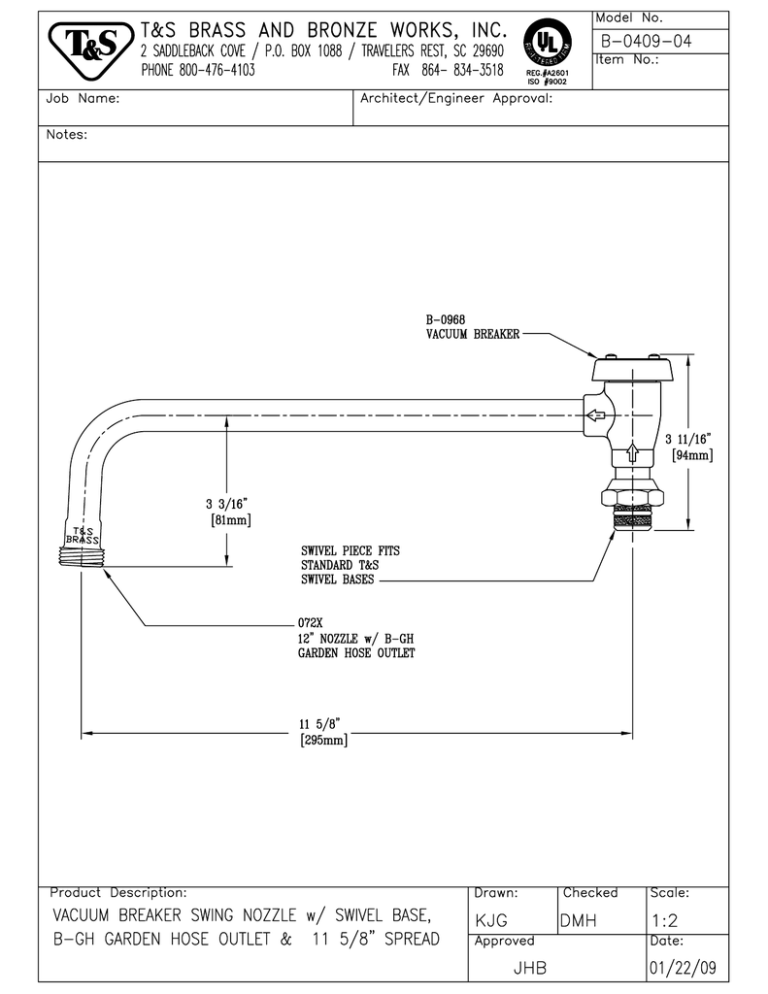

Product Description: Drawn: Checked Scale:
VACUUM BREAKER SWING NOZZLE w/ SWIVEL BASE, | кос DMH 1:9
B—GH GARDEN HOSE OUTLET & 11 5/8" SPREAD Approved Date:
JHB 01/22/09
