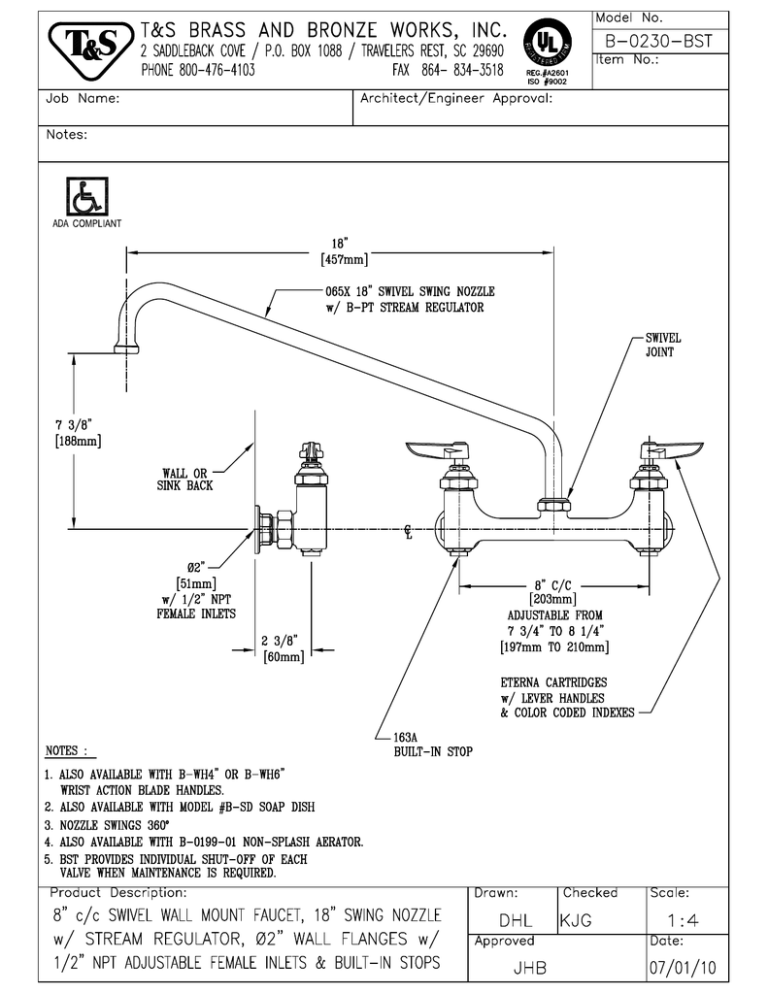

 Model No.
T&S BRASS AND BRONZE WORKS, INC. 3-0230-BST
D&S > sionenicr ce / Po. BOX 1088 / TRAVELERS REST, Se 200907 QUES em =>
PHONE 800-476-4105 FAX 804— 834-3518 rec faze о
Job Name: Architect/Engineer Approval:
Notes:
ADA COMPLIANT
— 18" —
[457mm] Ш
065X 18” SWIVEL SWING NOZZLE
w/ B-PT STREAM REGULATOR
SWIVEL
JOINT
7 3/8
[188mm] 4 <=
WALL OR — и
SINK BACK Lil s
Ï E of
DAS о
= 1 N
= = =
02
[51mm] 8" C/C — =
w/ 1/2" NPT [203mm |
FEMALE INLETS ADJUSTABLE FROM
n 7 3/4" TO 8 1/4
238 |__ [197mm TO 210mm]
[60mm]
ETERNA CARTRIDGES
w/ LEVER HANDLES
& COLOR CODED INDEXES
163A
NOTES : BUILT-IN STOP
1. ALSO AVAILABLE WITH B-WH4" OR B-WH6"
WRIST ACTION BLADE HANDLES.
2. ALSO AVAILABLE WITH MODEL #B-SD SOAP DISH
3. NOZZLE SWINGS 360°
4. ALSO AVAILABLE WITH B-0199-01 NON-SPLASH AERATOR.
5. BST PROVIDES INDIVIDUAL SHUT-OFF OF EACH
VALVE WHEN MAINTENANCE IS REQUIRED.
Product Description: Drawn: Checked Scale:
8” c/c SWIVEL WALL MOUNT FAUCET, 18" SWING NOZZLE DHL Кос 1-4
w/ STREAM REGULATOR, @2" WALL FLANGES w/ Approved Date:
1/2" NPT ADJUSTABLE FEMALE INLETS & BUILT-IN STOPS JHB 07/01/10
