 T&S BRASS AND BRONZE WORKS, INC.
1aS 2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690 WES rors
PHONE 800-476-4103 FAX 803- 834-3518 mec.meso 0
Model No.
B—-0491—01
ISO #9002
Job Name: Architect/Engineer Approval:
Notes:
ADA COMPLIANT
1/2” IPS VACUUM BREAKER
1/2” X 60” NIPPLE
PIPE RISERS
~~
SUPPLIED WITH BRACKETS
TO BE FIELD CUT TO SIZE.
= — —— WALL, BRACKETS. PIPE
TYP. OF 2).
Ц ( )
LB 7/8 —— T wa.
[225mm]
MAX.
Ш ПОЙ
5’—0” — | 3 | ———
[1524mm] 76mm]
ME |
ar =
1 1/4" L=-8 1/4"— 1/2" IPS FEMALE
[32mm] San] INLET
- = =
INLETS ADJUSTABLE FROM VARIES .
2 1/4” ТО 8 1/4” С/С 8 |
[67mm to 210mm] [78mm]
BELOW OR ABOVE С,
PARTIAL FRONT VIEW
1. ALSO AVAILABLE IN ROUGH CHROME
2. RAISED VAC. BREAKER ASSEMBLY SHIPPED UNASSEMBLED
3. NSF STANDARD 61, SECTION 9 CERTIFIED.

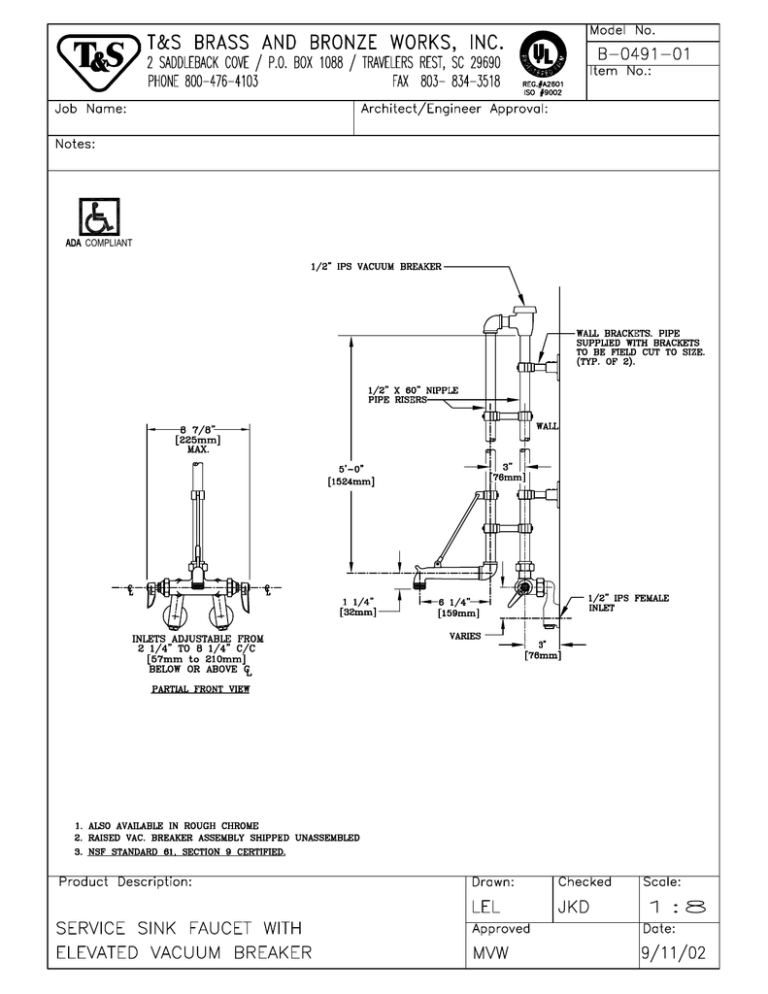

Product Description: Drawn: Checked Scale:
LEL JKD 1 15
SERVICE SINK FAUCET WITH Approved Date:
ELEVATED VACUUM BREAKER MVW 9/11/02
