 Model No.
T&S BRASS AND BRONZE WORKS, INC. 3-0673-RCH
189 2 sontemcx Cove / Po. Bot 1088 / TRAELERS REST, SC 29690 a
PHONE 800-476-4103 FAX 804— 834-3518 nec p25 I
Job Name: Architect/Engineer Approval:
Notes:
ADA COMPLIANT
- 12 1/2" MAX -
[318mm]

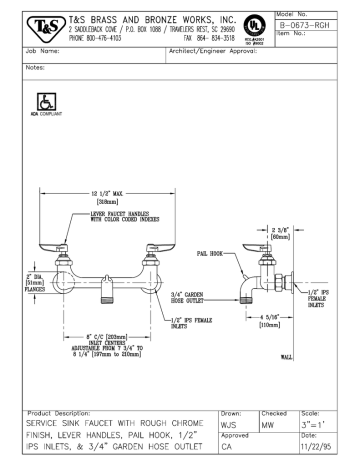

LEVER FAUCET HANDLES
WITH COLOR CODED INDEXES
PAIL. HOOK
[51mm] | y — № — | -—
TT = 3/4" GARDEN Le ES
| HOSE OUTLET INLETS
1/2" IPS FEMALE ——4 5/18 —
| | INLETS [110mm]
— és Em -——
ADJUSTABLE FROM 7 3/4" TO
8 1/4" [197mm to 210mm] WALL
Product Description: Drawn: Checked Scale:
SERVICE SINK FAUCET WITH ROUGH CHROME |wJys MW 34)
FINISH, LEVER HANDLES, PAIL HOOK, 1/2” Approved Date:
IPS INLETS, & 3/4” GARDEN HOSE OUTLET CA 11/22/95
